Product type	Tea maker
Brand	Ariete
Model	2894
Power supply	Mains (voltage and frequency on label)
Capacity	Approximately 1.5 L (do not exceed MAX level)
Infusion temperature range	70°C to 100°C, adjustable in steps
Adjustable infusion time	30 seconds to 8 minutes
Keep warm	Yes, up to 20 minutes after infusion
Automatic shut-off	Yes, 30 seconds after cycle end
Tea filter	Removable, filter holder included
Display	Digital, with temperature and time programming
Power base	With cord reel
Maintenance	Clean with a damp non-abrasive cloth; do not wash in dishwasher
Descaling	Use exclusively Ariete NOCAL descaling product based on citric acid
Safety	Do not use without water; do not open lid during boiling
Repairs	Exclusively by Ariete authorized service centers
Compliance	Directives 2006/95/EC, 2004/108/EC, Regulation (EC) No 1935/2004

Frequently Asked Questions - 2894 ARIETE

How to use the appliance for the first time?

Before first use, boil water two to three times, then empty and rinse the carafe. This removes manufacturing residues.

How much water should I put in the carafe?

The water level should be between the minimum (about 2 cups) and the MAX level indicated on the carafe. Never exceed MAX to avoid hot water overflow.

Can I use another carafe?

No, use only the carafe provided with the appliance. Any other carafe may not be compatible and could pose a risk.

How to clean the appliance?

Unplug the appliance and let it cool. Clean the carafe and base with a damp non-abrasive cloth. Never wash parts in the dishwasher and do not use direct water spray.

Why is the tea not flowing or flowing slowly?

This is likely due to a clogged tea filter. Remove the filter and clean it thoroughly with hot water and a toothbrush if necessary to remove residues.

How to descale the appliance?

Use exclusively Ariete NOCAL descaling product based on citric acid. Follow the instructions provided with the product. Do not use non-compliant chemical descalers.

What to do if the appliance does not turn on?

Check that the power outlet is live and the plug is properly inserted. Ensure the cord is not damaged. If the problem persists, contact an Ariete authorized service center.

Can I leave the appliance unattended?

No, never leave the appliance plugged in unattended. Unplug it when not in use.

How to adjust the infusion temperature?

Press the temperature programming button (13), then use the + (9) and - (12) buttons to select the temperature between 70°C and 100°C.

What do the two beeps mean?

The two beeps indicate that the infusion cycle is complete and the tea is ready to enjoy. The appliance turns off automatically after 30 seconds.

USER MANUAL 2894 ARIETE

Do Longhi Appliances St

Dinse e Commerisio A 02 Ma San Quo, 110

00213 Camel Esergio (E) - Italy

E-mail: [e-mail]

Internet www.anesc.net

Illustration of a portable device with a lid and control panel, labeled 'Ariete' at the bottom (no other text or symbols)

A proposITo dI quesTo mAnuAle

WITH REGARD TO THIS MANUAL

Even if the appliances are made in conformity with the European regulatory specifications in force and therefore all potentially hazardous parts are protected. Carefully read these warnings and use the appliance only for the use it is designed for in order to prevent accidents and damage. Keep this manual close by for future consultation. If you should decide to give this appliance to other people, remember to also include these instructions.

INTENDED USE

You can use the appliance to prepare tea and infusions. Use only the jug supplied. Any other use of the appliance is not intended by the Manufacturer who does not accept any responsibility for damages of any kind caused by improper use of the appliance itself. Improper use also results in any form of warranty being forfeited.

WARNINGS ON BURNS

• Never fill the appliance beyond the maximum limit; there is a risk of spurts of boiling water.
• Hot water, the jug and the power base may become very hot during the preparation of tea. Do not touch the power base when the unit is in operation, and the next few minutes after it is turned off.
  • Always close the lid of the jug before putting the appliance into operation.
• WARNING: do not remove the lid while the water is boiling.
• Lift the jug by its handle.

IMPORTANT SAFEGUARDS

READ THESE INSTRUCTIONS CAREFULLY.

• This appliance is designed solely for household and similar uses such as:
• in cooking areas used by personnel of shops, offices and other professional environments;
• on farms;
• guests of hotels, motels and other residential environments;
• bed and breakfast type of environments.
• We decline any responsibility resulting from misuse or any use other than those covered in this booklet.
• We suggest you keep the original box and packaging, as our free-of-charge service does not cover any damage resulting from inadequate packaging of the product when this is sent back to an Authorised Service Centre.
• Using accessories not recommended or not supplied by the manufacturer of the appliance may entail risks of fire, electric shock or injuries to people.
• This product complies with the 2006/95/EC Directive and EMC Directive 2004/108/EC. The appliance complies with Regulation (EC) No 1935/2004 of 27/10/2004 on the materials in contact with food.
• Do not allow use by persons (including children) with reduced mental and physical- sensory, or with insufficient experience and knowledge, unless they are carefully supervised and instructed by someone responsible for their safety.
  • Children shall not play with the appliance.
• Do not let the power cord hang in a place where it could be grasped by a child.
• Do not leave the packaging near children because it is potentially dangerous.
• In the event that this appliance is to be disposed of, it is suggested that the power chord is cut off. It is also recommended that all potentially dangerous components are rendered harmless to prevent children hurting themselves when playing with the apparatus.
• Unplug from outlet when not in use and before any maintenance or cleaning.
• Always turn off the appliance and unplug the power cord from the electrical outlet before filling the jug with water. Do not go past the MAX level.
• Do not immerse the appliance in water or other liquids.

- Never let the live parts come into contact with water: risk of short circuit.

- Never leave the appliance unattended when it is connected to the power supply.

- The appliance must be used and rested on a stable surface.

- The appliance is not to be used if it has been dropped, if there are visible sign of damage or if it is leaking. Do not use the appliance if the power cord or the plug are damaged, or if the appliance is faulty. To prevent any accident, all repairs, including the replacement of the power cord, must be carried out by an Authorised Service Centre or, in any case, by qualified personnel.

- Place the appliance in an adequately illuminated environment and with power outlet easily accessible.

- WARNING: do not use the appliance on an inclined surface.

- WARNING: make sure the appliance is turned off before removing the jug from the power base.

- Do not lift the appliance by grasping its body or the power base, but hold it by the handle.

- Use the power supply base supplied only: keep the base clean and dry.

- Never fill the appliance beyond the maximum limit; there is a risk of spurts of boiling water.

- Make sure you have correctly placed the lid on the jug before turning on the appliance.

- Do not operate the appliance without water.

- Never fill the jug with hot or boiling water.

- The cable must not touch the hot parts of the appliance.

- The product cannot be powered by external timers or with separate remote control systems.

- Do not touch the hot surfaces. Use pot holders or tea towels.

- Do not use sparkling (carbonated) water.

- Never use the appliance outdoors.

- Never put the appliance on or near gas stoves or electric hotplates.

- Do not expose the appliance to atmospheric agents (rain, sun ...).

- Before cleaning the appliance always unplug it and allow it cool down. Clean only with a non-abrasive cloth that has been slightly dampened with water, adding a few drops of mild, non-aggressive detergent (never use solvents that damage plastic).

- For proper disposal of the product pursuant to the European Directive 2009/96/EC please read the relevant leaflet enclosed with the product.

- SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

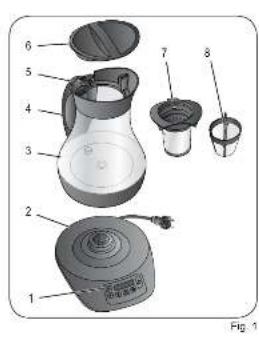

DESCRIPTION OF THE APPLIANCE

1 - Controls

2 - Power supply base

3 - Jug

4 - Handle

5 - Water outlet hole for infusion

6 - Lid

7 - Filter holder

8 - Tea filter

9 - Time/temperature increase button

10 - Display

11 - Infusion start/delete button

12 - Time/temperature decrease button

13 - Infusion temperature setting button

14 - Infusion time setting button

15 - Temperature hold function button

16 - Cord storage device

17 - Power cord + Plug
18 - Reference on the cover
19 - Lid opening position
20 - Filter holder with filter extraction position
21 - Lid closing position

Identification data

The label under the power base shows the following identification data of the appliance:

• manufacturer and CE mark • electrical supply voltage (V) and frequency (Hz)
• model (Mod.) - absorbed electric power (W)
• serial number (SN) • assistance toll-free number

Always give the model and serial number to the Authorised Service Centres when requesting assistance.

PRELIMINARY PHASES FOR USE

Using the appliance for the first time

Before connecting the appliance to the mains check that the voltage indicated on the label under the power base matches with the local mains. Place the appliance on a horizontal and stable surface.

Warning!

Do not place the appliance or power cord close to or on top of hot electric or gas cookers, or close to a microwave oven.

Prevent the cord from protruding beyond the edge of the table or surface. Prevent children from grabbing the cord, in this way tipping over the appliance.

If the power cord is too long, wrap it under the power supply base (Fig. 3). The cable must not touch the hot parts of the appliance.

Position the appliance so that children cannot reach the hot parts.

INSTRUCTIONS FOR USE

Warning!

The water filling and emptying operations must be carried out with the jug separated from the power base.

Do not use the jug without water.

Boil the water the first time the appliance is turned on. Drain and rinse the jug. Repeat the operation two or three times.

Remove the jug from the power supply base. Rotate the lid in the filter holder extraction position (20). Remove the filter holder from the jug (Fig. 5). Fill the jug with fresh plain water to the desired level (Fig. 6). The level should never be less than two cups (Fig. 7).

Do not exceed the level indicated by MAX: danger of leakage of hot water from the jug.

Turn the lid in position (X19). Remove the lid and extract the tea filter (Fig. 8). Place the desired amount of tea in the filter. Place the tea filter in the filter holder. Place the filter holder into the jug. Close the lid and rotate it to align the reference with the closing symbol (21). Place the jug on the power base (2).

Insert the plug into the socket, which must be earthed. You will hear two beeps. Press the infusion start/delete button (11). The display shows the last temperature set. If you do not press any button, after 30 seconds the appliance turns off.

Press the infusion time button (14). The buttons (9) and (12) flash. Press the buttons to set the desired infusion time from 30 seconds to 8 minutes.

Press the infusion temperature setting button (13). The buttons (9) and (12) flash. Press the buttons to set the desired infusion temperature, from 70^ C ( 158^ F) up to 100^ C ( 212^ F).

	Temperature (°C)	Quantity (g)	Infusion time (minutes)
White Tea 70/80° (158-176°F) 2-3 3/4
Green tea 80° (176°F) 2-3 3/4
Oolong Tea 80° (176°F) 2-3 2/3
Black Tea 90/100° (194/212°F) 2-3 3/4
Fruity tea 90/100° (194/212°F) 2-3 3/4

If we want to maintain the temperature of the tea after the preparation phase has finished, press the function button (15). Press the infusion start/delete button (11) to start the preparation of tea.

When the water reaches the set temperature the key (13) stops flashing. The water pump is activated and continuously draws water from the jug bringing it in the filter holder. The infusion comes out of the filter holder that falls in the jug. The infusion phase will last time previously set. When you hear two beeps it means that also the infusion phase is terminated and the tea is ready to be tasted. The appliance turns off automatically after 30 seconds.

If you set the temperature hold function, it remains active for 20 minutes keeping the tea hot. At the end the appliance turns off automatically.

During the water heating and the infusion phase all buttons are disabled except the infusion start/delete button (11).

To stop the tea preparation cycle at any time, press the button (11).

Warning!

Do not open the lid of the jug while the water is boiling. Danger of spurts of boiling water.

Make sure the appliance is turned off before lifting the jug from the power base.

Lift the jug by its handle. Remove the jug from the power base. Pour the tea into the cups. After each use, empty the tea remained in the jug.

The presence of droplets of water under the jug is completely normal: it is only condensation.

To save energy: boil only the water needed; even if the appliance is turned off, the tea remains at the best temperature ( 90^ C/194°F) for more than 5 minutes; when not in use, always remove the plug from the power outlet.

CLEANING THE APPLIANCE

Warning!

All cleaning operations described below must be made with power off and the electrical plug disconnect from the power outlet.

Regular maintenance and cleaning preserve and maintain the appliance efficient for a longer period.

Never wash the appliance components in the dishwasher. Do not use direct jets of water.

All operations must be performed when the machine is cold.

Jug and the power base cleaning

Warning!

Do not wash the appliance in a dishwasher.

Clean the appliance using a damp, non-abrasive cloth so as to not damage the body. Dry.

Cleaning the filter holder

The filter holder must be cleaned periodically with warm water and simple detergent.

Tea filter cleaning

The tea filter must be cleaned periodically with warm water and simple detergent. If the tea does not come out from the filter holder or comes out slowly it is necessary to remove the tea residues inside it. If necessary, use a brush.

Prevent waste tea leaves from entering the jug as they could be sucked by the pump and clog the water circulation ducts.

Removing lime

A good maintenance and regular cleaning preserve and maintain the appliance efficient for a longer period greatly reducing the risk of scale formation. However, should your coffee machine fail to work properly as a result of the frequent use of hard, high calcium content water, you may perform a decalcification procedure to restore its operational efficiency. For this purpose you must use only the Ariete citric acid-based decalcifying products (NOCAL). This product is easily found at the Ariete technical service centres. Ariete does not assume any responsibility whatsoever for damage to components inside the machine caused by the use of non-compliant products containing chemical additives. Should you need to decalcify your appliance, please follow the instructions which come with the decalcifying product.

PUTTING OUT OF SERVICE

In the case of decommissioning of the appliance, it must be electrically disconnected. Cut the power cord. In case of scrapping you will be required to separate the various materials used in the construction of the appliance and dispose of them according to their composition and to the applicable laws in the country of use.
