Product Type	Hi-Fi System
Brand	Blaupunkt
Model	MS5BK
Dimensions (W x H x D)	300 x 200 x 150 mm
Weight	2.5 kg
Power Supply	100-240V AC, 50/60Hz
Power Consumption	30 W (max)
Output Power (RMS)	2 x 20 W
Disc Playback	CD, CD-R, CD-RW
Radio Tuner	FM with RDS
USB Playback	MP3, WMA
Bluetooth	Yes, version 4.2
AUX Input	3.5 mm stereo jack
Remote Control	Included
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use solvents.
Safety Instructions	Keep away from moisture and heat sources. Do not open the device.
Spare Parts Availability	Contact Blaupunkt service center for spare parts.
Repairability	Repairs should be carried out by qualified personnel only.
General Information	Designed for home use. Supports multiple audio sources.

Frequently Asked Questions - MS5BK BLAUPUNKT

How do I connect my phone via Bluetooth?

Press the Source button until 'Bluetooth' appears. Enable Bluetooth on your phone and select 'Blaupunkt MS5BK' from the available devices.

How can I set FM radio stations?

Press Source to select FM. Press and hold the Scan button to auto-scan and store stations. Use Preset buttons to recall them.

What disc formats are supported?

The system plays CD, CD-R, and CD-RW discs with audio or MP3 files.

Can I play music from a USB stick?

Yes, insert a USB drive with MP3 or WMA files. Press Source to select USB mode.

How do I clean the device?

Use a soft, dry cloth to clean the exterior. Do not use liquids or chemicals.

Why is there no sound?

Check that the volume is not muted and the source is correctly selected. Ensure speakers are properly connected.

How can I adjust the sound settings?

Use the EQ button to cycle through presets (Rock, Pop, Jazz, etc.). Adjust bass and treble with the corresponding knobs.

Does the system have an AUX input?

Yes, there is a 3.5 mm AUX jack on the back. Connect an audio cable and select AUX as source.

What should I do if the CD skips?

Clean the disc with a soft cloth. Check that the disc is not scratched or damaged. If the problem persists, try another disc.

How do I reset the system?

Unplug the power cord, wait 30 seconds, then plug it back in. The system will reset to factory settings.

USER MANUAL MS5BK BLAUPUNKT

Enjoy it.

Micro system CD/MP3 with USB playback

Thanks for your purchase of our product. Please read through this manual before making connections and operating this product. Retain this manual for future reference.

Features:

Compatible with CD, MP3, CD-R, CD-RW, etc.

USB playback

Full function remote

FM radio

Note: The player is not compatible with all discs. Some discs may not be read due to dirt or poor quality.

What you got from package?

1 pcs x instruction manual.

1 pcs x main unit.

2 pcs x satellite speaker

1 pcs x remote control

1 x AAA battery.

IMPORTANT SAFETY INSTRUCTIONS

Caution:

To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CLASS 1 LASER PRODUCT

This mark indicates this unit belongs to class 1 laser product. The laser beam may produce radiation harm to the directly touching human body.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

This safety and operating instruction should be retained for future reference.

a. The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

b. Do not install the product in the following areas:

a). Places exposed to direct sunlight or close to radiators. b). On top of other stereo equipment that radiate too much heat. c). Blocking ventilation or in a dusty area. d). Areas where there is constant vibration. e). Humid or moist places.

c. Do not place near candles or other naked flames.

Operate the product only as instructed in this manual.

Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product.

Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure.

Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.

1. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
2. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
3. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
4. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
5. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
6. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
7. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
8. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
9. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
10. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
11. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
12. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
13. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
14. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
15. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.
16. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
17. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
18. Try to install the product near a wall socket or extension cord and shall be easily accessible.
19. The highest environmental temperature suitable for this product is 35°C.
20. ESD hints - The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume

normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

28. Battery

1). The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

2). The batteries should be drawn to the environmental aspects of battery disposal.

3). Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property

damage, or damage to the apparatus:

• Install all batteries correctly, observing the + and - markings on the apparatus.
• Do not mix batteries (old and new, or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) No. 1275/2008 implementing Directive

2009/125/EC regarding standby and off mode electric power consumption of electronic household and office equipment. After 60 minutes without any

audio input, the device will automatically switch into standby mode. Follow the instruction manual to resume operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 60 minutes, the device will switch automatically into standby mode in order to save energy (ERP 2 standard). Please note that low volume setting in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens, please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.) in order to resume playback. Please contact the local service center if the problem remains.

Warning

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. To prevent possible hearing damage, do not listen at high volume levels for long periods of time, or at sudden high volume levels.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.

COMPACT DISC MAINTENANCE

1. Always use a compact disc bearing the mark as shown.
2. Notes on handling discs
3. Store discs in their case when not in use.
4. Do not touch the reflective recorded surface.
5. Do not stick paper or write anything on the surface.

• Store the disc in its case. - Do not expose discs to direct sunlight or high temperatures, high humidity or dusty

1. Cleaning a disc
2. Should the disc become soiled, wipe off dust, dirt and fingerprints with a soft cloth. • The disc should be cleaned by wiping in a straight line from the center to the edge.

CORRECT INCORRECT

FROM THE CENTRE TO THE EDGE

• Never use benzene, thinners, record cleaner fluid or anti-static spray.
• Be sure to keep the CD compartment door closed when not in use to keep it clean from dust and other contaminants. Do not touch the lens.

NOTICE

CE

This product complies with the radio interference requirements of the European community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene

foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a

specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Front panel introduction

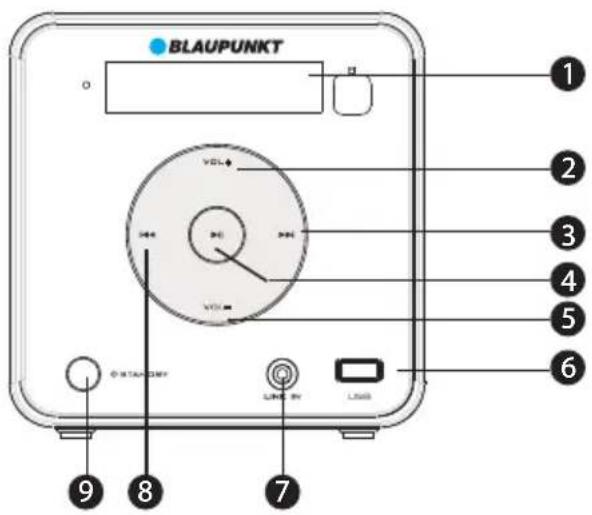

FRONT PANEL:

1 DISPLAY SCREEN 2 VOLUME + 3 NEXT/FAST FORWARD 4 PLAY/PAUSE 5 VOLUME - 6 USB SLOT 7 LINE IN 8 PREVIOUS/FAST REWIND 9 STANDBY

REAR PANEL:

10 SPEAKER OUTPUT

11 FM ANTENNA JACK

TOP PANEL:

12 PUSH (push to open the cover)

Audio system connection.

Connect the satellite speaker to the main unit output terminal with their attached speaker wire. (white color speaker wire to "+" symbol jack, black color speaker wire to "-" symbol jack).

Amplifier Audio Input Speaker

Speaker output CD Audio Output

Remote control battery installation

Insert the batteries into the remote control. Point the remote control at the remote sensor on the front panel. The remote control works within a distance of about 8 metres from the sensor and within an angle of about 30 degrees from the left and right side.

Battery Installation

1-Remove the battery compartment cover on the back of the remote control.

2-Load two AAA/1.5V batteries into the battery compartment making sure that the batteries have been inserted with the correct polarities matching the symbols +, - as indicated inside the battery compartment.

3. Replace the cover.

Note:

- Remove the batteries when you do not intend to use the remote control for a long time. - Do not mix new and used batteries, or different types of batteries. - Weak batteries can leak and severely damage the remote control. - The batteries must not be exposed to excessive heat sources, such as sunshine, fire, or any other similar things. - Be environmentally friendly and dispose of batteries according to your government regulations.

Remote control

1 STANDBY 2 DIGIT KEYS 3 PROGRAM 4 ALB- 5 VOLUME+ 6 FAST REWIND/PREVIOUS 7 VOLUME- 8 TUNER- 9 USB 10 CD 11 REPEAT 12 INTRO 13 EQ 14 SLEEP 15 MUTE 16 ALB+ 17 PLAY/PAUSE 18 FAST FORWARD/NEXT 19 TUNER+ 20 FM 21 SOURCE 22 RANDOM 23 AUTO/STOP 24 MEMORY 25 ST/MONO

Basic operation and CD playback

Push the CD cover to open the CD compartment, load a CD disc, and refer below for basic operation.

STANDBY button: Press to switch on the unit. Press it again to put the unit in standby mode.

USB button: Press to enter USB playback mode.

CD button: Press to enter CD mode.

FM button: Press to enter FM radio mode.

SOURCE button: Press repeatedly to select a signal source among CD, USB, LINE IN, and FM radio.

1~10+ digits button: The digit keys can be used to input numbers or make selections of tracks, etc.

AUTO/STOP button: Press to stop playback.

PLAY/PAUSE button: Press to temporarily pause playback; press it again to resume playback.

NEXT FAST FORWARD button: press to skip to the next track; press and hold for fast forward selection.

PREVIOUS FAST REWIND button: press to return to the previous track; press and hold for fast rewind selection.

VOL + button: press it to turn up the volume.

VOL- button: press it to turn down the volume.

PROGRAM button: in stop mode, press the PROGRAM button and input a number to select a track, press the PROGRAM button again to confirm it, then press the PLAY/PAUSE button to play (for CD disc only). The CD program memory will be removed if we switch the play source or pick up the CD disc.

MUTE button: press to temporarily switch off the sound, press it again to switch it on.

RANDOM button: press it to switch to random play mode in CD and USB mode.

REPEAT button: press it to switch between repeat one, repeat all, repeat album, and normal play mode.

SLEEP button: press it repeatedly to select a sleep time and choose the option SLEEP OFF to disable the sleep function. After the set time, the unit will go into standby mode automatically.

INTRO button: press it to introduce the tracks of the CD disc in order; it takes approximately 10 seconds for each track.

EQ button: press it to switch between FLAT, JAZZ, CLASSIC, ROCK, and POP sound effect modes.

ALB+/- button: press it to skip the folder (only available for MP3 disc and USB mode).

FM radio operation

The following buttons are used in FM radio mode. Press the SOURCE button repeatedly to enter FM radio mode.

ST/MONO button: press it to switch the speaker output between mono and stereo reception of the broadcast signal in FM mode.

TUN+/- button: Press it to increase or decrease the frequency step by step; press and hold (2 seconds) and release it to auto scan the FM radio station.

AUTO/STOP button: Press and hold (2 seconds) and release it to auto scan and save the FM radio station.

MEMORY button: When you tune to an available FM station, press the MEMORY button once to show "PX.." on the display; then press "PREVIOUS" or "NEXT" button to select the preset station number, press the "MEMORY" button again for confirmation.

1~10+ digits button: The digit keys can be used to select a preset station. For example, press [2] to select channel 2; press [10+] first, then press [1] and [5] to select channel 15.

NEXT button: Press it to skip to the next preset station.

PREVIOUS button: Press to skip to the previous preset station.

NOTE:

1. In FM mode, [VOLUME+/-], [MUTE] buttons are also active. For details, please refer to the introduction of the CD operation in this chapter.
2. For better FM reception, please fully extend the FM antenna, and try to move the unit next to the window for better signal reception.

USB playback

Insert a USB drive into the USB port, then press [USB] button from remote control to enter the USB playback mode. The unit will read and play the MP3 music from the USB storage device automatically.

a. When the USB playback is paused, turn off the unit and remove the power cord first; then unplug the USB from device. For replay, please connect the power and turn on again, then plug in the USB device for normal operation. b. The USB extending cable is not recommended for connection during playing; because that affects the signal transfer and generates intermittent sound. c. The maximum supported USB device is up to 32GB. d. In the USB playback mode, you can select next/previous, fast-forward/fast-rewind, repeat, random, and Alb + button for relative function.

LINE IN

This unit has included a 3.5mm stereo line in jack. You can connect external device such as CD player, MP3 player, etc. by a 3.5mm stereo audio cable. Then select and play the music from your device.

Trouble shooting

Before resorting to maintenance service, please kindly check by yourself with the following chart.

No Power

• The AC power cord is not connected to the power supply or is not connected to a power supply securely.
• Please check that the AC power cord is connected securely.

Sound: There is no sound or the sound is distorted.

• The audio cables aren't connected securely.
• The volume is set to the minimum level.
• The sound is switched off.
• Connect the audio cables securely.
• Turn up the volume.
• Press [MUTE] on the remote control to switch on the sound.
• Press [PLAY/PAUSE].

Unable to play a disc

• This disc is placed in the disc tray in a wrong way.
• The unit isn't compatible with the disc.
• The disc is dirty.
• Check that the disc is placed in the disc tray with its label side upwards.
• Clean the disc.

The player breaks down when a USB drive is inserted into the player.

• The connected USB drive is probably not a certified one.
• The player cannot play any uncertified USB drive. In case the player breaks down, turn it off, disconnect the power cord from the AC outlet and unplug the USB drive from the player. Then, power on the player again. The player will resume the normal status.

The buttons on the unit don't work.

• The unit is being interfered with static electricity, etc. - Switch off and unplug the unit. Then connect the plug to the power supply and switch it on again.

The remote control does not function.

• There is no battery in the remote control.
• The batteries are out of charge.
• The remote control isn't pointed to the remote sensor.
• The remote control is out of its operating area.
• The unit is shut down.
• Install two AAA/1.5V batteries in it.
• Replace the batteries with new ones.
• Make sure that the remote control is pointed at the remote control sensor.
• Make sure the remote control is within the operating area.
• Switch off the unit and disconnect it from the AC outlet. Then power on the unit again.

Specification

Power

Power supply: AC ~100-240V, 50/60Hz

Power consumption: 20W

Power consumption in standby mode: <0.5W

Working environment

Temperature: -10~+35°C

Relative humidity: 5%~90%

Disc output

Frequency Range: 20Hz~20kHz

S/N(A weight): >80dB (1kHz)

Dynamic Range: ≥70dB (1kHz)

THD+NOISE: ≤ -60dB (1kHz)

Wow and flutter: Below the limit of apparatus measure

Tuner

FM band Range: 87.5MHz~108MHz

Power output (Max): 5WX2

Frequency response: ±3dB (20Hz~20kHz)

CLASS 1 LASER PRODUCT

HANDLE DISCS ONLY AS SHOWN

3. Storage

DO NOT STORE NEAR HEAT SOURCES

CORRECT

INCORRECT FROM CENTER TO EDGE

Rear panel:

Top panel:

CLASS 1 LASER PRODUCT

CORRECT INCORRECT

FROM THE CENTRE TO THE EDGE

NOTE

CE

Output

IMPORTANT SAFETY INSTRUCTIONS

DANGER! ELECTRIC SHOCK HAZARD. DO NOT OPEN!

Warning:

CLASS 1 LASER PRODUCT

CORRECT INCORRECT

FROM THE CENTRE TO THE EDGE

NOTE

CE

REAR PANEL:

1 0.REPRODUKTORY

1 1.FM ANTÉNA

TOP PANEL:

Speaker connection

Connect the speakers to the main unit using the supplied cables (connect the white wire to the "+" symbol, the black wire to the "-" symbol).

Speakers

Output

1 REPEAT

1 INTRO

13 EQ

13 SLEEP

13 MUTE

16 ALB+

16 PLAY/PAUSE

16 NEXT/PREVIOUS

19 TUNER+

20 FM

20 SOURCE (PREP. VSTUPOV)

21 RANDOM (NÁHODNE)

21 AUTO/STOP

21 MEMORY (PAMÄT)

21 ST/MONO

ONLY HANDLE THE DISCS IN THE MANNER SHOWN IN THE FIGURE

3. Storage

DO NOT STORE THE DISCS NEAR HEAT

4. Cleaning the disc

FROM THE CENTER TOWARD THE EDGE

REAR PANEL

10 SPEAKER OUTPUT 11 FM ANTENNA JACK CONNECTION

TOP PANEL:

Competence Centre Audio

2N-Everpol Sp. z o.o.

ul. Puławska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.

Enjoy it.
