Product type	Uninterruptible Power Supply (UPS)
Brand	Eaton
Model	EX 3000VA 3U
Rated Power	3000 VA / 2700 W
Dimensions (W x H x D)	440 x 132 x 678 mm (17.3 x 5.2 x 26.7 inches)
Weight	54 kg
Input voltage	220-240 V AC
Output voltage	220-240 V AC
Frequency	50/60 Hz (auto-sensing)
Battery type	Sealed lead-acid, maintenance-free
Typical runtime	Approximately 10 minutes at full load
Number of outlets	8 C13 outlets + 1 C19 outlet
Communication interface	USB, RS-232, Dry contacts, Slot for optional card
Main functions	Surge protection, voltage regulation (AVR), LCD display, scheduled shutdown
Maintenance	Hot-swappable batteries
Cleaning	Use a dry, soft cloth; do not use liquids
Safety	Compliant with CE, UL, ISO 9001 standards
Spare parts	Available through Eaton service (batteries, fans)
Repairability	Batteries and fans replaceable by user
General information	3U rackmount form factor (new)

Frequently Asked Questions - EX 3000VA 3U EATON

How do I install my Eaton EX 3000VA 3U?

Plug the device into a mains outlet, then connect your equipment to the output outlets. Turn on the device using the front button. Refer to the manual for rack mounting.

What is the battery runtime?

The runtime depends on the load. At full load (2700 W), it is approximately 10 minutes. At half load, it can reach 20-30 minutes.

How do I replace the battery?

The battery is hot-swappable. Open the front panel, remove the old battery and insert the new one respecting the polarities. No shutdown necessary.

What should I do if the audible alarm sounds?

The alarm indicates either an overload, a low battery, or an internal fault. Check the connected load and battery status. Refer to the manual for error codes.

Can I connect the Eaton EX 3000VA to my computer?

Yes, via USB or RS-232 port. Use the Eaton Intelligent Power Manager software for management and automatic shutdown.

What is the warranty of the device?

Eaton generally offers a 2 to 3 year warranty depending on the country. The battery has a 1 to 2 year warranty. Check local conditions.

How do I clean the UPS?

Unplug the device and use a dry, lint-free cloth. Never use solvents or liquid products.

Can I use the UPS without a battery?

No, the UPS requires a battery to operate in backup mode. Without a battery, it cannot provide backup power.

How do I know if the battery is defective?

The battery indicator blinks or the alarm sounds. Via the software, you can check the battery health status. Replace it if the capacity is below 80%.

Where can I find spare parts?

Contact Eaton customer service or an authorized dealer. Batteries and fans are available online. Use the model number EX 3000VA 3U for ordering.

USER MANUAL EX 3000VA 3U EATON

Installation and user manual

English

Français

Deutsch

Italiano

Español

Nederlands

Русский

Pulsar Series

EX

2200 RT 2U

2200 RT 3U

3000 RT 2U

3000 RT 3U

3000 RT 3U XL

EXB RT 3U

Installation and user manual

Pulsar Series

Thank you for selecting an EATON product to protect your electrical equipment.

The EX range has been designed with the utmost care.

We recommend that you take the time to read this manual to take full advantage of the many features of your UPS (Uninterruptible Power System).

Before installing EX, please read the booklet on the required safety instructions. Then follow the indications in this manual.

To discover the entire range of EATON products and the options available for the EX range, we invite you to visit our web site at www.eaton.com or contact your EATON representative.

Environmental protection

EATON has implemented an environmental-protection policy.

Products are developed according to an eco-design approach.

Substances

This product does not contain CFCs, HCFCs or asbestos.

Packing

To improve waste treatment and facilitate recycling, separate the various packing components.

The cardboard we use comprises over 50% of recycled cardboard.

- Sacks and bags are made of polyethylene.

- Packing materials are recyclable and bear the appropriate identification symbol

Material Abbreviation Symbol		number
Polyethylene terephthalate PET 01
High-density polyethylene HDPE 02
Polyvinyl chloride PVC 03
Low-density polyethylene LDPE 04
Polypropylene	PP	05
Polystyrene	PS	06

Follow all local regulations for the disposal of packing materials.

End of life

EATON will process products at the end of their service life in compliance with local regulations.

EATON works with companies in charge of collecting and eliminating our products at the end of their service life.

Product

The product is made up of recyclable materials.

Dismantling and destruction must take place in compliance with all local regulations concerning waste.

At the end of its service life, the product must be transported to a processing centre for electrical and electronic waste.

Battery

The product contains lead-acid batteries that must be processed according to applicable local regulations concerning batteries.

The battery may be removed to comply with regulations and in view of correct disposal.

Introduction

Pictograms

Important instructions that must always be followed.

Information, advice, help.

Visual indication.

Action.

Audio signal.

In the illustrations on the following pages, the symbols below are used:

LED off

LED on

LED flashing

1. Presentation

1.1 Standard positions....6 Tower position....6 Rack position....6

1.2 Rear panels....7 EX 2200 / 3000....7 EX EXB (optional battery module)....7

1.3 Control panel 7

2. Installation

2.1 Unpacking and contents check....8
2.2 Installation in tower position....9
2.3 Installation in rack position 9
2.4 Communication ports....10 Connection of RS232 or USB communication port (optional)....10 Installation of the communication cards (optional)....10
2.5 Connection with a FlexPDU (Power Distribution Unit) module....11
2.6 Connection with a HotSwap MBP module....11 HotSwap MBP-module operation....12
2.7 UPS connection without a FlexPDU or HotSwap MBP module 12

3. Operation

3.1 Start-up and normal operation....13
3.2 Operation on battery power 13
3.3 Return of AC input power 14
3.4 UPS shutdown 14
3.5 Using the UPS remote control functions....14

4. Access to measurements and personalisation data

4.1 Display menus arrangement....16
4.2 Access to measurements....16
4.3 Personalisation using the control panel 16
4.4 Personalisation using external software....17

5. Maintenance

5.1 Troubleshooting 18 Troubleshooting a UPS equipped with the HotSwap MBP module 19

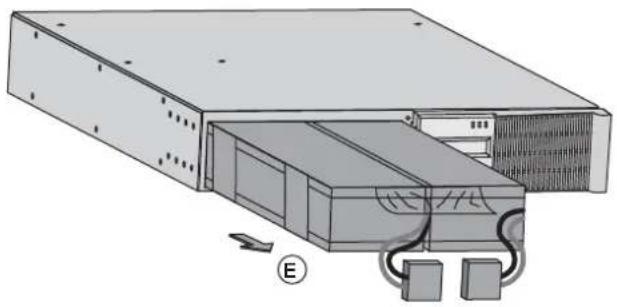

5.2 Battery-module replacement....19 Safety recommendations....19 Battery-module removal....19 Mounting the new battery module....20
5.3 Maintenance on a UPS equipped with the HotSwap MBP module.... 20
5.4 Training centre 21

6. Appendices

6.1 Technical specifications.... 22
6.2 Glossary 23

1. Presentation

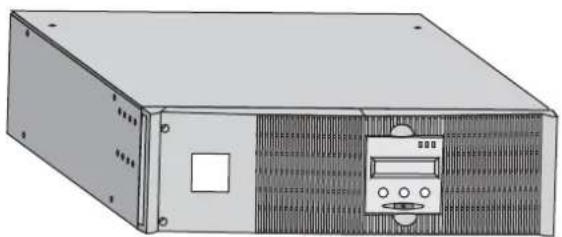

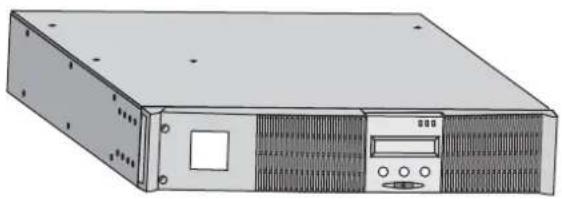

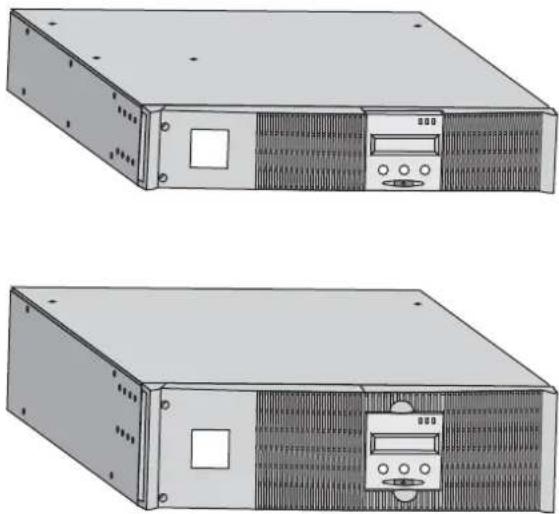

1.1 Standard positions

Tower position

Dimensions (H x W x D) in mm
EX 2200 RT 2U 440 x 86	x 640
EX 2200 RT 3U 440 x 131	x 490
EX 3000 RT 2U 440 x 86	x 640
EX 3000 RT 3U 440 x 131	x 490
EX 3000 RT 3U XL	440 x 131 x 490
EX EXB RT 3U 440 x 131	x 490

Weights in kg
EX 2200 RT 2U 31
EX 2200 RT 3U 30
EX 3000 RT 2U 31
EX 3000 RT 3U 30
EX 3000 RT 3U XL	17
EX EXB RT 3U 42

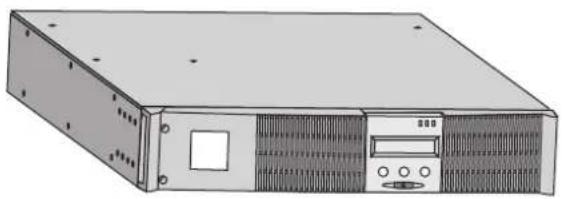

Rack position

1. Presentation

1.2 Rear panels

EX 2200 / 3000 / 3000 XL

(1) USB communication port
(2) RS232 communication port
(3) Connector for automatic recognition of an additional battery module
(4) Slot for optional communication card
(5) Connector for remote ON/OFF and RPO (Remote Power Off) control
(6) Connector for additional battery module
(7) 16 A outlet for connection of equipment
(8) Two groups of 2 programmable outlets for connection of equipment
(9) Groups of 4 outlets for connection of equipment
(10) Socket for connection to AC-power source
(11) LED (SWF) indicating distribution system phase/neutral reversal

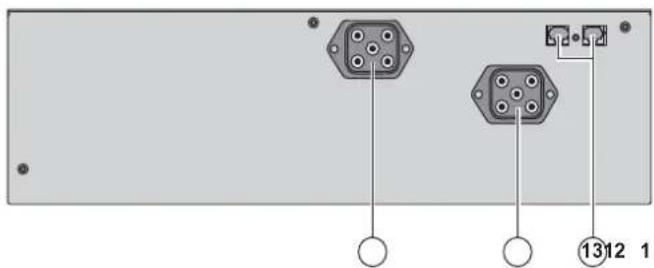

EX EXB (optional battery module)

(12) Connectors for battery modules (to the UPS or to the other battery modules)
(13) Connectors for automatic recognition of battery modules

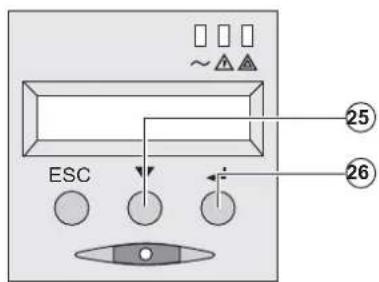

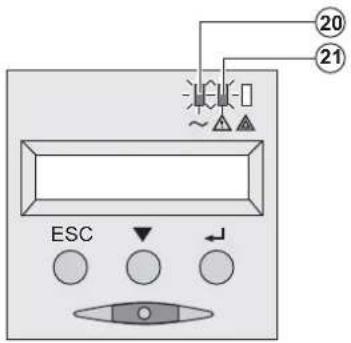

1.3 Control panel

(20) Load protected LED

(21) Downgraded operation LED
(22) Load not protected LED
(23) Alphanumeric display
(24) Escape (cancel) button
(25) Scroll button
(26) Enter (confirm) button
(27) ON/OFF button for UPS and outlets

2. Installation

2.1 Unpacking and contents check

(30) EX 2200 / 3000 / 3000 XL UPS
(31) connection cable to AC-power source
(32) 2 connection cables for the protected equipment
(33) RS232 communication cable
(34) USB communication cable
(35) 2 systems to secure power plugs
(36) Solution-Pac CD-ROM
(37) Documentation

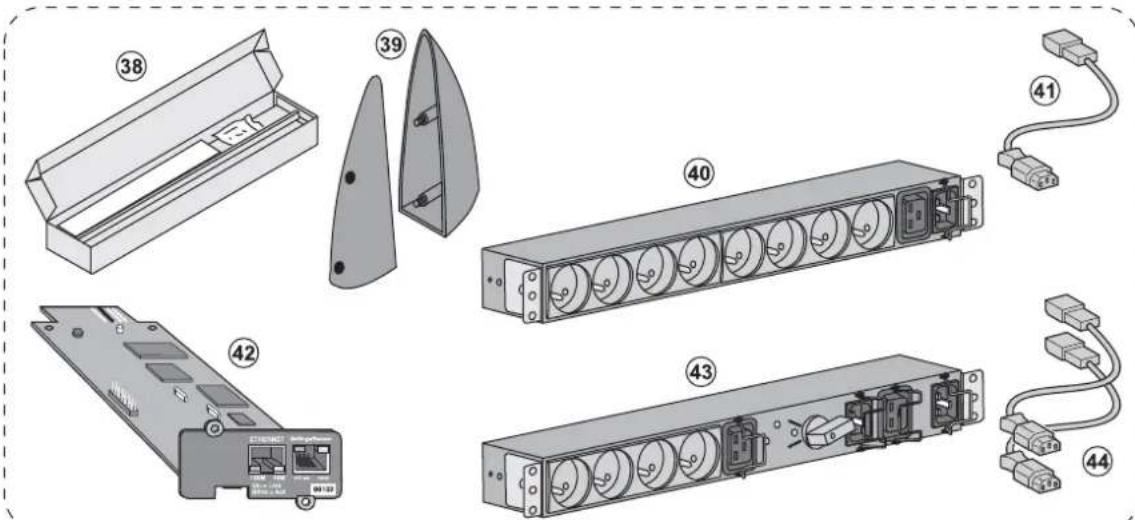

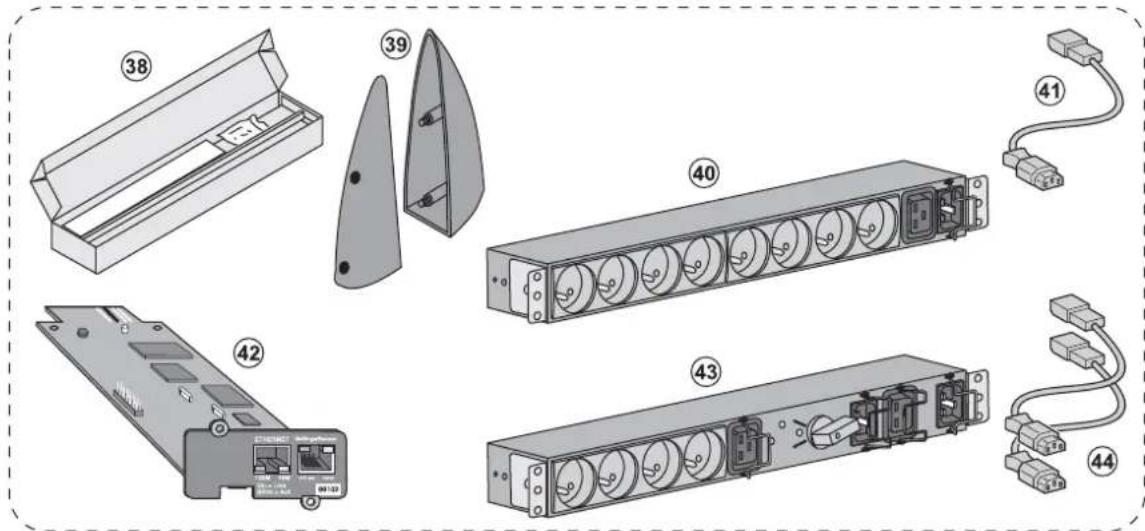

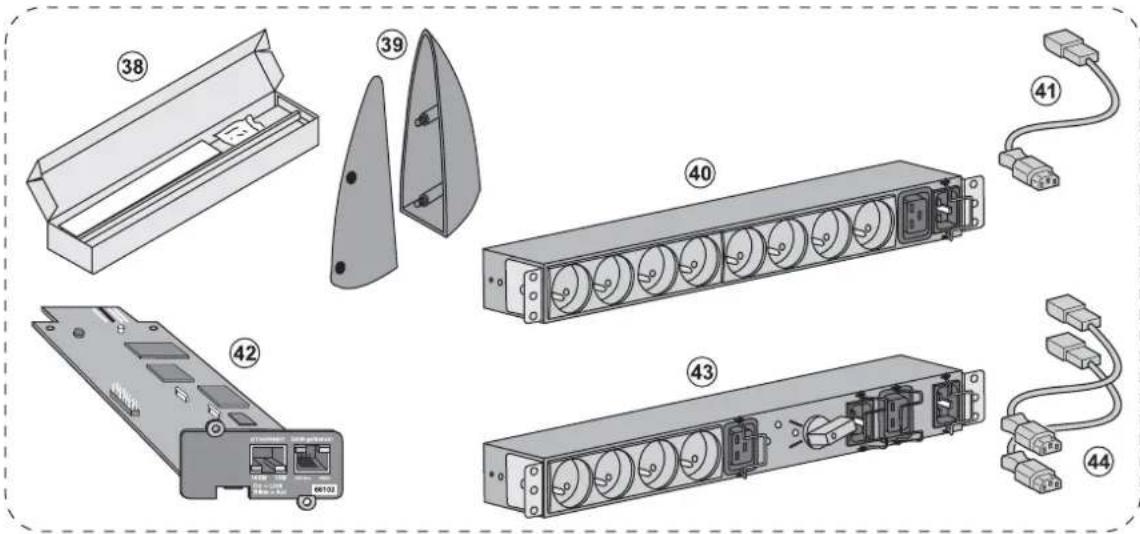

Elements supplied depending on the version or optional

(38) Mounting kit for 19-inch bays
(39) 2 supports for the upright position (2U version only)
(40) FlexPDU module (optional)
(41) connection cable between FlexPDU module and UPS
(42) NMC communication card (optional)
(43) HotSwap MBP module (optional)
(44) connection cables between HotSwap MBP module and UPS

Packing materials must be disposed of in compliance with all local regulations concerning waste.

Recycling symbols are printed on the packing materials to facilitate sorting.

2. Installation

2.2 Installation in tower position

2.3 Installation in rack position

It is advised to first install the battery module, then the power module above.

Follow steps 1 to 4 for module mounting on the rails.

The rails and necessary hardware are supplied by EATON.

2. Installation

2.4 Communication ports

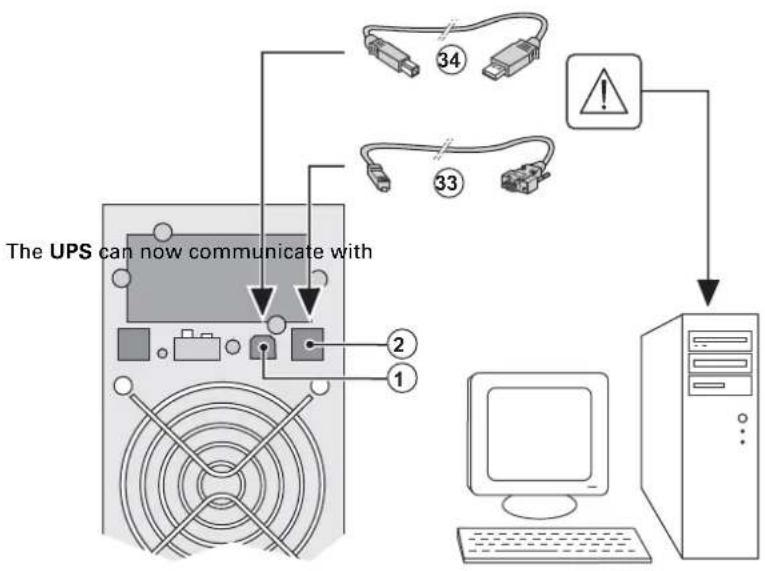

Connection of RS232 or USB communication port (optional)

The RS232 and USB communication ports cannot operate simultaneously.

1 - Connect the RS232 (33) or USB (34) communication cable to the serial or USB port on the computer equipment.
2 - Connect the other end of the communication cable (33) or (34) to the USB (1) or RS232 (2) communication port on the UPS.

EATON power management software.

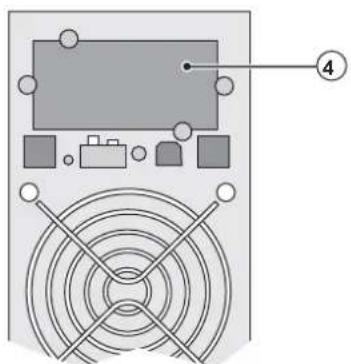

Installation of the communication cards (optional)

Communication card slot (restricted access)

It is not necessary to shutdown the UPS before installing a communication card.

1 - Remove the UPS cover (4) secured by screws.
2 - Insert the communication card in the slot.
3 - Put the UPS cover back in place using the screws.

2. Installation

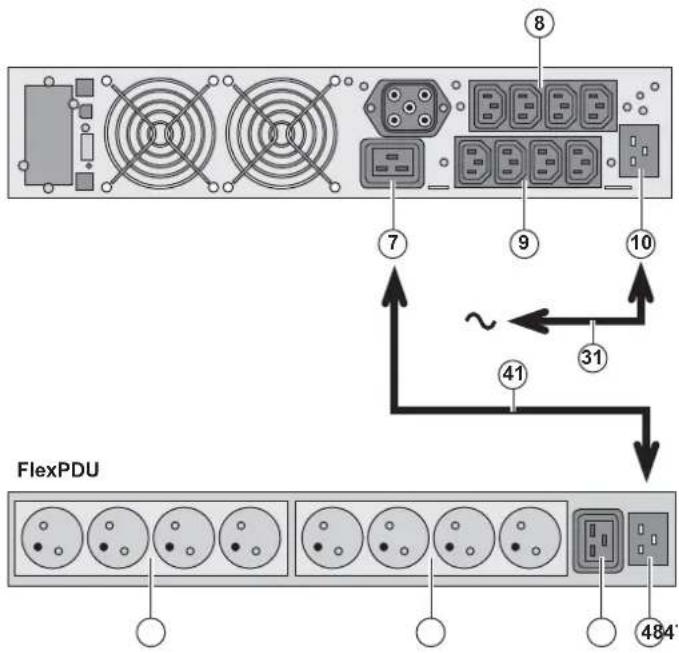

2.5 Connections with a FlexPDU (Power Distribution Unit) module (optional)

1 - Connect the UPS socket (10) to the AC-power source using the cable (31) supplied.
2 - Connect the input socket on the FlexPDU module (48) to the UPS outlet (7) using the cable (41) supplied. The cable and the connectors are marked in red.
3 - Connect the equipment to the outlets (45), (46) and (47) on the FlexPDU module. These outlets differ, depending on the version of the FlexPDU module.
4 - Fit the connection securing system that prevents the plugs from being pulled out accidentally.

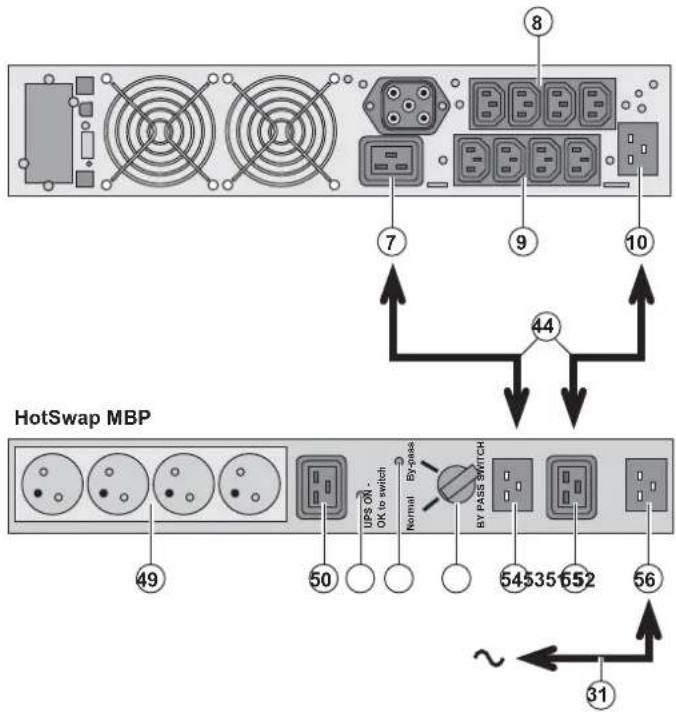

2.6 Connections with a HotSwap MBP module (optional)

The HotSwap MBP module makes it possible to service or even replace the UPS without affecting the connected loads (HotSwap function).

1 - Connect the input socket (56) on the HotSwap MBP module to the AC-power source using the cable (31) supplied.
2 - Connect the UPS input socket (10) to the "UPS Input" (55) on the HotSwap MBP module, using the cable (44) supplied. These cables and the connectors are marked blue.
3 - Connect the UPS outlet (7) to the "UPS Output" (54) on the HotSwap MBP module, using the cable (44) supplied. These cables and the connectors are marked red.
4 - Connect the equipment to the outlets (49) and (50) on the HotSwap MBP module. These outlets differ, depending on the version of the HotSwap MBP module.

(9) to supply equipment because use of switch (53) on the HotSwap MBP module would cut supply to the equipment. It is advised not to remove the protective film from outlets (8) and (9).

2. Installation

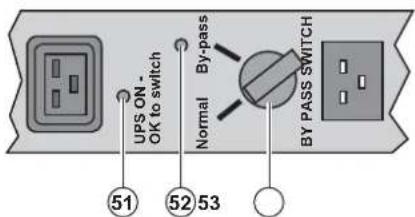

HotSwap MBP-module operation

The

HotSwap MBP module ha

switch (53) with two positions:

Normal - the load is supplied by the UPS,

Bypass - the load is supplied directly by

the AC-power source.

UPS start-up with the HotSwap MBP module

1 - Check that the UPS is correctly connected to the HotSwap MBP module.

2 - Set switch (53) to the Normal position.

3 - Start the UPS by pressing the ON/OFF button (27) on the UPS control panel.

The load is supplied by the UPS.

LED (51) "UPS ON - OK to switch" on the HotSwap MBP module goes ON.

HotSwap MBP-module test

1 - Set switch (53) to the Bypass position and check that the load is still supplied.

2 - Set switch (53) back to the Normal position.

2.7 UPS connection without a FlexPDU or HotSwap MBP module

Check that the indications on the name plate located on the back of the UPS correspond to the AC-power source and the true electrical consumption of the total load.

1 - Connect the supplied cable (31) (250 V - 16 A) to the socket (10), then to the AC-power source.

2 - Connect the loads to the UPS using the cables (32).

It is preferable to connect the priority loads to the four outlets marked (9) and the non-priority loads to the four outlets marked (8) that can be programmed in pairs (1 and 2). Connect any high-power devices to the 16 A outlet (7).

To program shutdown of outlets (8) during operation on battery power and thus optimise the available backup time, the EATON communication software is required.

3 - Fit the connection securing system (35) that prevents the plugs from being pulled out accidentally.

Note. The UPS charges the battery as soon as it is connected to the AC-power source, even if button (27) is not pressed.

Once the UPS is connected to the AC-power source, eight hours of charging are required before the battery can supply the rated backup time.

EX 3000 XL: at least one additional EXB battery module must be connected to the UPS because it does not have internal batteries.

Refer to EXB battery module installation manual (doc n° 34008167) for further information about connections.

3. Operation

3.1 Start-up and normal operation

For the initial start, AC input power must be present to detect any wiring errors. Subsequently, the UPS can start even if AC input power is not present.

Press button (27) for approximately 1 second.

The buzzer beeps once and all the LEDs go ON simultaneously.
The buzzer then beeps twice during the self-test, then button (27) remains ON, indicating that the load outputs are supplied.

The connected devices are protected by the UPS.

- LED (20) is ON.

If LED (22) is ON, a fault has occurred (see the "Troubleshooting" section).

During normal operation, the scroll button (25) may be used to read UPS measurements (voltage on normal and bypass AC inputs, operating mode, battery capacity and UPS serial number).

UPS personalisation

If UPS personalisation is desired, it is advised to enter the personalisation mode at this time.

This mode may be entered using the buttons on the control panel or the Personal Solution-Pac software (Windows) included on the Solution-Pac CD-ROM provided by EATON.

3.2 Operation on battery power

Transfer to battery power

The connected devices continue to be supplied by the UPS when AC input power is no longer available. The necessary energy is provided by the battery.
▶ LEDs (20) and (21) go ON.
The audio alarm beeps every ten seconds.

The connected devices are supplied by the battery.

The display indicates the remaining backup time.

Low-battery warning

▶ LEDs (20) and (21) go ON.
The audio alarm beeps every three seconds.

The remaining battery power is low.

Shut down all applications on the connected equipment because automatic UPS shutdown is imminent.

3. Operation

End of battery backup time

▶ All the LEDs go OFF.
The audio alarms stops.

The UPS is completely shut down.

3.3 Return of AC input power

Following an outage, the UPS restarts automatically when AC input power returns (unless the restart function was disabled via UPS personalisation) and the load is again supplied.

3.4 UPS shutdown

Press button (27) for approximately 2 seconds.

The devices connected to the UPS are no longer supplied.

3.5 Using the UPS remote control functions

EX offers a choice between two remote control functions.

▶ RPO: Remote Power Off allows a remote contact to be used to disconnect all the equipment connected to the UPS. Restarting the UPS requires manual intervention.
▶ ROO: Remote ON/OFF allows remote action of button (27) to shut down the UPS.

These functions are obtained by opening a contact connected between the appropriate pins of connector (5) on the rear panel of the UPS (see diagram on figures below).

Remote control connection and test

1 - Check that the UPS is off and disconnected from the AC input source.

2 - Remove connector (5) after unscrewing the screws. 3 - Connect a normally closed volt-free contact (60 Vdc / 30 Vac max, 20 mA max, 0.75 mm² cable cross section) between the two pins of connector (5), see diagram.

3. Operation

Contact open: shut down of UPS

Contact closed: start-up of UPS (UPS connected to the network and network energized)

Note: local On/Off control via button (27) has priority over the remote control order.

Contact open: shut down of UPS

To return to normal operation, deactivate the external remote shut down contact and restart the UPS using button (27).

4 - Plug connector (5) into the back of the UPS.
5 - Connect and restart the UPS according to the previously described procedures.
6 - Activate the external remote shut down contact to test the function.

Warning: this connector must only be connected to SELV (Safety Extra Low Voltage) circuits

4. Access to measurements and personalisation data

4.1 Display menus arrangement

4.2 Access to measurements

Press the scroll button (25) to access any status conditions and alarms, then the measurements for voltage, current, frequency, power output and battery backup time.

4.3 Personalisation using the control panel

• Press the scroll button (25) several times until the personalisation menu is reached.
• Press the Enter button (26) to access the different possibilities.
  ▶ Finally, confirm the selection by pressing the Enter button (26) again.

Local personalisation

Function Factory setting	Other available settings
Language English French	Spanish, German, Italian	Dutch
Audio alarm Enabled Disabled

4. Access to measurements and personalisation data

Output personalisation

Function Factory setting	Other available settings	Comments
Output\ voltage(1)	230 Volts AC 200/208/220	240 Volts AC
Frequency\ converter(1)	Disabled Enabled The connected devices are never		transferred to the bypass.
Output\ frequency(1)	Automatic selection 50 or 60 Hz User selectable only		if the frequency-converter function is enabled.
Transfer to the bypass AC input (1)	Bypass AC power must be within tolerances	Bypass AC power may be outside tolerances
Overload level (1)	102% 50 / 70% Alarm if threshold is overrun.

(1) These parameters may be modified only when the UPS is OFF.

Detailed comments are available in the Personal Solution-Pac software.

ON/OFF personalisation

Function	Factory setting	Other available settings	Comments
Cold start Enabled Disabled
Automatic restart	Enabled Disabled The UPS	restarts automatically	when AC input power returns.
Energy savings Disabled	Enabled When function enabled, battery		shuts down when power drops to <5%.
Detection of phase/neutral inversion (SWF)	Disabled Enabled When function enabled, the UPS		remains OFF if the system detects phase/neutral inversion.

Battery personalisation

Function	Factory setting	Other available settings	Comments
Battery test	Weekly test	No test / daily test / monthly test
Selection of the backup time	Automatic detection of number of battery modules	65 to 400 Ah
Battery protection against deep discharge	Enabled	Disabled When function disabled, EATON warranty no longer applies.

4.4 Personalisation using external software

Insert the Solution-Pac CD-ROM in the drive.

On the first navigation screen, select "Point to Point solution" and follow the instructions on how to install the Personal Solution-Pac software.

- Then select "Settings", "Advanced settings" and "UPS settings".

Note that the Linux/Unix/MacOS versions of the Personal Solution-Pac software do not offer this possibility.

5. Maintenance

5.1 Troubleshooting

If LED (21) or (22) is ON, a fault or an alarm has occurred.

Use the escape button (24) to stop the audio alarm.

	Indication Diagnostic Correction
1 The	UPS does not start,the alphanumeric display indicates:COLD START NOKCHECK AC WIRING	The AC input power is notconnected or is connected to theUPS output.	Check the UPS is correctlyconnected to the AC input power.
2	LED (22) is ON, the SWF LED (11) atthe rear of the UPS is ON.The alphanumeric display indicates:SITE WIR. FAULTCHECK AC WIRING	Phase inversion on AC inputpower. The UPS does not start.	In an earthed-neutral system,to correct the wiring, disconnect and turn the AC-power outlet 180°(DIN-SCHUKO type) or call an electrician to modify the connections.For all other types of system, disable the detection function.
3 LED	(22) is ON,the alphanumeric display indicates:NO BATTERYCHECK CONNECTION	The battery is incorrectlyconnected.	Check battery connections (see section 5.2, Battery-module replacement).
4 LED	(22) is ON,the alphanumeric display indicates:BATTERY FAULTSERV REQUIRED	A fault is detected on the battery.	Replace the battery (see section 5.2, Battery-module replacement).Call the after-sales support department.
5 LED	(21) is ON,the alphanumeric display indicates:OVERLOAD ALARMREDUCE LOAD	The load level exceeds theprogrammed overload level orUPS capacity.	Check the power drawn by the connected devices and disconnect any non-priority devices. Check the programmed overload level.
6 LED	(22) is ON,the alphanumeric display indicates:LOAD UNPROTECTEDOUTPUT OVERLOAD	The UPS is overloaded. Devices connected to the UPS aresupplied directly by the AC input source via the By-pass.	Check the power drawn by the connected devices and disconnect any non-priority devices.
7 LED	(22) is ON,the alphanumeric display indicates:REDUCE LOADRESTART UPS	After repetitive overloads, theUPS is locked in the By-passposition. Devices connected to theUPS are supplied directly by theAC input source.	Check the power drawn by the connected devices and disconnect any non-priority devices.Shut down and restart the UPS to return to normal operation.
8 LED	(22) is ON,the alphanumeric display indicates:OVERLOAD FAULTREDUCE LOAD	The UPS shut down automatically because of overload at the UPS output.	Check the power drawn by the connected devices and disconnect any non-priority devices.
9 LED	(22) is ON,the alphanumeric display indicates:LOAD SHORT-CIRCUCHECK WIRING	The UPS has shut down automatically because of a short-circuit at the UPS output.	Check the installation at the UPS output (wiring, load equipment faults).
10 LED	(22) is ON,the alphanumeric display indicates:INTERNAL FAULTSERV REQUIRED	A UPS internal fault has occurred.There are two possible situations:the load is still supplied, but directly with AC input power via the bypass,the load is no longer supplied.	Call the after-sales support department.
11 The	alphanumeric display indicates:REMOTE POWER OFFRPO	The Remote Power Off (RPO)contact has been activated to shut down the UPS.	Set the contact back to its thenormal position, and press the ON/OFF button to restart.

5. Maintenance

Troubleshooting a UPS equipped with the HotSwap MBP module

	Indication Diagnostic Correction
ad is no longer supplied when the rotary switch (49) on the HotSwap MBP module is set to the Bypass position.		▸ The protected devices are connected to the UPS output instead of to the HotSwap MBP module.▸ The AC-power cord is connected to the UPS input instead of to the HotSwap MBP module.	Check the wiring between the UPS and the HotSwap MBP module (see section 2.6).
13	The load is no longer supplied when the rotary switch (49) on the HotSwap MBP module is set to the Normal position.	▸ The UPS is shut down.▸ The wiring between the UPS and the HotSwap MBP module is not correct.	▸ Start the UPS.▸ Check the wiring between the UPS and the HotSwap MBP module (see section 2.6).
14	The load is no longer supplied after AC-power fails.	▸ The rotary switch (49) on the HotSwap MBP module is set to the Bypass position.▸ The wiring between the UPS and the HotSwap MBP module is not correct.	▸ Set the rotary switch (49) on the HotSwap MBP module to the Normal position.▸ Check the wiring between the UPS and the HotSwap MBP module (see section 2.6).

If a fault leads to UPS shutdown, press the ON/OFF button (27) to clear the fault.

5.2 Battery-module replacement

Safety recommendations

The battery can cause electrocution and high short-circuit currents. The following safety precautions are required before servicing the battery components:

Remove watches, rings, bracelets and all other metal objects from the hands and arms,
- Use tools with an insulated handle.

Battery-module removal

A - Unscrew the left-hand side of the front panel (two screws).
B - Remove the part.

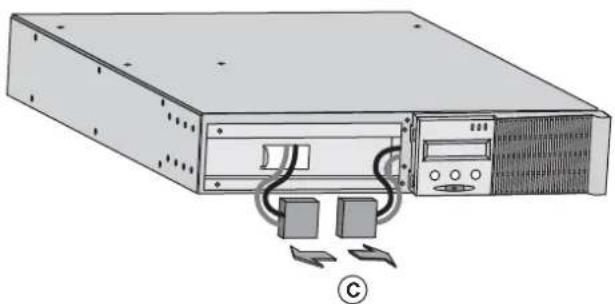

C - Disconnect the battery block by separating the two connectors (never pull on the wires).

5. Maintenance

D - Remove the metal protection cover in front of the battery (two screws).

E - Pull the plastic tab to remove the battery block and replace it.

Mounting the new battery module

Carry out the above instructions in reverse order.

To ensure safety and high performance, use only batteries supplied by EATON.
Take care to firmly press together the two parts of the connector during remounting.

5.3 Maintenance on a UPS equipped with the HotSwap MBP module

The HotSwap MBP module makes it possible to service or even replace the UPS without affecting the connected loads (HotSwap function).

Maintenance:

1 - Set switch (53) to the Bypass position. The red LED on the HotSwap MBP module goes ON, indicating that the load is supplied directly with AC input power.
2 - Stop the UPS by pressing the ON/OFF button (27) on the UPS control panel. LED (51) "UPS ON - OK to switch" goes OFF, the UPS can now be disconnected and replaced.

Return to normal operation:

1 - Check that the UPS is correctly connected to the HotSwap MBP module.
2 - Start the UPS by pressing the ON/OFF button (27) on the UPS control panel. LED (51) "UPS ON - OK to switch" on the

HotSwap MBP module goes ON (otherwise, there is a connection error between the HotSwap MBP module and the UPS).

3 - Set switch (53) to the Normal position. The red LED on the HotSwap MBP module goes OFF.

5.4 Training centre

To fully master operation of your EATON product and carry out level 1 servicing, see our complete range of technical training courses, available in both French and English.

For further information, please visit our website: www.eaton.com

6. Appendices

6.1 Technical specifications

	EX 2200 EX 3000		EX 3000 XL	EX EXB
Output power 2200 VA	(1) /1980 W	3000 VA (2) /2700 W (3)	3000 VA (2) /2700 W (3)
Electrical supply networkRated input voltageInput voltage rangeFrequencyPower factorLeakage current	Single phase 230 V110 / 140 / 200 V to 284 V (4)50/60 Hz (autoselection)>0.95<2 mA
Load outputVoltageFrequencyHarmonic distortionOverload capacityCurrent	Single phase 230 V ±3% (5)50/60 Hz ±0,5% (6)<4% for linear load,<6% for nonlinear load102% continuous, 105% 20s, >130% 1.5s
	9.6 A (7)	13 A (8)
Battery 6 x 12V - 7 Ah,	sealed lead acid,maintenance free	6 x 12V - 9 Ah,sealed lead acid,maintenance free	without internalbattery	Two 6 x 12 V - 9 Ahstrings, sealedlead acid,maintenance free
EnvironmentOperating temperature rangeRelative humidityStorage temperature rangeAltitudeNoise level	0°C to 40°C20% to 90% (without condensation)-25°C to 40°C1000 m
	<46 dBA <50 dBA

(1) Depending on the output voltage selected: 200V / 208V / 220V / 230V / 240V, the output power is 1980VA / 1980VA / 2200VA / 2200VA / 2200VA.
(2) Depending on the output voltage selected: 200V / 208V / 220V / 230V / 240V, the output power is 2700VA / 2700VA / 3000VA / 3000VA / 3000VA.
(3) Standard output power is 2700 W, 2400 W with an EXB module.
(4) Values for 33% / 66% / 100% of UPS output.
(5) Programmable: 200V / 208V / 220V / 230V / 240V using the UPS Config software.
(6) Frequency-converter mode is programmable using the UPS Config software.
(7) Depending on the output voltage selected: 200V / 208V / 220V / 230V / 240V, the maximum output current is 9.9A / 9.5A / 10A / 9.6A / 9.2A.
(8) Depending on the output voltage selected: 200V / 208V / 220V / 230V / 240V, the output current is 13.5A / 13A / 13.6A / 13A / 12.5A.

6.2 Glossary

Bypass AC input	Bypass line from the AC-power source, controlled by the UPS, used to directly supply the load if an overload or a malfunction occurs on the UPS.
Backup time	Time during which the load can be supplied by the UPS operating on battery power.
Battery test Internal UPS test to check battery status.
Cold start	The devices connected to the UPS can be started even if AC input power is not available. The UPS operates on battery power alone.
Deep discharge	Battery discharge beyond the permissible limit, resulting in irreversible damage to the battery.
FlexPDU	Module with UPS outlets for installation in a bay. There are different modules with different types of outlets.
Frequency converter	Operating mode used to convert the AC-power frequency between the UPS input and output(50 Hz -> 60 Hz or 60 Hz -> 50 Hz).
HotSwap MBP	UPS manual-bypass module for maintenance. There are different modules with different types of outlets.
Load Devices or equipment connected to the UPS output.
Low-battery warning	This is a battery-voltage level indicating that battery power is low and that the user must take action in light of the imminent break in the supply of power to the load.
Normal AC input The AC-power line supplying the UPS under normal conditions.
Percent load	Ratio of the power effectively drawn by the load to the maximum output of the UPS.
Personalisation	It is possible to modify certain UPS parameters set in the factory. Certain UPS functions can also be modified by the Personal Solution-Pac software to better suit user needs.
Programmable outlets	These outlets can be automatically shut down during operation on battery power(shutdown time delays can be programmed with the Personal Solution Pac software). The UPS has two sets of two programmable outlets.
UPS Uninterruptible Power System.
UPS ON/OFF controlled by software	This function enables or disables initiation of UPS ON/OFF control sequences by computer power management software.

EX

2200 RT 2U

2200 RT 3U

3000 RT 2U

3000 RT 3U

3000 RT 3U XL

EXB RT 3U

1.1 Positions standards....6 Position tour....6 Position rack....6

1.1 Positions standards

Position tour

Tableau des dimensions (H x L x P)en mm
EX 2200 RT 2U 440 x 86	x 640
EX 2200 RT 3U 440 x 131	x 490
EX 3000 RT 2U 440 x 86	x 640
EX 3000 RT 3U 440 x 131	x 490
EX 3000 RT 3U XL	440 x 131 x 490
EX EXB RT 3U 440 x 131	x 490

Tableau des masses en kg
EX 2200 RT 2U 31
EX 2200 RT 3U 30
EX 3000 RT 2U 31
EX 3000 RT 3U 30
EX 3000 RT 3U XL	17
EX EXB RT 3U 42

Position rack

1. Présentation

1.2 Faces arrières

EX 2200 / 3000 / 3000 XL

(1) Port de communication USB

(2) Port de communication RS232

2.3 Installation en position rack

EX

2200 RT 2U

2200 RT 3U

3000 RT 2U

3000 RT 3U

3000 RT 3U XL

EXB RT 3U

Installations- und

Bedienungsanleitung

Pulsar Series

Abmessungen (H x B x T)in mm
EX 2200 RT 2U 440 x 86	x 640
EX 2200 RT 3U 440 x 131	x 490
EX 3000 RT 2U 440 x 86	x 640
EX 3000 RT 3U 440 x 131	x 490
EX 3000 RT 3U XL	440 x 131 x 490
EX EXB RT 3U 440 x 131	x 490

Gewicht in kg
EX 2200 RT 2U 31
EX 2200 RT 3U 30
EX 3000 RT 2U 31
EX 3000 RT 3U 30
EX 3000 RT 3U XL	17
EX EXB RT 3U 42

Rack-Modell

For further information, please visit our website: www.eaton.com

6. Anhang

Pulsar Series

EX

2200 RT 2U

2200 RT 3U

3000 RT 2U

3000 RT 3U

3000 RT 3U XL

EXB RT 3U

Tabella delle dimensioni (A x L x P) in mm
EX 2200 RT 2U 440 x 86	x 640
EX 2200 RT 3U 440 x 131	x 490
EX 3000 RT 2U 440 x 86	x 640
EX 3000 RT 3U 440 x 131	x 490
EX 3000 RT 3U XL	440 x 131 x 490
EX EXB RT 3U 440 x 131	x 490

Tabella delle masse in kg
EX 2200 RT 2U 31
EX 2200 RT 3U 30
EX 3000 RT 2U 31
EX 3000 RT 3U 30
EX 3000 RT 3U XL	17
EX EXB RT 3U 42

Posizione slot

1. Presentazione

1.2 Vista posteriore

EX 2200 / 3000 / 3000 XL

For further information, please visit our website: www.eaton.com

6. Allegati

Cuadro de dimensiones (A x L x P) en mm

Pulsar EX 2200 RT 2U 440 x 86 x 640

Pulsar EX 2200 RT 3U 440 x 131 x 490

Pulsar EX 3000 RT 2U 440 x 86 x 640

Pulsar EX 3000 RT 3U 440 x 131 x 490

Pulsar EX 3000 RT 3U XL 440 x 131 x 490

Pulsar EX EXB RT 3U 440 x 131 x 490

Cuadro de masas en kg.
Pulsar EX 2200 RT 2U 31
Pulsar EX 2200 RT 3U 30
Pulsar EX 3000 RT 2U 31
Pulsar EX 3000 RT 3U 30
Pulsar EX 3000 RT 3U XL	17
Pulsar EX EXB RT 3U 42

Posición de rack

1. Presentación

1.2 Caras traseras

Pulsar EX 2200 / 3000 / 3000 XL

For further information, please visit our website: www.eaton.com

6. Anexos

Installatie- en

Overzicht afmetingen (H x B x D)in mm
EX 2200 RT 2U 440 x 86	x 640
EX 2200 RT 3U 440 x 131	x 490
EX 3000 RT 2U 440 x 86	x 640
EX 3000 RT 3U 440 x 131	x 490
EX 3000 RT 3U XL	440 x 131 x 490
EX EXB RT 3U 440 x 131	x 490

Overzicht gewichten in kg
EX 2200 RT 2U 31
EX 2200 RT 3U 30
EX 3000 RT 2U 31
EX 3000 RT 3U 30
EX 3000 RT 3U XL	17
EX EXB RT 3U 42

Rack-opstelling

1. Beschrijving

1.2 Achterkant

EX 2200 / 3000 / 3000 XL

For further information, please visit our website: www.eaton.com

6. Bijlagen

EX

2200 RT 2U

2200 RT 3U

3000 RT 2U

3000 RT 3U

3000 RT 3U XL

EXB RT 3U

Руководство

по установке

и эксплуатации

Русский

Pulsar Series

Размеры в мм (выс. х шир. х глуб.)
EX 2200 RT 2U	440 x 86 x 640
EX 2200 RT 3U	440 x 131 x 490
EX 3000 RT 2U	440 x 86 x 640
EX 3000 RT 3U	440 x 131 x 490
EX 3000 RT 3U XL	440 x 131 x 490
EX EXB RT 3U	440 x 131 x 490

Macca B Kr
EX 2200 RT 2U	31
EX 2200 RT 3U	30
EX 3000 RT 2U	31
EX 3000 RT 3U	30
EX 3000 RT 3U XL	17
EX EXB RT 3U	42

1. Презентация

1.2 Задние панели

EX 2200 / 3000 / 3000 XL

(30) АБП EX 2200 / 3000 / 3000 XL

(31) Шнур питания

For further information, please visit our website: www.eaton.com

6. Приложения
