549013 - Heated blanket PRINCESS - Free user manual and instructions

Product type	Heated blanket
Dimensions (L x W)	Approximately 140 x 160 cm
Weight	Approximately 1.5 kg
Power supply	220-240 V, 50/60 Hz
Maximum power	100 W
Number of heat levels	6 levels
Automatic shut-off	Yes, after 3 hours
Rapid preheating	Yes
Main material	Soft microfiber
Control	On-cord, with LED display
Overheat protection	Yes
Machine washable	Yes, at 30°C
Tumble drying prohibited	Yes, air dry
Detachable cord	Yes, detachable
Spare parts available	Not sold separately, repair possible at authorized center
Certifications	CE, GS
Color	White or gray (depending on batch)
Warranty	2 years

Frequently Asked Questions - 549013 PRINCESS

How to adjust the temperature of the Princess 549013 heated blanket?

Use the on-cord control: press the + or - button to choose from the 6 heat levels. An LED display shows the selected level.

Does the heated blanket turn off automatically?

Yes, the blanket is equipped with an automatic shut-off after 3 hours of continuous operation for safety reasons.

Can I machine wash the blanket?

Yes, the blanket is machine washable at 30°C on a delicate cycle. Before washing, unplug the cord and close all fasteners. Do not use bleach or fabric softener.

How to dry the blanket after washing?

Air dry the blanket, flat or hung. Do not use a tumble dryer, do not iron, and do not expose directly to sunlight.

What to do if the blanket does not heat?

First check that the cord is properly plugged in and that the outlet works. Ensure the heat level is not set to 0. If the problem persists, contact Princess customer service.

Is the blanket suitable for water beds?

No, this heated blanket is not designed for use on a water bed. Use only on a standard mattress.

Can I use the blanket with a pet?

It is not recommended to leave a pet on the blanket while it is in use, as claws could damage the fabric and heating wires.

How to store the blanket in summer?

Store the blanket in a dry place, away from dust. It is best to fold it without compressing it too much to avoid damaging the internal conductors.

What is the power consumption of the blanket?

The maximum power is 100 W, which corresponds to a consumption of about 0.1 kWh per hour at the highest level.

Where can I find spare parts?

Spare parts are not sold separately. In case of malfunction, contact Princess after-sales service or an authorized repair center.

USER MANUAL 549013 PRINCESS

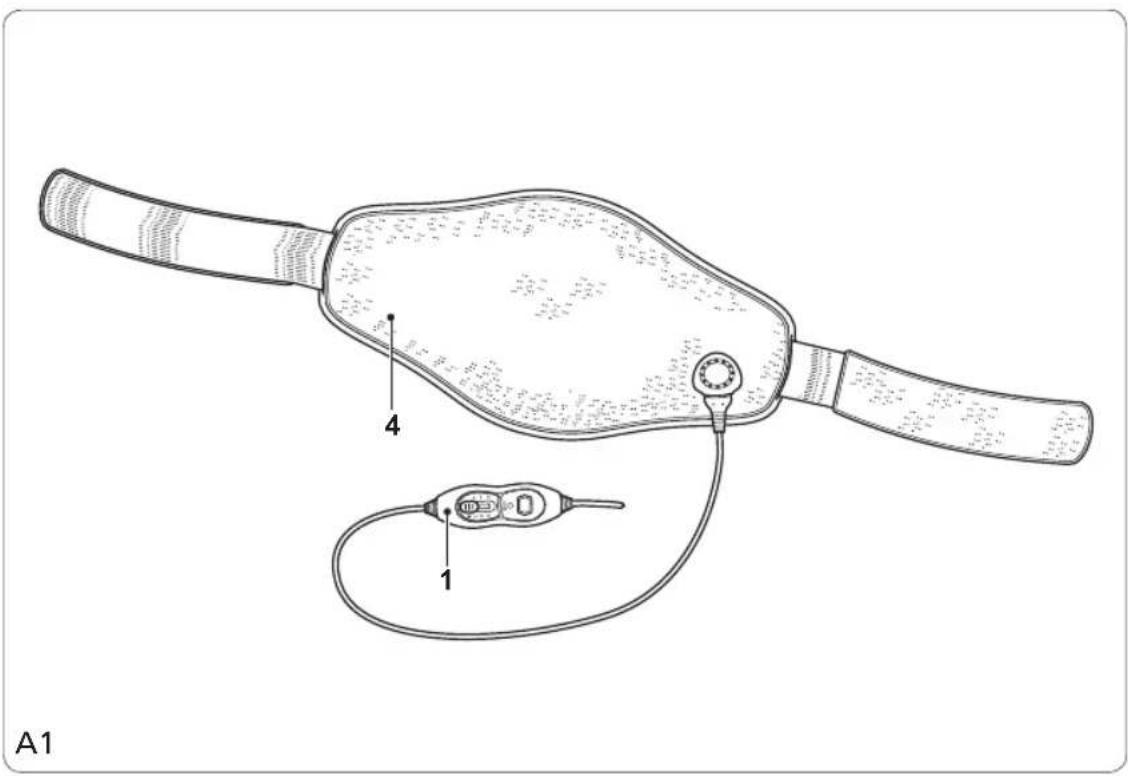

Line drawing of a medical device with attached cable and connector (no text or symbols)

KOOZZZI.

Gefeliciteerd!

You have purchased a KooZzzi product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years.

Description (fig. A)

Your 549013 KooZzzi electric belt has been designed for soothing and relaxing your body. The belt is equipped with a thermal protection system that regulates the heat and prevents the belt from becoming too hot. The belt is suitable for indoor use only. The belt is suitable for domestic use only.

1. Electronic control unit
2. Heat control switch
3. Display
4. Belt
5. Velcro strap

Initial use

Before you proceed, we need you to pay attention to the following notes:

- Make sure that there is sufficient space around the belt to allow heat to escape and provide sufficient ventilation.

Clean the belt. Refer to the section • "Cleaning and maintenance".

Note: If you switch on the belt for the first time, it may emit a characteristic smell for a short period. This is normal operation.

Use

Before you proceed, we need you to pay attention to the following notes:

• Before inserting the mains plug into the wall socket, always set the heat control switch to position '0'.
• Do not use the belt with a higher temperature than required.
• Do not leave the belt unattended during use.

Put the belt (4) around the waist. Tighten • the belt (4) by fastening the Velcro strap (5). Insert the mains plug into the wall socket.

Set the heat control switch (2) to position • '3'. The belt (4) starts to heat up.

The temperature setting is shown on the display (3).

Note: Regularly check the temperature of the belt on the back of your hand. If the temperature feels warm on your hand, it might well be too hot for the surface of your skin.

Wait for approximately 15 minutes until the belt (4) has reached the set temperature.

Set the heat control switch (2) to the required position:

• Set the heat control switch (2) to position '1' for a low temperature. The temperature setting is shown on the display (3).
• Set the heat control switch (2) to position '2' for a medium temperature. The temperature setting is shown on the display (3).
• Set the heat control switch (2) to position '3' for a high temperature. The temperature setting is shown on the display (3).

If the temperature becomes too high, set a lower temperature using the heat control switch (2).

To switch off the belt, set the heat control • switch (2) to position '0'.

Note: The belt switches off automatically after approximately 90 minutes. To switch on the belt again, set the heat control switch to position '0', wait for 5 seconds and set the heat control switch back to the required position.

After use, switch off the belt, remove the • mains plug from the wall socket and wait until the belt has cooled down.

Cleaning and maintenance (fig. A)

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, switch off the belt, remove the mains plug from the wall socket and wait until the belt has cooled down.
• Do not immerse the belt or the electronic control unit in water or any other liquids.

• Do not wash the belt in the washing machine. Do not dry the belt in the tumble dryer.

• Do not clean the electronic control unit.

• Do not use aggressive or abrasive cleaning agents to clean the belt.
• Do not use bleach to clean the belt.
• Do not iron the belt.

Disconnect the electronic control unit (1) • from the belt (4). Wash the belt (4) by hand (max. 30 °C). Allow the belt (4) to dry naturally. Connect the electronic control unit (1) to the belt (4).

After cleaning, put the belt with the electronic control unit in the original packaging.

Store the packaging in a dry and frost-free • place, out of the reach of children.

Safety instructions

General safety

Read the manual carefully before use. • Keep the manual for future reference.

Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.

Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Children should be supervised to ensure that they do not play with the appliance.

The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

The appliance must not be used by infants, • helpless people or people who are insensitive to heat.

The appliance must not be used by young children unless the controls have been preset by a parent or a guardian, or unless the child has been adequately instructed on how to safely operate the controls.

Do not use the appliance near bathtubs, • showers, basins or other vessels containing water.

Do not immerse the electronic control unit in water or other liquids. If the electronic control unit is immersed in water or other liquids, do not remove it with your hands. Immediately remove the mains plug from the wall socket. If the electronic control unit is immersed in water or other liquids, do not use it again.

Electrical safety

Before use, always check that the mains voltage is the same as the voltage on the rating plate of the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Make sure that water cannot enter the contact plugs of the mains cable.

Always fully unwind the mains cable.

Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil • and sharp edges.

• Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
• Do not pull the mains cable to disconnect the mains plug from the mains.
• Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for electric belts

• Do not use the belt outdoors.
• Do not use the belt for medical purposes. The belt is not suitable for use in hospitals, doctor's surgeries, etc.
• Do not use the belt in humid surroundings.
• Keep the belt away from heat sources.

Make sure that the belt does not come • into contact with flammable material.

Make sure that there is sufficient space • around the belt to allow heat to escape and provide sufficient ventilation.

If you are unable to feel heat or cold, do not use the belt.

If you have diabetes or another condition that causes poor blood circulation, consult with your health care provider before use.

If you have a pacemaker, consult with your health care provider before use.

Make sure that you do not fall asleep • during use.

Do not use the belt if your hands are wet.

Only use the belt with the supplied electronic control unit.

Only use the belt when it is unfolded.

Do not use the belt when it is folded, crumpled or otherwise deformed.

Do not use the belt if it is wet.

Do not insert foreign objects into the belt.

Do not puncture the belt with sharp objects.

Do not place large or heavy objects on the belt or on the electronic control unit.

Do not leave the belt unattended when the mains plug is connected to the mains.

Regularly check the belt for signs of wear or damage. If the belt shows signs of wear or damage or if it has been misused, return it to the supplier before further use.

Before storing the belt, allow it to cool • down completely. Store the belt in the original packaging when not in use. Store the belt in a dry and frost-free place, out of the reach of children.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

This is a double-insulated appliance and does not need an earth connection.

Warning! On no account should either the live or neutral wires be connected to the earth terminal.

Disclaimer

Subject to change; specifications can be changed without further notice.
