USER MANUAL GOL 26 G Professional BOSCH

Illustration of a BOSCH surveying instrument with dual scales and adjustment knobs (no text or symbols on the device itself)

6.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

No Original Unit Smith structure

Translperatset project

el niporofrido conyow sponnc

by instructing originally

N. matruklas ongmeniandie

It Originali instrukcija

zh 正本使用说明书

zh原始使用说明書

ko시용 설명서 원부

www.bosch-pt.com/serviceaddresses

Entsorgung

All instructions must be read and observed in order for the measuring tool to function safely. The safeguards integrated into the measuring tool may be compromised if the

measuring tool is not used in accordance with these instructions. Never make warning signs on the measuring tool unrecognisable. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE AND INCLUDE THEM WITH THE MEASURING TOOL WHEN TRANSFERRING IT TO A THIRD PARTY.

▶ Have the measuring tool serviced only by a qualified specialist using only original replacement parts. This will ensure that the safety of the measuring tool is maintained.

Product Description and Specifications

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The measuring tool is intended for establishing and checking exactly horizontal height profiles. It is also suitable for measuring heights, distances and angles.

Product Features

The numbering of the product features shown refers to the illustration of the measuring tool on the graphic page.

(1) Lens
(2) Rough sight
(3) Bubble vial mirror
(4) Eyepiece cover
(5) Adjusting screw for sighting line
(6) Eyepiece
(7) Circular bubble vial

(8) Compensator locking button
(9) Horizontal circle reference mark
(10) Horizontal circle
(11) Adjusting screw for circular bubble vial
(12) Levelling screw
(13) 5/8" tripod mount (on the underside)
(14) Horizontal drive screw
(15) Serial number
(16) Focusing knob
(17) Hex key
(18) Adjusting pin
(19) Case
(20) Plumb-bob

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Technical Data

Optical level GOL 20 D GOL 20 G GOL 26 D GOL 26 G GOL 32 D GOL 32 G

Article number	3 601 K68 400	3 601 K68 401	3 601 K68 000	3 601 K68 001	3 601 K68 500	3 601 K68 501
Working range 60 m 60 m 100 m 100 m 120 m 120 m
Height accuracy for single measurement	3 mm/30 m	3 mm/30 m	1.6 mm/30 m	1.6 mm/30 m	1 mm/30 m	1 mm/30 m
Deviation for 1 km double lev-elling	2.5 mm	2.5 mm	1.5 mm	1.5 mm	1.0 mm	1.0 mm
Accuracy of the bubble vial	8'/2 mm	8'/2 mm	8'/2 mm	8'/2 mm	8'/2 mm	8'/2 mm
Compensator
- Levelling range	±15'	±15'	±15'	±15'	±15'
- Magnet dampening	●●●●●●
Telescope
- Image upright upright upright upright upright upright
- Magnification	20 x	20 x	26 x	26 x	32 x	32 x
- Field of view	1°30'	1°30'	1°30'	1°30'	1°30'	1°30'
- Lens dia-meter	36 mm	36 mm	36 mm	36 mm	36 mm	36 mm
- Minimum measuring distance	0.3 m	0.3 m	0.3 m	0.3 m	0.3 m	0.3 m
- Multiplication factor	100	100	100	100
- Addition con-stant	0	0	0	0	0	0
Horizontal circle graduation	1°	1 gon	1°	1 gon	1°	1 gon
Tripod mount	5/8"	5/8"	5/8"	5/8"	5/8"	5/8"

10 | English

Optical level GOL 20 D GOL 20 G GOL 26 D GOL 26 G GOL 32 D GOL 32 G

Weight according to EPTA-Procedure 01:2014	1.5 kg 1.5 kg 1.5 kg 1.5 kg 1.5 kg 1.5 kg
Protection rating	IP 54 (dust and splash-proof)

The serial number (15) on the type plate is used to clearly identify your measuring tool.

Operation

▶ Check the levelling and display accuracy of the measuring tool each time before beginning work and after longer transport of the measuring tool.
▶ Protect the measuring tool from moisture and direct sunlight.
Do not expose the measuring tool to any extreme temperatures or variations in temperature. For example, do not leave it in a car for extended periods of time. In case of large variations in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. The precision of the measuring tool may be compromised if exposed to extreme temperatures or variations in temperature.
▶ Avoid any impact to or dropping of the measuring tool. Always carry out an accuracy check before continuing work if the measuring tool has been subjected to severe external influences (see "Accuracy Check of the Measuring Tool", page 11).
▶ Place the measuring tool in the provided case when transporting it over longer distances (e.g. in the car). Ensure that the measuring tool is correctly placed in the case. When placing in the case, the compensator is locked, as the measuring tool may otherwise be damaged by strong movements.

Setting Up/Aligning the Measuring Tool

Mounting on the Tripod

Set up the tripod so that it is stable and secured against tipping over or slipping. Place the measuring tool onto the thread of the tripod via the tripod mount (13) and secure the measuring tool with the locking screw of the tripod. Align the tripod roughly.

Over short distances, the measuring tool can be carried whilst mounted on the tripod. In order to avoid damage to the measuring tool, the tripod must be held vertically during transport and should not e.g. be carried lengthwise over the shoulder.

Aligning the Measuring Tool

Align the measuring tool using the levelling screws (12) so that the air bubble is positioned in the centre of the circular bubble vial (7).

1.

1.

Turn the first two levelling screws A and B to move the air bubble so that it is centred between the two levelling screws. Then turn the third levelling screw C until the air bubble is positioned in the centre of the circular bubble vial.

Any remaining deviation of the measuring tool from the horizontal plane following the balancing of the circular bubble vial is compensated for by the compensator.

While working, check regularly (e.g. by looking through the bubble vial mirror (3)) whether the air bubble is still in the centre of the circular bubble vial.

Centring the Measuring Tool over a Ground Point

If necessary, centre the measuring tool over a ground point. To do this, hang the plumb-bob (20) on the locking screw of the tripod. Align the measuring tool over the ground point either by moving the measuring tool on the tripod or by adjusting the tripod.

Focusing the Telescope

Remove the protective cap from the lens (1).

Point the telescope at a bright object or hold a white sheet of paper in front of the lens (1). Turn the eyepiece (6) until the crosshairs appear sharp and deep black.

Point the telescope at the levelling rod, using the rough sight (2) if necessary. Turn the focusing knob (16) until the graduation field of the levelling rod can be seen sharply. Align the crosshairs exactly with the centre of the levelling rod by turning the horizontal drive screw (14).

When the telescope is correctly focused, the crosshairs and the image of the levelling rod must not move against each other when the eye is moved behind the eyepiece.

Measuring Functions

Always set up the levelling rod exactly vertically. Point the aligned and focused measuring tool at the levelling rod so that the crosshairs are on the centre of the levelling rod.

Reading Off the Height

Read off the height on the levelling rod at the centre line of the crosshairs. Height measured in the figure: 1.195 m.

Measuring a Distance

Centre the measuring tool over the point from which the distance is to be measured. Read off the height on the levelling rod at the top and bottom lines of the crosshairs. Multiply the difference between the two heights by 100 to get the distance from the measuring tool to the levelling rod. Distance measured in the figure: (1.347 m - 1.042 m) x 100 = 30.5 m.

Measuring Angles

Centre the measuring tool over the point from which the angle is to be measured.

Point the measuring tool at point A. Rotate the horizontal circle (10) with the zero point toward the reference mark (9). Then point the measuring tool at point B. Read off the angle at the reference mark (9).

GOL 20 D/GOL 26 D/GOL 32 D: Angle measured in the example: 45°.

GOL 20 G/GOL 26 G/GOL 32 G: Angle measured in the example: 45 gon.

Accuracy Check of the Measuring Tool

Check the levelling and display accuracy of the measuring tool each time before beginning work and after longer transport of the measuring tool.

Checking the Circular Bubble Vial

Align the measuring tool using the levelling screws (12) so that the air bubble is positioned in the centre of the circular bubble vial (7).

Rotate the telescope by 180°. If the air bubble is no longer in the centre of the circular bubble vial (7), the circular bubble vial must be readjusted.

Readjusting the Circular Bubble Vial

Move the air bubble of the circular bubble vial (7) to a position midway between the end position of the check and the centre by turning the levelling screws (12).

Using the hex key (17), turn the adjusting screws (11) until the air bubble is positioned in the centre of the circular bubble vial.

Check the circular bubble vial by rotating the telescope by 180°. Repeat the adjustment procedure if necessary or contact Bosch customer service.

Checking the Compensator

After aligning and focusing the measuring tool, measure the height at a reference point. Then press and release the locking button of the compensator (8). Measure the height at the reference point again.

If the two heights do not match exactly, have the measuring tool repaired by Bosch customer service.

Checking the Crosshairs

A measuring distance of approx. 30 m is required for the check. Set up the measuring tool in the centre and levelling rods A and B at both ends of the measuring distance.

After aligning and focusing the measuring tool, read off the heights at both levelling rods. Calculate the difference d between the height a₁ on levelling rod A and the height b₁ on levelling rod B.

Example:

a _ 1 = 1. 9 3 7 m

b _ 1 = 1. 6 8 9 m

a _ 1 - b _ 1 = 1. 9 3 7 m - 1. 6 8 9 m = 0. 2 4 8 m = d

12 | English

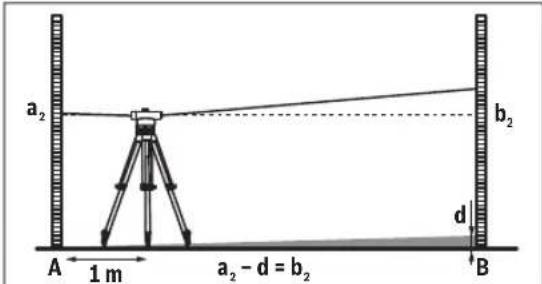

Set up the measuring tool approx. 1 m away from levelling rod A. After aligning and focusing the measuring tool, read off the height a₂ at levelling rod A.

Subtract the previously calculated value d from the measured height a₂ in order to obtain the set value for the height b₂ at levelling rod B.

Measure the height b₂ at levelling rod B. If the measured value deviates by more than 6 mm (GOL 20 D/G), 3 mm (GOL 26 D/G) or 2 mm (GOL 32 D/G) from the calculated set value, the crosshairs must be readjusted.

Example:

a₂=1.724m

d = 0.248 m

a₂ - d = 1.724m - 0.248m = 1.476m

GOL 20 D/G: When measuring, the height b₂ must be 1.476 m ± 6 mm.

GOL 26 D/G: When measuring, the height b₂ must be 1.476 m ± 3 mm.

GOL 32 D/G: When measuring, the height b₂ must be 1.476 m ± 2 mm.

Readjusting the Crosshairs

Unscrew the eyepiece cover (4). Using the adjusting pin (18), turn the adjusting screw (5) clockwise or anticlockwise, until the calculated set value for the height b₂ is reached when measuring on levelling rod B. Screw the eyepiece cover (4) back on.

Example:

When measuring b₂ , the value 1.476 m must be set.

Check the crosshairs again. Repeat the adjustment procedure if necessary or contact Bosch customer service.

Maintenance and Service

Maintenance and Cleaning

Store and transport the measuring tool only in the supplied case.

Keep the measuring tool clean at all times.

Never immerse the measuring tool in water or other liquids. Wipe off any dirt using a damp, soft cloth. Do not use any detergents or solvents.

Handle the lenses with particular care. Remove dust only with a soft brush. Do not touch the lenses with your fingers. Before storing, allow the measuring tool and the case to dry completely. In the case, there is a bag containing desiccant, which binds residual moisture. Replace the desiccant bag regularly.

If the measuring tool needs to be repaired, send it off in the case.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

Measuring tools, accessories and packaging should be recycled in an environmentally friendly manner.

Only for EU countries:

According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transposition into national law, measuring tools that are no longer usable, and, according to the Directive 2006/66/EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and

human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Eliminación

www.bosch-pt.com/serviceaddresses

Eliminação

www.bosch-pt.com/serviceaddresses

Smaltimento

www.bosch-pt.com/serviceaddresses

Afvalverwijdering

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Bortskaffelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Avfallshantering

Rett stativet grovt opp.

www.bosch-pt.com/serviceaddresses

Kassering

www.bosch-pt.com/serviceaddresses

Hävitys
    note right of A "1."

www.bosch-pt.com/serviceaddresses

Απόσυρση

www.bosch-pt.com/serviceaddresses

Tasfiye

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Utylizacja odpadów

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Likvidace

www.bosch-pt.com/serviceaddresses

Likvidácia
    note right of A "1."

www.bosch-pt.com/serviceaddresses

Hulladékkezelés

www.bosch-pt.com/serviceaddresses

Утилизация

www.bosch-pt.com/serviceaddresses

Утилізація
    note right of A "1."

www.bosch-pt.com/serviceaddresses

Кәдеге жарату
    note right of A "1."

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Eliminarea

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Бракуване

www.bosch-pt.com/serviceaddresses

Отстранување
    note right of A: Arrow pointing to top circle
    note right of B: Arrow pointing to bottom circle

Okretanjem prva dva nožna zavrtnja A i B, dovedite vazdušni mehur u sredinu između ova dva zavrtnja. Zatim okrećite treći nožni zavrtanj C dok mehur vazduha ne bude u sredini kružne libele.

Nakon početnog podešavanja kružne libele, sva odstupanja mernog alata od horizontalne linije kompenzuju se pomoću kompenzatora.

Tokom rada redovno proveravajte (npr. posmatranjem ogledala libele (3)) da li je vazdušni mehur i dalje u sredini kružne libele.

Koristeći šestougaoni ključ (17), okrećite zavrtnje za podešavanje (11) dok se vazdušni mehur ne nalazi u sredini kružne libele.

Proverite kružnu libelu okretanjem teleskopa za 180°. Po potrebi, ponovite postupak podešavanja ili se obratite Bosch korisničkom servisu.

Provera kompenzatora

Nakon centriranja i fokusiranja mernog alata, izmerite visinu u referentnoj tački. Pritisnite dugme za blokadu (8) kompenzatora i otpustite ga. Ponovo izmerite visinu u referentnoj tački.

110 | Srpski

Ako se dve visine ne podudaraju tačno, obratite se Bosch korisničkom servisu radi popravke mernog alata.

Provera nitnog krsta

Za proveru vam je potrebna merna putanja dužine oko 30 m. Postavite merni alat u sredinu, a nivelacione letve A i B na oba kraja merne putanje.

Nakon centriranja i fokusiranja mernog alata, očitajte visinu sa obe nivelacione letve. Izračunajte razliku d između visine a na nivelacionoj letvi A i visine b na nivelacionoj letvi B.

Primer:

a₁=1,937m

b=1,689m

a₁-b₁=1,937m-1,689m=0,248m=d

Postavite merni alat oko 1 m od nivelacione letve A. Nakon centriranja i fokusiranja mernog alata, očitajte visinu a ₂ sa nivelacione letve A.

www.bosch-pt.com/serviceaddresses

Uklanjanje dubreta

Merni alati, pribor i ambalaža treba da se uključe u reciklažu koja odgovara zaštiti čovekove okoline.

Samo za EU-zemlje:

Merilno napravo postavite približno 1 m stran od nivelirnega količka A. Po poravnavi in izostritvi merilne naprave odčitajte višino a₂ na nivelirnem količku A.

Prej izračunano vrednost d odštejte od izmerjene višine a₂ , da dobite želeno vrednost za višino b₂ na nivelirnem količku B.

www.bosch-pt.com/serviceaddresses

Odlaganje

Merilne naprave, pribor in embalažo oddajte v okolju prijazno recikliranje.

Postavite mjerni alat na udaljenosti od cca. 1 m od letve za niveliranje A. Nakon poravnavanja i fokusiranja mjernog alata očitajte visinu a₂ na letvi za niveliranje A.

www.bosch-pt.com/serviceaddresses

Zbrinjavanje

Mjerne alate, pribor i ambalažu treba dovesti na ekološki prihvatljivo recikliranje.

Samo za zemlje EU:

U skladu s europskom Direktivom 2012/19/EU o električnim i elektroničkim starim uređajima i njihovom provedbom u nacionalno pravo neupotrebljivi mjerni alati i u skladu s europskom Direktivom 2006/66/EZ neispravne ili istrošene aku-baterije/baterije moraju se odvojeno sakupljati i dovesti na ekološki prihvatljivo recikliranje.

www.bosch-pt.com/serviceaddresses

Jäätmekäitlus

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Šalinimas

www.bosch-pt.com/serviceaddresses

废弃处理

www.bosch-pt.com/serviceaddresses

廢棄物處理

www.bosch-pt.com/serviceaddresses

처리
    note right of A "1."

www.bosch-pt.com/serviceaddresses

การกำจัดขยะ

www.bosch-pt.com/serviceaddresses

Cara membuang

www.bosch-pt.com/serviceaddresses

Sự thải bổ

ρ 1,476 = ρ 0,248 - ρ a₂ - d = 1,724

Robert Bosch Morocco SARL

53,شارع الملازم محمد مÜRود

20300 الدار البضاء

www.bosch-pt.com/serviceaddresses
