USER MANUAL KWT1611VI MIELE

Technical line drawing of a multi-tiered industrial storage unit with mounting brackets and control panel (no text or symbols)

To prevent misuse read these instructions before installation or use.

Side-by-side 3
... without partition. 3
... with partition .... 4

Required accessories and tools 4

Tools 4
Other 4

Prepare the appliances 5

Installing the heating mat....5

Connect the appliances. 7

fr 9

Avant de commencer l'installation....9

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 Vi, K 19x1 Vi
• F 14x1 Vi, F 18x1 Vi, F 19x1 Vi
• KF 18x1 Vi, KF 19x1 Vi
• KWT 16x1 Vi

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward.

Keep the doors closed until the appliance is completely installed and secured per the installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

Side-by-side

... without partition

Three-panel diagram showing mechanical components with cross symbols, no text or labels present

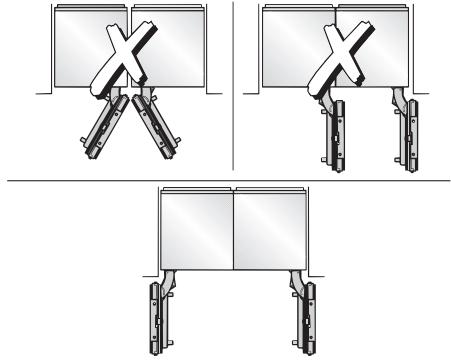

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

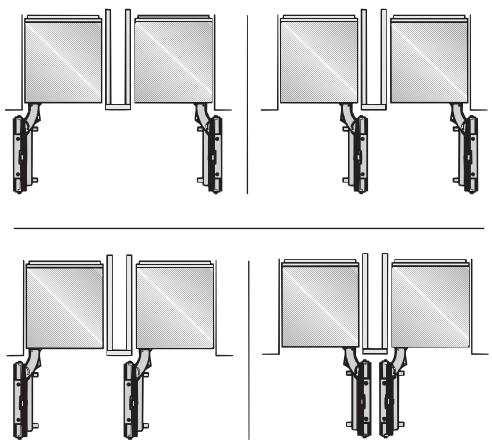

... with partition

The minimum thickness of the partition is 58 " (16 mm).

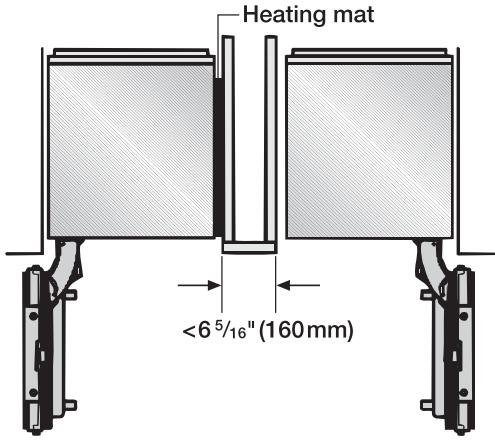

If there is a partition with a thickness from 5/8'' (16 mm) to 6^5/_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

Tools

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench

Other

• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

Prepare the appliances

■ Place the appliances next to each other in the intended configuration.

Technical line drawing of a mechanical device with a clamping mechanism and mounting bracket (no text or symbols)

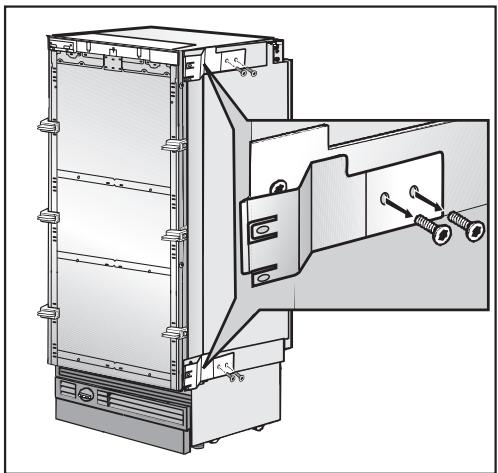

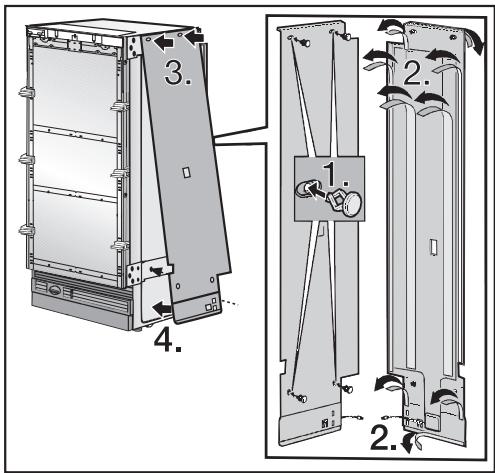

■ On the handle side of the housing, remove the side attachment plates.

Technical line drawing of a mechanical device with labeled M5x16 component (no readable text or symbols beyond label)

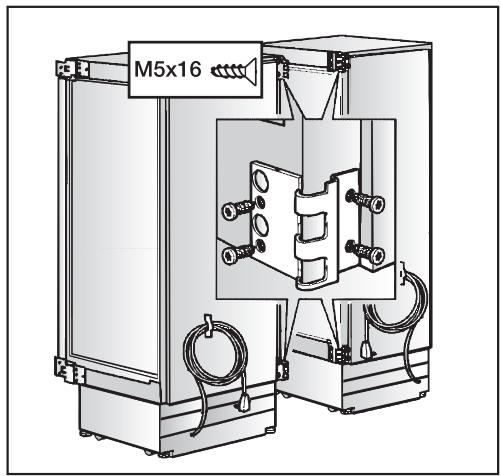

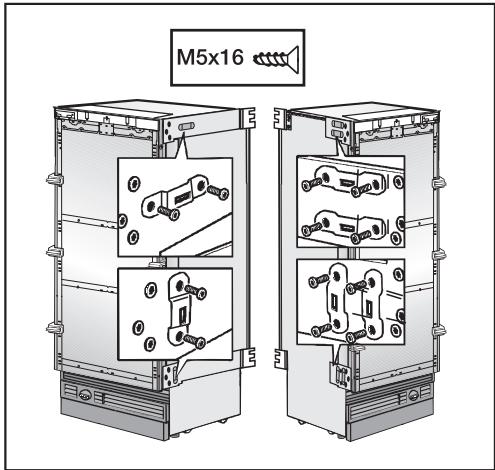

■ Take the hinge halves from the side-by-side kit and screw them to both appliances.

■ Screw the side plates to both appliances. Check the position of both appliances!

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

■ Insert pins through the prepared holes ①.

■ Pull the protective strip off of the adhesive tape ②.
■ Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ③.
■ Press on the heating mat from top to bottom, and insert the lower pins into the holes ④.

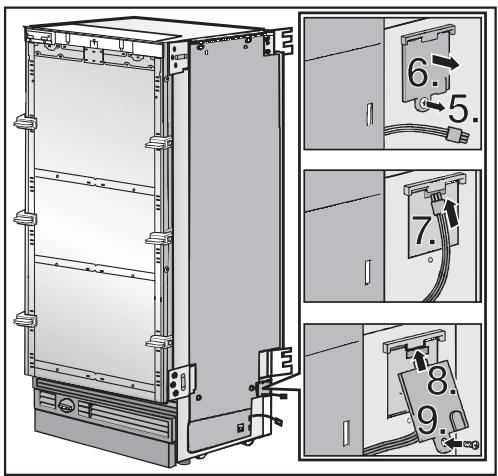

■ Loosen the screws from the connection box ⑤.
■ Open the connection box ⑥.
■ Attach the cable ⑦.
■ Close the connection box lid ⑧.
- Secure the connection box screws ⑨.

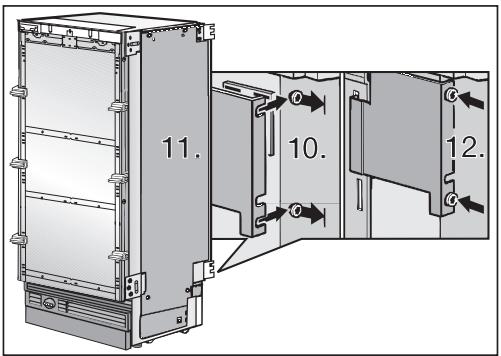

■ Loosen the screws on the rear side of the appliance ⑩. Do not unscrew completely.
■ Hang the cable cover by its hinge on the heating mat and, from below, push into the screws ⑪.
■ Tighten the screws ⑫.

Connect the appliances

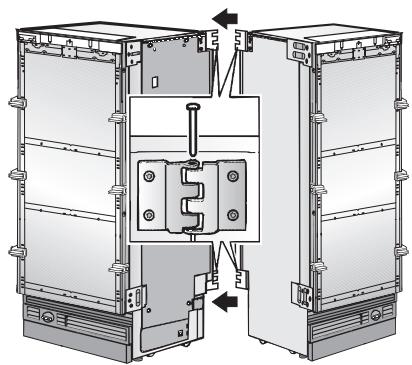

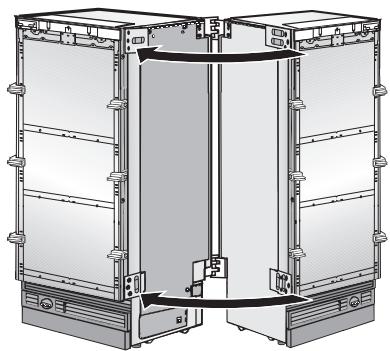

■ Push the appliances together until the hinge halves interlock.

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

■ Insert the pins into the hinges.

Technical line drawing of a mechanical assembly with no visible text or symbols

■ Push the appliances together at the front as far as possible.

Technical line drawing of a mechanical device with internal components and a close-up view showing a tool interacting with a component (no text or symbols present)

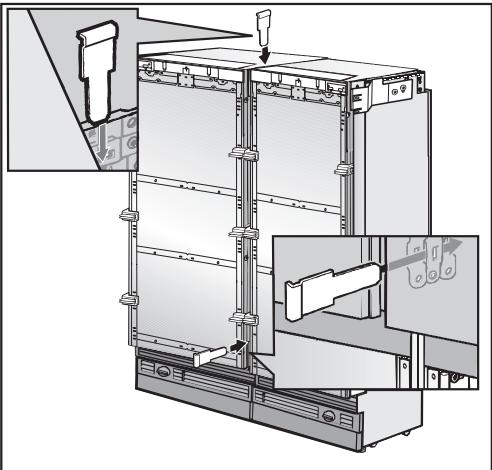

■ Once the appliances have been pushed together, insert the metal bracket into the upper and lower plates. Use a tool to push the bracket in all the way.

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

Technical line drawing of a refrigerator interior showing door, vent, and side panel (no text or symbols)

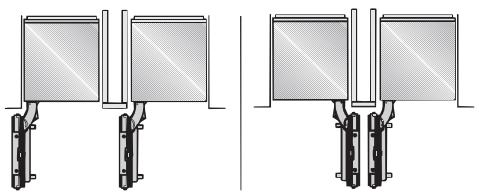

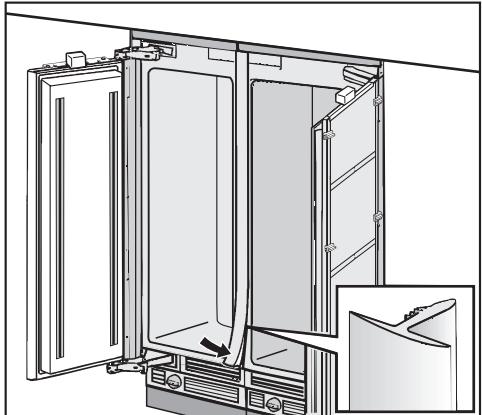

■ Insert the cover strip into the seam between the appliances.

Three-panel diagram showing mechanical components with cross marks, no text or symbols present

Technical line drawing of two identical mechanical components mounted on vertical supports (no text or symbols)

Technical line drawing of two identical mechanical components with vertical supports and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with a clamping mechanism and mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with labeled M5x16 component (no readable text or symbols beyond label)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a refrigerator interior showing door, front panel, and side view (no text or symbols)

Three-panel diagram showing mechanical components with cross marks, no text or symbols present

Technical line drawing of a mechanical device with mounting bracket and clamping mechanism (no text or symbols)

Technical line drawing of a mechanical device with labeled M5x16 component (no readable text or symbols beyond label)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a refrigerator interior showing door, front panel, and side panel (no text or symbols)
