Product type	Combination refrigerator
Brand	MIELE
Model	KF 1801 SF
Category	Built-in combination refrigerator
Refrigeration	Fan cooled (NoFrost)
Freezing	Freezer with NoFrost system
Total volume	Approx. 340 liters
Refrigerator volume	Approx. 230 liters
Freezer volume	Approx. 110 liters
Climate class	SN-ST (10°C to 38°C)
Electrical supply	220-240 V, 50 Hz
Installed power	Approx. 150 W
Dimensions (H x W x D)	177.2 x 55.9 x 55.0 cm
Net weight	Approx. 80 kg
Main functions	Combined refrigeration and freezing, NoFrost system, LED lighting, digital display
Cleaning and maintenance	Interior cleaning with warm water and mild detergent, gasket maintenance
Safety	Control lock, open door alarm, child safety
Spare parts and repairability	Parts available from Miele after-sales service, high repairability
Included accessories	Side-by-side kit (optional), glass shelves, vegetable drawer, door bins
Warranty	2 years (in accordance with regulations)

Frequently Asked Questions - KF 1801 SF MIELE

How to install my Miele KF 1801 SF combination refrigerator side by side with another appliance?

For side-by-side installation, use the supplied side-by-side kit. Follow the instructions in the manual: remove the mounting frames, attach the half hinges and heating plate, then connect the appliances. Two people are recommended.

What are the exact dimensions of the KF 1801 SF?

The dimensions are approximately 177.2 cm height, 55.9 cm width, and 55.0 cm depth. Please check the official datasheet for precise measurements.

Does the refrigerator have the NoFrost system?

Yes, the Miele KF 1801 SF is equipped with the NoFrost system in both the refrigerator and freezer compartments, which prevents frost formation and reduces maintenance.

How to adjust the temperature of the refrigerator and freezer?

Use the electronic controls on the front. The recommended temperatures are 4°C for the refrigerator and -18°C for the freezer. Refer to the manual for precise settings.

What to do if the appliance does not cool sufficiently?

Check that the temperature is set correctly, the doors close properly, the ventilation grilles are not obstructed, and the appliance is not in defrost mode. If the problem persists, contact Miele after-sales service.

How to clean the interior of the refrigerator?

Unplug the appliance, remove food and shelves. Clean with a soft cloth and warm water with a mild detergent. Rinse and dry. Do not use abrasive cleaners.

Is it possible to reverse the door opening direction?

Yes, the doors on this model are reversible. Refer to the installation manual for the detailed procedure to change the opening direction.

What accessories are included with the KF 1801 SF?

The appliance is supplied with glass shelves, a vegetable drawer, door bins, and possibly a side-by-side kit. Check the packaging.

How to replace the light bulb?

The lighting is generally non-replaceable LED. If the lighting is defective, contact Miele customer service. If the appliance has a conventional bulb, unplug, remove the cover, and replace with a bulb of the same type (see manual).

Where can I download the manual for the Miele KF 1801 SF?

The manual is available free in PDF format on notice-facile.com or on the official Miele website. You can also request a translation via the form on the page.

USER MANUAL KF 1801 SF MIELE

To prevent misuse read these instructions before installation or use.

Side-by-side 3
. without partition. 3
with partition. 4

Required accessories and tools 4

Tools 4
Other 4

Prepare the appliances 5
6
Connect the appliances. 7

fr 9

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 SF, K 19x1 SF
  -F14x1SF,F18x1SF,F19x1SF
• KF 18x1 SF, KF 19x1 SF
  -KWT16x1SF

For side-by-side installation of appliances with a stainless-steel front, you also need a Top-frame. Contact Miele to obtain a top-frame in the required width. The width of the Top-frame corresponds to the total width of your side-by-side combination.

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions. To reduce the risk of injury or damage to the product, two people should be used for installation.

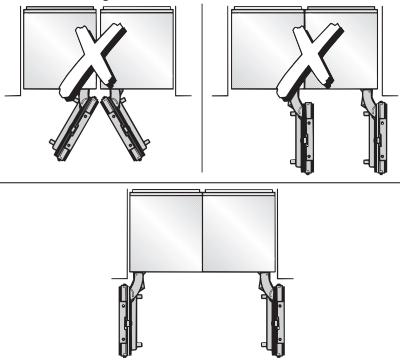

Side-by-side

... without partition

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

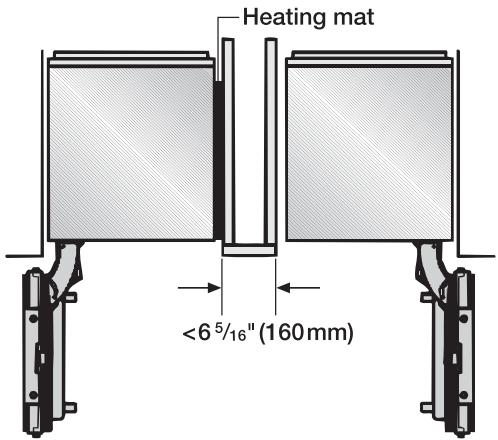

... with partition

The minimum thickness of the partition is 58 (16 mm).

If there is a partition with a thickness from 5 / 8'' (16 mm) to 6^5 /_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

To connect a side-by-side combination, you will need a Top-frame, which can be obtained from Miele.

Tools

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench

Other

• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

Prepare the appliances

• Place the appliances next to each other in the intended configuration.

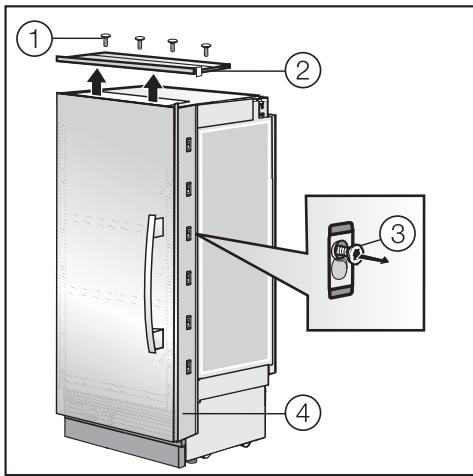

Remove the mounting frames located on the top and inside (handle side) of each appliance.

• On each appliance, remove the screws ① from the upper mounting frame ② and pull the frame up and off.
• Loosen the screws ③ a few turns on the side mounting frame ④ of each appliance.
• Slide each side mounting frame ④ slightly upward and then outward to unhinge.
  Screw the screws ③ all the way in again or remove them completely.

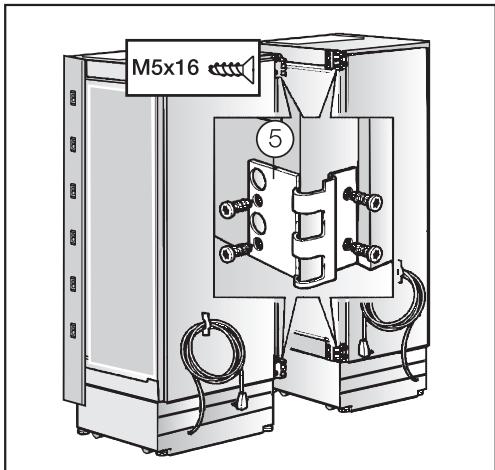

Take the hinge halves ⑤ from the side-by-side kit and screw them to both appliances.

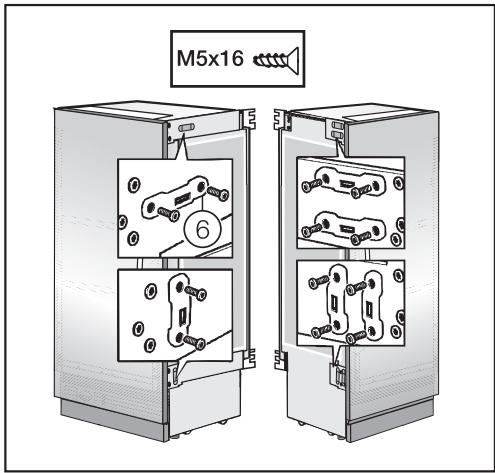

• Screw the side plates ⑥ to both appliances. Check the position of both appliances!

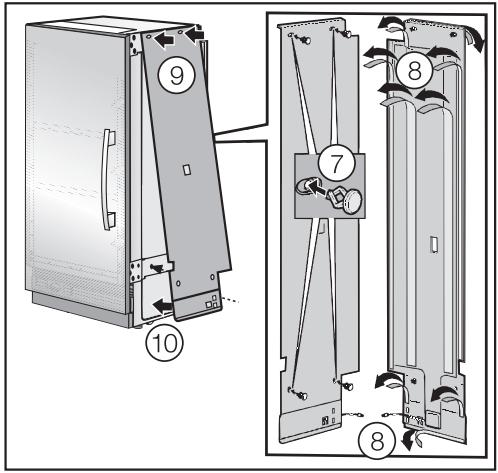

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

Insert pins through the prepared holes ⑦.
Pull the protective strip off of the adhesive tape ⑧
Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ⑨.
Adhere the heating mat from top to bottom, and insert the lower pins into the holes 10.

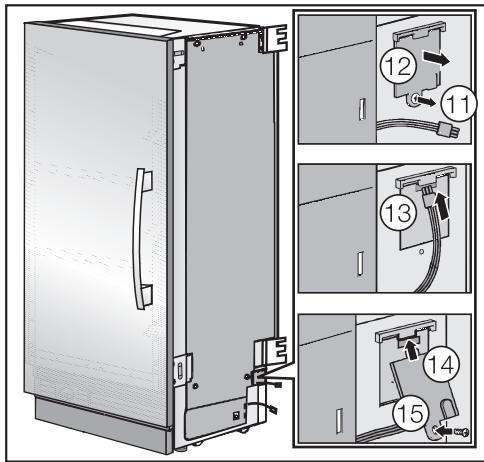

Loosen the screws from the connection box ⑪.
Open the connection box 12.
Attach the cable 13.
Close the connection box lid 14.
- Secure the connection box screws ⑤

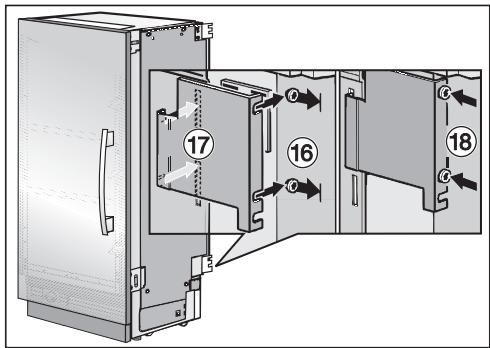

Loosen the screws on the rear side of the appliance 16. Do not unscrew completely.
- Hang the cable cover by its hinge on the heating mat and, from below, push into the screws ⑦ .
Tighten the screws 18.

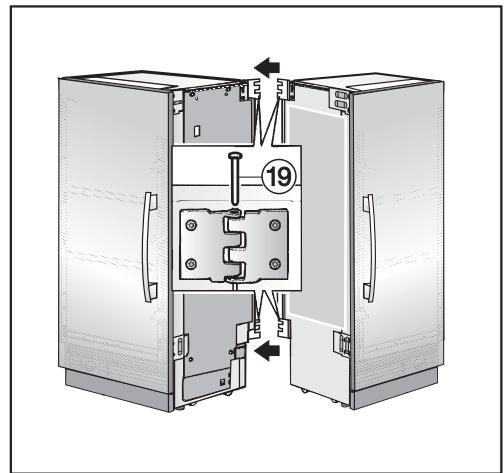

Connect the appliances

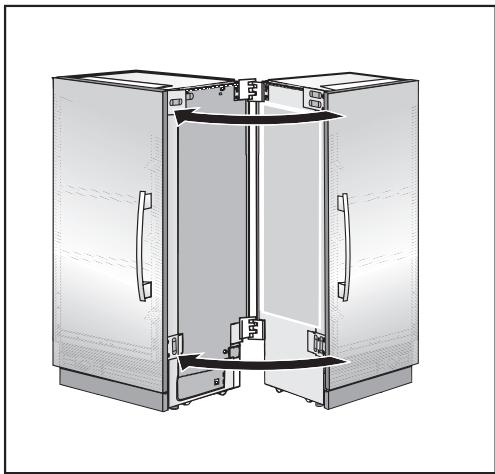

Push the appliances together until the hinge halves interlock.

Insert the pins 19 into the hinges.

Push the appliances together as far as possible.

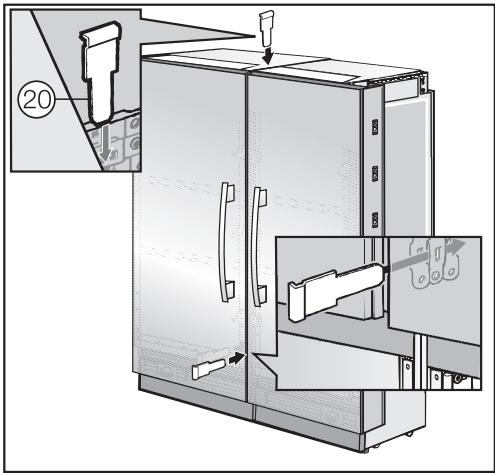

Once the appliances have been pushed together, insert the metal bracket 20 into the upper and lower plates. Use a tool to push the bracket in all the way.

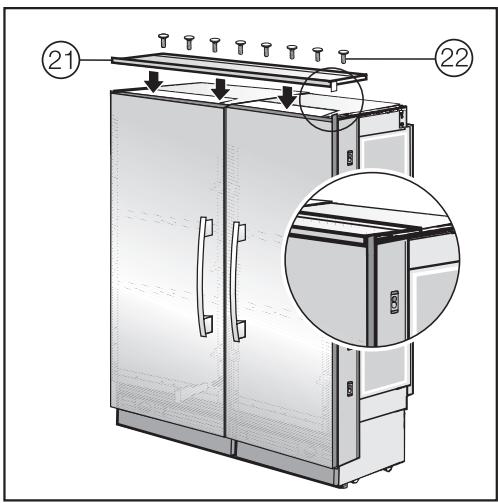

• Place the Top-frame ② on the side-by-side combination, hook it into the keyholes, and fasten it to the appliances with the screws ②

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

The remaining frames and screws are no longer needed for the side-by-side combination.

Insert the cover strip into the seam between the appliances.
