Product type	Fridge-freezer
Brand	MIELE
Model	KF 1911 VI
Height	177 cm
Width	55.8 cm
Depth	55 cm
Weight	66 kg
Power supply	220-240 V, 50 Hz
Energy class	A++
Refrigerator capacity	203 L
Freezer capacity	72 L
Freezer star rating	4 stars
Cooling technology	NoFrost
Special functions	SuperFrost, SuperCool, digital display
Interior lighting	LED
Installation type	Built-in
Care and cleaning	Clean surfaces with a soft cloth and soapy water; do not use abrasive cleaners
Safety	Child safety lock, door alarm
Repairability index	8.0 / 10
Spare parts	Available via Miele after-sales service

Frequently Asked Questions - KF 1911 VI MIELE

How to adjust the temperature of the refrigerator and freezer?

Use the adjustment buttons on the control panel. The recommended temperature for the refrigerator is 4 to 5 °C and for the freezer -18 °C. Press the corresponding button and adjust with the arrows.

What to do if the door alarm goes off?

The door alarm sounds if the door remains open too long. Close the door to stop the alarm. If the problem persists, check that nothing prevents complete closure.

How to activate the SuperFrost function?

Press the SuperFrost (or SuperFreeze) button until the indicator lights up. This function lowers the freezer temperature to quickly freeze large amounts of food. It deactivates automatically after about 65 hours.

Why is my refrigerator making noise?

Normal operating noises may come from the compressor, fan, or refrigerant circulation. If the noise becomes very loud or irregular, check that the appliance is level and that there is no obstruction. Consult the manual for more details.

How to replace the LED bulb?

LED bulbs can only be replaced by a Miele authorized technician. Contact after-sales service.

How to clean the NoFrost freezer compartment?

Thanks to the NoFrost system, automatic defrosting prevents frost formation. To clean, empty the freezer, unplug the appliance, and wipe the walls with a damp cloth. Dry thoroughly before restarting.

What minimum distance should there be between the appliance and adjacent furniture?

For built-in installation, maintain a spacing of at least 5 mm on each side for ventilation. Consult the installation instructions for exact values.

How to reset the water filter?

The KF 1911 VI model is not equipped with a water dispenser, so there is no water filter to reset.

What to do if the screen displays an error?

Note the error code displayed. Unplug the appliance for 5 minutes then plug it back in. If the error persists, contact Miele service with the error code.

How to save energy with this refrigerator?

Place the appliance in a cool, well-ventilated area away from heat sources. Do not open the door unnecessarily. Activate Holiday mode if you are away for a long time. Check the seals for tightness.

USER MANUAL KF 1911 VI MIELE

To prevent misuse read these instructions before installation or use.

Side-by-side 3
. without partition. 3
with partition 4

Required accessories and tools 4

Tools 4
Other. 4

Prepare the appliances 5
Installing the heating mat. 5
Connect the appliances. 7

fr 9

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 Vi, K 19x1 Vi
• F 14x1 Vi, F 18x1 Vi, F 19x1 Vi
• KF 18x1 Vi, KF 19x1 Vi
• KWT 16x1 Vi

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

Side-by-side

... without partition

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

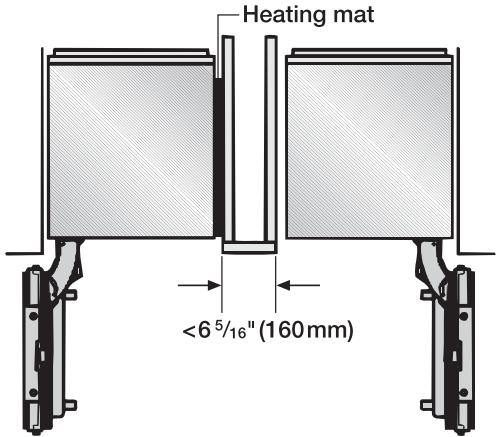

... with partition

The minimum thickness of the partition is 58 (16 mm).

If there is a partition with a thickness from 5 / 8'' (16 mm) to 6^5 /_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

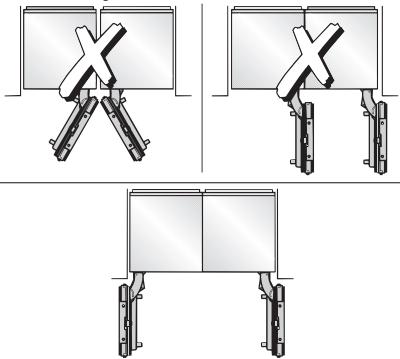

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

Tools

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench

Other

• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

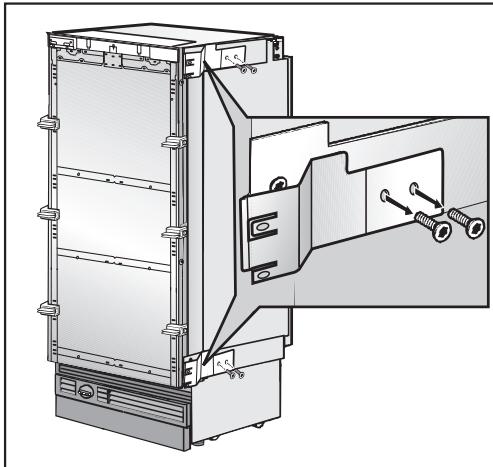

Prepare the appliances

Place the appliances next to each other in the intended configuration.

• On the handle side of the housing, remove the side attachment plates.

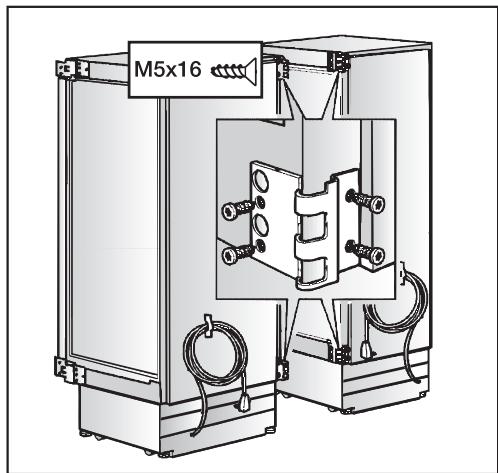

Take the hinge halves from the side-by-side kit and screw them to both appliances.

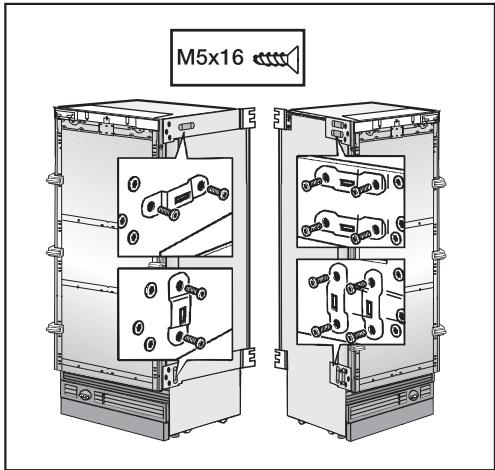

• Screw the side plates to both appliances. Check the position of both appliances!

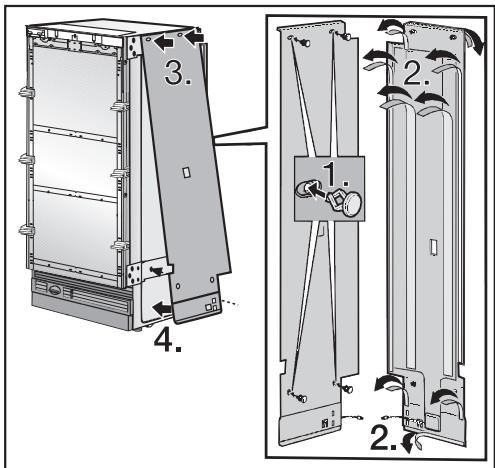

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

Insert pins through the prepared holes ①.

Pull the protective strip off of the adhesive tape ②.
Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ③.
Press on the heating mat from top to bottom, and insert the lower pins into the holes ④.

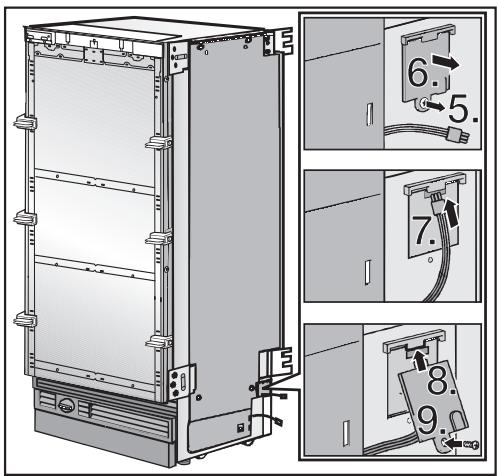

Loosen the screws from the connection box ⑤.
Open the connection box 6
- Attach the cable ⑦.
Close the connection box lid 8.
- Secure the connection box screws ⑨

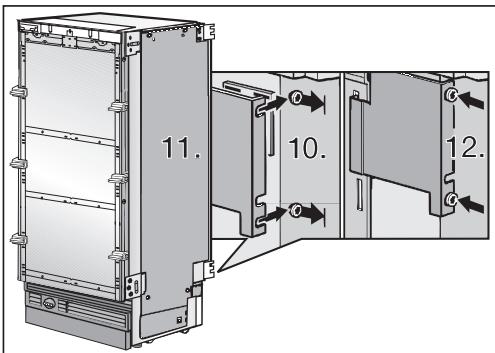

• Loosen the screws on the rear side of the appliance ⑩ . Do not unscrew completely.
• Hang the cable cover by its hinge on the heating mat and, from below, push into the screws (1).
  Tighten the screws 12.

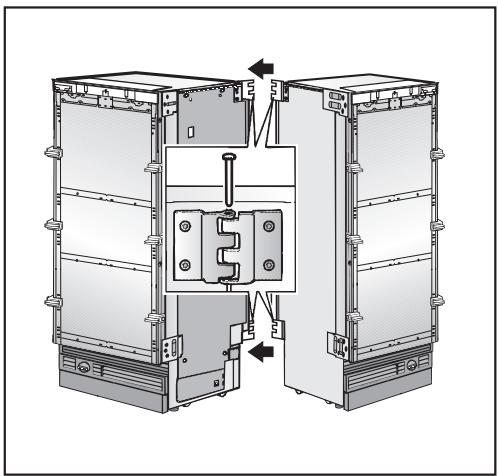

Connect the appliances

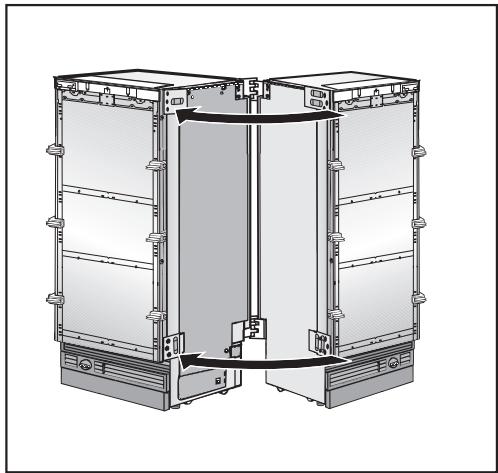

Push the appliances together until the hinge halves interlock.

Insert the pins into the hinges.

Push the appliances together at the front as far as possible.

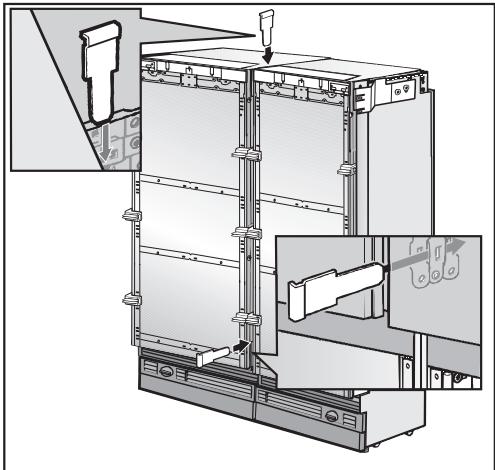

Once the appliances have been pushed together, insert the metal bracket into the upper and lower plates. Use a tool to push the bracket in all the way.

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

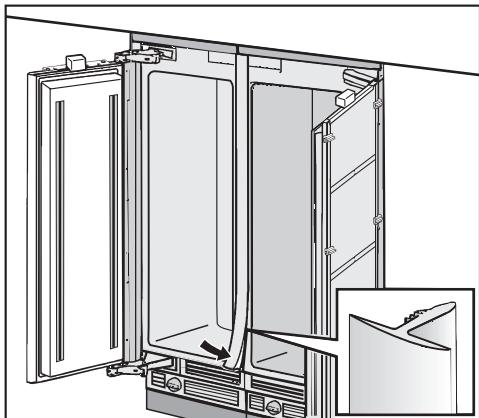

Insert the cover strip into the seam between the appliances.
