USER MANUAL KF 1911 SF MIELE

To prevent misuse read these instructions before installation or use.

Side-by-side 3
. without partition. 3
with partition. 4

Required accessories and tools 4

Tools 4
Other 4

Prepare the appliances 5
Installing the heating mat. 6
Connect the appliances. 7

fr 9

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 SF, K 19x1 SF
  -F14x1SF,F18x1SF,F19x1SF
• KF 18x1 SF, KF 19x1 SF
  -KWT16x1SF

For side-by-side installation of appliances with a stainless-steel front, you also need a Top-frame. Contact Miele to obtain a top-frame in the required width. The width of the Top-frame corresponds to the total width of your side-by-side combination.

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions. To reduce the risk of injury or damage to the product, two people should be used for installation.

Side-by-side

... without partition

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

... with partition

The minimum thickness of the partition is 58 (16 mm).

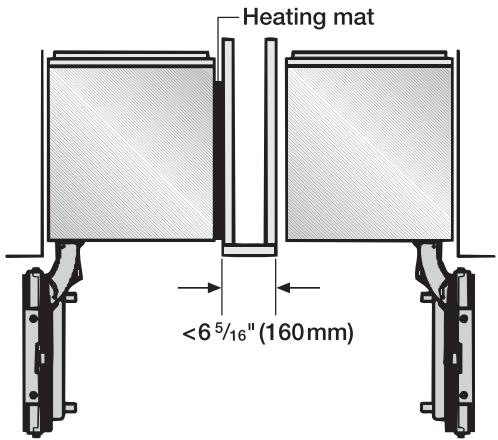

If there is a partition with a thickness from 5 / 8'' (16 mm) to 6^5 /_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

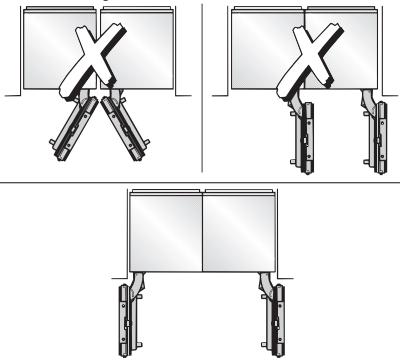

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

To connect a side-by-side combination, you will need a Top-frame, which can be obtained from Miele.

Tools

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench

Other

• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

Prepare the appliances

• Place the appliances next to each other in the intended configuration.

Remove the mounting frames located on the top and inside (handle side) of each appliance.

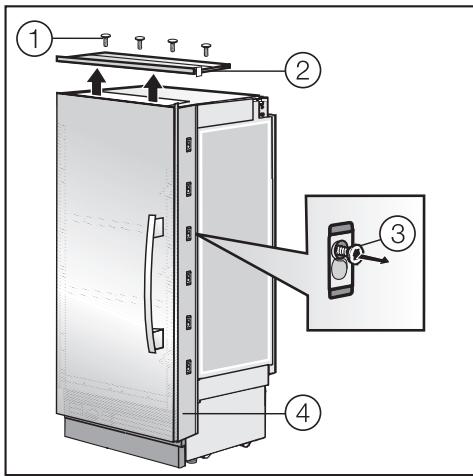

• On each appliance, remove the screws ① from the upper mounting frame ② and pull the frame up and off.
• Loosen the screws ③ a few turns on the side mounting frame ④ of each appliance.
• Slide each side mounting frame ④ slightly upward and then outward to unhinge.
  Screw the screws ③ all the way in again or remove them completely.

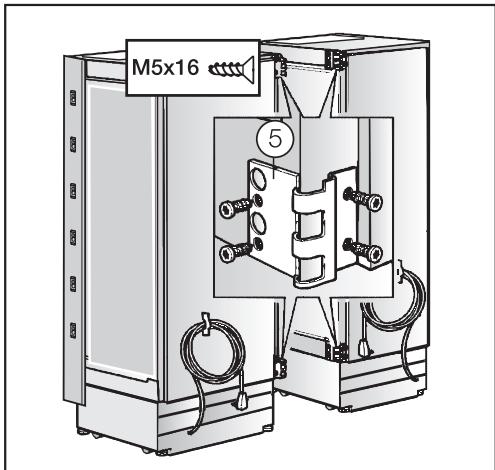

Take the hinge halves ⑤ from the side-by-side kit and screw them to both appliances.

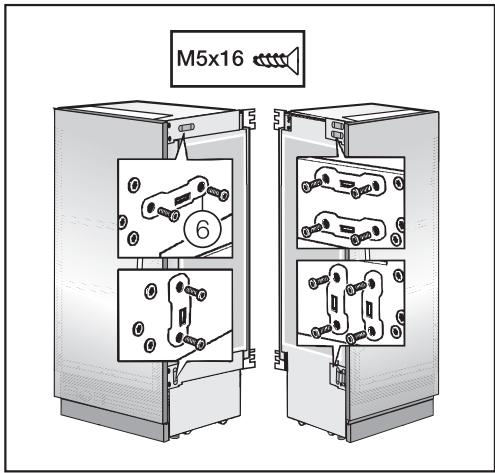

• Screw the side plates ⑥ to both appliances. Check the position of both appliances!

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

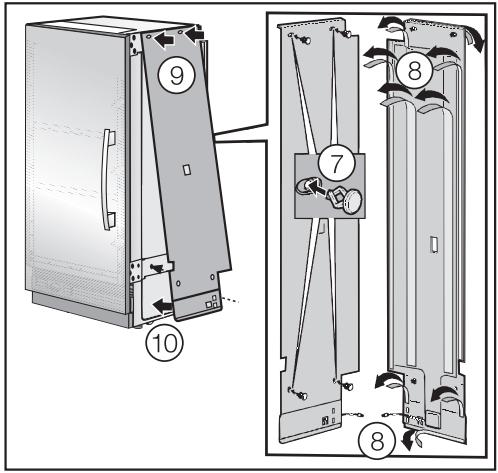

Insert pins through the prepared holes ⑦.
Pull the protective strip off of the adhesive tape ⑧ .
Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ⑨.
Adhere the heating mat from top to bottom, and insert the lower pins into the holes 10.

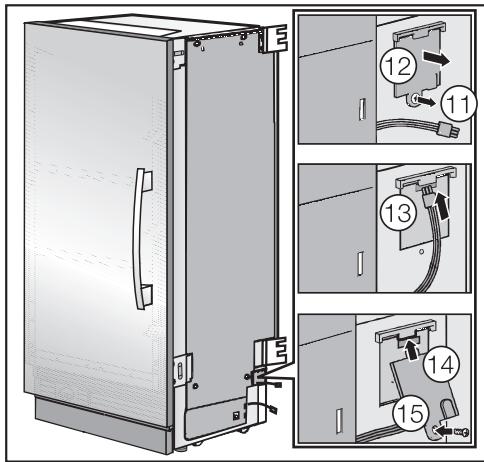

Loosen the screws from the connection box ⑪.
Open the connection box 12.
Attach the cable 13.
Close the connection box lid 14.
- Secure the connection box screws ⑤

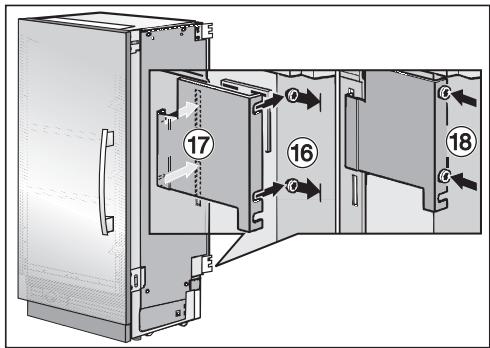

Loosen the screws on the rear side of the appliance 16. Do not unscrew completely.
- Hang the cable cover by its hinge on the heating mat and, from below, push into the screws ⑦ .
Tighten the screws 18.

Connect the appliances

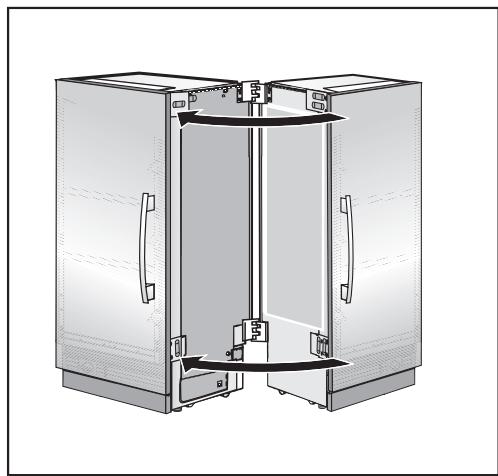

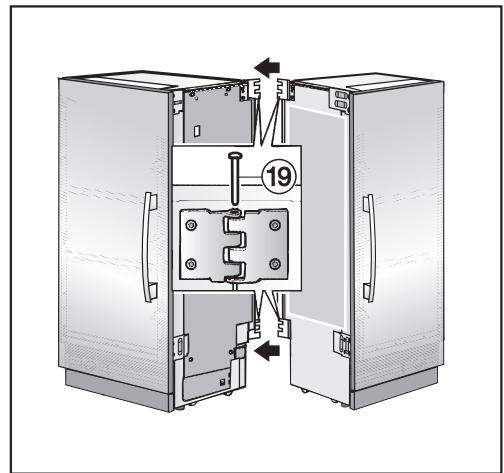

Push the appliances together until the hinge halves interlock.

Insert the pins 19 into the hinges.

Push the appliances together as far as possible.

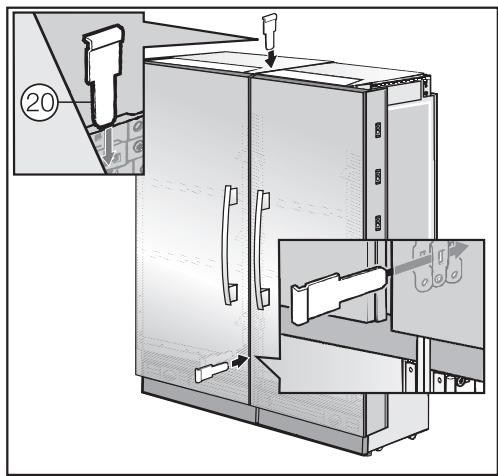

Once the appliances have been pushed together, insert the metal bracket 20 into the upper and lower plates. Use a tool to push the bracket in all the way.

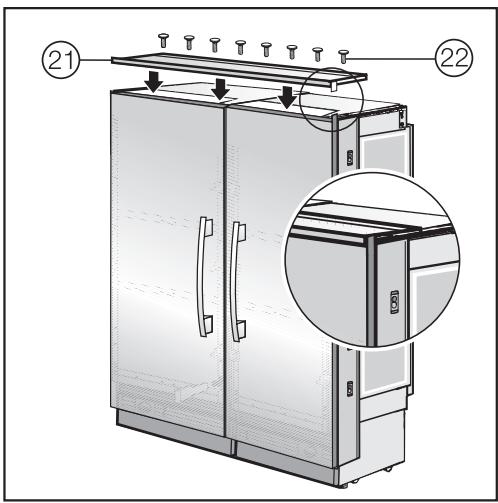

• Place the Top-frame ② on the side-by-side combination, hook it into the keyholes, and fasten it to the appliances with the screws ②

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

The remaining frames and screws are no longer needed for the side-by-side combination.

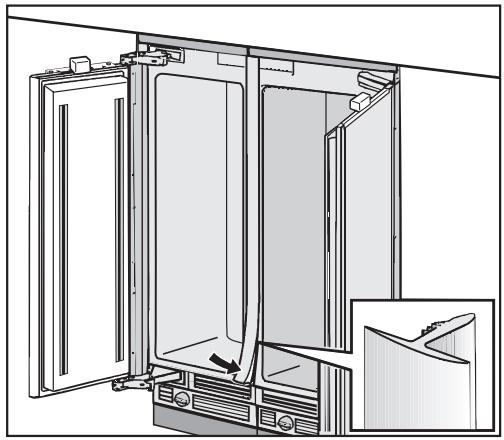

Insert the cover strip into the seam between the appliances.
