Brand	Skil
Model	1560 AA
Type	Electric planer
Category	Planer
Supply voltage	230 V
Frequency	50 Hz
Power	650 W
No-load speed	16000 rpm
Planing width	82 mm
Planing depth	0 - 2 mm
Chamfer depth	Adjustable
Dimensions (L x W x H)	290 x 160 x 160 mm
Weight	2.5 kg
Cable length	2 m
Sound level	91 dB(A)
Vibration level	3.5 m/s²
Body material	Aluminum / Plastic
Blade type	Carbide blades, reversible
Number of blades	2
Main functions	Planing, chamfering, joining
Safety	Lock-off switch, overload protection
Included accessories	Parallel guide, hex key, dust bag
Maintenance and cleaning	Clean after each use, sharpen blades regularly
Spare parts and repairability	Blades, belt, brushes available
General information	Skil electric planer model 1560 AA, suitable for woodworking

Frequently Asked Questions - 1560 AA SKIL

How to adjust the planing depth?

Turn the depth adjustment knob located on the top of the device. The depth is indicated in millimeters. Precise adjustment allows you to achieve the desired finish.

How to change the planer blades?

Unplug the device, remove the blade block by unscrewing the screws, replace worn blades with new ones, then reinstall the block by tightening the screws properly. Make sure the blades are well aligned.

Can the planer be used for chamfering?

Yes, the planer has a V-groove on the front sole for making chamfers. Set the desired depth and guide the device along the edge.

What is the motor power?

The planer is equipped with a 650 W motor, offering a no-load speed of 16000 rpm, suitable for efficient planing of different wood species.

How to clean the planer after use?

Use a brush to remove chips, wipe the sole with a dry cloth, and make sure the ventilation openings are not obstructed. Avoid using harsh chemicals.

Is the parallel guide included?

Yes, the planer comes with a parallel guide for precise cuts along a board. It easily attaches to the side of the device.

What is the maximum planing width?

The planing width is 82 mm, allowing work on boards of common dimensions. For wider pieces, multiple passes are necessary.

How to install the blade correctly?

Make sure the blade bevel is facing down. Tighten the fixing screws with the supplied hex key. Check that the blade is securely in place before starting.

What to do if the motor stops during use?

The planer is protected against overloads. Let the device cool down for a few minutes, then press the switch again. If the problem persists, check the condition of the brushes.

Where to find spare parts for model 1560 AA?

Contact Skil customer service or authorized dealers. Spare blades, belts, and brushes are available. Also check the Skil website for references.

USER MANUAL 1560 AA SKIL

Illustration of two SKIL electric plowers with visible branding and a person reading nearby (no text or symbols on the devices themselves)

ME77

GB ORIGINAL INSTRUCTIONS 6
F NOTICE ORIGINALE 9
D ORIGINALBETRIEBSANLEITUNG 12
NL ORIGINELE GEBRUIKSAANWIJZING 15
S BRUKSANVISNING I ORIGINAL 19
DK ORIGINAL BRUGSANVISNING 22
N ORIGINAL BRUKSANVISNING 25
FIN ALKUPERÄISET OHJEET 28
E MANUAL ORIGINAL 31
P MANUAL ORIGINAL 34
I ISTRUZIONI ORIGINALI 37
H EREDETI HASZNÁLATI UTASÍTÁS 41
CZ PÜVODNÍM NÁVODEM K POUŽÍVÁNÍ 44
TR ORIJINAL İŞLETME TALİMATI 47
PL INSTRUKCJA ORYGINALNA 50
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 54

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 58
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 62
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 65
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 69
SK PÔVODNÝ NÁVOD NA POUŽITIE 72
HR ORIGINALNE UPUTE ZA RAD 76
SRB ORIGINALNO UPUTSTVO ZA RAD 79
SLO IZVIRNA NAVODILA 82
EST ALGUPÄRANE KASUTUSJUHEND 85
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 88
LT ORIGINALI INSTRUKCIJA 91
AR دليل الاستعمال 99
④ RAHENMAI AUSLI 97

www.skileurope.com

Line drawing of a SKIL industrial machine with attached cable, no text or symbols present

ACCESSORIES SKIL Nr.
	2610373095
	2610394020
	2610394022
	2610394021

GB

Planer 1555/1560

INTRODUCTION

• This tool is intended for planing wooden materials such as beams and boards; it is also suitable for chamfering edges and rabbeting
• Read and save this instruction manual ③

TECHNICAL SPECIFICATIONS ①

TOOL ELEMENTS ②

A Storage for key
B Securing bolt
C Cutter block screws
D Knob for setting planing depth
E Planing depth indicator
F Dust port
G Safety support
H Auxiliary handle
J Wing nut for adjusting handle
K Safety switch
L On/off switch
M Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

2) ELECTRICAL SAFETY

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR PLANERS

GENERAL

- This tool should not be used by people under the age of 16 years

- The noise level when working can exceed 85 dB(A); wear ear protection ④

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask ^⑤ and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask ⑤ and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- SKIL can assure flawless functioning of the tool only when original accessories are used

- Never use the tool when cord is damaged; have it replaced by a qualified person

• Always disconnect plug from power source before making any adjustment or changing any accessory BEFORE USE

- Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Before using the tool check that the knives do not brush anywhere

- Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)

- Use clamps or another practical way to secure and support the workpiece to a stable platform (holding the work by your hand or against the body leaves it unstable and may lead to loss of control)

DURING USE

• Hold power tool by insulated gripping surfaces, because the cutter may contact its own cord (cutting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator)
• Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• Keep your fingers away from the rotating knives
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• If any chip should get jammed in the chip outlet, you should switch off the motor, ensure that all moving parts have come to a complete standstill, disconnect the plug, and remove the jammed chip

AFTER USE

- Wait for the cutter block to stop before setting the tool down (an exposed knife may engage the surface leading to possible loss of control and serious injury)

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

- Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug

- If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

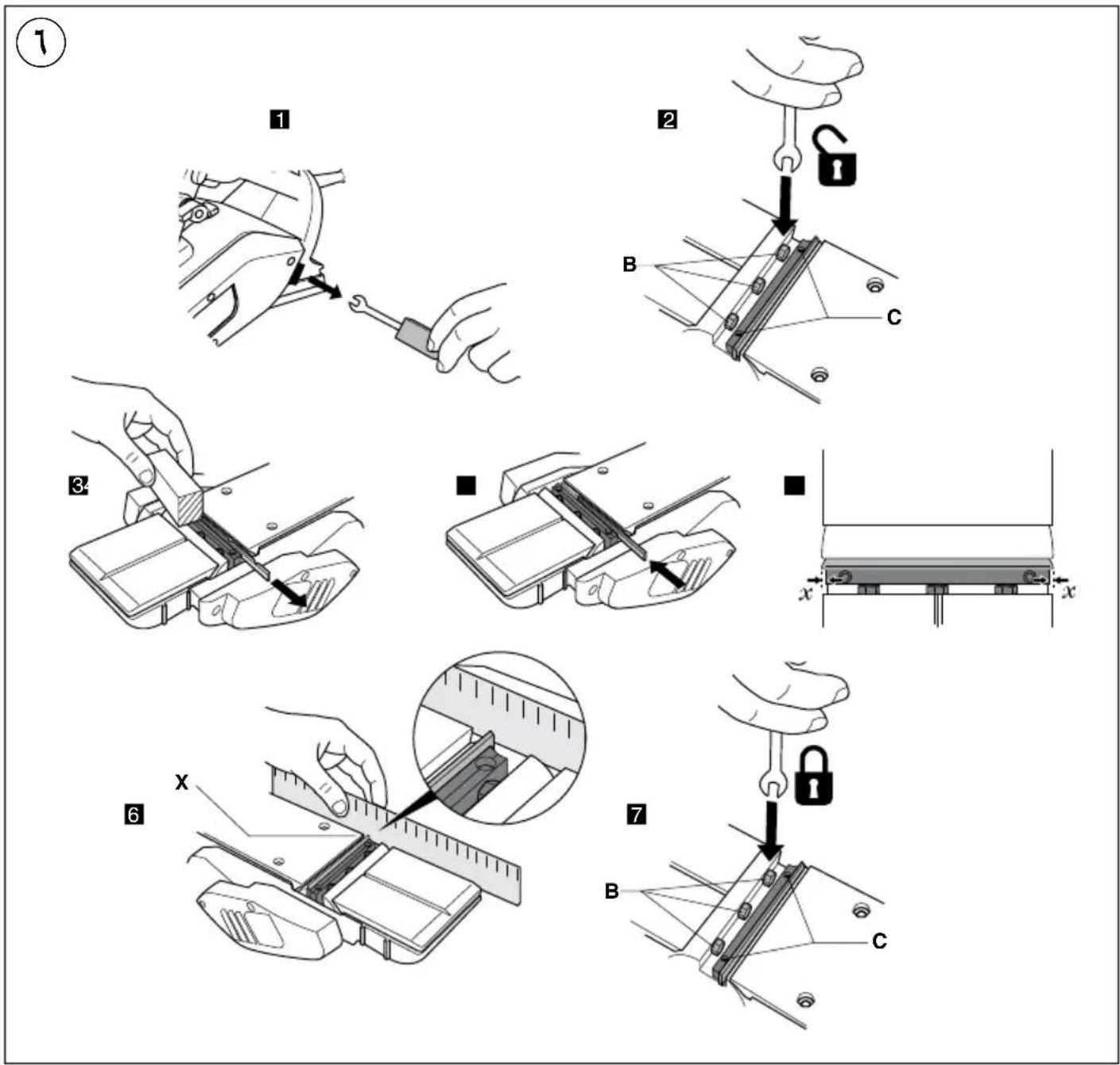

- Changing/reversing knives ⑥

This planer is equipped with non-grindable knives with cutting edges on both sides; so if one side has become blunt, the other side can be used

! switch off the tool and disconnect the plug

• remove guiding devices, if mounted
• take wrench from storage A
• turn tool upside down
• loosen 3 bolts B with wrench (do not remove bolts)
• push knife out of cutter block with piece of wood
• put knife back in cutter block in reversed position, or use new knife

! groove in knife should match ledge in cutter block

! both knife ends should protrude equally

! ensure that knife end X aligns with edge of foot (set a ruler flat against housing as illustrated and use it as a stopper)

• firmly tighten 3 bolts B with wrench
  ! change/reverse knives in time; only use sharp knives
  ! always change/reverse both knives at the same time
  ! do not attempt to adjust the knives with cutter block screws C, which are pre-set at manufacturing

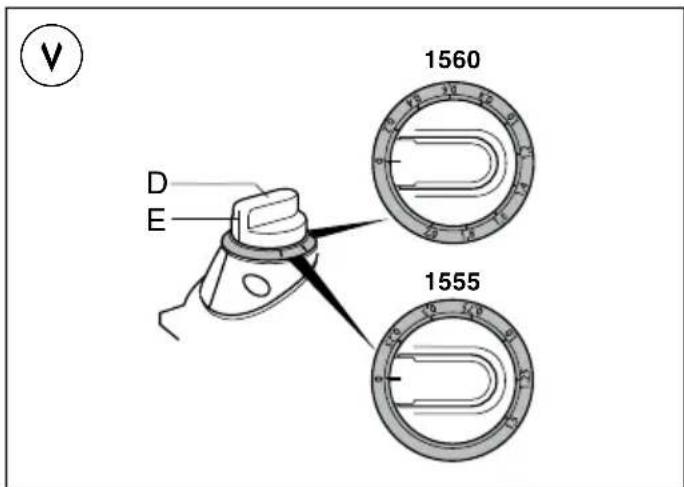

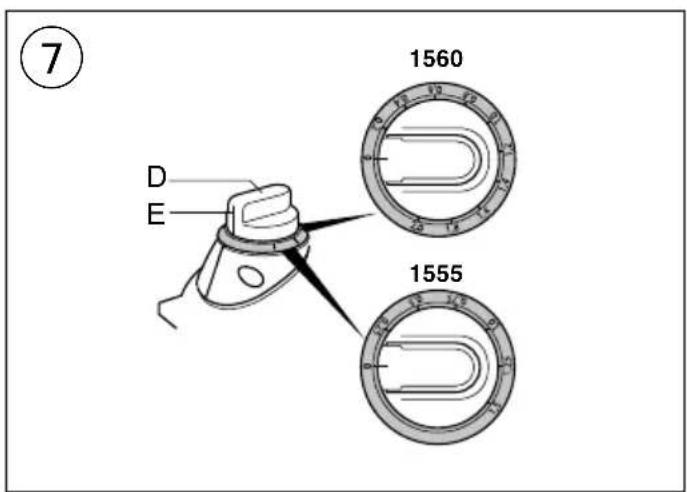

- Adjusting planing depth ⑦

• turn knob D to select required depth
• use indicator line E as reference
• always select a shallow planing depth and repeat the planing and adjusting process until the required depth is reached

- Dust suction ⑧

- connect vacuum cleaner to dust port F for optimal dust pick-up performance

! do not attempt to remove any obstructions from the dust port while knives are rotating

- Safety support G ⑨

- protects workpiece from damage when tool is put aside

- will automatically fold backwards when planing

- Auxiliary handle ⑩

- loosen nut J almost completely

- adjust handle H to desired position

- tighten nut firmly

- Operating the tool

- adjust planing depth

- place tool on workpiece

! ensure that only the front shoe rests on the workpiece and that the knives do not touch it

- switch on the tool by first pressing knob K ② (= safety switch which cannot be locked) and then pulling trigger L ②

! before the knives reach the workpiece, the tool should run at full speed

! while working, always hold the tool at the grey-coloured grip area(s) ⑪

- hold the tool firmly with both hands and guide it forward in a continuous stroke

- use the tool with its base-plate on the workpiece

- do not tilt the tool in order to avoid unwanted planing marks

! before switching off the tool, you should lift it from the workpiece

- switch off the tool by releasing trigger L

- Planing rabbets ⑫

- select required planing depth

- select rabbeting depth by using rabbeting depth adjuster N (SKIL accessory 2610394022)

- place tool on workpiece

- start planing

- maximum rabbeting width 82 mm

- maximum rabbeting depth 8 mm

APPLICATION ADVICE

- When planing one may use a dust bag (SKIL accessory 2610394020)

- For chamfering edges use the V-groove in the front shoe ⑬

- turn knob D to select required depth

! always test out first on a piece of scrap material

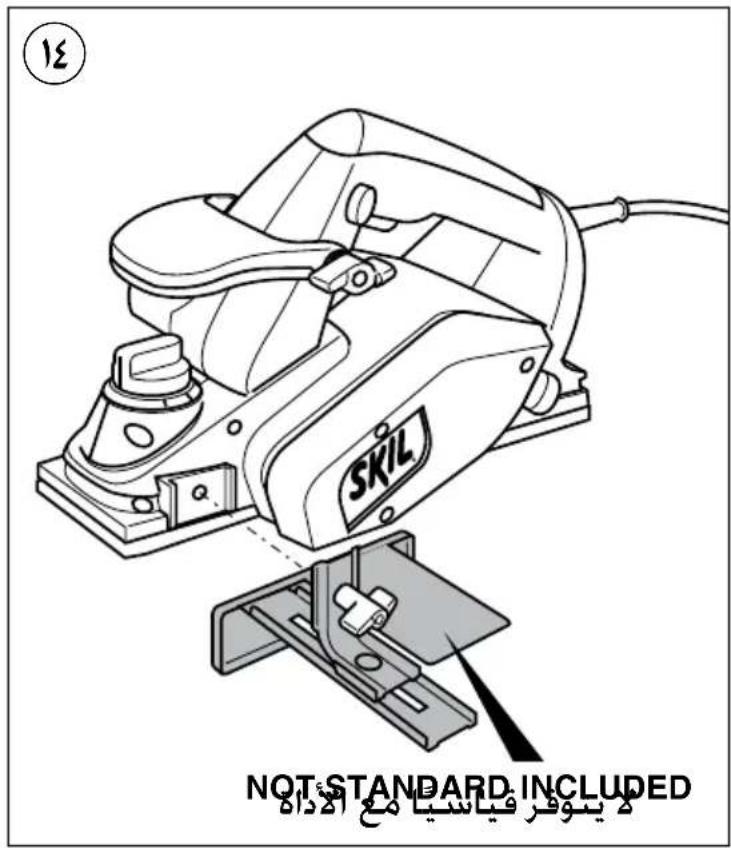

- When planing rabbets you will achieve better results by using a rip fence (SKIL accessory 2610394021) to adjust rabbeting width ⑭

- For more tips see www.skileurope.com

MAINTENANCE / SERVICE

- Always keep tool and cord clean (especially the ventilation slots M ②)

! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skileurope.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑮ will remind you of this when the need for disposing occurs

CE DECLARATION OF CONFORMITY

- We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60745, EN 55014, in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on)

• Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

Arno van der Kloot

Jan Trommelen

Vice President

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

NOISE/VIBRATION

- Measured in accordance with EN 60745 the sound pressure level of this tool is 87 dB(A) and the sound power level 98 dB(A) (standard deviation: 3 dB), and the vibration 4.0 ~m / s^2 (hand-arm method; uncertainty K = 1.5 ~m / s^2 )

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Rabot 1555/1560

INTRODUCTION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

BRUIT/VIBRATION

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 06.06.2011

GERÄUSCH/VIBRATION

VEILIGHEIDSVOORSCHRIFTEN VOOR SCHAVEN

ALGEMEEN

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

GELUID/VIBRATIE

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

LJUD/VIBRATION

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.
b) Ikke arbeid med maskinen i eksplosjonsutsatte omgivelser – der det befinner seg brennbare væsker, gass eller støv. Elektroverktøy lager gnister som kan antenne støv eller damper.

VEDLIKEHOLD / SERVICE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

ST∅Y/VIBRASJON

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

MELU/TÄRINÄ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 06.06.2011

RUIDOS/VIBRACIONES

- Mudar/inverter as lâminas ⑥

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 06.06.2011

RUÍDO/VIBRAÇÕES

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

ZAJ/REZGÉS

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 06.06.2011

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

HAŁASU/WIBRACJE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 06.06.2011

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

ΘΟΡΥΒΟ/ΚΡΑΔΑΣΜΟΥΣ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

ZGOMOT/VIBRATII

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

ШУМ/ВИБРАЦИИ

BEZPEČNOSTNÉ POKYNY PRE HOBLIKY

VŠEOBECNE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

HLUKU/VIBRÁCIÁCH

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

BUCI/VIBRACIJAMA

• Mjereno prema EN 60745 prag zvučnog tlaka ovog elek-tričnog alata iznosi 87 dB(A) a jakost zvuka 98 dB(A) (standardna devijacija: 3 dB), a vibracija 4,0 m/s ^2 (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )

• Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene

• uporaba ove alatke za druge namjene ili s drugim ili slabo održavanim nastavcima, može u značajnoj mjeri uvećati razinu izloženosti

• vrijeme tokom kojega je alatka isključena, ili je uključena ali se njome ne radi, može značajno umanjiti razinu izloženosti
  ! zaštitite se od posljedica vibracija održavanjem alatke i njezinih nastavaka, održavanjem Vaših ruku toplima, te organiziranjem Vaših obrazaca rada

Strug 1555/1560

UPUTSTVO

OPŠTA UPUTSTVA O SIGURNOSTI

PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima “električni alat” odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

BUKA/VIBRACIJE

• Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi 87 dB(A) a jačina zvuka 98 dB(A) (normalno odstupanje: 3 dB), a vibracija 4,0 m/s ^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )

• Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60745; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene

• korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti

• vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti
  ! zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

Brusilnik 1555/1560

UVOD

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 06.06.2011

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 06.06.2011

TROKSNIS/VIBRĀCIJA

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

صدالارتعاشات

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

06.06.2011

الضوضاء/الاهتاز

Technical diagram showing a mechanical assembly with wood grain and a tool, no text or symbols present

Line drawing of a SKIL electric plow with attached cable, no text or symbols present

أداة تسوية

1555

1560

SKIL®

Illustration of two SKIL electric plowers with visible branding and mounting base (no text or symbols on the devices themselves)
