Planer 1570

INTRODUCTION

• This tool is intended for planing wooden materials such as beams and boards; it is also suitable for chamfering edges and rabbeting
• Read and save this instruction manual ③

TECHNICAL SPECIFICATIONS ①

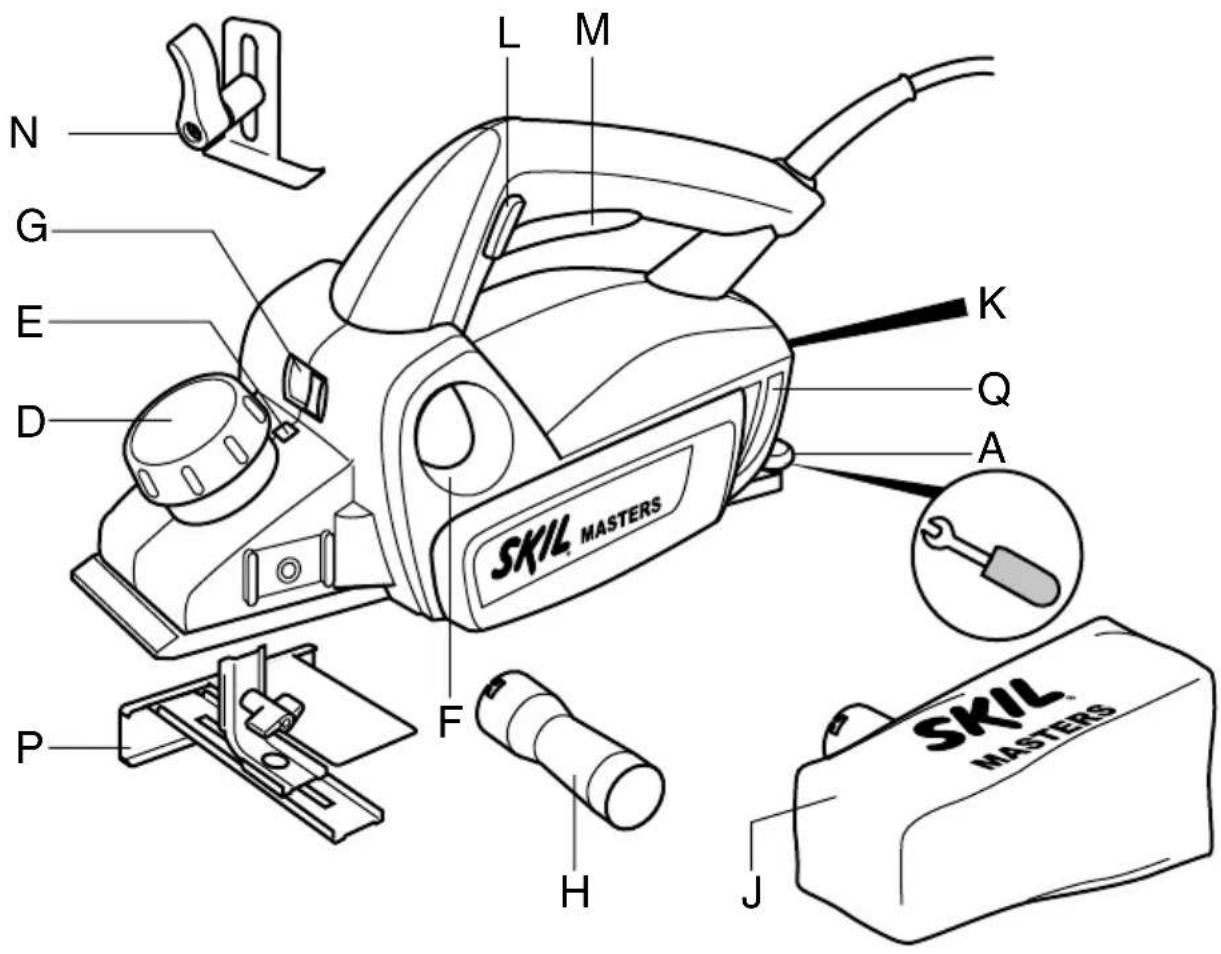

TOOL ELEMENTS ②

A Storage for key
B Securing bolt
C Cutter block screws
D Knob for setting planing depth
E Planing depth indicator
F Chip outlet (left/right)
G Chip outlet switch
H Vacuum cleaner adapter
J Dust bag
K Safety support
L Safety switch
M On/off switch
N Rabbeting depth adjuster

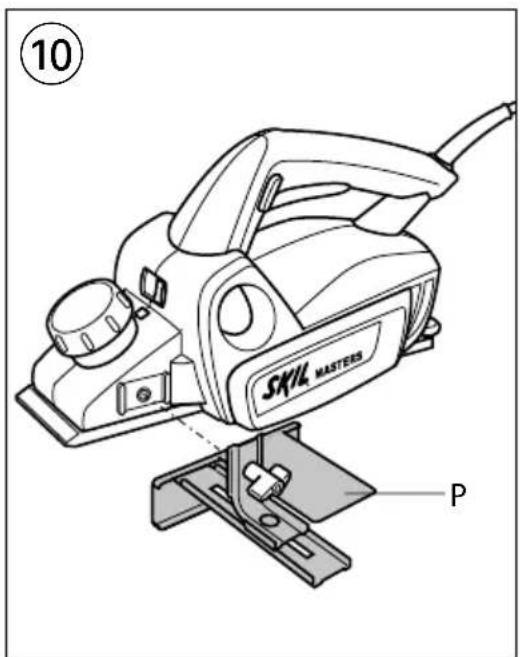

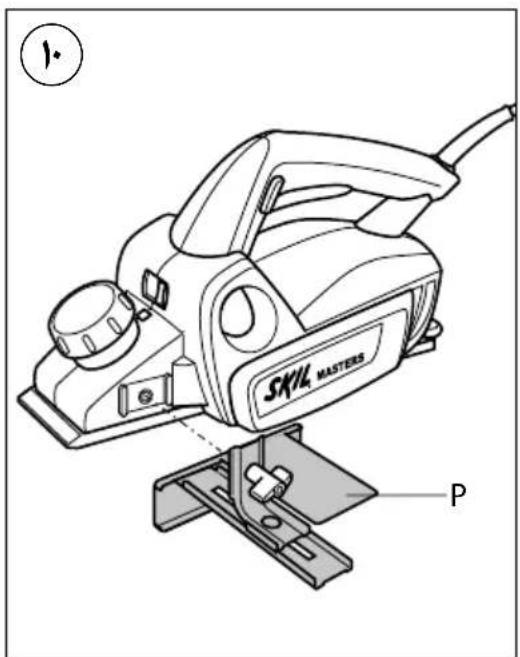

P Rip fence
Q Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

A WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

2) ELECTRICAL SAFETY

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR PLANERS

GENERAL

- This tool should not be used by people under the age of 16 years

- The noise level when working can exceed 85 dB(A); wear ear protection

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- SKIL can assure flawless functioning of the tool only when the correct accessories are used which can be obtained from your SKIL dealer

- Never use the tool when cord is damaged; have it replaced by a qualified person

- Always disconnect plug from power source before making any adjustment or changing any accessory BEFORE USE

- Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Before using the tool check that the knives do not brush anywhere

- Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)

- Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

DURING USE

• Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• Keep your fingers away from the rotating knives
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• If any chip should get jammed in the chip outlet, you should switch off the motor, ensure that all moving parts have come to a complete standstill, disconnect the plug, and remove the jammed chip

AFTER USE

- Wait for the cutter block to stop before setting the tool down (an exposed knife may engage the surface leading to possible loss of control and serious injury)

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

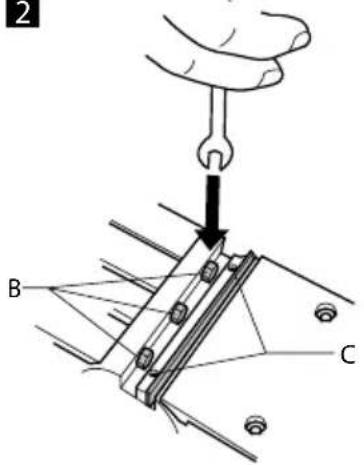

- Changing/reversing knives ④

This planer is equipped with non-grindable knives with cutting edges on both sides; so if one side has become blunt, the other side can be used

! switch off the tool and disconnect the plug

• remove guiding devices, if mounted
• take wrench from storage A
• turn tool upside down
• loosen 3 bolts B with wrench (do not remove bolts)

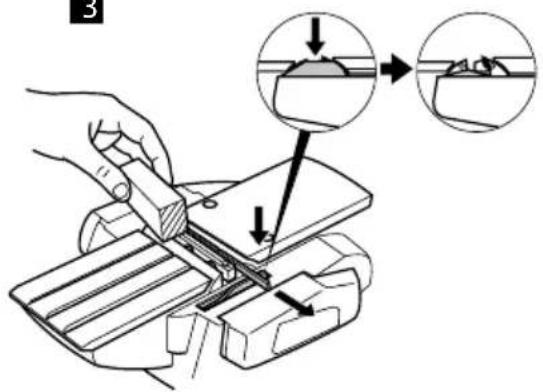

• push knife out of cutter block with piece of wood

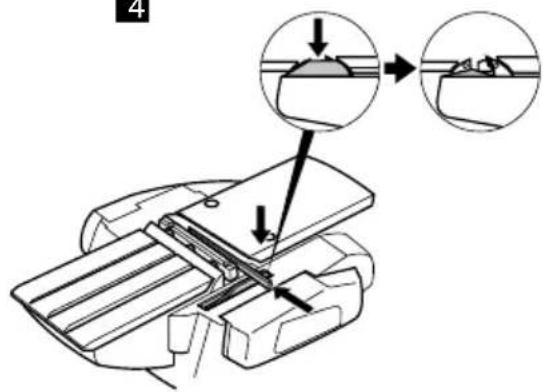

• put knife back in cutter block in reversed position, or use new knife

! groove in knife should match ledge in cutter block
! both knife ends should protrude equally

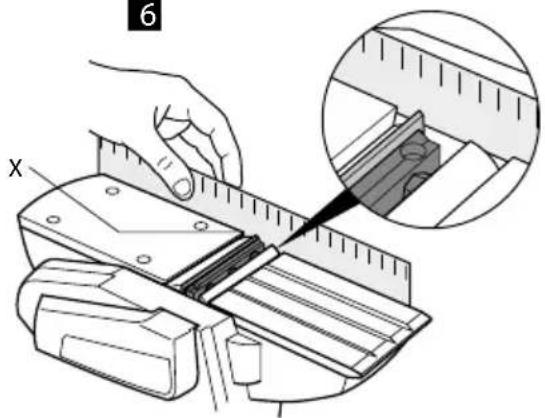

! ensure that knife end X aligns with edge of foot (set a ruler flat against housing as illustrated and use it as a stopper)

• firmly tighten 3 bolts B with wrench
  ! change/reverse knives in time; only use sharp knives
  ! always change/reverse both knives at the same time
  ! do not attempt to adjust the knives with cutter block screws C, which are pre-set at manufacturing

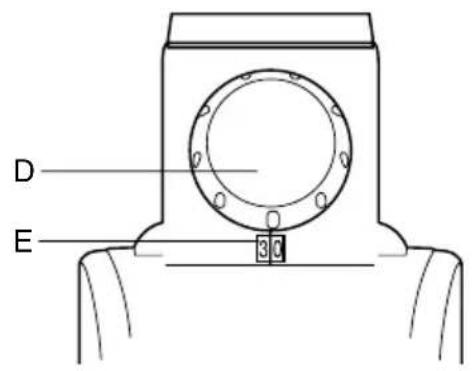

- Adjusting planing depth (0-3 mm) ⑤

• turn knob D to select required depth
• use indicator line E as reference
• always select a shallow planing depth and repeat the planing and adjusting process until the required depth is reached

- Chip outlet ⑥

• select desired chip outlet side (left or right) with switch G
• connect vacuum cleaner with adapter H to selected chip outlet as illustrated
• one may also connect dust bag J to the selected chip outlet as illustrated

! do not attempt to remove any obstructions from the chip outlet while knives are rotating

- Safety support K ⑦

• protects workpiece from damage when tool is put aside
• will automatically fold backwards when planing

- Operating the tool

- adjust planing depth

- place tool on workpiece

! ensure that only the front shoe rests on the workpiece and that the knives do not touch it

- switch on the tool by first pressing knob L ② (= safety switch which cannot be locked) and then pulling trigger M ②

! before the knives reach the workpiece, the tool should run at full speed

- hold the tool firmly with both hands and guide it forward in a continuous stroke

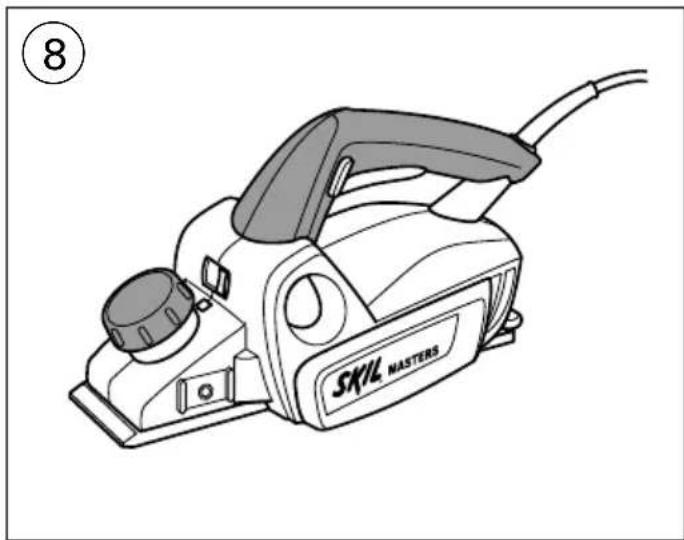

! while working, always hold the tool at the grey-coloured grip area(s) ⑧

- use the tool with its base-plate on the workpiece

- do not tilt the tool in order to avoid unwanted planing marks

- keep ventilation slots Q ② uncovered

! before switching off the tool, you should lift it from the workpiece

- switch off the tool by releasing trigger M

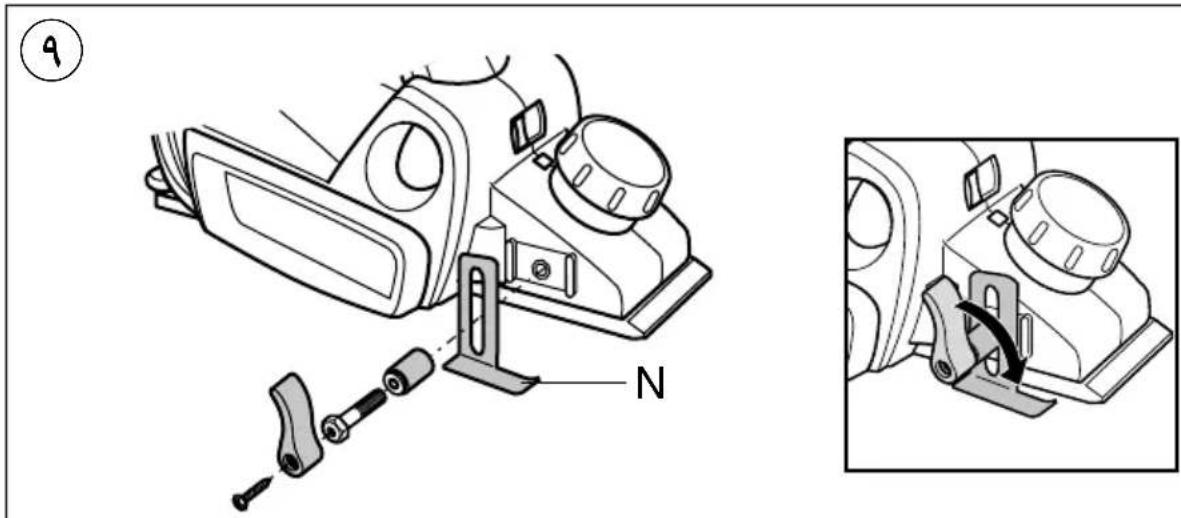

- Planing rabbets ⑨

- select required planing depth

- select rabbeting depth by using rabbeting depth adjuster N

- place tool on workpiece

- start planing

- maximum rabbeting width 82 mm

- maximum rabbeting depth 15 mm

- When planing rabbets you will achieve better results by using rip fence P to adjust rabbeting width ⑩

APPLICATION ADVICE

- For chamfering edges use the V-grooves in the front shoe ⑪

- set knob D in "0" position

- select one of the 3 V-grooves

! always test out first on a piece of scrap material

MAINTENANCE / SERVICE

- Always keep tool and cord clean (especially ventilation slots Q ②)

! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skilmasters.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑫ will remind you of this when the need for disposing occurs

CE DECLARATION OF CONFORMITY

- We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC

• Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL

Arno van der Kloot

Vice President

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

NOISE/VIBRATION

- Measured in accordance with EN 60745 the sound pressure level of this tool is 91 dB(A) and the sound power level 102 dB(A) (standard deviation: 3 dB), and the vibration 6,9 m/s ^2 (hand-arm method; uncertainty K = 1.5 m/s ^2 )

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Rabot 1570

INTRODUCTION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

BRUIT/VIBRATION

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

GERÄUSCH/VIBRATION

VEILIGHEIDSVOORSCHRIFTEN VOOR SCHAVEN

ALGEMEEN

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

GELUID/VIBRATIE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

LJUD/VIBRATION

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

ST∅J/VIBRATION

VEDLIKEHOLD / SERVICE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

ST∅Y/VIBRASJON

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

MELU/TÄRINÄ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

RUIDOS/VIBRACIONES

- Mudar/inverter as lâminas ④

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

RUÍDO/VIBRAÇÕES

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

ZAJ/REZGÉS

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

HAŁASU/WIBRACJE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

ΘΟΡΥΒΟ/ΚΡΑΔΑΣΜΟΥΣ

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

ZGOMOT/VIBRAȚII

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

ШУМ/ВИБРАЦИИ

BEZPEČNOSTNÉ POKYNY PRE HOBLIKY

VŠEOBECNE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

HLUKU/VIBRÁCIÁCH

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

BUCI/VIBRACIJAMA

• Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi 91 dB(A) a jakost zvuka 102 dB(A) (standardna devijacija: 3 dB), a vibracija 6,9 m/s ^2 (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )

• Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene

• uporaba ove alatke za druge namjene ili s drugim ili slabo održavanim nastavcima, može u značajnoj mjeri uvećati razinu izloženosti

• vrijeme tokom kojega je alatka isključena, ili je uključena ali se njome ne radi, može značajno umanjiti razinu izloženosti
  ! zaštitite se od posljedica vibracija održavanjem alatke i njezinih nastavaka, održavanjem Vaših ruku toplima, te organiziranjem Vaših obrazaca rada

Strug 1570

UPUTSTVO

OPŠTA UPUTSTVA O SIGURNOSTI

A PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima "električni alat" odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU
a) Držite Vaše područje rada čisto i pospremljeno. Nered ili neosvetljena radna područja mogu voditi nesrećama.
b) Ne radite sa aparatom u okolini ugroženoj od eksplozija u kojoj se nalaze zapaljive tečnosti, gasovi ili prašine. Električni alati proizvode varnice, koje mogu zapaliti prašinu ili isparenja.
c) Za vreme korišćenja električnog alata držite podalje decu i druge osobe. Kod skretanja možete izgubiti kontrolu nad aparatom.
2) ELEKTRIČNA SIGURNOST
a) Utikač za priključak aparata mora odgovarati utičnoj kutijici. Utikač se nesme nikako menjati. Ne upotrebljavajte adaptere utikača zajedno sa aparatima sa uzemljenom zaštitom. Ne promenjeni utikači i odgovarajuće utičnice smanjuju rizik od električnog udara.

b) Izbegavajte telesni kontakt sa uzemljenim gornjim površinama, kao što su cevi, grejanja, šporeti i rashladni ormani. Postoji povećani rizik od električnog udara, ako je Vaše telo uzemljeno.
c) Držite aparat podalje od kiše ili vlage. Prodiranje vode u električni aparat povećava rizik od električnog udara.
d) Ne koristite kabl da bi aparat nosili, obesili ili ga izvlačili iz utičnice. Držite kabl dalje od vreline, ulja, oštrih ivica ili pokretnih delova aparata. Oštećeni ili zamršeni kablovi povećavaju rizik od elektrinog udara.
e) Ako sa nekim električnim alatom radite u prirodi, upotrebljavajte samo produžne kablove koji su dozvoljeni za spoljno područje. Upotreba produžnog kabla pogodnog za spoljno područje smanjuje rizik od električnog udara.
f) Ako rad električnog alata ne može da se izbegne u vlažnoj okolini, koristite prekidač strujne zaštite pri kvaru. Upotreba prekidača strujne zaštite pri kvaru smanjuje rizik od električnog udara.
3) SIGURNOST OSOBA
a) Budite pažljivi, pazite na to, šta radite i idite razumno na posao sa električnim alatom. Ne upotrebljavajte aparat, kada ste umorni ili pod uticajem droga, alkohola ili lekova. Momenat nepažnje kod upotrebe aparata može voditi do ozbiljnih povreda.
b) Nosite ličnu zaštitnu opremu i uvek zaštitne naočare. Nošenje lične zaštitne opreme, kao maske za prašinu, sigurnosne cipele koje ne klizaju, zaštitni šlem ili zaštitu za sluh, zavisno od vrste i upotrebe električnog alata, smanjujete rizik od povreda.
c) Izbegavajte nenamerno puštanje u rad. Uverite se da je električni alat isključen, pre nego što ga priključite na struju i/ili na akumulator, uzmete ga ili nosite. Ako prilikom nošenja električnog alata držite prst na prekidaču ili aparat uključen priključujete na struju, može ovo voditi nesrećama.
d) Uklonite alate za podešavanje ili ključeve za zavrtnje, pre nego što uključite aparat. Alat ili ključ koji se nalazi u delu aparata koji se okreće, može voditi povredama.
e) Ne precenjujte sebe. Pobrinite se da sigurno stojite i održavajte u svako doba ravnotežu. Na taj način možete bolje kontrolisati aparat u neočekivanim situacijama.
f) Nosite pogodno odelo. Ne nosite široko odelo ili nakit. Držite kosu, odelo i rukavice podalje od pokretnih delova. Opušteno odelo, nakit ili duža kosa mogu biti zahvaćeni od rotirajućih delova.
g) Ako se mogu montirati uredjaji za usisavanje prašine i uredjaji za hvatanje prašine, uverite se da li su priključeni i ispravno koriste. Upotreba usisavanja prašine može smanjiti opasnosti od prašine.
4) BRIŽLJIVO OPHODJENJE I KORIŠĆENJE ELEKTRIČNIH ALATA
a) Ne preopterećujte aparat. Upotrebljavajte za Vaš posao električni alat odredjen za to. Sa odgovarajućim električnim alatom radićete bolje i sigurnije u navedenom području rada.
b) Ne upotrebljavajte električni alat, čiji je prekidač u kvaru. Električni alat koji više ne može da se uključi ili isključi je opasan i mora da se popravi.
c) Izvucite utikač iz utičnice i/ili uklonite akumulator pre nego što preduzmete podešavanja na aparatu, promenu delova pribora ili ostavite aparat. Ova mera opreza sprečava nenameran start aparata.

d) Čuvajte nekorišćene električne alate izvan domašaja dece. Ne dopustite osobama da koriste aparat, koje ga ne poznaju ili nisu pročitali ova uputstva. Električni alati su opasni, ako ih koriste neiskusne osobe.
e) Održavajte aparat brižljivo. Kontrolišite, da li pokretni delovi aparata funkcionišu besprekorno i ne slepljuju, da li su delovi slomljeni ili tako oštećeni, da je funkcija aparata oštećena. Popravite oštećene delove pre upotrebe aparata. Mnoge nesreće imaju svoj uzrok u loše održavanim električnim alatima.
f) Držirte alate za sečenja oštre i čiste. Brižljivo negovani alati za sečenje sa oštrim sečivima manje slepljuju i lakše se vode.
g) Upotrebljavajte električne alate, pribor, alate koji se umeću itd. prema ovim uputstvima. Obratite pažnju pritom na uputstva za rad i posao koji treba izvesti. Upotreba električnih alata za druge od propisanih namena može voditi opasnim situacijama.
5) SERVIS
a) Neka Vam Vaš aparat popravlja samo kvalifikovano stručno osoblje i samo sa originalnim rezervnim delovima. Na taj način se obezbedjuje da ostane sačuvana sigurnost aparata.

UPUTSTVA ZA BEZBEDAN RAD SA STRUGOM

OPŠTA

• Ovaj alat ne treba da koriste osobe ispod 16 godina
• Buka koju alat proizvodi tokom rada može da premaši 85 dB(A); nosite zaštitu za sluh
• Ne obradjujte nikakav materijal koji sadrži azbest (azbest važi kao izazivać raka)
• Prašina od materijala, kao što su boja koja sadrži olovo, neke vrste drveta, minerali i metal, može biti opasna (dodir ili udisanje prašine može prouzrokovati alergijske reakcije i/ili respiratorna oboljenja rukovaoca i lica u blizini); nosite masku protiv prašine i radite uz uključeni uređaj za ekstrakciju prašine kada radite na mestima gde ju je moguće priključiti
• Određene vrste prašine su klasifikovane kao kancerogene (kao što su prašina hrastovine i bukovine), posebno u sadejstvu sa aditivima za pripremu drveta; nosite masku protiv prašine i radite uz uključeni uređaj za ekstrakciju prašine kada radite na mestima gde ju je moguće priključiti
• Prati nacionalne propise vezane za prašinu koja se proizvodi prilikom rada na obrađivanim materijalima
• SKIL može priznati garanciju samo ukoliko je korišćen odgovarajući pribor koji možete da nabavite kod svog SKIL prodavca
• Nikada nemojte da koristite alat ako je kabl oštećen; zamenu kabla mora da obavi stručno lice
• Obavezno iskopčajte alat iz električne utičnice pre nego što izvršite bilo kakva podešavanja ili zamenu pribora PRE UPOTREBE
• Uvek se uverite da je napon struje isti kao i napon naveden na pločici sa nazivom alatu (alati na kojima je naveden napon od 230V ili 240V mogu da rade i na 220V)
• Izbegavajte oštećenja od šrafova, eksera i drugih predmeta na vašem području rada; uklonite ih pre nego što započnete rad

• Pre upotrebe proverite da noževi ne dodiruju ni jedan deo električnog alata

• Produžni kabl koji koristite mora da bude sasvim odmotan i siguran, sa kapacitetom od 16 A

• Obezbedite radni predmet (radni predmet stegnut pomoću stega ili nečeg sličnog je mnogo stabilniji neko kada se drži rukom)

TOKOM UPOTREBE

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

BUKA/VIBRACIJE

• Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi 91 dB(A) a jačina zvuka 102 dB(A) (normalno odstupanje: 3 dB), a vibracija 6,9 m/s ^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )
• Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60745; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene

- korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti

- vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti

! zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

Brusilnik 1570

UVOD

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL 17.02.2011

TROKSNIS/VIBRĀCIJA

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

صدالارعتاشات

Operations & Engineering

Jan Trommelen

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

17.02.2011

الضوضاء/الاهتاز

Line drawing of a SKIL MASTERS electric tool with attached cable (no text or symbols on the device itself)

①

1

Technical diagram of a mechanical device with labeled component G and directional arrows (no text or symbols beyond label)

Diagram of a robot's head and torso with directional arrows indicating motion or force (no text or symbols)

∑
1

Illustration of a hand inserting a cable into a battery plug (no text or symbols)

2

3

4

5

Pure mechanical assembly diagram showing a beam supported by two supports with dimension labels X and Y (no text or symbols beyond basic geometry)

6

Illustration of a hand using a measuring tool to cut a component, with an inset showing the same part (no text or symbols present)

1570
