1565 AD - Plane SKIL - Free user manual and instructions

Product type	Electric planer (jointer-planer)
Model	1565 AD
Brand	Skil
Power	1200 W
Supply voltage	230 V ~ 50 Hz
Dimensions (L × W × H)	300 × 160 × 180 mm
Weight	3.5 kg
Maximum planing depth	2.5 mm
Planing width	82 mm
No-load speed	16,000 rpm
Main functions	Planing, chamfering, grooving, continuous depth adjustment
Chip ejection	Left or right with integrated collection bag
Maintenance and cleaning	Regularly clean the ejection chute and replace blades when dull
Safety	Blade brake, switch lock, restart protection
Spare parts and repairability	Blades, belt, brushes, shoes, parallel guide available from after-sales service
General information	Domestic and semi-professional use, CE compliant

Frequently Asked Questions - 1565 AD SKIL

How to adjust the planing depth on the Skil 1565 AD?

Use the adjustment knob located on top of the device. Turn it clockwise to increase depth, counterclockwise to decrease. The maximum depth is 2.5 mm.

How to change the blades of the Skil 1565 AD planer?

Unplug the device. Use the supplied wrench to loosen the blade block screws. Remove the old blades and insert new ones respecting the cutting direction. Tighten the screws evenly.

What to do if the planer does not start?

First check that the device is plugged in and the socket works. Make sure the switch lock is disabled. If the problem persists, check the brushes and replace them if necessary.

How to clean the chip ejection chute?

Unplug the device. Remove the dust bag. Use a wooden stick or vacuum cleaner to remove stuck chips from the chute. Never use a metal object.

Is the Skil 1565 AD planer compatible with a vacuum cleaner?

Yes, the planer is equipped with a 35 mm diameter extraction outlet. You can connect a vacuum cleaner for better chip collection.

How to make a chamfer with the Skil 1565 AD?

Use the V-groove located on the front sole. Place the workpiece to be chamfered in the groove and guide the planer steadily. The depth is adjusted as for standard planing.

When should the motor brushes be replaced?

The brushes should be checked after about 100 hours of use. If they measure less than 5 mm, replace them with original Skil brushes.

How to use the supplied parallel guide?

Insert the guide rods into the holes provided on the side of the planer. Tighten the knobs to secure the guide. Use it for straight cuts parallel to the edge of the workpiece.

What to do if the blade jams during use?

Immediately release the switch and unplug the device. Remove the stuck piece of wood. Check that the blades are not damaged and that the cutting depth is not excessive.

Where to find spare parts for the Skil 1565 AD planer?

Spare parts (blades, brushes, belt, shoes) are available from authorized Skil dealers or on the official website. Use model number 1565 AD to identify compatible parts.

USER MANUAL 1565 AD SKIL

3D rendered mechanical device with handle and circular button (no text or symbols)

GB ORIGINAL INSTRUCTIONS 6
F NOTICE ORIGINALE 9
D ORIGINALBETRIEBSANLEITUNG 12
NL ORIGINELE GEBRUIKSAANWIJZING 16
S BRUKSANVISNING I ORIGINAL 19
DK ORIGINAL BRUGSANVISNING 22
N ORIGINAL BRUKSANVISNING 25
FIN ALKUPERÄISET OHJEET 28
E MANUAL ORIGINAL 31
P MANUAL ORIGINAL 34
I ISTRUZIONI ORIGINALI 38
H EREDETI HASZNÁLATI UTASÍTÁS 41
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 45
TR ORIJINAL İŞLETME TALİMATI 48
PL INSTRUKCJA ORYGINALNA 51
RU ПОДЛИННИК РУКОВОДСТВА ПО ЭКСПЛУАТАЦИИ 54

UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 58
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 61
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 65
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 69
SK PÕVODNÝ NÁVOD NA POUŽITIE 72
HR ORIGINALNE UPUTE ZA RAD 76
SRB ORIGINALNO UPUTSTVO ZA RAD 79
SLO IZVIRNA NAVODILA 82
EST ALGUPÄRANE KASUTUSJUHEND 85
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 88
LT ORIGINALI INSTRUKCIJA 91
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 95
AL UDHËZIMET ORIGJINALE 98
AR دليل الاستعمال 107
④ RAHENMAI AUSLI 105

www.skil.com

⑥

Technical line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Technical line drawing of a mechanical assembly with a tool inserted, no visible text or symbols

Technical diagram of a mechanical assembly with labeled dimensions (x), no readable text or symbols present.

6

⑦

⑧

⑨

Technical line drawing of a mechanical component with labeled parts H and directional arrows (no text or symbols beyond labels)

10

11

Line drawing of a manual power tool with handle and control panel (no text or symbols)

GB

Planer 1565

INTRODUCTION

• This tool is intended for planing wooden materials such as beams and boards; it is also suitable for chamfering edges and rabbeting
  • This tool is not intended for professional use
• Read and save this instruction manual ③

TECHNICAL DATA ①

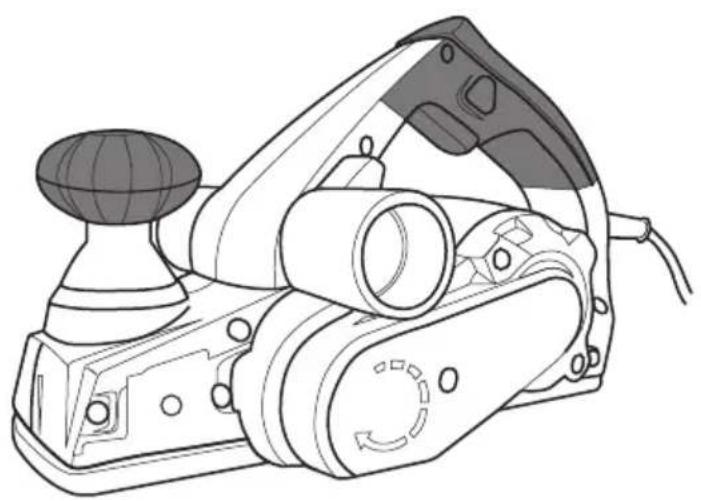

TOOL ELEMENTS ②

A Storage for key
B Securing bolt
C Cutter block screws
D Knob for setting planing depth
E Planing depth indicator
F Chip outlet switch
G Chip outlet (left/right)
H Park rest
J Indicator "Power On"
K Safety switch
L On/off switch
M V-groove
N Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR PLANERS

GENERAL

• This tool should not be used by people under the age of 16 years
• The noise level when working can exceed 85 dB(A); wear ear protection ④
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• SKIL can assure flawless functioning of the tool only when original accessories are used
• Never use the tool when cord is damaged; have it replaced by a qualified person
  • Always disconnect plug from power source before making any adjustment or changing any accessory BEFORE USE
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)
• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Before using the tool check that the knives do not brush anywhere
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)

- Use clamps or another practical way to secure and support the workpiece to a stable platform (holding the work by your hand or against the body leaves it unstable and may lead to loss of control)

DURING USE

• Hold power tool by insulated gripping surfaces, because the cutter may contact its own cord (cutting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator)
  • Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• Keep your fingers away from the rotating knives
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• If any chip should get jammed in the chip outlet, you should switch off the motor, ensure that all moving parts have come to a complete standstill, disconnect the plug, and remove the jammed chip

AFTER USE

- Wait for the cutter block to stop before setting the tool down (an exposed knife may engage the surface leading to possible loss of control and serious injury) WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

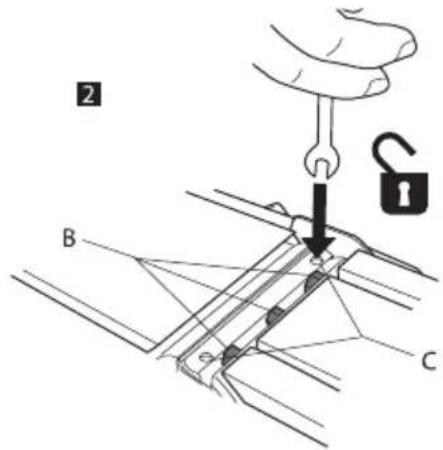

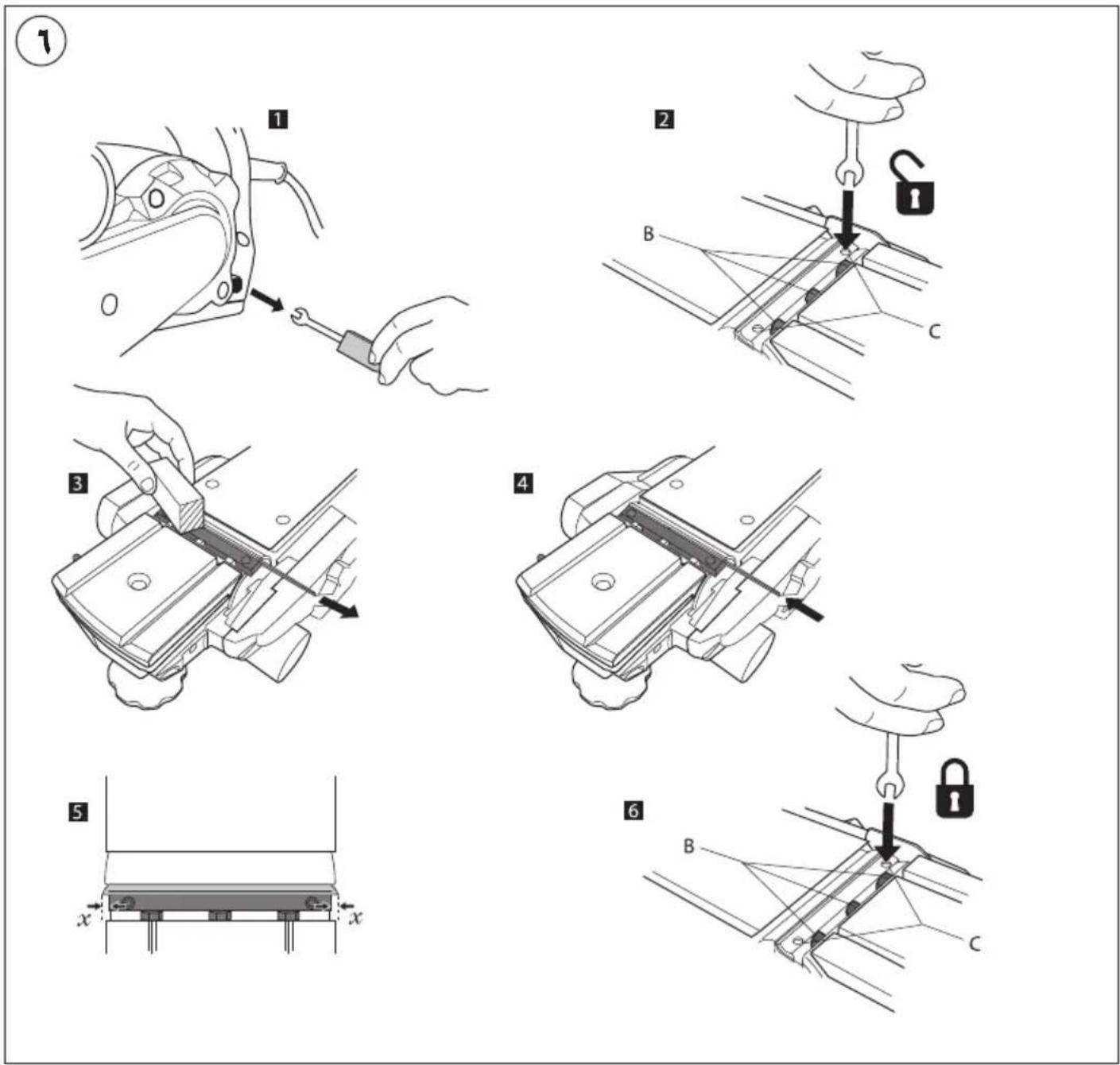

• Changing/reversing knives ⑥

This planer is equipped with non-grindable knives with cutting edges on both sides; so if one side has become blunt, the other side can be used

!switch off the tool and disconnect the plug

-remove guiding devices, if mounted
-take wrench from storage A
-turn tool upside down
-loosen 3 bolts B with wrench (do not remove bolts)

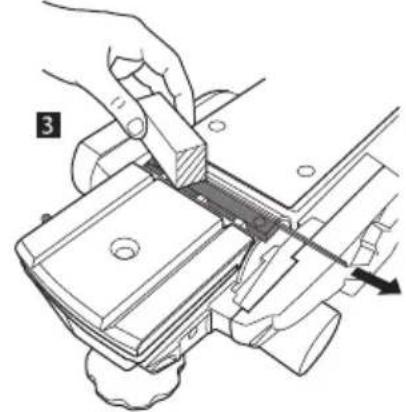

-push knife out of cutter block with piece of wood
-put knife back in cutter block in reversed position, or use new knife

!groove in knife should match ledge in cutter block

!both knife ends should protrude equally

-firmly tighten 3 bolts B with wrench

!change/reverse knives in time; only use sharp knives

!always change/reverse both knives at the same time

!do not attempt to adjust the knives with cutter block screws C, which are pre-set at manufacturing

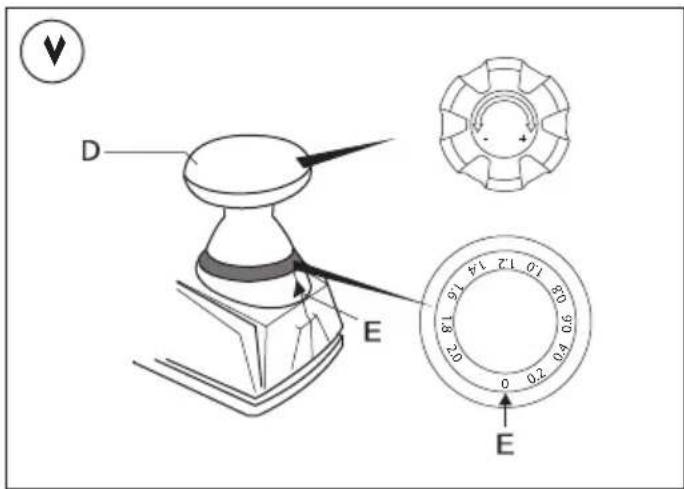

• Adjusting planing depth ⑦

• turn knob D in "+"/"- direction for increasing/decreasing planing depth
  -use indicator E as reference
  -always select a shallow planing depth and repeat the planing and adjusting process until the required depth is reached

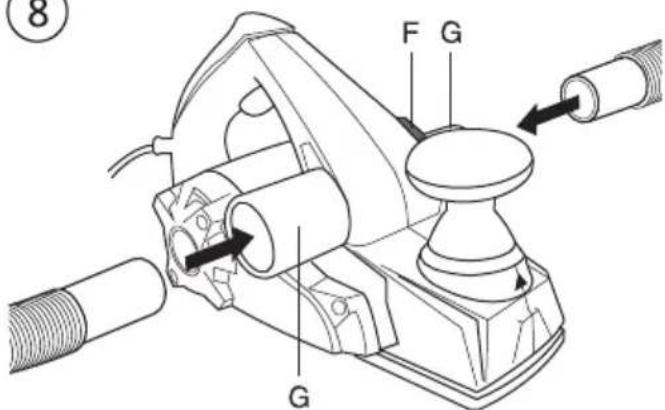

- Chip outlet ⑧

-select desired chip outlet side (left or right) with switch F

-connect vacuum cleaner to selected chip outlet G as illustrated

!do not attempt to remove any obstructions from the chip outlet while knives are rotating

- Park rest H ⑨

-protects workpiece from damage when tool is put aside

-will automatically fold backwards when planing

- Operating the tool

-adjust planing depth

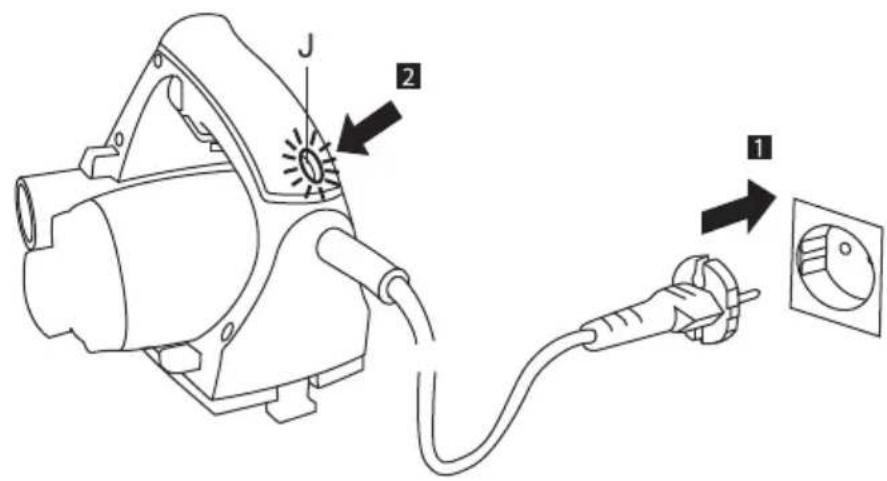

-connect plug to power source (light J turns on indicating that the tool is receiving power) ⑩

-place tool on workpiece

!ensure that only the front shoe rests on the workpiece and that the knives do not touch it

- switch on the tool by first pressing knob K ② (= safety switch which cannot be locked) and then pulling trigger L ②

!before the knives reach the workpiece, the tool should run at full speed

!while working, always hold the tool at the grey-coloured grip area(s) ⑪

-hold the tool firmly with both hands and guide it forward in a continuous stroke

-use the tool with its base-plate on the workpiece

-do not tilt the tool in order to avoid unwanted planing marks

!before switching off the tool, you should lift it from the workpiece

-switch off the tool by releasing trigger L

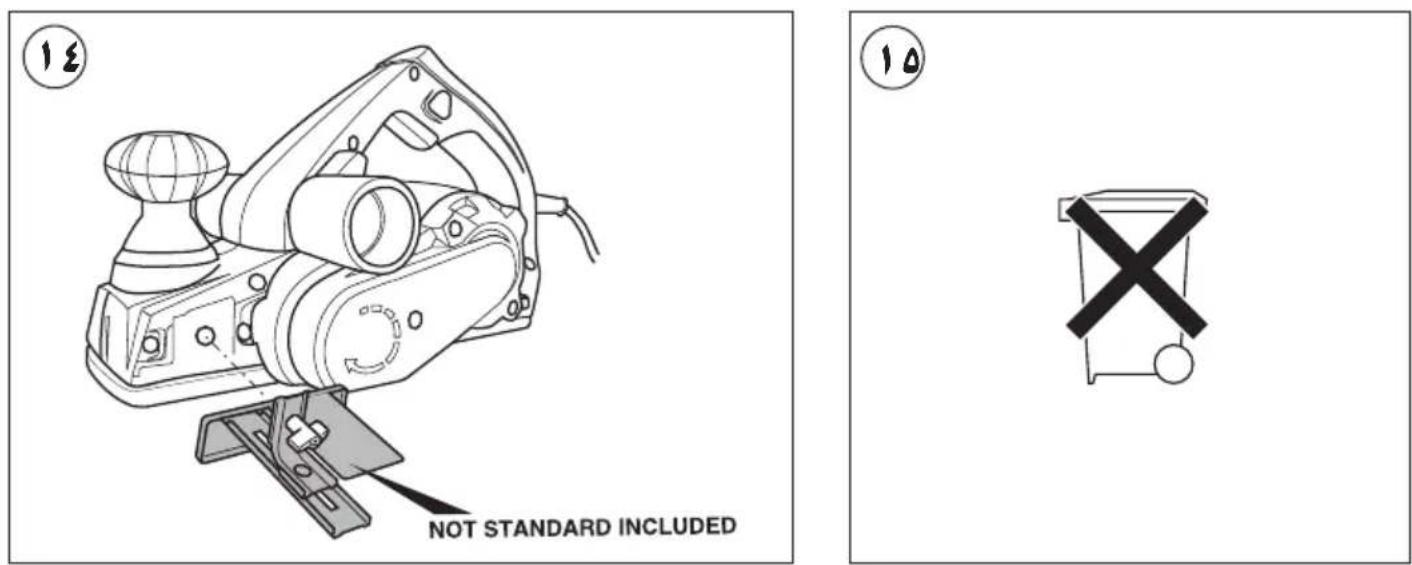

- Planing rabbets ⑫

-select required planing depth

-select rabbeting depth by using a rabbeting depth adjuster (SKIL accessory 2610394022)

-place tool on workpiece

-start planing

-maximum rabbeting width 82 mm

-maximum rabbeting depth 18 mm

APPLICATION ADVICE

- When planing one may use a dust bag (SKIL accessory 2610394020)

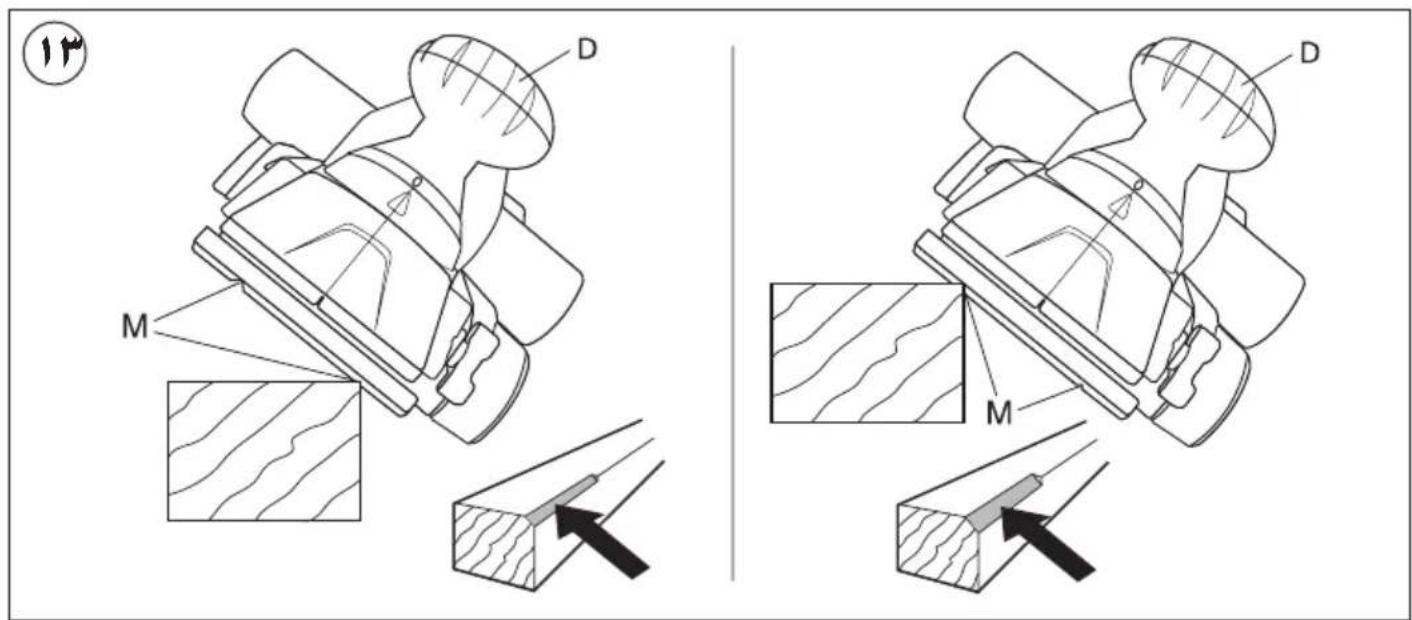

- For chamfering edges use the V-grooves in the front shoe ⑬

-select one of the 2 V-grooves M

-set knob D to position "0" for chamfering edges similar to selected groove

-for larger grooves turn knob D to select the required planing depth

!always test out first on a piece of scrap material

- When planing rabbets you will achieve better results by using a parallel guide (SKIL accessory 2610394021) to adjust rabbeting width ⑭

• For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use

- Always keep tool and cord clean (especially ventilation slots N ②)

!disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑮ will remind you of this when the need for disposing occurs

CE DECLARATION OF CONFORMITY

- We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC, 2006/42/EC, 2011/65/EU

• Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

NOISE/VIBRATION

- Measured in accordance with EN 60745 the sound pressure level of this tool is 90 dB(A) and the sound power level 101 dB(A) (standard deviation: 3 dB), and the vibration 2.8 m/s ^2 (hand-arm method; uncertainty K = 1.5 m/s ^2 )

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

!protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Rabot 1565

INTRODUCTION

Operations & Engineering

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

- BRUIT/VIBRATION

VEILIGHEIDSVOORSCHRIFTEN VOOR SCHAVEN

ALGEMEEN

Operations & Engineering

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

• GELUID/VIBRATIE

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

• HLUČNOSTI/VIBRACÍ

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

• GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

• ZGOMOT/VIBRATII

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

BEZPEČNOSTNÉ POKYNY PRE HOBLIKY

VŠEOBECNE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

• HLUKU/VIBRÁCIÁCH

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

• BUCI/VIBRACIJAMA
- Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi 90 dB(A) a jakost zvuka 101 dB(A) (standardna devijacija: 3 dB), a vibracija 2,8 m/s ^2 (postupkom na šaci-ruci; nesigurnost K = 1,5 m/s ^2 )
- Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može

koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene

OPŠTA UPUTSTVA O SIGURNOSTI

A PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima "električni alat" odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

• BUKA/VIBRACIJE
• Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi 90 dB(A) a jačina zvuka 101 dB(A) (normalno odstupanje: 3 dB), a vibracija 2,8 m/s ^2 (mereno metodom na šaci-ruci; nesigurnost K = 1,5 m/ s ^2 )
• Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60745; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene -korišćenje alatke u drugačije svrhe ili sa drugačijim

ili slabo održavanim nastavcima može značajno povećati nivo izloženosti

-vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti

!zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

Brusilnik 1565

UVOD

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

• HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI ②

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

19.08.2013

• БУЧАВА/ВИБРАЦИИ

- Ndërrimi/kthimi i thikave ⑥

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 19.08.2013

Simple line drawing of a pencil (no text or symbols)

ال CONDITION/ALAKETRAZ

ال Ratings Impact: What is you that you want to be a good thing.

9

Technical line drawing of a mechanical component with labeled parts H and directional arrows (no text or symbols beyond labels)

1

(1)

Line drawing of a manual power tool with handle, rotor, and control panel (no text or symbols)

3D rendered mechanical device with handle and circular button (no text or symbols)

دليل الاستعمال

AR

راهنماي اصلی

FA

08/132610Z05091

سکیل أروبا ب.ق - کونینانبرج 60
