Product Type	Professional espresso coffee machine
Brand	Rancilio
Model	Epoca S1
Dimensions (W x D x H)	400 x 500 x 450 mm
Weight	30 kg
Power supply	230 V, 50 Hz, 2.2 kW
Number of groups	1 group
Main functions	Espresso extraction, steam, hot water
Water tank capacity	10 liters
Bean hopper capacity	Rectangular, 1 kg
Grind type	Integrated grinder with flat burrs
Pump pressure	15 bars
Boiler	Copper, 11 liters capacity, heat exchanger
Maintenance and cleaning	Regular descaling, cleaning of nozzles and group, emptying of drip tray
Safety	Safety thermostat, pressure relief valve, automatic shut-off
Spare parts and repairability	Available from authorized dealers, maintenance kit provided
Warranty	1 year (parts and labor)
General information	Semi-automatic machine, ideal for small businesses and offices

Frequently Asked Questions - Epoca S1 RANCILIO

How to turn on the Rancilio Epoca S1 machine?

To turn on the machine, flip the main switch located on the right side. Wait for the heating light to turn off, indicating that the boiler has reached operating temperature.

How to prepare an espresso with the Epoca S1?

Place the portafilter, dose the ground coffee, tamp with the tamper, then lock the portafilter. Place the cup under the spout and press the hot water flow button. The extraction stops automatically after the programmed volume.

How to steam milk for cappuccinos?

Lower the steam wand into the milk, then slowly open the steam valve by turning the knob. The steam heats and froths the milk. Close the valve after use.

How often should the Epoca S1 be descaled?

It is recommended to descale every 3 to 6 months depending on water hardness. Use a descaling product suitable for professional espresso machines and follow the procedure in the manual.

What to do if the machine does not heat up?

Check the power supply and fuse. If the heating light remains on, the thermostat or heating element may be defective. Contact an authorized technician.

How to clean the brewing group?

Use a group cleaning powder. Insert the blind filter with the product, run a 10-second extraction cycle, let it sit, then rinse thoroughly.

Where can I find the machine's serial number?

The serial number is on the rating plate located at the rear of the machine, near the power cord.

How to adjust the grind of the built-in grinder?

Turn the grind adjustment knob on the side of the grinder. For espresso, the grind should be fine. Adjust in increments of 1/8 turn and test.

What to do if water leaks under the machine?

Check that the drip tray is not full and is properly seated. If the leak persists, a hose or seal may be damaged. Contact a repair technician.

Can I use pre-ground coffee with the Epoca S1?

Yes, you can use pre-ground coffee, but the grind must be suitable for espresso. Use the manual dosing in 'pre-ground coffee' mode if available, otherwise go through the grinder by adjusting the dose.

USER MANUAL Epoca S1 RANCILIO

Illustration of a espresso machine with Rancilio branding (no text or symbols on the device itself)

RANCILIO

macchine per caffè

Gentile cliente,

First of all, thank you choosing RANCILIO.

We are confident that the product you have purchased will come up to all your expectations-just as all our other products are designed to do. The product that you are about to use is the outcome of painstaking research and tests. The Rancilio's consistency assures quite sure that the equipment we have supplied you with, is the most functional, safe and satisfactory of its kind to be found on the market, as regards both its design and its efficiency. The booklet of instructions for its correct use and maintenance will help you to get the best possible service out of your machine. We trust you will find our explanations clear and we may continue, in the future, to count you among our esteemed customers.

Treatment of waste from electric/electronic equipment

Dispose of the product in accordance with current regulations concerning differentiated waste disposal in dedicated waste disposal areas.

Do not treat as simple urban waste.

For any information please contact the manufacturer at the address specified in the use manual.

The product complies with the requirements of the new directives introduced for the environmental safeguard and must be disposed of appropriately at the end of its life cycle.

73/23/CEE, 93/68/CEE

89/336/CEE, 93/68/CEE, 92/31/CEE

Fig. 2

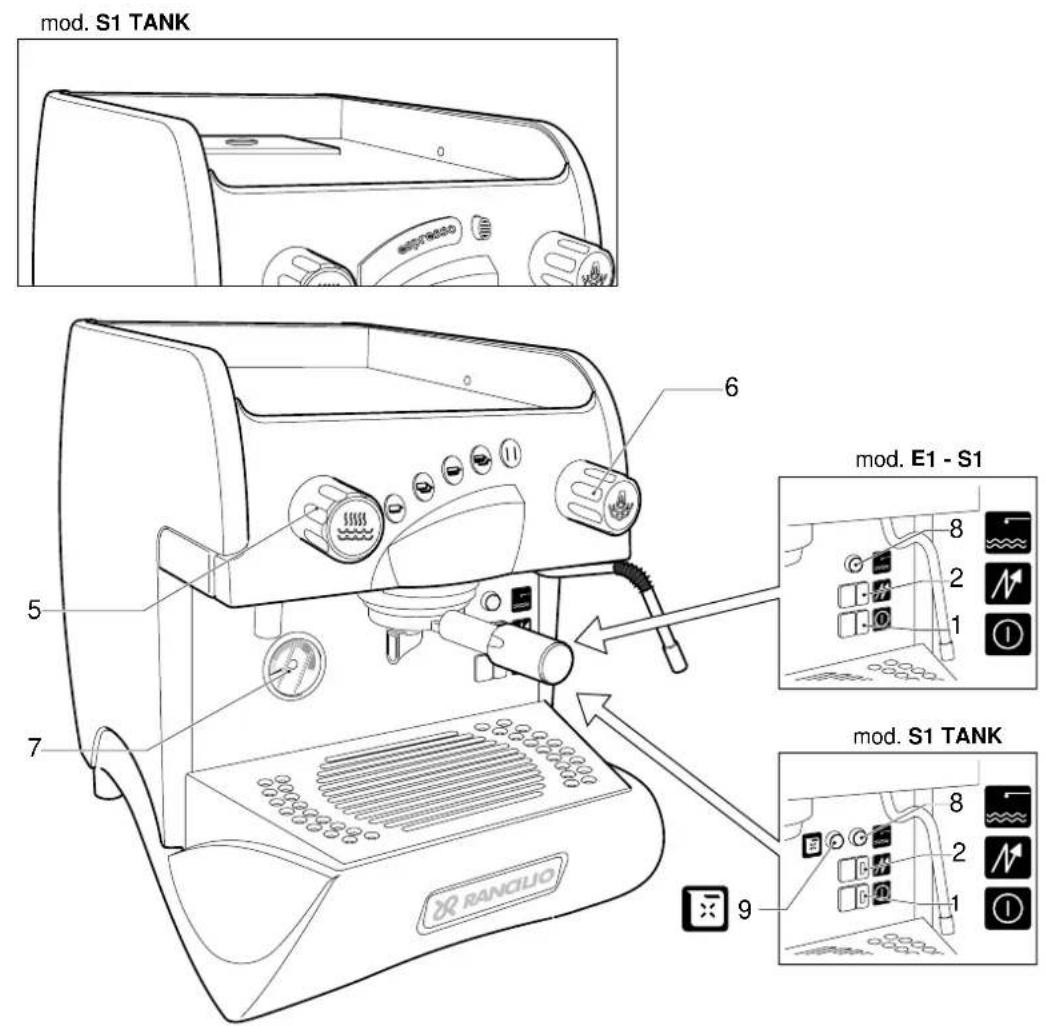

mod. S1 TANK

Fig. 3.b

Fig. 4

Fig. 5
    note right of A "mod. E1"
    note right of E "④"

Fig. 6

Illustration of a hand using a Rancilio brush to lift a cup, showing motion and pressure changes (no text or symbols)

Illustration of a hand holding a tool near a circular mechanical component, labeled Fig. 9 Fig. 10 (no text or symbols on the diagram itself)

IT ITALIANO 13 -23

FR FRANCAIS 24-34

DE DEUTSCH 35-45

EN ENGLISH 46-56

ES ESPAÑOL 57-67

PT PORTUGUÊS 68-78

SCHEMI ELETTRICI 79-84

SCHEMAS ELECTRIQUES

SCHALTPLANE

WIRING DIAGRAMS

ESQUEMAS ELECTRICOS

ESQUEMAS ELÉTRICOS

SCHEMI IDRAULICI 85-88

SCHÉMAS HYDRAULIQUES

HYDRAULIKPLÄNE

HYDRAULIC DIAGRAMS

ESQUEMAS HIDRÁULICOS

ESQUEMAS HIDRÁULICOS

5.1. Emballage .....28

1. Installation .....28

7.1. Commandes (Fig.6)

1. General safety rules ....47

2. Description ....48

2.1. Specifications and composition .....48

2.2. Machine equipment ....48

2.3. Mechanical protective devices .....49

2.4. Electric safety devices .....49

2.5. Aerial noise ....49

2.6. Vibrations .....49

1. Technical data ....49

3.1. Dimensions and weights .....49

1. Use ....49

4.1. Precautionary measures ....50

1. Transport ....50

5.1. Packaging ....50

5.2. Inspection on receipt ....50

1. Installation ....50

6.1.Connections to be made by the user .....50

6.1.1. Water supply 50

6.1.2. Electric supply 51

6.2. Connections .....51

1. Operation ....52

7.1. Controls ....52

7.2. Control instruments ....52

7.3. Starting up ....52

1. Use ....53

8.1. Preparing coffee .....53

8.2. Preparing cappuccino ....53

8.3. . Warming a beverage .....53

8.4. Preparing tea, camomile, etc....53

1. Adjustments and settings of the dose ....54

9.1.For models E1 54

9.1.1. Adjusting the dose ....54

1. Maintenance ....54

10.1. Daily 54

10.2. Weekly 55

10.3. Periodical .....55

10.3.1. Renewal of water 55

10.3.2. Softener regeneration .....55

The operations marked with this symbol are to be undertaken exclusively by an installation technician

The operations marked with this symbol are to be undertaken by the user.

1. Stopping the machine ....56

2. Troubleshooting ....56

NAME: Coffee machine, EPOCA series

MODEL: E1 - S1 - S1 TANK

VERSIONS: 1 GROUP

The label illustrated on the EC Declaration of Conformity of this instruction manual corresponds to the identification label placed on the machine (Fig.2).

Label identification (Fig.1):

1 Manufacturer
2 Model and version
3 Voltage
4 EC conformity mark (if required)
5 Serial number
6 Boiler data
7 Machine total absorption
8 Protection level
9 Motor power
10 Heating element power
11 Frequency
12 Conformity marks
13 Year of manufacture

Symbols

Warning signal. The instructions which refer to this signal must be followed with great care in order to avoid accidents or damage to the machine.

This manual is an integral and essential part of the product and must be delivered to the user. The warnings contained in it must be read carefully, as they supply important indications relating to the safety of installation, use and maintenance. Keep this manual for future reference.

1. GENERAL SAFETY RULES

• Don't leave the packing elements (plastic bags, expanded polystyrene, nails, cardboard, etc.) within the reach of children, as these elements are potential sources or danger.
• Check that the data on the machine corresponds to that of the electrical supply network, before connecting the equipment.
• Adaptors, multiple sockets and /or extensions must not be used.
• In doubt, request an accurate control of the plant by qualified personnel. The electric plant must be provided with the following safety devices:
• efficient earth connection;
• section of conductors suitable for absorption capacity

• efficient earth leakage protection circuit breaker.
  ● Install the machine on a water repellent surface (laminate, steel, ceramic, etc.) away from heat sources (oven, cooking stove, fireplace, etc.) and in conditions in which the temperature may not go below 5°C. KEEP WARM.

• Do not leave the machine exposed to atmospheric agents or place them in damp rooms such as bathrooms.

• Do not obstruct the suction or dispersion grilles and do not cover with cloths, etc.
• Keep the packed machine in a dry place, not exposed to atmospheric agents and in conditions in which the temperature does not go below 5°C. Do not stack more than three items of the same kind. Do not place heavy items on the packaging.
• In an emergency, such as the breaking out of a fire, unusual noise, overheating, etc., take immediate action, disconnecting the power and closing gas and water taps.
• Only use original spare parts in order to avoid compromising the safety and proper functioning of the machine.

Erroneous installation can cause damage to people, animals and things for which the manufacturer cannot be considered responsible

2. DESCRIPTION

The machines in the EPOCA series have been designed to prepare express coffee and hot beverages. A positive-displacement pump inside the machine powers the heater in which the water is heated. By pressing the appropriate buttons, water is supplied to the spouts in the form of hot water or steam, according to needs.

The water to be used for the beverages is supplied directly by the water supply, pressurized by the pump and immediately heated by the steam produced by the boiler or from an incorporated tank containing a softener for softening the water by trapping calcium salts.

The machine is composed of a steel carrying structure on which the mechanical and electrical components are fitted. These are completely covered with panels made of painted polyurethane and stainless steel.

The beverages are dispensed at the front of the machine, where all the buttons, control devices and dispensers are to be found.

There is a cup-warming plate on the top of the machine.

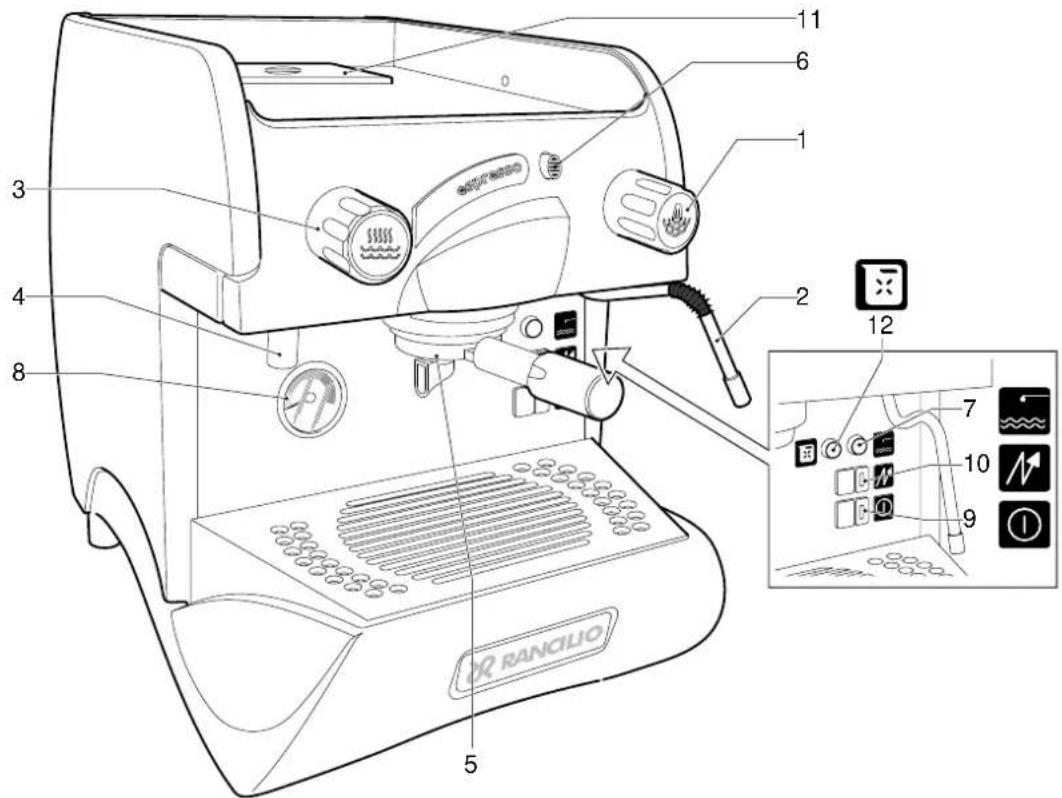

2.1. Specifications and composition (Fig.3 - 3.a - 3.b)

A B C D E

E1 (Fig.3)	- ok	1	1	1
S1 (Fig.3.a)	ok -	1	1	1
S1 TANK (Fig.3.b)	ok -	1	1	1

Legend:

A Semiautomatic system; manual dispensing start and stop.
B Automatic system; electronic control of coffee doses dispensed.
C N. of coffee dispensing units.
D N. of steam spouts.
E N. of hot water spouts.

1 Steam tap
2 Steam spout
3 Hot water tap
4 Hot water spout
5 Coffee dispensing unit
6 Coffee dispensing button
7 Boiler water level indicator
8 Gauge
9 Power on-off switch and led
10 Switch and boiler resistance engagement light.
11 Water-tank
12 Water shortage pilot light

2.2. Machine equipment

MOD. E1-S1 MOD. S1 TANK

1 dose filter holder	1	1
2 dose filter holder	1	1
Filters	2	2
Disk for cleaning	1	1
1 mt. supply pipe	1	-
1,5 mt. supply pipe	1	-
1,5 mt. drainage pipe	1	-
Pipe connections	1	1
Doser and presser	1	1
Instruction manual	1	1
Brush	1	1

2.3. Mechanical protective devices

The machine is equipped with the following protective devices:

• complete panelling protection of all the parts subject to heat and of the steam and hot water supplier;
  ● work surface provided with grill and tray to collect spilt liquids;
  ● expansion valve in the hydraulic system and valve on the boiler to avoid overpressure;
  ● nonreturn valve on the hydraulic system to avoid flowing back to the main supply.

3. TECHNICAL DATA

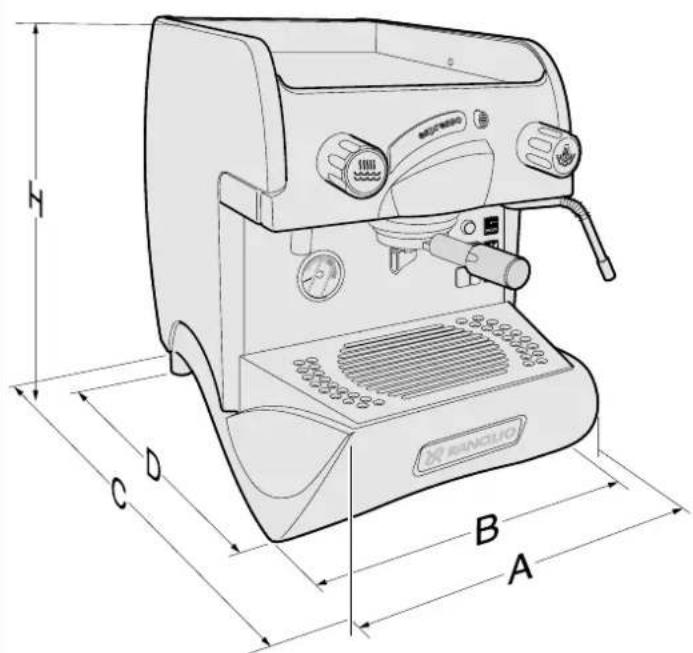

3.1. Dimensions and weights (Fig.4)

2.4. Electric safety devices

The safety devices provided are:

• 5V low tension push buttons an the E1 control key panel;
  ● thermal protection on the pump motor;
  ● safe resistance thermal.

2.5. Aerial noise

Noise level in the working place does not usually exceed 70dB(A).

2.6. Vibrations

The machine is supplied with rubber vibration damping feet. In normal working conditions, the machine does not produce vibrations harmful to the operator and the environment.

MOD. E1-S1 MOD. S1 TANK

A mm	385 385
B mm	355 355
C mm	565 565
D mm	400 400
H mm	485 485
Boiler capacity in litr.	3,9 3,9
Litres water in tankt	-	2
Machine weight kg	35 28
Water inlet	3/8" -
∅mm drainage	30	-
Packaging
Volume m^3	0.193 0.193
Dimension LxPxH mm	495x690x575 495x690x575
Gross weight kg	40 33

You'll find all the technical data on electric connection, on the machine identification label Fig. 1.

4. USE

The machine have been designed, manufactured and protected to be used to make express coffee and hot beverages (tea, cappuccino, etc.). Any other use is to be considered unsuitable and therefore dangerous.

The manufacturer cannot be held responsible for any damage caused to people or things due to unsuitable, erroneous or irrational use of the machine.

The operator must always follow the indications contained in this manual. In the case of a failure or if the machine is not working properly, switch it off and do not attempt any direct repair. Refer exclusively to a service centre.

The user must not:

● touch the hot surfaces and dispensing areas;
● place liquids containers on the machine;
● put his hands under the spouts during use;
● transport the machine or carry out maintenance operations when the plug is connected or when the machine is hot;
● wash the machine with water or steam jet;
● dip completely or partially the machine in water;
● use the machine if the cable is damaged;
- touch the machine when his hands or feet are wet or damp;
- use the machine when there are children in its proximity;
- allow the machine to be used by children or unfit people;
- obstruct the suction or dispersal grilles with cloth or any other thing;
● do not use the machine when wet or very damp.

4.1. precautionary measures

This machine may only be used with foodstuffs. It cannot be used for heating liquids or grinding any other kind of product that could damage and pollute it.

The manufacturer cannot be held responsible for damage to people or things caused by unsuitable, erroneous or irrational use.

5. TRANSPORT

5.1. Packaging

The machine is delivered in a strong cardboard box with internal protection.

The packaging bears symbols which must be observed during handling and stocking of the item.

Always keep the package in a vertical position during transport. Do not turn it over or lay it on its side and avoid bumping and exposure to atmospheric agents.

5.2. Inspection on receipt

Check that the machine received corresponds to the one indicated on the delivery note, including any accessories.

Check that it has not been damaged during transport and, if so, inform the forwarder and our customer service office immediately.

The packing elements (plastic bags, expanded polystyrene, nails, cardboard, etc.) must not be left within reach of children as they are potential sources of danger. Do not dispose of the packing elements in the environment; consign them to firms authorized for their disposal.

6. INSTALLATION

The appliance is only to be installed in locations where use and maintenance is restricted to trained personnel.

The machines are fitted with height adjustable feet (only rear).

The support surface shall be levelled, dry, smooth, steady and stable and at such a height that the cup-warming surface is at over 150 cm from ground. Do not use water jets or install where water jets are used.

In order to guarantee normal operation, the machine must be installed in areas that the environmental temperature is between +5^ ÷ +32^ end humidity of not over 70% .

It does not need to be anchored to the surface and it does not require any technical operations to dampen vibrations in order to operate properly.

It is recommended to leave the area around the machine free to facilitate its use and the performance of any maintenance operations.

If the machine is wet or very damp, wait until it is completely dry before installing or using it. It is always necessary to request an accurate control to qualified service people in order to find any possible damage to the electric components.

Reserve an area near the machine for the installation of the coffee grinding and dosage machine (see relevant documentation).

The machine is usually equipped with a water softener, type DP2 or DP4, which must be connected by the user in compliance with the laws in force.

Should a different softener be installed, refer to the documentation of the relevant product.

A dreg drawer should be fitted by the installer.

6.1. Connections to be made by the user.

Hook-up must be carried out by qualified personnel in full accordance with federal, state and local regulations.

6.1.1. Water supply (Mod.E1 - S1) (Fig.5)

This equipment is to be installed to comply with the applicable federal, state or local plumbing codes.

Connections must be installed close to the machine.

● Water drainage pipe 1, having a minimum internal diameter of 30 mm, equipped with a water-trap accessible for inspection.

● Water supply pipe 2, with a 3/8"G cut-off tap.

Make sure that the maximum supply pressure does not exceed 6.5 bar; otherwise, install a pressure reducer.

6.1.2. Electric supply

The machine is supplied ready for connection according to the required electrical specifi-

cations.

Before connecting the machine ensure that the plate details (fig. 1) comply with those of the electric distribution network.

The electrical connection cable must be directly connected to the connection provided according to current legislation. Ensure that the earthing system is efficient and in compliance with current legal requirements.

The earthing system and the lightening protection system must be realized in accordance with the provisions of current legislation.

For the supply network use a cable in compliance with standards with protective conductor (earthing wire).

For single phase power supply use a cable with 3 conductors (phase + neutral + earth).

In both cases it is necessary to provide an automatic differential switch (Fig. 6) at the start of the power cable, complete with magnetic release elements in accordance with the identification plate details (Fig. 1). The contacts must have an opening of equal or over 3 mm and with dispersed current protection of 30 mA.

Remember that each machine must be fitted with its own safety elements.

WARNING:

Should the power supply cable be damaged it is to be replaced by the manufacturer or by its technical assistance service or by person with equivalent qualification, in order to prevent any risks.

6.2. Connections

● Place the machine on the horizontal surface previously prepared.

Before connecting, thoroughly wash the mains water pipes:

• Leave the water supply taps running at full pressure for several minutes.
  ● Connect to the mains water supply.
• Connect the machine to the socket.

Thoroughly wash all the water pipes of the machine:

• Leave the water supply taps running at full pressure.
• Switch on main switch 1: wait until the boiler fills up to the level set.
• Switch on main switch 2 to begin heating the water in the boiler.
• Operate each unit in order to allow the water to escape for about one minute; repeat the operation twice.
• Deliver steam from the steam jets for about one minute.
• Deliver hot water for about one minute; repeat the operation twice.
  ● Switch off switches 1 and 2.
  ● Empty the water from the boiler: see point 10.3

IMPORTANT

Should the machine not deliver water for over 24 hours, wash the internal components before beginning work, repeating the operations as described above

ATTENTION

Please be informed that in order to avoid pressure falls during the boiler filling we fitted into the filling solenoid valve a restriction ∅ 1.25 mm.

If, during the installation, the machino get in security mode (the on/off selection on the touch pad will flash) reset the machine using the main switch.

7. OPERATION

7.1. Controls (Fig.6)

1 Main switch.

Two-position switch with led.

Turn on the switch, led on, the machine is turned (apart from the boiler) and the pump is turned on to fill the boiler;

2 Boiler resistance switch.

Two-position switch with led.

On activating the switch, the led comes on, and power is supplied to the resistance for the boiler water.

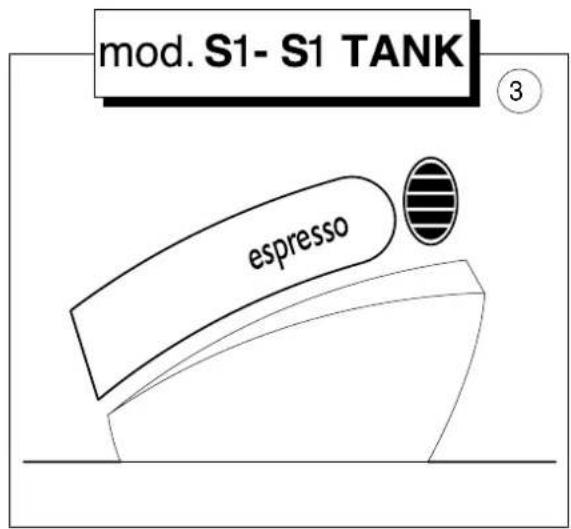

3 Coffee dispenser switch (mod. S1 - S1 TANK)

On pressing the button, continuous coffee dispensing begins and the led comes on.

On re-pressing the switch, the coffee delivery stops and the led goes out.

4 Electronic coffee delivery button panel.(mod. E1). Five buttons with relative led:

A Press the button for a second, led on, release button; a small coffee is dispensed.

The led turns off and dispensing ceases.

B Press the button for a second, led on, release the button; a big cup of coffee is dispensed.

The led turns off and dispensing ceases.

C Press the button for a second, led on, release the button; two small coffees ar dispensed from the same unit.

The led turns off and dispensing ceases.

D Press the button for a second, led on, release the button; two big cups of coffee are dispensed from the same unit.

The led turns off and dispensing ceases.

E Press the button for a second, led on, release the button; coffee is continuously dispensed.

Press the button for a second, led off, release button; continuous dispensing of coffee ceases.

To interrupt dispensing taking place by pressing

A-B-C-D, hold button E down until the relative led turns off.

5 Hot water supply tap

Tap: turn in an anticlockwise direction to open and clockwise to close.

6 Steam supply handwheel.

Tap: turn in an anticlockwise direction to open and clockwise to close.

7.2. Control instruments (Fig.6)

7 Gauge with mobile needle on a fixed dial with a scale and colour indicator areas.

Visual control of the boiler pressure.

8 Boiler water level indicator

9 Tank water level indicator (Mod.S1 TANK)

7.3. Starting up (Fig.6)

Model S1

● Turn on the water supply tap 2 (Fig.5).
● Turn on main switch 1.

The pump for boiler filling will activate. Orange LED (8) ON

• When the level is reached, the pump stops, the LED switches OFF, turn the resistance switch 2; water is heated in the boiler; then, operate the unit until the water is dispensed.
• Wait for the machine to reach its working pressure, gauge needle 7, and to reach the correct thermal balance.

Model E1

● Turn on the water supply tap 2 (Fig.5).
- Turn on main switch 1 and resistance switch 2. The pump for boiler filling will activate Orange LED (8) ON
- Only after reaching the level (orange LED (8) ON) the resistances for water heating in the boiler are powered, then activate the group until water comes out.
● During the heating phase the leds of the keys switch on in sequence from left to right until the working pressure is reached.

Only when the rated pressure is reached it is possible to adjust the dosesl.

Model S1 TANK with autonomous tan (Fig.7)

• Open the lid on the water-tank and check that the softener A has been inserted in the dip pipe B;
• Ensure that the air trap C has been inserted in the appropriate housing;

If the air trap is not properly positioned, the machine may not heat or properly indicate the lack of water in the tank.

• Fill the tank with 2 litres of water and close the lid; Check the LED (9 - Fig.6)
  ● Turn on main switch 1; the boiler is filled and is activated.

Once the boiler is filled, turn resistance switch 2; the water is heated; then, operate the unit until the water is dispensed.

- Wait for the machine to reach its working pressure, gauge needle 7 - Fig.6, and to reach the correct thermal balance.

8. USE

The machine has a top shelf on which the cups are kept and heated, ready for use.

This is very important to obtain good coffee as the pre-warmed cup stops the coffee from growing cold too quickly.

8.1. Preparing coffee

● Unclamp the filter-holder from the dispensing unit and knock any grouts out into the drawer especially provided for this purpose, taking care not to damage the rim of the filter.
- Use the filter for 1 or 2 coffees, according to need.
- Fill the filter with the measure of coffee, level it off and press it down gently with the presser.
- Remove any ground coffee that has stuck to the rim of the filter while pressing.

If ground coffee is left on the rim of the filter, a leaktight seal is not ensured, with consequent leaking of water and coffee grounds.

• Lock the filter-holder into the dispensing unit firmly to obtain a leaktight seal.
• Place the cups under the spouts and start pouring using control 3 or button panel 4 according to model (Fig.6).
• When the coffee has been poured, leave the filter-holder attached to the dispensing unit until the next coffee is required.

When pouring, beware of the hot parts of the machine, especially the coffee dispensing units, the steam and hot water spouts. Do not put your hands for any reason under the units and the spouts when they are operating.

The grinding of the coffee beans is of fundamental importance to the making of good coffee, and the granular texture of the resulting grounds should be such that it takes 25-30 seconds to produce the beverage. If the coffee is ground too coardsely the coffee will be pale in colour and weak in flavour, with only a very small amount of white cream, and if the grounds are too fine, the coffee will be dark with no cream. Good coffee can only be made if the beans are freshly and uniformly ground (only possible when the blades of the coffee grinder are sharp) and are then measured out into the correct quantities (roughly 6 grams per measure).

The importance of freshly ground coffee beans is due to the fact that once ground, they rapidly lose their aromatic qualities, and fats present in the beans go rancid.

8.2. Preparing cappuccino (Fig.8)

● Make cup of cappuccino with the express coffee.
● Use a high and narrow jug, half-filled with milk.
- Place the jug under the spout so that the nozzle touches the bottom.
- Turn on the steam tap (6 - Fig.6) and lower the jug so that the nozzle is almost at the surface of the milk.
- Continuously move the jug up and down so that the nozzle moves in and out of the milk, causing it to froth.
● Turn off the steam tap and pour the milk into the cup.

Immediately after carrying out this operation, clean the spout with a sponge or a clean cloth so that the milk does not dry on it. Be careful as the spout is hot and may burn your hand.

8.3. Heating a beverage

• Immerse the steam spout into the liquid to be heated.
  ● Gradually turn on the steam tap 6 (Fig.6); the steam that bursts in the liquid heats it to the desired temperature.
  ● Turn off the steam tap when the desired temperature has been reached.

Immediately after carrying out this operation, clean the spout with a sponge or clean cloth. Be careful as the spout is hot and may burn your hand.

8.4. Preparing tea, camomile, etc.

• Place the jug under the hot water spout and turn the water tap 5. When the desired quantity has been obtained, turn off the tap.
• Add the beverage desired.

When purified water is used, these beverages often assume a darker colour.

Should the user prefer a lighter coloured drink, draw fresh water from an ordinary tap and proceed with the heating phase as described in point 8.3.

9. ADJUSTMENT AND SETTING OF THE DOSE (where available)

9.1. Models E1

It is possible to adjust the dose of coffee dispensed E1 models.

9.1.1. Adjusting the dose

The coffee dose adjustments are made by acting on the group keyboards with machine at rated pressure.

1 Press the button E on the panel and hold it down for 8-10 seconds until water stops flowing from the dispensing unit and the led of the continuons button begins flashing.
2 It is necessary to act as to make 1 or 2 cups in order to reach the correct coffee amount adjustment in the cup.
3 Put the filter-holder (with ground coffee) on the left unit and the cup under the spout.
4 Operate the selected button (i.e. button A for one small cup).
5 One the required coffee amount in the cup has been reached, press the stop button E. Coffe will stop pouring and the microprocessor will store the dose.
6 Press the continuous button E again; the led will go out and the machine will store the new quantity.
7 Make the coffee and check the cup amount in order to check that programming is correct.

If some doses have to be changed (B-C-D), once at point 5 repeat the instructions in points 3-4-5 for each dose, remembering to use the filter-holder with relevant filter and freshly ground coffee.

Then carry out point 6 and repeat point 7 to check all changed doses.

10. MAINTENANCE

Maintenance operations have to be carried out when the machine is off and cold and the plug is disconnected. Some particular operations have to be effected when the machine is operating.

Do not clean the machine by using metal or abrasive devices, such as steel wool, metal brushes, needles, etc. or general detergents (alcohol, solvents, etc.)

When necessary, use special detergents for coffee machines that can be bought in specialized service centres.

10.1. Daily (Fig.9)

Use a clean cloth or sponge that does not leave hairs or fluff (preferably cotton or linen).

• Carefully clean the outside surface, following the grain of the satin finish on the parts in stainless steel.
• Clean the steam and hot water spouts, check that the nozzles are not encrusted (if they become encrusted, be careful not to deform or damage them).
  ● Clean the spray units and the seals under the casing of the delivery units using the special brush supplied
• Remove the filter-holders of the machine and remove the filters and the clamp which secures the filter, use a brush to remove any coffee deposits and rinse with hot water in order to dissolve any grease deposits.

Model S1 TANK

Operation to be carried out when the machine is off and cold and the plug is disconnected.

• Remove the lid on the water-tank;
• Remove the air trap C and softener A (Fig.7);
  ● Take out the water-tank, empty and clean it;
  ● Thoroughly rinse the water-tank and replace it in the machine;
  ● Place the air trap in its guide and the softener horizontally on the bottom of the water-tank;
  ● Fill the tank with clean water and close the lid.

If the air trap is not in the correct position, the machine cannot heat or indicate a lack of water in the tank.

10.2. Weekly

Operations to be carried out with the machine operative and under pressure.

• Place the supplied blind filter in the filter-holder, put in a spoonful of detergent in powder for coffee machines and fit the filter-holder in the unit to be cleaned.
• Press the coffee dispensing button and draw water for approx. 30 seconds.
• Stop and start dispensing several times until clean water comes out of the discharge unit tube.
• Remove the filter-holder, take out the blind filter and insert a normal one. Replace the filter-holder on the unit and rinse by drawing water several times.
  ● Make a coffee to eliminate any unpleasant taste.

Cleaning the filters and delivery heads

Operation to be carried out when the machine is off and cold.

● Prepare a solution of 4 sachets of detergent powder Code 69000124 dissolved in a litre of boiling water in a stainless steel, plastic or glass recipient (NOT ALUMINIUM OR IRON).
- Remove the filters and immerse them with the filter holders in the prepared solution, leaving them for at least 10/20 minutes (all night is better).
- Remove them from the container and rinse them thoroughly in running water.

Tank cleaning (Fig.10 - 11)

• Remove the cup-stand grille 1 (Fig.10) and clean.
• Check and clean the drainage sump 3 (Fig.11), removing any sludge with the help of a spoon.

10.3. Periodical maintenance

Operation to be carried out with the machine under pressure.

● Discharge the water from the boiler with hot water delivery switch 5
● Wait until the machine has returned to heat equilibrium before reuse.

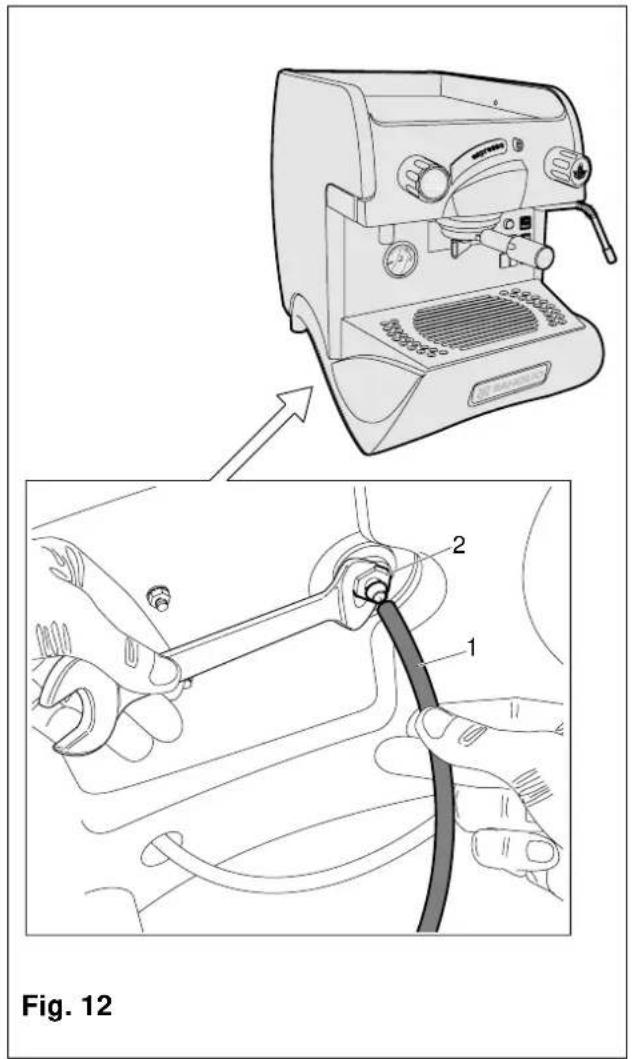

10.3.1. Renewal of water in the boiler (Fig.12)

To be carried out only by qualified personnel.

• Turn off the machine and wait for the pressure in the boiler to diminish (gauge needl on "0").
• Insert a rubber hose (1) into the hose-end fitting (2)
  ● Loosen the hose-end fitting (2).
• Allow the water to flow out completely; then, close the fitting (2) and remove the rubber hose (1).
  ● Refill the boiler (paragraph 7.3.).

10.3.2. Regeneration

Softener DP2 - DP4

Regenerate the water softener within the time-limits specified for the softener as follows:

DP2

nr.1 regeneration per month for 500 coffees/day; nr.2 regenerations per month (once a fortnight) for 1000 coffees/day.

DP4

nr.1 regeneration per month for 1000 coffees/day; nr.2 regenerations per month (once a fortnight) for 2000 coffees/day.

This table has been drawn up according to a water hardness of 25 degrees calculated on the French scale.

See the documentation included with the softener for the instructions for use.

Model S1 TANK (Fig.13)

Operation to be carried out when the machine is off and cold and with the plug disconnected.

To be effected after the consumption of approx.15 litres of water (average hardness calculated as 35 degrees on the French scale) or at least once a month.

● Prepare a solution in a glass of water adding three teaspoons of fine salt (the salt must be properly dissolved).
● Drain the water-tank, see point 10.2.
- Slide the softener 1 (Fig.13) off the rubber tubing 2 and turn it over.

• Pour the solution through the filter and the resin, letting it flow down freely.
• Wait about 5 minutes, then hold the softener under a tap and rinse it with water. When the water coming out of the softener is no longer salty, the resins are regenerated and the softener is ready for use once again.
  ● Put the softener back on the rubber tube and replace it horizontally on the bottom of the tank.
• On completion of this operation, the machine can be started up again by repeating the procedure described in paragraph 7.3.

11. STOPPING THE MACHINE

A - Temporary stop

● Carry out cleaning and maintenance operations.
● Wind up the cable and fasten it to the machine with sticky tape.
- Cover the machine and place it in a dry room. Do not leave it exposed to atmospheric agents and do not allow it to be touched by children or unift persons.

To disconnect from the main power supply, consult qualified personnel.

B - Definitive stop

- Besides carrying out the operations necessary for a temporary stop, cut off the cable, pack the machine in cardboard, polystyrene or other packing material and consign it to firms authorized for its disposal or to second-hand goods dealers.

12. PROBLEMS AND REMEDIES

Check operations to be carried out by the user with the plug disconnected. For any type of problem or inconvenience not specifically indicated, disconnect the plug and contact our service centre without attempting any direct repairs.

A) The machine does not start:
- check that the plug is connected;
- In case of power failure wait for the power to return and check if the earth leakage protection circuit breaker or the main switch is on;
- check the condition of the plug and the supply cable; if damaged have them replaced by qualified personnel.
B) There is water under the machine:
- check that the drainage tray is not obstructed.
C) Slow dispensing:
- check that the filters and delivery heads are clean;
- check that the coffee is not too finely ground.
D) Irregular steam delivery:
- check that the nozzles are not obstructed.

IT ITALIANO 13 -23

FR FRANCAIS 24-34

DE DEUTSCH 35-45

EN ENGLISH 46-56

ES ESPAÑOL 57-67

PT PORTUGUÊS 68-78

SCHEMI ELETTRICI

SCHEMAS ELECTRIQUES

SCHALTPLANE

WIRING DIAGRAMS

ESQUEMAS ELECTRICOS 79-84

ESQUEMAS ELÉTRICOS

SCHEMI IDRAULICI

SCHÉMAS HYDRAULIQUES

HYDRAULIKPLÄNE

HYDRAULIC DIAGRAMS

ESQUEMAS HIDRÁULICOS 85-88

ESQUEMAS HIDRÁULICOS

ES ESPAÑOL

ÍNDICE

1 Interruptor general

EN Reserved property.

Partial or total reproduction of this manual is forbidden without written authorisation of RANCILIO S.P.A.. RANCILIO reserves the right to effectuate, in any given moment, any modifications which are considered necessary.
