Mini Cooler 282895 - Refrigerator PRINCESS - Free user manual and instructions

Product type	Mini refrigerator
Brand	Princess
Model	Mini Cooler 282895
Usable capacity	Approximately 40 liters
Dimensions (W x H x D)	43 x 50 x 44 cm
Net weight	12 kg
Power supply	220-240 V ~ 50 Hz
Energy consumption	60 kWh/year (energy class E)
Sound power	41 dB(A)
Temperature range	0°C to 10°C adjustable
Defrost type	Manual
Thermostat	Continuous adjustment by knob
Reversible door	Yes
Shelves	1 removable glass shelf
Freezer compartment	No
Interior lighting	Yes, LED
Material	ABS plastic and metal
Color	White
Cleaning and maintenance	Clean with a soft cloth and soapy water. Do not use abrasive products.
Safety	Child lock not present. Unplug before cleaning.
Spare parts and repairability	Available from manufacturer or authorized retailers. Repairability index not provided.

Frequently Asked Questions - Mini Cooler 282895 PRINCESS

How to adjust the temperature of the Mini Cooler 282895?

Turn the thermostat knob located inside the refrigerator. The cold increases by turning to the highest number (usually 7). Allow 24 hours to stabilize.

The mini refrigerator makes noise, is that normal?

Yes, a slight hum is normal when the compressor is running. A gurgling sound may also occur. If the noise is abnormal, check that the appliance is level.

How to defrost the refrigerator?

Unplug the appliance, remove the food, and leave the door open. Place a towel to absorb melting water. Do not scrape the ice with a sharp object.

Can the door opening direction be reversed?

Yes, the door is reversible. Follow the instructions in the manual: remove the hinges and reinstall them on the other side. It is advisable to get help.

What is the capacity of this mini refrigerator?

The usable capacity is about 40 liters, which allows storing about fifteen cans and some provisions.

How to clean the inside of the refrigerator?

Unplug the appliance, remove the shelves, clean with a soft cloth dampened with warm water and mild soap. Dry thoroughly before restarting.

The refrigerator is not cooling enough, what to do?

Check that the thermostat is not on the warmest setting, that the door seals properly, that the rear grille is not obstructed, and that the appliance is not too full.

Can I put hot drinks in the refrigerator?

No, wait until they cool to room temperature. Putting hot food in increases energy consumption and may damage the appliance.

Where to find spare parts?

Contact Princess customer service or check authorized retailers. Common parts like shelves or door seals can be ordered online.

What is the energy class of this model?

The energy class is E (old label). It consumes about 60 kWh per year, which corresponds to moderate usage.

USER MANUAL Mini Cooler 282895 PRINCESS

Line drawing of a portable container with a vent and side panel (no text or symbols)

Gefeliciteerd!

You have purchased a Princess product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years.

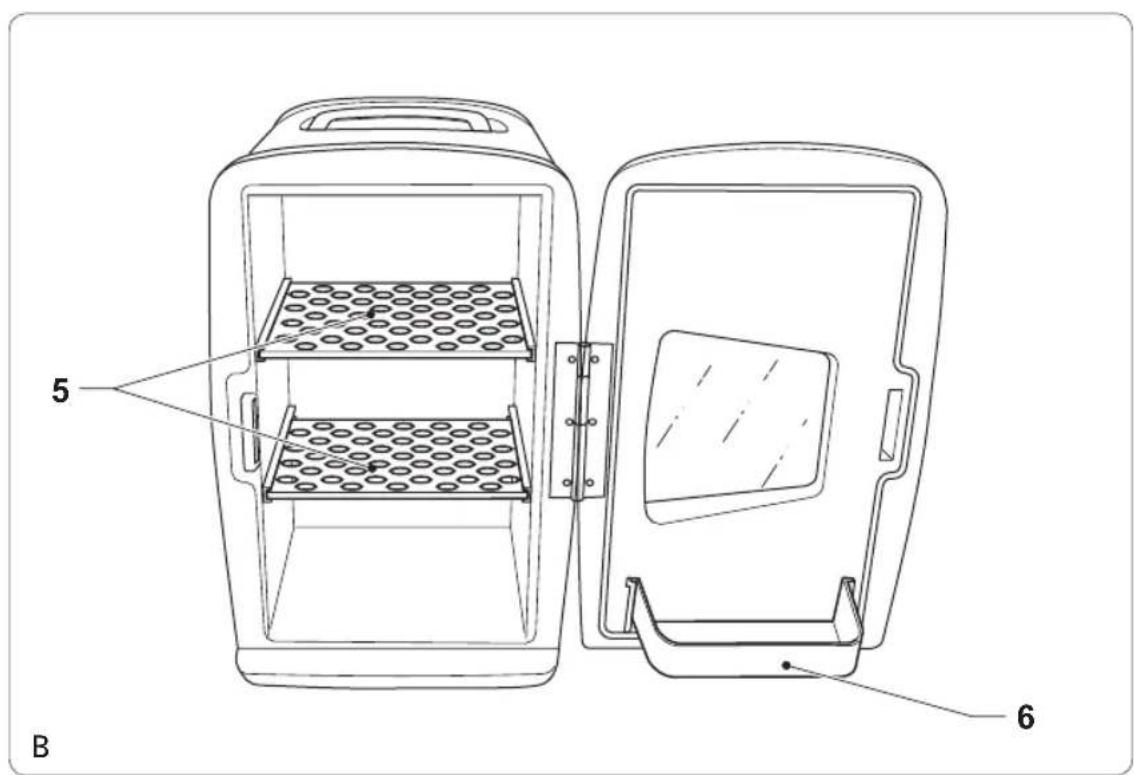

Description (fig. A & B)

Your 282893/282895 Princess refrigerator has been designed for cooling food and beverages (min. 10 °C). The appliance is also suitable for heating food and beverages (max. 45 °C). The maximum capacity of the appliance is 14 litres. The appliance is suitable for indoor use (AC, 220-240V) and for use in a vehicle (DC, 12V). The appliance is suitable for domestic use only.

1. Door
2. Door handle
3. Handgrip
4. Cooling compartment
5. Removable plate
6. Removable tray
7. Ventilation slots
8. Heating/cooling selector switch
   9a. Cooling indicator
   9b. Heating indicator
9. DC/AC selector switch
10. DC connection (12V)
11. AC connection (220-240V)
12. DC power cable (12V)
13. AC power cable (220-240V)

Initial use

Preparation

Clean the appliance. Refer to the section •

"Cleaning and maintenance".

Clean the accessories. Refer to the section •

"Cleaning and maintenance".

Assembly (fig. B)

Before you proceed, we need you to pay attention to the following notes:

- Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

Minimum distance to wall or other objects: 10 cm.

Place the appliance on a stable and flat surface.

Pull the door handle (2) to open the door (1). Place the removable plates (5) into the cooling compartment (4).

Mount the removable tray (6) to the door (1). • Close the door (1) until the door handle (2) • locks into place.

Use

Switching on and off (fig. A)

To switch on the appliance, set the heating/cooling selector switch (8) and the DC/AC selector switch (10) to the required position. To switch off the appliance, set the heating/cooling selector switch (8) and the DC/AC selector switch (10) to the off position.

Selecting the cooling function or the heating function (fig. A)

Before you proceed, we need you to pay attention to the following notes:

- Switch off the appliance for 30 minutes when changing from cooling to heating or from heating to cooling.

To select the cooling function, set the heating/cooling selector switch (8) to the COLD position. The cooling indicator (9a) comes on.

To select the heating function, set the • heating/cooling selector switch (8) to the HOT position. The heating indicator (9b) comes on.

To switch off the cooling function or the heating function, set the heating/cooling selector switch (8) to the off position. The corresponding indicator (9a/9b) goes off.

Selecting alternating current or direct current (fig. A)

The appliance can be operated using alternating current (AC, 220-240V) for indoor use or using direct current (DC, 12V) for use in a vehicle.

Before you proceed, we need you to pay attention to the following notes:

- Do not use the appliance with a 24V battery or with a power transformer. If you use direct current (DC), make sure that the power supply is suitable for a current of 4A and stabilised at a voltage of 12V.

To select alternating current (AC), set the • DC/AC selector switch (10) to the AC position.

To select direct current (DC), set the DC/AC selector switch (10) to the DC position. To switch off alternating current (AC) or direct current (DC), set the DC/AC selector switch (10) to the off position.

Hints for use (fig. A & B)

Before you proceed, we need you to pay attention to the following notes:

- Do not touch the metal parts inside the appliance when using the heating function. The metal parts become very hot during use.

Place the appliance on a stable and flat surface.

Assemble the appliance. Refer to the section "Assembly".

Connect the correct power cable to the correct connection:

• To use alternating current (AC), connect the correct end of the AC power cable (14) to the AC connection (12). Connect the other end of the AC power cable (14) to the wall socket.
• To use direct current (DC), connect the correct end of the DC power cable (13) to the DC connection (11). Connect the other end of the DC power cable (13) to the cigarette lighter jack of the vehicle.

To switch on the appliance, set the heating/cooling selector switch (8) and the DC/AC selector switch (10) to the required position.

To switch off the appliance, set the heating/ cooling selector switch (8) and the DC/AC selector switch (10) to the off position.

After use, remove the mains plug from the wall socket.

Allow the appliance to cool down completely.

Cleaning and maintenance

Before you proceed, we need you to pay attention to the following notes:

• Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or other liquids.

Before you proceed, we would like you to focus your attention on the following notes:

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.

Regularly check the appliance for possible damage.

Clean the outside of the appliance with a soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.

Clean the inside of the appliance with a soft, • damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth.

Clean the accessories in soapy water. • Thoroughly dry the accessories with a clean, dry cloth.

Put the appliance and the accessories in the original packaging.

- Store the appliance with the accessories in a dry and frost-free place, out of the reach of children.

Safety instructions

General safety

- Read the manual carefully before use. Keep the manual for future reference. Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Children should be supervised to ensure • that they do not play with the appliance.

The appliance is not intended for use by · persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not use the appliance near bathtubs, • showers, basins or other vessels containing water.

Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. This appliance is intended to be used in domestic and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed-and-breakfast type environments.

Electrical safety

Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Connect the appliance to an earthed wall · socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1 mm ^2 ).

For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30 mA.

Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.

Always fully unwind the mains cable and the extension cable.

Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over.

Keep the mains cable away from heat, oil and sharp edges.

Do not use the appliance if the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

Do not pull the mains cable to disconnect • the mains plug from the mains.

Disconnect the mains plug from the mains · when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for refrigerators

Do not use the appliance outdoors.

• Do not use the appliance in damp environments.
• Do not expose the appliance to direct sunlight.
  Place the appliance on a stable and flat surface.
• Do not place the appliance on a hob.
• Make sure that the appliance does not come into contact with flammable material.
• Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.
• Do not cover the ventilation slots.
• Do not insert foreign objects into the ventilation slots.
  Do not spill food or beverages inside the • appliance.
• Wrap food such as bread, fruits and vegetables in plastic wrap.
• Do not move the appliance while it is switched on.
• Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.

U.K. Wiring instructions

The wires in the mains lead are coloured in accordance with the following code:

BLUE NEUTRAL

BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any other type of plug is used, a 13Amp fuse must be fitted, either in the plug or adaptor, or on the distribution board.

This is a double-insulated appliance and does not need an earth connection.

Warning! On no account should either the live or neutral wires be connected to the earth terminal.

Disclaimer

Subject to change; specifications can be changed without further notice.
