Product Type	Freestanding washing machine
Load Capacity	8 kg
Spin Speed	1200 rpm
Energy Class	A+++
Dimensions (W x H x D)	60 x 85 x 55 cm
Net Weight	70 kg
Power Supply	220-240 V ~ 50 Hz
Water Connection	Cold water only
Noise Level (Wash/Spin)	56 / 74 dB(A)
Programs	Cotton, Synthetic, Delicate, Quick 15', Mix, Sport, Wool, Rinse & Spin
Display	LED digital display
Delay Start	Up to 24 hours
Child Lock	Yes
Drum Material	Stainless steel
Door Opening	Left hinged (reversible)
Water Consumption (per cycle)	50 L
Annual Energy Consumption	175 kWh
Cleaning and Maintenance	Clean detergent drawer and filter regularly; run drum clean cycle monthly
Safety Features	Overflow protection, unbalanced load detection, anti-foam system
Spare Parts Availability	Door seal, pump filter, belt, motor brushes available via service centers
Repairability Index	8.0 / 10

Frequently Asked Questions - HW80-1279 HAIER

How do I install the Haier HW80-1279 washing machine?

Remove the transport bolts from the back, level the machine by adjusting the feet, connect the water inlet hose to a cold water tap, and insert the drain hose into a standpipe or sink. Refer to the manual for detailed instructions.

What should I do if the machine does not start?

Check that the door is closed properly, the water supply is turned on, and the machine is plugged in. If an error code appears, consult the manual. Common fixes include resetting by unplugging for 10 seconds.

How often should I clean the detergent drawer?

Clean the detergent drawer every 1-2 months to prevent detergent buildup and mold. Remove the drawer by pressing the release catch, rinse it under warm water, and wipe the compartment.

Why is the machine vibrating excessively during spin?

Ensure the machine is level and all transport bolts are removed. Uneven loads can cause vibration; redistribute items. Also check that the floor is solid and the feet are locked.

How do I run a drum clean cycle?

Press the Drum Clean button (if available) or select a cotton cycle at 90°C with no laundry and add a descaler or washing machine cleaner. Follow the manual for your model.

What does error code E1 mean?

E1 indicates a water inlet issue. Check that the water tap is open, the inlet hose is not kinked, and the filter in the water inlet valve is clean. Turn off the machine and restart.

Can I use liquid detergent in this machine?

Yes, but use the liquid detergent dispenser if provided. For the main wash, place liquid detergent in the appropriate compartment or use a dosing ball. Avoid overfilling.

How do I clean the pump filter?

Unplug the machine, open the filter door (bottom right), place a towel underneath, unscrew the filter slowly to drain water, and remove debris. Clean and reinstall.

What is the maximum spin speed and can I adjust it?

The maximum spin speed is 1200 rpm. You can adjust it using the spin speed selector for most programs. Lower speeds are recommended for delicate fabrics.

How do I activate the child lock?

Press and hold the Child Lock button (often marked with a key icon) for 3-5 seconds until the indicator lights up. To deactivate, repeat the same process.

USER MANUAL HW80-1279 HAIER

Front view of a white water washing machine with control panel and side buttons (no visible text or symbols)

Thanks for purchasing a Haier Product

Please read these insons carefully before using this appliance. The ins ons contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass on this manual so that the new owner can become familiar with the appliance and safety warnings.

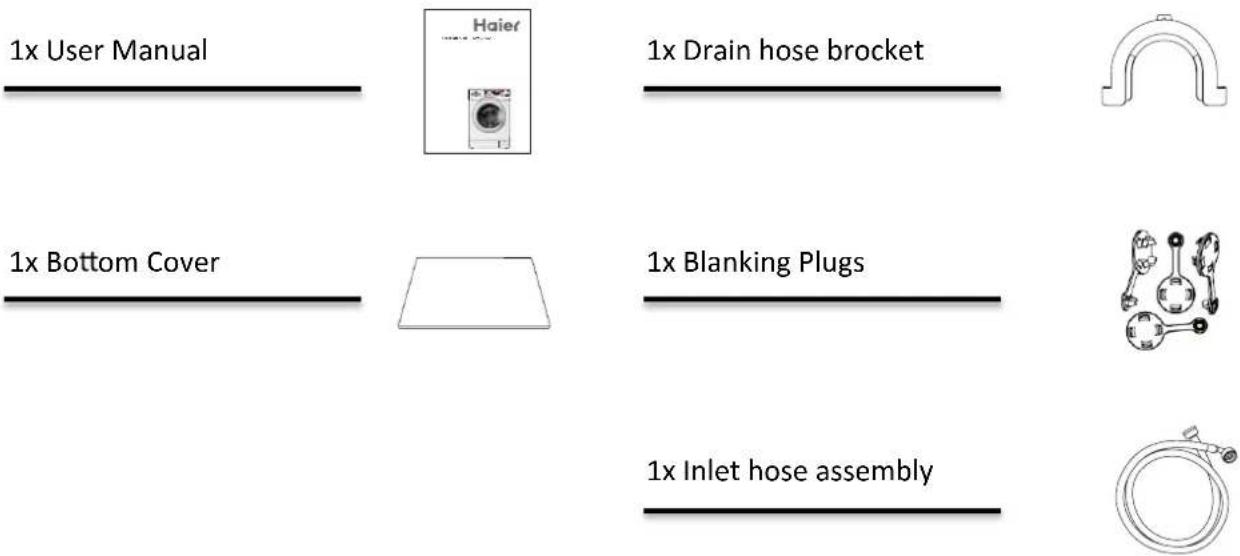

Accessories

Check the accessories and literature in accordance with this list:

1x User Manual

1x Drain hose brocket

1x Bottom Cover

1x Blanking Plugs

1x Inlet hose assembly

Index

Cautions....3

Before Use 5

Functions....8

Maintenance 16

Trouble-Shooting....19

A er-Sale Service....21

Legend

Yes

No

Optional

Caution

Attention

Disposal

The presence of this symbol on the product, accessories or materials that goes with this information indicates that at the end of its useful life the product or its electronic accessories (ex. charger, headset, USB cable) should be disposed with other household waste.

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

To prevent possible damage to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them. This will promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased the product or the relevant local authorities to find out how they can take this item for environmentally safe recycling and safe.

Business users should contact their supplier and check the conditions of the purchase. This product and its electronic accessories should be mixed with other commercial waste.

Before switching the appliance on for the first time

Do...

√ Make sure that the transport bolt is removed.
√ Use a separate earthed socket for the power supply.
√ Make sure that the plug is accessible.
√ Hold the plug and not the electric cable when unplugging the power supply.
√ Make sure that the fuses in the power circuit are rated for 15A.
√ Keep it away from heat sources and direct sunlight to prevent plastic and rubber components from aging.

√ Make sure that the power card is not caught under or in the appliance and avoid damage to the power cable.

√ Check that hose joints and connections are firm and with no water leaking. If joints are not firm there will be leakage, turn off the water supply and refix it. Do not use the washing machine until the hoses are totally fixed.

Pure electrical circuit lines without any symbols

Do not...

✗ Touch or use the appliance when barefoot or with wet or damp hands or feet.
✗ Use flammable detergent or dry cleaning agent.
✗ Use any flammable sprays in close vicinity to the appliance.
✗ Remove or insert the plug in presence of flammable gas.
✗ Allow children or infirm persons to play with the appliance or packing materials.
✗ Install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak allow the machine to dry naturally.
✗ Place the washing machine directly on a carpet, or close to a wall or furniture.

During daily use of the appliance

Do...

√ Pull up zips and fix loose threads to prevent the items from being entangled. If necessary, put small items into a small bag or pillow.
√ Turn off the machine after each wash program and switch it off at the mains to save electricity, and for safety. Wipe clean the lower part of the porthole.
√ Keep the door slightly open when the washing machine is not in use to prevent formation of odors.

Cautions

√ Let the power cord be replaced by the manufacturer, his service agent or other accordingly qualified people, in case it is damaged.
√ Ensure that the appliance is not used by people with reduced physical, sensory or mental capabilities, lack of experience and knowledge without supervision or instruction by a person that responsible for their safety.
heckmark Supervise children to ensure that they don't play with the appliance.

Do not...

✗ Touch de washer door during the washing process, it gets hot.
✗ Place heavy objects or sources of heat or damp on top of the appliance.
✗ Hot wash from rubber or sponge-like materials
✗ Open the detergent distribution drawer during the wash cycle.
Force de washer door to open, the door is fitted with a self-lock device and will open shotly after the washing procedure is ended.
✗ Open the washer door if the water level is visibly over the porthole.
✗ Cover the washing machine with a plastic cover so that inside dampness cannot be kept in.

Saving Tips

Achieve the best use of energy, water, detergent and me by using the recommended maximum load size
Do not exceed the detergent dosages indicated in the manufacturer's instructions
The Eco-Ball – a special system in the outlet will prevent detergent loss from the drum to avoid detergent loss into de environment.
Use "Prewash" for heavily soiled laundry only. Save detergent, me, water and energy consumption by not selec ng "Prewash" for slightly to normal soiled laundry.
Save energy and me by selecting a high spin speed to reduce the water content in laundry before using a tumble dryer.
Choose a proper washing temperature. Modern detergents can wash with very good result already in lower temperature than 60^irc C. Only use higher temperature than 60^irc C for heavily soiled laundry.

Description

This diagram may be slightly different from the layout of the washing machine you have just purchased.

Preparing the machine

Remove all the packing materials to prevent unsteadiness, including the polystyrene base. Upon opening the package, water drops may be seen on the plastic bag and the porthole. This is normal phenomenon resulting from water tests in the factory.

Technical line drawing of an electrical enclosure with internal components and mounting brackets (no text or symbols)

Installati

Adjusting the b on cover

Before removing the transport bolts, please fix the bottom cover to the bottom of the washing machine. Lay down the machine (fig.1), screw off the feet and adjust the bottom cover with the four holes corresponding to the screw holes of the feet. Then screw the feet back on through the cover and fix it thus securely to the bottom of the machine (fig 2.).

It keeps out the dampness and reduces the noise.

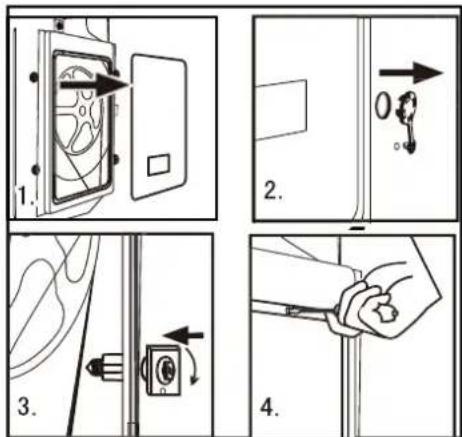

Dismantle the transport atm bolts

The transport bolts are designed for clamping an - ti vibration components inside of the washing machine during the transportation process.

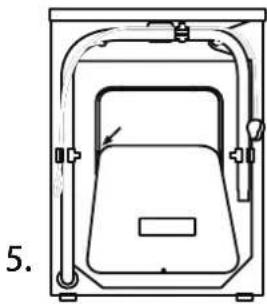

√ Remove the back cover.
√ Remove the four bolts on the rear side and take out the synthetic stabilizers from within the machine.
√ Replace the back cover.
√ Fill the holes left by the bolts with blanking plugs.

Note:

When you replace the back cover, the convexity must face to outside, and you have to insert the back cover from the two gaps as shown in fig.5.

Keep the transportation bolts and synthetic stabilizers in a safe place for later use.

Adjusting the feet

There are adjustable feet under the bottom of the washing machine. Before use, they should be adjusted so that the machine is level. This will minimize vibrations and thus noise during use. It will also reduce wear and tear. We recommend using a spirit level to level the appliance. The floor should be as stable and flat as possible.

Simple line drawing of a rectangular frame with mounting holes and a curved arrow inside (no text or symbols)

Simple geometric diagram showing a square with four corner dots and a curved line labeled '2.' (no text or symbols beyond the number)

Diagram of a door with an open panel showing internal fan structure and a black arrow pointing to the component (no text or symbols present)

Line drawing of a hand holding a tool over a vertical rod, labeled with number 3 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a wrench, no text or symbols present

Inlet Hose

√ Connect the nut on the inlet hose to the connector on the water valve.
√ Apply inlet hose to a water tap with cold, fresh water.

⚠️ Use the hose-set supplied with the appliance. Old hose-sets should not be reused.

Line drawing of a faucet with a handle and valve, showing a rotation arrow (no text or symbols)

Drain Hose

√ Use the drain hose bracket to keep the end of the drain hose retained and prevents the outflow of water. Don't extend the length of the drain hose; if an extended hose is required, please consult a serviceman.
√ The height of the drainage outlet must be 80-100 cm. Fix the drain hose to the clip at the back of the washing machine to prevent it from dropping off.

Simple line drawing of a coiled pipe with a bulb and connectors (no text or symbols)

The drain hose should not be submerged in water and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80cm, the washing machine will continuously drain while being filled (self-siphoning).

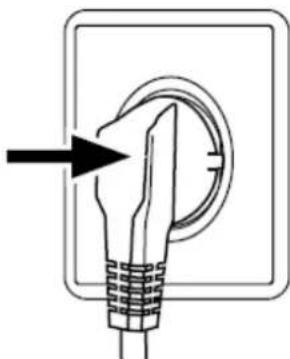

Connecting to Power Supply

Before connecting to the power supply, check:

√ The socket is adequate for the maximum power of the washing machine (For safety, fuses in the power circuit should be rated for no less than 15A).
√ The voltage should meet the requirement.
√ The power outlet should be capable of accepting the washing machine plug.
√ Connect the machine to an earthed socket outlet.

Pure electrical circuit lines without any symbols

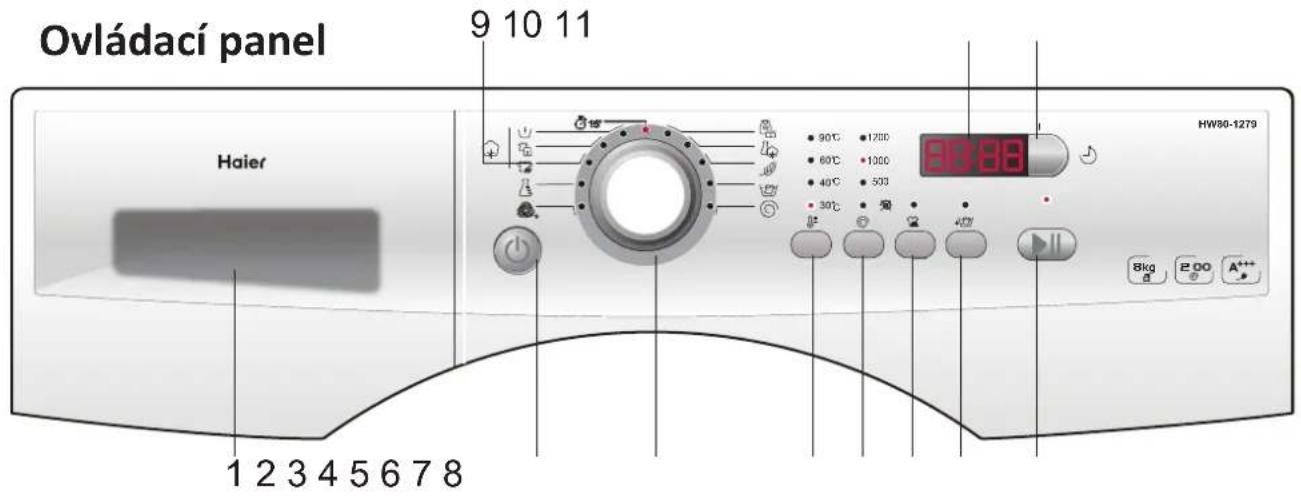

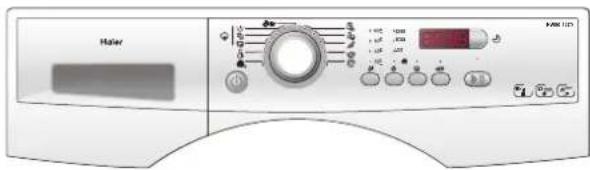

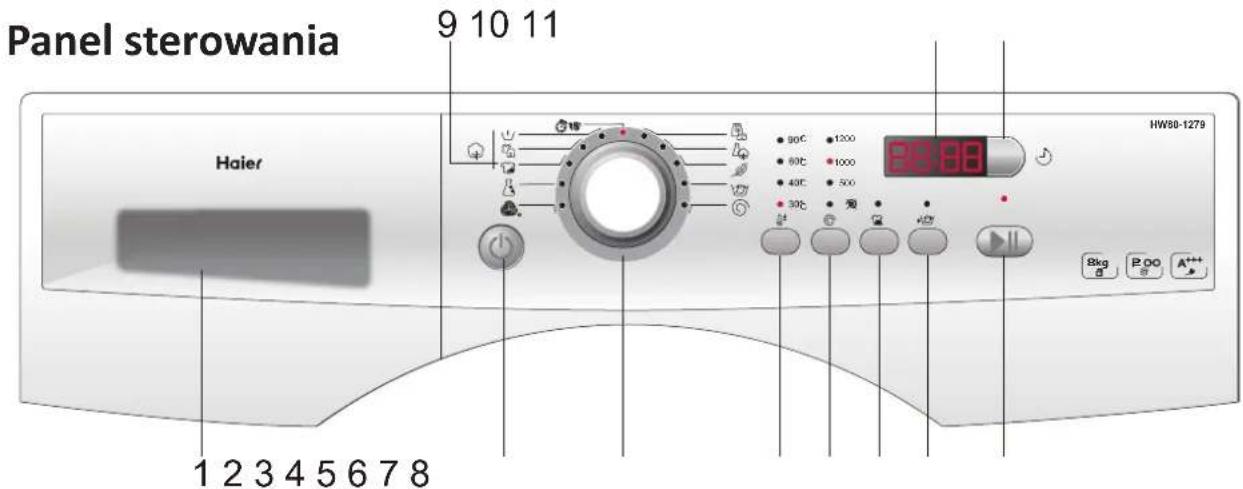

1. Detergent/Softener Drawer 6. Intense button
2. Power Button 7. Extra Rinse
3. Program Dial 8. Start/Pause Button
4. Wash Temp 9. ECO

5. Spin Speed 10. LED Display

6. Delay

Operational Func omis

Nº Func on tExplica on
ti

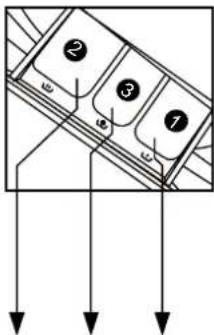

1	Detergent distribution drawer	Open the drawer, three compartments can be seen: Compartment 1: Prewash detergent Compartment 2: Detergent for programs 1 to 9. Compartment 3: Softener, conditioning agent.
2	Power Button	Press this button to switch on the washing machine. Press it again to switch it off. Press this button gently for 2 seconds to switch off the machine as buttons are soft touch sensitive.
3	Program Dial	By turning the knob clockwise/counterclockwise, the required program can be selected. There are 11 programs available. After a program is selected, the corresponding light will go on.
4	Wash Temp	Touch this button lightly, the washing temperature will be displayed on the indicator. Select a temperature according to the type of laundry. Note: If there is no indicator light displayed, it means cold wash.
5	Spin Speed	Touch this button lightly to select the desired speed. When a speed is set, it will be displayed on the indicator. Note: If there is no indicator light displayed, it means no spinning.
6	Intense button	If the laundry is heavily soiled, press this button before starting the program. When the button is pressed, the washing time increases.

7	Extra Rinse	Press this button, the washing machine will perform additional rinses. Press the button once to select one additional rinse. The display will show"P-1". Press the button repeatedly and the screen will display "P-2" or "P-3", indicating two or three additional selected rinses. The "extra rinse light" is activated and flashes during the performance. "P-1/2/3" is displayed alternating with the remaining time. The light turns off and the display disappears when the extra rinse ends.⚠ Select this function when programe 1-9 is selected.
8	Start/Pause Button	When the washing machine is connected to the power socket and a program is selected, lightly touch this button to start operation. During a wash cycle, touch it lightly ,operation will stop and the digits on the screen start blinking. Touch it again to resume operation. To cancel a wash program during a wash cycle, touch this button, when the digits on the screen start blinking, press the Power switch, the program will be cancelled.
9	ECO	Before a washing program,select this program to set the washing load (1/2Full),the washing machine will automatically adjust the water consumption and washing time.
10	LED Display	Information as remaining wash time and error messages will be shown here.⚠ After a wash program is started the display will go on and the remaining wash time decreases. As the water pressure and temperature may differ, the remaining time may be adjusted accordingly. When the laundry is not balanced during spinning, the time may be automatically prolonged.
11	Delay	Touch this button lightly, the washing machine will start operation after a period of time and the corresponding indicator will go on. The range is 0.5-24 hours; each touch of this button increases a half hour. After the button is set, press the Start/Pause button to start countdown of the set time (the time is displayed on the screen until the program ends).⚠ The delay time must be longer than the program time otherwise the washing machine will start the wash program directly.
	To cancel audible alarmAlarm sound can be cancelled if it is required (not recommended)Switch on the washing machine and turn the program knob to spin cycle, then press the "Delay" and "Extra rinse" button, hold on for 3 seconds.The message "BEEP OFF" will be displayed on the screen, indicating that the alarm sound has been cancelled.To reinstate audible alarmSwitch on the washing machine and turn the program knob to spin cycle, then press the "Delay" and "Extra rinse" button, hold on for 3 seconds.The "BEEP ON" message will be displayed on the screen, indicating that the alarm sound has been reinstated.

Program Modes

Program	Temp Max	Preset 2		3	1	Fiber type Preset spin speed
Wool	0-40 °C	30°C	✓	◎	×	Woolen fabrics	500 rpm
Synthetic	0-60 °C	40°C	✓	◎	×	Chemical fiber fabrics	1000 rpm
Eco	0-90 °C	40°C	✓	◎	×	Cotton fabrics	1000 rpm
Standard	0-90 °C	40°C	✓	◎	×	Cotton fabrics	1000 rpm
Pre-wash	0-90 °C	40°C	✓	◎	✓	Heavy soiling	1000 rpm
Quick Wash	0-30 °C	30°C	✓	◎	×	Cotton or synthetic	1000 rpm
Sport	0-40 °C	30°C	✓	◎	×	Sports wear	1000 rpm
Mixed	0-60 °C	40°C	✓	◎	×	Cotton or synthetic	1000 rpm
Delicate	0-40 °C	30°C	✓	◎	×	Cotton fabrics	500 rpm
Rinse	--	--	×	◎	×	/	1200rpm
Spin/Drain	--	--	×	×	×	/	1200rpm

Yes

√

Optional

◎

No

×

Consumption Table

Program	Max Load	Temp	Washing Time	Spin drying performance
Wool	2 kg	30°C	1:00 h	..
Synthetic	4 kg	40°C	1:10 h	..
Eco	4 kg	40°C	1:18 h	..
Standard	8 kg	40°C	1:28 h	53%
Pre-wash	8 kg	40°C	1:46 h	..
Quick Wash	4 kg	30°C	0:15 h	..
Sport wear	4 kg	30°C	0:25 h	..
Mixed	8 kg	40°C	1:18 h	..
Delicate	4 kg	30°C	1:01 h	..

The standard 60 °C and 40 °C cotton programs are suitable to clean normally soiled co on laundry and they are the most efficient programs in terms of combined energy and water consumptions for washing that type of cotton laundry; The actual water temperature may differ from the declared cycle temperature.

Washing Methods

This washing machine is for domestic use only. If the machine is use for commercial purpose the guarantee will not be valid anymore. Do not use it for purposes other than that for which it was designed. Follow the instructions given on the label of each garment and wash only machine-washable garments.

Power Supply

Connect the washing machine to the power supply (220V to 240V\~/50Hz).

Water Connecti

Turn on the tap. The water must be clean and clear.

Before use, check for leakage in the joints between the tap and the inlet hose by turning on the tap.

Preparing the Laundry

Sort out clothes according to fabric (cotton, synthet c\$, wool or silk) and to how dirty they are.

Separate white clothes from colored ones. Wash them first by hand to check if they fade or run.

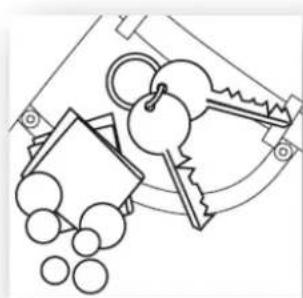

Empty pockets (keys, coins, etc.) and remove the harder decorative objects (e.g. brooches).

⚠️ At a small parts (like bu ons, etc) may lead to repair work which user has to pay by him and can cause damage in the machine.

Garments without hems, underwear, and finely woven textile such as fine curtains are to be put into wash bag (it is better not to wash them in a washing machine).

Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as socks, belts, bras, etc. in the wash bag.

Unfold large pieces of fabric such as bed sheets, bedspreads, etc.

Turn shirts inside out.

Technical illustration of a faucet with a valve inserted into a socket (no text or symbols)

Line drawing of clothing items including shirts, jeans, pants, and a bucket with clothes (no text or symbols)

Illustration of a key and key with surrounding geometric shapes (no text or symbols)

Functions

Loading the appliance

Open the washer door put in the laundry piece by piece. Close the door tightly.

When first using the washing machine, let it run unloaded for one program to prevent the laundry from being tainted by oil or dirty water from the washing machine. Before washing you should run the machine without laundry, but with detergent, with 60°C program.

Do not overload the washing machine.

Front view of a white three-wheeled washing machine (no visible text or labels)

Selectig Detergent

The washing efficiency and the performance is determined by the quality of detergent used. Special non-foaming detergent produces good washing results. Use specific detergents for synthetic and woollen goods. Do not use dry cleaning agents such as trichloroethylene and similar products.

Do not add more detergent than needed; otherwise, it may cause the situations as following and washing machine malfunction impact washing machine's life.

Due to the increasing foam, the rinse time will be longer than normal;
The foam may overflow from the detergent drawer because of the increasing pressure of the foam;
It may remain foam without cleaning out aft the final spinning cycle.

Simple line drawing of a container with liquid being poured into it (no text or symbols)

Recommendatn:

Clean the detergent drawer once a week.
When using the prewashing program, please add half of the rating dosage.

! Please follow the dosage recommendation on the powder or liquid detergent package.

Adding Detergent

Slide out the detergent drawer and put the required detergent and softening agent into the corresponding compartments. Push back the drawer gently. (Refer to the instructions on the drawer)

For prewashing program, detergent should be added to both compartments 1 and 2.

For other programs, do not add detergent to compartment 1.

Use liquid detergent according to the instructions on its package. Do not use liquid detergent if the prewash mode or "Delay" is selected.

Do not overuse softener; otherwise, it will damage the artificial fibers.

Functions

Selectig program

To get the best washing results, an appropriate washing program should be selected according to the laundry type. Please turn the program knob to select the right program.

Selectig fun outil

Select the required options. (Refer to the "Control panel" pages 8,9 and 10)

Settig washing temperature

Press and hold down the temperature button un hit desired temperature is selected.

Settig spin speed

Press and hold down the speed button un cited desired speed is selected. See "onalOperati functions" on the "Control panel" pages (08 and 09) for selecting temperature and spin speed. It is advisable to select the recommended value.

Washing

Press the Start/Pause button. The washing machine will operate according to the preset programs. The washing machine will stop operation automation when a washing cycle ends. The "End" sign will appear on the display. Open the washer door and take out the laundry.

After washing

Turn off the water supply and unplug the power cord. Open the washer door to prevent formation of moisture and odors. Let the door open while not used.

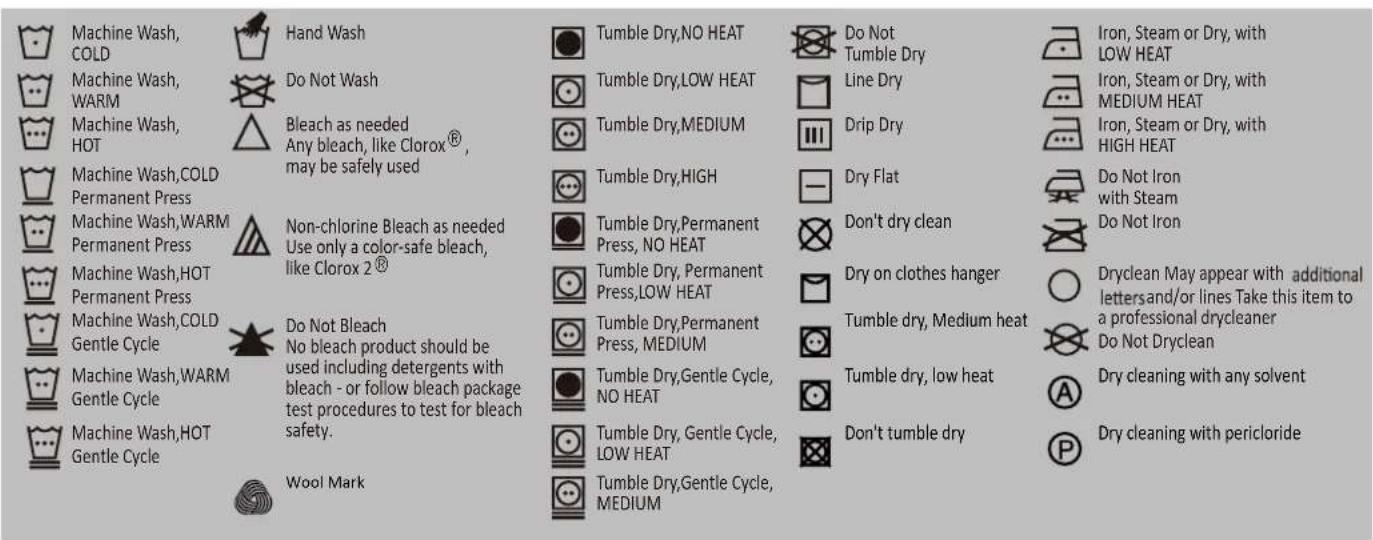

Care Chart

Load Reference

Material Made of Load in grams

Bed Sheet	Cotton	Approximately 800
Blanket Wool Approximately 3000
Blended fabric clothes / Approximately 800
Jackets Co on Approximately 800 tt
Jeans / Approximately 800
Overalls	Cotton	Approximately 950
Ladies Pyjamas / Approximately 200
Shirts	/	Approximately 300
Socks Blended fabrics Approximately 50
T-Shirts Co on Approximately 300 tt
Underwear	Blended fabrics Approximately 70

Cleaning and Care

After washing

Turn off the water supply and pull out electricity plug after each wash. Open the washer door to prevent formation of moisture and odors. If the washing machine is left idle for a long period, drain the water in the machine and replace the drain hose.

Simple line drawing of a plug or socket with a circular component and arrow indicating direction (no text or symbols)

Line drawing of a faucet with a handle and valve, showing a rotation arrow (no text or symbols)

Cleaning the detergent drawer

Clean the detergent distribution drawer regularly.

Swing out the drawer, flush it clean with water and then replace it.

Cleaning the machine

Unplug the machine during cleaning and maintenance. Use a softcloth dampened with soap liquid to

clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.

Cleaning the filter

Clean the filter once a month:

Open the bottom cover.

Remove the filter by turning counterclockwise.

Flush the filter clean with running water.

Replace the filter by turning clockwise and remount the cover.

Hand holding a device with an arrow indicating rotation (no text or symbols present)

Hand holding a mechanical component with a threaded rod, no visible text or symbols

The filter must be in place, or it may lead to leakage.

Place a container under the drain pump filter, to collect any excess water that may come out of the drain pump

Water inlet valve and inlet valve filter

To prevent blockage to the water supply by ingress of foreign substances, clean the water inlet valve and inlet valve filter regularly.

Line drawing of a hand holding a tool with a screwdriver inserted, no text or symbols present

Moving the machine

If the machine is to be moved to a distant locati, replace the transpo on bolts removed before installation to prevent damage as shown below.

Remove the back cover.

Remove the blanking plugs.

Insert the synthetic stabilizers and the transportatbolts.

Tighten the bolts with a spanner.

Replace the back cover.

Long periods of disuse

If the washing machine is left idle for a long period, pull out the electrical plug and turn off the water supply. Open the washer door to prevent formation of moisture and odors. Let the door open while not used.

Display Codes

Display Codes and Special functions

Codes Causes Solu ons
ti

Err1 Door is not properly shut. Shut the door properly, and then press the Start/Pause button.
Err2 Drainage error, water not emp withtired 6 minutes.	Clean the filter and check the drain hose for blockage. If error still exists, please contact the maintenance personnel.
Err3 Temperature sensor not properly connected or damaged.	Contact the maintenance personnel.
Err4 Heater error (Appears at the end of a cycle).	Contact the maintenance personnel.
Err5 Water level not met in 8 minutes.The height of the drain hose is below 80 cm.The drain hose is in water.	Make sure that tap is turned on, and water pressure is normal.If problem stl exists, please contact the maintenance personnel.Install drain hose within 80-100 cm of height.Make sure the drain hose is not in water.
Err7 Motor Error Contact the maintenance personnel.
Err8 Water exceeds protec ve level. Contact the maintenance personnel.
UNb	After the last rinsing cycle finishes, spinning fails completely due to unbalance of the laundry.
End	End of wash cycle.
19:30	-Status information: Preset time for delayed opera on.
1:25 The remaining me is 1 hour 25 minutes.

Control panel lock function: Press the "Delay" and the "Start/Pause" buttons simultaneously for 3 seconds after start program. It can no longer be changed by op g bu cration tt knobs. To unlock press the "Delay" and "Start/Pause" buttons again for 3 seconds.
Power-off memory function: In case of abrupt power failure or the need to cut off the power during a program cycle, the present settings will be saved and the preset operation will resume when the power is on again.
To cancel a program. Press the "Start/Pause" button, then switch off the power and the program is automatically cancelled. Turn the program selector again to choose another program.
During the spin process, if too much foam is inspected, in order to protect the motor, the washing machine will eliminate the foam automatically; the motor will stop and the drain pump will drain the water continuously for 90 seconds. If it happens more than 3 times, the motor will stop until the end of cycle without spinning.

Trouble-Shooting

Problem	Causes	Solutions
Washing machine fails to operate.	Poor connection to the power supply.Power failure.The washer door is not properly closed.Machine has not been switched on.	Check connection to the power supply.Check the power supply.Close the washer door properly.Make sure the machine is switched on.
Washing machine cannot be filled with water.	The "Start/Pause" button is not pressed.Water tap is not turned on.Water pressure is less than 0,03 MPa.The inlet hose is kinked.Water supply failure.The program knob is not properly set.The washer door is not properly closed.The inlet hose filter is blocked.	Press the "Start/Pause" button.Turn on the water tap.Check water pressure.Check the inlet hose.Ensure the water supply.Set the program knob properly.Close the washer door properly.Unblock the inlet hose filter.
Machine is draining while being filled.	The height of the drain hose is below 80 cm.The drain hose is in water.	Install drain hose within 80-100 cm of height.Make sure the drain hose is not in water.
Drainage failure.	Drain hose is blocked.Drain hose end is higher than 100 cm abovethe floor level.The filter is blocked.	Unblock the drain hose.Make sure the drain hose end is lower than 100 cm above floor level.Unblock the filter.
Strong vibration while spinning.	Not all transportation bolts have been removed.Washing machine is located on an uneven surfaceor is not level.Machine load is over 8kg.	Remove all transportation bolts.Make sure the washing machine is on an even surface and levelled.Reduce amount of laundry in the drum.
Operation stops before completing wash cycle.	Water or electricity failure.	Check the power supply or water supply.
Operation stops for a period of time.	Washing machine gives an error message.Washing machine is in soaking cycle?	Check display codes.Press the rinse hold button or the Start/pause button again to cancel it.
Excessive foam in the drum, which is spilled to the distribution drawer.	The detergent is not a low-foaming type or for manual wash.Excessive use of detergent.	Check if your detergent is appropriate.Reduce amount of detergent in the distribution drawer.
Automatic adjustment of the washing time.	The washing program duration will be adjusted	This is normal and doesn't affect the functionality.
Spinning fails	Unbalance of the laundry	Add clothes or run a spinning program again.

Basic technical information regarding the appliance.

HW80-1279

Power source 220 - 240V~/50Hz
Max. working current (A)	10
Water pressure (MPa) 0.03≤P ≤1
Nominal load (kg) 8
Spinning speed (r/min) 1200
Washing programs 11
Max power (W)	2100
Dimensions (HxDxW mm) 850 x 650 x 595
Net weight (kg)	74
Power consumption of the off-mode(W) 0,39
Power consumption of the left mode(W) 0,39

If after checking the trouble-shooting part, the problem is not solved. Please check the Warranty Card included in the product.

Useful Informati

Haier Italy

√ AS Phone number; 199-100912

Haier Spain

√ AS Phone number (ES & PT) ; 902 50 91 23

Haier Germany

√ AS Phone number (DE/ AT) ; 0180 5 39 39 99 / 0820 00 12 05

Haier UK

√ AS Phone number; 0845 077 7750

Haier France

√ AS Phone number; 01 73 79 48 05

Haier

Front view of a white water washing machine with control panel and side buttons (no visible text or symbols)

Symbol of a trash bin crossed out by two crossed lines, representing no waste or restriction (no text present)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical enclosure with internal components and mounting brackets (no text or symbols)

Instalace

Two technical diagrams showing a square frame with mounting holes and a curved cutout, labeled 1 and 2 (no text or symbols present)

Technical line drawing of a mechanical component or enclosure with no visible text or symbols

Line drawing of a hand holding a wrench, no text or symbols present

Přívodní hadice

Diagram of a pipe fitting with a valve and rotating component (no text or symbols)

Line drawing of a faucet with a knob and handle, showing a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a U-shaped pipe with a coiled tube and connectors (no text or symbols)

Simple line drawing of a light bulb inside a square frame with a circular dial (no text or symbols)

Diagram showing two different faucet configurations with arrows indicating direction of movement (no text or symbols present)

Line drawing of clothing items including a bucket, pants, and a shirt (no text or symbols)

Illustration of a key and key with abstract shapes and circles, no text or symbols present

Plnění zařízení

Front view of a white washing machine with control panel and side buttons (no visible text or symbols)

Simple line drawing of a container with liquid flowing out (no text or symbols)

Výběr programu

Simple line drawing of a plug or socket with a circular component and a pointer, labeled '1.' (no text or symbols on the diagram itself)

Line drawing of a faucet with a handle and valve, showing a rotation arrow (no text or symbols)

Hand holding a tool with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a tool near a vertical surface with dashed lines indicating texture or direction (no text or symbols)

Line drawing of a hand holding a tool with a screw and circular component (no text or symbols)

Přesun zařízení

Diagram of a fan or fan assembly with a door and panel, no text or symbols present

Illustration of a hand holding a tool or tool against a vertical line, no text or symbols present

Front view of a white water washing machine with control panel and side buttons (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

domowego.

Pure electrical circuit lines without any symbols

Technical line drawing of an electrical enclosure with internal components and mounting brackets (no text or symbols)

Instalacja

Diagram of a fan inside a door with an arrow pointing to the interior panel (no text or symbols)

Line drawing of a hand holding a tool over a vertical rod, labeled with number 3 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with no visible text or symbols

Regulacja nóżek

Line drawing of a hand holding a wrench, no text or symbols present

Line drawing of a faucet with a knob and handle, showing a curved arrow indicating rotation (no text or symbols)

Wąż odpływowy

Simple line drawing of a U-shaped pipe with a coiled tube and connectors (no text or symbols)

Simple line drawing of a light bulb inside a square frame with an arrow pointing to its tip (no text or symbols)

Diagram showing two types of faucet fittings: one with a handle and arrow indicator, the other with a valve mechanism (no text or symbols)

Line drawing of clothing items including shirts, jeans, pants, and a bucket (no text or symbols)

Abstract line drawing of a key, key, and circular shapes (no text or symbols)

Wktadanie wsadu do prania

Front view of a white three-wheeled washing machine with control panel and buttons (no visible text or symbols)

Simple line drawing of a container with a handle and internal flow lines (no text or symbols)

Wybór programu

Simple line drawing of a plug or socket with a circular component and a pointer, labeled '1.' (no text or symbols on the diagram itself)

Illustration of a faucet with a handle and valve, showing a rotation arrow (no text or symbols)

Hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a tool near a vertical pipe or pipe with dashed lines indicating flow (no text or symbols)

Line drawing of a hand holding a tool with a screwdriver inserted, no text or symbols present

Transport pralki

Front view of a white water washing machine with control panel and side buttons (no visible text or symbols)

Symbol of a trash bin crossed out by two crossed lines, representing no waste or restriction (no text present)

leselejtezni.

Technical line drawing of an electrical enclosure with internal components and mounting brackets (no text or symbols)

Beüzemelés

Two technical diagrams showing a square frame with mounting holes and a curved line, labeled 1 and 2 (no text or symbols present)

Technical line drawing of a mechanical component or enclosure with no visible text or symbols

A lábak beállítása

Line drawing of a hand holding a wrench, no text or symbols present

Befolyócső

Diagram of a pipe fitting with a valve and directional arrow, no text or symbols present

Line drawing of a faucet with a knob and handle, showing a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a U-shaped pipe with a coiled tube and fittings, no text or symbols present.

Pure electrical circuit lines without any symbols

Diagram showing two different faucet configurations with arrows indicating direction of movement (no text or symbols present)

Line drawing of clothing items including shirts, jeans, pants, and a bucket (no text or symbols)

Illustration of a key and key with abstract geometric shapes (no text or symbols)

Front view of a white washing machine with control panel and buttons (no visible text or symbols)

Simple line drawing of a container with liquid flowing out (no text or symbols)

Javaslat:

Simple line drawing of a plug or socket with a circular component and an arrow indicating direction (no text or symbols)

Illustration of a faucet with a handle and valve, showing a rotation arrow (no text or symbols)

Hand holding a device with an arrow indicating rotation (no text or symbols present)

Hand holding a device with an arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a tool with a screwdriver inserted, no text or symbols present

Front view of a white water washing machine with control panel and side buttons (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or restriction (no text present)

Pure electrical circuit lines without any symbols

Technical line drawing of an electrical enclosure with internal components and mounting brackets (no text or symbols)

Instalare

Two technical diagrams showing a square frame with mounting holes and a curved line, labeled 1 and 2 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component or enclosure with no visible text or symbols

Line drawing of a hand holding a wrench, no text or symbols present

Furtunul de alimentare

Line drawing of a faucet with a knob and handle, showing a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a U-shaped pipe with a coiled tube and connectors (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing two different faucet configurations with arrows indicating direction of movement (no text or symbols present)

Line drawing of clothing items including shirts, jeans, pants, and a bucket (no text or symbols)

Line drawing of a key and key with surrounding geometric shapes (no text or symbols)

Front view of a white washing machine with control panel and buttons (no visible text or symbols)

Simple line drawing of a container with liquid flowing out (no text or symbols)

Recomandare:

Simple line drawing of a plug or socket with a circular component and a pointer, labeled '1.' (no text or symbols on the diagram itself)

Line drawing of a faucet with a handle and valve, showing a rotation arrow (no text or symbols)

Hand holding a device with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a tool with a screwdriver inserted, no text or symbols present

Hand holding a device with an arrow indicating rotation (no text or symbols present)

Line drawing of a hand holding a tool with a screwdriver inserted, no text or symbols present

Mutarea maşinii
