USER MANUAL FREEROLL RTS SOMFY
Remote control system for rolling garage doors
Assistance technique FRANCE :
N°Indigo 0820374374
0,12 TTG/MN
PRODUCT PRESENTATION 10
Thank you for choosing a Somfy product. This product is designed and manufactured by Somfy in line with quality procedures that are ISO 9001 compliant.
The world of Somfy?
Somfy develops, produces and sells automation systems for residential and commercial applications. Alarm systems, automatic blinds and shutters, garage doors and gates - all Somfy products are designed to fulfil your needs in terms of safety, comfort and security.
At Somfy, the quest for quality is a continual process. Somfy has built its reputation on the quality of its products and is synonymous with innovation and technological leadership worldwide.
Support
Getting to know you, listening, answering your needs, is all part of the Somfy approach.
Please contact your local Somfy retailer or installer for details on other Somfy products.
Internet: www.somfy.com
SAFETY INSTRUCTIONS
1. Standards
When installed in line with these instructions, the product will be compliant with standards EN 13241-1 and EN 12453.
The instructions referred to in the installation manual and instructions for use of this product are designed to ensure that damage to property and injury to persons is avoided along with compliance with the above standards. Failure to comply with these instructions absolves Somfy from any liability for any damage that may be caused.
FREEROLL RTS is a product that must be installed inside the garage with a built-in back-up control system (RDO CSI motor).
Somfy hereby declares that the device is compliant with the essential demands and other relevant requirements of directive 1999/5/CE.
A declaration of compliance is available from the web site at www.somfy.com/ce (FREEROLL RTS).
This product is usable in the European Union and in Switzerland.
Warning! These are important safety instructions. For safety reasons, it is important to always follow all instructions.
Retain these instructions for future reference.
2. Safety instructions
Every 6 months, test that the motor drive unit reverses its motion when it encounters an obstacle that is at least 50mm from ground level. If this is not the case, call your installation specialist.
Before manually operating the door or performing maintenance work, always turn the power off.
Never let children play with door control systems. Keep the remote controls out of reach of children.
When replacing the light bulb, select a 230 V 25 W E14 type.
Regularly check the operation of the door to identify any sign of wear, deterioration or incorrect balancing. Do not operate the door if repairs or adjustments are required.
Remain at a safe distance when operating the door.
PRODUCT PRESENTATION
Description
The FREEROLL RTS system is designed to power rolling garage doors in residential use. This drive system comprises:
A tubular motor (RDO CSI) with manual override head.
. A receiver and control unit (FREEROLL RTS) with integrated courtesy light, control buttons on the cover, Safety Edge Transmitter and magnets.
OPERATION AND USE
1. Normal operation

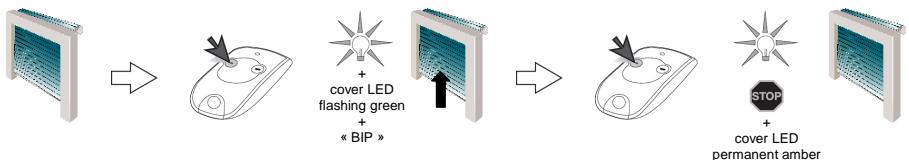

a. Using a Keytis or similar remote controls
b. Obstacle detection operation
The detection of excess weight during door opening will stop the door (anti-lift function)

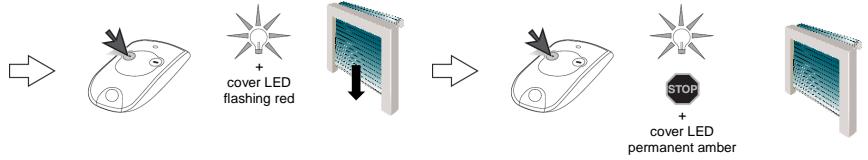

The detection of an obstacle during door closure will stop and partially re-open the door.
To go back to a normal operation mode, it is necessary to operate on the system. This operation won't be taken into account by the system.
c. Integral lighting operation
The light will come on every time the control unit is operated. It will go out automatically after 2 minutes once the door stops.
2. Special operation
Depending on the peripherals installed and the operating options set by your installer; the FREEROLL system may perform the following special operations:
a. Orange Warning Light
The Orange Warning Light will come on with a 2 sec warning every time the control unit is operated. It will go out automatically after 2 minutes once the door stops.
b. Safety photoelectric cell operation.
An obstacle detected between the cells will prevent the door from closing.
The door will stop and then partially reopen when an obstacle is detected during the close cycle.
The cover LED will blink RAPID RED until the obstacle is removed (then it will change to SOLID AMBER).
c. The Alarm buzzer function
If the roller is lifted manually above the BOTTOM Magnet, the alarm sounds for five minutes.
To reset the alarm press a button on a remote control. The rolling garage door will start moving in the up direction.
TROUBLESHOOTING
The cover control unit LED indicates the status of the control unit and rolling door.
The cover LED is a three-colour: RED, GREEN and AMBER lamp mounted on the front of the control unit. The status indications are detailed below:
| Door Positions | |
| Cover LED signal | Status |
| SOLID GREEN | Open end-limit activated. |
| SLOW FLASHING GREEN | Door opening. |
| SOLID RED | Close end-limit activated. |
| SLOW FLASHING RED | Door closing. |
| SOLID AMBER | Door stationary between open and close end-limits. |
| FLASHING AMBER | Safety Edge Obstacle Detection. |
| FLASHING RED | Safety Photo-electric cells Obstacle Detection. |
If other codes are displayed, contact your Somfy installer.
PERIPHERALS
A number of peripherals are available.
| Description | Comments | |
| Keytis 2NS RTS remote control | Hand held 2 channel remote control. | |
| Keytis 4NS RTS remote control | Hand held 4 channel remote control. | |
| RTS pushbutton | Wall mounted 2 channel remote control switch. | |
| RTS code keypad | Radio keypad for secure control. | |
| 230 V Integrated blinking Orange Warning Light | To signal a warning when the door operates. | |
| Reflex Photo-electric Cells | To prevent door closure if an obstacle is detected. | |
| Key-switch | Key-switch for secure control. | |
| Alarm buzzer | To trigger a 100 dB sonorous siren in case of intrusion into the garage. |

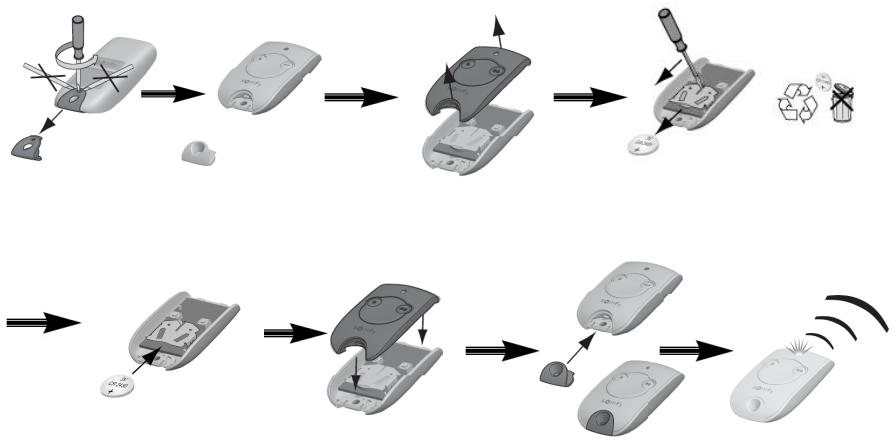

1. Change the batteries of the remote controls
Type:3VCR2430
2. Replacing the bulb in the light unit
Remove the light cover from the top of the unit by pressing in at the bottom on both sides (see arrows) and lifting it away from the unit. The front cover can now be lifted a few centimetres clear of the unit.
3. Checking the obstacle detection function
Every six months, check that the door reverses direction when an obstacle prevents the door from closing (at least 50mm above floor level).
4. Checking the safety mechanisms (Photo-electric cells)
Check correct operation every six months.
TECHNICAL SPECIFICATIONS
| FREEEROLL RTS control unit | |
| Power supply | 220-240 Vac / 50 Hz |
| Fuse | T6.3AH 250V |
| Motor power | 230 Vac 5A |
| Ambient operation temperature | -20 to +70 °C |
| Radio frequency SOMFY | RTS 433,42 MHz |
| Number of max. channels | 36 |
| Safety Edge Transmitter | |
| Power supply | 4 Lithium batteries - CR 2032 |
| Batteries life | 5 years (2 cycles/day at 25°C) |
| Misc. | |
| Integrated courtesy light | Yes - 25W max. |
