M3113-VE - Surveillance Camera AXIS - Free user manual and instructions

Product Type	Outdoor Network Surveillance Camera
Brand	Axis
Model	M3113-VE
Dimensions (L × H × D)	160 × 110 × 95 mm
Weight	580 g
Power Supply	PoE IEEE 802.3af (Power over Ethernet)
Power Consumption	4.5 W max
Sensor	CMOS 1/3" progressive scan
Maximum Resolution	1280 × 800 (1 MP)
Field of View	Horizontal: 90°, Vertical: 55°
Night Vision	Integrated IR LED, range 10 m
Connectivity	Ethernet 10/100 Base-T, Wi-Fi not supported
Supported Protocols	IPv4, IPv6, HTTP, HTTPS, ONVIF
Motion Detection	Yes, built-in with notification
Audio Input/Output	Built-in microphone, speaker via line output
Protection Rating	IP66 (dust and water resistant)
Operating Temperature	-40 °C to +55 °C
Storage	microSD card slot
Maintenance and Cleaning	Use a soft, dry cloth. Do not use solvents.
Security	HTTPS authentication, IP address filtering
Spare Parts and Repairability	Original parts available from the manufacturer
General Information	2-year warranty, made in Sweden

Frequently Asked Questions - M3113-VE AXIS

How to connect the Axis M3113-VE camera?

The camera is powered via PoE (Power over Ethernet). Connect an Ethernet cable between the camera and a PoE switch or injector. Network configuration is done via the automatically assigned IP address (DHCP).

How to access the camera's web interface?

Find the camera's IP address via parameter reset or the AXIS IP Utility tool. Open a browser and enter the IP address. The default login is 'root' with an empty password (change upon first connection).

How to reset the camera to factory settings?

Press and hold the Reset button located on the back of the camera for about 5 seconds. Network settings, users, and configurations will be cleared.

What is the range of night vision?

The camera has integrated IR LEDs with a range of about 10 meters. For optimal performance, avoid obstacles in front of the lens.

How to record video locally?

Insert a microSD card (up to 128 GB) into the dedicated slot. Configure continuous or motion-triggered recording in the web interface.

How to mount the camera outdoors?

Use the provided wall mount. Ensure the housing is oriented correctly to maintain the IP66 rating. Secure tightly and seal the connections.

Why is the image black at night?

Check that night mode is enabled. In the web interface, go to Settings > Image > Night Mode. Also ensure the IR LEDs are not obstructed.

How to create users with different permissions?

In the web interface, go to Settings > System > Users. Add a new user and choose the permission level (administrator, operator, viewer).

How to update the camera firmware?

Download the latest firmware from the AXIS website. In the web interface, go to Settings > System > Maintenance > Update and upload the file.

What to do in case of network connection loss?

Check the Ethernet cable, switch, and PoE power. Use the AXIS IP Utility tool to rediscover the camera. If necessary, perform a hardware reset.

USER MANUAL M3113-VE AXIS

AXIS M31-VE Network Camera Series

AXIS M3113-VE Network Camera

AXIS M3114-VE Network Camera

AXIS M3113-VE Nocap Network Camera

AXIS M3114-VE Nocap Network Camera

About this Document

This document includes instructions for installing the AXIS M31-VE Network Cameras on your network. Previous experience of networking will be beneficial when installing the product.

Legal Considerations

Video and audio surveillance can be prohibited by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes. This product includes one (1) H.264 decoder license. To purchase further licenses, contact your reseller.

Electromagnetic Compatibility (EMC)

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Re-orient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a different circuit to the receiver. Consult your dealer or an experienced radio/TV technician for help. Shielded (STP) network cables must be used with this unit to ensure compliance with EMC standards.

USA – This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference.

Canada - This Class B digital apparatus complies with Canadian ICES-003.

Europe - C€ This digital equipment fulfills the requirements for radiated emission according to limit B of EN55022, and the requirements for immunity according to EN55024 residential and commercial industry.

Japan - This is a class B product based on the standard of the Voluntary Control Council for Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual.

Australia – This electronic device meets the requirements of the Radio communications (Electromagnetic Compatibility) Standard AS/NZS CISPR22.

Korea - Class B: As an electromagnetic wave equipment for home use (Class B),

this equipment is intended to use mainly for home use and may be used in all areas.

Equipment Modifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no user-serviceable components. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Liability

Every care has been taken in the preparation of this document. Please inform your local Axis office of any inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and documentation without prior notice. Axis Communications AB makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Axis Communications AB shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material.

RoHS

This product complies with both the European RoHS directive, 2002/95/EC, and the Chinese RoHS regulations, ACPEIP.

WEEE Directive

The European Union has enacted a Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE Directive). This directive is applicable in the European Union member states.

The WEEE marking on this product (see right) or its documentation indicates that the product must not be disposed of together with household waste. To prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

Business users should contact the product supplier for information on how to dispose of this product correctly. This product should not be mixed with other commercial waste. For more information, visit www.axis.com/techsup/commercial waste

Support

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can:

• download user documentation and firmware updates
  • find answers to resolved problems in the FAQ database; search by product, category, or phrases
• report problems to Axis support by logging in to your private support area.

Safeguards

Please read through this Installation Guide carefully before installing the product. Keep the Installation Guide for further reference.

CAUTION!

• When transporting the Axis product, use the original packaging or equivalent to prevent damage to the product.
• Store the Axis product in a dry and ventilated environment.
• Only use handtools when installing the Axis product, the use of electrical tools or excessive force could cause damage to the product.
• Do not use chemicals, caustic agents, or aerosol cleaners. Use a damp cloth for cleaning.
• Only use accessories and spare parts provided or recommended by Axis.
• Do not attempt to repair the product by yourself, contact Axis or your Axis reseller for service matters.

IMPORTANT!

• This Axis product must be used in compliance with local laws and regulations.

AXIS M31-VE Series Installation Guide

This installation guide provides instructions for installing the following network cameras:

• AXIS M3113-VE
• AXIS M3114-VE
• AXIS M3113-VE Nocap
  • AXIS M3114-VE Nocap

For all other aspects of using the product, please see the user's manual, available in the CD included with this package, or available at www.axis.com/techsup

Installation steps

1. Check the package contents against the list below.
2. See Hardware overview. See page 6.
3. Install the hardware. See page 8.
4. Assign an IP address. See page 10.
5. Set the password. See page 13.
6. Adjust the focus. See page 14.
7. Complete the installation. See page 14.

Important!

This product must be used in compliance with local laws and regulations.

Package contents

Item Models/variants/notes
Network camera	AXIS M3113-VE, AXIS M3114-VEAXIS M3113-VE Nocap, AXIS M3114-VE Nocap
Tools Adaptor with (2) lids	Lens toolTop cover toolAllen key
CD AXIS Network Video Product	CD, including product documentation,installation tools and other software
Printed Materials AXIS M31-VE	Network Camera Series Installation Guide (this document)Drill templateExtra serial number labelsAxis Warranty Document

Hardware overview

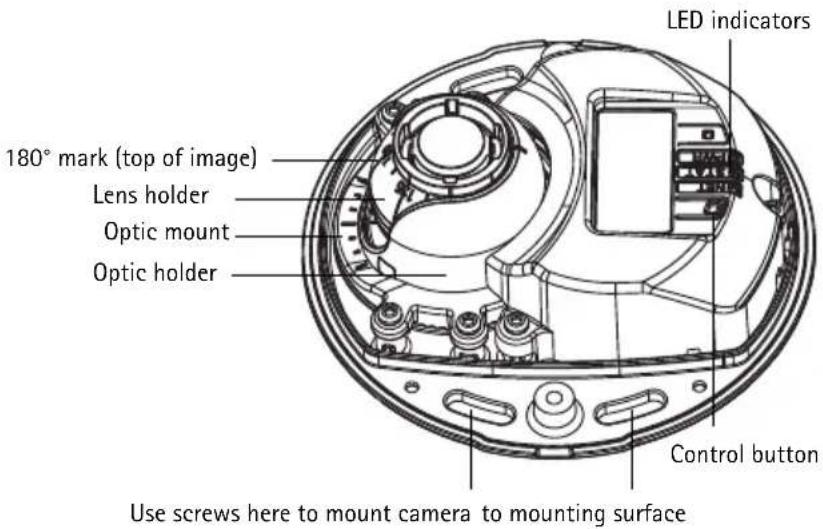

AXIS M31-VE

AXIS M31-VE Nocap

Line drawing of a mechanical device with a dome and handle (no text or symbols)

Top cover tool

Adaptor

Mechanical gear assembly diagram showing a central hub and surrounding components (no text or labels)

Hole for mounting camera on stand

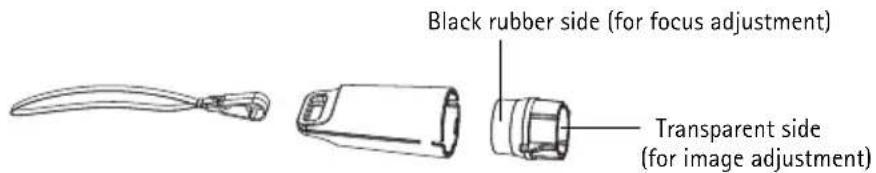

Lens tool

Cable lids

Lens tool for adjusting focus

Technical line drawing of a mechanical component with no visible text or symbols

Lens tool for adjusting image

Technical line drawing of a mechanical assembly with no visible text or symbols

LED indicators

LED Color	Indication
Net-work	Green Steady for connection to a 100 Mbit/s network. Flashes for network activity.
	Amber	Steady for connection to 10 Mbit/s network. Flashes for network activity.
	Unlit No network connection. Note: The Network LED can be configured to be unlit during normal operation. To configure, go to Setup > System Options > LED settings. See the online help files for more information.
Status Green Steady green for normal operation. Note: The Status LED can be configured to be unlit during normal operation, or to flash only when the camera is accessed. To configure, go to Setup > System Options > LED settings. See the online help files for more information.

Unit connectors

Network connector - Male RJ-45 Ethernet connector for 10BaseT/100BaseTX with 3-meter cable. Supports Power over Ethernet.

1 Install the hardware

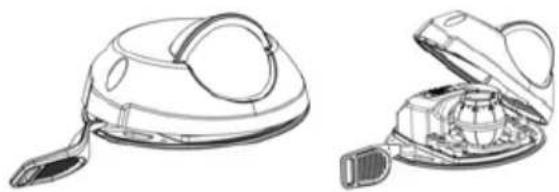

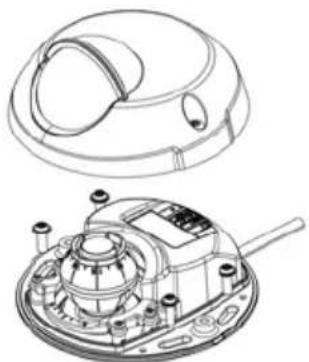

1. Remove the top cover from the camera unit by loosening the 2 screws. Then insert the top cover tool into the slit in the bottom cover and lift.

Line drawings of a vacuum cleaner with open lid and internal components (no text or symbols)

1. Depending on the kind of installation required, follow the appropriate instructions below.

Mount the camera without adaptor

1. Adjust the drill template on the mounting surface so the camera's lens faces the right direction, and drill four holes for the screws, and one hole for the cable.
2. Align the screw slots in the camera with the screw holes in the mounting surface, and attach the camera with 4 screws.

Note:

It is recommended that each screw head with the washer does not exceed 5mm in height and 7mm in diameter.

Do not use a countersunk screw head.

Technical line drawing of a mechanical device with top and side views (no text or symbols)

1. Attach the network cable to the PoE switch.

Mount camera with adaptor (cabling along the wall)

1. Place the adaptor on the mounting surface (wall or ceiling) and position the slot for the cable where appropriate.

2. Fasten the adaptor with four screws appropriate to the surface material.

3. Draw the camera's Ethernet cable along the cable slot in the adaptor.

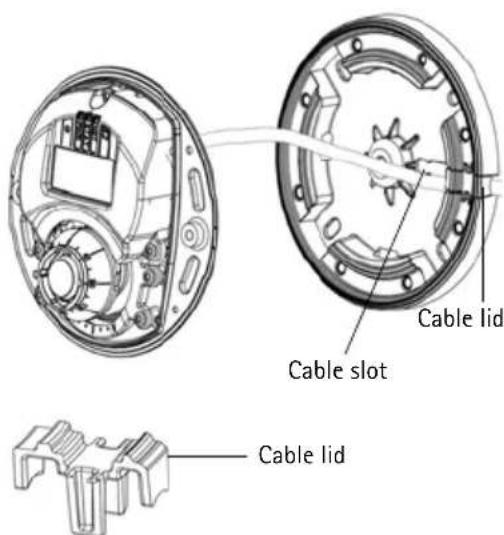

4. Press the cable lid appropriate for side cabling, into the slot in the side of the adaptor.

5. Place the camera on the adaptor, and turn the camera so the lens faces the correct direction.

6. Adjust so the screw slots on the camera are aligned with the screw holes in the adaptor, and attach the 4 screws (torque < 2.5 Nm).

7. Attach the network cable to the PoE switch.

Mount camera with adaptor (for cabling through the wall, and mounting on stand)

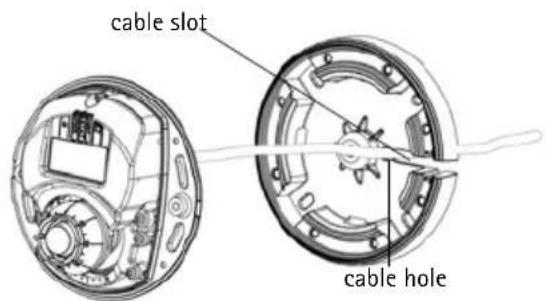

1. Slide the camera's Ethernet cable through the cable slot. Adjust the cable so it snaps into the hole.

2. Press the appropriate cable lid into the slot in the side of the adaptor.

3. Fasten the adaptor with four screws appropriate to the surface material.

4. Follow steps 5-7 above.

② Adjust the direction of the lens

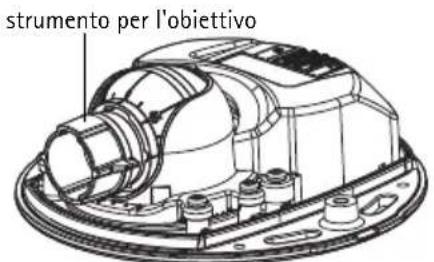

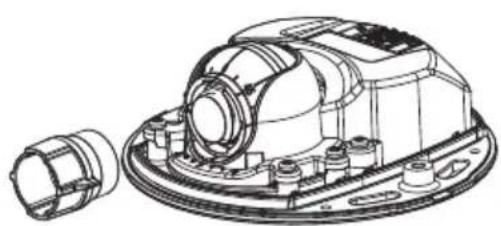

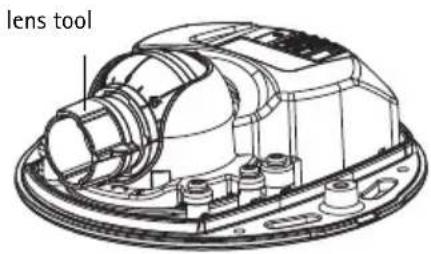

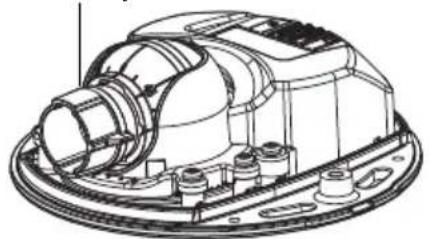

Fit the lens tool to the lens holder, and adjust the position of the lens by pointing the lens tool handle in the preferred direction (See illustration on page 6). This can be done vertically from 0 to 90 degrees (ensure weather shield is not blocking the view), and 30 degrees to the left or the right on either side in increments of five.

The lens holder can also be rotated to adjust the image.

Align the ribs in the lens tool horizontally so that the image is also aligned horizontally.

Note:

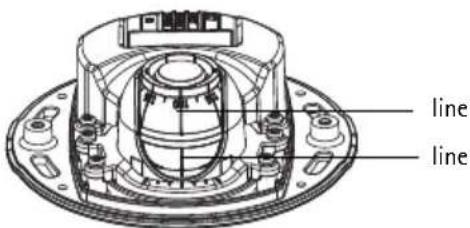

The '0' mark on the lens holder indicates the bottom of the image and the '180' mark indicates the top, See Hardware overview, on page 6. If the camera is mounted upside down, adjust so the '0' mark is on top and the '180' mark below the lens.

The line inside of the bottom of the optic holder should be aligned with the line at the center of the optic mount.

3 Assign an IP address

The AXIS M31-VE Network Camera Series is designed for use on an Ethernet network and requires an IP address for access. Most networks today have a DHCP server that automatically assigns IP addresses to connected devices. If your network does not have a DHCP server, the AXIS M31-VE Network Camera Series will use 192.168.0.90 as the default IP address.

AXIS IP Utility and AXIS Camera Management are the recommended methods for setting an IP address in Windows. These free applications are available on the Axis Network Video Product CD supplied with this product, or they can be downloaded from www.axis.com/techsup Depending on the number of cameras you wish to install, use the method that suits you best.

Method Recommended for Operating system
	AXIS IP UtilitySee page 11	Single cameraSmall installations	Windows
	AXIS CameraManagementSee page 12	Multiple camerasLarge installationsInstallation on a different subnet	Windows 2000Windows XP ProWindows 2003 ServerWindows Vista

Notes:

• If you are unable to set the IP address, check for any firewall blocking the operation.
• For other methods of assigning or discovering the IP address, such as in other operating systems, see page 15.

AXIS IP Utility - single camera/small installation

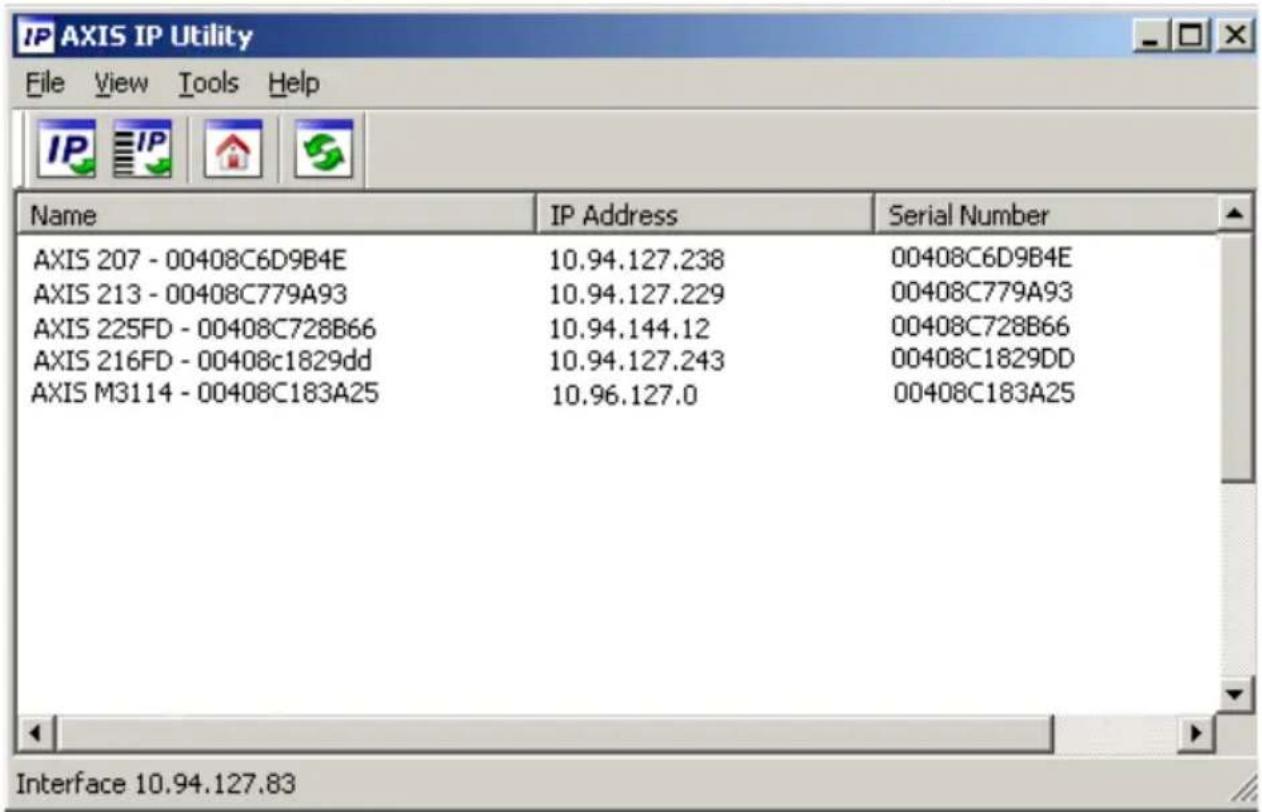

AXIS IP Utility automatically discovers and displays Axis devices on your network. You can also manually set a static IP address through this application. AXIS IP Utility is available on the Axis Network Video Product CD, or it can be downloaded from www.axis.com/techsup

Note that you must install the network camera on the same network segment (physical subnet) as the computer running AXIS IP Utility.

Automatic discovery

1. Check that the network camera is connected to the network and that power has been applied.
2. Start AXIS IP Utility.
3. When the camera appears in the window, double-click it to open its home page.
4. See page 13 for instructions on how to assign the password.

Assign the IP address manually (optional)

1. Acquire an unused IP address on the same network segment as your computer.
2. Select AXIS M3113/AXIS M3114 in the list.

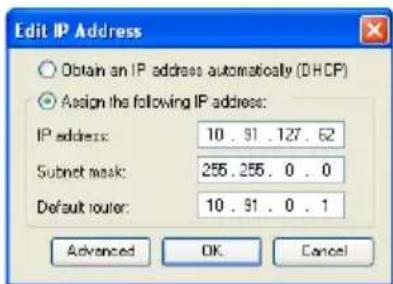

3. Click the button IP Assign new IP address to selected device and enter the IP address.
4. Click the Assign button and follow the instructions.
5. Click the Home Page button to access the camera's web pages.
6. See page 13 for instructions on how to set the password.

AXIS Camera Management - multiple cameras/large installations

AXIS Camera Management can automatically discover multiple Axis devices, show connection status, manage firmware upgrades, and set IP addresses.

Automatic discovery

1. Check that the camera is connected to the network and that power has been applied.

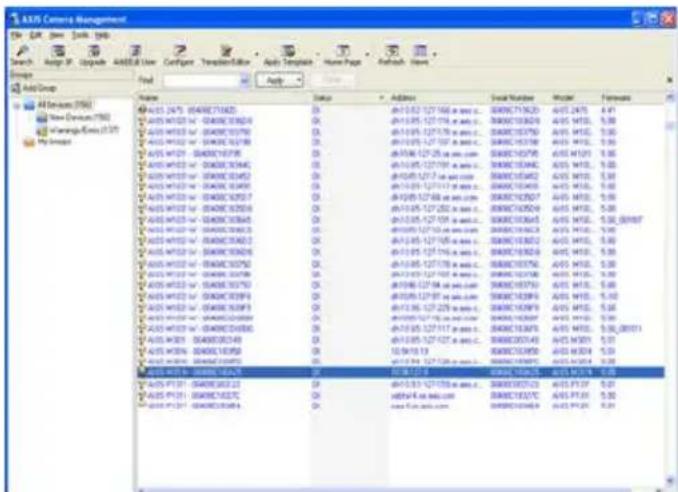

2. Start AXIS Camera Management. When the camera appears in the window, right-click the link and select Live View Home Page.
3. See page 13 for instructions on how to set the password.

Assign an IP address in a single device

1. Select one of the AXIS M31-VE Network Camera Series in AXIS Camera Management and click the Assign IP button

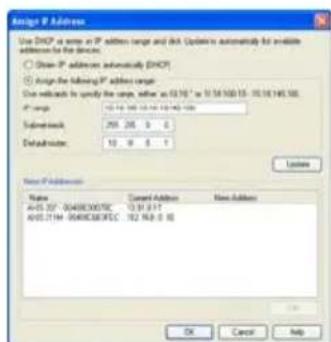

2. Select Assign the following IP address and enter the IP address, the subnet mask, and default router the device will use.
3. Click OK.

Assign IP addresses in multiple devices

AXIS Camera Management speeds up the process of assigning IP addresses to multiple devices, by suggesting IP addresses from a specified range.

1. Select the devices you wish to configure (different models can be selected) and click the Assign IP button
2. Select Assign the following IP address range and enter the range of IP addresses, the subnet mask, and default router the devices will use.
3. Click the OK button.

Set the password

To gain access to the product, the password for the default administrator user root must be set. This is done in the Configure Root Password dialog, which is displayed when the network camera is accessed for the first time.

To prevent network eavesdropping when setting the root password, this can be done via an encrypted HTTPS connection, which requires an HTTPS certificate.

To set the password via a standard HTTP connection, enter it in the Configure Root Password window.

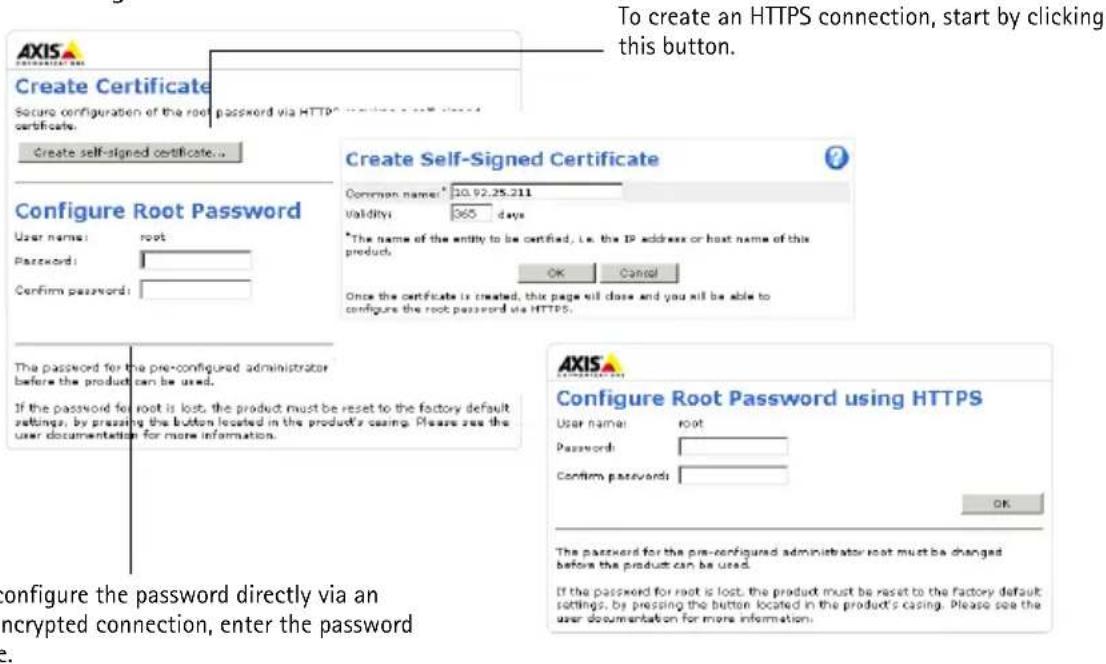

To set the password via an encrypted HTTPS connection, follow these steps:

1. Click the Create self-signed certificate button.
2. Provide the requested information and click OK. The certificate is created and the password can now be set securely. All traffic to and from the network camera is encrypted from this point on.
3. Enter a password and then re-enter it to confirm the spelling. Click OK. The password has now been configured.

1. To log in, enter the user name "root" in the dialog as requested.

Note: The default administrator user name root cannot be deleted.

1. Enter the password as set above, and click OK. If the password is lost, the network camera must be reset to the factory default settings. See page 17.

If required, click Yes to install AMC (AXIS Media Control), which allows viewing of the video stream in Internet Explorer. You will need administrator rights on the computer to do this.

The Live View page of the network camera appears. The Setup link to the right gives you menu options for customizing the camera.

Adjust the focus

Technical line drawing of a mechanical device with housing and mounting components (no text or symbols)

Fit black rubber side to adjust focus

Pull the lens tool from the lens tool holder, turn it around and fit the black rubber side to the lens. Adjust the focus. Check the image in the Live View page, and move the lens to the desired position using the transparent side of the lens tool. See illustration under Hardware overview, on page 6.

After replacing the top cover, the image may appear slightly out of focus due to the optical effect of the dome (especially in the case of tele/zoom lenses). To compensate, focus on an object slightly closer than the intended area. If possible, position the top cover in front of the lens while adjusting focus.

Complete the installation

To complete the installation, replace the top cover with care and tighten the captive screws. Ensure that the rubber gasket in the top cover and the ridge it fits into in the bottom plate are dust-free.

Check the live view at this point to see if the weather shield on the top cover interferes with the image. If it does, adjust the lens again as described above.

Changing the lens

To change the lens of the network camera:

1. Fit the black rubber side of the lens tool to the lens holder and unscrew the lens.
2. Remove the lens from the lens tool and fix the new lens to it.
3. Fit the new lens to the camera and tighten the lens into place.
4. Adjust the focus as described above.

Other methods of setting the IP address

All the methods listed the table below are enabled by default, and can be disabled.

	Use in operating system	Notes
UPnP ^TM	Windows When enabled on your computer, the camera is automatically detected and added to "My Network Places."
Bonjour	MAC OSX (10.4 or later)	Applicable to browsers with support for Bonjour. Navigate to the Bonjour bookmark in your browser (e.g. Safari) and click on the link to access the camera's web pages.
AXIS Dynamic DNS Service	All A free service from Axis that allows you to quickly and simply install your camera. Requires an Internet connection with no HTTP proxy. See www.axiscam.net for more information.
ARP/Ping	All See below. The command must be issued within 2 minutes of connecting power to the camera.
View DHCP server admin pages	All To view the admin pages for the network DHCP server, see the server's own documentation.

AXIS Video Hosting System (AVHS)

The camera can also be connected to an AVHS service for hosted video. If you have subscribed to an AVHS service, follow the instructions in the Service Provider's Installation Guide. For more information and help to find a local AVHS Service Provider, go to www.axis.com/hosting

The camera owner authentication key is supplied with this product. The key is associated with the camera's unique serial number (S/N) as shown on the top of the label.

Note:

Save the key for future reference.

Set the IP address with ARP/Ping

1. Acquire an IP address on the same network segment your computer is connected to.
2. Locate the serial number (S/N) on the camera's label.
3. Open a command prompt on your computer and enter the following commands:

Windows syntax Windows example
arp -s <IP Address> <Serial Number> ping -l 408 -t <IP Address>	arp -s 192.168.0.125 00-40-8c-18-10-00 ping -l 408 -t 192.168.0.125
UNIX/Linux/Mac syntax UNIX/Linux/Mac example
arp -s <IP Address> <Serial Number> temp ping -s 408 <IP Address>	arp -s 192.168.0.125 00:40:8c:18:10:00 temp ping -s 408 192.168.0.125

1. Check that the network cable is connected to the camera and then start/restart the camera, by disconnecting and reconnecting power.
2. Close the command prompt when you see 'Reply from 192.168.0.125: ...' or similar.
3. In your browser type http:// in the Location/Address field and press Enter.

Notes:

• To open a command prompt in Windows: from the Start menu, select Run... and type cmd. Click OK.
• To use the ARP command on a Mac OS X, use the Terminal utility in Application > Utilities.

Resetting to the Factory Default Settings

This will reset all parameters, including the IP address, to the factory default settings:

1. Disconnect power from the camera.
2. Remove the top cover by loosening the 2 captive screws.
3. Press and hold the Control button and reconnect power (see Hardware overview, on page 6).
4. Keep the Control button pressed for about 15 seconds until the Status indicator flashes amber.
5. Release the Control button. The process is complete after about 1 minute (when the Status indicator turns green). The network camera has been reset to the factory default settings. The default IP address is 192.168.0.90
6. Re-assign the IP address.
7. Refocus the camera.

It is also possible to reset parameters to factory default via the web interface. Go to Setup > System Options > Maintenance.

Further information

The user's manual is available from the Axis Web site at www.axis.com or from the Axis Network Video Product CD supplied with this product.

Tip!

Visit www.axis.com/techsup to check if there is updated firmware available for your network camera. To see the currently installed firmware version, click the Basic Configuration menu item in the product's web page.

Mesures de sécurité

Line drawing of a mechanical component with a circular top and handle (no text or symbols)

Mechanical gear assembly diagram showing a central hub and surrounding components (no text or labels)

Technical line drawing of a mechanical assembly (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Voyants lumineux

Line drawings of a vacuum cleaner with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical device with top and side views (no text or symbols)

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with housing and mounting components (no text or symbols)

Outil de l'objectif

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical component with a circular top and handle (no text or symbols)

Mechanical gear assembly diagram showing a central hub and surrounding components (no text or labels)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

LED-Anzeigen

Line drawings of a vacuum cleaner device with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Hinweis:

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Line drawing of a mechanical component with a dome and handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Indicatori LED

Line drawings of a vacuum cleaner with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical device with top and side views (no text or symbols)

Nota:

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a mechanical component with a circular top and handle (no text or symbols)

Technical line drawing of a mechanical gear assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Indicadores LED

Line drawings of a vacuum cleaner with open lid and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Nota:

Technical line drawing of a mechanical component with symmetrical cutouts and mounting brackets (no text or symbols)

AXIS M31-VE Network Camera Series Printed: May 2011

© Axis Communications AB, 2011 Part No. 42270
