Product Type	Multimedia car stereo with touch screen
Dimensions (W x H x D)	178 x 50 x 160 mm (standard DIN)
Weight	Approx. 0.8 kg
Power Supply	12 V DC (vehicle battery)
Screen Size	6.2 inches
Connectivity	Bluetooth, USB, AUX input, video input
Playable Formats	DVD, CD, MP3, WMA, JPEG, DivX
Radio	FM/AM with RDS
Output Power	4 x 50 W max
Main Functions	Bluetooth hands-free, DVD/USB playback, equalizer, rear camera input
Maintenance and Cleaning	Wipe with a soft dry cloth; do not use solvents
Safety	Protection fuse, anti-theft removable faceplate
Spare Parts and Repairability	Faceplate, remote control, wiring harness available
General Information	Brand Jensen, model VM8113R, year 2015, made in China

Frequently Asked Questions - VM8113R JENSEN

How to install the Jensen VM8113R car stereo?

Connect the provided wiring harness to the car stereo, connect it to the vehicle's harness (adapter if needed), slide the device into the DIN slot and secure with screws. See the manual for details.

How to pair a smartphone via Bluetooth?

Enable Bluetooth on the car stereo, search for devices from your phone, select VM8113R and confirm the PIN code (0000 by default).

What to do if the touch screen stops responding?

Try resetting the device by pressing the reset button (small hole on the front) with a paperclip. If the problem persists, disconnect the vehicle battery for 10 seconds.

How to adjust the equalizer?

Access the audio menu, select Equalizer, then choose a preset (Rock, Pop, Jazz) or adjust frequencies manually (Bass, Midrange, Treble).

What USB file formats are supported?

The car stereo plays MP3, WMA, WAV, FLAC, JPEG and DivX files. The USB drive must be formatted in FAT32.

How to activate the rear view camera?

Connect the camera to the rear video input (RCA). The image appears automatically when you shift into reverse gear.

The radio no longer picks up stations, what to do?

Check that the antenna is properly connected and the cable is not damaged. Perform an automatic station search.

How to protect the car stereo from theft?

Use the removable faceplate: remove it each time you park. You can also install an optional security enclosure.

Can I control the car stereo from my steering wheel?

Yes, if your vehicle is equipped with steering wheel controls, you can connect an adapter (not included) to the input provided at the back of the device.

What to do if the sound is distorted?

Check the volume level and equalizer settings. Ensure the speakers are not short-circuited. Reduce the gain if necessary.

USER MANUAL VM8113R JENSEN

Installation and Operation Manual

Front Panel Release 2

Remote Control 3

Operation 5

Radio Operation 8

DISC/MP3/WMA Playback . 10

iPod Operation 14

Setup Menu 15

Care and Maintenance .....16

Troubleshooting 17

Specifications 18

CONTENIDO

Congratulations on your purchase of the Jensen VM8113R Mobile Multimedia Receiver. It's a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen VM8113R installed by a reputable installation shop.

Features

DVD

• Aspect Ratio - Full and Normal
• Fast Forward - 2X, 4X, 8X and 16X
• Slow Motion - 1/2, 1/4, 1/6 and 1/8
• Play, Pause, Stop, Next Chapter and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible
  • ID3 Tag Compatible
• Directory Search (MP3 / WMA Only)
• Direct Track Access via Remote Control
• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW
  • Audible Forward / Reverse Track Search (CD-DA Only)
  • Random, Repeat and Intro
• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA / Europe Frequency Spacing
• 30 Station Presets (18 FM / 12 AM)
• Auto Stereo / Mono
- Local / Distance
• Auto Store / Preview Scan

iPod

• iPod via USB
• High Speed Direct Connect Interface to Access iPod Playlists, Artists, Albums and Songs. Play music and view video/photo* files from your iPod. *Video/photo playback requires jLink-USB iPod interface cable (sold separately).
  • Power Management Charges iPod while Connected

Chassis

• 1.0 DIN (Import / ISO-DIN Mountable)
• 3.5" TFT Active Matrix LCD
• 74,800 Sub Pixels (320W X 234H)
- Beep Tone Confirmation (On/Off Option)

General

• USB Interface - Supports Most Flash Memory Devices
  • SD Card Interface - Supports up to 8GB Cards.
  • 40-Key Infrared Remote Control
  • One Composite Video Output for Additional Screens
• Front Panel Audio/Video Input
• Two-Band Tone control (Bass and Treble) w/ Four Preset EQ Curves
• Front, Rear and Subwoofer Line Output
• Programmable Volume Control
  • Rear Camera Input (Normal and Mirror Image View)
  • 2VRMS Line Output - All Channels
  • Rotary Encoder Audio Control
• SWC Interface – Compatible with PAC adapter SWI-PS Steering Wheel Control Interface, sold separately

What's in the Box

• VM8113R Head Unit
• Mounting Sleeve
• Wiring Harness
  • Installation Hardware (rubber cushion, mounting bolt, screws)
• Removal Keys
  • Face Plate and Storage Case
• Parking Brake Extension Wire
  • 3.5mm to 3.5mm A/V Adapter Cable
• Remote Control with Battery
  • Installation Guide

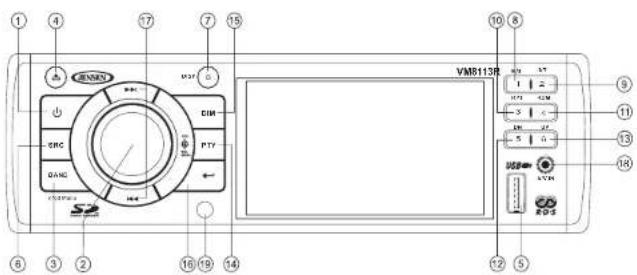

FRONT PANEL RELEASE

The front panel release button (4) releases the mechanism that holds the front panel to the chassis.

Detaching the Front Panel

To detach the front panel, perform the following steps:

1. Press the power button (1) to turn the unit off.
2. Press the front panel release button to flip the panel down.
3. Grasp the right side to release the front panel and then pull it at an angle to remove the right side from the chassis.
4. Store the front panel in the supplied carrying case to protect it from dirt and damage and take it with you to prevent theft.

Re-attaching the Front Panel

Before re-attaching the front panel, make sure the electrical terminals on the back of the panel are free of dust and dirt, as debris could cause intermittent operation or other malfunctions.

To re-attach the front panel:

1. With the panel laying flat (in the "open" position), insert the left side of the panel in place until correctly engaged.
2. Gently press the right side of the panel until the mechanism locks it into place.
3. Lift upward to close the panel.

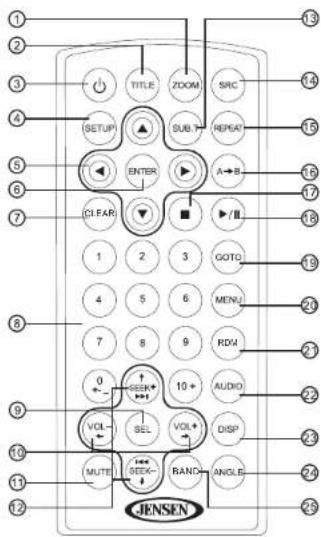

REMOTE CONTROL

The remote control will allow you to control many functions of the VM8113R.

Operating Range

The remote control sensor (19) is located near the bottom of the front panel, left of the LCD screen. The remote control can operate within a distance of 3\~5m.

Replacing the Battery

When the range of operation of the remote control becomes short or stops functioning, replace the battery with a new lithium battery.

Be sure to observe the proper polarity, as indicated below.

REMOTE SENSOR

Table 1: Remote Control Functions

# Button Tuner CD/SD/USB iPod DVD
1 ZOOM	Magnify Image
2 TITLE	Select Video Mode View DVD Title	Screen
3 Power	Power On	Press and hold to Power Off	Power OnPress and hold to Power Off	Power OnPress and hold to Power Off	Power OnPress and hold to Power Off
4	SETUP	Display Setup Menu	Display Setup Menu	Display Setup Menu	Display Setup Menu
5	Navigation Arrows	Down/Up: Preset Navigation	Down/Up: Screen NavigationLeft/Right: Folder Navigation	Down/Up: Screen Navigation	Left/Right: Fast Reverse/Fast ForwardUp/Down: Slow Reverse/Slow Forward
6	ENTER	Confirm Entry	Confirm Entry	Confirm Entry	Confirm Entry
7 CLEAR
8 Direct	Entry		Direct	Track Entry
9 SEL	Audio	Mode: Select BAS, TRE,BAL, FAD.Press and hold for System Menu	Audio Mode: Select BAS, TRE,BAL, FAD.Press and hold for System Menu	Audio Mode: Select BAS, TRE,BAL, FAD.Press and hold for System Menu	Audio Mode: Select BAS, TRE,BAL, FAD.Press and hold for System Menu
10	VOL (Volume Control)	Volume up/down	Volume up/down	Volume up/down	Volume up/down
11	MUTE	Silence Audio Output	Silence Audio Output	Silence Audio Output	Silence Audio Output
12	SEEK	Search Next/Previous ChannelPress and hold to Scan Channelsup/down	Next/Previous TrackPress and hold to Fast Forward/Reverse	Next/Previous TrackPress and hold to Fast Forward/Reverse	Next/Previous TrackPress and hold to Fast Forward/Reverse
13	SUB.T				View/Change Subtitle Language
14	SRC (Source)	Select Playing Mode	Select Playing Mode	Select Playing Mode	Select Playing Mode
15	REPEAT		Repeat Current Track	Repeat Current Track	Repeat Current Chapter
16	A-B Repeat		Repeat Section		Repeat Section
17	Stop/Return		Stop/Return	Stop/Return	Stop/Return
18	Play/Pause		Play/Pause	Play/Pause	Play/Pause
19	GOTO Search		GOTO Specific Area of Disc		GOTO Specific Area of Disc
20	MENU			Return to Previous Menu	View DVD Setup MenuPBC for VCD 2.0 and up
21	RDM		Play all Tracks in Random Order	Play all Tracks in Random Order	Play all Chapters in Random Order
22	AUDIO			Select Audio Mode	View/Change disc Audio Language
23	DISP	Press and hold to set clock	Press and hold to set clock	Press and hold to set clock	Press and hold to set clock
24	ANGLE				Show alternate angles, if available
25	BAND	Select Band (AM1, AM2, FM1,FM2, FM3)			Select PAL, NTSC, AUTO

OPERATION

Power

Press the ⬆ (power) button (1) to turn the unit on. Press and hold the power button again to turn the unit off.

NOTE: LCD panels may take longer to respond when subjected to cold temperatures for an extended period of time. In addition, the visibility of the numbers on the LCD may decrease slightly. The LCD display will return to normal when the temperature increases to a normal range.

Source

Press the SRC button (6) repeatedly to scan the various sources. A source is only displayed when accessible (optional equipment required for some sources). Available modes include Radio (FM1, FM2, FM3, AM1, AM2), DISC, SD, USB, and auxiliary (AUX IN).

External Devices

External peripheral devices, including a game console, camcorder, navigation unit, iPod, Zune, etc. can be connected to the AUX IN connector (18) on the front of this unit using the 3.5mm A/V Media Cable (included). Select "SOURCE >> AUX IN" to access auxiliary devices. You cannot directly control external devices connected to the AUX IN input.

Audio Mute

Press the ♦(power) button (1) to silence the audio volume. “ Appears on the display. Press ♦again to restore volume to the previous setting.

Volume Control

To increase the volume, turn the VOL/SEL/MENU (rotary encoder) (2) clockwise. To decrease the volume, turn the rotary encoder counterclockwise. When volume is adjusted, the volume level is shown on the display panel as a number ranging from "0" (lowest) to "40" (highest).

Steering Wheel Control (SWC)

The VM8113R is compatible with the PAC (Pacific Accessory Corporation) steering wheel control adapter SWI-PS. A 3.5mm female connector (labeled "SWC Interface") on the back of the head unit allows connectivity to the PAC adapter. Please refer to the instructions included with the PAC adapter for detailed installation information.

SWC Functions

The following controls are available for most vehicles:

1. Vol Down

2. Vol Up

3. Mute

4. Seek Down / Previous Track / ** Preset Down

5. Seek Up / Next Track / ** Preset Up

6. SRC (Source)

7. ** Select

8. ** Select

9. Band

** If additional steering wheel control buttons are available on the vehicle, function 7 / 8 may be assigned the "Select" feature. This feature / function may not be available on some vehicles.

Select Operation

If "Select" (function 7 or 8) is held down and function 4 is pressed momentarily, Preset Up is selected. If "Select" (function 7 or 8) is held down and function 5 is pressed momentarily, Preset Down is selected.

Audio Menu

Press the VOL/SEL/MENU button (2) to access the audio menu. Press the VOL/SEL/MENU button repeatedly to move through the list of menu options.

NOTE: Audio settings only apply to the current source (Source Tone Memory). You must make audio adjustments for another source when that source is active.

JENSEN

VM8113R

• Sub_w: When the Low Pass Filter is activated (see "Menu Operation" on page 6), you can use the VOL/SEL/MENU rotary encoder to adjust the subwoofer volume from "-14" to "0".
• BASS: Turn the VOL/SEL/MENU rotary encoder (2) to adjust the bass level from “+7” to “-7”.
• TREBLE: Turn the VOL/SEL/MENU rotary encoder to adjust the treble level from “+7” to “-7”.
• BALANCE: Turn the VOL/SEL/MENU rotary encoder to adjust the balance from "R7" (full right) to "L7" (full left).
• FADER: Turn the VOL/SEL/MENU rotary encoder to adjust the fader from "F7" (full front) to "R7" (full rear).

The unit automatically saves your changes and exits the audio control menu after five seconds of inactivity.

Menu Operation

Press and hold the VOL/SEL/MENU button (2) for more than two seconds to access the menu. Press the VOL/SEL/MENU button to move through the following menu options: Equalizer, Loud Set, Beep Set, 12/24 Mode (clock), Mirror Image, Vol Mode, A-VOL, Sub LPF and Area Set. The following procedures assume you have already accessed the menu.

Equalizer

The Equalizer function applies preset sound effects to the unit's audio output signal. Turn the rotary encoder to select from the following equalizer options: "Off", "Rock", "Hip Hop", "Dance" and "Acoustic". With the equalizer function activated, if bass or treble is adjusted, the EQ Mode will revert to "Off".

When the equalizer function is activated, the most recently selected bass/treble levels cannot be adjusted. When the equalizer function is not active, the unit will return to the most recently selected bass and treble levels.

Loud Set

When listening to music at low volumes, this feature will selectively boost certain bass and treble frequencies. "Off" is the default setting. Turn the rotary encoder to select "On".

Beep Set

The beep tone feature allows the selection of an audible beep tone to be heard each time the menu is accessed. "On" is the default setting. Turn the rotary encoder to select "Off".

12/24 Mode

This option allows selection of a 12 hour or 24 hour clock format. "12 Hours" is the default setting. Turn the rotary encoder to change to the 24 hour clock format.

Mirror Image

This option allows for selection of a mirror image view when a rear view backup camera (sold separately) is connected to the CAMERA IN input on the back of the radio. Turn the rotary encoder to select "On" or "Off".

Vol Mode

Turn the rotary encoder to select "Last" or "Adjust".

• Last: When the unit is turned on, the volume will resume at the level selected when last turned off.
• Adjust: If choosing "Adjust", use the A-VOL setting to specify a turn-on volume.

Turn-On Volume (A-VOL)

After selecting "Adjust" for Vol Mode, press the VOL/SEL/MENU button to access the A-VOL setting and then turn the rotary encoder to select the desired turn-on volume level. When this option is selected, the unit will revert to the adjusted volume each time the unit is turned on.

Sub LPF (Low Pass Frequency)

After connecting a subwoofer to the back of the unit, turn the rotary encoder to select a crossover frequency: OFF, 80, 120 or 160Hz.

Area Set

This option allows you to select the appropriate frequency spacing for your area. "U.S.A." is the default setting. Turn the rotary encoder to select "EUROPE". The unit will turn off and reset when the Area is changed.

Dimmer

Press the DIM button (15) on the front panel to dim the screen by 1/2. Press again to darken the screen completely. Press a third time to resume full brightness.

Clock Set

1. Press and hold the DISP button (7) until the clock blinks.
2. Turn the VOL/SEL/MENU rotary encoder (2) to set the minutes.
3. Press the VOL/SEL/MENU button (2) to confirm and move to the hour field.
4. Tum the VOL/SEL/MENU rotary encoder to set the hour.
5. Press the DISP button to set the clock and exit the clock set function.

Reset Button

The RESET button is located behind the front panel and can only be accessed with the front panel opened. Resetting the unit will erase the time and preset memories. It should only be activated upon initial installation after all wiring is complete, or if there is a malfunction of any of the switches on the unit. In these circumstances, pressing the RESET button (22) will clear the system and return the unit to default operation.

RADIO OPERATION

Accessing Radio Mode

Press the SRC button (6) on the front panel or remote control (14) to switch to the RADIO source.

1. Stereo Reception Indicator
2. Radio Station Frequency
3. AM/FM Band
4. Time/Clock
5. RDS Information
6. Current Preset Channels
7. Source Indicator
8. PTY Indicator

Select a Band

Press the BAND button (3) to change between three FM and two AM bands. Each band stores up to six preset stations.

Tuning

Seek Tuning

Press the TUNE/TRACK >>| or |<< buttons (17) to seek the next/previous station automatically.

Manual Tuning

Press and hold the TUNE/TRACK >>| or |<< buttons (17) to enter Manual tuning mode. Press the buttons again to move the radio frequency number up or down one step.

Program Information

To view available program information, press the PTY button (14) on the control panel. Press repeatedly to choose between Program Type (PTY) category, Program Service station call letters (PS), and Radio Text (RT).

PTY Search

To view the Program Type categories, press and hold the PTY button (14) on the control panel. Program type categories are listed at the bottom of the screen, allowing listeners to find similar programming by genre. Press the TUNE/TRACK >>| or |<< buttons (17) to select a category. After a few seconds, the radio will start scanning for stations broadcasting in the selected category.

Preset Stations

Up to six stations on each band can be stored as presets, which can then be instantly recalled by pressing the associated preset button (8-13). To store a station, turn the radio on and select the desired band and station. Press and hold the desired preset button (numbered one through six on the face of the radio or remote control) for more than two seconds. When stored, the preset number will appear in the display. The station is now stored and can be recalled by pressing the corresponding preset button. Repeat for the remaining five presets on the current band and for presets on the other four bands.

Preview Scan

Press the button (16) to scan and play all strong stations for 5 seconds each. Press again to stop scanning and play the current station.

VM8113R

Automatic Store (AS)

Press and hold the ◀ button (16) to select six strong stations and store them in the current band using the Auto Store feature. After entering the stations into memory, the unit will automatically stop at each station for five seconds, allowing you to preview each selection. When using the Auto Store feature, the new stations replace any stations already stored in preset memory.

NOTE: You can stop the Auto Store function at any time by pressing the ◀button again.

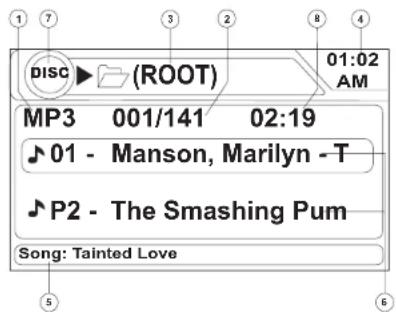

DISC/MP3/WMA PLAYBACK

Acceptable Media

The MP3/WMA recording media acceptable to this unit are CD-R, CD-RW, and DVD. The unit will also play MP3, WMA, JPEG photo and video files (MPEG 1, 2, XVid, SVCD and VCD) written to SD Cards and USB Devices.

Depending on the media type and recording method, some CD-R/RWs may be incompatible with this unit. When using CD-RW, use full format rather than quick format to prevent malfunction.

This unit supports playback of MP3/WMA and CDDA (CDA), Mixed-Mode CDs and CD-Extra (including multi-session discs). Discs on which the session has not been closed will not play.

Acceptable Medium Formats

The following formats are available for the media used in this unit. The maximum number of characters used for file name, including the delimiter (".") and three-character extension, are indicated in parentheses.

• ISO 9660 Level 1 (11 characters)
• ISO 9660 Level 2 (31 characters)
• Joliet (31 characters)
• Romeo (31 characters)

Up to 200 characters can be displayed in the long file name format. For a list of available characters, see the instruction manual of the writing software and the section "Entering File and Folder Names" that follows. The media reproducible on this unit has the following limitations:

• Maximum number of nested folders: 8
• Maximum number of files per disc: 1500
• Maximum number of folders per disc: 255

MP3/WMA files written in formats other than those listed above will not play successfully and their file or folder names will not display properly.

MP3/WMA Encoder and CD Writer Settings

Use the following settings when compressing audio data with the MP3 encoder.

• Transfer bit rate: 8 - 320 kbps
- Sampling frequency: 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48 kHz
When using a CD writer to record MP3/WMA up to the maximum disc capacity, disable additional writing. To record an empty disc up to the maximum capacity at once, select the "disc at once" option.

Entering ID3 Tag

This unit supports ID3 tag version 2.0. For character codes, refer to the table to the right.

Entering File and Folder Names

Names using the code list characters are the only file names and folder names that can be entered and displayed. Using any other character will cause the file and folder names to be displayed incorrectly. The unit

recognizes and plays only files with the MP3/WMA extension.

NOTE: A file name entered with characters not on the code list may not play correctly.

Electronic Shock Protection

• 10 seconds for CD-DA (CDA)
• >45 seconds for MP3 recorded at 44.1kHz, 128kbps
• >90 seconds for WMA recorded at 44.1kHz, 128kbps

Bit Rates

The unit supports bit rates from 32 - 320 kbps.

Inserting and Ejecting a Disc

Press the LButton (4) to flip the front panel down. Insert a disc, label side up, into the disc slot (20).

VM8113R

JENSEN

To stop disc play and eject the disc, press the button to flip the front panel down and then press the eject button (21).

NOTE: The unit is designed for play of standard 5" (12 cm.) discs only. Do not attempt to use 3" (8 cm.) CD singles in this unit, either with or without an adaptor, as damage to the player and/or the disc may occur. Such damage will not be covered by the warranty on this product.

Loading an SD Card

Open the panel and insert the SD card into the SD Card slot (23). Close the panel and the unit will read the files on the card automatically.

To remove the card, first press the SRC button (6) to switch to another mode and stop SD playback. Press the SD card to pop it out, and then remove the card.

NOTE: The VM8113R supports up to 8GB SD cards.

Loading a USB Device

Insert the USB device into the USB connector (5) on the front of the unit. The unit will read the files on the USB device automatically.

To remove the USB device, press the SRC button (6) to switch to another mode and then remove the USB device from the USB connector.

NOTE: The USB port will recognize most USB flash memory devices and portable hard drives (hard drives must be formatted to FAT32, NTFS is not supported).

Notes on MP3/WMA Play

MP3 and WMA (Windows Media Audio) music files are digital audio files that are compressed to allow more files to be stored. This unit can play MP3/WMA and video directly from files contained on a CD-R/RW,

DVD+RW, DVD-RW, DVD+R, DVD-R and DVD-VIDEO, or an SD card or USB Device using the buttons on the receiver (or remote control) as described below.

Many types of software are available for converting audio files into MP3/WMA formats. Jensen recommends Nero or Roxio Easy CD Creator. This unit can play MP3 (MPEG1, 2, 2.5 Audio Layer 3). However, the MP3 recording media and accepted formats are limited. When writing MP3/WMA, pay attention to the following restrictions.

MP3 Playing Order

When selected for play, files and folders (Folder Search, File Search or Folder Select) are accessed in the order in which they were written to the media. As a result, the order in which they are expected to be played may not match the order in which they are actually played. You may be able to set the order in which MP3/WMA files are to be played by assigning file names beginning with play sequence numbers such as "01" to "99". For example, a medium with the following folder/file hierarchy is subject to Folder Search, File Search or Folder Select as shown below.

The VM8113R player will only recognize three folder levels and does not display folders containing only other folders. In the example above, the unit will display folders 3, 4, 6, and 8, but not 2 and 7 since they do not contain any tracks directly. Folder 5 is not recognized at all since it is at the fourth level.

Changing the Source

If a disc is already in the disc slot but is not playing, press the SRC button (6) on the front panel or remote control (14) to switch to the DISC source. To play files from an SD or USB that is already inserted, choose the SD CARD or USB source. The MP3 playback screen is indicated below:

1. CD/MP3/WMA Indicator
2. Current of Total Tracks
3. Current Folder Level
4. Time/Clock
5. ID3 Artist and Title Information
6. Songs on Disc
7. Source Indicator
8. Elapsed Playing Time for Current Song

Controlling Disc or File Playback

Pause

Press the 1/>/|| button (8) to suspend playback. Press the 1/>/|| button again to resume playback. Tracks are played in the order they are written to the disc/card, unless another operation is requested.

Stop

Press and hold the 1/>|| button (8) to stop playback. If viewing video or photos, the system returns to the file menu.

Track Select

Press the TUNE/TRACK >>| or |<< buttons (17) for less than one second to advance to the next track/file. The selected track number will appear on the display.

Navigate Files

The 5/DN (12) and 6/UP buttons (13) are used to navigate up and down within the file menu. Press and hold to move down/up a folder level. The current folder name is displayed at the top of the screen.

Fast Forward/Reverse

Press and hold the TUNE/TRACK >>| or |<< buttons (17) or the ▶/▲ buttons on the remote control to fast forward or fast reverse. Press and hold once for 2X. Press and hold additional times for 4X, 8X, 20X or PLAY. Press the play/pause >|| button (8) to end fast forward or reverse and resume normal playback.

Intro Scan (INT)

During playback, press the 2/INT button (9) to select "INTRO" and play the first 10 seconds of each track/file, as indicated by the 16 symbol. When the desired track is reached, press 2/INT again to end the scan and play the selected track.

Repeat (RPT)

Press the 3/RPT button (10) multiple times during playback to select from the following repeat play options:

• VCD/CD: RPT ONE (track), RPT ALL (disc), RPT OFF

• DVD: RPT CHAPTER, RPT TITLE, RPT OFF

- MP3/WMA: Repeat File, Repeat Directory/Folder, Repeat All (disc), Repeat Off

Random (RDM)

Press the 4/RDM button (11) during playback to play all tracks/files in random, shuffled order. Press 4/RDM again to stop random play.

VM8113R

JENSEN

Section Repeat (A-B)

To repeat a specified section of a track, perform the following steps:

1. Press the A->B button (16) on the remote control to select the starting point.
2. Press A->B when you reach the desired ending point. The selected section will play repeatedly.

To cancel section repeat, press the A->B button again.

GOTO Track Time Access (DVD and VCD Only)

Use the GOTO function to directly access a specific playback point on a DVD or VCD disc.

1. Press the GOTO button (19) on the remote control. When playing a DVD, the following window will appear:

Search

Title 29

Chapter 1

Time 00:00:08

NOTE: When playing a VCD disc, only the "Time" field appears.

1. Press the remote control arrow keys to move between the "Title", "Chapter" and "Time" fields.
2. Use the number keys (8) to enter the Title, Chapter and track location from which you would like playback to begin.
3. Press the ENTER button to confirm and begin playback from the selected point.

VCD PlayBack Control (VCD Only)

If you insert a VCD with playback control, playback automatically starts at the beginning of the first track. Press the MENU button (20) on the remote control to turn playback control on/off.

Additional DVD/Video Playback Features

NOTE: You cannot view video while driving the car. When attempting to view video while the parking break is not engaged, the following message will appear on the screen: WARNING !! Engage Parking Brake to View Video.

The following remote control features are available during DVD playback:

• AUDIO: Press to choose an alternate audio language, if available. This button may also show different surround sound options encoded on the DVD.
• SUB-T: Press to select an alternate subtitle language, if available.
• TITLE: Press to display the title or chapter list. Use the , ▲ or ◀ ▶ cursor buttons or the numeric buttons to enter a title or chapter number, and then press ENTER to play.
• ANGLE: Press to select an alternate viewing angle, if available.
• ZOOM: Press repeatedly to zoom the picture at x1, x2, x3, x4 or select OFF to return to normal view.
• Slow Forward/Slow Reverse: Press the / buttons on the remote control or the 5 and 6 buttons (10, 13) on the control panel to slow rewind/slow reverse. Press once for 1/2 speed. Press additional times for 1/4, 1/6, or 1/8 speed. Press the play/pause >/|| button (8) to end fast forward or reverse and resume normal playback.

NOTE: Feature availability is dependent on DVD embedded information.

NOTE: The VM8113R does not support Surround Sound decoding.

iPod OPERATION

Accessing iPod Mode

This unit is Made for iPod. You can control your iPod via the head units front panel buttons and access Playlist, Artist, Album, Songs, etc. Models supported but not limited to:

• iPod Classic
• iPod Touch
• iPod Touch 2G
• iPod Nano 3G
• iPod Nano 4G

NOTE: Be sure your iPod has the latest Apple firmware installed to avoid connectivity issues.

The unit will automatically switch to iPod mode when an iPod is plugged into the USB connector. To return to the iPod screen from any other source, press the SRC button on the front panel (6) or remote control (14) and select SOURCE >> iPod. After switching to iPod source, the iPod menu appears on the screen.

NOTE: For basic iPod connectivity, you can use the white 30-pin to USB iPod cable that came with your Apple device. For iPod video or photo playback, you must purchase the jLink-USB cable.

The following remote control buttons are used to access the iPod menus:

Menu Remote Control
Music AUDIO
Videos TITLE
Photos MENU > Arrow Down > ENTER

iPod File Playback

The iPod menu is automatically accessed when an iPod is connected to the unit or the source is changed to iPod while the iPod is connected.

• Use the navigation arrows on the remote control (5) or the 5 DN/6 UP buttons on the control panel to navigate the iPod menu and choose "MUSIC", "VIDEO" or "PHOTO".
• Press the ENTER (←) button on the front panel (16) or remote control (6) to select the highlighted menu option.

• Press the BAND button on the front panel (3) or remote control (25) to return to the previous menu.

• Press the > / || button on the front panel (8) or remote control (18) to play or pause the selected track.

• Press the >>| button on the front panel (17) or remote control (12) to play the next file.
• Press the |<< button on the front panel (17) or remote control (12) to return to the beginning of the current file.
• To return to the iPod menu while viewing a video/photo, press the BAND button.

Fast Forward/Fast Reverse

Press and hold the |<< or >>| buttons on the control panel (17) or remote control (12) for 1 second and continue to hold for fast forward or fast reverse. Release to resume normal playback.

NOTE: To transmit the video from your iPod to the VM8113R screen, you must set the following options through the iPod video settings menu: TV Out = On, TV Signal = NTSC, and Widescreen = On.

NOTE: After disconnecting your iPod, the VM8113R will always return to the last mode accessed when the iPod is plugged back into the unit.

SETUP MENU

During disc play, press the SETUP button (4) on the remote control to access the SYSTEM SETUP menu.

Use the ▲,▼or◀ cursor buttons to choose between LANGUAGE, VIDEO, AUDIO, RATING or MISC setup options.

Table 2: System Setup Menu

LANGUAGE MENU
OSD language	English	Select the appropriate on-screen language for the DVD.
	Francais
	Espanol
Subtitle English Choose the language you would like subtitles to appear in (if available).
DVD menu English Choose the language you would like DVD menu to appear in (if available).
VIDEO MENU
Aspect Ratio 4:3 Image is presented with 4:3 aspect ratio.
	16:9 Image is presented in wide view with a 16:9 aspect ratio.

Table 2: System Setup Menu

Video Format	NTSC	The color signals are output in the standard NTSC format.
	PAL	The color signals are output in the standard PAL format.
	AUTO	The color signal output is switched automatically based on the current video input signal - NTSC or PAL.
Smart Picture	Standard	Select preferred display setting.
	Bright
	Soft
	Dynamic
AUDIO MENU
Audio Menu	English	Select the appropriate audio language for the DVD.
	French
	Spanish
RATING MENU
Parental CTR	1 KID SAFE	Select the appropriate rating level for the intended audience.You may override higher ratings by using your password.
	2 G
	3 PG
	4 PG13
	5 PG-R
	6 R
	7 NC-17
	8 ADULT
Set Password	----	Enter a 4-digit password to activate the "Rating" feature. The original password is "0000" and must be entered before you can change the password to a different 4-digit code.
MISC MENU
Use Default Settings	Yes/No	Select "Yes" to restore the factory default settings for the Rating system only.
Demo	DemoRun	Demo Mode scrolls through the various source screens, simulating activity on the display. "Demo Mode" is discreetly displayed in yellow text (below the clock), to indicate the unit is in Demo Mode. To stop Demo Mode, press and hold the SRC button.
Demo Auto	On When "Demo Auto" is On, the unit will automatically display Demo Mode when powered on.
	Off When "Auto Auto" is Off, you can select "Demo > DemoRun" to start Demo Mode.

CARE AND MAINTENANCE

DVD Player

The following guidelines will help you extend the life of your DVD player:

1. When cleaning the vehicle interior, do not get water or cleaning fluids on the unit.
2. The DVD player will not operate properly in extreme hot/cold or under damp conditions. In case of such conditions, wait until the vehicle interior reaches a normal temperature or any condensation on the disc player lens has evaporated before using the player.
3. Always remove the disc when the player is not in use.
4. The unit is designed with a vibration dampening disc mechanism to minimize interruption of disc play due to normal vibration in a moving vehicle. However, occasional sound skips may occur when driving on very rough roads. This will not scratch or damage the disc, and normal play will resume when the rough conditions cease.

CD-R and CD-RW Capability

Depending on media type and method of "recording/burning", some CD-R/RWs may be incompatible with this unit. After "recording/burning", the session must be closed. Please refer to your software's recommended procedures for closing a disc/session. Review your recording software to familiarize yourself with the correct "recording/burning" procedures. We recommend using the latest versions of ROXIO ^TM or NERO ^TM burning software.

In addition, this unit will only recognize the CDDA (Compact Disc Digital Audio), .MP3 and .WMA formats "recorded / burned" onto a CD-R/RW. This unit does not support .WAV, .OGG or other formats.

Disc Care and Handling

Dirt, dust, scratches and warpage can cause skips in the playback and deterioration of sound quality. Please follow these guidelines to take care of your compact discs.

1. Do not touch the disc surface.
2. Never use chemicals such as record sprays or household cleaners to clean discs, as they can irreparably damage the disc's surface.
3. Discs should be kept in their storage cases when not in use.
4. Do not expose discs to direct sunlight, high temperatures or high humidity for long periods.
5. Carefully wipe fingerprints, dust and dirt from the disc's playing surface with a soft cloth. Wipe in a straight motion from the inside to the outside of the disc.
6. Do not stick paper, tape or disc labels on disc surfaces, as internal damage may occur.

TROUBLESHOOTING

Problem Cause Corrective Action
Does not operate (display does not light)	No power to yellow wire; no power to red wire	Check connection with test light; check vehicle fuse with test light
	Fuse blown Replace fuse
No power to unit Fuse blown Check/replace fuse
No/low audio output Improper	audio output connection Check wiring and correct
	Volume set too low Increase volume level
	Speakers damaged Replace speakers
	Heavily biased volume balance Adjust the channel balance to the center position
	Speaker wiring is in contact with metal part of car	Insulate all speaker wiring connections
Blows fuses Power wire shorting to ground Make sure wire is not pinched

SPECIFICATIONS

CEA Power Ratings

Power Output .....13 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio..... 70dBA below reference (reference: 1 watt, 4-ohms)

Frequency Response ..... 20Hz to 20kHz (-3dB), Auxiliary input used as source reference Reference Supply Voltage.....14.4VDC

DVD/CD Player

Compatible Disc Media	DVD + R / RW and CD-R / RW
Compatible Media Formats	CD-DA, MP3, WMA, VCD, SVCD, AVI,MPEG1 / 2, XviD and Kodak picture CD (JPEG)
Signal to Noise Ratio	>95dBA
Dynamic Range	>95dB
Frequency Response	20Hz to 20 kHz, -3dB
Channel Separation	>60dB @ 1 kHz

Video

Format	NTSC, PAL (auto-detection)
Output	1Vp-p (75-ohm)
Input	1Vp-p (75-ohm)

FM Analog Tuner

Tuning Range	87.5MHz - 107.9MHz
Mono Sensitivity (-30dB)	9dBf
Quieting Sensitivity (-50dB)	15dBf
Alternate Channel Selectivity	70dB
Signal to Noise Ratio @ 1 kHz	58dB
Image Rejection	80dB
Stereo Separation @ 1 kHz	>30dB
Frequency Response	30Hz - 15 kHz, -3dB

AM Tuner

Tuning Range	530 kHz – 1710 kHz
Sensitivity (-20dB)	12uV
Signal to Noise Ratio @ 1 kHz	50dB
Image Rejection	60dB
Frequency Response	50Hz – 2 kHz, -3dB

Monitor

Screen Size	3.5" Digital (Measured diagonally)
Active Area	76.32mm(W)×42.822mm(H)
Screen Type	TFT Liquid Crystal Display (LCD) active matrix
Resolution	320(W) X 234 (H) sub pixels
Dot Pitch	0.2385mm(W)×0.183mm(H)
Contrast Ratio	350
Brightness	400cd/m2

General

Auxiliary Input Impedance	10k
Power Supply	11 to 16VDC, negative ground
Power Antenna (Blue)	500mA max, current limited protection
Operating Temperature	-20C ~ 65C
Fuse	15-amp, ATO type
DIN Chassis Dimensions	7" X 7" X 2" (178mm x 178mm x 50mm)

*Specifications subject to change without notice.

INTRODUCCIÓN

i Kodak picture CD (JPEG)

Designed & Engineered by Audiovox

Progressive Innovative Technology, Inc.

Москва тел.: [phone]
