USER MANUAL KS 9889 SEVERIN

ART.-NO. KS 9889

GB Instructions for use

FR Mode d'emploi

Temperature-controlled wine cabinet 9

Aufbau

Temperature-controlled wine cabinet

Dear Customer,

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed safety socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.

• Do not operate this unit by means of a transformer or, together with other electrical appliances, by means of an extension cable.
• To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit (e.g. the heat-exchanger).

General information

This appliance is a compressor refrigerator designed for cooling and storing wine only.

• Refrigeration appliances are classified into certain climate classes. Please refer to the product data sheet for information on the classification for this unit.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Important safety instructions

• This appliance is intended for domestic or similar applications, such as
• in staff kitchens in shops, offices and similar working environments,
• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,
• in bed-and breakfast type environments.
• This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas

with a high level of environmental compatibility, which is nevertheless flammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. If there should be an open flame or any other source of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from the area and that the room is then thoroughly ventilated.

- Warning: Keep ventilation openings, in the appliance enclosure or in a built-in structure, clear of obstruction. Sufficient ventilation must be ensured at all times.

- Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a danger of the refrigerant igniting.

- Warning: Do not use any external device (e.g. a heater or heating fan) to accelerate de-frosting; follow only the methods recommended in this manual.

- Warning: Do not operate any other electrical appliance, such as an ice-maker, inside the cabinet, unless it is specifically mentioned in this manual.

- Before the unit is connected to the mains, it must be thoroughly checked for any signs of damage incurred during transport, including damage to the power cord. In the event of any such damage being found, the unit must not be connected to the mains.

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not locate portable multiple-socket outlets or portable power supplies at the rear of the appliance.

- This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.

- If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R 600 a. For additional information on correct recycling please refer to the section Disposal.

- In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge,

provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• Children must not be permitted to play with the appliance.

- Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised.

- For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.

- To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.

To avoid contamination of food respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- If the refrigerating appliance is left empty for long periods switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

• This appliance is designed for storing wine only.
• To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging. Two people are required for unpacking and installation.
• Caution: Keep any packaging materials well away from children – these are a potential source of danger, e.g. of suffocation.
• The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
• To avoid the risk of fire, do not place any electric appliances on top of the unit. Do not place any liquid containers on top of the unit: this will prevent any leaking or escaping liquid damaging the electrical insulation.
• Do not lean or put undue weight on the shelves, door etc.
• Protect the inside of the unit at all times from open flames and any other sources of ignition.

• Remove the plug from the wall socket

• in case of any malfunction,

• before de-frosting,
• during cleaning,

• before maintenance or repair work is carried out.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
  · We reserve the right to introduce technical modifications.

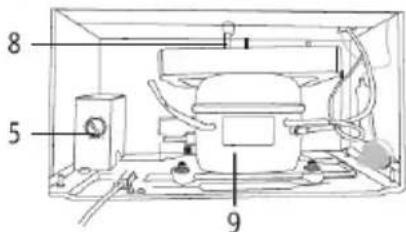

Familiarisation

1. Door hinge cover
2. Door hinge
3. Double-walled glass door
4. Power cord
5. Temperature control
6. Chrome-plated storage racks
7. Housing
8. Drain channel
9. Compressor

Before using for the first time

• Remove any exterior and interior packaging materials.
• Please ensure proper disposal of all packaging materials.
• Clean the unit according to the instructions given in the De-frosting and cleaning section.
• The unit should only be transported in its vertical position; do not tilt any more than 30° .
• Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
• If the unit has been tilted more than 30° during transport, allow it to stand upright for at least 4 hours before it is connected to the mains.
• When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

• The appliance should be set up in a well-ventilated, dry room.
• It should be operated in conditions where the relative humidity is no more than 70 %.
• The product data sheet contains details of the ambient temperature range suitable for this appliance.
• Do not place the appliance outdoors.
• Ensure that the plug is accessible and can be removed from the wall socket at any time.
• Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be in installed between the heat source and the unit.
• The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object.
• Ensure that the door can swing open to an angle of 90° .
• If the floor is uneven, the adjustable feet on the unit can be used to compensate and ensure optimum stability.

Ventilation

The heated air around the unit must be able to circulate freely. Therefore, ensure that the circulation around and above the unit is not obstructed.

The clearance must be at least 150 mm.

Temperature control

• The unit is activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket.
• The temperature in the refrigerator cabinet can be adjusted by setting the temperature control (1-5). Turning the control clockwise will decrease the temperature, while turning it anti-clockwise will increase it.
  • The temperature can be set within a 5 to 18 °C range.
• The temperature in the cabinet largely depends on factors such as the ambient temperature, the setting and the number of wine bottles stored.
• We recommend using a thermometer to check the actual temperature inside the cabinet and make adjustments as necessary.
• Always ensure that the door is properly closed and that the seal is not obstructed by bottles stored inside the cabinet.
• Following a power interruption, or if the unit has been switched off on purpose, it may take 3 to 5 minutes before it switches on again.
• Note: In position '0', the cooling function is switched off, though the appliance is still connected to the mains.

Humidity control

If the ambient air is extremely dry, the tray (supplied) should be filled 3/4 full with water and then placed on one of the storage racks.

The water level should be regularly checked and replenished as necessary

Storing wine

The following temperatures are suitable for various wines:

Red: 15 -18 °C

Dry/white: 10 -15 °C

Sparkling/champagne: 5 - 9 °C

De-frosting and cleaning

During operation, you may notice a build-up of frost around the integral evaporator sealed into the rear of the inside cabinet. This layer of frost will start melting when the compressor is not working. Through a system of hoses, the melt-water drains into the collection tray below the compressor, where it will be absorbed into the surrounding air.

The unit does not therefore require de-frosting, but only proper cleaning.

• To enable the melt-water to drain freely, always ensure that the channel and discharge opening in the cabinet are free of any blockage.
• Any water collecting in the bottom should be removed.

Remark: Do not use abrasive tools, materials containing alcohol or harsh cleaning solutions. Do not use any electrical appliances, such as steam cleaners, for defrosting or cleaning.

• Always remove the plug from the wall socket before cleaning.
• Do not pour water over or inside the unit.
• For frequent cleaning we recommend the use of warm water with some mild detergent.
  • The cabinet should be cleaned once a month.
• Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
• After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry. When re-inserting the plug into the wall socket ensure that you have dry hands.
• To save energy and to ensure optimum performance, the compressor (at the rear) should be carefully cleaned at least twice a year, with a brush or a vacuum cleaner.

Trouble-shooting

Certain typical sounds can be heard when the appliance is switched on. These sounds are caused by:

• the electric motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a short time.
• the cooling agent flowing through the circuit.

In addition, the side of the housing may become warm. This heat is caused by dissipation of the heat generated inside the cabinet.

The following table lists possible malfunctions, their probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem Possible cause and solution
The appliance is not working at all.	There is a power failureThe main fuse has blown.The temperature control is set to ‘0’.The fuse in the wall socket (if applicable) has blown. This can be checked by connecting another electrical device to the socket and checking for function.
The temperature inside the compartment is not low enough.	The cabinet has been overloaded.The doors are not properly closed.There is too much dust on the condenser.Insufficient ventilation: the unit is too close to a wall or other structure or object.The temperature setting is too low
The normal operating sound changes or becomes louder.	Check the following:Check for proper positioning (uneven floor).Are any adjacent objects affected by the running of the cooling unit (i.e. causing them to vibrate?)Are there any objects on top of the unit which might be vibrating?
Water is collecting on the bottom of the unit.	The melt-water drain system is blocked. Remove the blockage and clean the system.

Transporting the appliance

To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened.

The unit must only be transported in its vertical position; do not tilt any more than 30° .

Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.

If the unit has been tilted more than 30° during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains.

Disposal

Appliances that are marked with this symbol have to be disposed of separately from household rubbish. These appliances contain valuable resources that can be recycled. A correct waste

disposal protects the environment and the health of those around you. To get informed about it, either defer to your municipal administration or the retailer.

- Pull the mains plug out of the socket and disconnect it from the appliance before getting rid of it.

The cooling medium Isobutane (R600a) and the propellant in the isolation Cyclopentane (C5H10) are inflammable substances, thus, need to be appropriately disposed of.

- Make sure the tubes of the cooling circuit don't get damaged before the proper disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Information needed by the Customer Service

Should repairs to the appliance become necessary, please contact our Customer Service, providing a detailed fault description and quoting the article number KS ... on the rating plate of the appliance. This information will help us to handle your request efficiently.

In case of any malfunction or other problem, or for ordering replacement parts, please contact our Customer Services Department hotline.

Appliance specification sheet

Model identifier KS 9889
Type of refrigerating appliance:
Low-noise appliance: no Design type: Free-standing			ding
Wine storage appliance: yes Other refrigerating		appliance: no
Overall dimensions (H x W x D in mm) 513 x 430 x 480
Total volume (in l) 46
EEI 188
Energy efficiency class G
Annual energy consumption (in kWh/a)* 147
Airborne acoustical noise emission class D
Airborne acoustical noise emissions (in dB(A) re 1pW) 43
Climate class SN
Ambient temperature (in °C)				10-32
Temperature rise time (in h)				-
Weight (in kg)				17,5
Winter setting no
Compartment Parameters:
Typ	Volume (in l)	Recommended temperature (in°C)	Freezing capacity (kg/24h)	Defrosting type A = auto M = manuel	Fast freezing facility
Wine storage compartment	46	12	-	A	-
Light source parameters:
Type of light source				LED
Energy efficiency class				-
Electric data				see rating label

*) The actual consumption depends on the use and the location of the appliance

Chère cliente, Cher client,

Description

Bekend maken

Delar

Laitteen osat

Elementy urządzenia

Regulator temperature

Устройство прибора

1 Angel Kanchev, 5th floor

1000 Sofia, Bulgaria

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Czech Republic

BVZ Commerce s.r.o.

Parkerova 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

Danmark

F&H of Scandinavia A/S

Gl. Skivevej 70

DK-8800 Viborg

Tel.: [phone]

Fax: [phone]

26 Oaktree Business Park

Trim Co., Meath

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

ASSISTENZA POST-VENDITA

NUMERO VERDE 800224155

E-Mail: [e-mail]

Indonesia

PT. Setai Modern Elektronik

Email.: [e-mail]

Web.: www.severin.co.id

Jakarta

Komp. Glodok Plaza Blok F No. 9, JI. Pinangsia Raya,

Jakarta Barat

021 65911888 / 021 6592889

Medan

Dr.Waleed Maraqa commercial center, Level 1

Khalda, Amman Zip code: 11953

Tel: [phone]

Fax: [phone]

Mob Jordan: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel.: [phone]

Latvia

SIA GTCL BALTIC

Piedrujas iela 7

LV - Riga 1073

Tel.: [phone]

Fax: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

A.A.K & Partners L.L.C.

P.O Box:-1650, Muttrah

Postal Code - 114

Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

E-Mail: [e-mail]

PERU

SEVERIN PERU / Comercial Rebeca S.R.L

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

E-Mail: [e-mail]

Polska

Severin Polska Sp.z o.o.

6 Tagore Drive, #03-04

Singapore 7

Tel.: [phone]

Fax: [phone]

Web: www.beste.com.sg

E-Mail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

Slowak Republic

BVZ Commerce s.r.o.

Parkerova 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

South Africa

AL&CD Ashley (PTY) Ltd.

3rd Floor, Grove Exchange

Grove Avenue

Claremont

South Africa

7708

Tel: [phone]

Fax: [phone]

Web: http://www.alcdashley.co.za

Mail: [e-mail]

Svenska

El & Digital Service AB

Folkungagatan 144

11630 Stockholm

Tel.: [phone]

www.eldigital.se

E-Mail: [e-mail]

Switzerland

SPC Electronics AG

Mövenstrasse 12

CH-9015 St. Gallen

Tel.: [phone]

E-Mail: [e-mail]

www.spc.ch

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

E-Mail: [e-mail]

Tunisie

GEI

54, rue du Mercure

Zone Industrielle 2013-BEN AROUS

TUNISIE

Ukrayina

Service for Modern Electronics LLC

Sim'i Khokhlovykh Str.8

4119 Kiev

Tel.: [phone]

E-Mail: [e-mail]

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Web: www.homespares.co.uk

Vietnam

BRAND PARTNER

CTY TNHH DOI TAC NHAN HIEU

2/7 NGUYEN THANH Y

DA KAO WARD, DISTRICT 1

HO CHI MINH CITY, VIETNAM

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Stand: 10.2020 (Special Edition)
