Product Type	Welding Machine (Inverter)
Brand	Ferm
Model	WEA1058
Welding Processes	MIG/MAG, MMA (Stick), TIG (Lift)
Input Voltage	230 V ~ 50/60 Hz
Input Current	16 A
Welding Current Range	15 - 140 A
Duty Cycle	60% at 100 A, 35% at 140 A
Wire Speed Range	1 - 10 m/min
Electrode Diameter (MIG)	0.6 - 0.8 mm
Electrode Diameter (MMA)	1.5 - 3.2 mm
Dimensions (L x W x H)	430 x 180 x 290 mm
Weight	9.5 kg
Protection Class	IP21S
Insulation Class	F
Cooling System	Fan ventilation
Maintenance	Regular cleaning of ventilation slots; replace contact tip as needed
Safety Features	Overheating protection, overload protection, thermal cut-out
Spare Parts	Available: contact tips, gas nozzle, liner, wire spool holder
Repairability	Moderate; common parts replaceable by user
Warranty	2 years (typical)

Frequently Asked Questions - WEA1058 Ferm

What type of welding can I do with the Ferm WEA1058?

The WEA1058 supports MIG/MAG (gas-shielded), MMA (stick), and TIG (lift ignition) welding processes, making it versatile for hobby and light industrial use.

What is the duty cycle of this welding machine?

The duty cycle is 60% at 100 A and 35% at 140 A, meaning you can weld for 6 minutes at 100 A before a 4-minute cooldown.

What wire diameter can I use for MIG welding?

The machine accepts wire diameters of 0.6 mm and 0.8 mm for MIG welding. For steel, use 0.8 mm with CO2 or mixed gas.

Which electrode sizes are compatible with MMA (stick) welding?

You can use electrodes from 1.5 mm to 3.2 mm diameter. Common types include rutile, basic, and cellulose electrodes.

Can I weld aluminum with the Ferm WEA1058?

Aluminum welding is possible but requires a TIG setup (lift TIG) and an AC/DC machine. This model is DC only, so aluminum MIG with pure argon gas is possible but challenging for thin sections.

How do I clean and maintain the welding machine?

Regularly blow out dust from ventilation slots with compressed air. Check and clean the MIG gun contact tip and nozzle. Keep the wire feed mechanism clean and lubricated.

What safety precautions should I take?

Always wear a welding helmet with appropriate shade, gloves, and protective clothing. Ensure proper ventilation. Disconnect power before maintenance. Never weld on sealed containers.

What spare parts are available for the WEA1058?

Common spare parts include contact tips, gas nozzles, liners, wire spool holders, and drive rolls. These can be ordered from Ferm dealers or online.

Is the Ferm WEA1058 suitable for beginners?

Yes, it is a user-friendly inverter welder with adjustable current and wire speed, making it ideal for beginners learning MIG and stick welding.

What gas is recommended for MIG welding?

For steel, use CO2 or a mixture of 75% argon, 25% CO2 (Ar/CO2). For stainless steel, use a tri-mix or argon + 2% oxygen. For aluminum, pure argon is required.

USER MANUAL WEA1058 Ferm

Close-up of a black welding helmet with a clear glass cover (no text or symbols visible)

EN Original instructions 03

Fig. 1

WELDING MASK

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europeis leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the text refer to the diagrams on pages 2.

Read the operating instructions carefully before using this device. Familiarize yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Introduction

Welding helmets are designed to protect the eyes from sparks, spatter, and harmful radiation under normal welding conditions. It comes ready for use. The only thing you need to do before welding is adjust the position of the headband, and make sure the correct shade glass lens lens is installed.

Contents

1. Technical data
2. Safety instructions
3. Instruction for use
4. Maintenance

1. Technical data

Technical specifications

Viewing area 119x106 mm

UV/IR Protection Up to shade DIN 11 at all times

Dark state Shade 11

Operating temperature -5°C to +55°C

Helmet material High-impact resistant nylon

Total weight 540 g

2. Safety instructions

Explanation of symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

This helmet is not suitable for use with laser or gas-welding.

• Ensure all workshop safety rules, regulations, and conditions are complied with when using welding equipment.
• The helmet will not offer protection against mis-use of workshop tools, equipment, or accessories.
• Maintain the helmet in good condition, and protect cartridge from liquid and dirt contact.
• Regularly replace the protective lens and replace any damaged or worn parts.
• Use genuine parts only. Non authorized parts may be dangerous and will invalidate the warranty. NEVER open or tamper with the shade cartridge.
• Select the shade level before use.
• Ensure the front cover lens is securely in place before use.
• Fit the helmet and adjust the head band so the helmet will sit as low and near to your face as possible,
• Use helmet only in temperatures ranging from -5°C to 55°C.
• The eye protective plate in helmet is NOT unbreakable. Helmet will not protect you against severe impact hazards (such as, but not limited to) fragmenting abrasive discs/ grinding wheels, stones and other grinding tools, explosive devices or corrosive fluids. The helmet will only protect the eyes and face from radiation and sparks.
• Remove ill fitting clothing, remove ties, watches, rings, and other loose jewellery.
• Maintain correct balance and footing. Ensure the floor is not slippery and wear non slip shoes.
• Keep children and unauthorized persons away from the working area.
• The materials which may come into contact with wearer's skin could cause allergic reactions to susceptible individuals.

Warning!

• Do not use the helmet if damaged or you suspect it may be faulty.
• Do not use helmet unless you have been instructed in its use by a qualified person.
• Do not get the helmet wet or use in damp or wet locations.
• Do not place the helmet on a hot surface.

3. Instruction for use

Before using the helmet for welding ensure you have read and understood the safety instructions in section 2.

The helmet comes ready assembled but before it can be used it must be adjusted to fit the user properly.

Adjusting the fit of the helmet

Fig. 1

The overall circumference of the headband can be made larger or smaller by first pushing the knob to unlock and thereupon rotating the knob on the back of the headband (Y) This can be done whilst wearing the helmet and allows just the right tension to be set to keep the helmet firmly on the head without it being too tight.

If the headband is riding too high or too low on your head adjust the strap which passes over the top of your head. To do this release the end of the band by pushing the locking pip out of the hole in the band. Slide the two portions of the band to a greater or lesser width as required and push the locking pip through the nearest hole (W)

Test the fit of the headband by lifting up and closing down the helmet a few times whilst wearing it. If the headband moves whilst tilting re-adjust it until it is stable.

Adjusting distance between helmet and face

Fig. 1

To adjust the distance between the helmet and your face in the down position loosen the tilt knobs on either side of the helmet and slide it nearer to or further from your face. (Z) It is important that your eyes are each the same distance from the lens otherwise the darkening effect may appear uneven. Re-tighten the tilt knobs when adjustment is complete.

4. Maintenance

Cleaning

Clean helmet by wiping with a soft cloth. Clean cartridge surfaces regularly. Do not use strong cleaning solutions.

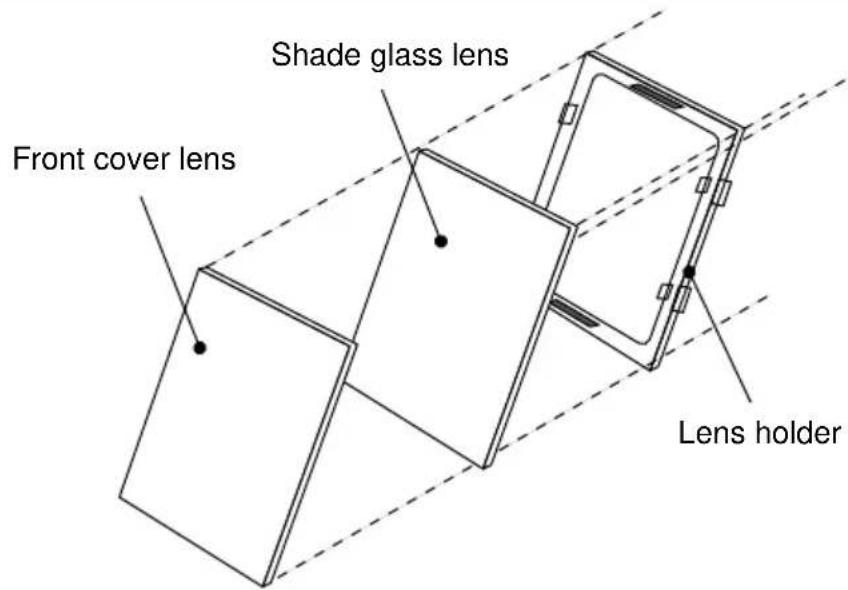

Replacing front cover lens/shade glass lens.

Refer to figure 2 for replacing the front cover lens or shade glass lens. This must be done every time the lens is damaged to reduce the risk of personal injury.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Warranty

The guarantee conditions can be found on the separately enclosed guarantee card.

The product and the user manual are subject to change. Specifications can be changed without further notice.

SCHWEISSMASKE

Synsfelt 119 x 106 mm

DECLARATION OF CONFORMITY

WEA1058, WELDING HELMET

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:
(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:

(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka żemiau paminétus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornoLšu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SR) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UK) На свою власну відповідальність заявляємо, що дане обладнання відповідає наступним стандартам і нормативам:
(EL) Δηλώνουμε υπεύθυνα ότι προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμο ύς και πρότυπα:
(BG) Ние заявяваме, по своя собствена отговорност, че този продукт отговаря на следните стандарти и директиви

EN175, EN169

89/686/EEC, 2011/65/EU

Zwolle, 01-05-2013

I. Mönnink

CEO Ferm BV
