Brand	Hager
Model	WGCXL142KB
Product Type	Dimmer (Light Dimmer)
Mounting	Flush-mounted (wall box)
Dimensions (HxWxD)	45 x 45 x 25 mm (faceplate)
Weight	0.15 kg
Power Supply	230V AC, 50Hz
Max Load (Incandescent)	400 W
Max Load (LED)	200 W (dimmable LEDs only)
Load Type	Resistive, inductive, and capacitive
Control Type	Rotary knob
Functions	On/off, dimming (phase-cut)
Protection Class	IP20 (indoor use)
Operating Temperature	0°C to +40°C
Wiring	Single-way or two-way with additional switch
Standards	CE, RoHS
Maintenance	Wipe with dry cloth; no solvents
Accessories	Frame sold separately (e.g., Hager WGC series)
Reparability	Non-user serviceable; professional repair only

Frequently Asked Questions - WGCXL142KB HAGER

Can the Hager WGCXL142KB be used with LED bulbs?

Yes, but only with dimmable LED bulbs. The maximum LED load is 200 W.

What is the maximum load for incandescent bulbs?

The maximum load for incandescent bulbs is 400 W.

Does this dimmer work with two-way switching?

Yes, it can be used in a two-way circuit with an additional push-button switch (not a standard intermediate switch).

What is the depth of the dimmer?

The dimmer body depth is approximately 25 mm, suitable for standard wall boxes.

Is the dimmer compatible with smart home systems?

No, this is a manual rotary dimmer without smart connectivity.

How do I clean the dimmer?

Wipe the faceplate with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

What is the rated voltage and frequency?

The dimmer operates at 230V AC, 50Hz.

Can it control fan motors?

No, this dimmer is intended for lighting loads only. Do not use with fans or other inductive motors unless specified.

What is the warranty period?

Hager typically offers a 2-year warranty from date of purchase.

Where can I download the manual?

The manual is available for free download on notice-facile.com in PDF format.

USER MANUAL WGCXL142KB HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "16AX 2gang 1way switch")

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

General circuit diagram

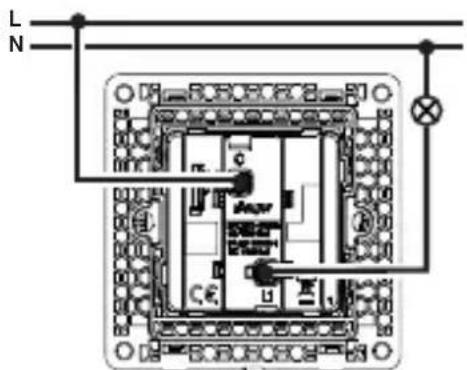

1gang 1way switch

1way switch

2gang 1way switch

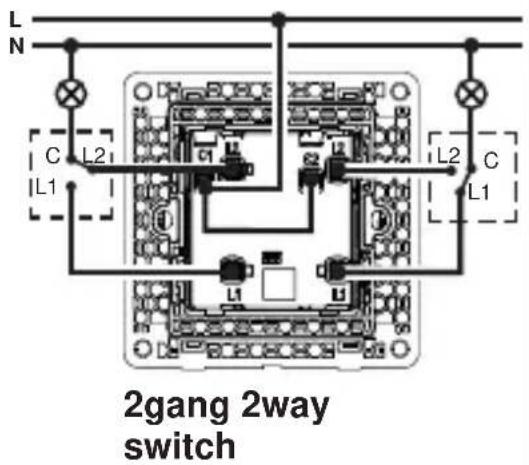

2B

2way switch

2C
Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Technical diagram of a cable assembly with internal components and screwdriver (no text or labels)

■ After wiring, fix the device with the two screws attached into the wall box (3).

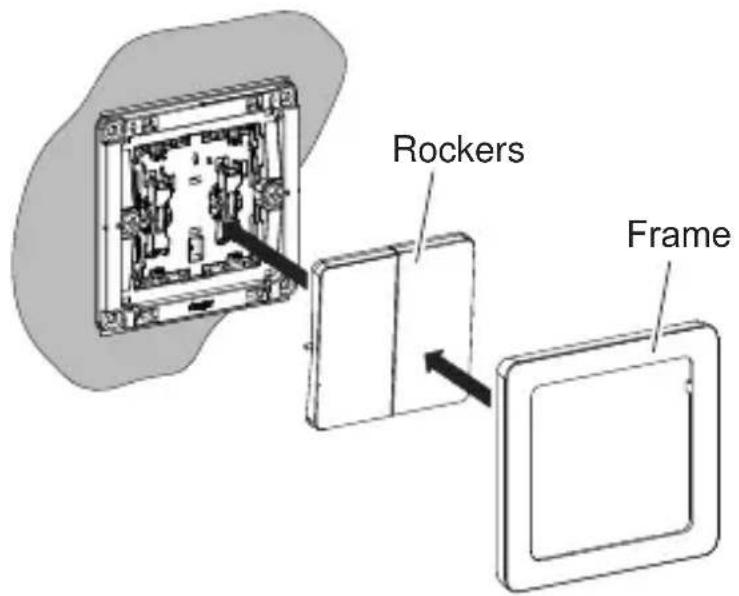

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
