Product Type	Dimmer
Brand	Hager
Model	WGCXL131KB
Rated Voltage	250 V~
Frequency	50/60 Hz
Fixing Hole Distance	60.3 mm
Conductor Cross-Section	max. 3 x 1.5 mm²
Compliance	BS EN 60669-1, IEC 60669-1
Dimensions (approx.)	71 x 71 x 41 mm
Weight (approx.)	0.12 kg
Mounting	Flush-mounted in wall box (depth ≥ 35 mm)
Operating Temperature	-5°C to +40°C
Protection Class	IP20 (indoor use only)
Connection Type	Screw terminals
Maintenance	Wipe with a dry cloth; no additional maintenance required
Safety	Installation by qualified electrician; disconnect power before working
Spare Parts	Replaceable rocker and frame (Hager Muse/Inspire series)
Function	Dimming and switching control
Compatible Circuits	1-way, 2-way, and intermediate
Environment	Indoor, no drip or spray water

Frequently Asked Questions - WGCXL131KB HAGER

What is the rated voltage and frequency of the Hager WGCXL131KB dimmer?

The dimmer operates at a rated voltage of 250 V~ and a frequency of 50/60 Hz.

Can I install this dimmer myself?

No, installation must be performed by a qualified electrician in accordance with local regulations to avoid electric shock.

What types of bulbs are compatible with this dimmer?

The dimmer is compatible with incandescent, halogen, and dimmable LED bulbs. Always check the load rating.

How do I connect the dimmer for 2-way switching?

Refer to the 2-way wiring diagram (2B) in the manual. Strip cables 10-12 mm and connect to the appropriate terminals.

What is the maximum load for the dimmer?

For incandescent bulbs, the maximum load is typically 250 W. For LEDs, it may be lower; consult the manual or bulb specifications.

Is the dimmer suitable for outdoor use?

No, the dimmer is designed for indoor use only in dry areas with no drip or spray water (IP20).

How should I clean the dimmer?

Clean with a dry cloth. Do not use solvents, water, or abrasive cleaners.

What are the dimensions of the Hager WGCXL131KB?

Approximate dimensions are 71 x 71 x 41 mm (depth may vary). The fixing hole distance is 60.3 mm.

Does the dimmer come with a warranty?

Warranty details are not provided in the manual. Please contact Hager support for warranty information.

Can I use the dimmer with a smart home system?

The dimmer is a manual device and does not include smart home connectivity. It is intended for direct manual control.

USER MANUAL WGCXL131KB HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "16AX 2gang 1way switch")

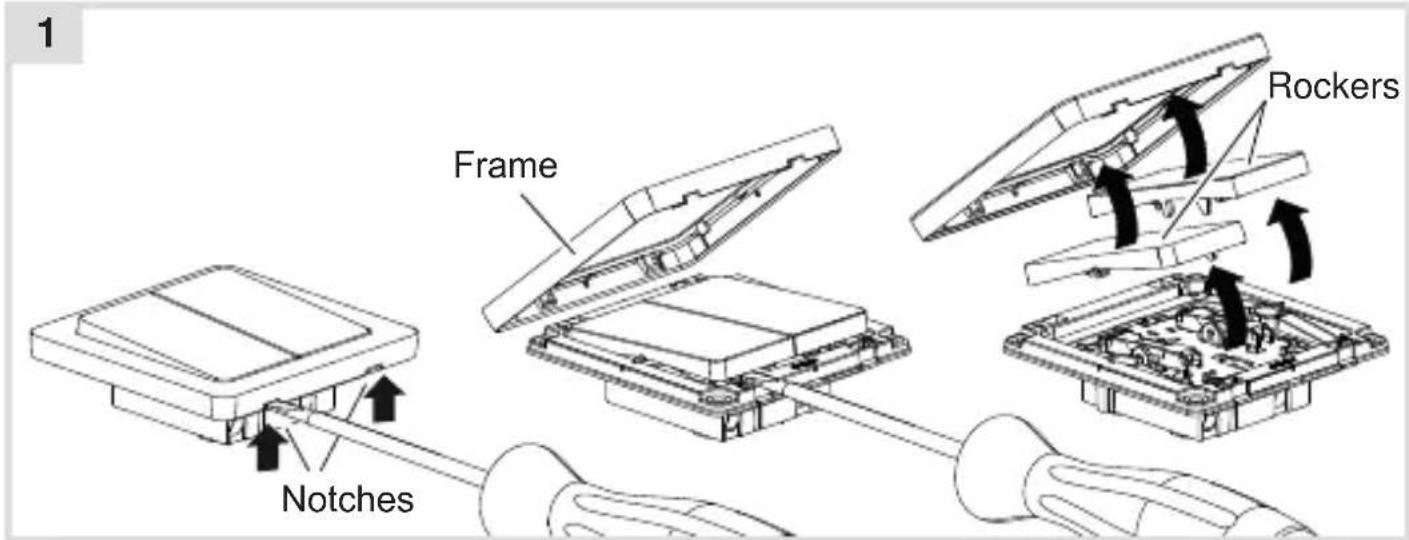

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

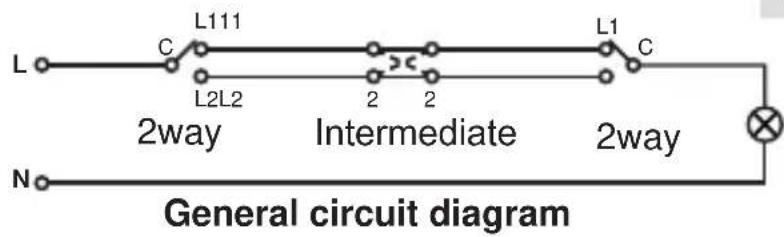

General circuit diagram

1gang 1way switch

1way switch

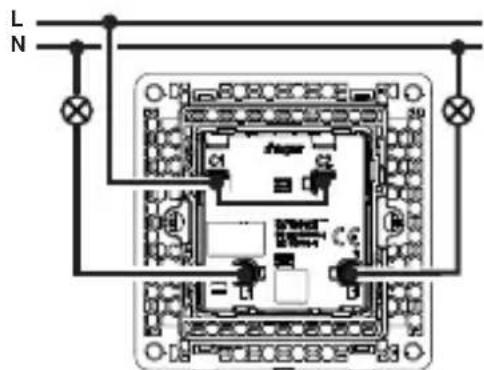

2gang 1way switch

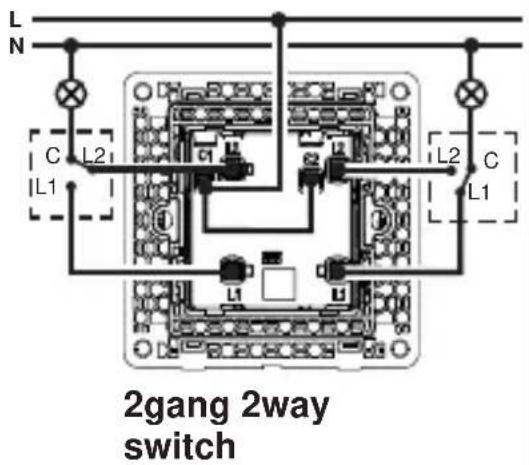

2B

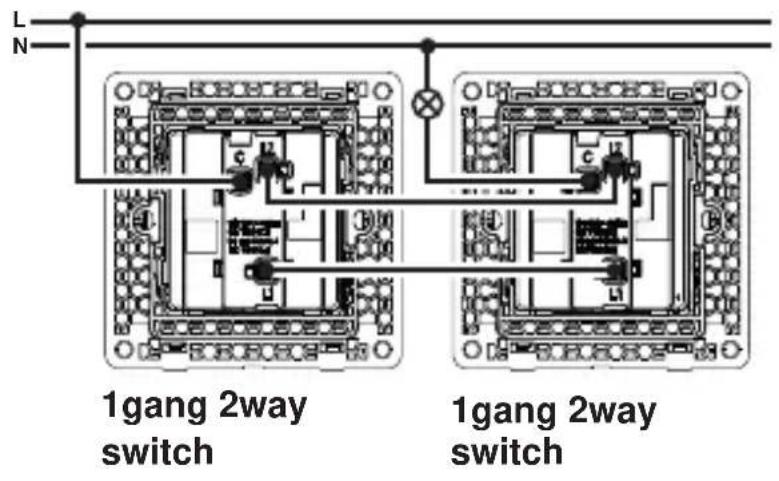

2way switch

2C
Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Technical diagram of a cable assembly with internal components and screwdriver (no text or labels)

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

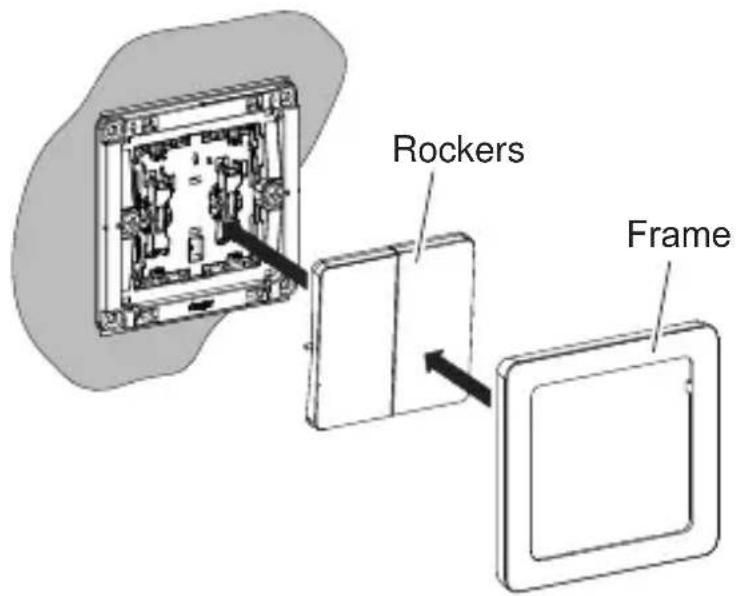

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
