WGCXL132EG - Dimmer HAGER - Free user manual and instructions

Product Type	Dimmer
Brand	Hager
Model	WGCXL132EG
Rated Voltage	250 V~
Frequency	50/60 Hz
Conductor Cross-Section (Screw Terminals)	Max. 3 x 1.5 mm²
Distance of Fixing Holes	60.3 mm
Compliance	BS EN 60669-1, IEC 60669-1
Rated Current (Dimmer)	10 AX (typical for dimmer)
Installation Type	Flush-mounted in wall box (min. depth 35 mm)
Protection Class	Indoor use, no drip or spray water
Wiring Diagram	1-way, 2-way, intermediate switch compatible
Frame Compatibility	Hager Muse / Hager Inspire
Dimensions (typical)	71 x 71 x 41 mm (approx.)
Weight	Approx. 100 g
Electrical Connection	Screw terminals, strip length 10-12 mm
Number of Gangs	1-2 gang options (depending on model variant)

Frequently Asked Questions - WGCXL132EG HAGER

What is the rated voltage of the Hager WGCXL132EG?

The rated voltage is 250 V~.

Can this dimmer be used with LED bulbs?

Yes, but ensure the bulbs are dimmable and the total load does not exceed the dimmer's rated current (10 AX). For LED loads, derating may be required.

What is the minimum wall box depth?

The recommended wall box depth is ≥ 35 mm for proper installation.

How do I install the dimmer?

Disconnect power. Strip wires 10-12 mm. Connect according to the wiring diagram (1-way or 2-way). Mount into wall box with screws. Attach rockers and frame.

Is the dimmer compatible with 2-way switching?

Yes, it can be used in 2-way circuits. Follow the appropriate wiring diagram.

What is the maximum conductor cross-section?

The maximum conductor cross-section for the screw terminals is 3 x 1.5 mm².

Can the dimmer be used outdoors?

No, it is only suitable for indoor use in areas without drip or spray water.

What frames are compatible?

The dimmer is compatible with Hager Muse and Hager Inspire frames. For multi-gang, use 2-5 gang frames.

How do I clean the dimmer?

Use a dry or slightly damp cloth. Do not use abrasive cleaners or immerse in water.

What safety precautions should I take?

Always disconnect power before installation. Only a qualified electrician should install the device. Follow local regulations.

USER MANUAL WGCXL132EG HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ⁴

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "16AX 2gang 1way switch")

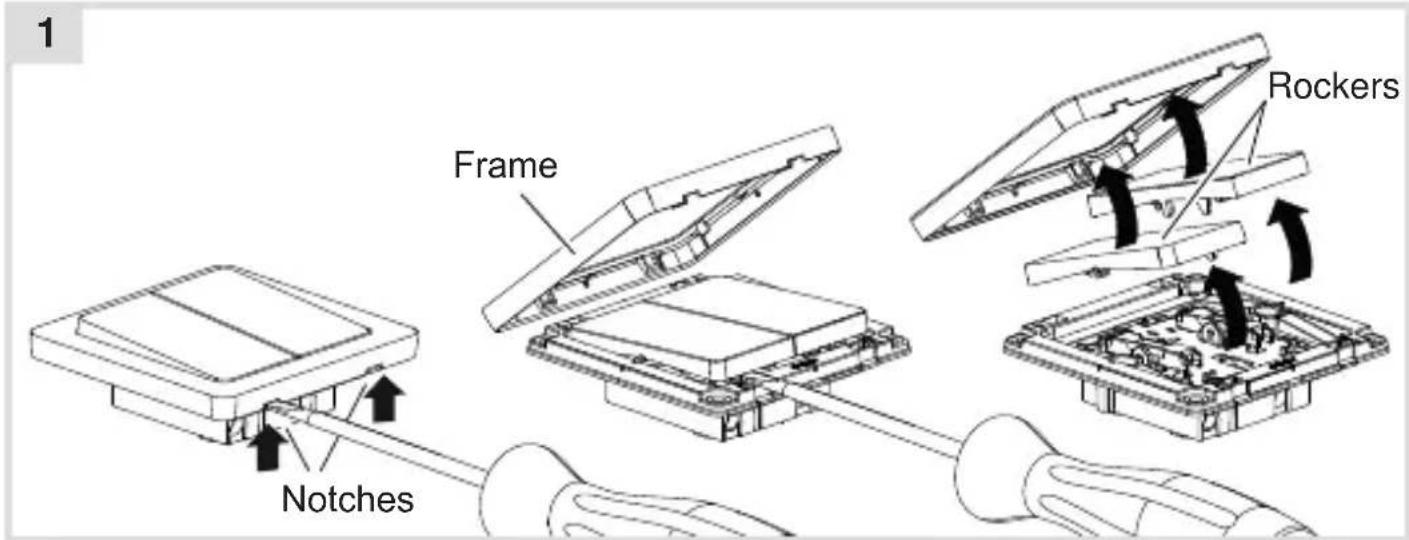

Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

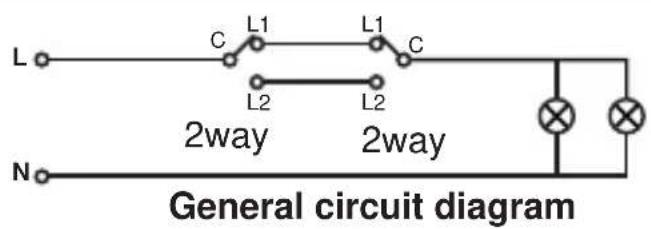

General circuit diagram

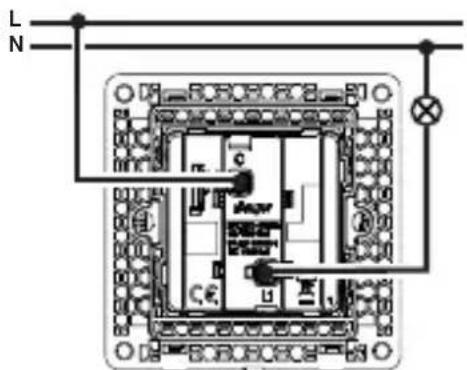

1gang 1way switch

1way switch

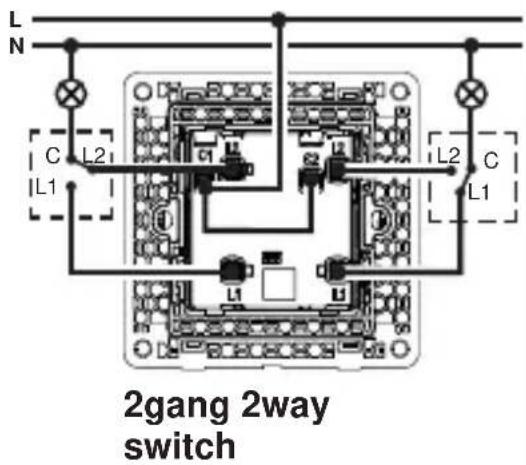

2gang 1way switch

2B

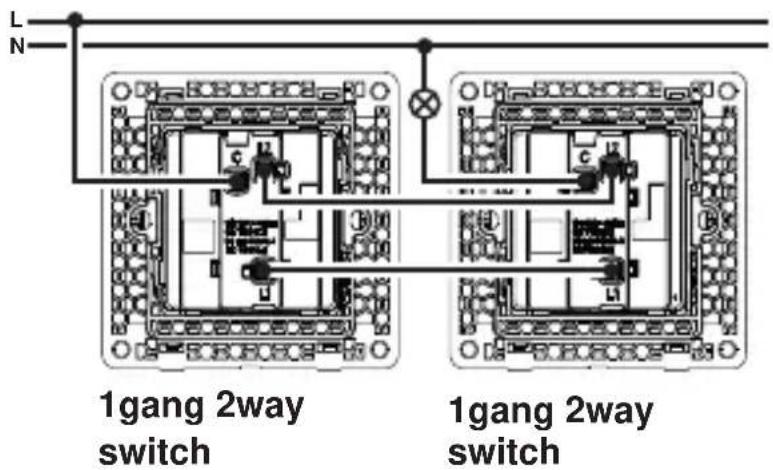

2way switch

2C

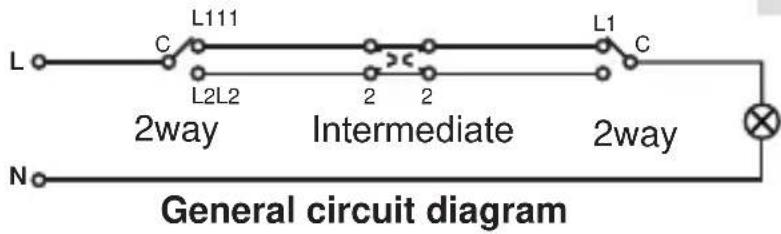

Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Technical diagram of a cable assembly with internal components and screwdriver (no text or labels)

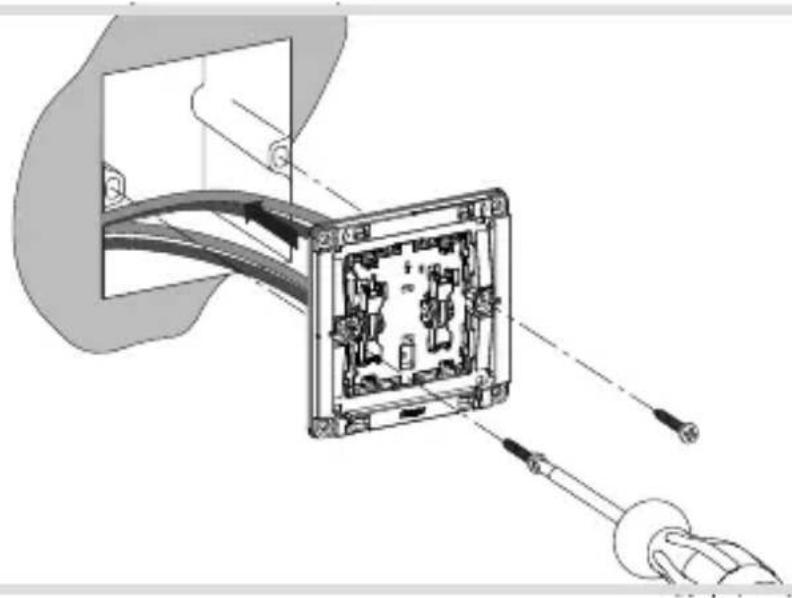

■ After wiring, fix the device with the two screws attached into the wall box (3).

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

■ Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
