Product Type	Dimmer (Mechanical Light Switch)
Brand	Hager
Model	WGCXL121KB
Rated Voltage	250 V~
Frequency	50/60 Hz
Conductor Cross-section (Screw Terminals)	max. 3 x 1.5 mm²
Distance of Fixing Holes	60.3 mm
Switch Compliance	BS EN 60669-1, IEC 60669-1
Rated Current (1-way/2-way)	max. 16 AX
Rated Current (Intermediate)	max. 10 AX
Mounting Type	Flush-mounted in standard wall box
Minimum Wall Box Depth	≥ 35 mm
Suitable Areas	Indoor, no drip or spray water
Frame Compatibility	Hager Muse / Hager Inspire
Number of Gangs	1, 2 (example with 2-gang), up to 5-gang with frames
Switching Functions	1-way, 2-way, intermediate
Installation	By qualified electrician only
Safety Instructions	Disconnect live parts before working; cover live parts
Connection Type	Screw terminals
Strip Length	10-12 mm
Wiring Diagrams	1-way, 2-way, intermediate (see manual)
Frame Removal	Loosen with flat-blade screwdriver at notches
Rocker Removal	With flat-blade screwdriver
Included Accessories	Two screws for wall box fixing
Manual Languages	English (provided), others available via translation request

Frequently Asked Questions - WGCXL121KB HAGER

What is the rated voltage of the Hager WGCXL121KB?

The rated voltage is 250 V~ with a frequency of 50/60 Hz.

Can I install this switch myself?

No, installation and assembly must only be carried out by a qualified electrician in accordance with relevant standards and safety directives.

What is the difference between 1-way and 2-way switching?

A 1-way switch controls a light from one location, while a 2-way switch allows control from two locations when used with another 2-way switch.

What is the maximum conductor size for the screw terminals?

The maximum conductor cross-section is 3 x 1.5 mm².

Is this switch suitable for outdoor use?

No, it is only suitable for indoor areas with no drip and no spray water.

How do I remove the frame and rockers?

Carefully loosen the frame at the notches using a flat-blade screwdriver and lift it up. Remove the rockers also with a flat-blade screwdriver.

What compliance standards does the switch meet?

It complies with BS EN 60669-1 and IEC 60669-1.

Can this switch be used as an intermediate switch?

Yes, the 10AX intermediate switch variant is available. The model supports intermediate switching with appropriate wiring (see diagram 2C in the manual).

What is the minimum wall box depth required?

A standard wall box with a depth of ≥ 35 mm is recommended.

How do I wire a 2-way switch?

Refer to the wiring diagram 2B in the manual. Strip the cables 10-12 mm, and connect according to the diagram. Ensure power is disconnected before wiring.

USER MANUAL WGCXL121KB HAGER

16AX switches 1way/2way 10AX intermediate switch Hager Muse / Hager Inspire

Installation manual

Safety instructions

Electrical equipment must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, regulations, directives and safety and accident prevention directives of the country.

Failure to comply with these installation instructions may result in damage to the device, fire or other hazards.

Function

Mechanical light switches for electrical installations in buildings.

Correct use

• For the flush-mounted installation in standard wall boxes (recommended wall box depth ≥ 35 mm).
• Only suitable for use in indoor areas with no drip and no spray water.

Technical data

Rated voltage: 250 V\~

Frequency: 50/60 Hz

Conductor cross-section of screw terminals: max. 3 x 1.5 mm ^4

Distance of fixing holes: 60.3 mm

Switch compliance: BS EN 60669-1, IEC 60669-1

16AX switches 1way/2way

Rated current: max. 16 AX

10AX intermediate switch

Rated current: max. 10 AX

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts can result in an electric shock.

An electric shock can lead to death.

Disconnect the connecting cables before working on the device and cover all live parts in the area!

Preparing the device for installation

(for example "16AX 2gang 1way switch")

1

- Carefully loosen the frame on the notches with a flat-blade screwdriver. Lift up and remove the frame (1).

■ Remove the rockers also with a flat-blade screwdriver.

Connecting the device

2A

General circuit diagram

1gang 1way switch

1way switch

2gang 1way switch

2B

2way switch

2C
Intermediate switch

- Strip connection cables approx. 10 ... 12 mm.

■ Wire the switch according to the appropriate wiring diagram (2A or 2B or 2C).

Installing the device into the wall box

(for example "16AX 2gang 1way switch")

3

Diagram of an electrical outlet with internal components and wiring, showing connections without any text or symbols.

■ After wiring, fix the device with the two screws attached into the wall box (3).

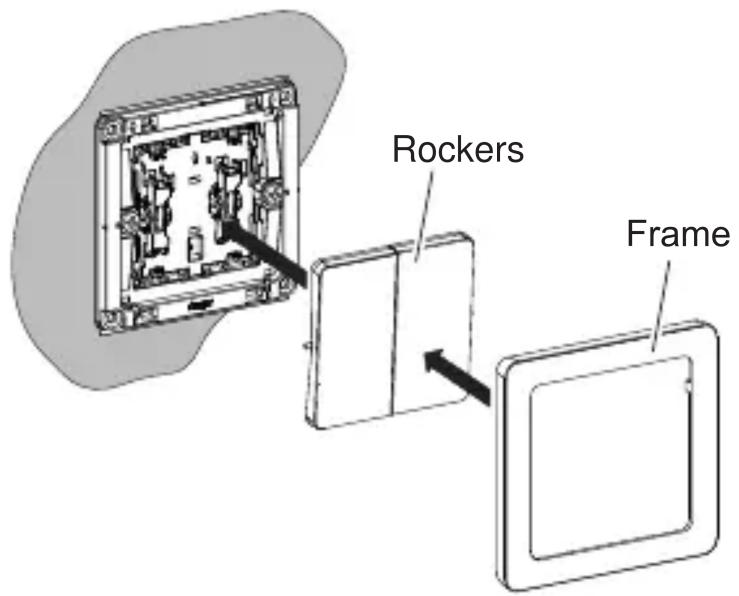

Assembling the rockers and frame

(for example "16AX 2gang 1way switch")

4

- Fix the rockers and frame onto the device (4).

2-5gang frames are available for multiple combinations.
