USER MANUAL FRX3 ETON

with USB Smartphone Charger

C RPM 1234567 VOLUME TUNNING

NEED HELP? CONTACT US.

Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA. 1-800-872-2228 (U.S.); 1-800-637-1648 (Canada); 650-903-3866 (worldwide); M-F, 8:00-4:30, Pacific Standard Time; www.etoncorp.com.

WARNING

Do not expose this appliance to rain or moisture. •

Do not submerge or expose for extended period to water.

Protect from high humidity and rain.

Only operate within specified temperature range • (0 °C to 40 °C).

Unplug immediately if liquid has been spilled or any • object has fallen into the apparatus.

Clean only with a dry cloth. Do not use detergents or chemical solvents as this might damage the finish.

Unplug and disconnect external antennas during • lightning storms.

Do not remove cover [or back].

Refer servicing to qualified service personnel.

ENVIRONMENT

Disposal

According to the European Directive 2002/96/EC all electrical and electronic products must be collected separately by a local collection system.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Please dispose of all types of batteries per your

Government, State or Local rules and/or regulations.

If you are unsure, please call the appropriate local authority to find out how to dispose of them safely and help protect the environment.

FRX3

Thank you for purchasing the Eton FRX3. We want you to thoroughly enjoy the use of this product. To take advantage of its many excellent and unique features, we urge you to carefully read the user's manual.

Top Buttons

ALARM ON/OFF | UP | DOWN | ALERT | SET | CELL 123456 ○ ○ ○ ○ ○

① Alarm ON/OFF Button
② Tune Up Button
③ Tune Down Button

④ Alert Button
⑤ Set Button
⑤ Cell Button

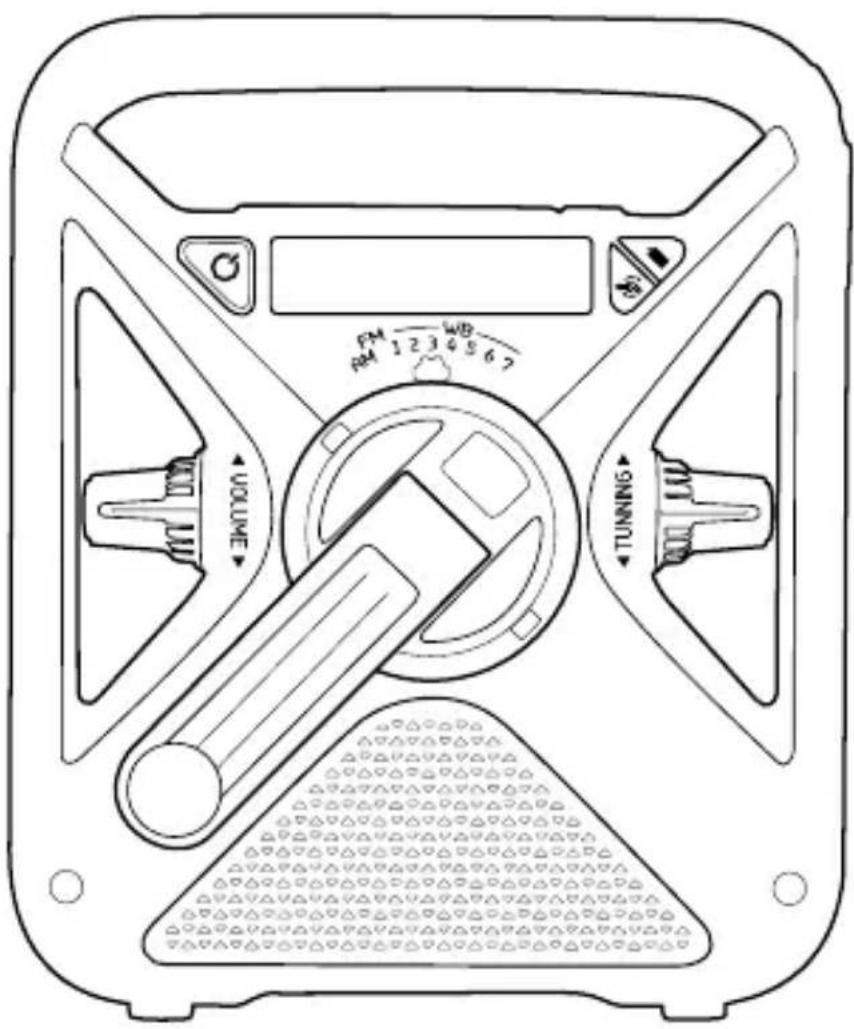

FRX3 Front

⑦ ⑧ ⑨ ⑩ UNIT/1 PPT MP 1 2 3 4 5 6 7 TUNNMS ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

⑦ Power/Standby Button
⑧ AM/FM/WB Selector Dial
⑨ Volume Knob
10 Hand Turbine/Dynamo
⑪ Battery (BATT) Button (AAA batteries)

⑫ Dynamo/Solar (DYN) Button

NOTE: For rechargeable

Ni-MH battery

⑬ Tunning Knob
14 Speaker

Right Side

Top Side 15 16 17 18 19 15 Flashlight and Flashing Beacon Button 16 Flashlight and Beacon 17 Strap Hole 18 Glow in Dark Bezel 19 Solar Panel

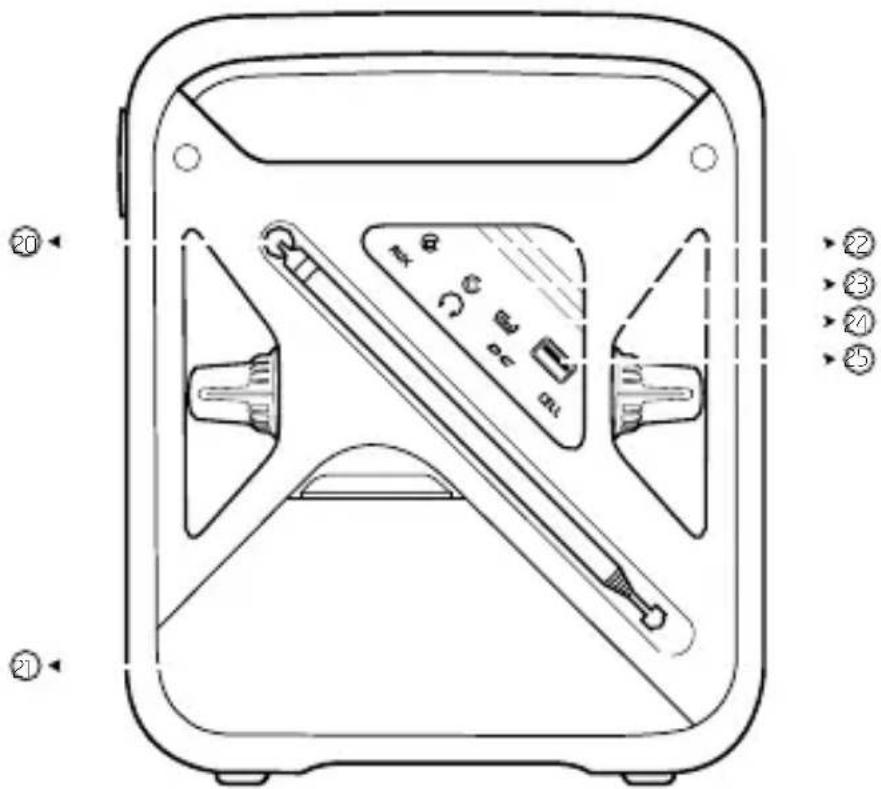

FRX3 Back

Technical diagram of a device with numbered annotations pointing to internal components like buttons, dials, and sensors.

20 Antenna
② Battery Compartment
NOTE: Rechargeable Ni-MH battery and AAA battery slot
22 AUX Port
23 Earphone Port
24 DC-input
25 Cellphone Charge USB Port

TURNING ON THE FRX3

The FRX3 is powered with either the internal rechargeable Ni-MH battery (600mAh, 3.6V), 3 AAA batteries, the hand turbine and solar cell, or USB DC-in (included). Select the power source and press the Power Button < ⏻> to turn radio on.

DYNAMO POWER

(RECHARGEABLE Ni-MH BATTERIES)

The rechargeable Ni-MH (nickel-metal-hydride) battery is in the battery compartment. To use it, plug the battery into the socket adjacent to it, then press the Dynamo Power button < ⚙️>. Turn the dynamo to recharge the internal Ni-MH battery. The rechargeable battery will eventually lose its ability to hold a charge over time. Call Etón Corporation to order another one.

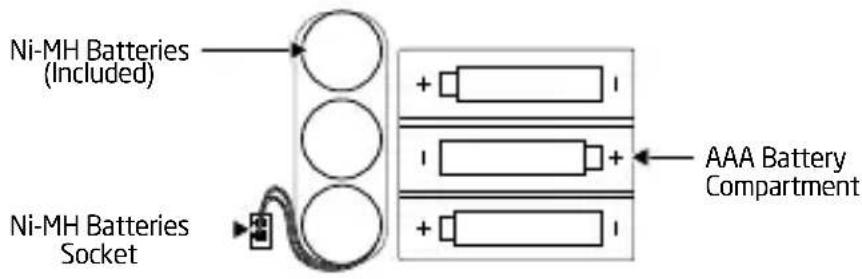

Ni-MH Batteries (Included) Ni-MH Batteries Socket AAA Battery Compartment

NOTE: Before initial use, make sure the rechargeable Ni-MH battery pack (included) is connected to the unit's electric socket. The Ni-MH battery is rated at 3.6V/600mAh.

BATTERY POWER (3 AAA BATTERIES)

Install 3 AAA batteries using the polarity diagram inside the battery compartment (on the back of the radio). To turn on the radio using AAA batteries, press the Battery Power button < ■>.

SOLAR POWER

When in Dynamo Power mode and the solar panels are in direct sunlight (not through a window or in the shade), the Ni-MH rechargeable battery recharges automatically. The LCD power status bar (under DYN) will show the recharging icon < .

USB CABLE POWER

To charge the Ni-MH battery via the USB port (DC-in), make sure the unit is on Dynamo Power option. Plug the USB cable port into the computer, plug the other port into the mini USB jack. The recharge icon < 📄> appears.

ANSWERS TO QUESTIONS REGARDING CHARGING

How much operating time does 90 seconds of hand • cranking provide for the radio to play and for flashlight?

About 5 to 7 minutes of radio, at low volume.

About 20 minutes of flashlight.

How long does it take to fully charge the radio's battery • with the USB adapter?

About 2 hours.

How long will the radio play when the rechargeable • battery is fully charged?

About 3 to 4 hours, at low volume.

How long does it take to fully charge the radio's battery • with the solar panel?

About 10 hrs in direct sunlight (not through a window or in the shade).

CHARGING SMARTPHONES

If your cell phone has a USB charging cord, you can use it. If not, you can purchase one from www.iGo.com, or call 1-888-205-0093. To purchase a charging tip and cord for your cell phone, go to www.iGo.com, or call 1-888-205-0093.

Plug the USB cell phone charging cord into the USB PHONE CHARGER jack (located under the rubber cover on the back of the radio.). Plug the other end of the cord into the cell phone charging tip and then into the jack of the cell phone. Press the CELL button to start dump charge. Charging stops once the internal Ni-MH battery is out of power.

NOTE: When the Ni-MH battery is out of power, the hand turbine may be used to recharge the battery. Disconnect the USB cable (to smartphone) before using the hand turbine. Turn the hand crank at a rate of 2 or more revolutions per second. Continue turning until the desired battery level has been reached. If you decide to stop cranking for whatever reason, please wait at least 5 seconds before beginning to crank again. Not following these instructions may cause damage to your cell phone for which Etón disclaims any liability and will not be held liable for any actual or consequential damages related to this matter.

FLASHLIGHT

Push the flashlight button to turn it ON/OFF.

VOLUME CONTROL

Turn the Volume Adjusting Knob (located on the front left knob) to adjust volume level. Always turn down the volume before using earphones.

TUNNING CONTROL

Turn the tuning knob (located on the front right knob) to change frequencies.

LCD BACKLIGHT

To light the display for about 5 seconds, press the ANY button located in front if the unit.

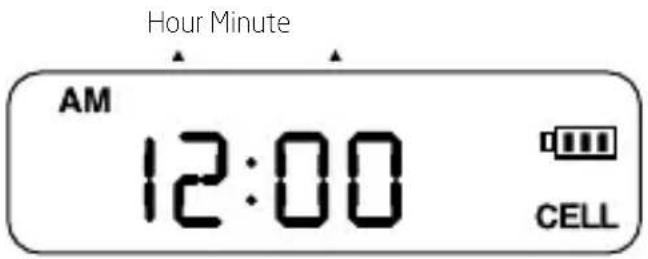

ADJUST CLOCK TIME

1. In the standard mode, press the SET button. The LCD display type will flash.
2. Adjust the time by pressing the UP or DOWN button, then press SET to confirm. Repeat for the minute value.

Hour Minute AM 12:00 CELL

ALARM ON/OFF

Press the alarm button to turn ON/OFF the alarm. The word will appear on the display.

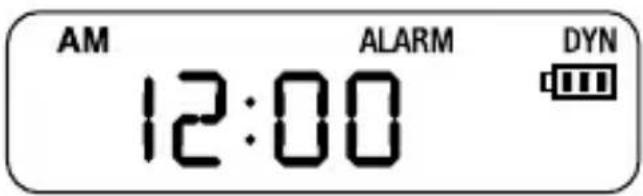

ADJUST ALARM

Make sure is ON, then press SET the button in the alarm model.

AM 12:00 ALARM DYN

Adjust hour of alarm by pressing the UP or DOWN button, then press SET to confirm. Repeat for the minute value.

RECEPTION OF NOAA WEATHERBAND FREQUENCIES

To hear your local weather station, pull up the antenna, turn on the radio and select a channel. Turn up the volume and turn the WB dial to go through all 7 weather channels.

WB 12:00 DYN FM WB AM 1 2 3 4 5 6 7

WB frequency appears on the display. You will only hear one channel, but if you hear a weather broadcast on more than one, select the strongest. The strongest one will usually be your local weather station. Below are the frequencies that correspond to the radio's channels:

WB1; Channel 1 162.400 MHz

WB2; Channel 2 162.425 MHz

WB3; Channel 3 162.450 MHz

WB4; Channel 4 162.475 MHz

WB5; Channel 5 162.500 MHz

WB6; Channel 6 162.525 MHz

WB7; Channel 7 162.550 MHz

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration of your product should be completed as soon as possible after purchase or receipt. You may use one of the following options to register your product:

1. By visiting our website at http://www.etoncorp.com.
2. Mail in enclosed warranty card.
3. Mail your registration card or information to the following address; Include your name, full mailing address, phone number, model purchased, date purchased, retail vendor name and product serial number (typically located in or near the battery compartment):

Etón Corporation

1015 Corporation Way

Palo Alto, CA 94303

LIMITED WARRANTY

Retain the warranty information from your warranty card with your proof of purchase or the Limited Warranty information can also be viewed at www.etoncorp.com.

SERVICE FOR YOUR PRODUCT

To obtain service for your product, we recommend first contacting an Etón service representative at 800-872-2228 US, 800-637-1648 Canada or [phone] for problem determination and trouble-shooting. If further service is required, the technical staff will instruct how to proceed based on whether the radio is still under warranty or needs non-warranty service.

WARRANTY

If your product is still in warranty and the Etón service representative determines that warranty service is needed, a return authorization will be issued and instructions for shipment to an authorized warranty repair facility. Do not ship your radio back without obtaining the return authorization number.

NON-WARRANTY

If your product is no longer under warranty and requires service our technical staff will refer you to the nearest repair facility that will be able to best handle the repair.

For service outside of North America, please refer to the distributor information included at time of purchase/receipt.

Etón Corporation

Corporate Headquarters

1015 Corporation Way

Palo Alto, California 94303 USA

tel [phone]

tel [phone]

fax [phone]

Etón Canada

1 Yonge Street, Suite 1801

Toronto, Ontario M5E 1W7 Canada

tel [phone]

www.etoncorp.com
