USER MANUAL TA 5 FNF PS INDESIT

Technical diagram illustrating the assembly and disassembly of a washing machine, with numbered steps and component views.

Architectural floor plan showing three floors with furniture and fixtures (no text or labels)

No Frost

Diagram of a refrigerator interior showing shelves with an arrow indicating rotation (no text or symbols)

Illustration of a cylindrical can being placed on a surface, with no visible text or symbols.

Balconcino LATTINE

Two 3D mechanical parts: a grid with cylindrical pins and a curved base with cylindrical components (no text or symbols)

Diagram showing a screwdriver inserted into a component with arrows indicating direction (no text or symbols present)

Positioning and connection

Reversible doors

Description of the appliance, 13-14

Control panel

Overall view

Start-up and use, 15-16

Starting the appliance

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 17

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Holiday function

Replacing the light bulb

Precautions and tips, 18

General safety

Disposal

Respecting and conserving the environment

Troubleshooting, 19

Assistance, 20

GB

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

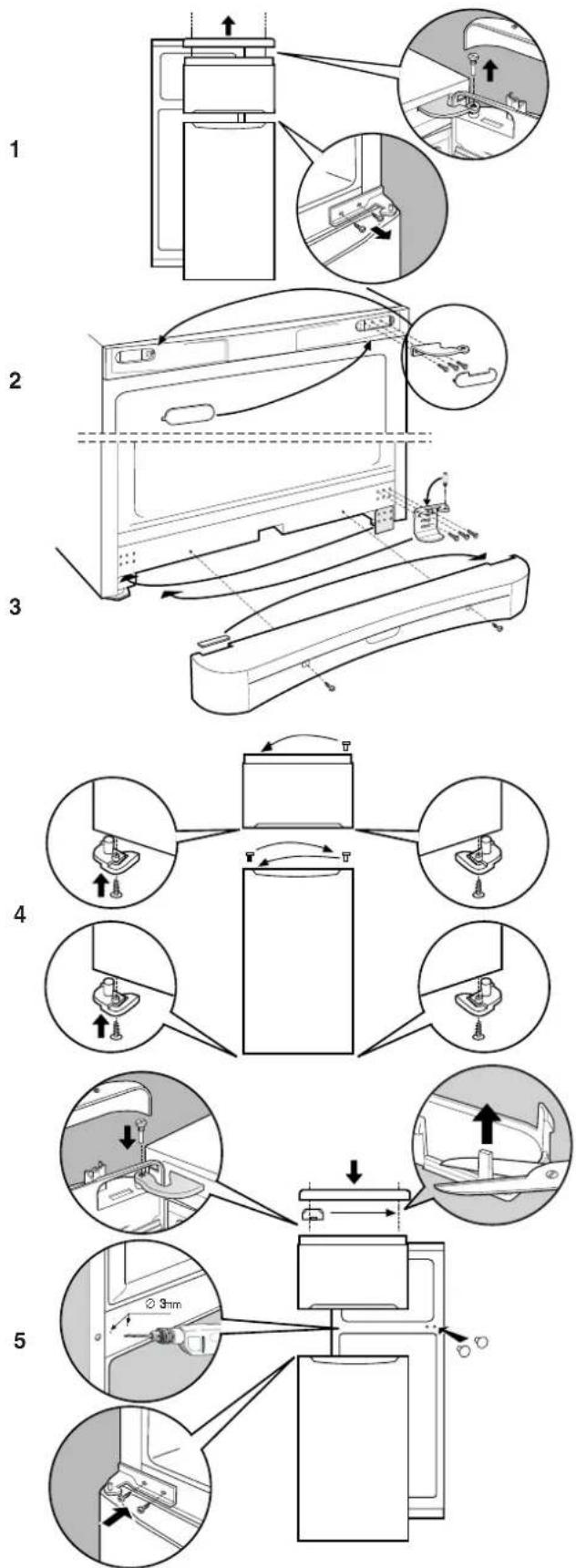

Reversible doors

Technical diagram illustrating the assembly and disassembly of a washing machine, with numbered steps and component views.

Description of the appliance

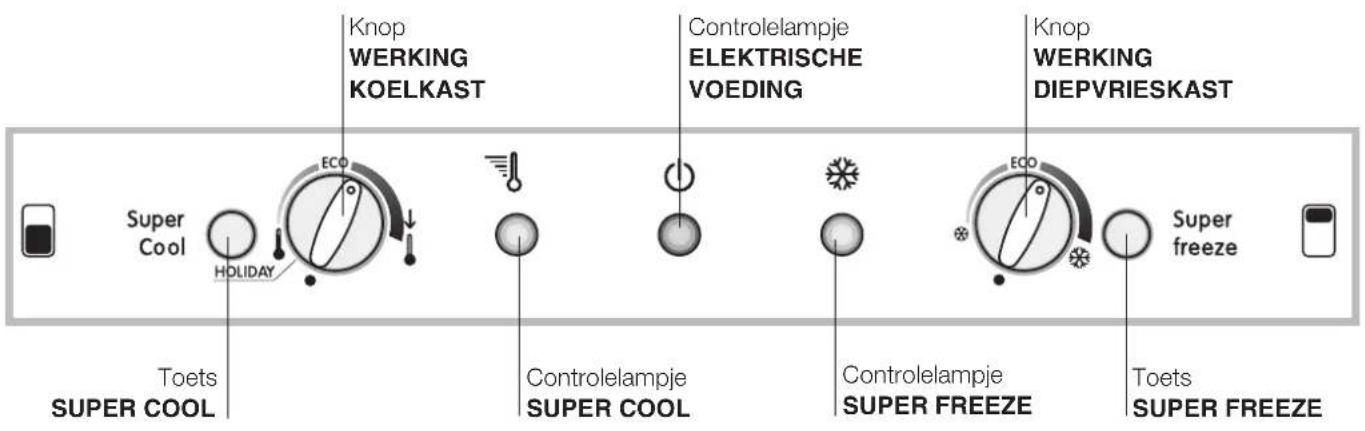

Control panel

REFRIGERATOR OPERATION Knob POWER Indicator light FREEZER OPERATION Knob Super Cool ECO HOLIDAY SUPER COOL Button SUPER COOL Indicator light SUPER FREEZE Indicator light SUPER FREEZE Button

• SUPER COOL (quick cool) to lower the temperature of the refrigerator compartment rapidly. When it is pressed, the SUPER COOL indicator light illuminates (see Start-up and use).
  • REFRIGERATOR OPERATION Knob to regulate the temperature of the refrigerator compartment:

ECO is the optimal temperature for energy saving levels. HOLIDAY is the holiday function (see Maintenance and care).

● switches the refrigerator compartment off.

• SUPER COOL Yellow indicator light (rapid cooling) illuminates when the SUPER COOL button is pressed.

• POWER Indicator light illuminates when the appliance is connected to the electricity network.

• SUPER FREEZE Yellow indicator light (rapid freezing) illuminates when the SUPER FREEZE button is pressed.

• FREEZER OPERATION Knob to regulate the temperature of the freezer compartment:

* warmer.

colder.

ECO is the optimal temperature for energy saving levels. ● switches the appliance off, including the refrigerator.

SUPER FREEZE button (rapid freezing) to freeze fresh food. When it is pressed, the SUPER FREEZE indicator light illuminates (see Start-up and use).

! The indicator lights are also used to indicate an unusual temperature increase in the freezer compartment (see Troubleshooting).

Description of the appliance

GB

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

Control panel FREEZER and STORAGE compartment COOL BOX Compartment LAMP (see Maintenance) SHELVES FRUIT and VEGETABLE bin Levelling FEET Removable multipurpose SHELVES• Removable lidded shelf with EGG TRAY BEVERAGE CAN shelves• Removable multipurpose SHELVES• BOTTLE shelf

• Varies by number and/or position.

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.
! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Set the FREEZER OPERATION knob on ●.
2. Insert the plug into the socket and ensure that the green POWER indicator light illuminates.
3. Turn the FREEZER OPERATION knob to an average value and press the SUPER FREEZE button (rapid freezing): the SUPER FREEZE indicator light will illuminate. Once the refrigerator has reached the optimal temperature, the indicator light goes out and you can begin food storage.
4. Turn the REFRIGERATOR OPERATION knob to an average value. After a few hours you will be able to put food in the refrigerator.

Using the refrigerator to its full potential

Chiller system

Architectural floor plan showing three floors with furniture and storage compartments (no text or labels)

No Frost

The No Frost system circulates cold air continuously to collect humidity and prevent ice and frost formation. The system maintains an optimal humidity level in the compartment, preserving the original quality of the food, preventing the food

from sticking together and making defrosting a thing of the past. Do not block the aeration cells by placing food or containers in direct contact with the refrigerating back panel. Close bottles and wrap food tightly.

• Use the REFRIGERATOR OPERATION knob to adjust the temperature (see Description).
• Press the SUPER COOL button (rapid cooling) to lower the temperature quickly. For example, when you place a large number of new food items inside a fridge the internal temperature will rise slightly. The function quickly cools the groceries by temporarily reducing the temperature until it reaches the ideal level.
• Place only cold or lukewarm foods in the compartment, not hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers. They will increase humidity in the refrigerator and cause condensation to form.

1 2

SHELVES: with or without grill. Due to the special guides the shelves are removable and the height is adjustable (see diagram), allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

Diagram of a refrigerator interior showing shelves with an arrow indicating rotation (no text or symbols)

COOL BOX: for fresh meat and fish. Due to the compartment's low temperature (the coldest in the refrigerator) and to the clear door that provides protection against oxidation and blackening, food can be stored for even up to one week. It can also be used for "cold meals."

Illustration of a cylindrical object being placed on a surface, possibly a device or container (no text or symbols visible)

BEVERAGE CAN shelves.

The can rack on the inner door allows you to store not only cans, but also yoghurt, butter and other containers, according to your requirements.

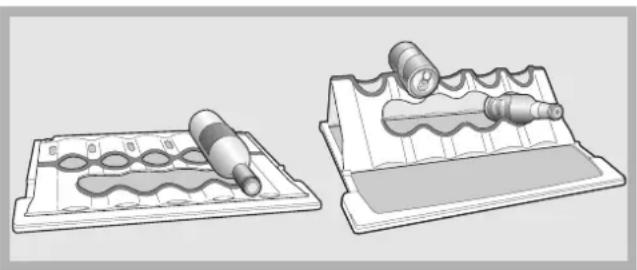

PLAY ZONE: Thanks to the new "Play Zone" bottle rack, you can cool several bottles, cans and energy drinks quickly to have them constantly at hand.

Two technical illustrations of mechanical components, one with a cylindrical rod and circular holes, the other with a cylindrical rod inserted into a wavy base (no text or symbols)

If the “Play Zone” is placed on the glass shelf, you can store large and medium sized bottles on it simply by laying the bottle on the flat rack. This is ideal for storing wine bottles. When folded and secured in place on either side of the shelf, the rack can be used to store cans (at the top), energy drinks (in the centre) and other cans and energy drinks can be rested horizontally on the remaining part of the shelf. When placing cans (onto the Play zone rack), make sure they do not touch the back of the refrigerator interior.

The “Play Zone” can be used just like a normal shelf (when placed flat) and moved up or down along the fridge walls together with the rest of the shelf. It can be washed easily, and is also dishwasher safe. The ideal position for the Play zone rack is the central shelf.

Using the freezer to its full potential

• Use the FREEZER OPERATION knob to adjust the temperature (see Description).
• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4).
• To freeze foods in safely and correctly, follow the instructions below.
• For a small quantity (less than half of the maximum amount shown on the data plate), place the food making sure that it does not come into contact with any food that has already been frozen; press the rapid-freezing SUPER FREEZE button (the corresponding LED lights up) and close the door. The function deactivates automatically after 24 hours or when the inside of the

compartment has reached the optimal temperature (the LED switches off).

- For a large quantity (more than half of the maximum amount shown on the data plate), hold down the SUPER FREEZE button for a few seconds until the corresponding LED begins to flash. After approximately 24 hours the freezer will have reached the optimal food freezing temperature. Once this time has elapsed the LED remains lit constantly: place the food inside the freezer and close the door. After 24 hours the food will have been frozen properly and the function will be deactivated automatically (the LED switches off).

! to avoid blocking the air circulation inside the freezer compartment, it is advisable not to obstruct the ventilation holes with food or containers.

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 - 14 hours.

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on ●

2. pull the plug out of the socket

! If this procedure is not followed, the alarm may sound. This alarm does not indicate a malfunction. To restore normal operation bring the FREEZER OPERATION knob setting to ● (off) and turn the appliance on again. To disconnect the appliance, follow point 1 and 2.

Cleaning the appliance

• The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia.
• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Holiday function

To minimise energy usage when on holiday, it is not necessary to switch the appliance off. The appliance has a function which allows it to maintain the temperature of the refrigerator compartment at approximately 15^ C (which can also be used to conserve make-up and beauty products). The freezer temperature must be set to the minimum value in order to preserve the food.

ECO HOLIDAY

To enable the function: set the REFRIGERATOR OPERATION knob on HOLIDAY (see diagram). A double acoustic signal informs you when it has been enabled. A single acoustic signal informs you when it has been disabled.

Replacing the light bulb

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below.

Access the light bulb by removing the cover as indicated in the diagram.

Replace it with a similar light bulb within the power range indicated on the cover (10 W).

Illustration of a screwdriver inserted into a component, showing two arrows indicating direction (no text or symbols present)

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

CE This appliance complies with the following Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; -2002/96/CE.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the temperature adjustment knobs on ● (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use utensils other than the scraper provided, or electrical equipment which is not of the type specified by the manufacturer, inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
  Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.
• Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance).

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

Malfunctions:

Possible causes / Solutions:

The green POWER indicator light does not illuminate.

- The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

The motor does not start.

- The appliance comes with a motor protection control (see Start-up and use).

The indicator lights are on but the light is dim.

- Pull out and reverse the plug before putting it back in the socket.

a) The alarm sounds.

b) The alarm sounds and the two yellow indicator lights flash. c) The alarm sounds and the two yellow indicator lights as well as the green one flash.

a) The refrigerator door has remained open for more than two minutes (the buzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed (see Maintenance).

b) The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.

c) The temperature in the freezer has reached a dangerous level. The food must be disposed immediately.

	Heating is excessive
+ buzzer
	Heating danger
+ buzzer

b/c) In the first case the freezer will maintain a temperature of about 0^ C so that the food does not re-freeze. In the second case, however, the temperature will remain at approximately 0^ C. To turn off the acoustic signal open and close the refrigerator door. To restore normal operation bring the FREEZER OPERATION knob setting to ● (off) and turn the appliance on again.

The green POWER indicator light flashes.

- The appliance is not operating correctly. Contact the Technical Assistance Centre.

The refrigerator and the freezer do not cool well.

- The doors do not close properly or the seals are damaged.

- The doors are opened too frequently.

- The OPERATION knobs are not on the correct setting (see Description).

- The refrigerator or the freezer have been over-filled.

The food inside the refrigerator is beginning to freeze.

- The REFRIGERATOR OPERATION knob is not on the correct setting (see Description).

- The food is in contact with the back inside wall of the refrigerator.

The motor runs continuously.

- The SUPER FREEZE button has been pressed (rapid freezing): the yellow SUPER FREEZE light is on (see Description).

- The door is not closed properly or is continuously opened.

- The outside ambient temperature is very high.

The appliance makes a lot of noise.

- The appliance has not been installed on a level surface (see Installation).

- The appliance has been installed between cabinets that vibrate and make noise.

- The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

Some of the external parts of the refrigerator become hot

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

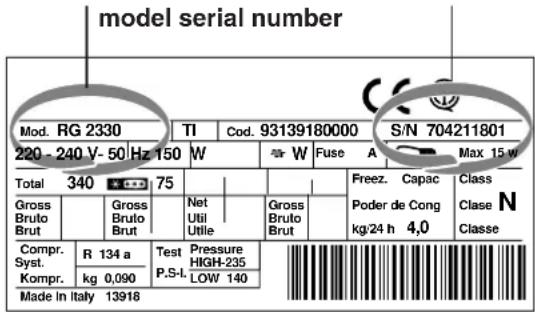

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

model serial number Mod. RG 2330 TI Cod. 93139180000 S/N 704211801 220 - 240 V- 50 Hz 150 W W Fuse A Max 15 w Total 340 75 Gross Bruto Brut Gross Bruto Brut Net Util Utile Gross Bruto Brut Freez. Capac Poder de Cong kg/24 h 4,0 Class N Classe Compr. R 134 a Test Pressure HIGH-235 P.S.L LOW 140 Syst. Kompr. kg 0,090 Made in Italy 13916

Never call on unauthorized technicians and always refuse spare parts which are not originals.

Italiano, 1

English,11

Français, 21

Deutsch, 31

Nederlands, 41

Espanol, 51

Portuges, 61

TA 5 FNF P TA 5 FNF PS

Sommaire

Installation, 22

Technical diagram illustrating five-step cleaning and assembly process for a washing machine, with labeled steps and component views.

Tableau de bord

Bouton FONCTIONNEMENT REFRIGERATEUR Voyant ALIMENTATION Bouton FONCTIONNEMENT CONGELATEUR Super Cool ECO HOLIDAY Touche SUPER COOL Voyant SUPER COOL Voyant SUPER FREEZE Touche SUPER FREEZE Super freeze

Architectural floor plan showing three floors with furniture and fixtures (no text or labels)

No Frost

Diagram of a refrigerator interior showing shelves with arrows indicating movement (no text or symbols)

COOL BOX

Illustration of a cylindrical can being placed on a surface, with no visible text or symbols.

Balconnet PORTE-CANETTES

Two technical illustrations of mechanical components: a cylindrical roller and a wavy base with cylindrical pins (no text or symbols)

Diagram showing a screwdriver inserted into a panel with arrows indicating direction (no text or symbols present)

Technical diagram illustrating five-step cleaning and assembly process for a washing machine, with numbered steps and component views.

Bedienblende

DE

Schalter KÜHLZONE Kontrollleuchte STROMVERSORGUNG Schalter GEFRIERZONE Super Cool HOLIDAY ECO Kontrollleuchte SUPER COOL Kontrollleuchte SUPER FREEZE Taste SUPER COOL Super freeze Taste SUPER FREEZE

Architectural floor plan showing room layouts and furniture layout (no text or labels)

Diagram of a refrigerator interior showing shelves with an arrow indicating rotation (no text or symbols)

Illustration of a cylindrical can being handled by a tray, no text or symbols visible

Two 3D mechanical components with circular holes and cylindrical parts, no visible text or symbols

Diagram showing a hand using a screwdriver to adjust or install a component, with arrows indicating direction (no text or symbols present)

Technical diagram illustrating the assembly and disassembly of a refrigerator with labeled steps and component views.

Bedieningspaneel

NL

Knop WERKING KOELKAST Controlelampje ELEKTRISCHE VOEDING Knop WERKING DIEPVRIESKAST Super Cool HOLIDAY Eco Toets SUPER COOL Controlelampje SUPER COOL Controlelampje SUPER FREEZE Eco Super freeze Toets SUPER FREEZE

Architectural floor plan showing three floors with furniture and storage compartments (no text or labels)

No Frost

Diagram of a refrigerator interior showing shelves with an arrow indicating rotation (no text or symbols)

Illustration of a can being placed on a surface, showing mechanical components and a door (no text or symbols)

Two 3D mechanical components with cylindrical and threaded parts, no visible text or symbols

Diagram showing a hand using a screwdriver to press down a component, with arrows indicating direction (no text or symbols present)

Architectural floor plan showing room layouts and furniture layout (no text or labels)

No Frost

Diagram of a mechanical or architectural component with layered horizontal shelves and a curved arrow indicating rotation (no text or symbols)

Illustration of a cylindrical can being placed on a surface, with no visible text or symbols

Balconcillo porta-latas

Two 3D mechanical components: a cylindrical tool on a tray and a cylindrical tool inserted into a wavy base (no text or symbols visible)

Diagram showing a screwdriver inserted into a component with arrows indicating direction (no text or symbols present)

+ buzzer Heating is excessive + buzzer Heating danger

Technical diagram illustrating five-step cleaning and assembly process for a refrigerator, with labeled steps and component views.

Architectural floor plan showing room layouts and staircases (no text or labels)

No Frost

Diagram of a mechanical or architectural component with layered structure and directional arrow (no text or symbols)

Illustration of a cylindrical can being inserted into a device (no text or symbols visible)

Illustration of two mechanical components: a rolling pin and a cylindrical roller inside a tray (no text or symbols)

Diagram showing a screwdriver inserted into a panel with arrows indicating direction (no text or symbols present)
