Product type	Induction cooktop
Brand	Unold
Model	58205
Maximum power	1200 W
Power levels	300 / 600 / 800 / 1000 / 1200 W
Temperature range	60 / 80 / 160 / 180 / 200 °C
Plate diameter	16 cm
Compatible pan diameter	12 to 16 cm
Weight	Approximately 1.50 kg
Cable length	Approximately 180 cm
Housing material	Plastic
Plate material	Shatterproof heat-resistant glass
Power supply	220-240 V ~, 50/60 Hz
Safety functions	Overheating protection, automatic shut-off after 2 hours, automatic detection of suitable pans
Cleaning and maintenance	Wipe with a damp cloth; do not immerse; use a ceramic glass cleaner if necessary
Warranty	24 months (domestic use), 12 months (professional use)
Included accessories	Instruction manual

Frequently Asked Questions - 58205 UNOLD

What types of pans can I use on the Unold 58205 cooktop?

Use pans suitable for induction: stainless steel with a ferromagnetic bottom, cast iron or enameled iron. Check with a magnet: if it sticks to the bottom, the pan is compatible. Avoid aluminum, copper, glass, ceramic, and some chrome-nickel steels.

How to clean the cooktop?

Unplug and let it cool. Wipe the surface and exterior with a damp cloth. Do not use abrasive or corrosive products. For stubborn stains, a special ceramic glass cleaner is recommended. Never immerse the appliance in water.

What are the different power and temperature settings?

Five power levels: 300, 600, 800, 1000 and 1200 W. Five temperature levels: 60, 80, 160, 180 and 200 °C. You can switch between Watt and °C modes using the corresponding button.

How to set the power or temperature?

Press the ON/OFF button to turn on the appliance. Use the Watt/°C button to select the mode. Adjust with the ▲ or ▼ buttons. The default setting is 800 W or 160 °C.

What are the safety functions of the appliance?

The appliance has overvoltage and overheating protection, automatic shut-off after 2 hours of inactivity, and automatic detection of suitable pans. If a metal object smaller than 8 cm is placed, the appliance does not turn on.

Since it shuts off automatically, how long can I cook continuously?

The appliance turns off after 2 hours of continuous operation. It is recommended not to exceed 4 consecutive hours; after this time, let it cool for 30 minutes before using again.

Why is my indicator flashing and a beeping sound heard?

This may indicate that the pan is not suitable, too small (<12 cm), or no pan is detected. Place a compatible pan in the center of the cooktop. If the problem persists, check that the bottom is not damaged.

Can I use stainless steel pans with a diameter smaller than 12 cm?

No, the minimum recommended diameter is 12 cm. Pans smaller than 12 cm may not be detected and the appliance will not heat.

How to maintain the ventilation slots?

Unplug the appliance. Clean the ventilation slots from time to time with a soft brush to remove dust. Ensure the slots remain clear during use.

Where can I find spare parts or get the appliance repaired?

For any repairs, contact Unold customer service. Do not open the appliance yourself. If the cable or glass plate is damaged, send the appliance to an authorized after-sales service.

USER MANUAL 58205 UNOLD

COMPACT INDUCTION HOTPLATE

User Manual

Instructions for use Model 58205

Technical Specifications.... 14

Explanation of symbols.... 14

For your safety....14

Control panel....16

Getting Started....17

Operation of the induction hot plate 17

Explanation of functions.... 17

Cooking utensil selection 18

Functioning.... 18

Safety functions 18

Cleaning and maintenance 19

Guarantee conditions 19

Waste Disposal / Environmental Protection 19

Service 13

E-Mail [e-mail]

SWITZERLAND

MENAGROS SA

Route der Servion

CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLAND

„Quadra-net“ Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

CZECH REPUBLIC

befree.cz s.r.o.

Škroupova 150

537 01 Chrudim

Phone [phone]

Power: 1,200 Watts, 220–240 V~, 50–60 Hz

Size: Approx. 25.0 x 19.0 x 5.9 cm (W/D/H)

Weight: Approx. 1.50 kg

Power cord length: Approx. 180 cm

Housing: Plastic

Plate: Heat-resistant, unbreakable glass

Features: 5 power settings from 300-1,200 watts

(300/600/800/1,000/1,200 W), 5 temperature settings from 60–200 °C (60/80/160/180/200 °C), 16 cm burner for pots with a bottom diameter up to 16 cm, automatic detection of suitable pots, overheating protection, automatic adaptation to current fluctuations, automatic shut-off after about two hours

Accessories: Instruction manual

Equipment features, technology, colours and design are subject to change without notice.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol denotes a possible risk of scalding. Please always be particularly vigilant here.

FOR YOUR SAFETY

General safety information

1. Please read the following instructions and keep them on hand for later reference.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.
2. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.
5. Do not operate this appliance with an external timer or remote control system.
6. Persons with pacemakers, especially older models, should consult their doctor before using the appliance, as the function of the pacemaker could be impaired.
7. Connect the appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.
8. Do not immerse the appliance in water or other liquids. Protect the appliance from moisture.
9. Before heating, unwrap the power cord completely so that it does not come into contact with hot parts of the appliance.
10. The appliance is intended for household use only, or for similar areas of use, such as:

■ kitchenettes in businesses, offices or other workplaces,

■ agricultural enterprises,

■ for use by guests in hotels, motels or other lodgings,

■ in private guesthouses or holiday homes.

1. Check the plug and the power cord regularly for wear or damage. In case of damage to the power

cord, glass cooktop or other parts, please send the appliance for inspection and/or repair to our customer service department.

1. Unauthorized repairs can result in serious risks to the user and will void the warranty.
2. If the power cord of this appliance is damaged, it must be replaced by the manufacturer or his after sales service department or person with similar qualifications, to prevent hazards.

Setting up the appliance

1. Place the appliance on a solid, level and dry surface. For safety reasons, never place the appliance on hot surfaces, metal surfaces or surfaces covered with textiles.
2. Maintain sufficient distance to objects which react to magnetic forces, e.g. bank cards, radios, televisions, video cassettes, etc.
3. Do not use the appliance outdoors.
4. During operation, leave sufficient space between the appliance and walls and other flammable objects such as curtains.
5. Do not operate the appliance in the vicinity of heat sources.
6. Installation of the appliance in a worktop is not permitted.

Operating the appliance

1. Use only pots and pans which are suitable for induction cooking.
2. The appliance heats very quickly. Heating empty pots can damage the appliance and the pots themselves.
3. Switch the appliance on only if a pot with contents is on the burner. Do not overfill pots, to prevent boiling over.
4. If something ever boils over, first switch off the appliance and then unplug it from the electrical outlet. Clean the appliance carefully and let it dry thoroughly.
5. Do not leave any metal objects such as knives or forks on the burner, since they could become hot when the appliance is switched on.
6. Do not heat closed metal cans; they could explode.
7. Make sure that the ventilation slots in the appliance are unobstructed at all times.
8. Do not insert pointed objects such as needles into the ventilation slots. This can result in electric shock.
9. Do not move the appliance while it is in operation. Before moving the appliance, switch it off and remove any pots or pans.
10. Do not allow objects to fall onto the glass cooktop – danger of breakage! If the glass cooktop is cracked or otherwise damaged, do not continue to use the appliance; it must be sent in to our after sales service department for repair.
11. The appliance should not be operated for more than 4 hours continuously. If used longer than this, switch it off for at least 30 minutes in between.
12. Do not drag pots across the control and display panel, since it could become damaged.
13. Do not place any objects such as foils, etc. between the pot and the burner.
14. Do not place any hot pots or pans on the control panel.
15. After use, before moving the appliance and before cleaning, always switch off the appliance and let it cool, after unplugging the power cord from the electrical outlet.

Never open the casing of the appliance to prevent electric shock.

Important: The glass cooktop can become hot from the heat radiated from pots or pans. Do not touch the glass cooktop immediately after cooking, to prevent burns.

The manufacturer does not assume any warranty in case of improper or incorrect use or after repair by unauthorized third parties.

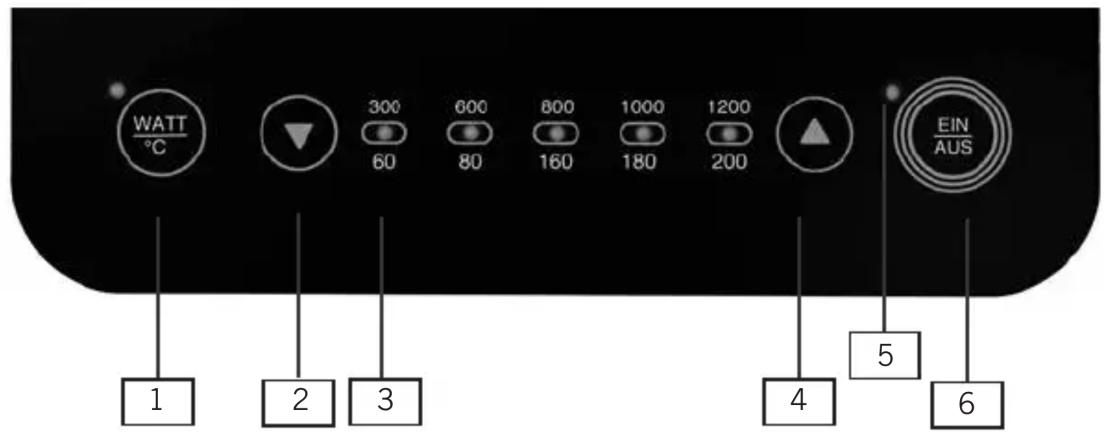

CONTROL PANEL

1 Watts: Power setting indicator lamp °C: Temperature setting indicator lamp

2 ▼ button

3 Watt/°C display 4 ▲ button 5 ON/OFF indicator lamp 6 ON/OFF button

GETTING STARTED

1. Remove all packaging material.
2. Clean the appliance with a damp cloth.
3. Place the appliance on an even, firm and dry surface with sufficient space on all sides.
4. Connect the plug to a wall socket.

OPERATION OF THE INDUCTION HOT PLATE

1. Plug the power cord into an electrical outlet.
2. A short signal tone will sound. The indicator lamp in the ON/OFF button blinks.
3. Press the ON/OFF button to switch the appliance on.
4. The Watt/°C button blinks to indicate that the appliance is ready for operation.
5. You can control the appliance either by the power output or the temperature. Press the Watt/°C button to switch between the two modes. The power and temperature setting can be changed at any time during cooking by pressing the ▼/▲ button. The basic setting for "Watt" is 800 watts, and for "°C" it is 160 °C.
6. Select the mode by pressing the Watt/°C button. The indicator lamp for the selected setting lights up.
7. Now select the power in watts or temperature in °C by means of the ▼/▲ buttons.
8. The following settings are possible: Watts: 300, 600, 800, 1,000 and 1,200 watts °C: 60, 80, 160, 180, 200 °C.
9. The appliance can be switched off at any time during cooking by pressing the ON/OFF button.
10. The selected settings are not saved in case of a power outage, for example.
11. The fan continues to run for about 60 seconds after the appliance is switched off.
12. After two hours at the latest the appliance automatically switches off.
13. After use, unplug the power cord from the electrical outlet to save energy.

EXPLANATION OF FUNCTIONS

Watt function

The following power levels are available:

300 W Keep warm, steep

600 W Cook gently

800 W Cook gently

1,000 W Cook and roast gently

1,200 W Brown and gently

The values stated here are approximate and can vary slightly depending on the material and size of the pots and pans used.

°C function

The following temperature levels are available:

60 °C Keep warm, 80 °C Cook gently, 160 °C Roast gently, 180 °C Roast/brown, 200 °C Grill

COOKING UTENSIL SELECTION

1. Only use cooking utensils that are approved for induction cooking.
2. Useable pans are: stainless steel saucepans with ferromagnetic bottom, cast iron pans and saucepans, enamelled iron saucepans and pans.
3. You can check with a magnet if your saucepans are useable for induction cooking. Whenever the magnet adheres to the bottom outside, the saucepan can be used on the induction cooker.
4. Not useable are saucepans and pans made of aluminium, copper, glass, ceramic and some chrome nickel alloys.
5. The diameter of the saucepans should be min. 12 cm and max. 16 cm.
6. Attention: Adapt the power or temperature setting to the used saucepans.

When using small saucepans you can already cook with 180 °C or 1,200 watts. A too high setting in combination with small saucepans can cause damages to the appliance.

1. The non-stick coating of coated saucepans and frying pans can be damaged if used with too strong heating. Please follow the information of the saucepan manufacturer with regard to the application of the pots. Choose in case of doubt a lower power setting or temperature to avoid damages.
2. Put the saucepan always precisely in the middle of the cooking field to avoid error messages and automatic switching off.

FUNCTIONING

Cooking on an induction cooker saves up to 50% of electric power. The cooking time is reduced by up to 30%.

When cooking on an induction cooker, not the hotplate is heated, but the saucepan on it, provided that the bottom is ferromagnetic. The heating is effected by a magnetic alternating field below the hotplate.

The advantages of induction cooking are:

■ Short reaction time, short preheating time, quick and exact heating.

■ Rapid heating, since the full amount of energy is immediately available. ■ Cool hotplate, which is only heated by the heat reflected from the saucepan. ■ Great energy saving of up to 50%. ■ Easy cleaning, as food cannot burn in case of boiling over. ■ High safety: as soon as the saucepan is taken away from the plate, the heat supply is stopped automatically.

SAFETY FUNCTIONS

1. Overvoltage / low voltage protection

When power voltage is too high or too low, the induction cooker will compensate the voltage automatically and will adjust the output power.

2. Overheating protection

When the temperature of the hotplate is too high, the induction cooker will stop automatically and a long buzzer sound will be heard

to alert you until the temperature returns to normal.

3. Small metal part protection

If small iron metal parts with a diameter of less than 80 mm are detected on the hotplate, the appliance cannot be switched on.

4. Suitable pans

The appliance detects automatically if the used saucepan is suitable for induction cooking or not.

If the saucepan is not suitable, a buzzer sound will be heard to alert you until an appropriate saucepan is put on the hotplate.

CLEANING AND MAINTENANCE

Unplug the appliance and let it cool down before cleaning it.

1. Do not immerse the appliance into water or any other liquid for cleaning.
2. Wipe the surface and the housing with a damp cloth.
3. Do not use any strong or abrasive cleansers or sponges.
4. Do not pour water or any other liquid on the hotplate.
5. If necessary you can use a cleanser or scraper for ceran glass cookers.
6. Please clean the ventilation slots regularly with a soft brush to prevent dust deposits.
7. The cooking plate must be completely dry before using it again.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

USER MANUAL MODEL 58205

TECHNICAL SPECIFICATION

Power: 1,200 Watts, 220–240 V~, 50–60 Hz

Dimensions (W/D/H) Approx. 25.0 x 19.0 x 5.9 cm

WARRANTY CONDITIONS

Dimensions: Approx. 25.0 x 19.0 x 5.9 cm

Weight: Approx. 1.50 kg
