USER MANUAL 43-Compact E SABO

SABO 43-COMPACT SABO 43-COMPACT E

Top-down view of a lawn mower with visible exhaust pipe and control panel (no text or symbols)

Rasenmäher

Betriebsanleitung

DE

Tondeuse à gazon

Livret d'entretien

FR

Lawnmower

Operator's manual

GB

Grasmaaier

Empty rectangular frame with corner brackets (no text or symbols)

Deutsch

When you are reading the operator's manual, please unfold the front and back page.

Nederlands

Original Instruction

Nederlands NL

A1 E1
B1 D
L1 R1
S1 I
V1 U1
R4 X1

GB Explanation of the pictograms

GB Beware of hot surfaces - do not touch the engine and exhaust. Risk of burns!

GB Exhaust fumes are toxic - do not have the engine running in closed rooms. Risk of poisoning!

GB Petrol is highly inflammable - keep away from sparks and open flame, do not smoke. Fire hazard!

W1 Y1
P4 E
F M
U2 J
K L
O N
Q S
W Y

Original-Ersatzteile und Zubehör	Pièces détachées originales	Original spare parts	Originele onderdelen	Оригинальные запчасти и комплектующие
Motoröl	Huile à moteur	Motor oil	Motorolie	Моторное масло
SA24208
Zündkerze	Bougie d'allumage	Spark plug	Bougie	Свеча зажигания
SA16815
Luftfiltereinsatz	Cartouche de filtre à air	Air filter insert	Luchtfilterelement	Патрон воздушного фильтра
SA26547
Umrüstsatz auf Mulchsystem	Kit pour transformation de la tondeuse pour l'épandage	Kit for converting the mower for mulching	Set voor verbouwen van de maaimachine om te mulchen	Набор для мульчирования
SA571

SABO

Four grayscale icons showing different car and vehicle behaviors, no text or symbols present.

A John Deere Company

Auf dem Höchsten 22

D-51645 Gummersbach

Tel. [phone]

Exterior view of a modern multi-story building with curved facade and glass windows (no signage or text visible)

SABO VERTRAGSPARTNER GEMEINSCHAFT SVG QUALITÄT VERBINDET

CERTIFIED IQNet MANAGEMENT SYSTEM Omnidimensionnment ISO 900T

Five black-and-white icons representing different physical and safety symbols: open book, triangular warning sign, pictogram, person with cross, and cartoon character.

1 Explanation of the rating plate affixed to the machine .2

2 Introduction....2

3 Explanation of the symbols....3

4 Proper use ....4

5 General Safety Guidelines for the hand-held rotary lawnmower (petrol) 4

General safety instructions....4

Preparatory measures....4

Handling....5

Maintenance and storage 7

6 Description of components....8

7 Preparation 8

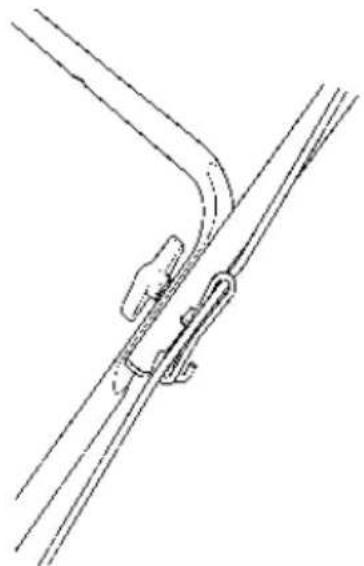

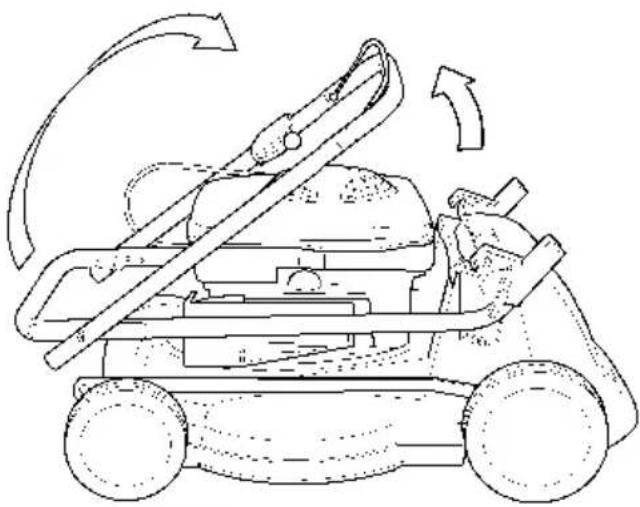

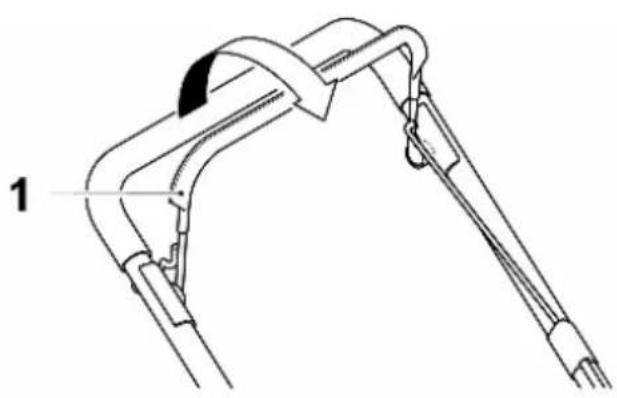

Opening out the handle (Illustration A1 + E1 + B1)....8

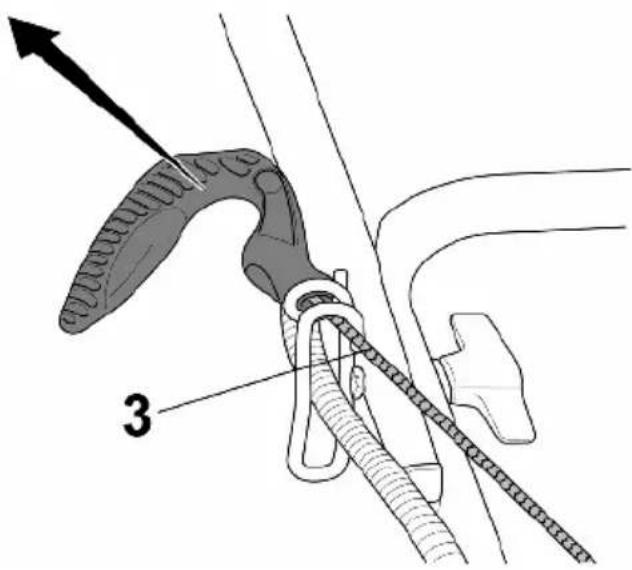

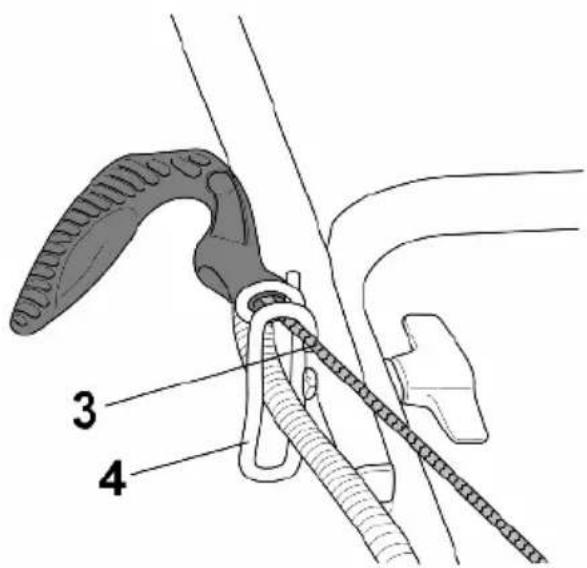

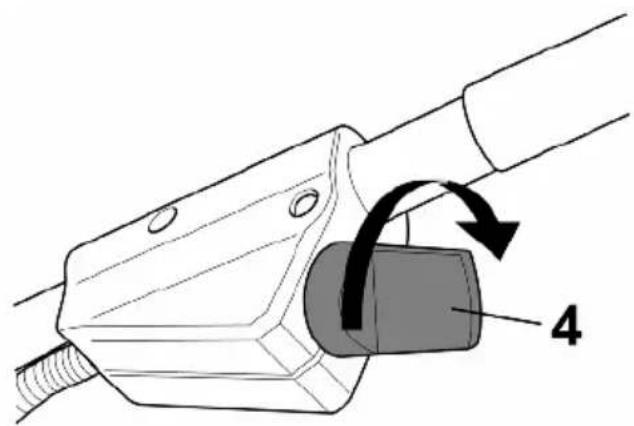

Handle starter assembly (Illustration D + L1)......8

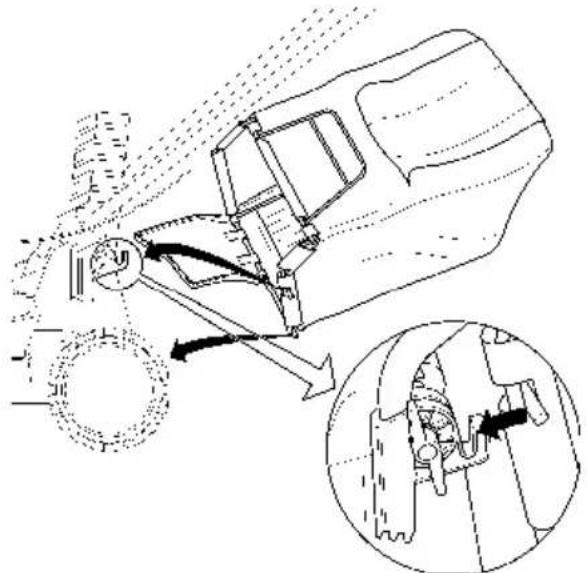

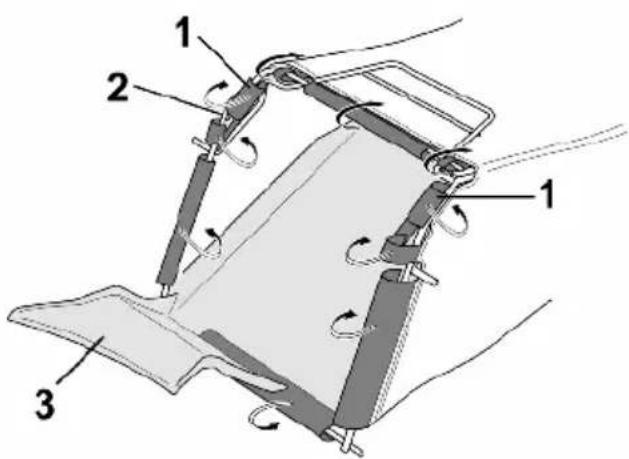

Attaching the grass collector to the mower (Illustration R1 + S1)....9

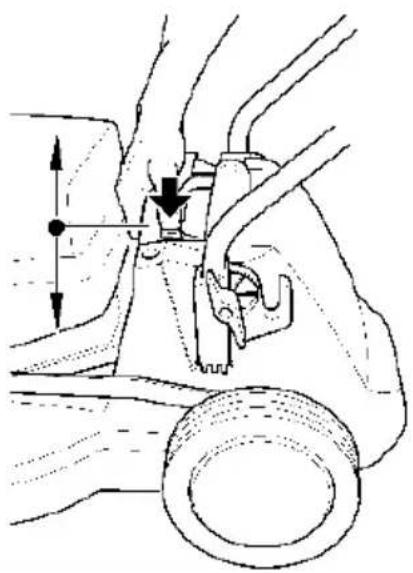

Adjusting the cutting height (Illustration I) 9

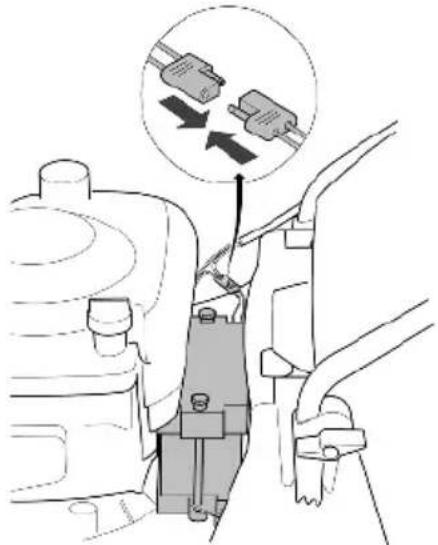

Fitting the cable harness (only for electro-start)....9

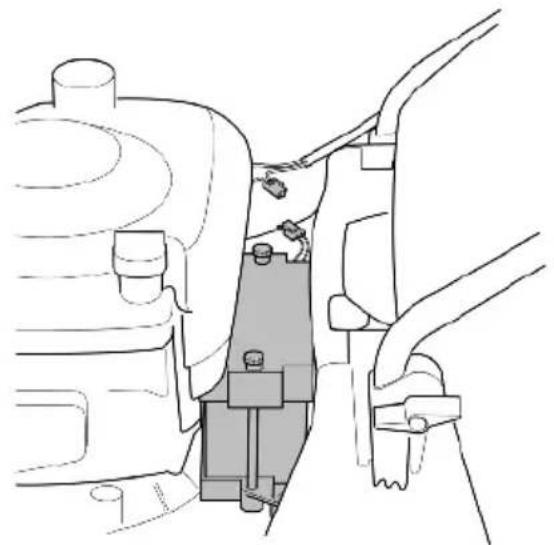

Fitting the charged starter battery (only for electro-start) (Figure V1 + U1)....9

8 Before using the lawnmower for the first time .....9

Charging the starter battery (only for electro-start) .....9

Charger (Figure R4)......10

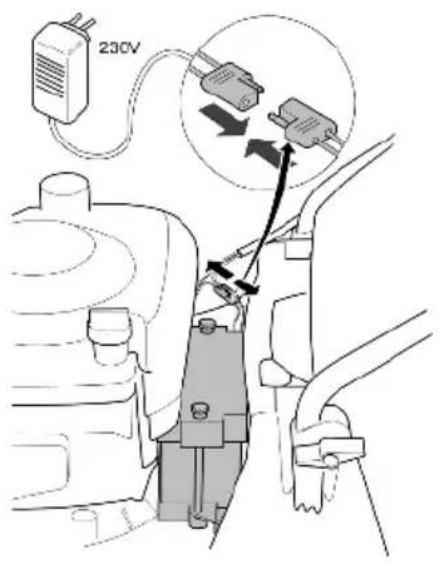

Charging in assembled state (Illustration X1)......10

Charging the battery in disassembled state (Illustration W1)....10

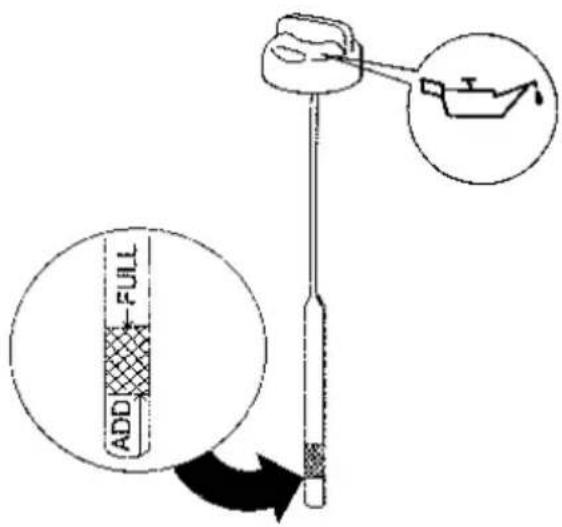

Filling with oil (Illustration Y1)....10

Filling with fuel 10

9 Starting the engine....11

Manual start without electro-start (Figure D + E) ...11

Electro-start models (Figure D + P4 + E) .....11

10 Switching off the engine (Illustration F + P4).....11

11 Emergency stopping....11

12 Grass collector....11

Operation with grass collector ....11

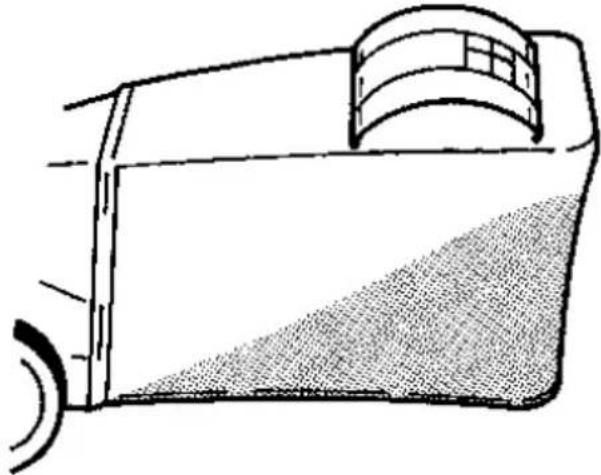

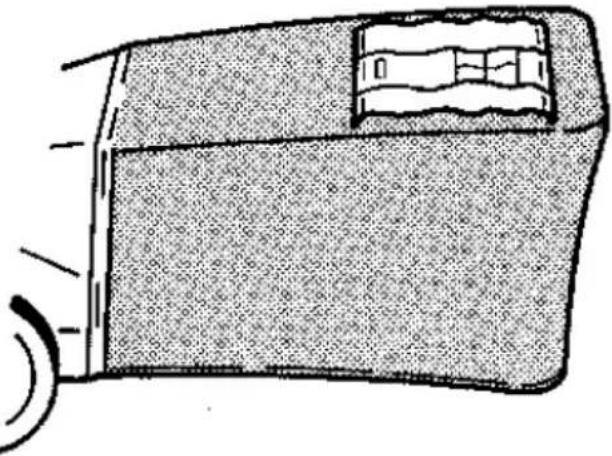

Turbo signal (shows when the grass collector is full)

(Illustration J + K)....12

Emptying the grass collector (Illustration L)......12

Operation without grass collector ....12

13 Mowing....12

Mowing on slopes 12

Checking the oil level....12

Checking operating safety 12

Time restrictions....12

Tips on caring for your lawn....13

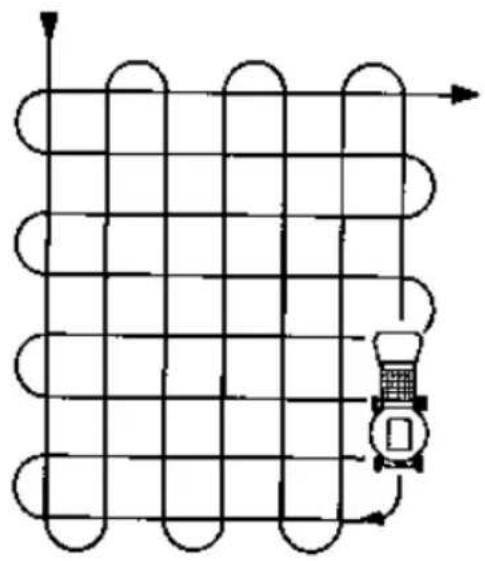

Mowing (Illustration M)....13

Mulching....13

What is understood by the term mulching?....13

How is the perfect grass blade cut achieved?......13

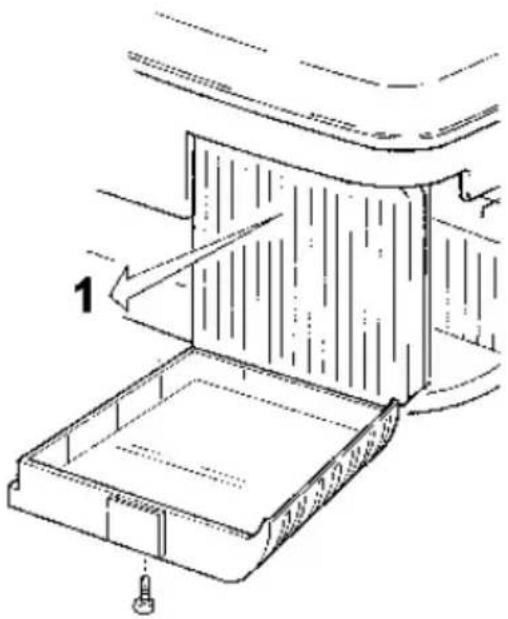

Converting the machine to rear ejection (Illustration U2 + S1)....14

14 Service intervals....14

15 Care and servicing of your lawnmower ....14

Cleaning (Illustration O)....15

Storage....15

Collapsing the handle (Illustration A1)......15

Transporting and securing the equipment (Illustration N)....15

Maintenance of the blade....15

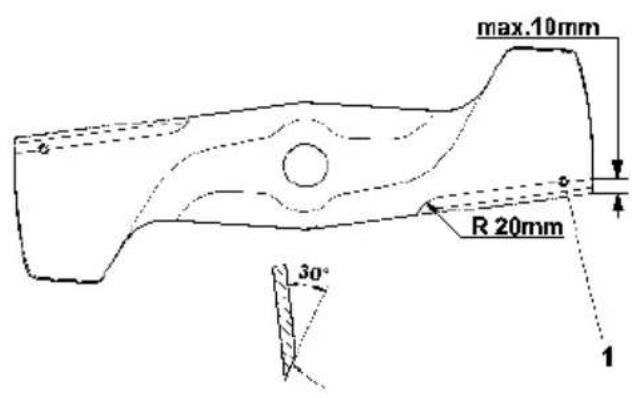

Sharpening and balancing the blade (Illustration Q)....15

Replacing the blade....16

Servicing the wheels (Illustration S)......16

Recharging the starter battery (only for electro-start).16

16 Servicing the engine 16

Oil change....17

Cleaning and replacing the air filter (Illustration W)..17

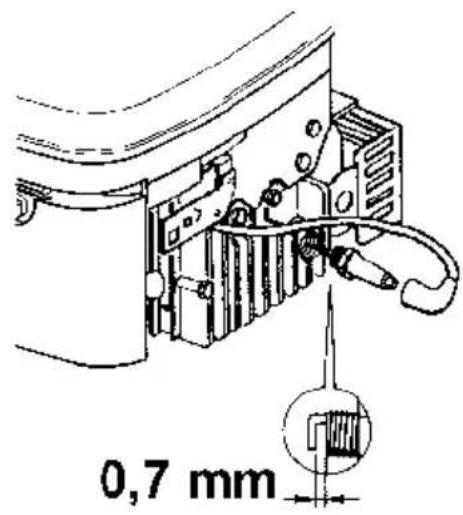

Checking the spark plug (Illustration Y)......17

Correct winter storage of the engine (or when not used for a long period of time)....17

17 Troubleshooting....17

Technical data...... see rear inner cover

Declaration of conformity ....Before Technical Data

1 EXPLANATION OF THE RATING PLATE AFFIXED TO THE MACHINE

1 2 L WA dB SABO Maschinenfabrik GmbH A John Deere Company Auf den Höchsten 22 D - 51845 Gummersbach WBM CE min⁻¹ kW kg 3 4 6 5

1 Type identifier
2 Model and serial number
3 Unit performance
4 Weight
5 Tested safety
6 Nominal motor revolutions
7 Year of construction
8 CE declaration of conformity
9 Hand-guided lawn-mower
10 Guaranteed sound power level

These operating instructions apply for the following models:

43-COMPACT (SA760, SA1141): without electro-start

43-COMPACT E (SA961): with electro-start

You will find the correct type designation for your equipment on the type plate.

GB

2 INTRODUCTION

Dear gardening fans,

Taking pride in a well-kept lawn is one thing, but if you also enjoy your gardening, it is the good quality of your gardening equipment that you have to thank. With your new SABO lawn mower, you have made an excellent choice. This combines the outstanding performance of a great traditional brand with the innovations of modern high tech. You will notice this when using the lawn mower, and be pleased when you see the perfect result achieved.

However, before starting to care for your lawn, please read and follow the important information given below.

Before starting the mower for the first time, please read these operating instructions through carefully, in order to familiarize yourself with the correct operation and maintenance of the machine, and avoid injuries or damage to your lawn mower.

Always operate the mower with care. The pictograms affixed to the mower draw attention to the most important precautionary measures. The meaning of the pictograms is explained on the cover page.

The safety instructions in these operating instructions are designated by symbols. The explanation of these symbols is given in the table overleaf.

The designations "left" and "right" always refer to the left or right side of the mower viewed from the direction of movement.

The more closely you follow the technical instructions, the more reliably your SABO lawn mower will work. We must point out that damage to the mower caused by operating errors is not covered by our warranty. Please note the following extract from our warranty conditions.

We wish you great pleasure in caring for your lawn.

	WARNINGAlways read and follow the operating instructions and general safety regulations carefully. Keep the operating instructions for reference purposes.Proper use also includes adherence to the operation, maintenance and service conditions prescribed by the manufacturer.
	WARNINGKeep all persons outside the danger area!Contact with the rotating blade can cause severe injury.Objectsejected at high speed can cause severe injury.You must never mow the lawn if there are other persons nearby, especially children or animals.
	WARNINGPetrol is highly inflammable and explosive.Petrol or oil leaking out onto the hot engine are highly inflammable.Fire and explosions can cause severe injury and material damage.Whilst the engine is running or if the machine is hot, the lid of the petrol tank must not be opened, nor may the tank be filled with more petrol.When the engine is running, the dipstick must always be screwed in firmly.
	WARNINGPetrol is highly inflammable and explosive.Fire and explosions can cause severe injury and material damage.No smoking and no naked flames while filling the tank.
	WARNINGWatch out for sharp blades! Contact with the rotating blade can cause severe foot injuries.Only start the engine when standing behind the mower.Ensure that your feet do not get under the housing.
	WARNINGWatch out for sharp blades! Contact with the rotating blade can cause severe hand and foot injuries.When the engine is running, always observe the safety distance to the machine which is maintained by the handlebar.Ensure that your hands and feet do not get under the housing.
	WARNINGObjects thrown upwards can cause serious injuries.Before mowing areas covered in leaves in particular, remove all stones, sticks, wires and other objects from the lawn.Never use the equipment with the protective devices damaged or missing.Before initial operation, check that the cutting blade screw is fastened, then examine the cutter bar for a tight fit, wear and damage every time you intend to use the mower. Have an authorised workshop replace a worn or damaged blade. Have an authorised workshop tighten the cutting blade screw.Before starting the engine, check whether the tools have been removed.
	CAUTIONThe engine and exhaust reach very high temperatures during operation. Danger of bums!Allow the machine to cool down for at least 15 minutes before starting any maintenance or cleaning work.Never operate the machine with a damaged or missing exhaust protection grill.
	CAUTIONIf the spark plug connector is not removed when carrying out work on the unit, the motor may start accidentally and serious injuries would be the consequence.Switch the motor off before doing any maintenance and repair work, remove the spark plug connector and the ignition key, if there is one. Never remove the spark plug connector when the motor is running. Risk: Electric shock!For the appropriate cleaning or maintenance tips, consult the operating instructions.

WARNING

Contact with the rotating blade can cause severe hand and foot injury. Objects ejected at high speeds can cause severe injury.

Switch the motor off and wait until the blade comes to stop:

• if the mower has to be lifted or tilted, e.g. in order to transport it;
• when moving off the lawn onto paths or roads;
• if the machine is left unattended for any time;
• before adjusting the cutting height;
  – before removing the collector bag;
  – before the mulch stopper is removed;
• before refuelling.

CAUTION

Contact with the sharp edges of the blade can cause severe injury.

Protective gloves must be worn at all times during maintenance and cleaning work.

4 PROPER USE

• The machine is intended solely for the mowing of grass and lawn surfaces in the course of normal garden and landscaping care ("Proper use"). Any further form of use constitutes improper use; the manufacturer accepts no liability for any resulting damage; the risk is borne solely by the user. Proper use of the machine also includes the observation of the operating, maintenance and servicing requirements specified by the manufacturer.
  • If used in public areas, parks, sports grounds, on roads and in agricultural and forest areas, special care must be taken.
• The lawnmower must not be used in particular to trim bushes, hedges and shrubs, it must not be used to cut climbing plants or plants growing on roofs and on balconies, or to vacuum or clear pavements.
• The use of any additional devices not approved by SABO is prohibited. If such additional devices are used, this invalidates the CE conformity and any warranty claims. Unauthorized modifications to this lawnmower rule out any liability on the part of the manufacturer for resulting damages.

5 GENERAL SAFETY GUIDELINES FOR THE HAND-HELD ROTARY LAWNMOWER (PETROL)

General safety instructions

Always read the operating instructions carefully for your own protection and to guarantee perfect function. Familiarise yourself with the operating elements and correct machine operation. Keep the operating instructions for reference purposes.

• Remember that the machine operator or user is responsible for accidents with other persons or their property.
• These operating instructions belong to the machine and must be handed over to the new owner in the event of the machine being sold.
- Never allow children and persons under 16 years of age or other persons not familiar with the operating instructions to use the machine. Local regulations can specify the minimum age of the user.
- Explain the potential hazards and how to avoid accidents to all those who are to use the equipment. This equipment may only be used, serviced and repaired by persons who are familiar with it and have been informed about the hazards.
- This equipment is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety and have received instructions from this person as to how the equipment is used. This supervisor must decide in advance whether the person with limited physical, sensory or mental aptitude is suitable for this task.

Never use the mower while persons, particularly children, or animals are nearby.

- Keep your machine safely! Unused equipment should be kept in dry, closed rooms inaccessible to children.

Preparatory measures

- When mowing you must always wear a strong pair of shoes or safety shoes and long trousers. Avoid wearing loose clothing or clothing with cords or belts hanging down. Do not mow whilst you are barefooted or wearing sandals. Wear protective goggles to protect your eyes.

Always check the area where you intend to use the machine completely for stones, sticks, wires and other foreign objects which might be picked up and ejected, before and during mowing.

If leaves or foliage are to be sucked in by the mower, all stones and other foreign objects must also be removed before starting to mow. If this cannot be ensured due to leaves lying on the lawn, leaves and foliage should not be sucked in.

If you also use an auto mower for lawn care, the following safety instructions must be heeded with regard to the working area of the auto mower:

— Before working on these areas (mowing, scarifying etc.) always check the range of the boundary wire.
- If the wires are laid in the ground they must be checked, no wires may be visible, with particular attention necessary at the charging station.
- If the boundary wires are laid above ground they should be routed tight directly on the ground and not lie loose in the grass. The wires must be sufficiently fixed using boundary staples, see the operating manual.
— The boundary staples must not project, if this is the case push them firmly in place.
– Remove any residual wires that are lying around before starting to mow.
In the cases described above, there is a risk of the wire being pulled in and wound up by the tool; this can lead to serious injury.

- Low-hanging branches and similar obstacles can injure the operator or interfere with the mowing operation. Before mowing, identify potential obstacles such as low-hanging branches, and trim back or remove those obstacles.

WARNING

– Petrol is highly inflammable and explosive.
Fire and explosions can cause severe injury and material damage.
– Store petrol only in a suitable container, and out of the reach of children.
- Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling up.
- Only fill the tank in the open and when the engine is cold. No smoking and no naked flames while filling the tank.
- Fuel operated equipment, which is positioned on a load floor or a trailer, must not be refuelled from a filling pump, but must be refuelled by a fuel container.
– The petrol must be filled into the tank before starting the engine.
- Whilst the engine is running or if the machine is hot, the lid of the petrol tank must not be opened, nor may the tank be filled with more petrol.
- If petrol has overflowed, you must not attempt to start the engine. Instead, remove the machine from the area contaminated with petrol, and wipe the overflowed petrol off the engine. Avoid any attempt to start the engine until the petrol fumes have evaporated.
- For safety reasons, the petrol tank on the lawnmower and the petrol container must be closed again carefully.
– If any damage has occurred, the petrol tank and the petrol tank lid must be exchanged.

- Before use, always carry out a visual inspection to see whether the pictograms, the cutting tool, attachment screws and the complete cutting unit are worn or damaged. Worn or damaged pictograms must be replaced. To avoid unbalance, worn or damaged blades and attachment screws must be replaced by an authorised workshop.

Handling

• The machine must not be operated in potentially explosive surroundings.
- The internal combustion engine must never be used in enclosed rooms in which dangerous exhaust fumes can build up - danger of poisoning.
• People with pacemakers must not touch any parts of the engine which might be live.
• Attention! Do not operate the unit in front of the extraction openings of air conditioning systems.
• Never remove the spark plug connector when the motor is running. Risk: Electric shock!
• Do not wear radio or music headphones. Safe service and operation requires your full attention.
• Only mow during daylight or if the lighting is good. Always push the machine at walking pace.
- Please adjust the driving speed depending on the person and the terrain. Increase speed gradually until you have reached a suitable driving speed, switch the motor drive off if necessary.
• Use care when approaching blind corners, shrubs, trees, or other obstacles that may obscure vision.

• Do not move too closely to compound steps, trenches and banks. The equipment can suddenly topple over when a wheel suddenly gives way over the edge of a cliff or trench or when an edge suddenly yields.
• Please be careful when mowing underneath playground equipment (e.g. swings). The equipment could get into an unsafe position. This may result in risk of injury.
  • Do not operate the equipment when you are sick, tired or under the influence of alcohol, medicine or drugs.
• Avoid using the machine if possible on wet grass, in order to avoid the danger of slipping.
  • Always make sure that you are standing securely whilst mowing slopes. Always mow at right angles to the slope, never mow straight up or down. Please be especially careful when you change direction when mowing on a slope.
• Do not mow excessively steep slopes! Mowing slopes always means additional risks. Your lawnmower is so powerful that it can mow slopes with a gradient of up to 25°. For safety reasons, however, we urgently recommend you not to exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes of more than 15°. Stability may be lost.
• Please be especially careful when turning the machine or pulling it towards yourself.
• If you walk backwards whilst using the machine, you can easily stumble so this should be avoided. Avoid unnatural body positions. Ensure that you are standing securely and keep your balance at all times.
  • Always observe the safety distance to the machine which is maintained by the handlebar.
• In order to avoid the machine slipping when being carried, always hold the machine by the grip devices provided (carrying handle, housing, handlebar ends or transverse bar of the lower handlebar section). Do not grasp the machine by the ejection flap!
• Note the weight of the machine before lifting or carrying it (see technical data). Lifting heavy weights can lead to health problems.
  • Never lift or carry the machine when the engine is running.
  • Never operate the machine with damaged or missing safety or protective devices.

Safety devices include:

GB

– Safety control bracket (1)

In the event of danger, release the safety control bracket for the engine brake: The motor and blade come to a stop within three seconds.

The safety control bracket must not be deactivated or rendered inoperable.

It is important to make sure that the safety control bracket functions correctly. If it does not, have it repaired by an authorised specialist workshop.

Protective devices include:

- Housing, grass collecting bag, ejection flap (12) and deflector plate

The protective devices protect the user against objects being ejected at high speed.

The machine must not be operated with a damaged housing or without a properly fitted collecting bag or deflector plate, or ejection flap on the housing.

- Housing

This protection unit protects against injuries through contact with the rotating cutting blade bar.

The equipment must not be operated with a damaged housing. Please make sure that hands and feet are not placed underneath the housing.

– Belt drive covers (10), engine covers (4)

These protection units protect against injuries through moving parts.

The equipment must not be operated with damaged covers or without correctly attached covers.

- Exhaust protection grill ( 5)

The engine/exhaust becomes very hot. The protection grill protects the user against bums.

Do not operate the machine without the exhaust protection grill.

The safety devices must not be modified.

- Do not change the basic settings of the engine or operate the engine at excessive speed.

• During the starting process, do not switch on the drive if available.

When you start the machine, make sure that your feet are at a sufficiently safe distance away from the cutting blades.

When you start the motor, the machine must not be lying on its side or in a slanting position. If it is necessary to hold the machine at a slant, always ensure that the cutting tools are pointing away from the person using the machine, although only as far as absolutely necessary. In case of machines with side dejection, do not start the motor in standing in front of the ejection channel.

Never put your hands or feet near or under revolving parts. Always make sure that your hands or feet do not get under the housing. Always maintain a safe distance from the ejector opening.

Stop the motor, remove the spark plug connector, check that all moving parts have come to a complete standstill and, if there is one, remove the ignition key:

• when leaving the machine;
  — before you check, clean or carry out any work on the machine;
  — before you eliminate jams or blockages in the ejection channel;
  – before you remove a foreign body;
• if the machine starts to vibrate strangely.

- If a foreign object has been encountered or if the machine becomes blocked, e.g. by driving onto an obstacle, a specialist dealer must check whether parts of the machine have been damaged or deformed. Any necessary repairs must also be carried out by an authorized specialist workshop.

• If you notice unusually strong vibrations in your machine, you must have it checked by an authorized dealer.

Switch the engine off, and ensure that all moving parts have come to a complete standstill, and that the spark plug key, if fitted, has been removed:

• if you have to lift or tilt the lawnmower, e.g. in order to transport it,
• when transporting the machine to and from the lawn
• when moving the machine off the lawn area;
• if the machine is left unattended for a few minutes;
• when adjusting the cutting height;
  – before removing the collector bag;
  – before the mulch stopper is removed;
  – before you re-fill the tank.

• If the engine is equipped with a petrol shut-off valve, this should be closed after mowing.

GB

Maintenance and storage

• Ensure that all screws have been tightened securely and that the machine is in a safe working condition.

The ejection flap must only be opened and the grass collector or mulch stopper removed when the engine is turned off.

Never store a machine which still contains petrol inside a building where petrol fumes may come into contact with naked flames or sparks or where they may ignite.

The engine and exhaust reach very high temperatures during operation.

Allow the machine to cool down for at least 15 minutes before starting any maintenance or cleaning work.

• To reduce the risk of fire, keep the motor, silencer (exhaust) and fuel tank free from grass, leaves or leaking oil (grease).
When placing on the side, ensure that no oil or fuel comes out of the machine. Fire hazard!
Allow the motor to cool down before storing the machine in a closed room.
Do not store the machine in the vicinity of open flames or fire sources such as boilers or heaters.

Before you start mowing, always check the grass collecting equipment for wear or loss of functionality.

Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced.

Changing, regrinding and balancing the cutting blade must be carried out by an authorised professional workshop. A wrongly assembled cutting blade coupling can allow the cutting blade bar to get loose and cause severe injuries. An improperly ground and imbalanced cutting blade can cause strong vibrations and damage the lawn mower.

• Make sure that the spark plug connector is firmly seated! Touching is only a risk if the spark plug connector is not installed correctly.
• For reasons of safety, always replace worn or damaged parts.

Protective gloves must be worn at all times during maintenance and cleaning work.

Maintenance and cleaning work must only be carried out if the engine has been turned off and the spark plug connector has been removed.

• Never remove the spark plug connector when the motor is running! Risk: Electric shock.
- If the tank has to be emptied, this should be done in the open, and with a cold engine. Take care to ensure that no fuel is spilt.

For warranty and safety reasons, original replacement parts must be used at all times.

6 DESCRIPTION OF COMPONENTS

1 Safety control bar for engine brake
3 Oil-refill neck with dipstick
4 Engine cover
5 Exhaust protection grid
6 Cutting height display
7 Carrying handle
8 Spark plug
9 Air filter
10 Belt drive covers
11 Tank cap
12 Ejection flap
13 Starter cable handle
14 Starter key (model-dependent)

2 Setting handle for adjusting cutting height (carrying handle at the back) with pushbutton

7 PREPARATION

GB

The following parts are included in the packaging for assembly of the mower:

• Mower with preassembled handle
  • Collecting bag, collecting bag frame
  • Tool bag with the following contents:
  – Operator's manual with Declaration of Conformity
  – Warranty conditions and Warranty card
• Various fixing parts.

In the unlikely event of a missing part, please contact your dealer.

Opening out the handle (Illustration A1 + E1 + B1)

– Pull on the handlebar which is collapsed in a Z-shape upwards into place A1
- When the top and bottom parts of the handlebar are on the same level, firmly tighten the wing nuts by hand E1.
- On the bottom part of the handlebar, swivel the ends with the toothed fitments towards the back as far as necessary until they click into the toothed recess on the mower housing B1.
This allows three different handlebar heights to be set.
- Tighten the wing nuts on both sides by hand B1.
- Insert the cable harness (electro-start) and the throttle cable into the cable guides. This prevents the cable harness or throttle cable being jammed when the handlebar is folded down E1.
- Fix the throttle cable on the left lower bar using the shorter cable ties from the tool bag.

CAUTION

When you activate the bar height adjustment, when loosening the wing nuts B1 used to secure the bar bottom to the housing (only loosen sufficiently to ensure that the bar can be moved freely) and snapping the toothed plastic adaptations from the cut-out on the housing, it is possible that unintentional upsetting of the bar may occur. In addition, this may result in crushed points between the bar bottom and the housing. This may result in a risk of injury!

Handle starter assembly (Illustration D + L1)

• The safety control bracket (1) on the upper handle (2) must be folded down before the starter cable can be suspended.
  – Pull out the starter cable (3) slowly and fit in the starter handle mount (4) with a twist motion.

Attaching the grass collector to the mower (Illustration R1 + S1)

First insert the grass bag frame with the clip forward into the grass bag. Align the upper seams of the bag with the clip.

The retaining profile (1) must be fitted first R1.

— Insert the retaining profile with the tongue (1) through the opening (2) in the grass bag frame and press onto the grass bag frame.
- Then attach the horizontal and lateral profiles of the bag.
- Open the ejection flap of the mower upwards.
- Pick up the collecting sack by the carrying strap, place the chute (3) R1 at the collecting sack opening into the ejection flap and hang it in the mower casing with its two side hooks upwards S1.
- Attach ejection flap to collector.

Adjusting the cutting height (Illustration I)

Safety instruction!

See table for explanation of symbols page 3

The cutting height is adjusted behing the motor.

• Press the grey push button with your thumb and lift or lower the mower handle to bring it into the required position.
  – Release the push button: the lever now engages in the required cutting height.
  – The marking on the left of the housing shows the adjusted cutting height.

IMPORTANT

Mowing at the lowest cutting height should only be carried out on level and plane lawns!

Please observe that the lower cutting height settings may only be used for optimal conditions. If you select cutting height that is too low, the turf can be damaged and under certain circumstances it can even be destroyed.

Besides the cutting height, also the moving speed influences the cutting pattern and collection result. Adapt the cutting height and moving speed to the grass height to be cut.

Fitting the cable harness (only for electro-start)

Fix the pre-assembled cable harness to the right lower handle using the enclosed longer cable clips in such a way that the plug can be fitted to the contacts of the starter lock without tension.

Fitting the charged starter battery (only for electro-start) (Figure V1 + U1)

• Place the battery on the battery holder behind the motor from the side, ensuring that the connection cable points to the rear.
• Remove the battery cover and M6x120 screws from the tool bag.
• Place the cover on the battery (holding the battery at an angle) and fix in place using the two screws V1.
• Connect the battery plug with the counter-plug of the cable form before mowing U1.

To charge the battery, see section "Charging the starter battery".

8 BEFORE USING THE LAWNMOWER FOR THE FIRST TIME

Safety instruction!

See table for explanation of symbols page 3

Check that all connections and the spark plug connector are fitted firmly. Tighten the screws if necessary! In particular make sure that the cutter bar is fitted correctly (see Chapter "Maintenance of the blade").

The blade attachment screw should always be fitted and tightened by a specialist workshop. If the blade attachment screw is too tight or too loose, the blade clutch and blade can be damaged or become detached, which can cause severe injury.

Make sure that all safety devices are fitted properly and are not damaged.

Charging the starter battery (only for electro-start)

– The starter battery is a maintenance-free dry battery
– Prior to the initial start-up, it should be charged with the original charger for approx. 24 hours.
For safety reasons and to avoid battery damage, the battery may only be charged within a building in dry rooms and not in direct sunlight.
- To avoid unnecessary power consumption, disconnect the power plug from the charger after charging and disconnect the battery from the charger.
- Avoid storing discharged batteries for a long time without charging them.
So that your battery is always ready-to-operate, we recommend you always charge the battery for approx. 24 hours prior to and after each mowing season. Avoid total discharges since this may result in a battery failure.
- To prevent unauthorised use of the mower, especially by children, always remove the ignition key and disconnect the cable which leads from the battery to the starter motor by removing the battery plug from the mating plug of the cable

harness when you store the lawn mower until the next mowing. However, you should do this at least before you store the mower for the winter break.

- Store the battery in a dry, cool and frost-protected room.

NOTE

The battery can be charged in the assembled or disassembled state.

Charger (Figure R4)

The charger is made up of two parts and must be put together before initial use.

Insert the country-specific plug (1) into the charger (2) and push it forwards until it clicks into place.

IMPORTANT

Use the charger supplied only for charging the respective mower battery. Equally, do not try to charge your mower using a different charger. You could endanger yourself or damage your equipment.

For safety reasons and to avoid damage to the charger, it may only be used indoors and in dry rooms and the battery must not be charged in direct sunlight.

Charging in assembled state (Illustration X1)

- Remove the battery cable from the cable harness.

- Connect the battery cable to the original charging device and plug the charging device into a 230 V socket.

Charging the battery in disassembled state (Illustration W1)

Removing the battery

• To remove the battery, take off the battery cable from the cable harness, loosen the screws, take off the cover and take out the battery.
• Connect the battery cable to the original charging device and plug the charging device into a 230 V socket.

IMPORTANT

Please do not connect the charger to the plug connector of the cable harness since this can lead to a fault in the charger.

NOTE

The red warning light on the charger lights up during the charging process and goes out after charging has finished.

- After charging the battery, refasten to the battery holder (if the battery was dismounted for charging). Reconnect the battery cable to the cable harness prior to mowing.

NOTE

As soon as the battery must be renewed for reasons of age or mechanical damage, it should be handed in as hazardous waste to public collection points of your community or your authorized dealer for proper disposal.

Filling with oil (Illustration Y1)

Safety instruction!

See table for explanation of symbols page 3

IMPORTANT

Avoid damage! Engine is delivered without oil. You must add oil before running the engine.

Before starting the mower the first time fill motor oil (for quantity and type, see technical data) into this opening with a funnel after unscrewing the dipstick.

– Park mower on a level surface.
— Pour in oil slowly into the oil filler. Do not pour in too much oil.
- Check the oil level.

Remove the dipstick. Wipe the dipstick with a clean cloth, insert the dipstick into oil filler and re-tighten. Then remove the dipstick once again and read off the oil level. The oil must be between the marks "ADD" and "FULL". Add oil if necessary. However the oil level should not be above "FULL" mark.

Replace oil dipstick and retighten.

- After filling up for the first time remove the "NO OIL" sign on top of the engine.

Filling with fuel

Safety instruction!

See table for explanation of symbols page 3

- Only fill the tank with fresh and clean unleaded standard petrol. Fuel with up to 10% ethanol is acceptable.

• Unscrew tank cap.
• Fill tank with fuel using a funnel up to max. lower edge of filling nozzle.
• Replace tank cap and screw tight.

9 STARTING THE ENGINE

Safety instruction!

See table for explanation of symbols page 3

Only start the engine when standing behind of the mower.

Place the mower on a level surface where the grass is not too high (high grass inhibits the start of the cutter bar and makes starting more difficult). Where this is not possible, position the mower in such a way that the cutter is facing diagonally away from the user, although only as far as absolutely necessary.

Manual start without electro-start (Figure D + E)

• Push and hold the safety control bar (1) on the top tube (2) D.
• Slowly pull the starter cable (3) until resistance is felt, then rapidly pull it out E – the engine begins to run, slowly recoil the cable.

The engine runs with optimum power at maximum speed, which is required for a clean cutting pattern (engine speed = blade speed).

CAUTION

Hold the starter cable handle firmly when starting. The handle may otherwise slip out of your hand. Risk of injury!

Electro-start models (Figure D + P4 + E)

• Push and hold the safety control bar (1) on the top tube (2) D.
  Turn the ignition key (4) clockwise up to the limit stop, for so long until the engine starts running P4.

NOTE

To ensure a long service life of the battery and starter, the starting process should never be longer than 5 seconds.

The engine runs with optimum power at maximum speed, which is required for a clean cutting pattern (engine speed = blade speed).

NOTE

Should the electric starter be defective at some point, then the engine can also be started manually.

• Push and hold the safety control bar (1) on the top tube (2) D.
• Slowly pull the starter cable (3) until resistance is felt; then rapidly pull it out E – the engine begins to run, slowly recoil the cable.

CAUTION

Hold the starter cable handle firmly when starting. The handle may otherwise slip out of your hand. Risk of injury! IMPORTANT

The motor only operates when the safety control bracket is pressed against the upper part of the handlebar. As soon as the safety control bracket is released, this returns to its original position under spring force, the motor brake is actuated, and the motor and blade come to stop within three seconds.

10 SWITCHING OFF THE ENGINE (Illustration F + P4)

• Release the safety control bar (1) F .
• Remove the ignition key (4) (only for electro-start) P4.

11 EMERGENCY STOPPING

ATTENTION

Avoid injury! Engine and blade must stop within 3 seconds. If not, please contact the nearest authorized dealer.

Release the safety control lever.

• The blade will stop.
• The engine will stop.

12 GRASS COLLECTOR

Safety instruction!

See table for explanation of symbols page 3

Operation with grass collector

While mowing, ensure that the collector is emptied in good time. The turbo signal on the collector will indicate when the collector should be emptied.

IMPORTANT

Make sure that the chute (3) R1 is not bent when handling the collector.

Turbo signal (shows when the grass collector is full) (Illustration J + K)

There is an indicator on the top of the collector that shows whether the collector is empty or full:

• The collector indicator inflates if the collector is empty and during the mowing J.
• If the collector is full, the indicator collapses; once this happens, stop mowing immediately and empty the collector K.

IMPORTANT

If the fabric of the grass collector is very dirty the turbo indicator will not inflate – in this case, clean the fabric immediately. The grass collector will only collect grass perfectly if it is permeable to air.

IMPORTANT

Do not clean the grass collector with hot water!

Emptying the grass collector (Illustration L)

• Switch off engine.
• Lift ejection flap.
• Unhinge the full grass collector from the mower at the carrying strap – the ejection flap closes automatically.
  – Empty the collector thoroughly whilst holding it by the carrying strap and the moulded handle on the bottom.

Operation without grass collector

WARNING

When mowing without grass collector the ejection flap on the mower housing must always be closed (flap down).

13 MOWING

Safety instruction!

See table for explanation of symbols page 3

Mowing on slopes

NOTE

The mower can be driven on banks and slopes at an angle of up to 25^ . Any steeper slopes can lead to engine damage.

For safety reasons, however, we urgently recommend you not to exploit this theoretical performance potential. Always make sure you have a firm stance. Manually guided lawnmowers should never be used for slopes of more than 15^ . Stability may be lost!

Checking the oil level

Check oil level each time prior to mowing Y1. Never let the engine to run with too little or too much oil. Irreparable damages could occur.

Checking operating safety

Before every mowing job, make sure that the safety control bar for the engine brake is working perfectly. When the control bar is released, the engine and cutter bar must come to a standstill within three seconds. If this is not the case, please consult your nearest authorised workshop.

Make sure that all protective devices have been attached properly and are not damaged.

To avoid risk, check the condition and firm attachment of the blade before every mowing job. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced. (refer here to the chapter "Cutter blade care").

In addition, check the fan, blade coupling and fan housing every 10 operating hours for wear and a tight fit. Also check screws and nuts for a firm fit and tighten if necessary!

Make sure the spark plug connector is fitted tightly. Contact is only dangerous if the plug connector has not been installed correctly. Never pull the plug connector off with the engine running! Danger: electric shock.

If the mower mechanism becomes blocked e.g. by colliding with an obstacle, have an authorised workshop check whether any parts of the mower are damaged or deformed. Always have any necessary repairs done by an authorised workshop too.

Time restrictions

The time at which lawnmowers may be used varies from region to region. Please ask the corresponding authorities before using your mower.

Tips on caring for your lawn

Mowing (Illustration M)

After 10 – 14 days every lawn starts to become overgrown. You will realize that: the often it is cut the better and stronger will it look; since regular mowing promotes uniform growth.

Remove any objects (stones, wood, branches, etc.) from the lawn before each cut; but still watch out for objects lying around during the mowing process.

Make sure to mow only dry lawns as far as possible. When the ground is wet, turf will be damaged easily; the wheels press deep into the ground and leave ridges behind.

If the grass has become too long, mow with a higher cutting height in one direction first and then cut across the first direction at the cutting height setting you require. Only cut with a sharp flawless blade so that grass holms do not fray. You obtain a clean cutting pattern when you mow at walking speed in straight lanes. These lanes should always overlap by several centimetres so that no strips remain behind.

Mowing at lowest cutting height should only be carried out on level and plane lawns!

Please note that the lower cutting height settings may only be used for optimal conditions. If you select cutting height that is too low, the turf may be damaged and under certain circumstances even destroyed.

Besides the cutting height, the driving speed also influences the cutting pattern and collection characteristic. Adapt the driving speed to the person, grounds and to the grass height to be cut. For longer grass sections, a slower driving speed should be selected and the motor drive may not need to be switched on.

When mowing long grass, select a high cutting height first and then mow across the first direction again with a low cutting height setting.

Mulching

Your lawnmower can be equipped with a mulch kit. The conversion kit to a mulch system is available as an accessory from your specialist dealer (Order no, for conversion kit, see Original Replacement Parts and Accessories).

WARNING

The conversion of the mower to the mulch system should always be carried out by an authorised specialist workshop. An incorrectly assembled blade clutch or blade screw which is too loose or tight can lead to detachment of the blade, which can lead to serious injuries.

What is understood by the term mulching?

When mulching, the lawn is cut and the cut blades of grass are then, immediately thereafter, chopped several times to become even smaller using a special mulch-blade system. This mulch-blade system straightens the grass blades and cuts the blades into very short segments which are then distributed evenly over the lawn surface.

The grass blade segments can now dry and rot more quickly, thus facilitating the production of humus. This enables natural fertilisation of the soil and also protects against dehydration.

Gathering and removal of cuttings is no longer necessary. The mulch concept is thus environmentally-friendly and stimulates the ecology.

How is the perfect grass blade cut achieved?

The length of the grass to be cut should not exceed 10 cm when a mulching mower is used. A maximum of 1/3 of the grass height is cut in one working cycle. If a positive result is not achieved, mulching may have to be repeated.

Mowing should be done regularly depending on the type of lawn and intensity of growth. During the strong growing phase in particular, mulch-mowing needs to be done more frequently than traditional mowing with grass collection, since the one-third rule is hard to keep otherwise.

To achieve an optimum mulching result you should reduce the machine speed for mulching compared to traditional mowing to allow the grass to remain in the mowing blade longer and thus be cut several times.

The best cutting pattern and result are achieved on a dry lawn, since wet cut grass will stick together and clump quickly.

These grass clumps will rot and mould, preventing the desired ecological cycle.

If the lawn has to be mowed in a very damp, wet state, the cut grass must be shorter i.e. the cutting height must be set 1-2 levels higher than with a dry lawn.

You will notice that if you follow these simple rules you will have a healthy lawn and can save on disposing of your grass cuttings.

If the grass should happen to be too high for mulching, the mulching mower can be converted for mowing with a grass collecting bag in no time.

Converting the machine to rear ejection (Illustration U2 + S1)

• Stop the engine.
• Lift up the ejection flap.
• Remove the mulch stopper from the duct U2
• Hang the grass collection bag in the provided holder on the mower housing S1.

Conversion of the mulch blade system is not required! Under difficult mowing conditions (e.g. wet grass) a reduced filling level of the collection bag can result.

In order for the equipment be used once again as mulch mower, the mulch stopper must be installed again. To do this, remove the grass collection bag, introduce the mulch stopper in the ejection duct and close the ejection flap.

14 SERVICE INTERVALS

IMPORTANT

Avoid damage! Under extreme or unusual conditions, shorter servicing intervals than the ones specified below may be necessary. If you establish any problems, please contact an authorised workshop.

Carry out routine servicing on the machine in line with the following servicing intervals.

Work must be carried out at the following servicing intervals in addition to the maintenance work listed in these operating instructions.

Before initial use

• Check the oil level Y1.
  • Check all screw connections for a tight fit.
• Check the cutting blade screw and have an authorised workshop tighten it if necessary.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check that all protective devices have been attached properly and are not damaged.

Before every operation

• Check the lawn area and remove any objects.
• Check the area of the boundary wires (if an auto mower is being used for lawn care).
• Check the oil level Y1.
• Check the condition and firm fit of the blade, if necessary have an authorised workshop tighten the blade screw.
• Check whether the safety control bar for the engine brake is working perfectly.
• Check that all protective devices have been attached properly and are not damaged.
• Check grass collecting equipment for wear or loss of functionality.

Every 10 operating hours

• Check all screw connections for a tight fit.
- Check the fan, blade coupling and fan housing regularly for wear and a tight fit.

After every operation

• Clean the mower.
  • Check the blade for damage and wear.

Running-in time – after the first 5 operating hours

• Change the engine oil Y1.

Every 25 operating hours or every three months

• Clean the air filter paper insert W.
• Clean the spark plug and adjust electrode distance Y.

Every 50 operating hours or once a year

• Change the engine oil Y1.
- Lubricate the wheel bearings.

During annual servicing

• Have the air filter paper insert replaced W.
• Have the spark plug replaced Y.

15 CARE AND SERVICING OF YOUR LAWNMOWER

Regular care is the best guarantee of long working life and trouble-free operation!

Only use original spare parts because only those guarantee safety and quality!

Safety instruction!

See table for explanation of symbols page 3

Cleaning (Illustration O)

IMPORTANT

When carrying out cleaning and maintenance work do place the mower on its left side (in the direction of travel), as otherwise you may have difficulties starting it up again.

ATTENTION

When tilting or placing the mower on its side, ensure that no oil or fuel comes out of the machine. Fire hazard!

Remove dirt and grass residue immediately after finishing mowing. Use a brush or cloth to clean.

Do not turn the blade bar as this pumps motor oil into the carburettor/air filter and may cause trouble when trying to start up again.

ATTENTION

Do not put your fingers into the openings of the fan housing and hold onto the fan. If the blade bar is rotated during cleaning, there is a risk that your fingers may become caught between the fan and the fan housing!

IMPORTANT

Never use a pressure cleaner or ordinary water jet to clean the drive section, motor parts (like ignition system, carburettor etc.), and bearings. Damages or expensive repairs can be the consequence of such action.

Storage

Always keep the machine in a clean condition in a closed, dry room out of reach of children. Always allow the engine to cool down before you store the machine in a closed room.

Collapsing the handle (Illustration A1)

• To save storage space or for transportation, loosen the four wing nuts so that the guide tube can be folded together without resistance in a Z-shape above the engine A1.
  The toothed plastic adaptations on the bottom bar end must snap out of the cut-out on the housing.

- Do not kink nor squeeze the throttle cables in the process.

CAUTION

When folding the bar for transport and storage purposes, when loosening the wing nuts and snapping the toothed plastic adaptations from the cut-out on the housing, it is possible that unintentional upsetting of the bar may occur.

In addition, this may result in crushed points between the top and bottom part of the bar as well as the housing. This may result in a risk of injury!

GB

Transporting and securing the equipment (Illustration N)

• If the equipment has to be carried, do not hold the ejection flap! Hold the handle at the front and at the rear N.
• Transport the equipment in the upright posture.
  – Park the means of transport on level ground so that the equipment cannot roll away before it is secured.
• Hang out the collection bag and secure it separately during transport.
• Secure the equipment with approved load-strapping means (e.g. tie-down straps with clamping elements) on or inside the vehicle. Tie-down straps are belt bands made of synthetic fibres. Every tie-down strap is designated. The label contains important details for application.
• For loaded goods that can roll, it is recommended to use direct strapping with four belts. Secure the equipment on the wheels so that it does not move during transportation.

ATTENTION

Do not tighten the belts too firmly. Fixing the equipment too firmly can cause damages.

Maintenance of the blade

A sharp blade guarantees optimum cutting performance. Before you start mowing, always check the condition and firm attachment of the cutting blade. The blade attachment screw must always be tightened by an authorised workshop. If the blade screw is too tight or too loose, the blade coupling and cutter bar can become damaged or loose which can lead to serious injuries. A worn or damaged blade must always be replaced.

Sharpening and balancing the blade (Illustration Q)

WARNING

The sharpening and balancing of the blade should be carried out only by an authorized specialist workshop. An improperly sharpened or unbalanced blade can cause severe vibrations, and damage the lawnmower.

The cutting edges of the cutting blade may be grinded only until the respective value (see Figure Q) or the marking (1) on the cutting blade (ring) has been reached. Attention! Observe the grinding angle of 30^ .

Your professional workshop can check this value - (grinding limit) for you!

WARNING

A blade by which the wear limit (marking) has been exceeded can break off and spin away; this can cause severe injuries.

Replacing the blade

WARNING

The cutting blade bar must always be replaced by an authorised workshop. A wrongly assembled cutting blade coupling or a blade screw that is tightened too tightly or too loosely can allow the cutting blade bar to become loose and cause severe injuries.

• Only use original blades for replacement purposes.
• Blades must be indelibly marked with name and/or trademark of the manufacturer or supplier and with the parts number.

Servicing the wheels (Illustration S)

Oil the bearings of the wheels once a year or every 20 operating hours.

• Remove wheel covers.
• Loosen the hexagon head nuts using a socket wrench and remove the wheels.
  – After oiling the bearings, push the wheels on and tighten them again so that they still turn easily but without any play.

Recharging the starter battery (only for electro-start)

IMPORTANT

Use the charger supplied only for charging the respective mower battery. Equally, do not try to charge your mower using a different charger. You could endanger yourself or damage your equipment.

For safety reasons and to avoid damage to the charger, it may only be used indoors and in dry rooms and the battery must not be charged in direct sunlight.

The battery can be charged in the assembled or disassembled state.

• Disconnect battery cable from cable harness.
• Removing the battery

To remove the battery, loosen the screws, take off the cover and take out the battery.

• Connect the battery cable to the original charging device and plug the charging device into a 230 V socket.
• After charging the battery, refasten to the battery holder (if the battery was dismounted for charging). Reconnect the battery cable to the cable harness prior to mowing.

(see also Chapter "Before using the lawnmower for the first time – Charging starter battery")

16 SERVICING THE ENGINE

Warning symbols and illustrations including an open book, warning triangle, explosion, hazard symbol, smoke, hand gesture, and a hand icon.

Safety instruction!

See table for explanation of symbols page 3

WARNING

Avoid injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors and windows open.

Move the machine to an outside area before starting the engine.

IMPORTANT

When carrying out cleaning and maintenance work place the motor and/or mower on its left side (in the direction of travel), but preferably tip it forwards O (spark plug pointing upwards), as otherwise you may have difficulties starting it up again. When tilting the mower forwards, ensure that the ejection flap is not damaged. Secure the mower in the raised position!

ATTENTION

When tilting or placing the mower on its side, ensure that no oil or fuel comes out of the machine. Fire hazard!

The regular implementation of the prescribed maintenance and care work are the prerequisite for a permanent and fault-free functionality of the motor and also the basic requirement for any guarantee claims.

The motor should be kept clean, particularly on the outside, and the silencer and cylinder area must always be kept free from foreign bodies (e.g. grass residue). The exhaust and motor reach very high temperatures when in use. Flammable foreign bodies such as foliage, grass etc. may catch fire.

Perfect cooling can also only ensure when cylinder ribs are always clean.

IMPORTANT

Never use a pressure cleaner or ordinary water jet to clean the motor. Damages or expensive repairs can be the consequence of such action.

Oil change

NOTE

For environmental reasons, we recommend that the oil change is performed by an authorised workshop.

The first oil change of a new engine is necessary after 5 operating hours, and thereafter every 50 hours of operation or at least once per mowing season.

Before the engine or whole device is tipped to drain the oil off, empty the petrol tank and allow the engine to run until it stops due to lack of fuel.
- Switch off the engine and disconnect the spark plug cable.
- Change the oil with the engine still warm.
- To change the oil, remove the dipstick from the filler and lay the mower on its side so that the used oil drains into the catch tray.
Old oil should be disposed off in accordance with the relevant local regulations and on no account be discharged into the sewerage system or into the ground.
- Turn the mower upright and pour high quality oil (for quantity and type, see technical data) into the filler. Screw on dipstick and check oil (see Chapter Filling with oil, illustration Y1)!

Cleaning and replacing the air filter (Illustration W)

IMPORTANT

Never let the engine start or run whilst the air filter is removed.

• Loosen the screw on the air filter cover and open the cover downwards.
• Carefully remove the filter insert (1) and tap out on a smooth surface or replace if very dirty.
  – Never oil the insert or blow out with compressed air. Very dirty or oily filter inserts must be replaced.
  – Replace in housing after cleaning or replacing of the filter element and carefully replace cover.

In the worst conditions (large amounts of dust) it is necessary to clean the mower whenever it has been used, otherwise every 3 months or after 25 hours of operation.

(Order no. filter insert see original spare parts and accessories)

Checking the spark plug (Illustration Y)

To check for wear, remove the spark plug connector and unscrew the spark plug. If the electrode is badly worn the spark plug must be replaced as a matter of course. (Order no. see original spare parts list and accessories).

Otherwise it is sufficient to clean the spark plug and set the electrode gap to 0.7 mm. Screw the spark plug (pay attention to sealing ring) into the engine by hand and tighten using the socket wrench. Press on spark plug connector. Replace the spark plug annually.

Correct winter storage of the engine (or when not used for a long period of time)

– Empty the petrol tank or allow the engine to run until it stops due to lack of fuel.
- Switch off engine and disconnect spark plug cable.
- Drain off the oil while the engine is still warm. Fill with fresh oil (for quantity and type, see technical data).
– Clean grass and chaff from cylinder and cylinder head fins and around muffler.
– Always keep the machine in a clean condition in a closed, dry room out of reach of children.

17 TROUBLESHOOTING

Fault	Possible cause	Remedy
Engine does not start up	Control handle not turned down.	Press the control handle onto the upper part of the bar D.
	Fuel tank empty.	Fill up with clean and fresh fuel.
	Spark plug connector loose.	Push plug connector in place or have it checked by an authorised workshop.
	Spark plug defective or soiled or electrodes worn out.	Replace or clean spark plug, set electrode distance to 0.7 mm Y.
	Too much petrol feed to engine (spark plug wet).	Have it checked by an authorised workshop.
	Air filter soiled.	Clean or replace air filter insert W.
	Battery not charged (only for electro-start).	Charge battery W1, X1.
	Start-up takes longer than 5 seconds or is repeated too often (only for electro-start).	If you experience start difficulties, contrary to expectations, the battery must also be charged in between.
	Connection cable between the ignition key, battery and engine is loose or without contact (only for electro-start).	Connect the battery connector with the mating connector on the harness U1 or check it or have it checked by an authorised workshop.
Engine performance decreases	Air filter dirty.	Clean or replace air filter insert W .
	Spark plug contaminated with soot.	Have it cleaned by an authorized dealer.
Engine runs irregularly	Air filter dirty.	Clean or replace air filter insert W .
	Spark plug contaminated with soot.	Have it cleaned by an authorized dealer.
		Have it checked by an authorized dealer.
Extreme vibration		Have it checked by an authorized dealer
Unclean cut, lawn is yellow	Blade blunt.	Have it sharpened and balanced by an authorized dealer Q .
	Cutting height too low.	Adjust to higher cutting height I .
	Engine speed too low.	Operate at max. rpm.
	Mowing too fast.	Adjust mowing speed.
	Insufficient overlapping of cuts when mowing.	Tall grass conditions may dictate that more overlapping of cuts is required.
	Lawn becomes matted.	A lawn scarifier can remedy the problem considerably
Ejection blocked	Turbo signal has not been detected J + K .	Empty the grass collector L .
	Engine speed too low.	Operate at max. rpm.
	Cutting height too low for grass that is too high.	Adjust to higher cutting height I .
	Pushing mower too fast.	Adjust mowing speed.
	Grass not dry.	Let grass dry.
Mulched grass appearance is poor: clumps, excessive clippings, rough cut.	Blade blunt.	Have it sharpened and balanced by an authorized dealer.
	Mulching rule not followed (cut max. 1/3 of the grass height; the height of the grass to be cut must be lower than 10 cm)	Adjust to higher cutting height I . Convert mower to rear discharge U2 + S1 and mow grass first with higher cutting setting.
	Travel speed too fast.	Adjust travel speed.
	Grass build-up under deck.	Adjust to higher cutting height I .
	Insufficient overlapping of cuts when mowing.	Tall grass conditions may dictate that more overlapping of cuts is required
	Grass not dry.	Adjust to higher cutting height I . Let grass dry.

In case of faults and defects which have not been listed here, please contact the nearest authorized dealer.
Repairs which require specialized knowledge should only be performed by a qualified expert. Your authorized dealer will naturally also be glad to help if you do not wish to perform the maintenance work described here yourself.

Warning symbols and illustrations including an open book, warning triangle, explosion, smoke, firecracker, hazard symbol, and hand gesture
