USER MANUAL 510 BS Pro GUDE

PROFESSIONAL PRO SERIES

Güde

®

PRO 460 BS #75400

PRO 510 BS #75405

PRO 560 BS #75410

Icon of an open book inside a black circle (no text or symbols)

Deutsch DE 3

Original Operating Instructions

LAWN MOWER

Français FR 17

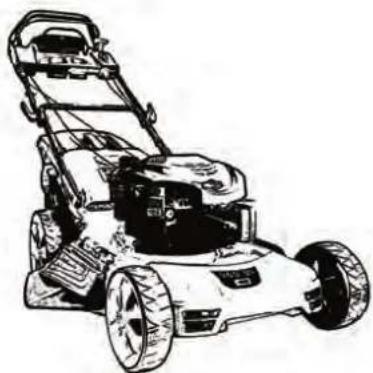

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

1 13 9 12 11 3 3 8 7 4 10 6 5 2 TDS 5

1 13 9 3 7 10 4 2 12 11 3 8 6 5 510 GS 2

1 12 9 3 7 10 4 2 11 13 3 8 6 5 360 GS 3

97/68/EC & 2004/26/EC

Two black metal boxes with cutouts, one open and one partially filled (no text or symbols visible)

Illustration of a lawn mower with a handle and blade, showing motion arrows (no text or symbols)

Betrieb

1 mulchen

2 sammeln

Illustration of a grassy tractor with a red and silver body, labeled 'mähen' (no other text or symbols)

Technical line drawing of a mechanical component with exploded view and hand gesture icon (no text or symbols)

Lagerung

Please read carefully these operating instructions before putting the machine into operation.

A.V.2

Reprints, even partial, are subject to approval. Technical changes reserved.

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions?

We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to assist you. In order to identify your appliance in case of claim, we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it below for future reference:

Serial No.
Order No.
Year of production:

Tel.:

+49 (0) 79 04 / 700-360

Fax:	+49 (0) 79 04 / 700-51999

E-Mail:

[e-mail]

Marking

B1

B2

B3

B4

B5

B6

B7

B8

B1: Please read the Operating Instructions and safety instructions before putting the appliance into operation and follow them.
B2: Risk of injury by thrown-away items when the engine is running. A safety distance must necessarily be adhered to.
B3: Keep a safe distance from the cutting knife when the appliance is being operated.
B4: Risk of explosion – refuel when the engine is off only.
B5: Toxic exhaust fumes – use the appliance outdoors only.
B6: Use hearing protection and safety protective glasses.
B7: Switch off the engine and unplug the spark plug before any repair, maintenance and cleaning.
B8: Attention! Hot surface – risk of burn.

The engine instructions must necessarily

BRIGGS&STRATTON

be followed!!!

Technical data:

Power

Idle

Cutting height Weight

Width
Product safety:

Product corresponds to appropriate EU standards

Environment protection:

Dispose waste professionally so as not to harm the environment.			Packing cardboard material may be delivered to collecting centres for recycling.
Faulty and/or disposed electric or electronic appliances must be taken to appropriate collection centres.			Recycling-System Interseroh

Package:

Technical specifications

PRO 460 BS LAWN MOWER
Engine type/capacity	DOV 4-takt / 158 ccm
Idle speed 2,800 a min	-1
Cutting width 460 mm
Catcher capacity 60 l
Height adjustment 7 levels (30 mm-75 mm)
Noise level L	WA 96 dB
Weight	32.5 kg
Dimensions (L x W x H)	1,300 x 570 x 990 (in mm)
Order No. 75400

PRO 510 BS LAWN MOWER
Engine type/capacity	OHV 4-stroke / 190 ccm
Idle speed 2,800 a min ^-1
Cutting width 510 mm
Catcher capacity 60 l
Height adjustment 7 levels (30 mm-75 mm)
Noise level L	WA 98 dB
Weight	35.6 kg
Dimensions (L x W x H)	1,400 x 570 x 1,000 (in mm)
Order No. 75405

SEKAČKA NA TRÁVU PRO 560 BS
Engine type/capacity	OHV 4-stroke / 190 ccm
Idle speed 2,800 a min ^-1
Cutting width 560 mm
Catcher capacity 70 l
Height adjustment 7 levels (30 mm-75 mm)
Noise level L	WA 98 dB
Weight	41 kg
Dimensions (L x W x H)	1,520 x 650 x 1,000 (in mm)
Order No. 75410

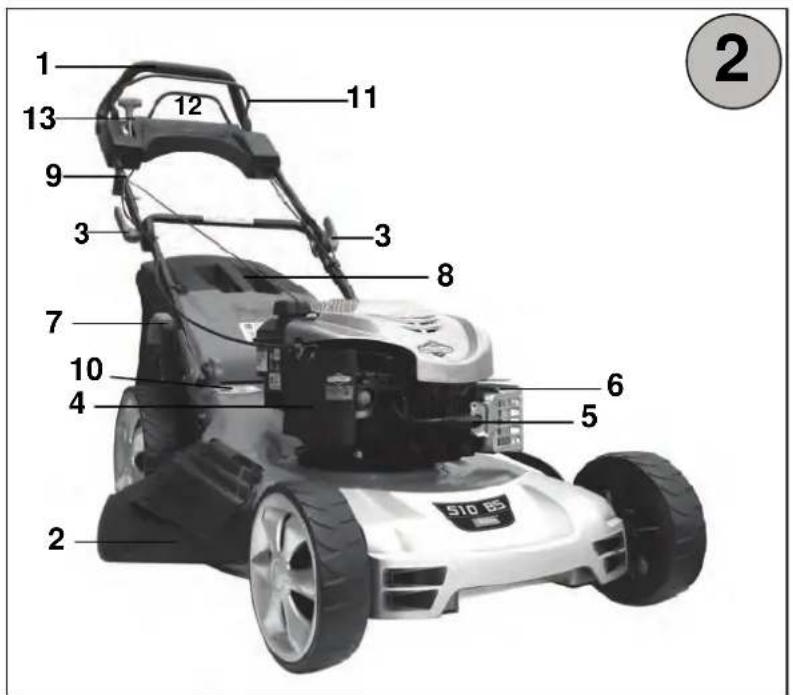

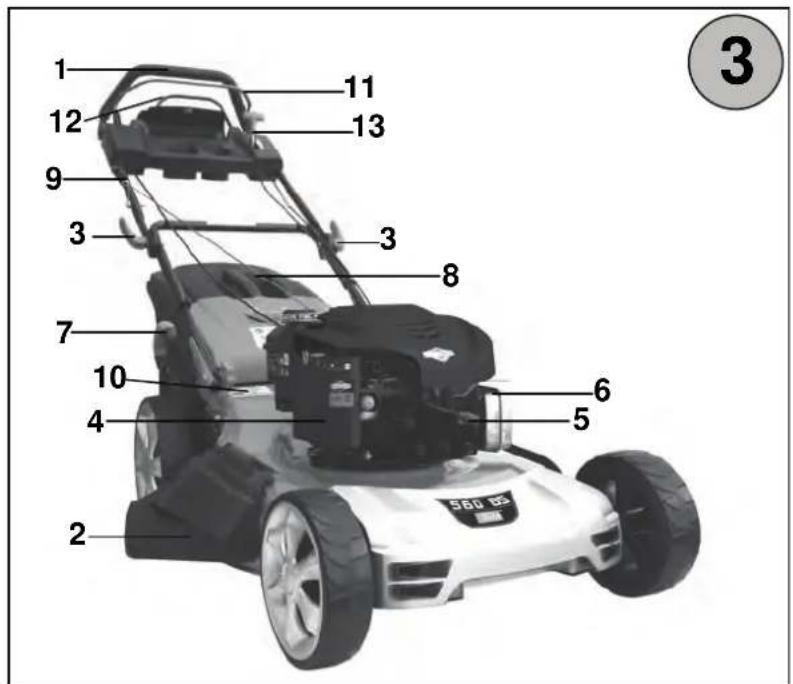

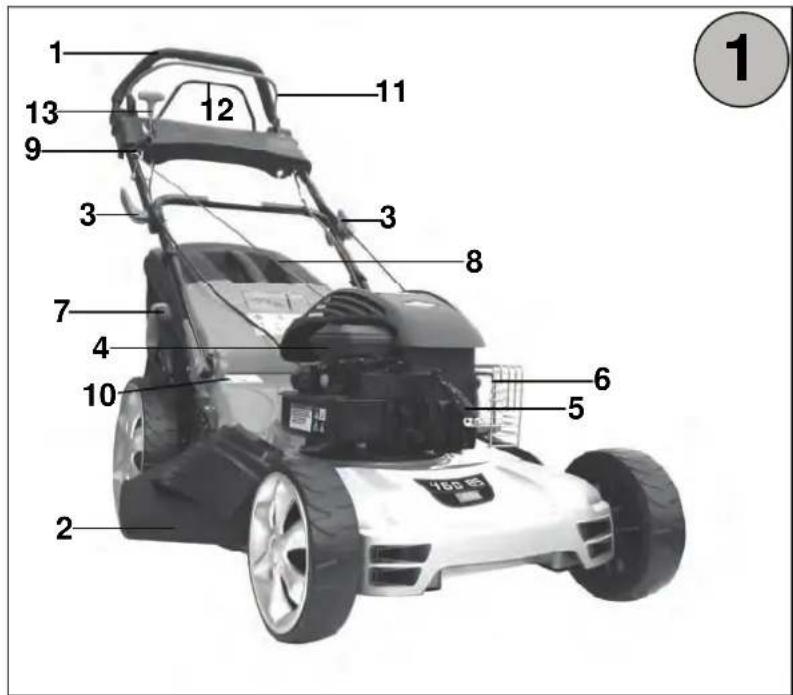

Supply includes plus appliance description (pic. 1, 2, 3)

1. Extension handle
2. Side ejection
3. Quick-clamping lever
4. Air filter
5. Spark plug
6. Exhaust/noise suppressor
7. Height adjustment lever
8. Grass catcher
9. Reverse starter
10. Type label
11. Operating lever (automatic switch-off lever)
12. Drive lever
13. Choke lever on panel

EU DECLARATION OF CONFORMITY

We,

Güde GmbH & Co. KG

Birkichstrasse 6

D-74549 Wolpertshausen

Germany,

herewith declare that the following appliance complies with the appropriate basic safety and health requirements of the EU Directives based on its design and type, as brought into circulation by us.

In case of alternation of the machine, not agreed upon by us, this declaration will lose its validity.

Machine description:

PRO 460 BS LAWN MOWER

PRO 510 BS LAWN MOWER

PRO 560 BS LAWN MOWER

Article No.

75400

75405

75410

Applicable EU Directives:

2006/42/EC

2004/108/EC

2000/14/EC & 2005/88/EC

97/68/EC & 2004/26/EC

Applicable harmonised standards:

EN 836/A3:2004

EN ISO 14982:2009

Place of certification:

TUV SUD Product Service GmbH

Ridlerstrasse 65

D-80339 Munich

Germany

Reference No. 75400

Z1A 09 11 60822 247

Z2 10 04 60822 256

OR/005514/029

e11*97/68SA*2004/26*0748*01

Reference No. 75405

Z1A 09 11 60822 247

Z2 10 04 60822 256

OR/005514/030

e11*97/68SA*2004/26*0296*01

Reference No. 75410

Z1A 10 08 60822 303

Z2 10 08 60822 301

OR/005514/036

e11*97/68SA*2004/26*0296*01

Date/authorised signature: 8 Nov, 2010

Title of signatory: Managing Director

Mr

Technical documentation: J. Bürkle FBL; QS

Arnold

Warranty

The warranty exclusively applies to material or manufacturing defects. The original proof of purchase with the purchase date must be submitted when lodging a claim in the warranty period. The warranty does not include any unauthorised use, e.g. appliance overloading, violent use, damage by a third party or foreign item. The failure to follow the Operating Instructions and assembly instructions and common wear and tear are not covered by the warranty either.

Safety instructions

IMPORTANT: The lawn mower may amputate toes and fingers and throw away various items. Failing to observe the below-mentioned rules may lead to serious injuries.

WARNING: The spark plug cable must be always disconnected to prevent unintentional appliance starting when adjusting, transporting or servicing the appliance.

WARNING: Exhaust gases and their various components contain or, more precisely, emit chemicals functioning as carcinogenic agents may damage the foetus or bring infertility.

WARNING: The suppressor and other engine parts may become very hot in the working condition and remain hot even after engine turning off. Do not touch these parts to prevent from getting burnt.

WARNING: Never touch the opened side ejection when the engine is running!!!

Please read carefully these instructions. Get acquainted with the operating elements and the proper use of the appliance.

Keep your hands and legs in safe distance from the rotating parts. Keep safe distance from the appliance ejection. Caution: do not touch the rotating parts of the appliance.

The appliance should only be operated by responsible persons that have familiarised themselves with the Operating Instructions.

Carefully search the area on which the appliance is to be used. Remove all items the mower could throw away while working.

Do not use the mower if any persons (especially children) or animals, are around.

Wear stable boots and long trousers when cutting. Never operate the appliance bootless or in sandals.

If it is not necessary, do not pull the mower backwards. Look down and backwards while moving backwards.

Never operate the mower with any damaged or missing equipment, e.g. ejection flap or grass catcher.

Use accessories allowed by the producer only.

Switch off the knife when passing any gravel road or non-solidified road.

Switch off the engine and disconnect the spark plug,

■ before releasing any blocked parts or cleaning the clogged ejection channel
- before carrying out any check, cleaning or various works on the mower
- after any foreign body has been caught by the mower. Check whether the mower is not damaged and remove any damage before restarting the mower.
- If there are any extra strong vibrations of the mower (to be checked immediately)

Switch off the engine before taking the grass catcher out and wait until the knife fully stops.

Cut in daylight or under appropriate artificial lighting only.

Do not operate the appliance when impaired or intoxicated.

Never cut in wet grass.

Pay attention to where you put your legs and hold the guide handle firmly.

Guide the mower step by step.

Release the clutch for wheel drive before starting the engine.

Replace any faulty suppressors.

Always wear protective glasses when operating the mower.

Remove any obstacles, e.g. stones and branches.

Check the terrain for unevenness, there may be obstructions hidden in high grass.

Do not cut near ditches and slopes. You may lose your stability and balance.

Do not use the appliance in a very steep terrain.

Be sure to know that the operator or, more precisely, the user is responsible for any injuries or threat of persons and things.

Be careful and switch the appliance immediately off if there are children around.

Cut along the contour line; never cut uphill or downhill.

Never let children or other persons not acquainted with the Operating Instructions operate this appliance. The operator's age can be limited by local regulations.

WARNING: Petrol is highly flammable.

Store the fuel in containers designed for that purpose.

Add fuel outdoors only; do not smoke when adding fuel.

Add fuel before starting the appliance.

Never take the tank cap out and do not add fuel when the engine is running or hot.

In any case, do not try to start the appliance if petrol is spilled.

Take the appliance away and prevent generation of a flammable source around the spilled petrol.

Make sure changing of the petrol tank and caps is safe.

Always check whether the knife, knife bolts and cutting equipment are not damaged or worn before using the mower. Always replace any damaged and worn knives and bolts in the entire set to prevent appliance unbalance.

Do not make any alterations to the safety appliances. Regularly check their proper functioning.

Keep the appliance clean, with no grass, leaves or other dirt.

Always remove any oil or petrol that has run out.

Let the mower cool down before being stored in closed spaces.

Be especially careful when changing direction on a slope.

Never adjust the height of wheels when the engine is running.

The grass catching mechanism may not work and throw away items as a result due to wear or damage.

Check regularly the mower parts and, if necessary, replace them with spare parts recommended by the manufacturer.

The mower knife is very sharp. Risk of injury! Be especially careful when servicing the knife; wear protective gloves or cover the knife-edges.

Do not change the basic engine adjustment and make sure it is not overloaded.

Be especially careful when turning the mower or pulling it towards your body.

Switch off the knife if the mower needs to be inclined or lifted to pass a surface other than grass or when carrying the mower to or from the area to be cut.

Release all knives and drive clutches before starting the engine.

Start the engine in accordance with the Operating Instructions and make sure your legs are in safe distance from the knife.

Do not incline the mower when starting except when it is necessary. Do not incline the mower more than necessary in such a case and always lift the part reversed from you.

Do not start the engine when standing in front of the ejection outlet.

Never lift and carry the mower with the engine running.

Reduce the brake adjustment when the engine is off. If the engine is fitted with a stop valve then close the petrol supply after cutting.

Make sure your posture is always safe on slopes.

Do not let the combustion engine run in closed spaces where carbon monoxide can be accumulated.

Assembly/preparation

CAUTION: All the assembly and servicing works must necessarily be performed when the engine is off! Please read the entire Operating Instructions before assembling or starting your new mower.

IMPORTANT: The mower is supplied with no oil and petrol.

Unpacking the mower

Take the mower out of the board and check whether there are any free parts left.

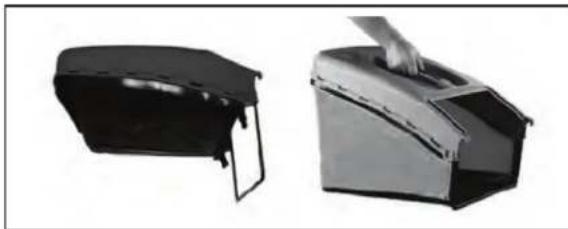

Grass catcher assembly

Take the grass catcher out of the package and fit it to the appropriate frame according to the picture.

Two black metal boxes with open lids, one open and one filled with a handle (no text or symbols visible)

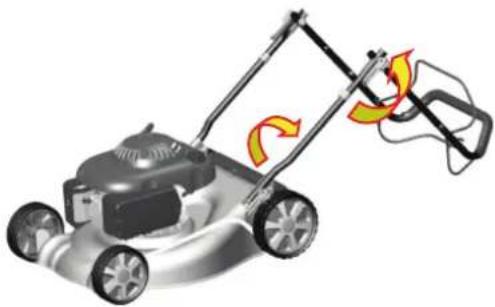

Assembly - handle

IMPORTANT: Disassemble the handle with care to prevent squeezing or damage of the cables.

Lift the handle until it snaps in the working position.

Remove the protection package, lift the upper parts of the handle and assemble it with the bottom part.

Tighten the safety bolts on both sides of the handle.

Remove the protection sleeve of the operation grab handle in the upper part.

Illustration of a lawn mower with a handle and blade, showing motion arrows (no text or symbols)

Operation

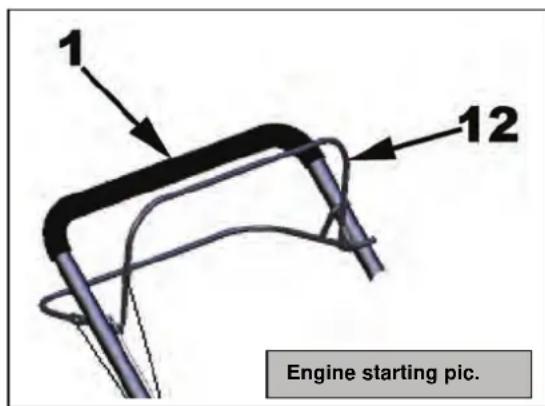

Operating lever (for automatic stopping) (12) – press the lever towards the handle when starting. Release the lever to switch the engine off.

Drive lever (13) - used when you want the mower to be moving forward.

Sammeln – collecting

Mähen - cutting

Auswerfen - ejecting

Cutting and mulching

With the mulching wedge being inserted, grass is not ejected but it is ground by the cutting knives and the grass remains on the lawn as surface fertilisation (side ejection must be closed).

Cutting and collecting

The grass is collected to the grass catcher (catcher capacity is reduced if the grass is damp or wet). To mount the catcher to the mower, lift the cover plate and fit the grass catcher.

Cutting (without grass catcher)

The cut grass is laid in strips.

Cutting (side ejection)

The cut grass is laid in strips. Lift the side flap and fit the side ejection hooks to the side flap axis. Then, let the side flap down and make sure the side ejection is fitted properly.

Changeover to "mulching"

Assembly and disassembly of accessories must always be placed when the engine is off.

Assembly

Insert the mulching wedge to the ejection channel and lock it in a way so that it is secured by the self-securing hook.

Please make sure the mulching wedge is fitted tightly after the changeover.

Caution!!! Original equipment of the manufacturer to be used only.

Disassembly

Press with thumb in the middle and release the mulching wedge.

Caution!!!

If the mower is blocked during mulching reduce the travelling speed so that the knife could continue in grinding the grass and spread it on the lawn. Never remove the gathered grass with your hands.

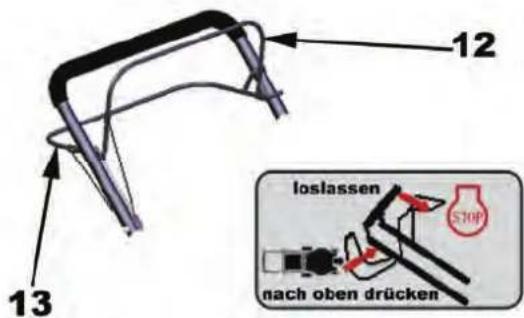

Drive control

The self-propelling travel is controlled as follows:

Press the operating lever (automatic stopping lever) (12) towards the handle and at the same time, press the drive lever towards the handle (13).

The forward movement is stopped by releasing the drive lever (13).

Cutting height adjustment

Depending on the required cutting height, it is necessary to adjust the height of wheels. Adjust the height with the lever (8) as you wish. The middle position is most suitable for most mowers.

Adding oil before starting

IMPORTANT

The oil level needs to be checked every time you are to use the appliance. Fill up oil to the oil gauge as needed.

Refuelling (unleaded)

Fuel is added through the fuel-filler spout. Make sure not to spill the petrol. Use common, clean unleaded petrol. Do not mix petrol with oil. Reasonable volume of petrol should always be bought so that it is consumed within 30 days.

WARNING: Wipe any spilled oil or petrol. Do not re, pour, use near open fire.

WARNING: Alcohol-enriched fuels (gasohol) or fuels with l alcohol or methanol mixtures may attract humidity and sequent acid formation. As a result of long storage, clean rol may damage the engine fuel system. If you want to prevent engine problems you should empty the fuel system before storing longer than 30 days. Empty the fuel tank, start engine and let it run until the fuel system and carburettor empty. Add fresh fuel each season. See the storing ructions, too. Never add cleaners to the fuel tank to clean engine or carburettor. By doing so, you could cause separable engine damage.

Engine starting

1 12 Engine starting pic.

To start the appliance, first make sure the spark plug is in place and there is sufficient amount of oil and petrol in the appliance.

CAUTION: The engine may smoke when started for the first time, which is caused by the protective oil film on the inner engine surface. Consider that as a normal situation.

1. Choke lever on panel on

1. Press the operating lever (automatic switch-off lever) (12) to the extension handle (1).

3.

With the operating lever (automatic switch-off lever) (12) pulled in, slowly pull out the starting cord (10) until you feel slight resistance and then pull in the starter until the engine is started.

CAUTION: In cold weather or when the machine has not been used for a long time it may be necessary to repeat the first steps for several times.

Stopping the engine

If you want to stop the engine, release the operating lever (automatic switch-off lever) (12).

WARNING! The knife still rotates for a few seconds after the engine is switched off. If you want to leave the mower laying unattended then disconnect the spark plug cap.

Important tips and advice for grass cutting!!!

Under certain conditions, e.g. when the grass is very high, it may be necessary to set a bigger cutting height so that effort for pushing the mower is reduced, engine overloading removed and blocking of grass in the mower prevented. It is possible that you will also have to reduce the mower travel speed and/or cut the area again.

Vent ports in the grass catcher may get blocked if the catcher is not cleaned regularly. Clean the grass catcher regularly with water and let it dry before use.

Keep the upper part of the engine at the starter clean. Air flow will be improved.

Cut in dry weather only.

Keep the knives sharp at all times.

Maintenance

Original spare parts are supplied by the customer service centre and dealers. An authorised service centre is recommended to be entitled to provide yearly maintenance and check of safety elements. For maintenance and spare parts, please contact your dealer.

IMPORTANT – Regular maintenance is necessary for constant operational reliability and keeping the original appliance output at the same level. Keep all screws and nuts tightened so that you are sure the appliance is in an operation-reliable condition. Regular maintenance is necessary for safety and trouble-free operation.

Never store the appliance with fuel in closed rooms as the evaporating fuel may ignite.

It is necessary to let the appliance cool down and empty the fuel before storing in closed rooms.

To minimise the risk of fire, keep the engine and muffler and the fuel tank clean and with no grass, leaves and fats. Do not store the grass cut with the mower.

For safety reasons, avoid using an appliance with a worn or damaged parts. Replace any faulty parts with new ones, do not repair them. Use original spare parts and original spare knives only.

Parts with quality different from the specified quality may damage the appliance and put you at risk.

If it is necessary to empty the fuel tank, do so outside with the engine being cold.

Wear solid protective gloves when assembling and adjusting the knives.

Check the correct direction of rotating and balance of knives after they are sharpened.

Check regularly the wear and pollution of the self-closing cover and grass catcher.

When transporting the appliance is necessary, carry it in hands or incline it and wear safety gloves at all times.

At all times, hold the appliance where safe holding may be guaranteed. Consider the weight and distribution of the appliance.

Cleaning

Clean the appliance with water, remove the grass and mud from inside every time the appliance is to be used – it will prevent dirt from becoming dry and problems when started the next time. Painting inside the housing may wear down in course of time. To prevent later corrosion of the appliance, use anti-corrosive paint for the worn-down spots.

Once or twice a year, remove the gearbox cover and clean the space around belt pulleys and drive belts with a brush or compressed air.

Once per season, you should clean the inside of the drive wheels. Disassemble both wheels. Clean the cog wheels and their edges off the grass and other dirt with compressed air or a brush.

Knife disassembly

For purposes of cleaning/sharpening/change Caution!!! It is necessary to disconnect the spark plug before disassembling.

Release the screw when disassembling the knives.

Re-assemble according to the picture. Tighten the screws. Torsion moment of 40 Nm. You should also replace the screw when replacing the knives.

Technical diagram of a mechanical assembly with labeled parts and a hand gesture icon

Storing

Petrol must not remain in the fuel tank for more than 1 month. At regular intervals, clean the mower and store it in a dry, closed room.

Environment

For environment protection, you should pay special attention to the following:

Unleaded petrol must always be used.

A funnel and/or a can with level regulation to prevent fuel spilling while refuelling must always be used.

Do not fill the fuel tank up to the edge.

Do not let the engine oil overflow.

Make sure the oil used will be disposed in accordance with the applicable regulations when changing oil. Prevent oil spilling.

- Do not throw the oil filters to municipal waste but deliver them to an appropriate collection centre.

TROUBLESHOOTING

Behaviour in case of emergency

Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible.

Protect the injured person from other injuries and calm him/her down.

First aid kit must always be available in the place of your work in case of accident in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away.

If help is needed,

please provide the following details:

1. Place of accident
2. Accident nature
3. Number of injured persons
4. Injury type

ENGINE NOT STARTING	Possible cause	Remedy
Fuel check	Lack of fuel	Fuel to be added
	Wrong fuel, appliance stored without petrol tank being emptied, wrong type of petrol.	Fuel tank and carburettor to be emptied. Fresh petrol to be added.
Spark plug check Wrong, dirty or	poorly adjusted spark plug	Spark plug to be replaced.
	Spark plug is wet from petrol (flooded engine).	Spark plug to be dried and re-fitted.
Have the engine repaired by the dealer or use the Operating Instructions for reference.	Blocked fuel filter, wrong carburettor or sparking adjustment, sticky valves, etc.	Replace or (if necessary) repair the defective parts.
Defective forward movement	Stroke too long	Stroke setting to be changed
Grass not being collected Blocked channel, full grass catcher, grass is too wet		Ejection to be cleaned, grass catcher to be emptied, cutting in dry weather.
Engine not starting although the automatic switch-off lever (11) is pressed	Automatic switch-off lever stroke too long	Shorten the automatic switch-off lever using the adjusting nut.

DÉCLARATION DE CONFORMITÉ CE

Nous,

Güde GmbH & Co. KG

Birkichstrasse 6

D-74549 Wolpertshausen

Allemagne

Directives applicables de la CE:

2006/42/EC

2004/108/EC

2000/14/EC & 2005/88/EC

97/68/EC & 2004/26/EC

Two black plastic boxes with metal brackets, one open and one closed, both with a hand inserting a paper into the cover (no text or symbols visible)

Montage – poignée

Illustration of a lawn mower with a power cord and attached circuit breaker (no text or symbols)

Fonctionnement

Technical diagram of a mechanical assembly with labeled components and a hand gesture icon

Stockage

97/68/EC & 2004/26/EC

Two black metal objects with open lids, one open and one filled with a paper airplane (no text or symbols visible)

Montáž – rukojet'

Illustration of a lawn mower with motion arrows indicating cycle (no text or symbols)

Provoz

Technical diagram of a mechanical assembly with labeled parts and a hand symbol indicating visibility.

Uložení

97/68/EC & 2004/26/EC

Two black plastic boxes with cutouts, one open and one closed, showing internal compartments (no text or symbols visible)

Montáž – rukovát

Illustration of a lawn mower with attached power cord and blade, showing motion arrows (no text or symbols)

Prevádzka

Technical line drawing of a mechanical assembly with no visible text or symbols

Uloženie

97/68/EC & 2004/26/EC

WAARSCHUWING: Benzine is licht ontvlambaar:

Two black plastic box devices, one open and one closed, with a hand placing a component on the lid (no text or symbols visible)

Samenbouw handgreep

Illustration of a lawn mower with motion arrows indicating cycle (no text or symbols)

Gebruik

Technical diagram of a mechanical assembly with labeled parts and a hand gesture icon

Opslag

97/68/EC & 2004/26/EC

Two black metal filing cabinets, one open and one closed with a hand inserting a paper (no text or symbols visible)

Montaggio - manico

Illustration of a lawn mower with motion arrows indicating cycle (no text or symbols)

Esercizio

Technical diagram of a mechanical assembly with labeled parts and a hand symbol indicating visibility or safety.

Conservazione

97/68/EC & 2004/26/EC

Two black plastic waste bins with metal frames, one open and one closed, both with a paper feeding into a container (no text or symbols visible)

Szerelés– markoló

Illustration of a lawn mower with motion arrows indicating cycle (no text or symbols)

Működtetetés

Technical diagram of a mechanical assembly with labeled parts and a hand gesture icon

Raktározás
