USER MANUAL MX-4154 TRISTAR

You can find all information and spare parts at service.tristar.eu

Dear customer,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

You can find all information and spare parts at service.tristar.eu!

An answer to all your questions

Tips and tricks on how to use your product

Order spare parts for your product online

Register for software updates for your product

SAFETY INSTRUCTIONS

Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.

children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.

responsible for the damage.

make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.

the purpose it is made for.

the supply.

of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.

fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

can not become entangled.

can cause injuries and will invalidate any warranty that you may have.

or for maintenance.

plug or appliance in the water or any other liquid.

appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an Competent qualified repair service ^(*) . Do not repair this appliance yourself.

water. If this appliance has fallen into the water do not under no circumstances directly grab this appliance, but first pull the plug from the socket.

because it comes into direct contact with food.

applications such as:

• Staff kitchen areas in shops, offices and other working environments.
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments
• Farm houses

appliance.

* Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

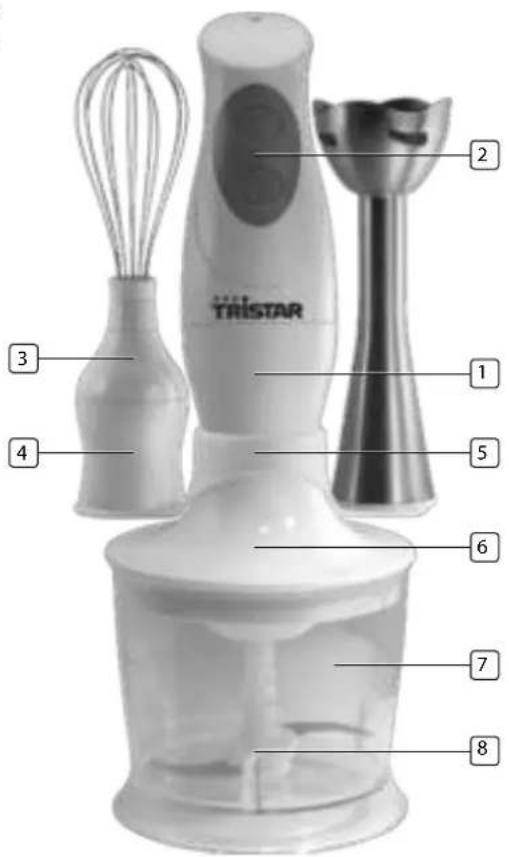

PaRTS DeSCRIPTION

1. Cylinder block
2. Speed s witch
3. Guard
4. Mixer b ase
5. Choppe r
6. Lid
7. Bowl
8. Knife

2 1 3 4 5 6 7 8 TRISTAR

BEFORE THE FIRST USE

stickers, protective foil or plastic from the device.

parts with a damp cloth. Never use abrasive products.

voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50Hz)

10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.

allow the mixer to cool down for 5 minutes.

USE

Using the hand mixer

until it clicks.

snap.To remove the guard from the mixer foot, pull the guard from the mixer foot.

the desired speed. If you press one of the switches off the device directly, by releasing the switch stops the machine immediately. You can stir minor ingredients such as egg white, cream, instant desserts and eggs and sugar for cakes.

Using the chopper

it clicks.

the desired speed. If you press one of the switches off the device the device starts directly, by releasing the switch stops the machine immediately.

fruit, vegetables and small pieces of meat.

Using the chopper bowl

the bowl (No. 7).

clockwise to the bowl. Place the engine (No. 1) on the lid and turn it clockwise until it clicks.

desired speed. If you press one of the switches the device starts directly, by releasing the switch stops the machine immediately.

heels. Do not chop any hard foods like coffee beans, ice cubes, spices or chocolate, this may damage the knife. Remove any bones from the meat and cut food into cubes of 1-2 cm. Place the bowl (No. 7) on a flat, stable surface.

TRISTAR Instruction manual

STORING The eQUIPmeNT

Remove after each use the plug from the socket. Place the accessories holder (A) on the cover (No. 6) of the bowl. Place the engine (No. 1) with a clockwise twist in the Dekel. Place the guard(No. 3) and the chopper (no. 5) Upside-down on the accessories holder (A) and turn it clockwise until it clicks.

A

CleaNINg aND maINTeNaNCe

cleaners, scouring pad or steel wool, which damages the device.

not dishwasher proof.

very sharp, never try it yourself to undo the chopper blade (No. 5) and be careful cleaning it. Avoid all bodily contact with the blades, they can seriously injure you.

gUaRaNTee

o In case the appliance has fallen.
o In case the appliance has been technically changed by the owner or another third party.
o In case of improper use of the appliance.
o In case of normal wear of the appliance.

be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 2011/83/EU.

form of warranty whatsoever.

void of warranty, if this results in consequential damages Tristar will not be liable.

by improper use or if the safety instructions are not properly executed.

maintenance for this appliance.

performed by an authorized company.

are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.

purchase."

date of purchase (receipt).

original packaging to your dealer together with the receipt.

the whole appliance. You can find all information and spare parts www.service.tristar.eu. Broken glass or breakage of plastic parts are always subject to a charge.

maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!

competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This appliance is designed to come into contact with food and is designed in accordance with EC Directive1935/2004/EEC. This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
