BW-4752 - Heated blanket TRISTAR - Free user manual and instructions

Product type	Electric heated blanket
Brand	TriStar
Model	BW-4752
Dimensions (W x L)	160 x 130 cm
Weight	1.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	100 W
Material	Microfiber fleece
Number of heat levels	6 levels
Automatic shut-off	Yes, after 3 hours
Preheating	Yes
Machine washable	Yes, at 30 °C, delicate cycle
Machine drying	Not recommended
Control type	Manual with LED display
Cable length	2 m
Safety	Overheating protection, electronic safety system
Certifications	CE, RoHS
Warranty	2 years
Spare parts available	Yes, via TriStar after-sales service
Included accessories	User manual

Frequently Asked Questions - BW-4752 TRISTAR

How to adjust the temperature of the BW-4752 heated blanket?

Use the control unit to select one of the 6 heat levels. Level 6 is the hottest. Press the + or - button to adjust.

Can I machine wash the blanket?

Yes, the blanket is machine washable at 30 °C on a delicate cycle. First unplug the control unit and close the fasteners. Do not use bleach or fabric softener.

Does the blanket turn off automatically?

Yes, it is equipped with an automatic shut-off after 3 hours of continuous operation. You can also turn it off manually at any time.

Can the cable be replaced if damaged?

The power cable is not user-replaceable. If damaged, contact TriStar after-sales service for repair or replacement.

Can I use the blanket with a pet?

It is not recommended to use the blanket with animals. Claws or urine can damage the heating elements and cause a fire risk.

How to store the heated blanket?

Let it cool completely, then fold it without twisting. Store in a dry and dust-free place. Do not place heavy objects on it.

Can the blanket be used by a person with diabetes or circulatory disorders?

Consult a doctor first. People insensitive to heat should avoid using a heated blanket to prevent burns.

What to do if the blanket does not heat up?

Check that the plug is properly inserted and the control unit is correctly connected. If the problem persists, contact TriStar customer service.

Can I use the blanket on a water bed or electric mattress?

No, the blanket is designed for use on a standard mattress. Do not use it on a water bed or electric mattress, as this could cause overheating.

Is the blanket suitable for children?

This appliance is not intended for children under 8 years. For older children and vulnerable persons, constant supervision is required.

USER MANUAL BW-4752 TRISTAR

Folded fabric with a medical or electrical device attached, no visible text or symbols

USER GUIDE / HANDLEIDING / MANUEL D'UTILISATEUR BEDIENUNGSANLEITUNG / MANUAL DE USUARIO / BRUKSANVISNING BRUGERVEJLEDNING / ANVÄNDARHANDBOK / KÄYTTÖOHJE MANUALE D'USO / MANUAL DO UTILIZADOR UŽIVATELSKÁ PŘÍRUČKA / Ođηγιεσ Χρησησ / HASZNÁLATI ÚTMUTATÓ INSTRUKCJA OBSŁUGI / UŽÍVATEL'SKÝ MANUÁL РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ

V1.0 - 10/12

UK The features described in this manual are published with reservation to modifications.
NL De in deze handleiding beschreven mogelijkheden worden gepubliceerd onder voorbehoud van wijzigingen.
F Les possibilités décrites dans ce manuel sont publiées sous réserve de modifications.
D Die in dieser Bedienungsanleitung umschriebenen Möglichkeiten, werden vorbehaltlich Änderungen publiziert.
ES Las características descritas en este manual pueden ser objeto de futuras modificaciones.
S Funktionerna i denna bruksanvisning publiceras med reservation för ändringar.
DK Vi forbeholder os retten til ændringer af de specifikationer, der er beskrevet i denne brugsanvisning.
N Funksjoner beskrevet i denne manualen kan endres uten nærmere informasjon.
SF Tässä ohjekirjassa julkaissut tiedot voivat muuttua ilman ennakkoilmoitusta.
IT Le caratteristiche descritte nel presente manuale vengono pubblicate con riserva di modifica.
PT As características descritas neste manual são publicadas sob reserva de modificação.
CZ Možnost úpravy funkcí popsaných v této příručce vyhrazena.
GR Οι λειτουργίες που περιγράφονται στο παρόν εγχειρίδιο, δημοσιεύονται με επιφύλαξη τυχόν τροποποιήσεων.
HU A jelen használati útmutatóban leírt adatokra a gyártó fenntartja a változtatás jogát.
PL Właściwości opisane w niniejszej instrukcji obsługi są publikowane z zatrzeżeniem prawa wprowadzenia zmian.
SK Vlastnosti popísané v tejto príručke sú publikované s vyhradeným právom na zmenu.
RU Для рассмотренных в этом руководстве возможностей сохранено право на изменения.

1 Intended Purpose

The Heating Blanket BW-4752 generates a suiting warmth which promotes a comfortable, relaxed sleep. A wonderful way to relieve stress.

This heating blanket is fitted with a special safety appliance which can automatically regulate the temperature by turning the power on and off at regular intervals.

The maximum temperature of the heating blanket is limited to ensure safe use.

2 Information about this instruction manual

This instruction manual is part of the Heating Blanket BW-4752 (hereinafter referred to as "the device"). It contains important information about setting up the device, safety aspects and correct use.

The instruction manual must always be kept close by the device. It must be read and followed by anyone responsible for operating the device, resolving faults and/or cleaning it.

Keep this instruction manual safely and if you sell the device please give it to the next owner.

3 Copyright

This documentation is protected by copyright.

All rights, including those of total or partial photomechanical reproduction, duplication and distribution by means of particular processes (such as data processing, data carriers and data networks), and substantive and technical changes are reserved.

4 Safety advice

WARNING

• The device is only intended for the purpose described in this user guide. The manufacturer cannot be held liable for personal injuries or damages occurring as a result of inappropriate or careless use.
  • Always read the safety instructions carefully and keep this user guide for future reference.
• Follow the basic safety precautions for all electronic equipment when using this device.
• This device is not a toy. Don't let children play with it.
  • The device is only for private indoor use and is not intended for commercial purposes.
  • This appliance is not intended for medical use in hospitals.
• This unit is not waterproof. Don't expose this device to rain or moisture.
• Do not leave the device unattended when plugged in. Unplug the device immediately from the main power after use.
• Make sure that the device is not too close to heat so urces such as ovens, radiators or direct sunlight.

DANGER - Risk of electrocution

• Ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
- Do not use the blanket if there is visible damage to the blanket, controls or leads.
- Do not use the device if it is not working properly, dropped or damaged.
- Repairs to electrical appliances must only be carried out by qualified persons. Incorrect repairs can lead to considerable danger for the user. In the event of repairs, please contact our customer service or an authorized dealer.
- Don't disassemble this device. It doesn't cont ain parts that can be repaired by the user.
- Do not insert objects into any opening.
- Do not place the unit in a damp room and at a distance of less than 1.5 ~m away from a water source. Do not use the device too long. Extensive use could lead to a shorter lifetime.
- Never carry, pull or turn the heating blanket by the mains lead and do not let the lead get tangled.
- Never use the appliance during a thunderstorm.
- Keep the mains lead away from hot surfaces.
- Never touch a device that has fallen into water. Unplug the device from the mains outlet immediately.
- Do not use the heating blanket when wet.

Heating blanket precautions

• Only use the control unit that is supplied with the heating blanket and marked on the label.
- This device is not intended to be used by person (including children) with mental, sensory or physical handicaps or person with lack of experience and/or knowledge to use this device. For their safety is it is necessary to keep close supervision and give them clear instructions when they are using the device.
- Do not use this blanket on helpless persons, sma ll children or persons insensitive to heat.
- It is not allowed to use the heating blanket If you are fitted with a cardiac pacemaker, implant or other aid. Individuals with pacemaker should consult their doctor before use.
- Carefully check the heating blanket before each use.
- Do not fold or crease the heat blanket during use before connecting the device to your power supply.
- Neither pierce the blanket with, nor attach safety pins or other spiky or sharp objects to the blanket.
- Do not tuck in.
- Do not use the heat blanket on children or persons who are disabled, a sleep or insensitive to heat.
- Only use as under blanket.
- Never apply the blanket unsupervised.
- For all-night use, set the switch to the lowest level (1 button) before sleeping in order to avoid the risk of heatstroke or switch the blanket off.
- Prolonged use of the heating blanket at a high setting could lead to skin burns.
- Do not cover the blanket with any other cushions. The co ntrrol switch should not be covered or placed on or below the blanket while the unit is in operation.
- Do not sit on the heat blanket. Instead, lie down on the blanket.
- Should you have any concerns about health issues, consult your doctor before using the heat blanket.
- Do not use the appliance to heat animals.
- Do not use on an adjustable bed or when used on an adjustable bed, check that the blanket or the cord cannot become trapped or rucked.
- Do not use with other heating appliances.

WARNING - Risks of fire

• Do not activate the blanket when it is still packed in the box. Extensive heat can occur and cause fire.
• Do not place the heating blanket under inflammable objects, especially not under paper or curtains.

Generation and Prevention of Electric Blanket Static

After the electric blanket is powered on, some users will feel an electric short when their dry bodies slightly touch the blanket. After their bodies cling to the blanket, they do not have such a feeling. This is called electric induction. When the heating wire is powered on, an AC magnetic field is generated. Due to the AC magnetic field, electric charge is gathered on the surface of the blanket. When our skin touches the blanket with static, electric charge is discharged. Static is a natural phenomenon. Due to friction, underclothes made of chemical fiber, carpets, cushions and wall paper will generate static. Home appliances will also generate static when they are being used.

The following methods of eliminating static are simple and easily used:

1. When indoor air humidity is less than 30%, static is easily generated. If humidity is increased to 45%, static is hard to be generated. As a result, in dry weather, sprinkle water in the house or place one to two basins to hold water at the places where sprinkling water is inapplicable to increase indoor air humidity.
2. Static particulates are generated around screens of TV sets and computers. These particulates will adsorb floating dust and be absorbed on to our skins. As a result, wash your hands and face before going to sleep.
3. It is recommended that elders, children, and static-sensitive persons should wear underclothes completely made of cotton in winter, and frequently bathe and change clothes to avoid influence of static.
4. Walk barefoot helps discharge of static on the body surface. As a result, walk barefoot before going to the bed, which effectively eliminates static on the body surface.
5. On the electric blanket, bed sheets or bedspreads completely made of cotton are preferred.

5 Installation

The electric heating blanket should be laid on a relatively hard and nonadjustable mattress.

The blanket body should be laid flat from shoulder to feet when sleeping.

The electric heating blanket can be spread either on the front side or the back side. The side with the switch should be placed near the shoulder for convenient operation.

The four clasps on the corners can be used to fix the heating blanket tightly to the mattress. This will prevent the blanket from moving or creasing.

WARNING

• The creased part tends to cause high temperature which is very dangerous.

In order to keep the electric heating blanket flat and clean and to reduce abrasion, please cover the blanket with bed sheet for use. (Don't cover it with blanket or cotton mat, which will prevent the blanket from transmitting heat.)

6 Using the heating blanket

- The heating blanket is equipped with a control unit with 3 positions:

• 2 - maximum temperature;
• 1 - minimum temperature;

• 0 - off

• Check that the control unit switch (A) is in p position '0' (lowest) before connecting it to the mains socket.

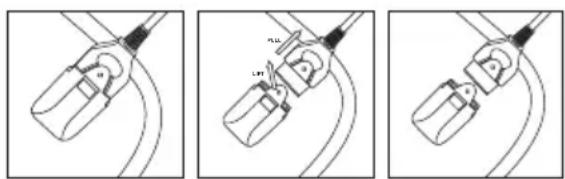

• The heating blanket plug (C) and mains plug are fixed to the control unit.
• Connect the heating blanket plug (C) to the heating blanket connector (D).
• Connect the mains plug to the mains socket (230V AC/50Hz).

WARNING

The mains socket must be close and easy accessible.

• Place the blanket on that part of your body you wish to
• For rapid heating, select level 2, after a few minutes the
  • After use, disconnect the blanket from the mains socket.

heat and select the desired temperature.

heating blanket will already be pleasantly warm.

7 Technical data

DimensionsWeightRated voltagePower consumptionMaterial

160x140 cm1,8 kgInput: AC 230 V / 50 Hz2 x 60 W100% polyester

8 Cleaning

• Machine washing of the blanket is possible; however, hand wiping will prolong the life of the blanket.
• To machine wash, remove the control unit and place the blanket in a net bag and seal it.
- Use a small amount of detergent and set the washing machine to a "Delicate Wash" with a maximum temperature of 40^ . When washed, remove the blanket from the net bag and drape it over a clothes line to dry.
- Do not use clothes pegs to secure it.

- Allow the blanket to dry naturally.

WARNING

• Never use abrasive cleaners, brushes, gasoline, kerosene, glass polish or paint thinner to clean.
- Do not wring out the blanket
- Do not dry using a tumble dryer
- Do not iron the blanket
- Do not dry clean.
- Don't connect the blanket to power supply to dry it.
- Don't dry it in the sun or iron it, which will cause safety prob lems because of the aging of the insulating layer.
- Do not use an appliance such as a hair dryer to dry it

9 Maintenance & storage

Store the heating blanket only if it is dry.

The dry electric heating blanket should be f to avoid any pressure.

olded without any crease. Don't place it under quilt or other things in order

WARNING

• Don't use any mothproofing agent like naphthalene, which will damage the insulation material.
• Do not try to repair a fuse link or thermal link. The appliance must be returned to the manufacturer or his agent if the link has ruptured.
• Examine the appliance frequently for signs of wear or damage. If there are such signs or if the appliance has been misused, return it to the supplier prior to any further use.
• Avoid creasing the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

10 Disposal of the device (environment)

At the end of the device lifecycle, you should not throw this device into the normal household garbage but bring the device to a collection point for the recycling of electrical and electronic equipments. The symbol on the device, user guide and/or box indicate this.

Some of the device materials can be re-used if you bring them to a recycling point. By re-using some parts or raw materials from used devices you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

11 Warranty

11.1 Warranty period

The devices have a 24-month warranty period. The warranty period starts on the day the new unit is purchased. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered. The warranty has to be proven by presentation of the original or copy of the purchase receipt, on which the date of purchase and the unit-model are indicated.

11.2 Warranty exclusions

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories are not covered by the warranty.

The warranty does not cover damage caused by outside factor caused during transportation.

No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible.

Any warranty claims will be invalid if the unit has been repaired, altered or modified by the buyer.

This device is in compliance with the essential requirements and other relevant provisions of the directive 2004/108/EC. The Declaration of conformity can be found on: www.tristar.eu

1 Beoogd gebruik

Three-panel line drawing showing a hand holding a device with wires, no text or symbols present

ADVERTENCIA

ADVARSEL - Brandfare

ADVARSEL

UPOZORNĚNÍ

FIGYELEM!

OSTRZEŻENIE

UPOZORNENIE

ВНИМАНИЕ
