USER MANUAL Force 1200 Eurom
Art.nr. 161427
Dank
Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)natural_image
Close-up of a mechanical component with a meshed base and labeled section A (no text or symbols on the object itself)
Simple line drawing of a trash bin with two crossed lines above and below, no text or symbols present.Thank you very much for choosing for a EUROM product. You have made a good choice! We hope you will be satisfied about its functioning.
To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.
Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.
We wish you a lot of fun with the Force 1218 Ashcleaner!
Eurom
Kokosstraat 20
8281 JC Genemuiden (NL)
info@eurom.nl
www.eurom.nl
This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.
Technical details
| Supply voltage | 220-240V~50Hz |
| Power | 1200 Watts |
| Boiler capacity | 18 litres |
| Electrical cable | 4.3 m |
| Hose length | 1.4 m, ∅ 35 mm |
| Suction tube | 25 cm, aluminium |
| Filter | HEPA |
| Weight | 3 kg |
| Dimensions | 27 x 27 x 38 cm |
Safety Instructions
General Safety Warning
- Read these instructions carefully and completely before using this device. Save them for future consultation and for passing on.
-
Check the new device (incl. the cable and plug) for visible damage before use. Do not use a damaged device. Take it to your supplier for replacement.
-
Incorrect use or incorrect installation will create a risk of electric shock and/or fire hazard.
Use warnings
- Do not use any additions/accessories on the device that are not recommended or supplied by the manufacturer.
- The use of dust collection bags is not permitted. Fire hazard!
- Do not use the device without a properly installed filter. Only use the fire prevention filter supplied by the manufacturer!
- Use the device only for the purpose for which it was designed and in the manner described in this manual.
-
This device is intended for normal household use only.
-
The supply voltage and frequency stated on the device must correspond to those of the socket to be used and the electrical installation must be equipped with an earth leakage circuit breaker of 30 mA. The socket you use must be easily accessible at all times, so that the plug can be quickly removed from the socket in an emergency.
-
Completely unwind the electrical cable from the appliance before inserting the plug into the socket and make sure that the electrical cable does not come into contact with the hot parts of the appliance or that it can become hot in any other way. Do not route the electrical cable under carpet, do not cover it with mats, runners or the like and keep the cable away from the walking route. Take care not to step on it or place heavy objects on it. Do not route the electrical cable around sharp corners and do not wind it too tightly after use! Prevent the electrical cable from coming into contact with oil, solvents and sharp objects. Check the electrical cable and plug regularly for damage. Do not twist or kink the electrical cable; it can damage the insulation!
-
The use of an extension cable is not recommended because it can cause overheating and fire. If the use of an extension cable is unavoidable, make sure to use an undamaged, approved extension cable with a minimum diameter of 2x1.5 mm² and a minimum permitted power of 1500 Watt (maximum 10 meters long). Always unwind the extension cable fully to prevent overheating.
-
Keep the device away from direct sunlight, operating heaters, open flames and high temperatures. This could warp or break the plastic.
-
The device contains internally hot and/or glowing and sparking parts. Therefore, do not use the device in an environment where fuels, paint, flammable liquids and/or gases
etc. are kept. Do not use the device in a flammable environment such as near gas tanks, gas pipes, paint and dust mist or spray cans. This creates an explosion and fire hazard!
- When setting up the device, make sure to place it on a safe and solid surface.
- The device is suitable for extracting cold ash from fireplaces, wood or coal stoves, ash drawers and grills. Ash with a temperature higher than 40^ C must never be vacuumed! Cold ash has had sufficient time to cool down and contains no glowing embers, hot residues or objects in which the fire has not been completely extinguished; check through the ash (using a metal tool) on it before you start vacuuming! Cold ash no longer produces palpable heat.
- Only vacuum ash from conventional and approved fuels.
- Do not use this device for vacuuming out (gas) boilers or oil-fired heating equipment.
- Empty the boiler from the appliance before and after each use and clean it, to prevent materials from collecting in the boiler that present a fire hazard.
- Do not vacuum up soot or flammable substances.
-
The following objects and/or substances may not be vacuumed up with the device:
-
Burning, smoking, smoldering or hot objects/substances such as hot ash, glowing cigarettes, matches, etc.
- Toxic, corrosive or harmful substances: this device is not approved for vacuuming/separating the dangerous substances from dust class L, M and H.
• Water or other liquids. - Objects that are too large.
- Sharp objects such as shards, nails, etc.
- Volatile substances, flammable gases, acids, waste that poses an explosion hazard, etc.
- Hazardous substances such as asbestos etc.
- Highly flammable substances such as gasoline, gas oil, etc. Do not use the device in a room where these substances are or may be present.
-
Flour, cement dust, calcareous, gypsum or graphite powder, etc.: this can obstruct ventilation, damage the motor and cause overloading.
-
While using the device, keep a constant check on the heating of the device and the suction hose.
-
Make sure that no water gets into the hood; water in the motor can cause damage or injury!
-
Do not insert any objects into the device through the openings. Do not use the device if the openings are blocked. Keep the device free from dust, wires, hairs or whatever might block the air flow.
-
Use extra caution when working on stairs!
-
Do not twist the hose or stretch it too far and make sure it is not damaged. Never use a damaged hose.
-
Never pull or carry the device by an electrical cable or hose. Do not jam the cable between a door or pull it around sharp corners. Do not drive over the cable, do not walk over it and keep it away from hot surfaces.
-
Always switch the device off before removing the plug from the socket.
-
Switch off the appliance and remove the plug from the socket when you stop work, leave the room, empty the boiler or carry out maintenance on the appliance.
-
Do not pull the plug out of the socket by the electrical cable: hold the plug in your hand.
-
Do not touch the plug and/or electrical cable with wet hands and do not use the vacuum cleaner without wearing shoes.
-
Never operate the device with wet hands.
-
Pay attention! Do not touch hot parts of the device. These parts can also remain hot for a long time and cause fire. Allow the device to cool down completely.
-
Always use the handle when moving the device.
-
Be careful when using the device. Use your common sense and always pay careful attention. Do not use the device when you are tired, are using medication that cause drowsiness or if you have used alcohol or drugs.
-
This device can be used by children aged from 8 years and older and people with reduced physical, sensory or mental skills or, if there is a lack of experience and knowledge, used while they are supervised or when they have instructions regarding the safe use of the device and understand the associated hazards.
-
Children must not be allowed to clean and maintain the device without supervision. Children must not play with the device.
-
Never leave a ready-to-operate device unattended.
-
Children under the age of 8 must be kept away from the device.
- Store your vacuum cleaner indoors in a cool, dry room.
- If the device, electrical cable or plug is damaged or shows signs of malfunction, do not use it any longer but take it for repair/replacement by a qualified electrician. Never carry out repairs yourself, as this will void the supplier warranty and liability!
Maintenance warnings
- This device is subject to wear and tear due to use. Therefore, check the device regularly for damage and/or defects.
- Keep the device clean. Dust, dirt and/or deposits in your device are a common reason for overheating. Make sure that these deposits are regularly removed.
-
Always switch the device off before removing the plug from the socket and when you:
-
remove, replace, and clean the filter.
- empty the boiler.
- want to clean the device.
-
want to perform user maintenance on the device.
-
Do not operate the device if you notice any damage to the device, electrical cable or plug, or if it malfunctions, makes unusual noises, smells or emits smoke, has fallen or otherwise shows a defect.
Immediately remove the plug from the socket. Return the complete device to your supplier or an authorised electrician for inspection and/or repair. Always ask for original parts.
- The device may only be opened and/or repaired by authorised and qualified persons. Do not carry out any repairs on the device yourself, as this can be dangerous! Repairs carried out by unauthorised persons or changes to the device
break the dust and water tightness of the device and void the manufacturer's warranty and liability.
- If the electrical cable is damaged, it must be replaced by the manufacturer, the manufacturer's service representative or persons with similar qualifications to prevent danger.
Deviations from points 4, 5 and 6 can cause damage, fire and/or personal injury. They invalidate the warranty and the supplier, importer and/or manufacturer accept no liability for the consequences.
This device is only suitable for vacuuming dry and cold material!
Description
- On/off button (I/O)
- Hood with motor
- Hose connection for blowing
- Boiler
-
Wheels (3x)
-
Hose
- Nozzle
- Fire prevention HEPA filter
- Clamps (2x)
- Electrical cable storage hooks
- Handle
Assembly
- Remove all packaging material and keep out of the reach of children. After removing the packaging, check that the device does not show any damage or signs that could indicate an error/defect /malfunction. If in doubt, do not use the device, but contact your supplier for inspection/replacement.
- Open both clamps (10) and remove the motor cover (3) from the boiler (5).
- The boiler contains the accessories: 3 wheels (6), hose (7) and nozzle (8). Remove these accessories from the boiler.
- Hold the boiler upside down and click the three wheels on the outer edge at the bottom of the boiler. The positions where the three wheels must be mounted are marked with labels on the bottom of the boiler.
- Check whether the HEPA filter (9) has been positioned correctly.
- Replace the motor cover (3) on the boiler (5) and close both clamps (10).
- If you want to vacuum up ash, connect the hose to hose connection 1.
- If you want to blow, connect the hose to hose connection 4.
Insert the hose (7) as far as possible into the hose connection (1 or 4): turn slightly if necessary until the catch falls into the hollow. Then turn a quarter turn clockwise.
- Then connect the nozzle (8) to the hose (7) with a circular motion.
Operation
- Check that the boiler and the HEPA filter are clean and that the device has been correctly and completely assembled as described in the user manual.
- Take into account all safety warnings on the device and in the operating instructions.
- Plug it into the socket.
- Press the on button (I) to switch on the vacuum cleaner (press the button (O) to switch off the vacuum cleaner).
- The device is suitable for extracting cold ash from fireplaces, wood or coal stoves, ash drawers and grills. Ash with a temperature higher than 40^ C must never be vacuumed! Cold ash has had sufficient time to cool down and contains no glowing embers, hot residues or objects in which the fire has not been completely extinguished; check through the ash (using a metal tool) before you start vacuuming! Cold ash no longer produces palpable heat. Only vacuum ash from conventional fuels.
- Do not use the device without a properly installed filter.
- While using the device, constantly check the heating of the device and the suction hose.
- When the device is used as a blower, the hose can be used with or without the metal nozzle.
- To reduce the risk of hearing damage, wear hearing protectors for prolonged use of the device.
- When using the blow function, be extra careful:
- Keep bystanders/spectators away to prevent injury.
- Wear a dust mask if blowing causes dust that can be inhaled.
Caution: The HEPA filter must fully depress the white switch on the engine block otherwise the device will not work. (See label on the bottom of the motor cover (3).)
After use: cleaning and maintenance
Empty the boiler of the device before and after each use and clean it, to prevent materials from collecting in the boiler that present a fire hazard.
- Switch the device off with the on/off button (2).
- Remove the plug from the socket.
- Roll up the electrical cable.
- Open both clamps (10) and remove the motor cover (3) from the boiler (5).
- Empty the boiler. Remove the dirt from the boiler and clean the boiler. If you need to use water, dry it thoroughly!

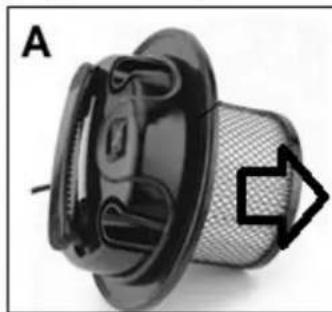

- Clean the filter. Pull the HEPA filter from the motor block (A) and clean it: clean the outside with a different vacuum cleaner (B) and the inside, if necessary with a hand sprayer (C). Never clean the outside with water (D), because then the dirt will be forced in! Do not use any aggressive or abrasive cleaning agents and allow the HEPA filter to dry thoroughly before replacing it. Finally, slide the HEPA filter firmly back into place: the white switch on the bottom of the engine must be pressed by the HEPA filter.
- Replace the motor cover (3) on the boiler (5) and close both clamps (10).
Maintenance
- Keep the boiler (exterior), motor cover and accessories clean by cleaning them with a dry or, if necessary. damp cloth. Do not use aggressive cleaning agents!
• Regularly check that no false air is sucked in anywhere. - Check the electrical cable and plug for damage regularly. Do not use the device with a damaged cable and/or plug, but have it replaced by a qualified technician!
- Regularly check that no objects in the nozzle, hose or pipe are obstructing the suction. Remove them if necessary.
- Use the device carefully and with caution; make sure it does not fall, bump or is otherwise damaged.
- Store the device in a dry environment.
- Do not allow the device to run for too long, but allow it to cool down regularly. This extends the service life.
- If the device fails, vibrates, makes a strange noise or emits a burning odour, immediately stop use and send the device to your supplier or service centre for inspection/repair.
Security
The device is equipped with an overheating protection. The overheating protection switches the device off if it becomes too hot inside. When this happens switch off
the appliance by turning the on/off switch to "0", remove the plug from the wall socket and let the appliance cool down. You can then restart the device.
Removal
CE-statement
Eurom-Genemuiden-NL hereby declares that the ashcleaner type Force 1218 Ashcleaner Metal complies with the following guidelines and meets the following standards:
LVD 2014/35/EU
EN 60335-1:2012+A11+A13
EN 60335-2-2:2010+A11+A1
EN 62233:2008
AfPS GS 2014:01
EMC 2014/30/EU
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-3:2013
EN IEC 61000-3-2:2019
RoHS 2011/65/EU&(EU)2015/863
Genemuiden, 30-09-2019
W.J. Bakker, alg. dir.
Simple line drawing of a trash bin with no text or symbolsnatural_image
Close-up of a mechanical component with a meshed outer ring and a black arrow pointing to a feature (no text or symbols visible)
Simple line drawing of a trash bin with crossed lines indicating no text or symbols (no text or labels)natural_image
Close-up of a mechanical component with a mesh grille and arrow indicator (no text or symbols)
Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.natural_image
Close-up of a mechanical component with a mesh mesh and directional arrow (no text or symbols)
Simple line drawing of a trash bin with diagonal lines crossing it, no text or symbols present.natural_image
Close-up of a mechanical component with mesh texture and arrow indicator (no text or symbols)

