| Product type | Electric high-pressure cleaner |
| Brand | Bosch |
| Model | AQT 33-10 |
| Rated power input | 1.3 kW |
| Permissible pressure | 10 MPa |
| Rated pressure | 6.7 MPa |
| Flow rate | 4.5 L/min |
| Max. inlet temperature | 40 °C |
| Min. inlet water flow rate | 5.5 L/min |
| Weight | 5.8 kg |
| Protection class | II |
| Sound pressure level | 85 dB(A) |
| Guaranteed sound intensity level | 100 dB(A) |
| Power supply | 230 V AC, 50 Hz |
| Autostop function | Yes |
| Intended use | Cleaning of outdoor surfaces, tools, vehicles, boats |
| Maintenance | Clean water filter regularly, purge after use |
| Safety | 30 mA residual current circuit breaker recommended, do not direct the jet at people |
| Spare parts and repairability | Repairs by Bosch authorized service, use original accessories |
Frequently Asked Questions - AQT 33-10 BOSCH
User questions about AQT 33-10 BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual AQT 33-10 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AQT 33-10 by BOSCH.
USER MANUAL AQT 33-10 BOSCH
OBI DOKU-33529-004.fm Page 1 Monday, June 10, 2013 10:11 AM
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
www.bosch-do-it.com
F 016 L70 993 (2013.06) O/191 EURO
AQT
33-10
BOSCH
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montage und Betrieb
Handlungsziel Bild
Explanation of symbols
General hazard safety alert.
Never direct the water jet at people, animals, the unit or electric components. Warning: High pressure jets can be dangerous if subject to misuse.
English|9
According to the applicable regulations, the appliance must never be used on the drinking water network without a system separator. Use a separator as per IEC 61770 Type BA.
Water flowing though a system separator is considered not drinkable.
Safety Notes for pressure washer
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
The warning and information signs attached to the unit provide important information for safe operation.
Apart from the information in the operating instructions comply with the general safety regulations and regulations for the prevention of accidents.
Power supply
The voltage indicated on the rating plate must correspond to the voltage of the power source.
We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
▶ Remove the plug from socket whenever the machine is left unattended for any period.
The electric supply installation should comply with IEC 60364-1.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ If the plug is damaged, pay attention to the following:
Plugs and sockets situated near the work site or outdoors should be to class IP 55 of BS 5490 to provide adequate protection against ingress of water, etc. and cable entries require effective sealing. Rubber shrouds should be provided over cable glands. Drip-proof (class IP X2 of BS 5490) plugs and sockets to BS 4343 are suitable for use indoors where the plug is away from the water spray area where the appliance is in use.
▶ Never touch the mains plug with wet hands.
▶ Do not pull plug while operating the device.
▶ Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
Do not use the appliance, if the power supply cable or important parts, e.g. high-pressure hose, trigger gun or safety devices are damaged.
▶ Warning: Inadequate extension cords can be dangerous.
If an extension cord is used, the plug and socket must be of watertight construction. The extension cord must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.
When replacing plugs on the power supply cable or extension lead the spray water guard and mechanical stability must remain intact.
Water connection
▶ Comply with the regulations of your water supply company.
▶ All connecting hoses must have properly sealed joints.
▶ Make sure that the supply hose is at least 12.7 mm (1/2") in diameter and is reinforced.
The appliance should never be used on the drinking water supply without a back flow valve. Water which has passed the back flow valve is regarded as undrinkable.
The high-pressure hose must not be damaged (danger of bursting). A damaged high-pressure hose must be replaced immediately. Only use hoses and connections recommended by the manufacturer.
▶ High-pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by the manufacturer.
▶ Only clean or filtered water should be used for intake.
Application
Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition.
▶ Do not direct the jet against yourself or others in order to clean clothes or footwear.
▶ Never draw in solvent-containing liquids, undiluted acids, acetone or solvents! This includes petrol, paint thinners, heating oil. The sprayed vapour is highly flammable, explosive and toxic.
The appropriate safety regulations must be observed when using the unit in dangerous areas (e.g. petrol stations). It is forbidden to operate the unit in potentially explosive locations.
The unit must be placed on a solid base.
▶ Only use detergents recommended by the manufacturer and comply with the application, disposal and warning instructions of the detergent manufacturers.
▶ All current-conducting components in the working area must be protected against splashed water.
The gun trigger must not be jammed in position "ON" during operation.
▶ Wear suitable protective clothing to protect against splashing from some parts. Do not use the appliance within the range of persons unless they also wear protective clothing.
▶ If necessary wear personal protective equipment (PPE) e. g. safety goggles, breathing protection etc to protect against water, particles and/or aerosols sprayed back from parts.
▶ High pressure may cause objects to rebound. If necessary wear suitable personnel protective equipment such as safety goggles.
10 | English
▶ Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be extremely dangerous.
Materials containing asbestos and other materials which contain substances which are hazardous to your health must not be sprayed.
Detergents must not be used undiluted. The products are safe to use as they contain no acids, alkalis or substances which are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes, wash immediately with plenty of water and if swallowed contact a doctor immediately.
▶ Never use the pressure washer without the filter or with a dirty or damaged filter. Using the pressure washer without a filter or with a dirty or damaged filter may invalidate the warranty.
▶ Metal parts may become hot after prolonged usage, if necessary wear protective gloves.
- Avoid high pressure washing in bad weather conditions especially when there is a risk of lightning.
Operation
The operator must use the unit in accordance with the regulations. He/she must take local conditions into account and be aware of other people, especially children, when operating the unit.
The unit may only be used by authorised persons who have received training or have demonstrated their ability to operate the unit. The unit must not be operated by children or juveniles (danger of accidents due to incorrect use of the unit). Children should be supervised to ensure that they do not play with the appliance.
This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards involved.
▶ The unit must never be left unsupervised while the unit is switched on.
The water jet from the high-pressure nozzle produces a recoil on the gun. You should therefore hold the gun and spray lance firmly with both hands.
Transport
▶ Switch off the motor and secure the unit before transporting.
Maintenance
▶ Switch off the unit prior to all cleaning and maintenance work and before replacing components. Pull out the mains plug if the unit is mains-operated.
▶ Repairs may only be carried out by authorised Bosch Service Centres.
Accessories and spare parts
▶ Only use accessories and spare parts which have been approved by Bosch. Original accessories and spare parts guarantee that the unit can be operated safely and without any breakdowns.
Symbols
The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.
Symbol Meaning
| Movement direction | |
| Weight | |
| On | |
| Off | |
| Lo Low pressure | |
| Hi High pressure | |
| Accessories | |
Intended Use
The product is intended for cleaning areas and objects outside the house, tools, vehicles and boats, if the appropriate accessories such as cleaning agents approved by Bosch are used.
Intended use is related to operation within 0°C and 40°C ambient temperature.
This product should not be used for professional use.
Technical Data
| Pressure washer AQT 33-10 | |
| Article number | 3 600 HA7 0.. |
| Rated power kW 1.3 | |
| Supply Temperature max. | °C 40 |
| Supply rate min. | l/min 5.5 |
| Allowable pressure MPa 10 | |
| Rated pressure | MPa 6.7 |
| Flow rate | l/min 4.5 |
| Maximum inlet pressure | MPa 1 |
| Autostop function | ● |
| Weight according to EPTA-Procedure 01/2003 | kg 5.8 |
| Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.153 ohm. | |
English | 11
| Pressure washer | AQT 33-10 |
| Protection class | ☐ /II |
| Serial number | See serial number (rating plate) on pressure washer. |
| Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.153 ohm. | |
Noise/Vibration Information
Measured sound values determined according to 2000/14/EC (1.60 m height, 1 m distance away).
Typically the A-weighted noise levels of the product are: Sound pressure level 85 dB(A); sound power level 97 dB(A). Uncertainty K=3 dB.
Wear hearing protection!
Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60335: a_h=6 m/s^2, K=2 m/s^2.
Declaration of Conformity C€
We declare under our sole responsibility that the product described under "Technical data" is in conformity with the following standards or standardization documents: EN 60335 according to the provisions of the directives 2011/65/EU, 2004/108/EC, 2006/42/EC, 2000/14/EC. 2000/14/EC: Guaranteed sound power level 100 dB(A). Conformity assessment procedure according to Annex V.
Equipment category: 27
Technical file (2006/42/EC, 2000/14/EC) at: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Mounting and Operation
Action Figure
Delivery Scope 1
Mounting the hose holder 2
Connecting high pressure gun to lance 3
Connecting high pressure water supply hose/nozzle 4
Attaching Nozzle 5

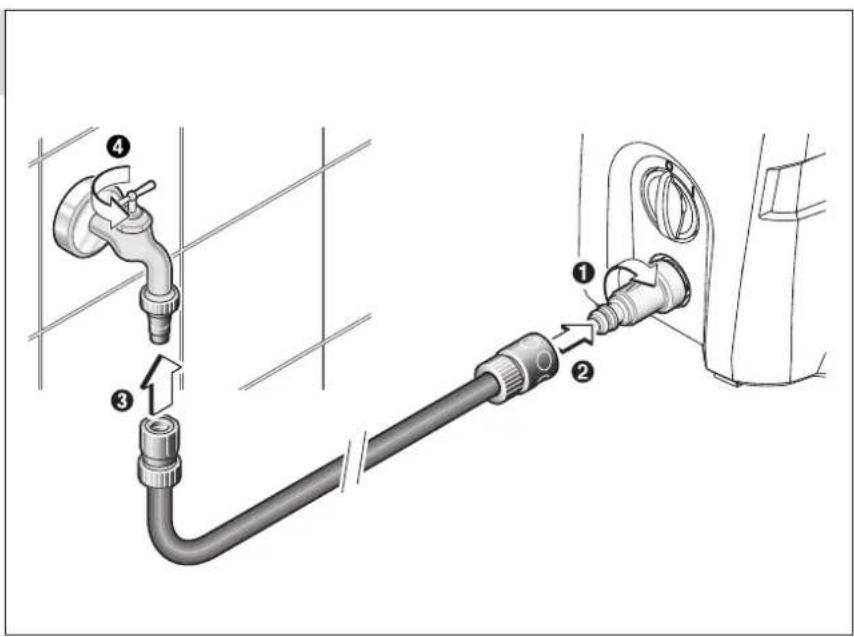

Water connection 6

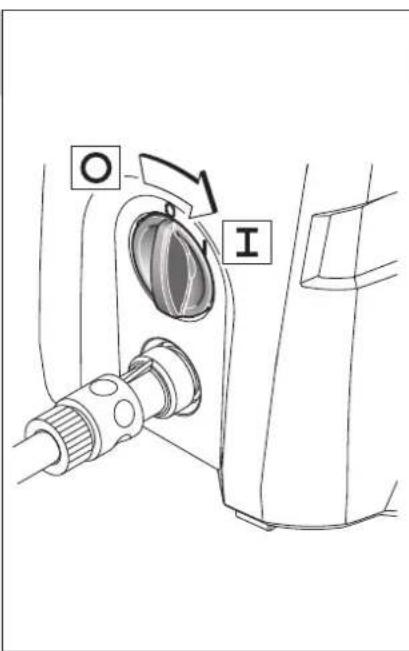

Switching On and Off 7
Adjust water jet 8
Action Figure

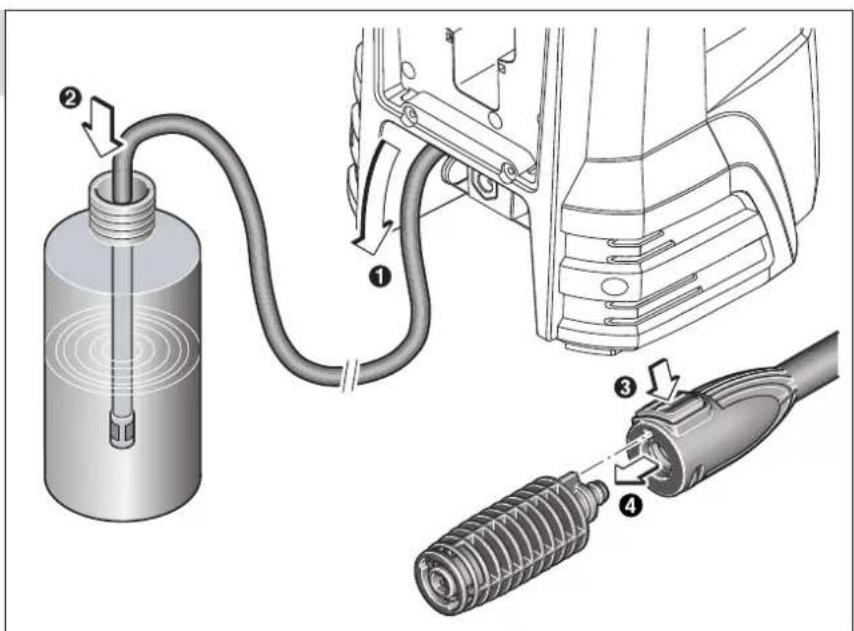

| Connect detergent bottle | 9 |
| Clean the water filter | 10 |
| Clean nozzle | 11 |
| Storage | 12 |
| Transport | 13 |
| Selecting Accessories | 14 |
Starting
For Your Safety
Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.
The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details. If you want to use an extension cable when operating your high pressure washer, only the following cable dimensions should be used:
- 1.5 mm ^2 - max length 20 m - 2.5 mm ^2 - max length 50 m
Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.
WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.
Cable connections should be kept dry and off the ground. For increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it. If the supply cord is damaged, it must be replaced by a Bosch Service Centre.
For products not sold in GB:
WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.
Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
To prevent damage to the appliance, do not allow it to operate dry.
Bosch Power Tools F 016 L70 993 | (10.6.13)
12 | English
Operation
Starting
Attach water supply hose (not supplied) to the mains water supply and machine.
Connect the product to the mains supply ensuring that the mains switch is in the off position.
Open water tap.
Press the safety lock (back button on the gun handle) to release the trigger. Fully press the trigger until there is a constant flow of water to clear the air from the machine and water supply hose. Release trigger. Press the safety lock (front button on the gun handle).
Turn button on main switch. Point the power gun downwards. Press the trigger safety lock to release the trigger. Fully press the trigger.
Autostop function
The machine is designed to switch off the motor when the trigger is released on the gun.
Working Advice
General
Ensure that the pressure washer is on level ground.
Do not overreach with the high pressure hose or move the pressure washer by pulling the hose, this could cause the machine to become unstable and fall over.
Do not kink or drive a motor vehicle over the high pressure hose. Do not expose the high pressure hose to sharp edges or corners.
Never use a roto nozzle to clean motor vehicles.
Working advice for cleaning with detergents
▶ Only use cleaning agents suitable specifically for high pressure washers.
We recommend that you use detergent sparingly for the sake of the environment. Observe the recommended dilution on the detergent label.
Recommended cleaning method
Step 1: Loosening dirt
Remove the nozzle from the lance to give a low pressure flow and spray on the detergent sparingly.
Step 2: Removing dirt
Spray off the loosened dirt with the high-pressure spray.
Note: When cleaning a vertical surface spray off dirt/detergent from the bottom and work in an upwards direction. Rinse from the top and work downwards.
Troubleshooting
Problem Possible Cause Corrective Action
| Motor refuses to start Plug not connected Connect plug | ||
| Mains socket faulty Use another socket | ||
| Fuse faulty/blown Replace fuse | ||
| Extension cable damaged Try without extension cable | ||
| Motor protector has activated Allow to cool for 15 minutes | ||
| Frozen Wait for pump/water supply hose/accessory to thaw | ||
| Motor stops Fuse faulty/blown Replace fuse | ||
| Wrong mains voltage Check that mains voltage corresponds to specifications on the model tag | ||
| Motor protector has activated Allow to cool for 15 minutes | ||
| Fuses blow Fuses incorrectly rated | Change to a mains supply higher than the pressure washer amp consumption | |
| Motor starts but no pressure | Nozzle partly blocked | Clean nozzle |
| Motor "sounds" but fails to start | Insufficient power supply | Check that the voltage of the mains power supply line is the same as that on the plate. |
| Voltage loss due to use of extension cable | Check characteristics of extension cable | |
| Appliance not used for a long period of time | Contact your Bosch Service Centre | |
| Problems with TSS (Total Stop System) device | Contact your Bosch Service Centre | |
F 016 L70 993 | (10.6.13) Bosch Power Tools
English | 13
| Problem | Possible Cause | Corrective Action |
| Pressure pulsating | Air in the inlet water supply hose/pump | Allow pressure washer to run with open spray handle and nozzle at low pressure until regular working pressure is obtained |
| Inadequate water supply | Check that the water supply corresponds to specifications. The minimum specification for the water supply hose is 1/2" or 13 mm diameter | |
| Water filter blocked Clean water filter | ||
| Water supply hoses squeezed Straighten out kinked water supply hoses | ||
| High pressure hose too long Remove high pressure extension hose. Retry (extension hose max. 7 m) | ||
| Pressure too low, but steady | Nozzle worn Change the nozzle | |
| Note: Several types of accessory will normally deliver a lower pressure | Start/stop valve worn Activate trigger five times in quick succession | |
| Motor starts up but with restricted or no working pressure | No water supply Connect water supply | |
| Water filter clogged up Clean the water filter | ||
| Nozzle clogged up Clean nozzle | ||
| The pressure washer starts irregularly by itself | Pump/power gun leaky | Contact your Bosch Service Centre |
| Water leaks from machine | Leaking pump | A slight water leak is permissible; in case of excessive leak, contact Service centre. |
| No detergent taken in | Nozzle connected | Remove nozzle to give a low pressure flow |
| Detergent too dense | Dilute with water | |
| High pressure hose extension being used. | Fit original hose. | |
| Deposits or restriction in detergent circuit | Flush with clean water and eliminate any restrictions. If the problem persists, contact your Bosch Service Centre. | |
Maintenance and Service
Maintenance
▶ Stop, remove plug from the power supply and disconnect from water supply.
Note: To ensure long and reliable service, carry out the following maintenance regularly.
Regularly check for obvious defects such as loose fixings, and worn or damaged components.
Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.
If the machine should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden products.
In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the machine.
After use/Storage
Turn the main switch off and operate the trigger to drain the water from the high pressure hose.
Clean the exterior of the machine thoroughly using a soft brush or cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots.
End of season storage: Drain water out of pump running motor for a few seconds. Pull trigger to release all water.
Do not place other objects on top of the machine.
Store in a frost-free area.
Ensure cables are not trapped when storing. Do not kink high pressure hose.
14 | Français
After-sales Service and Application Service www.bosch-do-it.com
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: (0844) 7360109
Fax: (0844) 7360146
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: (01) 4666700
Fax: (01) 4666888
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: (01300) 307044
Fax: (01300) 307045
Inside New Zealand:
Phone: (0800) 543353
Fax: (0800) 428570
Outside AU and NZ:
Phone: +61 3 95415555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: (011) 6519600
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: (011) 4939375
Fax: (011) 4930126
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: (031) 7012120
Fax: (031) 7012446
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: (021) 5512577
Fax:(021)5513223
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: (011) 6519600
Fax: (011) 6519880
E-Mail: rbsa-hq.pts@za.bosch.com
Environmental Protection
Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams, etc. For the use of cleaning agents, observe the instructions on the package and the prescribed concentration exactly. For the cleaning of motor vehicles the local regulations should be observed: Do not allow oil sprayed off to enter into the ground water. Recycle raw materials instead of waste disposal.
Disposal
The pressure washer, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of pressure washers into household waste!
Only for EC countries:
According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
Français
Bosch Lawn and Garden Ltd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Robert Bosch (France) S.A.S.
Bosch Lawn and Garden Ltd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Montaje y operación
Objetivo Figura
Bosch Lawn and Garden Ltd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Fascicolo tecnico (2006/42/CE, 2000/14/CE) presso: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montaggio ed uso
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Montage en gebruik
Stap 1: Vuil losmaken
Teknisk dossier (2006/42/EF, 2000/14/EF) ved: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montering og drift
Handlingsmål Fig.
Leveringsomfang 1
Slangeholder monteres 2
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Tlf. Service Center: 44898855
Fax: 44898755
E-Mail: vaerktoej@dk.bosch.com
Miljøbeskyttelse
Bosch Lawn and Garden Ltd., PT-LG/ENS4.
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Montering och drift
Handlingsmål Figur
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: (020) 414455 (inom Sverige)
Fax: (011) 187691
Miljöskydd
Bosch Lawn and Garden Ltd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker Helmut Heinzelmann
Executive Vice President Head of Product Certification
Engineering PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Montering og drift
Bosch Lawn and Garden Ltd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Asennus ja käyttö
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montaj ve işletim
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Bosch Uzman Ekibi +90 (0212) 367 18 88
Işıklar LTD.ŞTİ.
Kizilay Cad. No: 16/C Seyhan
Adana
Tel.: 0322 3599710
Tel.: 0322 3591379
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montaż i praca
Robert Bosch Sp. z o.o.
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montáž a provoz
Bosch Service Center PT
K Vápence 1621/16
692 01 Mikulov
Tel.: 519 305700
Fax: 519 305705
E-Mail: servis.naradi@cz.bosch.com
www.bosch.cz
Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montáž a používanie
Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
No. RU C-DE.ME77.B.00390
Техническая документация (2006/42/EC, 2000/14/EC): Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Documentatie tehnica (2006/42/CE, 2000/14/CE) la: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Tel. service scule electrice: (021) 4057540
Fax: (021) 4057566
E-Mail: infoBSC@ro.bosch.com
Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen 10.06.2013
Монтиране и работа
Дейност Фигура
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen 10.06.2013
Монтажа и користење
Tehnička dokumentacija (2006/42/EG, 2000/14/EG) kod: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Srpski | 139
Montaža i Rad
Cilj rukovanja Slika
| Obim isporuke 1 | |
| Montirati držač creva 2 | |
| Priključiti šiljak na pištolj za rasprašivanje 3 | |
| Priključivanje creva visokog pritiska/pištolja za prskanje 4 | |
| Mlaznicu nataći 5 | |
| Priključak vode 6 | |
| Uključivanje/isključivanje 7 | |
| Podešavanje mlaza mlaznice 8 | |
| Priključivanje flaše za sredstvo za ispiranje 9 | |
| Očistiti filter 10 | |
| Očistiti mlaznicu | 11 |
| Čuvanje | 12 |
| Transport | 13 |
| Biranje pribora | 14 |
Puštanje u rad
Radi vaše sigurnosti
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President Engineering
Helmut Heinzelmann
Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Montaža i rad
Tehniline toimik (2006/42/EÜ, 2000/14/EÜ) saadaval: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
Tehniskä lieta (2006/42/EK, 2000/14/EK) no: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England
Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 10.06.2013
166 | Lietuviškai
Atitikties deklaracija CE
Bosch Lawn and Garden Ltd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Helmut Heinzelmann
Executive Vice President
Head of Product Certification
Engineering
PT/ETM9
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
10.06.2013
Bosch Lawn and Garden LTd., PT-LG/ENS4,
Stowmarket, Suffolk IP14 1EY, England
Henk Becker
Executive Vice President
Engineering
Helmut Heinzelmann
Head of Product Certification
PT/ETM9
i.v. h=mc
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
4
5
186
6
7
8
9
188
10
11
- Montage und Betrieb
- Explanation of symbols
- English|9
- Safety Notes for pressure washer
- Power supply
- Water connection
- Application
- | English
- Operation
- Transport
- Maintenance
- Accessories and spare parts
- Symbols
- Intended Use
- Noise/Vibration Information
- Wear hearing protection!
- Declaration of Conformity C€
- Mounting and Operation
- Starting
- For Your Safety
- | English
- Autostop function
- Working Advice
- General
- Working advice for cleaning with detergents
- ▶ Only use cleaning agents suitable specifically for high pressure washers.
- Recommended cleaning method
- Step 1: Loosening dirt
- Step 2: Removing dirt
- Troubleshooting
- Maintenance and Service
- After use/Storage
- | Français
- After-sales Service and Application Service www.bosch-do-it.com
- Great Britain
- Ireland
- Australia, New Zealand and Pacific Islands
- Republic of South Africa
- Customer service
- Gauteng - BSC Service Centre
- KZN - BSC Service Centre
- Western Cape - BSC Service Centre
- Bosch Headquarters
- Environmental Protection
- Disposal
- Only for EC countries:
- Français
- Montaje y operación
- Montaggio ed uso
- Montage en gebruik
- Stap 1: Vuil losmaken
- Montering og drift
- Handlingsmål Fig.
- Miljøbeskyttelse
- Montering och drift
- Miljöskydd
- Montaż i praca
- Montáž a provoz
- Монтиране и работа
- Montaža i Rad
- Puštanje u rad
- Radi vaše sigurnosti
- Atitikties deklaracija CE
- 14
Brand : BOSCH
Model : AQT 33-10
Category : Pressure washer
