USER MANUAL SPF2307 PHILIPS

Digital tablet displaying a child wearing blue goggles and a red polka-dot top, set on green grass (no text or symbols visible on the device itself)

EN User manual

Contents

1 Important 4

Safety 4

Notice 4

Banned Substance Declaration 6

Class II statement 6

2 Your PhotoFrame 7

Introduction 7

What's in the box 7

Overview of your PhotoFrame 8

3 Get started 9

Install the stand 9

Connect power 9

Turn on the PhotoFrame 10

Transfer media 11

Know these keypad icons 12

4 Display photos

Manage slideshow and photos 13

Zoom and crop a photo 14

5 Browse 15

Browse and manage albums and media 15

6 Clock 18

Display the clock 18

Clock menu 18

7 Message 19

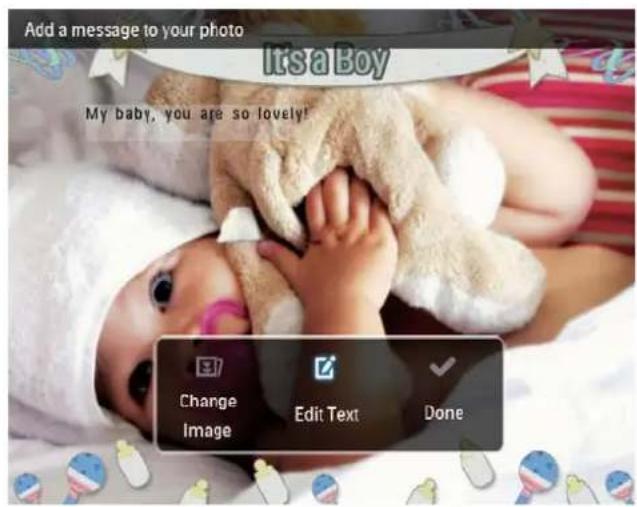

Create a message 19

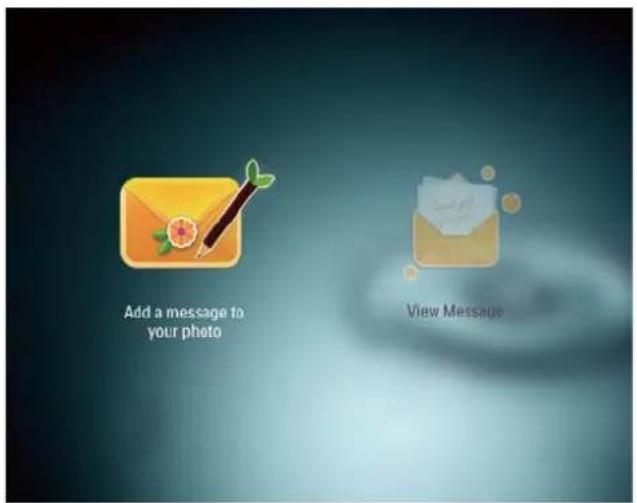

Edit a message 20

View a message 22

8 Settings 23

Select an on-screen language 23

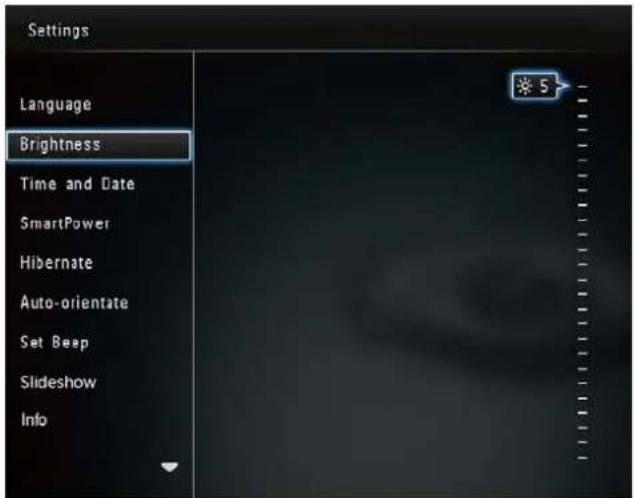

Adjust brightness 23

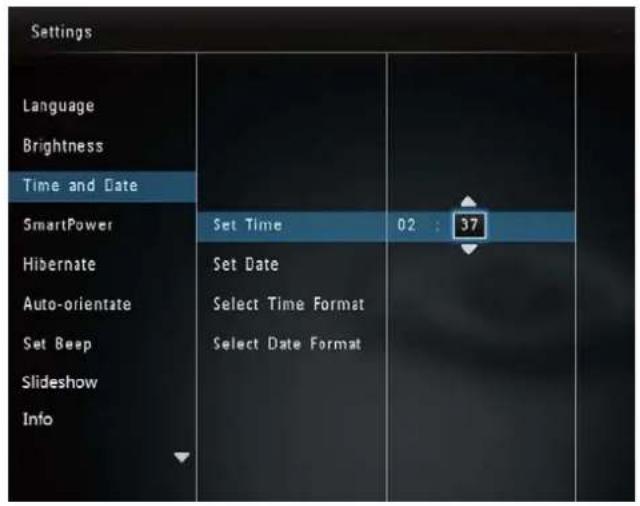

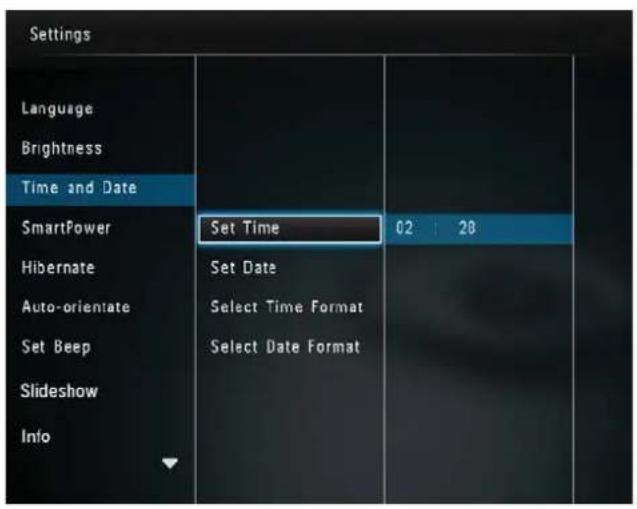

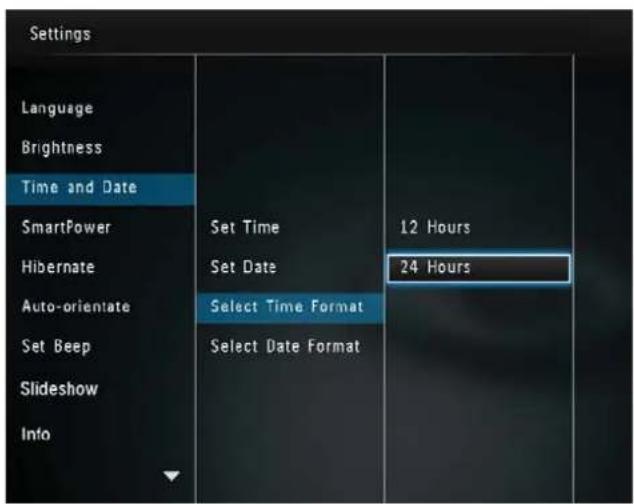

Set time/date 24

Set SmartPower timer 25

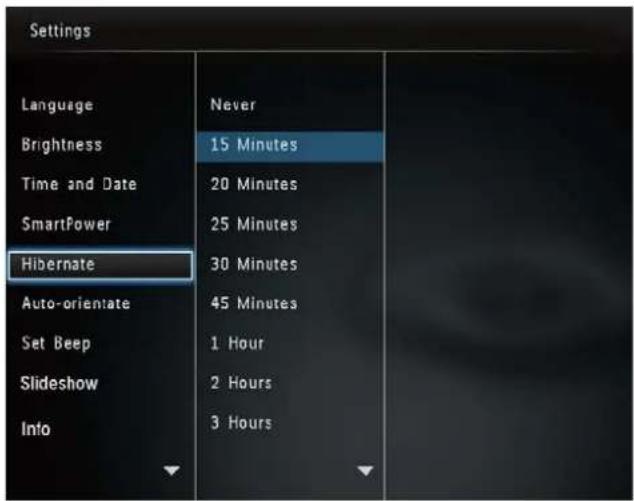

Hibernate the PhotoFrame 26

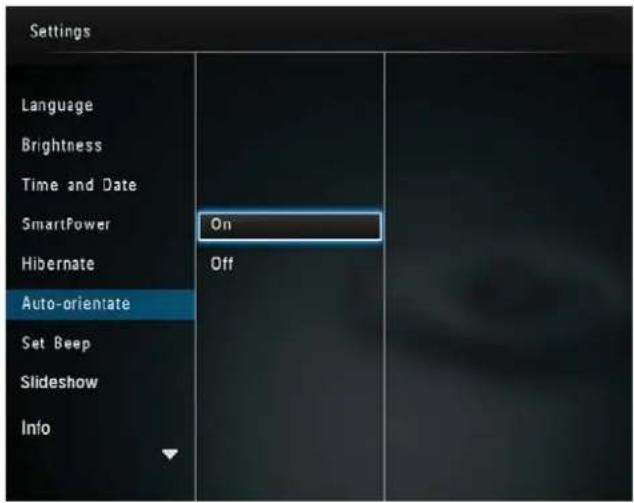

Set auto orientation 26

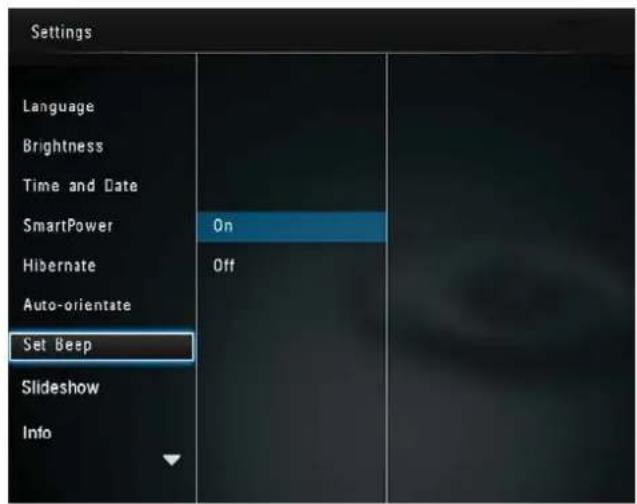

Turn button sound on/off 27

Slideshow setting 27

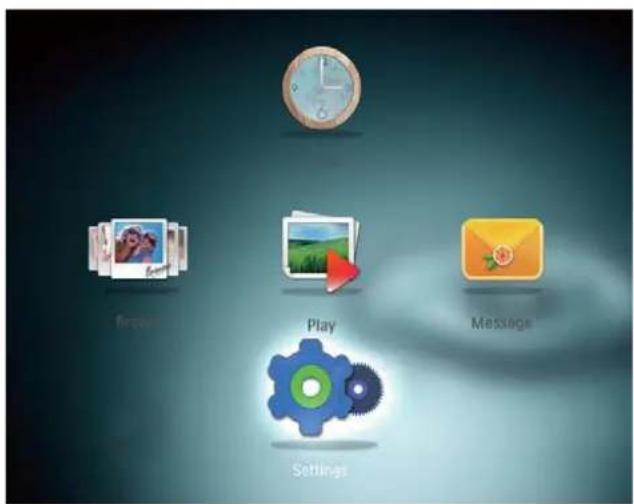

View information of the PhotoFrame 30

Reset all settings to factory default 30

9 Upgrade the PhotoFrame 31

10 Product information 32

11 Frequently asked questions 34

12 Glossary 35

Need help?

Please visit www.philips.com/welcome where you can access a full set of supporting materials such as user manual, the latest software updates and answers to frequently asked questions.

1 Important

Safety

Safety precautions and maintenance

Never touch, push, rub or strike the • screen with hard objects as this may damage the screen permanently.

When the product is not used for long periods, unplug it.

Before you clean the screen, turn off and • unplug the power cord. Only clean the screen with a soft, water-damp cloth.

Never use substances such as alcohol, chemicals or household cleaners to clean the product.

Never place the product near naked • flames or other heat sources, including direct sunlight.

Never expose the product to rain or • water. Never place liquid containers, such as vases, near the product.

Never drop the product. When you drop • the product, it will be damaged.

Ensure that you install and use services or • software only from trustworthy sources free of virus or harmful software.

This product is designed for indoor use • only.

Only use the supplied power adaptor for • the product.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

Notice

Warranty

No components are user serviceable. Do not open or remove covers to the inside of the product. Repairs may only be done by Philips Service Centres and official repair shops.

Failure to do so shall void any warranty, stated or implied.

Any operation expressly prohibited in this manual, any adjustments, or assembly procedures not recommended or authorised in this manual shall void the warranty.

CE

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage), 2004/108/EC (EMC).

Respect copyrights

Be responsible Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence.

This equipment should not be used for such purposes.

End of life disposal

Your new product contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please find out about the local regulations • on how to dispose your old monitor from your local Philips dealer.

(For customers in Canada and U.S.A.) •

Dispose the old product in accordance to local-state and federal regulations.

For additional information on recycling contact www.eia.org (Consumer Education Initiative).

Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.

There is currently a system of recycling up and running in the European countries, such as The Netherlands, Belgium, Norway, Sweden and Denmark. In U.S.A., Philips Consumer Lifestyle North America has contributed funds for the Electronic Industries Alliance (EIA) Electronics Recycling Project and state recycling initiatives for end-of-life electronics products from household sources. In addition, the Northeast Recycling Council (NERC) - a multi-state non-profit organization focused on promoting recycling market development - plans to implement a recycling program. In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration (EPA) to follow the IT product recycling management process, detail can be found in web site www.epa.gov.tw.

Environmental information

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

North Europe Information (Nordic Countries)

WARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÄTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation

ADVARSEL:

S∅RG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/llmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR ST∅MTILF∅RSEL ER LETTE Å NÅ.

Banned Substance Declaration

This product complies with RoHs and Philips BSD (AR17-G04-5010-010) requirements.

Class II statement

Class II equipment symbol:

This symbol indicates that this product has a double insulation system.

Norge

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With this Philips Digital PhotoFrame, you can use the PhotoFrame to:

Display JPEG photos•

Create gift messages•

What's in the box

Philips Digital PhotoFrame•

Stand•

AC-DC power adaptor•

CD-ROM with User manual

Quick start guide•

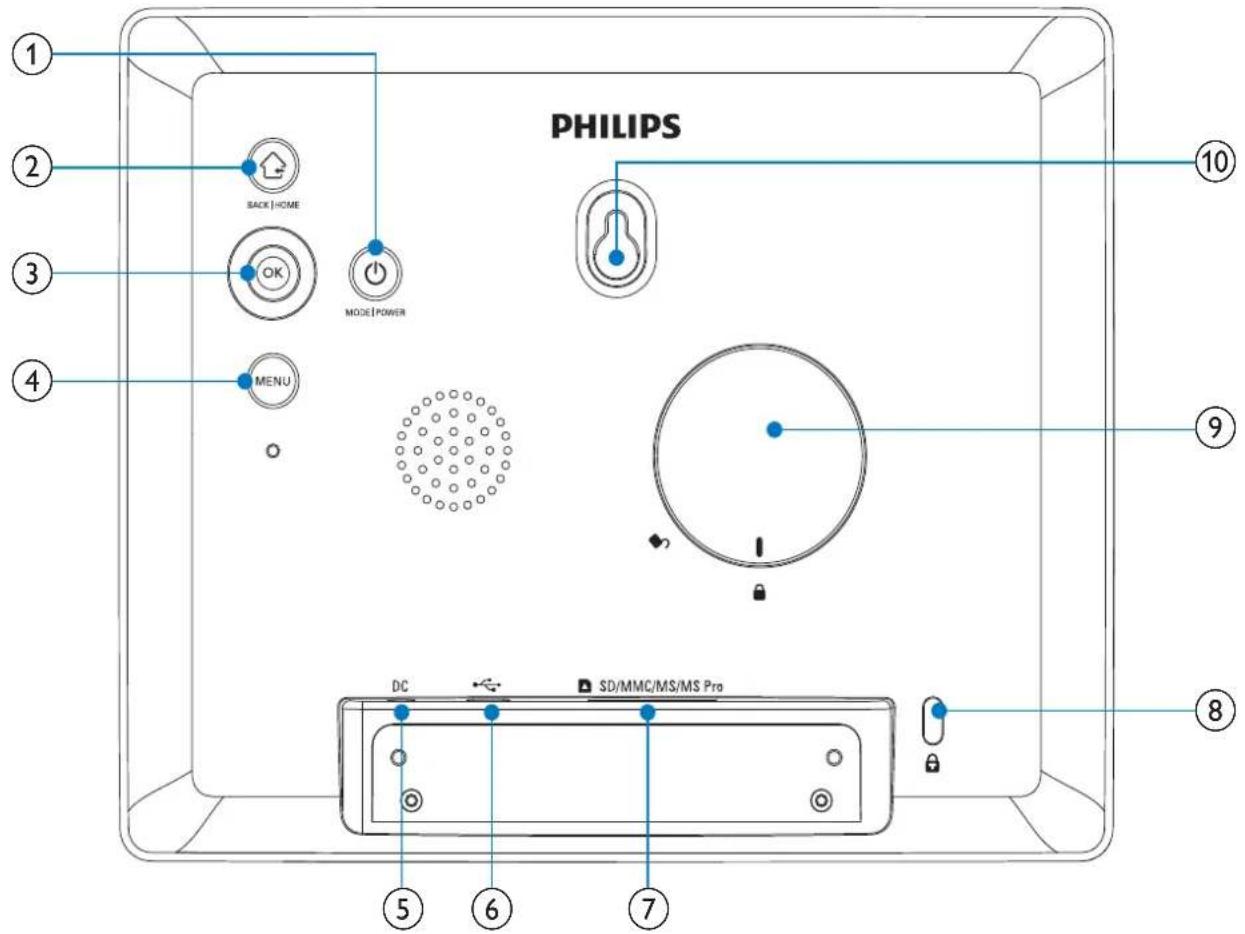

Overview of your PhotoFrame

PHILIPS 1 2 3 4 BACK | HOME OK MODE | POWER MENU DC SD/MMC/MS/MS Pro 5 6 7 8 9 10

①

Press to switch mode: slideshow/• clock/calendar Hold to turn on/off the PhotoFrame•

②

Press to go back• Hold to go to the home screen•

③ OK (Joystick)

Press to confirm a selection Press to pause or resume play Move up/down/left/right to select the upper/lower/right/left option

④ MENU

Press to enter/exit the menu•

⑤ DC

- Socket for the AC-DC power adaptor

⑥

Slot for a USB cable to PC•

⑦ ▲ SD/MMC/MS/MS Pro

Slot for an SD/MMC/MS/MS Pro • card

⑧ ⏠ Kensington lock

⑨ Stand hole

⑩ Wall mounting hole

3 Get started

Caution

Use the controls only as stated in this user • manual.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. Write the numbers here: Model No. ____ Serial No. ____

Install the stand

To place the PhotoFrame on a flat surface, attach the supplied stand to the back of the PhotoFrame.

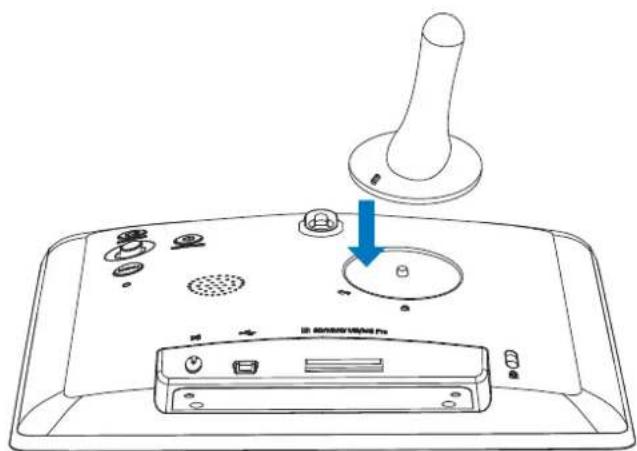

1 Insert the stand into the PhotoFrame and position the indication on the stand to the □ position.

Diagram of a device control panel with labeled ports and a blue arrow indicating action point

2 Turn the stand anti-clockwise 45 degrees to the 🔒 position and lock it to the PhotoFrame firmly.

Diagram of a device control panel with labeled buttons and a blue arrow indicating action direction

Connect power

Note

When you position the PhotoFrame, ensure that the power plug and outlet are easily accessible.

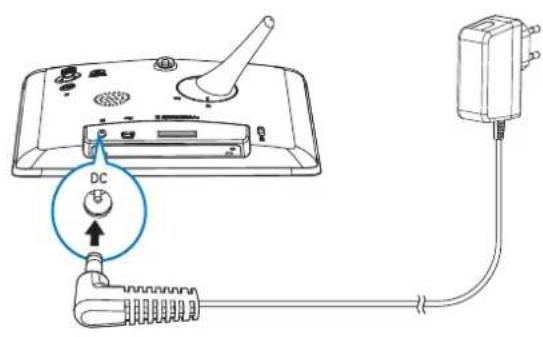

1 Connect the power cord to the DC socket of the PhotoFrame.

Diagram showing connection between a device with labeled ports and a DC power outlet connected to a cable

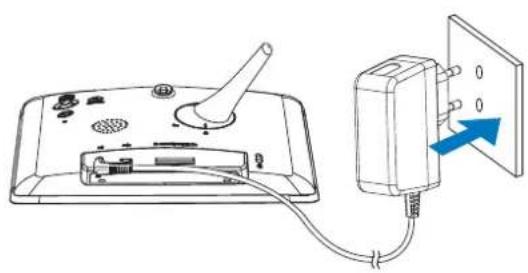

2 Connect the power cord to a power supply socket.

Line drawing of a device with a switch and cable, connected to an electrical outlet (no text or symbols)

A few seconds later, the PhotoFrame → turns on automatically.

Turn on the PhotoFrame

Note

When you connect the PhotoFrame to a power supply, the PhotoFrame turns on automatically.

1 When the PhotoFrame is turned off and connected to the power supply, hold ⏻ to turn on the PhotoFrame.

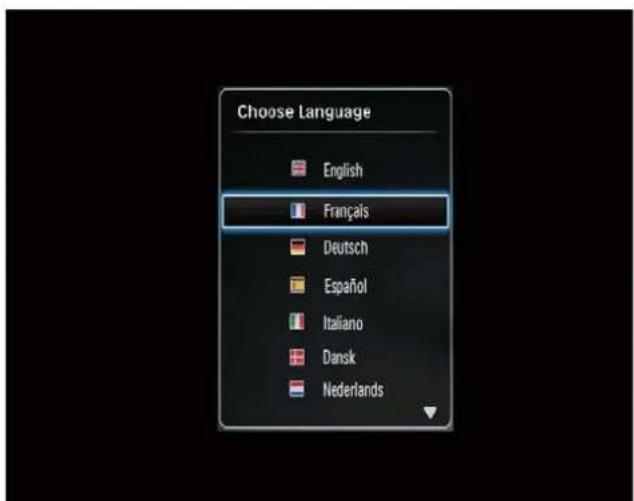

For the first time you turn on the PhotoFrame:

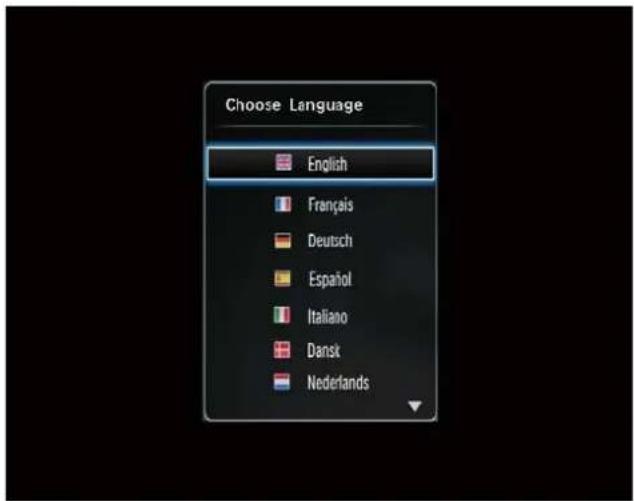

The screen prompts you to select a • language.

Choose Language English Français Deutsch Español Italiano Dansk Nederlands

Select a language, and then press • OK.

Choose Language English Français Deutsch Español Italiano Dansk Nederlands

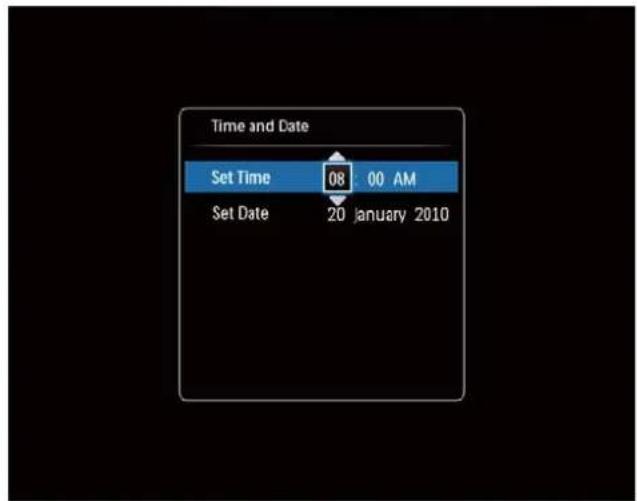

• The screen prompts you to set time and date.

Time and Date Set Time 08 : 00 AM Set Date 20 january 2010

Move the joystick to set time and date, • and then press OK.

Time and Date Set Time 08 00 AM Set Date 20 January 2010

Tip

If the PhotoFrame is disconnected from the power supply for a long time, you need set time and date again after you turn on the PhotoFrame.

Turn off the PhotoFrame

Note

You can only turn off the PhotoFrame after all copy and save actions are complete.

To turn off the PhotoFrame, press and hold ⏻ for about 2 seconds.

Transfer media

Transfer photos with a storage device

Caution

Do not disconnect the storage device from the PhotoFrame during media transfer.

The PhotoFrame supports most types of the following storage device:

• Secure Digital (SD)
  • Secure Digital High Capacity (SDHC)
  • Multimedia Card (MMC)
  • Memory Stick (MS)
  • Memory Stick Pro (MS Pro) (with adaptor)

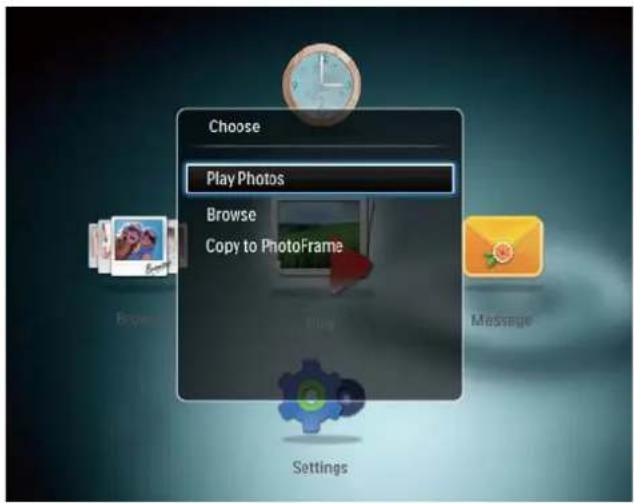

1 Insert a storage device into the PhotoFrame.

An option menu is displayed.

Choose Play Photos Browse Copy to PhotoFrame Settings

[Play Photos]: Select it to play media on the storage device

[Browse]: Select it to browse media on the storage device

[Copy to PhotoFrame]: Select it to start transfer operation

2 Select [Copy to PhotoFrame], and then press OK.

▶ confirmation message is displayed.

To copy photos to the PhotoFrame:

1 Select [Yes], and then press OK.

- To remove a storage device, pull it out of the PhotoFrame.

Transfer photos with a computer

Caution

Do not disconnect the PhotoFrame from the computer during media transfer.

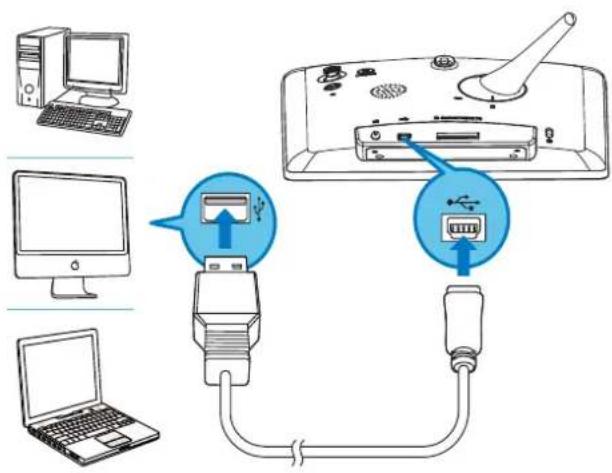

1 Connect a USB cable to the PhotoFrame and to the computer.

Diagram showing connection between computer, laptop, monitor, and router with labeled ports and connection arrows

You can drag and drop the media from the computer to an album on the PhotoFrame.

2 When the transfer is complete, disconnect the USB cable from the computer and the PhotoFrame.

Tip

You can transfer media from the PhotoFrame to a computer.

- The transfer speed depends the operating system and the software configuration of the computer.

Know these keypad icons

	Input in English
	Input in supportedEuropean languages
拼音	Input in Simplified Chinese
Русский	Input in Russian
$## / ABC Switch to select symbols,punctuations, alphabet or numbers
aA Switch between upper andlower case
	Enter a blank space
	Enter a line break

4 Display photos

Note

You can display JPEG photos in slideshow • mode on the PhotoFrame.

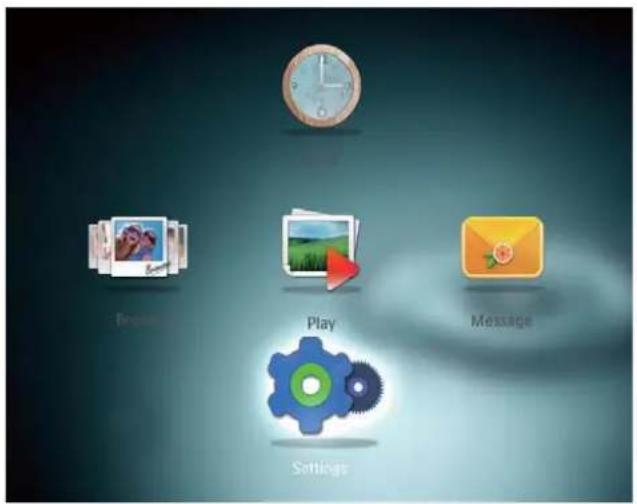

1 In the home screen, select [Play], and then press OK.

Birthday Play Message Settings

Photos are displayed in slideshow → mode.

In slideshow mode:

• To pause the slideshow, press OK.
• To resume the slideshow, press OK again.
• To select the previous/next photo, move the joystick to the left/right.
• To view photos in filmstrip mode, move the joystick up.

In filmstrip mode:

• To select the previous/next photo, move the joystick to the left/right.
• To return to slideshow mode, press OK.

Tip

- During collage slideshow, photos are displayed randomly.

Manage slideshow and photos

You can take the following steps to manage the photo in slideshow mode or the slideshow settings:

1 Press MENU.

An option menu is displayed.

PHILIPS Options View Mode Add to Favorites Slideshow Settings Rotate Copy Delete Zoom

2 Select an option, and then press OK.

• [View Mode]: Select the view mode
- [Add to Favorites]: Add the photo to the [Favorites] album on the PhotoFrame
• [Slideshow Settings]

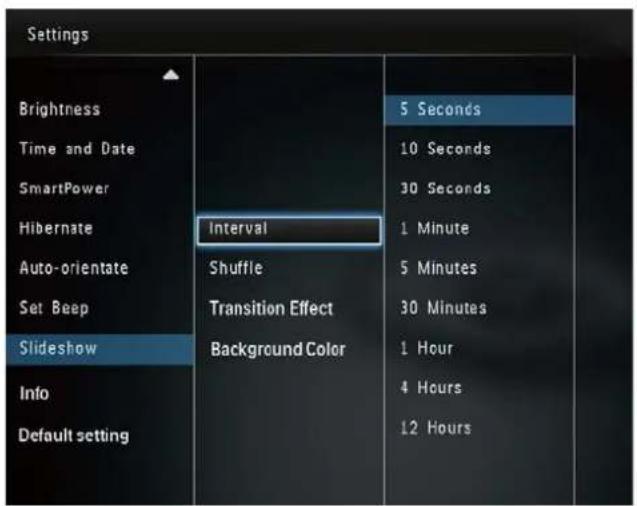

• [Interval]: Set the interval in slideshow
• [Shuffle]: Play media randomly or not
• [Color Tone]: Select the color for the photo
• [Transition Effect]: Select the transition effect

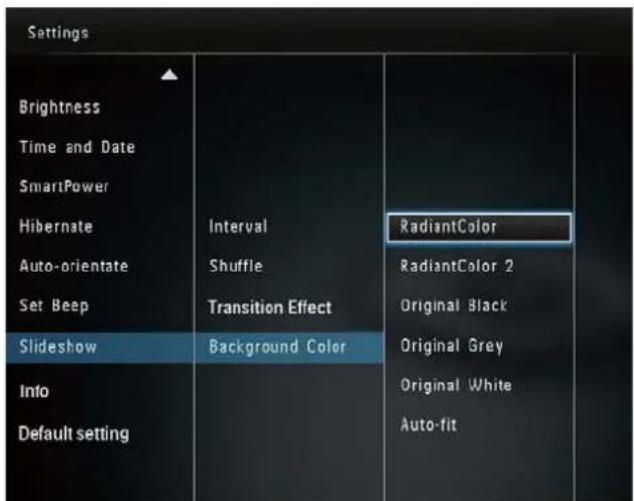

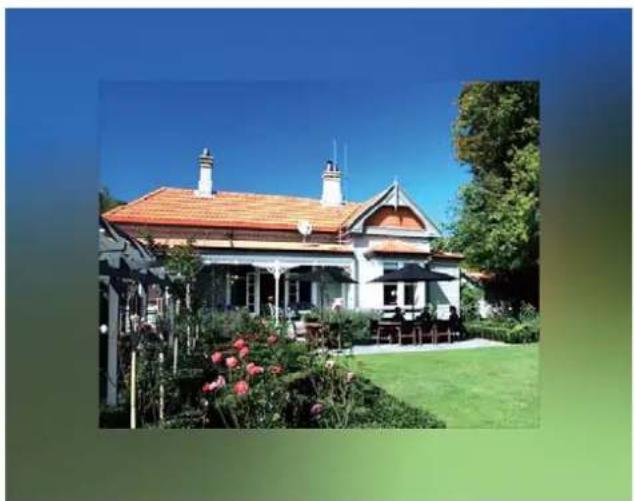

• [Background Color]: Select the background color

• [Rotate]: Select an orientation to rotate the photo

• [Copy]: Copy the photo to another album

• [Delete]: Delete the photo

• [Zoom]: Zoom and crop a photo

• [Brightness]: Move the joystick up/down to adjust the brightness of display

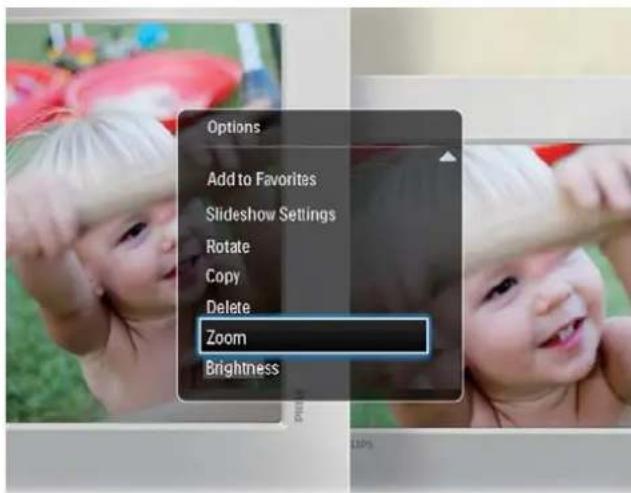

Zoom and crop a photo

With the PhotoFrame, you can zoom in a photo, crop it, and save it as a new photo.

1 In slideshow mode, press MENU. An option menu is displayed.

2 Select [Zoom].

Options Add to Favorites Slideshow Settings Rotate Copy Delete Zoom Brightness

3 Press OK repeatedly to zoom in the photo (or exit the zoom mode).

4 Move the joystick to pan the photo.

5 Press MENU.

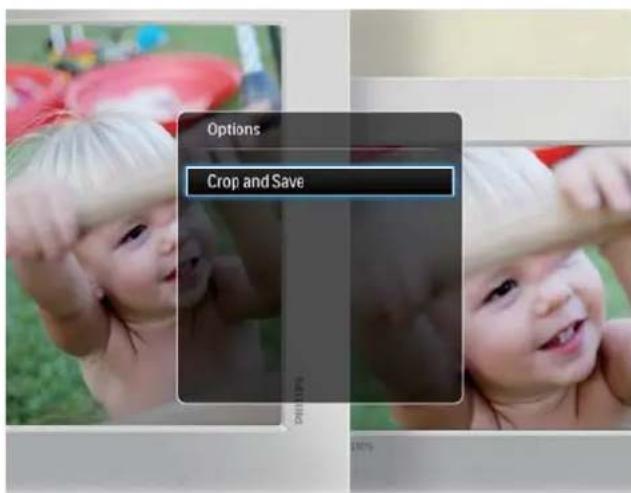

6 Select [Crop and Save], and then press OK.

Options Crop and Save

A confirmation message is displayed.

7 Select [Yes], and then press OK.

• To cancel the operation, select [No] and then press OK.

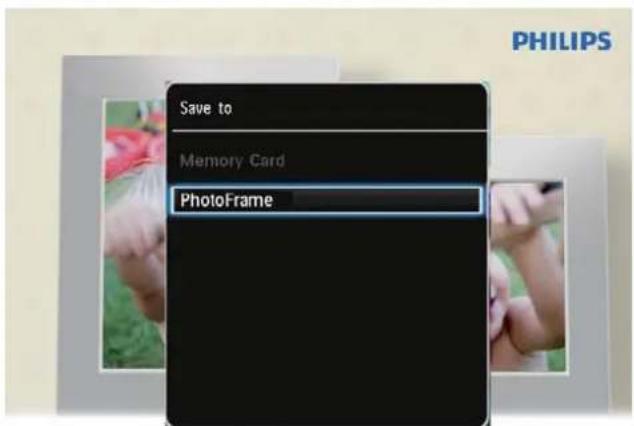

8 Select a location to save the new photo, and then press OK.

Save to Memory Card PhotoFrame PHILIPS

After the photo is saved, the ↩ PhotoFrame goes back to the slideshow mode.

5 Browse

Browse and manage albums and media

You can browse and manage albums and media in wave mode or album mode.

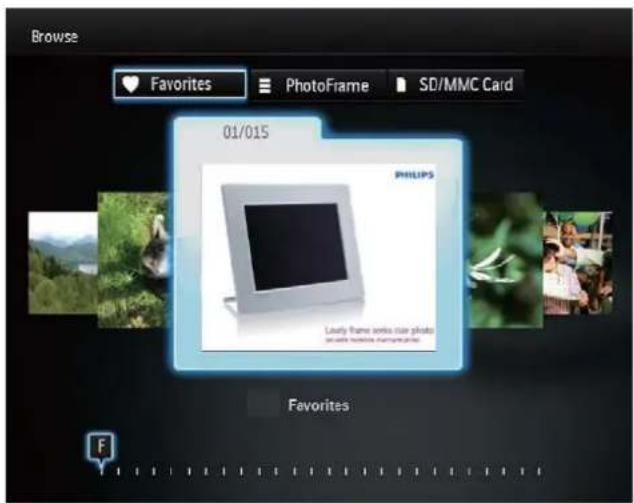

- Wave mode:

Browse Favorites PhotoFrame SD/MMC Card 01/015 PHILIPS Lastly frame seeks chair photo on white frames using photo

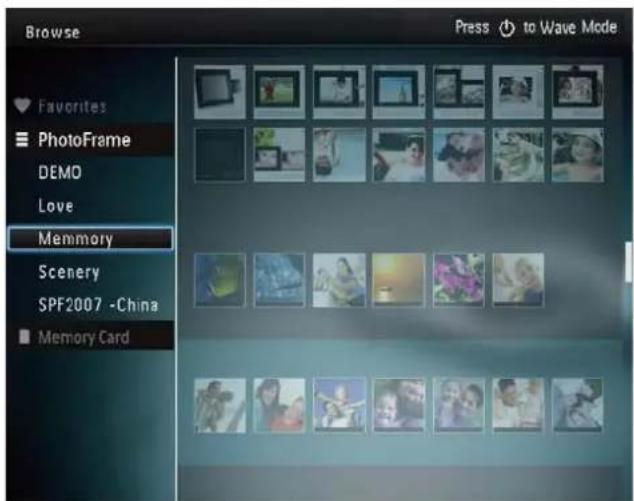

- Album mode:

Browse Press to Wave Mode Favorites PhotoFrame DEMO Love Memory Scenery SPF2007 -China Memory Card

Browse albums:

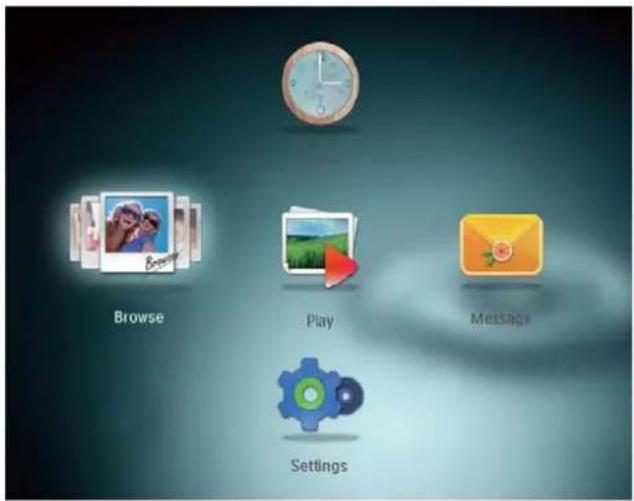

1 In the home screen, select [Browse] and then press OK.

Browse Play Message Settings

Albums are displayed in wave mode.

• To access album mode, press 🔊.

• To return to wave mode, press ⏻. In wave/album mode, •

- Press OK once: A photo is displayed in pause mode.

• Press OK twice: Slideshow is started.

Manage albums and media:

1 Select an album/device, press MENU. An option menu is displayed.

2 Select an option, and then press OK to continue.

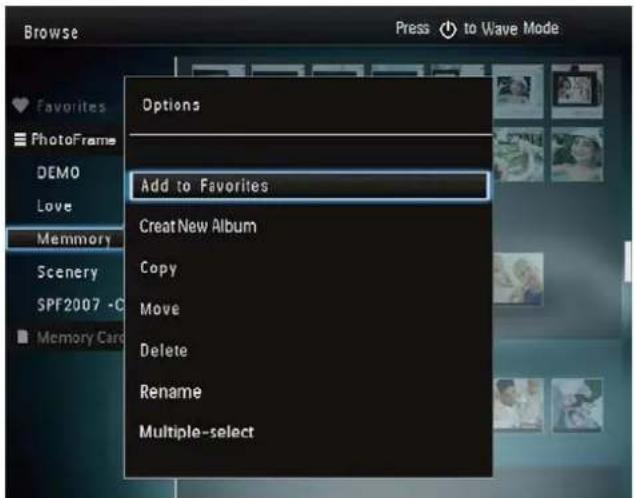

Album menu:

Browse Press to Wave Mode Favorites PhotoFrame DEMO Love Memory Scenery SPF2007 -C ■ Memory Card Options Add to Favorites Creat New Album Copy Move Delete Rename Multiple-select

- [Add to Favorites]: Add media in the album to the [Favorites] album - [Create New Album]: Create an album

• [Copy]: Copy media in the album to another album
• [Move]: Move media in the album to another album
• [Delete]: Delete media in the album
• [Rename]: Rename the album
• [Multiple-select]: Select multiple photos to manage

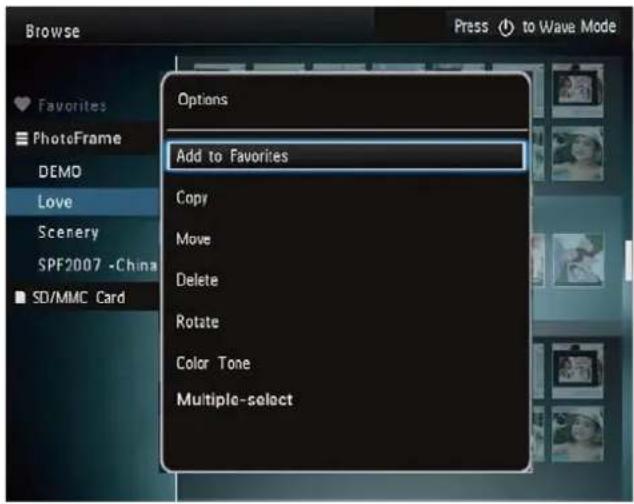

Thumbnail photo menu:

Browse Press to Wave Mode Favorites PhotoFrame DEMO Love Scenery SPF2007 -China SD/MMC Card Options Add to Favorites Copy Move Delete Rotate Color Tone Multiple-select

• [Add to Favorites]: Add media in the album to the [Favorites] album
• [Copy]: Copy media in the album to another album
• [Move]: Move media in the album to another album
• [Delete]: Delete media in the album
• [Rotate]: Rotate the photo in the album
• [Color Tone]: Select a color for the photo
• [Multiple-select]: Select multiple photos to manage

When you select the [Favorites] album, a different menu is displayed.

• [Delete]: Delete media in the album
• [Copy]: Copy media in the album to another album

Add media to the favorite album

To add media in the album to the [Favorites] album:

1 Select [Add to Favorites], and then press OK.

Create an album

1 Select [Create New Album], and then press OK.
2 To enter the name (about 24 characters), select an alphabet/number and then press OK.
To switch between uppercase and • lowercase, select aA on the displayed keypad and then press OK.
3 When the name is complete, select and then press OK.
4 Press OK to start the saving process.

Copy media

1 Select [Copy], and then press OK.
2 Select a destination album, and then press OK to start copy.

Move media

1 Select [Move], and then press OK.
2 Select a destination album, and then press OK to start move.

Delete media

1 Select [Delete], and then press OK. A confirmation message is displayed.
2 Select [Yes], and then press OK to start deletion. To cancel the operation, hold 🔒.

Rename an album

1 Select [Rename], and then press OK to confirm.
A keypad is displayed. »
2 Move the joystick downwards twice to enter the keypad.
3 To enter the name (about 24 characters), select an alphabet/number and then press OK.
To switch between uppercase and • lowercase, select aA on the displayed keypad and then press OK.
4 When the name is complete, select and then press OK.

Select multiple photos to manage

1 Select [Multiple-select], and then press OK.
2 Select media.
To select all media in the album, • press OK.
To select some of the media: Move • the joystick and press OK to select a medium. Then repeat this step to select others.
• To de-select a medium, select it and then press OK again.

3 After selection is complete, press MENU to continue.

»An option menu is displayed.

4 Select an option to continue.

• [Add to Favorites]: Add the selected media to the [Favorites] album
  • [Copy]: Copy the selected media to another album
  • [Move]: Move the selected media to another album
• [Delete]: Delete the selected media
  • [Rotate]: Rotate the selected media
  • [Play Slideshow]: Play the selected media in slideshow mode

Rotate photos

1 Select [Rotate], and then tap OK.
2 Tap / to rotate the photo, and then tap OK.

6 Clock

Display the clock

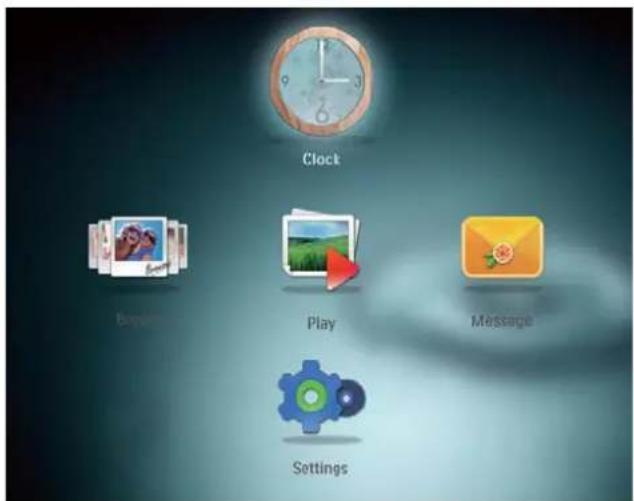

1 In the home screen, select [Clock] and then press OK.

Clock Beginn Play Message Settings

A clock/calendar is displayed.

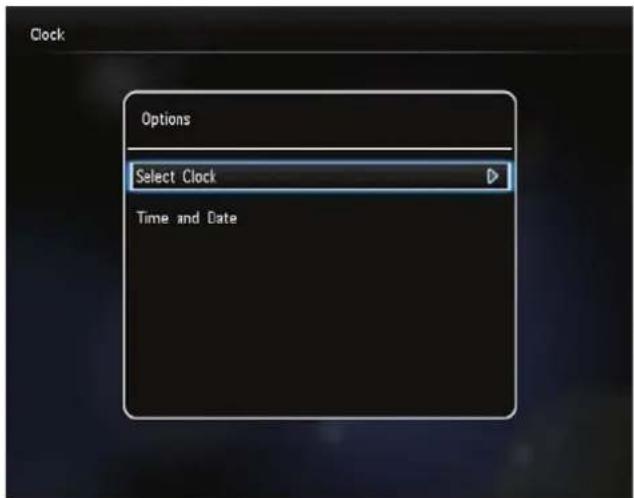

Clock menu

1 When a clock/calendar is displayed, press MENU to enter the clock menu.

Clock Options Select Clock Time and Date

- [Select Clock]: Move the joystick left/right to select another clock or calendar to be displayed.

- [Time and Date]: Move the joystick up/down/left/right to set time/date or to select a time/date format. For details, see Section "Settings - Set time and date".

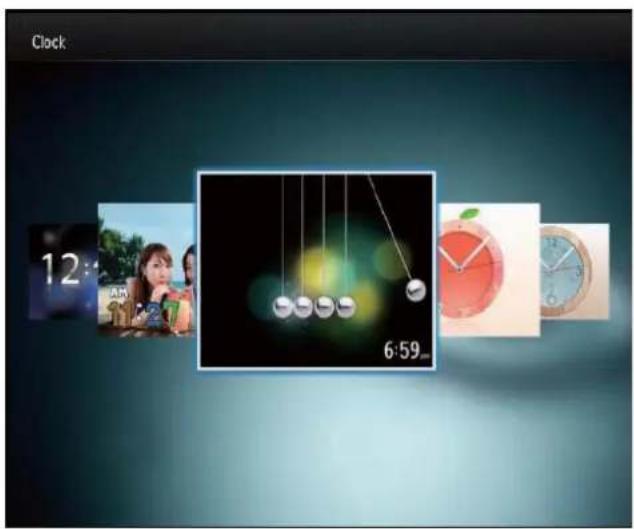

Select a clock/calendar style

1 In the clock menu, select [Select Clock] and then press OK.
2 Move the joystick left/right to select a clock or calendar template, and then press OK.

Clock 12:00 6:59

To go back to the home screen, hold •

7 Message

Create a message

1 In the home screen, select [Message] and then press OK.

Time Play Message Settings

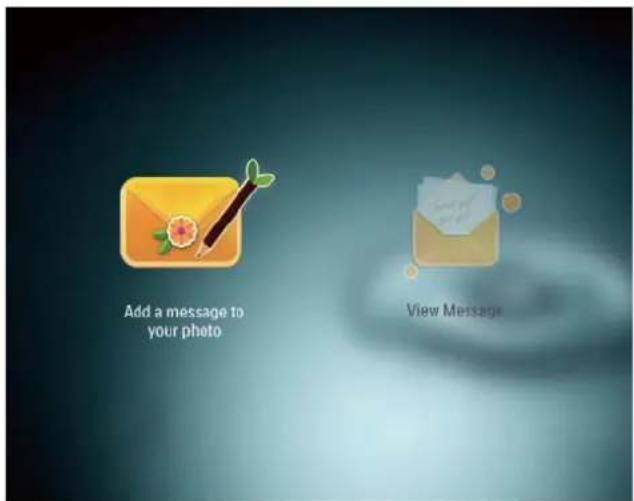

2 Select [Add a message to your photo], and then press OK.

Add a message to your photo View Message

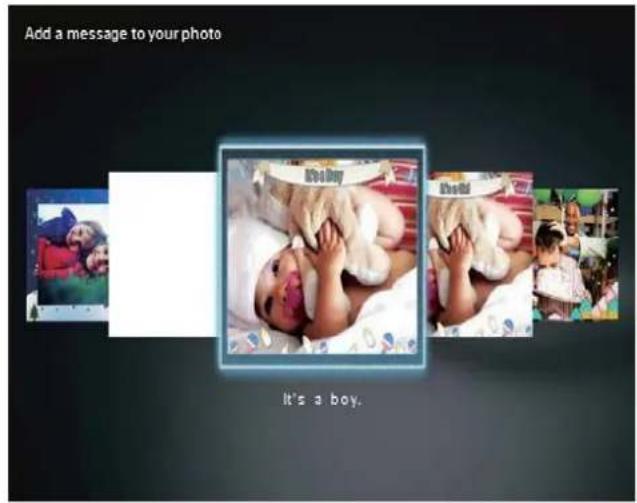

3 Move the joystick right or left to select a message template, and then press OK.

Add a message to your photo It's a boy.

Edit the text of the message or change image of the message.

Add a message to your photo It's a Boy My baby, you are so lovely! Change Image Edit Text Done

Set the real time and date if applicable.

4 Select [Done]. The screen prompts you to schedule the message.

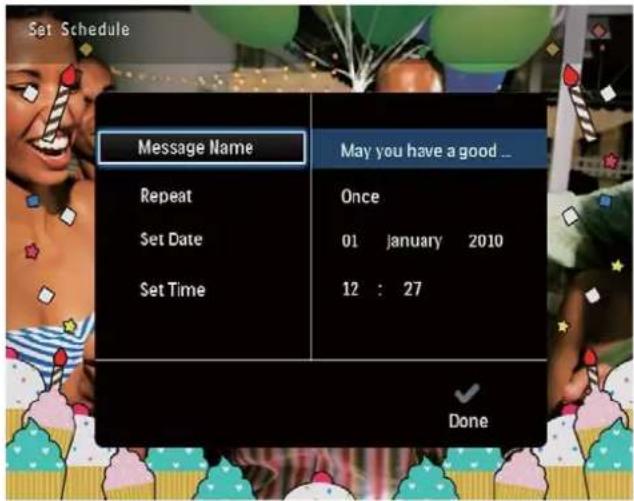

5 Schedule the message.

Set Schedule Message Name May you have a good ... Repeat Once Set Date 01 january 2010 Set Time 12 : 27 Done

• [Message Name]: Enter the name. For details, see "Enter the name of a message".
  • [Repeat]: Select a repeat frequency
  • [Set Date]: Set the date or day
• [Set Time]: Set the time

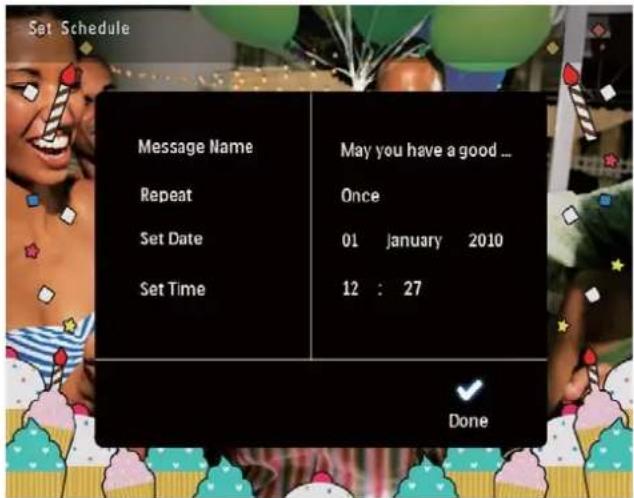

6 After you complete the message, select [Done] and press OK.

Set Schedule Message Name Repeat Set Date Set Time May you have a good ... Once 01 January 2010 12 : 27 Done

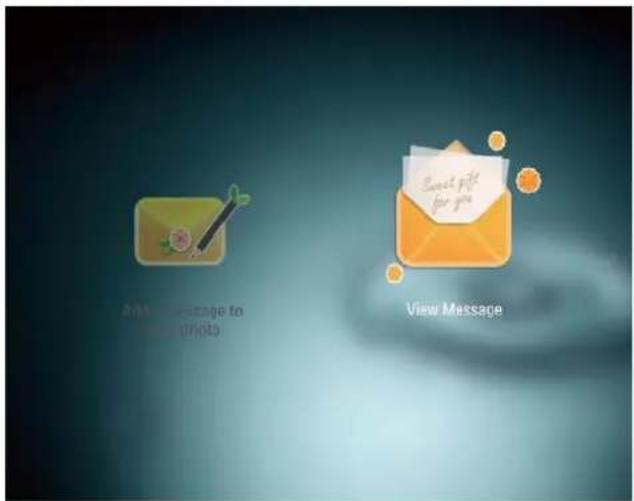

- To view the available messages, select [View Message].

Add a message to edita scripto View Message Sweet gift for you

• To go back to the home screen, hold.

Enter the name of a message

1 Select [Message Name], and then press OK.
2 Move the joystick downward twice to enter the keypad.
3 To enter the name (about 24 characters), select an alphabet/number and then press OK.
To switch between uppercase and • lowercase, select aA on the displayed keypad and then press OK.
4 When the name is complete, select and then press OK.

Edit a message

1 In the home screen, select [Message] and then press OK.

Browse Play Message Settings

2 Select [Add a message to your photo], and then press OK.

Add a message to your photo View Message

3 Move the joystick right or left to select a message template, and then press OK.

Add a message to your photo Baby Bethyl It's a boy.

4 Move the joystick to select one of the following options to edit a message.

• [Change Image]: Change the photo of the message
• [Edit Text]: Edit the message text

To change the photo of a message:

1 Select [Change Image], and then press OK.

Add a message to your photo It's a Boy My baby, you are so lovely! Change Image Edit Text Done

2 Select a photo available on the PhotoFrame, and then press OK.

To edit the text of a message:

1 Select [Edit Text], and then press OK.

Add a message to your photo It's a Boy My baby, you are so lovely! Change Image Edit Text Done

2 Select a preset template, and then press OK.

The keypad is displayed.

Add a message to your photo May you have a good day! ! Q W E R T Y U I O P 1 2 3 @ A S D F G H J K L ← 4 5 6 ? - Z X C V B N M , . 7 8 9 #@ $#* aA ↙ ← * 0 ✓

3 Move the joystick downwards twice to enter the keypad.
4 To enter the text, select an alphabet/number and then press OK. Select an input method, see "Know these keypad icons". To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.
5 After you enter the text, select and then press OK.
6 Move the joystick up/down/right/left to position the text, and then press OK.
7 Move the joystick up/down/right/left to select the color or font of the text, and then press OK.

Add a message to your photo It's a Boy My baby, you are so lovely!

8 Move to √, and then press OK.
9 Select [Done], and then press OK.

View a message

1 In the home screen, select [Message] and then press OK.
2 Select [View Message], and then press OK.

A bit to message to Photo (photo) View Message

3 Select a message template, and then press OK.
A message template is displayed.

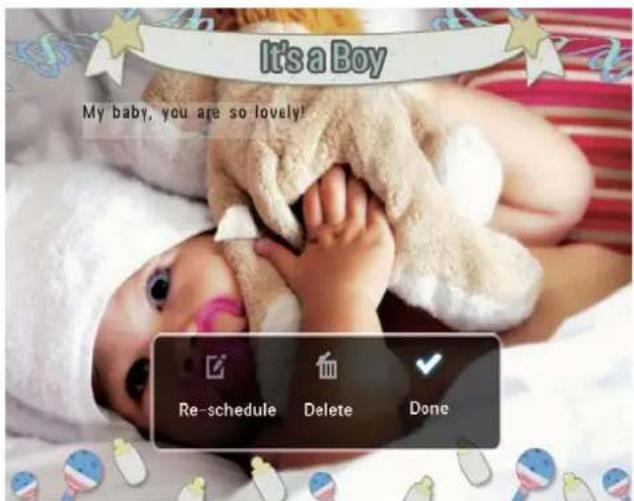

4 Press MENU, and then select an option to continue.

It's a Boy My baby, you are so lovely! Re-schedule Delete Done

5 Follow the on screen instruction to reschedule the message or delete the message.

To go back to the message browser • screen, select [Done] and then press OK.

8 Settings

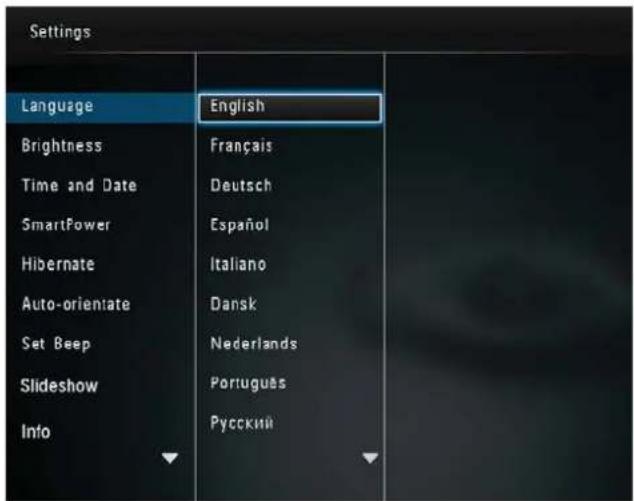

Select an on-screen language

1 In the home screen, select [Settings] and then press OK.

Browse Play Message Settings

2 Select [Language], and then press OK.
3 Select a language, and then press OK.

Settings Language English Brightness Français Time and Date Deutsch SmartPower Espanol Hibernate Italiano Auto-orientate Dansk Set Beep Nederlands Slideshow Português Info Pysckii

Adjust brightness

You can adjust the brightness of the PhotoFrame to achieve the best view.

1 In the home screen, select [Settings] and then press OK.

Calendar Browse Play Messages Settings

2 Select [Brightness], and then press OK.

Settings Language Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info

3 Move the joystick up/down to adjust brightness, and then press OK.

Set time/date

1 In the home screen, select [Settings] and then press OK.

Options Play Message Settings

2 Select [Time and Date], and then press OK.

Settings Language Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info Set Time 02 28

3 Select [Set Time] / [Set Date], and then press OK.

4 Move the joystick up/down/right/left to adjust minute/hour/day/month/year, and then press OK.

Settings Language Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info Set Time 02 : 37 Set Date Select Time Format Select Date Format

Set time/date format

1 In the home screen, select [Settings] and then press OK.

Photo Beginner Play Message Settings

2 Select [Time and Date], and then press OK.

3 Select[Select Time Format] / [Select Date Format], and then press OK.

4 Select a format, and then press OK.

Settings Language Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info Set Time Set Date Select Time Format Select Date Format 12 Hours 24 Hours

Set SmartPower timer

With the SmartPower timer, you can configure the time for the display of the PhotoFrame to turn on or turn off automatically. When the display automatically turns off, the PhotoFrame goes to standby (sleep) mode.

Note

Ensure that the current time of the • PhotoFrame is set correctly.

1 In the home screen, select [Settings] and then press OK.

Brand Play Message Settings

2 Select [SmartPower], and then press OK.

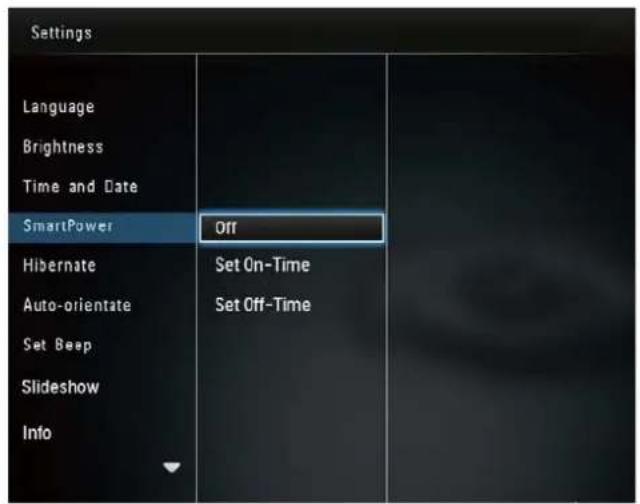

3 Select [Set On-Time] / [Set Off-Time], and then press OK.

To switch off the SmartPower • function, select [Off] and then press OK.

Settings Language Brightness Time and Date SmartPower Off Hibernate Set On-Time Auto-orientate Set Off-Time Set Beep Slideshow Info

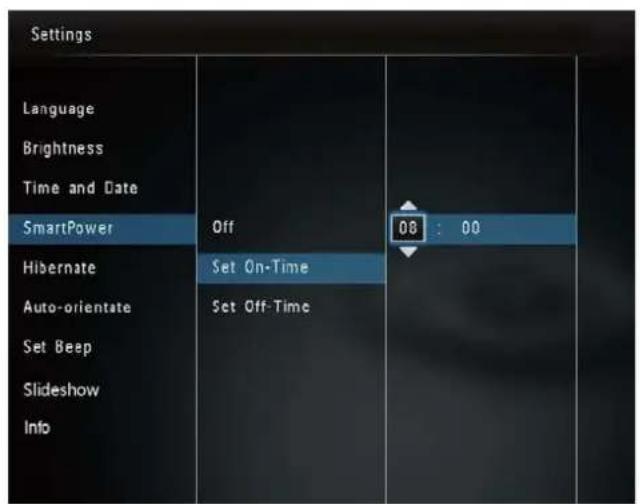

4 Move the joystick up/down/right/left to set time, and then press OK.

Settings Language Brightness Time and Date SmartPower Off 08:00 Hibernate Set On-Time Auto-orientate Set Off-Time Set Beep Slideshow Info

Tip

When the PhotoFrame is in standby (sleep) • mode, you can press to wake up the PhotoFrame.

Hibernate the PhotoFrame

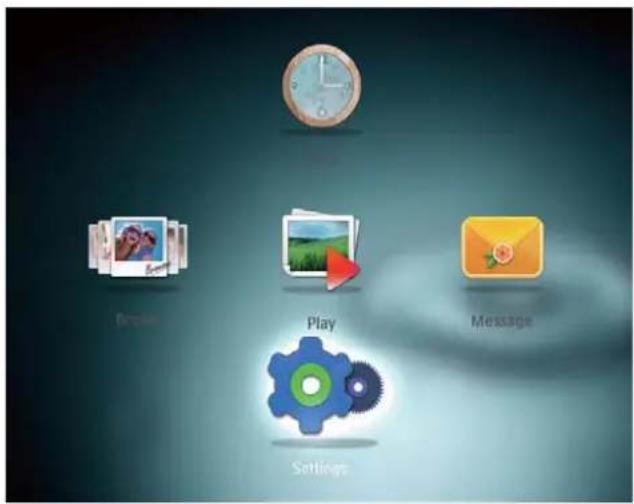

1 In the home screen, select [Settings] and then press OK.

Graphics Play Message Settings

2 Select [Hibernate], and then press OK.
3 Select an option, and then press OK.

Settings Language Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info Never 15 Minutes 20 Minutes 25 Minutes 30 Minutes 45 Minutes 1 Hour 2 Hours 3 Hours

After the selected period, the ↩ PhotoFrame hibernates.

To disable the hibernation function, • select [Never] and then press OK.

Settings Language Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info Never 15 Minutes 20 Minutes 25 Minutes 30 Minutes 45 Minutes 1 Hour 2 Hours 3 Hours

To get the PhotoFrame out of • hibernation, press ⏻.

Set auto orientation

With the auto orientation function, you can play photos in the correct orientation depending on the horizontal/vertical orientation of the PhotoFrame.

1 In the home screen, select [Settings] and then press OK.

Settings Play Message

2 Select [Auto-orientate], and then press OK.
3 Select [On], and then press OK.

Settings Language Brightness Time and Date SmartPower On Hibernate Auto-orientate Set Beep Slideshow Info

To disable the auto orientation • function, select [Off] and then press OK.

Turn button sound on/off

1 In the home screen, select [Settings] and then press OK.

Beginner Play Message Settings

2 Select [Set Beep], and then press OK.

3 To turn on the button sound, select [On] and then press OK.

Settings Language Brightness Time and Date SmartPower On Hibernate Off Auto-orientate Set Beep Slideshow Info

To turn off the button sound, select • [Off] and then press OK.

Slideshow setting

Select slideshow interval

1 In the home screen, select [Settings] and then press OK.

Media Play Message Settings

2 Select [Slideshow], and then press OK.

3 Select [Interval], and then press OK.

Settings Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info Default setting Interval Shuffle Transition Effect Background Color 5 Seconds 10 Seconds 30 Seconds 1 Minute 5 Minutes 30 Minutes 1 Hour 4 Hours 12 Hours

4 Select a slideshow interval, and then press OK.

Select slideshow sequence

1 In the home screen, select [Settings] and then press OK.

Settings Play Message

2 Select [Slideshow], and then press OK.
3 Select [Shuffle], and then press OK.
4 To display slideshow randomly, select [On] and then press OK. To display slideshow in sequence, • select [Off] and then press OK.

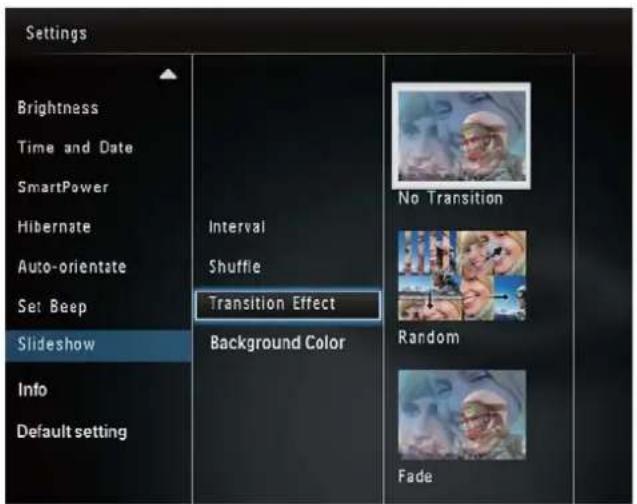

Select transition effect

1 In the home screen, select [Settings] and then press OK.

Browse Play Messages Settings

2 Select [Slideshow], and then press OK.
3 Select [Transition Effect], and then press OK.

Settings Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info Default setting Interval Shuffle Transition Effect Background Color No Transition Random Fade

4 Select a transition effect, and then press OK.

Select background color

You can select a background border color for photos that are smaller than the PhotoFrame display.

1 In the home screen, select [Settings] and then press OK.

Music Play Message Settings

2 Select [Slideshow], and then press OK.
3 Select [Background Color], and then press OK.
4 Select [RadiantColor] / a background color/ [Auto-fit], and then press OK.

Settings Brightness Time and Date SmartPower Hibernate Interval RadiantColor Auto-orientate Shuffle RadiantColor 2 Set Beep Transition Effect Original Black Slideshow Background Color Original Grey Info Default setting Original White Auto-fit

If you select →[RadiantColor], the PhotoFrame extends the color on the edges of a photo that is smaller than the full screen to fill the screen without black bars or aspect ratio distortion.

Exterior view of a two-story residential house with red-tiled roof and white walls, surrounded by greenery and flowers under a clear blue sky (no signage or text visible)

If you select a background color, the ↩ PhotoFrame displays a photo with a background color.

Exterior view of a two-story residential house with red-tiled roof and white walls, surrounded by lawn and flowers under a clear blue sky (no signage or text visible)

If you select ↩[Auto-fit], the PhotoFrame extends a photo to fill the screen with picture distortion.

Exterior view of a modern house with orange-tiled roof and white walls, surrounded by garden and lawn (no signage or text visible)

View information of the PhotoFrame

You can find the model name, the firmware version of the PhotoFrame, and the memory status of the PhotoFrame and other storage device available on the PhotoFrame.

1 In the home screen, select [Settings] and then press OK.

Startbox Play Message Settings

2 Select [Info].

The information of the PhotoFrame is ↩ displayed on the screen.

Settings Language Brightness Time and Date SmartPower Hibernate Auto-orientate Set Beep Slideshow Info PhotoFrame SPF2307/SPF2327 Softwar version: 0.53 Type. Internal memory 59.05MB Used. 0.60MB Free space: 58.45MB

Reset all settings to factory default

1 In the home screen, select [Settings] and then press OK.

Branded Play Messages Settings

2 Select [Default Settings], and then press OK. A confirmation message is displayed.

3 Select [Yes], and then press OK. All settings on the PhotoFrame are set → to factory default.

• To cancel the operation, select [No] in the prompt message and then press OK.

9 Upgrade the PhotoFrame

Caution

Do not power off the PhotoFrame during • software upgrade.

If there is a software update, you can download the latest software from www.philips.com/support to upgrade your PhotoFrame. The earlier software is unavailable on line.

1 Visit www.philips.com/support.
2 Search for your PhotoFrame and go to the software section.
3 Download the latest software onto the root directory of an SD card.
4 Insert the SD card into the PhotoFrame.
5 Turn on the PhotoFrame A confirmation message is displayed.
6 Select [Yes], and then press OK to confirm. When the upgrade is complete, the ↩ PhotoFrame reboots.

10 Product information

Note

- Product information is subject to change without prior notice.

Picture/Display

• Viewing angle: @ C/R > 10, 130° (H)/110° (V)
• Lifetime, to 50% brightness: 20000 hr
- Aspect ratio: 4:3
• Panel resolution: 800 × 600
• Brightness (typical): 180 cd/m²
• Contrast ratio (typical): 300:1
• Photo format support: JPEG photo (maximum: 8000 × 6000 pixel resolution)

Storage media

Internal memory capacity: 128 MB•

• Memory Card Types:

• Secure Digital (SD)
• Secure Digital High Capacity (SDHC)
  • Multimedia Card (MMC)
  • Memory Stick (MS)
  • Memory Stick Pro (MS Pro)

Connectivity

• USB: USB 2.0 Slave

Dimensions & Weight

• Set dimensions without stand (W × H × D): 194.5 × 159 × 28 mm
• Set dimensions with stand (W × H × D); 194.5 × 159 × 93.5 mm
  • Weight (with stand): 0.378 kg

Temperature range

• Operation: 0 °C - 40 °C/32 °F - 104 °F
• Storage: -10 °C - 60 °C/14 °F - 140 °F

Power

Power mode supported: AC powered

Efficiency level: V•

Average consumption (system on): 4 W•

Power adaptor: •

Manufacturer: Philips Consumer •

Lifestyle International B.V.

Model number: DSA-3RNA-05 Fxx •

(xx=EU, UK, AU, CN)

Input: AC 100-240V \~ 50-60Hz •

0.3A

Output: DC 5V = 650mA

Adaptor Region
DSA-3RNA-05	Europe, Russia, and Singapore
FEU
DSA-3RNA-05	U.K. and Hong Kong
FUK
DSA-3RNA-05	Australia and New Zealand
FAU
DSA-3RNA-05	China
FCN

Accessories

AC-DC adaptor•

CD-ROM with digital user manual•

- Quick start guide

Convenience

• Card Reader: Built-in
• Photo format supported:
• JPEG photo (maximum: 8000 × 8000 pixel resolution)
• Progressive JPEG photo (Up to 1024 x 768 pixels)

- Placement supported: Photo auto orientation

- Buttons and controls: Joystick, home/back button, menu button, power/mode button

- Playback mode: Slideshow, thumbnail view, wave view, album view

• Album management: Create, copy, move, delete, add to the favorites album

• Photo management: Copy, move, delete, rotate, add to the favorites album, color tone

Clock: Clock, calendar, set time and date•

Message: Create message, view message•

Slideshow setting: Transition effect, • background color, view mode, interval, shuffle, color tone

Color tone: Black and white, Sepia, other • colors

Screen background: Black, white, gray, • auto fit, RadiantColor

Settings: Language, brightness, time • and date, SmartPower, hibernate, auto orientation, beep (button sound),

slideshow settings, information of the

PhotoFrame, reset the PhotoFrame to the factory default

System status: Friendly name, software • version, memory size

Plug & Play Compatibility: Windows •

Vista/XP/7, Mac OS X 10.4/10.5/10.6

Regulatory Approvals: BSMI, C-Tick, • CCC, CE, GOST, PSB

Other convenience: Kensington lock • compatible

- On-Screen Display languages: English, French, German, Spanish, Italian, Danish, Dutch, Portuguese, Russian, Simplified Chinese, Traditional Chinese

11 Frequently asked questions

Is the LCD screen touch-enabled?

The LCD screen is not touch-enabled. Use the buttons on the back to control the PhotoFrame.

Can I use the PhotoFrame to delete photos on a memory card?

Yes, it supports operations to delete photos on an external device, such as a memory card. Ensure that you enable the deletion function on a memory card available on the PhotoFrame.

Why does my PhotoFrame not show some of my photos?

The PhotoFrame plays only JPEG photos •

(maximum: 8000 × 8000 pixel resolution) and Progressive JPEG photo (Up to 1024 × 768 pixels).

Ensure that these photos are not • damaged.

Why does the PhotoFrame not go into auto-off status after I set it?

Ensure that you set the real time, auto-off time, and auto-on time correctly. The PhotoFrame automatically turns off its display exactly at the auto-off time. If the time has already passed for the day, it starts to go into auto-off status at the specified time from the next day.

Can I increase the memory size to store more pictures on the PhotoFrame?

No. The internal memory of the PhotoFrame is fixed and cannot be expanded. However, you could switch between different photos by using different storage devices on the PhotoFrame.

12 Glossary

A

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-definition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.

J

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their file extension ‘jpg’ or ‘jpeg.’

K

Kbps

Kilobits per second. A digital-data-rate measurement system which is often used with highly compressed formats such as AAC, DAB, MP3 etc. The higher the amount, the better the quality generally is.

Kensington lock

A Kensington Security Slot (also called a K-Slot or Kensington lock). Part of an anti-theft system. It is a small, metal-reinforced hole found on almost all small or portable computer and electronics equipment, particularly on expensive and/or relatively light ones, such as laptops, computer monitors, desktop computers, gaming consoles, and video projectors. It is used for attaching a lock-and-cable apparatus, in particular those from Kensington.

M

Memory Stick

Memory Stick. A flash memory card for digital storage on cameras, camcorders and other handheld devices.

MMC Card

MultiMedia Card. A flash memory card that provides storage for cellphones, PDAs and other handheld devices. The card uses flash memory for read/write applications or ROM chips (ROM-MMC) for static information, the latter widely used for adding applications to a Palm PDA.

S

SD Card

Secure Digital Memory Card. A flash memory card that provides storage for digital cameras, cellphones and PDAs. SD Cards use the same 32 × 24 mm form factor as the MultiMediaCard (MMC), but are slightly thicker (2.1mm vs. 1.4mm), and SD Card readers accept both formats. Cards up to 4GB are available.

T

Thumbnail

A thumbnail is reduced-size versions of a picture that is used to make it easier to recognize an them. Thumbnails serve the same role for images as a normal text index does for words.

PHILIPS
