Product Type	Digital Photo Frame
Brand	Philips
Model	SPF4528
Display Size	10.2 inches
Resolution	1024 x 600 pixels
Aspect Ratio	16:9
Internal Memory	8 GB
Memory Card Slot	SD/SDHC/MMC
USB Port	USB 2.0 (Host and Device)
Supported Image Formats	JPEG, BMP, PNG, GIF
Supported Video Formats	MPEG-1, MPEG-4, Motion JPEG
Audio Playback	MP3
Slideshow Effects	Multiple transitions
Clock & Calendar	Yes
Power Supply	AC adapter (included)
Power Consumption	Less than 10 W typical
Dimensions (WxHxD)	26 x 18 x 4 cm
Weight	0.5 kg
Remote Control	Included
Wall Mountable	Yes (VESA 75x75)

Frequently Asked Questions - SPF4528 PHILIPS

How do I transfer photos to the Philips SPF4528 frame?

You can transfer photos via USB cable from a computer, insert an SD card or USB flash drive directly, or copy files to the internal memory using the frame's built-in file manager.

What memory cards are compatible?

The frame supports SD, SDHC, and MMC cards.

Can I play videos on this digital photo frame?

Yes, it supports MPEG-1, MPEG-4, and Motion JPEG video files. Note that high-definition or certain codecs may not be compatible.

How do I set the clock on the SPF4528?

Access the Settings menu, select Clock, then adjust the date and time manually or enable auto-sync if connected to a computer.

How should I clean the screen?

Use a soft, dry cloth to gently wipe the screen. Avoid using any liquids, abrasives, or harsh cleaners.

Does the frame have internal memory?

Yes, it includes 8 GB of internal storage for photos, videos, and music.

Can I view photos in a slideshow?

Yes, the frame offers slideshow mode with various transition effects. You can also set repeat and shuffle options.

How do I connect the frame to my computer?

Use the included USB cable to connect the frame to a computer. The frame will appear as an external drive, allowing file transfer.

What is the screen resolution of the SPF4528?

The display has a resolution of 1024 x 600 pixels, providing clear and vibrant images.

How is the frame powered?

It comes with an AC power adapter that plugs into a wall outlet. There is no battery, so it must remain plugged in.

USER MANUAL SPF4528 PHILIPS

Register your product and get support at

www.philips.com/welcome

PhotoFrame

SPF4308

SPF4328

SPF4508

SPF4528

EN

User manual

Contents

1 Important 3

Safety 3

Safety precautions and maintenance 3

Notice 3

Respect copyrights 3

Recycling 3

North Europe Information

(Nordic Countries) 4

Class II statement 4

2 Your PhotoFrame 5

Introduction 5

What's in the box 5

Overview of your PhotoFrame 6

3 Get started 7

Install the stand 7

Connect power 7

Turn on the PhotoFrame 8

Turn off the PhotoFrame 8

Transfer your media 8

Transfer photos with a storage device 8

Transfer photos with a computer 10

Quick menu 10

Know these keypad icons 10

4 Play 11

Display photos 11

Manage slideshow and photos 11

Zoom and crop a photo 12

Play videos (SPF4508/SPF4528) 13

Manage videos (SPF4508/SPF4528) 14

Play background music (SPF4508/SPF4528) 14

5 Browse 16

Browse and manage albums and media 16

Add media to the favorite album 17

Create an album 17

Copy media 17

Move media 17

Delete media 18

Group media 18

Rename an album 18

Select multiple media to manage 18

Rotate photos 18

6 Clock 19

Display the clock 19

Clock menu 19

Select a clock/calendar style 19

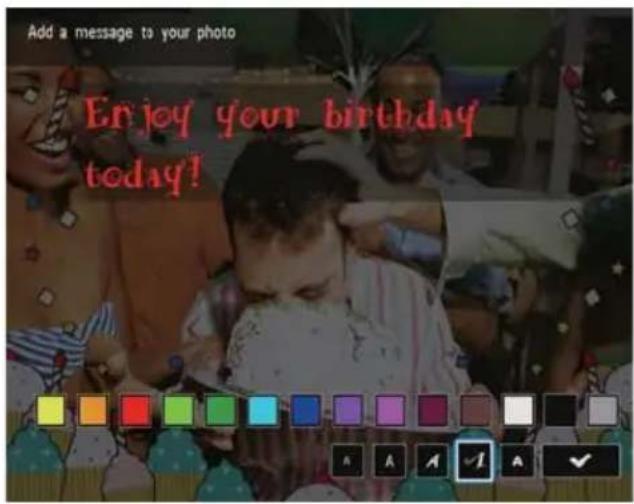

7 Message 20

Create a message 20

Enter the name of a message 21

Edit a message 21

View a created message 23

8 Settings 25

Select an on-screen language 25

Adjust brightness 25

Set time/date 25

Set time/date format 26

Set SmartPower timer 26

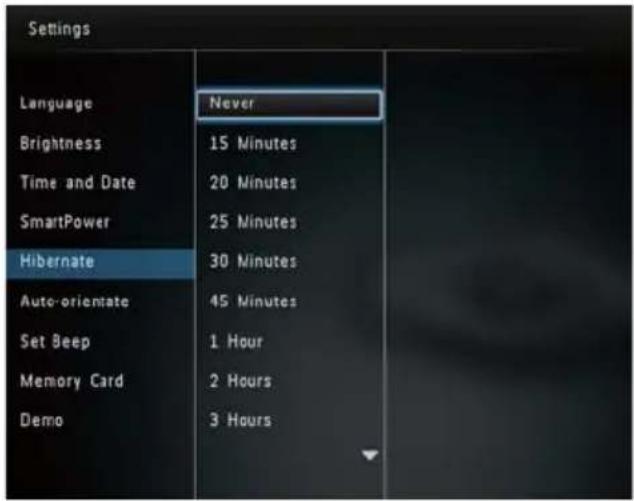

Hibernate the PhotoFrame 27

Set auto orientation 28

Turn button sound on/off 28

Protect/Unprotect content on a storage device 29

Set demo on/off 30

Slideshow setting 30

Select slideshow interval 30

Select slideshow sequence 31

Select view mode for slideshow 31

Select file type for slideshow (SPF4508/SPF4528) 31

Select transition effect 31

Select background color 32

Power meter 33

View information of the PhotoFrame 33

Reset all settings to factory default 34

9 Upgrade the PhotoFrame 35

10 Product information 36

Video features (SPF4508/SPF4528) 36

11 Frequently asked questions 38

12 Glossary 39

Need help?

Please visit www.philips.com/welcome where you can access a full set of supporting materials such as user manual, the latest software updates and answers to frequently asked questions.

1 Important

Safety

Safety precautions and maintenance

Never touch, push, rub or strike the screen with hard objects as this may damage the screen permanently.

When the product is not used for long periods, unplug it.

Before you clean the screen, turn off and unplug the power cord. Only clean the screen with a soft, water-damp cloth.

Never use substances such as alcohol, chemicals or household cleaners to clean the product.

Never place the product near naked flames or other heat sources, including direct sunlight.

Never expose the product to rain or water. Never place liquid containers, such as vases, near the product.

Never drop the product. When you drop the product, it will be damaged.

Keep the stand away from cables.

Ensure that you install and use services or software only from trustworthy sources free of virus or harmful software.

This product is designed for indoor use only.

Only use the supplied power adaptor for the product.

Notice

CE

This product is in compliance with the essential requirements and other relevant provisions of Directives 2006/95/EC (Low Voltage), 2004/108/EC (EMC).

Respect copyrights

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

North Europe Information

(Nordic Countries)

WARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE

OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR

DU STÄLLER DIN UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

S∅RG VED PLACERINGEN FOR, AT

The plug and socket of the power cord are easily accessible.

The plug and socket of the power cord are easily accessible.

Place/ventilation

WARNING:

Place the device so that the power cord can be easily

unplugged from the wall outlet when needed.

unplugged from the wall outlet when needed.

Class II equipment symbol:

This symbol indicates that this product has a double insulation system.

2 Your PhotoFrame

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With Philips Digital PhotoFrame SPF4308/

SPF4328, you can use the PhotoFrame to:

Display JPEG photos

Create gift messages

With Philips Digital PhotoFrame SPF4508/

SPF4528, you can use the PhotoFrame to:

Display JPEG photos

Play video clips from camera

Play background music for photo slideshow

Create gift messages

What's in the box

Philips Digital PhotoFrame

Stand

AC-DC power adaptor

CD-ROM, with digital user manual

Quick start guide

Overview of your PhotoFrame

①

Press to turn on the PhotoFrame.

Press and hold to turn off the PhotoFrame.

PhotoFrame

Press to switch modes: slideshow/clock/calendar.

②

Press to return to the previous step.

Press and hold to go to the home screen.

③ OK (Joystick)

Press to confirm a selection.

Press to pause or resume play. Move up/down/left/right to select the upper/lower/right/left option.

④ MENU

Press to enter/exit the menu.

⑤ Speaker

⑥

Slot for a USB cable to PC.

⑦ SD/MMC/MS/MS Pro

Slot for an SD/MMC/MS/MS Pro card

⑧ DC

Socket for the AC-DC power adaptor

⑨ Kensington lock

⑩ Stand hole

⑪ Wall mounting hole

3 Get started

Caution

Use the controls only as stated in this user manual.

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. Write the numbers here: Model No. ____ Serial No. ____

Install the stand

To place the PhotoFrame on a flat surface, attach the supplied stand to the back of the PhotoFrame.

1 Insert the stand into the PhotoFrame and position the indication on the stand to the 0° position.

2 Turn the stand clockwise 45 degrees to the ⚠ position and lock it to the PhotoFrame firmly.

Connect power

Note

When you position the PhotoFrame, ensure that the power plug and outlet are easily accessible.

1 Connect the power cord to the DC socket of the PhotoFrame.

2 Connect the power cord to a power supply socket.

The PhotoFrame turns on automatically.

Turn on the PhotoFrame

Note

When you connect the PhotoFrame to a power supply, the PhotoFrame turns on automatically.

1 When the PhotoFrame is turned off and connected to the power supply, press and hold ⏻ to turn on the PhotoFrame.

For the first time you turn on the PhotoFrame:

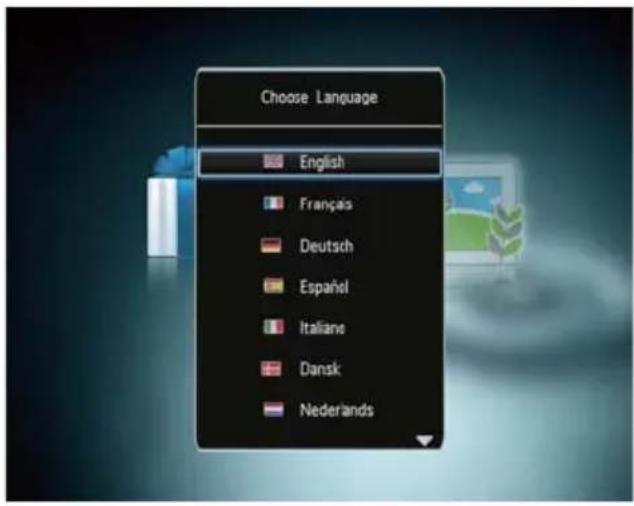

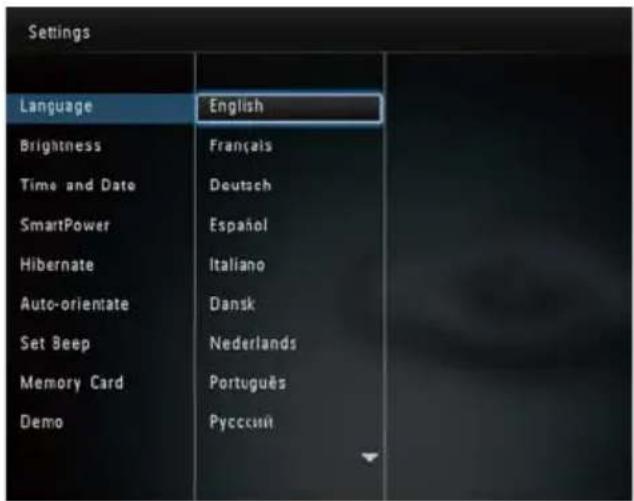

• The screen prompts you to select a language.

- Select a language, and then press OK.

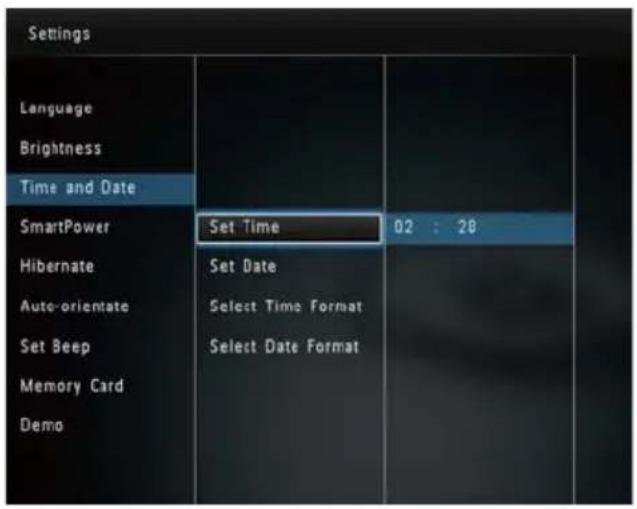

• The screen prompts you to set time and date.

Move the joystick to set time and date, and then press OK.

Tip

If the PhotoFrame is disconnected from the power supply for a long time, you need to set time and date again after you turn on the PhotoFrame.

Turn off the PhotoFrame

Note

You can only turn off the PhotoFrame after all copy and save actions are complete.

To turn off the PhotoFrame, press and hold ⏻ for about 2 seconds.

Transfer your media

Transfer photos with a storage device

Caution

Do not disconnect the storage device from the PhotoFrame during media transfer.

The PhotoFrame supports most types of the following storage device:

Secure Digital (SD)

Secure Digital High Capacity (SDHC)

Multimedia Card (MMC)

Memory Stick (MS)•

Memory Stick Pro (MS Pro)•

1 Insert a storage device into the PhotoFrame.

An option menu is displayed.

[Play Photos] (SPF4308/SPF4328) /

[Play Inserted Content] (SPF4508/

SPF4528): Select it to play media on the storage device

[Browse]: Select it to browse media on the storage device

[Copy to PhotoFrame]: Select it to start transfer operation

2 Select [Copy to PhotoFrame], and then press OK.

A confirmation message is displayed.

To select all media:

1 Select [Yes], and then press OK.

2 Select an album on the PhotoFrame to store the media, and then press OK.

To select a specific medium:

1 Select [No], and then press OK.

2 Select a folder.

3 Move the joystick, and then press OK to select/deselect a medium.

4 Press MENU to continue the transfer operation.

5 Select an album on the PhotoFrame to store the media, and then press OK.

• To remove a storage device, pull it out of the PhotoFrame.

Transfer photos with a computer

Caution

Do not disconnect the PhotoFrame from the computer during media transfer.

1 Connect a USB cable to the PhotoFrame and to the computer.

You can drag and drop the media from the computer to an album on the PhotoFrame.

2 When the transfer is complete, disconnect the USB cable from the computer and the PhotoFrame.

Tip

You can transfer media from the PhotoFrame to a computer.

- The transfer speed depends on the operating system and the software configuration of the computer.

Quick menu

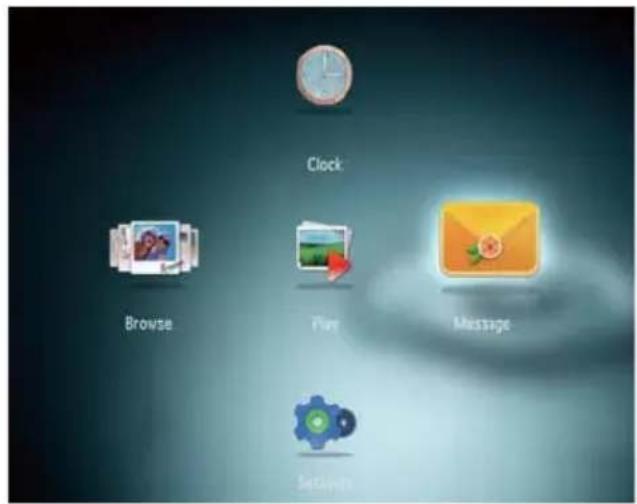

1 In the home screen, press MENU. The quick menu is displayed.

2 Select an option, and then press OK.

3 Follow the on-screen instructions to adjust the brightness or view the status of the PhotoFrame.

• To exit the quick menu, press MENU repeatedly.

Know these keypad icons

###	Input in English
	Input in supported European languages
拼音	Input in Simplified Chinese
Русский	Input in Russian
$## / ABC Switch to select symbols, punctuations, alphabet or numbers
aA Switch between upper and lower case
	Enter a blank space
	Enter a line break

4 Play

Display photos

Note

You can display JPEG photos in slideshow mode on the PhotoFrame.

1 If there is no message created before, at power up select [Start PhotoFrame] and then press OK.

2 Select [Play], and then press OK.

(SPF4308/SPF4328) Photos are displayed in slideshow mode.

(SPF4508/SPF4528) Photos/video clips are displayed in slideshow mode. If there are music files available, photos are played with background music by default.

In slideshow mode:

To select the previous/next photo, move the joystick to the left/right.

To pause the slideshow, press OK. To resume the slideshow, press OK again.

Manage slideshow and photos

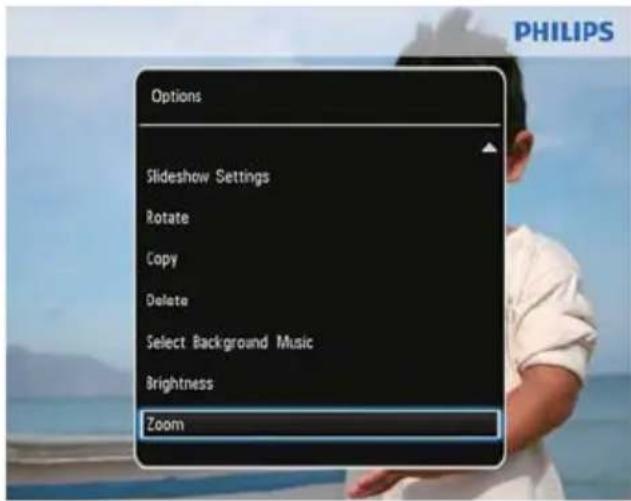

You can take the following steps to manage the photo in slideshow mode or the slideshow settings:

1. Press MENU.

An option menu is displayed.

2. Select an option, and then press OK.

[View Mode]: Select the view mode. [Add to Favorites]: Add the photo to the [Favorites] album on the PhotoFrame. [Slideshow Settings]

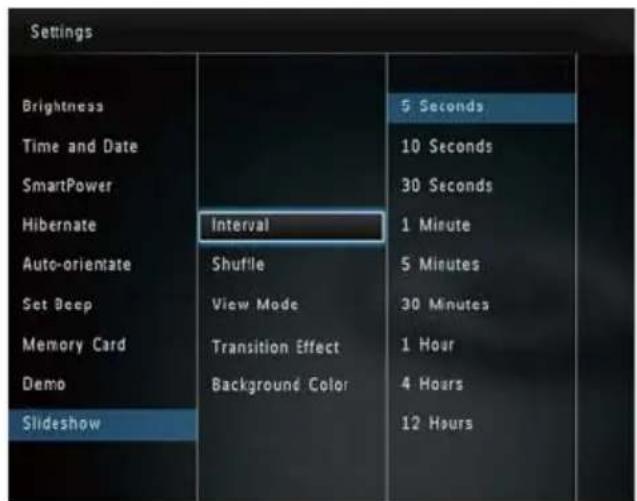

[Interval]: Set the interval in slideshow. [Shuffle]: Play media randomly or not. [Color Tone]: Select the color for the photo. [File Type] (SPF4508/SPF4528): Select the type of file shown in slideshow. [Transition Effect]: Select the transition effect.

[Background Color]: Select the background color.

[Rotate]: Select an orientation to rotate the photo.

[Copy]: Copy the photo to another album.

[Delete]: Delete the photo.

[Select Background Music] (SPF4508/SPF4528): Select music or turn on/off the background music for photo slideshow.

[Brightness]: Move the joystick up/down to adjust the brightness of display.

• [Zoom]: Zoom and crop a photo

Zoom and crop a photo

When the view mode is set to single, you can zoom in on a photo, crop it, and save it as a new photo as follows:

1 In slideshow mode, press MENU. An option menu is displayed.

2 Move the joystick downwards repeatedly to select [Zoom].

3 Press OK repeatedly to zoom in on the photo (or exit the zoom mode).

4 Move the joystick to pan the photo.

5 Press MENU.

6 Select [Crop and Save], and then press OK.

A confirmation message is displayed.

7 Select [Yes], and then press OK.

• To cancel the operation, select [No] and then press OK.

8 Select an album or create an album to save the new photo, and then press OK. After the photo is saved, the PhotoFrame returns to slideshow mode.

To create an album to save the photo:

1 Select [Create New Album], and then press OK to confirm. A keypad is displayed.

2 Move the joystick downwards twice to enter the keypad.

3 To enter the name, select an alphabet/number and then press OK.

• To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.

4 When the name is complete, select √ and then press OK. 5 Press OK to start the saving process.

Play videos (SPF4508/SPF4528)

Note

• SPF4508/SPF4528 plays most video clips of a digital still camera in M-JPEG (*.avi/*.mov), MPEG-1 (*.mpg/*.dat/*.avi/*.mov), and MPEG-4 (*.avi/*.mov/*.mp4) format. Some video clips might have compatibility issues when played on your PhotoFrame. Before playing, ensure that these video clips are compatible with your PhotoFrame.
• Some video clips with audio in a format which is not compatible well with your PhotoFrame, may be played without audio output and with the icon 📄 shown on the screen.
• In album/thumbnail mode, a video clip is displayed with the icon 📁 on the top.

1 In the home screen, select [Browse] and then press OK.

Albums are displayed in wave mode.

2 Press ⏻ to access album mode. 3 Select a folder, and move the joystick right to access the folder. 4 Select a video. 5 Press OK to start video play.

During video play:

To adjust volume, move the joystick up/down. To pause/resume play, press • OK. To play the previous/next video, • move the joystick right/left. To start fast-forwarding, hold the • joystick right. Hold the joystick right once for twice fast-forwarding.

- Hold the joystick right twice for four times fast-forwarding.

• During fast-forwarding, press OK to resume the normal speed.

Manage videos (SPF4508/SPF4528)

You can take the following steps to manage the videos that you play:

1 During play, press MENU.

An option menu is displayed.

2 Select an option, and then press OK.

• [Add to Favorites]: Add the video to the [Favorites] album on the PhotoFrame • [Copy]: Copy the video to another album • [Delete]: Delete the video • [Repeat]

• [Play in Loop]: Play in a loop

• [Play Once]: Play once

• [Viewing Format]

• [Full Screen]: Play in full screen format • [Original]: Play in original format

Play background music (SPF4508/SPF4528)

Note

Only MP3 or WAV music files can be played on the PhotoFrame.

1 During photo display, press MENU. An option menu is displayed. 2 Move the joystick downwards to select [Select Background Music], and then press OK. 3 Select [Select Music], and then press OK.

4 Select a folder.

5 Select music. To select all music in the folder, continue with Step 6.

To select a piece of music in the folder, move the joystick right and then select the music.

6 Press OK.

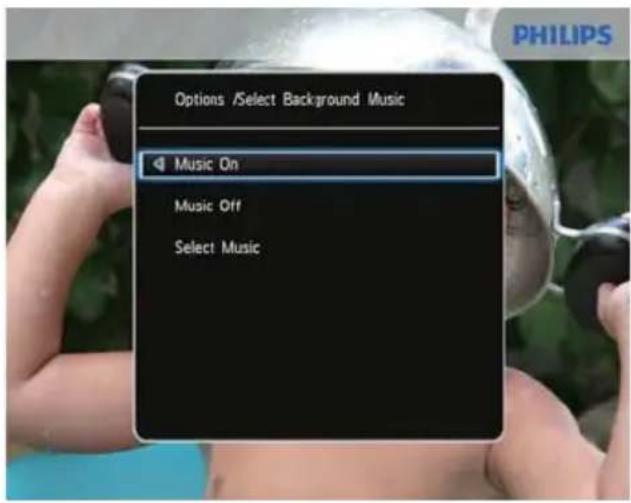

If you have already selected music:

- In [Select Background Music] menu, select [Music On] and then press OK.

Selected music files are played.

• To stop music play, select [Music Off] and then press OK.

• To adjust the volume of music during music play, move the joystick up/down.

Music menu:

1 Select a music folder, and then press MENU. The music menu is displayed.

2 Select an option to continue. Copy music to another folder Delete music Adjust the volume of music

5 Browse

Browse and manage albums and media

You can browse and manage albums and media in wave mode or album mode.

- Wave mode:

- Album mode:

Browse albums:

1 In the home screen, select [Browse] and then press OK. Albums are displayed in wave mode.

- To access album mode, press ⏻. - To return to wave mode, press ⏻. In wave/album mode, •

• Press OK once: A photo is displayed in pause mode.
• Press OK twice: Slideshow is started.

Manage albums and media:

1 Select an album/device, press MENU. An option menu is displayed.

2 Select an option, and then press OK to continue.

Device menu:

• [Add to Favorites]: Add media on the device to the [Favorites] album • [Create New Album]: Create an album • [Copy]: Copy media on the device to another album • [Move]: Move media on the device to another album • [Delete]: Delete media on the device • [Group by]: Group media on the device by name or date

Album menu:

• [Add to Favorites]: Add media in the album to the [Favorites] album • [Copy]: Copy media in the album to another album • [Move]: Move media in the album to another album • [Delete]: Delete media in the album • [Rename]: Rename the album • [Group by]: Group media in the album by name or date • [Multiple-select]: Select multiple photos to manage

Thumbnail menu:

• [Add to Favorites]: Add media in the album to the [Favorites] album • [Copy]: Copy media in the album to another album • [Move]: Move media in the album to another album • [Delete]: Delete media in the album • [Rotate]: Rotate the photo in the album • [Color Tone]: Select a color for the photo • [Group by]: Group media in the album by name or date • [Multiple-select]: Select multiple photos to manage

When you select the [Favorites] album, a different menu is displayed.

• [Remove from Favorites]: Remove media from the [Favorites] album • [Copy]: Copy media in the album to another album • [Delete]: Delete media in the album • [Group by]: Group media in the album by name or date

Add media to the favorite album

To add media in the album to the [Favorites] album:

1 Select [Add to Favorites], and then press OK.

Create an album

1 Select [Create New Album], and then press OK. 2 To enter the name, select an alphabet/number and then press OK. To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK. 3 When the name is complete, select and then press OK. 4 Press OK to start the saving process.

Copy media

1 Select [Copy], and then press OK. 2 Select a destination album, and then press OK to start copy.

Move media

1 Select [Move], and then press OK. 2 Select a destination album, and then press OK to start move.

Delete media

1 Select [Delete], and then press OK. A confirmation message is displayed. 2 Select [Yes], and then press OK to start deletion. To cancel the operation, hold 🔊.

Group media

You can group media in an album by date or name.

1 Select [Group by], and then press OK. 2 Select a grouping method.

To group by name, select • and then press OK.

• To group by date, select [Date] and then press OK.

Rename an album

1 Select [Rename], and then press OK to confirm. ▶ A keypad is displayed. 2 Move the joystick downwards twice to enter the keypad. 3 To enter the name, select an alphabet/number and then press OK.

• To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.

4 When the name is complete, select √ and then press OK.

Select multiple media to manage

1 Select [Multiple-select], and then press OK. 2 Select media. To select all media in the album, • press OK. To select some of the media: Move • the joystick and press OK to select a medium. Then repeat this step to select others. To de-select a medium, select it and • then press OK again. 3 After selection is complete, press MENU to continue. [Name] An option menu is displayed. 4 Select an option to continue.

• [Add to Favorites]: Add the selected media to the [Favorites] album • [Copy]: Copy the selected media to another album • [Move]: Move the selected media to another album
• [Delete]: Delete the selected media • [Rotate]: Rotate the selected media • [Play Slideshow]: Play the selected media in slideshow mode

Rotate photos

1 Select [Rotate], and then press OK. 2 Select an angle to rotate, and then press OK.

6 Clock

Display the clock

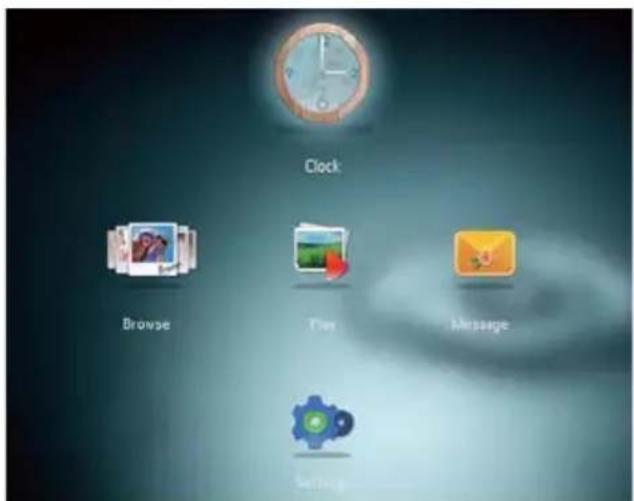

1 In the home screen, select [Clock] and then press OK.

A clock/calendar is displayed.

Clock menu

1 When a clock/calendar is displayed, press MENU to enter the clock menu.

- [Select Clock]: Move the joystick left/right to select another clock or calendar to be displayed.

• [Time and Date]: Move the joystick up/down/left/right to set time/date or to select a time/date format. For details, see Section "Settings - Set time and date".
• [Select Background Music] (SPF4508/ SPF4528): Select background music to play in clock mode

Select a clock/calendar style

1 In the clock menu, select [Select Clock] and then press OK. 2 Move the joystick left/right to select a clock or calendar template, and then press OK.

To go back to the home screen, hold •

7 Message

Create a message

Note

If there is no message created before, at • power up select [Personalize Frame] to add a message to your photo or to view a message.

1. In the home screen, select [Message] and then press OK.

2. Select [Add a message to your photo], and then press OK.

3. Move the joystick right or left to select a message template, and then press OK.

(SPF4508/SPF4528) Add music to the message.

Change photo of the message. Edit the text of the message. Set the real time and date if applicable.

4. Select [Done].

The screen prompts you to schedule the message.

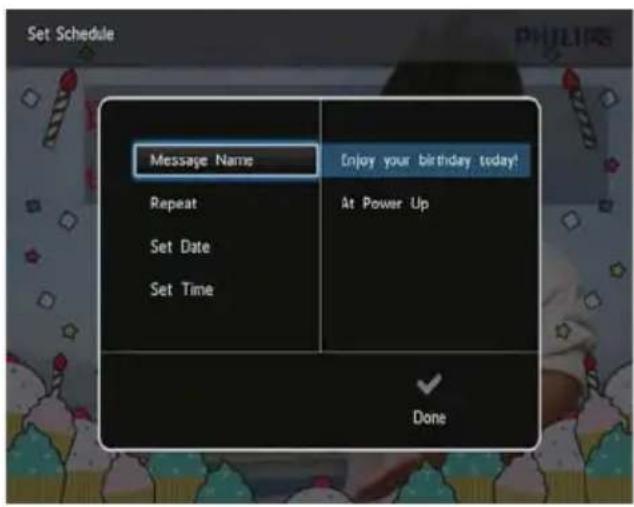

5. Schedule the message.

• [Message Name]: Enter the name. For details, see "Enter the name of a message". [Repeat]: Select a repeat frequency. [Set Date]: Set the date or day. [Set Time]: Set the time.

6. After you complete the message, select [Done] and press OK.

To view the available messages, select [View Message]. To go back to the home screen, hold.

Enter the name of a message

1. Select [Message Name], and then press OK. 2. Move the joystick downward twice to enter the keypad. 3. To enter the name, select an alphabet/number and then press OK. To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK. 4. When the name is complete, select and then press OK.

Edit a message

1. In the home screen, select [Message] and then press OK.

2 Select [Add a message to your photo], and then press OK.

3 Move the joystick right or left to select a message template, and then press OK.

4 Move the joystick to select one of the following options to edit a message.

• [Add Music] (SPF4508/SPF4528): Add music to the message
• [Change Photo] (SPF4308/SPF4328)/ [Change Image] (SPF4508/SPF4528): Change the photo of the message
• [Edit Message] (SPF4308/SPF4328)/ [Edit Text] (SPF4508/SPF4528): Edit the text of message

Add background music to message:

1 Select [Add Music], and then press OK. 2 Select a piece of music available on the PhotoFrame, and then press OK.

To change the photo of a message:

1 Select [Change Photo], and then press OK. 2 Select a photo available on the PhotoFrame, and then press OK.

To edit the text of a message:

1 Select [Edit Message], and then press OK.

2 Select a preset template, and then press OK. The keypad is displayed. 3 Move the joystick downwards twice to enter the keypad. 4 To enter the text, select an alphabet/number and then press OK.

Select an input method, see "Know these keypad icons".

To switch between uppercase and lowercase, select aA on the displayed keypad and then press OK.

5 After you enter the text, select and then press OK.

6 Move the joystick up/down/right/left to position the text, and then press OK. 7 Move the joystick up/down/right/left to select the color or font of the text, and then press OK.

8 Move to √, and then press OK.

9 Select [Done], and then press OK.

View a created message

1 In the home screen, select [Message] and then press OK.

2 Select [View Message], and then press OK.

3 Select a message template, and then press OK.

A message template is displayed.

To change music (SPF4508/SPF4528), reschedule or delete the message, press MENU and then select an option to continue.

To go back to the message browser screen, select [Done] and then press OK.

8 Settings

Select an on-screen language

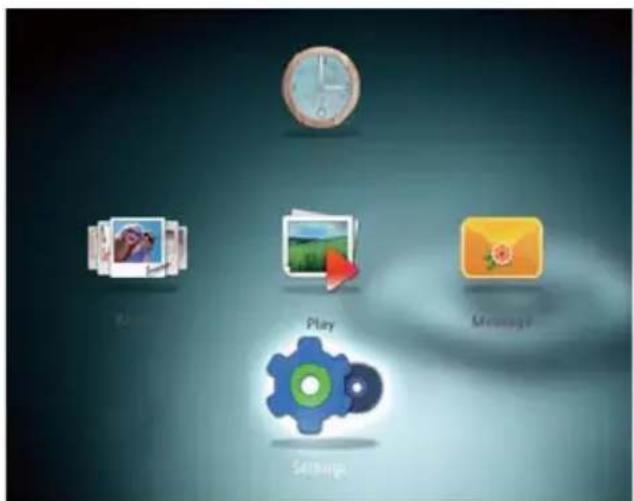

1 In the home screen, select [Settings] and then press OK.

2 Select [Language], and then press OK. 3 Select a language, and then press OK.

Adjust brightness

You can adjust the brightness of the PhotoFrame to achieve the best view.

1 In the home screen, select [Settings] and then press OK.

2 Select [Brightness], and then press OK. 3 Move the joystick up/down to adjust brightness, and then press OK.

Set time/date

1 In the home screen, select [Settings] and then press OK.

2 Select [Time and Date], and then press OK.

3 Select [Set Time] / [Set Date], and then press OK. 4 Move the joystick up/down/right/left to adjust minute/hour/day/month/year, and then press OK.

Set time/date format

1 In the home screen, select [Settings] and then press OK.

2 Select [Time and Date], and then press OK. 3 Select [Select Time Format] / [Select Date Format], and then press OK.

4 Select a format, and then press OK.

Set SmartPower timer

With the SmartPower timer, you can configure the time for the display of the PhotoFrame to turn on or turn off automatically. When the display automatically turns off, the PhotoFrame goes to standby (sleep) mode.

Note

Ensure that the current time of the PhotoFrame is set correctly.

1 In the home screen, select [Settings] and then press OK.

2 Select [SmartPower], and then press OK. 3 Select [Timer], and then press OK.

4 Select [Set On-Time] / [Set Off-Time], and then press OK.

To switch off the SmartPower function, select [Off] and then press OK.

5 Move the joystick up/down/right/left to set time, and then press OK.

Tip

When the PhotoFrame is in standby (sleep) mode, you can press to wake up the PhotoFrame.

Hibernate the PhotoFrame

1 In the home screen, select [Settings] and then press OK.

2 Select [Hibernate], and then press OK.

3 Select an option, and then press OK.

After the selected period, the PhotoFrame hibernates.

To disable the hibernation function, select [Never] and then press OK.

To get the PhotoFrame out of hibernation, press ⏻.

Set auto orientation

With the auto orientation function, you can play photos in the correct orientation depending on the horizontal/vertical orientation of the PhotoFrame.

1 In the home screen, select [Settings] and then press OK.

2 Select [Auto-orientate], and then press OK.

3 Select [On], and then press OK.

To disable the auto orientation function, select [Off] and then press OK.

Turn button sound on/off

1 In the home screen, select [Settings] and then press OK.

2 Select [Set Beep], and then press OK.

3 To turn on the button sound, select [On] and then press OK.

To turn off the button sound, select [Off] and then press OK.

Protect/Unprotect content on a storage device

With the PhotoFrame, you can delete content on a storage device available on the PhotoFrame. To protect content on a storage device from accidental deletion, you can disable the deletion function on a storage device.

1 In the home screen, select [Settings] and then press OK.

2 Select [Memory Card], and then press OK.

3 Select [Enable Delete] / [Disable Delete], and then press OK.

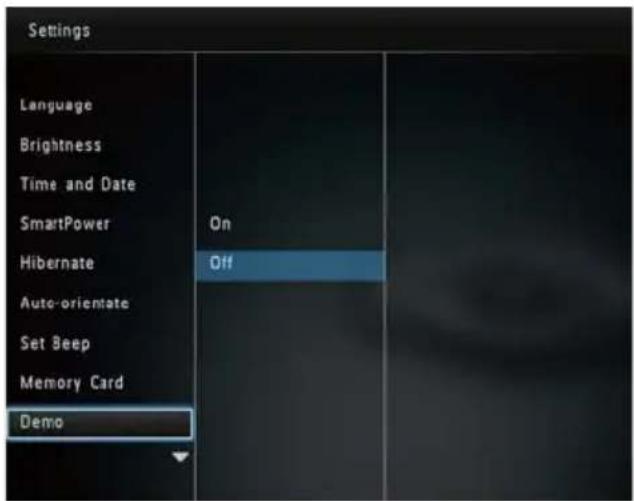

Set demo on/off

Note

The demo function is effective during photo or video slideshow.

1 In the home screen, select [Settings] and then press OK.

2 Select [Demo], and then press OK.

3 Select [On], and then press OK. The demo function is activated. → When Demo mode is ON, the photo → frame will play the DEMO slideshow automatically once the power cable is connected.

During demo show, press 🔒 to exit it.

To disable demo show at power up, • select [Off] and then press OK.

Slideshow setting

Select slideshow interval

1 In the home screen, select [Settings] and then press OK.

2 Select [Slideshow], and then press OK. 3 Select [Interval], and then press OK.

4 Select a slideshow interval, and then press OK.

Select slideshow sequence

1 In the home screen, select [Settings] and then press OK.

2 Select [Slideshow], and then press OK. 3 Select [Shuffle], and then press OK. 4 To display slideshow randomly, select [On] and then press OK. To display slideshow in sequence, select [Off] and then press OK.

Select view mode for slideshow

1 In the home screen, select [Settings] and then press OK.

2 Select [Slideshow], and then press OK. 3 Select [View Mode], and then press OK. 4 Select a view mode for slideshow, and then press OK.

Select file type for slideshow (SPF4508/SPF4528)

1 In the home screen, select [Settings] and then press OK.

2 Select [Slideshow], and then press OK. 3 Select [File Type], and then press OK. 4 Select a file type for slideshow, and then press OK.

• [Photos and Videos]: Photos and videos are shown in the slideshow

• [Only Photos]: Only photos are displayed in the slideshow

Select transition effect

1 In the home screen, select [Settings] and then press OK.

2 Select [Slideshow], and then press OK.

3 Select [Transition Effect], and then press OK. 4 Select a transition effect, and then press OK.

Select background color

You can select a background border color for photos that are smaller than the PhotoFrame display.

1 In the home screen, select [Settings] and then press OK.

2 Select [Slideshow], and then press OK. 3 Select [Background Color], and then press OK. 4 Select [RadiantColor] / a background color / [Auto-fit], and then press OK.

If you select [RadiantColor], the PhotoFrame extends the color on the edges of a photo that is smaller than the full screen to fill the screen without black bars or aspect ratio distortion.

If you select a background color, the PhotoFrame displays a photo with a background color.

If you select [Auto-fit], the PhotoFrame extends a photo to fill the screen with picture distortion.

Power meter

1 In the home screen, select [Settings] and then press OK.

2 Select [Power Meter], and then press OK. 3 To show the power meter, select [On] and then press OK.

To hide the power meter, select [Off].

[Off] and then press OK.

View information of the PhotoFrame

You can find the model name, the firmware version of the PhotoFrame, and the memory status of the PhotoFrame and other storage device available on the PhotoFrame.

1 In the home screen, select [Settings] and then press OK.

2 Select [Info].

The information of the PhotoFrame is displayed on the screen.

Reset all settings to factory default

1 In the home screen, select [Settings] and then press OK.

2 Select [Default Settings], and then press OK. A confirmation message is displayed.

3 Select [Yes], and then press OK. All settings on the PhotoFrame are set to factory default.

• To cancel the operation, select [No] in the prompt message and then press OK.

9 Upgrade the PhotoFrame

Caution

Do not power off the PhotoFrame during software upgrade.

If there is a software update, you can download the latest software from www.philips.com/support to upgrade your PhotoFrame. The earlier software is unavailable online.

1 Visit www.philips.com/support. 2 Search for your PhotoFrame and go to the software section. 3 Download the latest software onto the root directory of an SD card. 4 Insert the SD card into the PhotoFrame. 5 Turn on the PhotoFrame A confirmation message is displayed. 6 Select [Yes], and then press OK to confirm. When the upgrade is complete, the PhotoFrame reboots.

10 Product information

Note

- Product information is subject to change without prior notice.

Picture/Display

• Viewing angle: @ C/R > 10, 140° (H)/120° (V) • Lifetime, to 50% brightness: 20000 hr - Aspect ratio: 4:3 • Panel resolution: 800 × 600 • Brightness (typical): 200 cd/m² • Contrast ratio (typical): 400:1 • Photo format support: - JPEG photo (maximum: 8000 × 8000 pixel resolution) Progressive JPEG photo • (Up to 1024 × 768 pixels)

Video features (SPF4508/SPF4528)

Video feature (SPF4508/SPF4528)

• Video format supported: M-JPEG (*.avi/*.mov), MPEG-1 (*.mpg/*.dat/*.avi/*.mov)), MPEG-4 (*.avi/*.mov/*.mp4)
• Video size:

• Frame rate: ≤ 30 fps

Audio feature (SPF4508/SPF4528)

• Audio supported format:

• MP3 (MPEG Audio Layer III)

- WAV

• Speaker output power: 0.8 W ± 10% (8 ohm) • Frequency response (-3dB): 150 \~ 10kHz • S/N > 70 dB (background)

Storage media

Internal memory capacity: 512 MB, for up • to 500 High Definition photos

Memory Card Types: •

Secure Digital (SD)•

Secure Digital High Capacity (SDHC)

Multimedia Card (MMC)

Memory Stick (MS)

Memory Stick Pro (MS Pro)

Connectivity

USB: USB 2.0 Slave

Dimensions and weight

Set dimensions without stand (W × H × D): 225 × 184 × 33 mm

Set dimensions with stand (W × H × D): 225 × 184 × 113 mm

Weight with stand: 0.582 kg

Temperature range

Operation: 0 °C - 40 °C; Storage: -20 °C - 70 °C

Power

• Operation: 0 °C - 40 °C • Storage: -20 °C - 70 °C

Power

• Power mode supported: AC powered • Efficiency level: V • Average consumption (system on):

• SPF4308/SPF4328 (for photo display): 4.54 W

• SPF4508/SPF4528 (for video play): 5.6 W

• Power adaptor:

• Manufacturer: Philips Consumer Lifestyle International B.V. • Model number: SSW-1918xx-y (xx=EU, UK, AU, BR; y=1,3) • Input: AC 100-240V ~ 50-60Hz 0.3A • Output: DC 9V =1.1A

Adaptor	Region
SSW-1918EU	Europe, Russia, and Singapore
SSW-1918UK	U.K. and Hong Kong
SSW-1918AU	Australia and New Zealand
SSW-1918CN	China

Accessories

AC-DC adaptor

CD-ROM with digital user manual

Quick start guide

Convenience

Card Reader: Built-in

Photo format supported:

JPEG photo (maximum: 8000 × 8000 pixel resolution)

Progressive JPEG photo

Progressive JPEG photo

(Up to 1024 × 768 pixels)

Placement supported: Photo auto • orientation

Buttons and controls: Joystick, home/back button, menu button, power/mode button

Playback mode: Slideshow, wave view, album view

• Album management: Create, copy, move, delete, rename, group, add to the favorites album, multi-selection • Photo management: Copy, move, delete, rotate, add to the favorites album, color tone, group, multi-selection • Clock: Clock, calendar, set time and date, Background music

• Message: Create message, view message - Slideshow setting: Transition effect, background color, view mode, interval, shuffle, color tone • Color tone: Black and white, Sepia, other colors • Screen background: Black, white, grey, auto fit, RadiantColor - Settings: Language, brightness, time and date, SmartPower, hibernate, auto orientation, beep (button sound), memory card protection, demo, slideshow settings, information of the PhotoFrame, reset the PhotoFrame to the factory default - System status: Model name, software version, memory size - Plug & Play Compatibility: Windows Vista/XP/7, Mac OS X 10.4/10.5/10.6 Regulatory Approvals: BSMI, C-Tick, CCC, CE, GOST, PSB

Other convenience: Kensington lock compatible

On-Screen Display languages: English,

French, German, Spanish, Italian, Danish, Dutch, Portuguese, Russian, Simplified

Chinese, Traditional Chinese

11 Frequently asked questions

Is the LCD screen touch-enabled?

The LCD screen is not touch-enabled. Use the buttons on the back to control the PhotoFrame.

Can I use the PhotoFrame to delete photos on a memory card?

Yes, it supports operations to delete photos on an external device, such as a memory card. Ensure that you enable the deletion function on a memory card available on the PhotoFrame.

Why does my PhotoFrame not show some of my photos?

The PhotoFrame plays only JPEG photos (maximum: 8000 × 8000 pixel resolution) and Progressive JPEG photos (up to 1024 × 768 pixels). Ensure that these photos are not damaged.

Why does my PhotoFrame not show some of my video files?

The PhotoFrame plays most video clips of a digital still camera in M-JPEG (*.avi/*.mov), MPEG-1 (*.mpg/*.dat/*.avi/*.mov), and MPEG-4 (*.avi/*.mov/*.mp4) format. Some video clips might have compatibility issues when played on your PhotoFrame. Before playing, ensure that these video clips are compatible with your PhotoFrame. Ensure that the size of the video files are applicable to your PhotoFrame (For details, see “Product information” in the User Manual). Ensure that the video files are not damaged.

Why does my PhotoFrame not show video files even I could see them in browse mode, and I played them before?

- Ensure that the [Photos and Videos] option is selected and the [Only Photos] option is not selected. For details, see "Settings - Slideshow settings - Select file type for slideshow".

Why does my PhotoFrame not play some of my music files?

The PhotoFrame only supports MP3 or WAV music files. Ensure that these MP3 or WAV music files are not damaged.

Why does the PhotoFrame not go into auto-off status after I set it?

Ensure that you set the real time, auto-off time, and auto-on time correctly. The PhotoFrame automatically turns off its display exactly at the auto-off time. If the time has already passed for the day, it starts to go into auto-off status at the specified time from the next day.

Can I increase the memory size to store more pictures on the PhotoFrame?

No. The internal memory of the PhotoFrame is fixed and cannot be expanded. However, you could switch between different photos by using different storage devices on the PhotoFrame.

12 Glossary

A

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-definition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.

J

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their file extension '.jpg' or '.jpeg.'

K

Kbps

Kilobits per second. A digital-data-rate measurement system which is often used with highly compressed formats such as AAC, DAB, MP3 etc. The higher the amount, the better the quality generally is.

Kensington lock

A Kensington Security Slot (also called a K-Slot or Kensington lock). Part of an anti-theft system. It is a small, metal-reinforced hole found on almost all small or portable computer and electronics equipment, particularly on expensive and/or relatively light ones, such as laptops, computer monitors, desktop computers, gaming consoles, and video projectors. It is used for attaching a lock-and-cable apparatus, in particular those from Kensington.

M

Memory Stick

Memory Stick. A flash memory card for digital storage on cameras, camcorders and other handheld devices.

MMC Card

MultiMedia Card. A flash memory card that provides storage for cellphones, PDAs and other handheld devices. The card uses flash memory for read/write applications or ROM chips (ROM-MMC) for static information, the latter widely used for adding applications to a Palm PDA.

Motion JPEG

Motion JPEG (M-JPEG) is an informal name for multimedia formats where each video frame or interlaced field of a digital video sequence is separately compressed as a JPEG image. It is often used in mobile appliances such as digital cameras.

MP3

A file format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

S

SD Card

Secure Digital Memory Card. A flash memory card that provides storage for digital cameras, cellphones and PDAs. SD Cards use the same 32 × 24mm form factor as the MultiMediaCard (MMC), but are slightly thicker (2.1mm vs. 1.4mm), and SD Card readers accept both formats. Cards up to 4GB are available.

T

Thumbnail

A thumbnail is a reduced-size version of a picture that is used to make it easier to recognize and organize them. Thumbnails serve the same role for images as a normal text index does for words.
