USER MANUAL BUH550Z MAKITA

GB Cordless Hedge Trimmer Instruction manual

Line drawing of a hedgehog with extended blade and handle (no text or symbols)

Technical diagram of a mechanical device with numbered parts and directional arrows indicating motion or assembly.

1 013679 2 011148

Technical diagram of a hatched industrial machine with numbered components and assembly steps shown below.

9

7 8

3 011163 4 011233

9

Technical diagram showing exploded view of a device with numbered components and directional arrows indicating assembly or connection.

10 F E 11 PUSH CHECK

5 011715 6 011149

13 15

16 17 18 19

7 011229 8 011150

Line drawing of hands using a tool to cut soil or plants in a field (no text or symbols)

Illustration of a hand using a power shaver to cut a pile of material (no text or symbols present)

9 007559 10 011151

20 21 22

23

11 011262 12 011153

Line drawing of a person using a power tool to cut leafy vegetables (no text or symbols)

13 011154 14 011263

Illustration of a mechanical device with arrows indicating motion, set against a textured background (no text or symbols)

24 25 26 27

Illustration of a hand using a power tool to cut a textured surface with an arrow indicating the process (no text or symbols present)

15 011156 16 009290

29 30 31

29 30 31

26 28

17 009291 18 009292

34 35

32 33

19 009293 20 011157

36 34

21 011158 22 011159

37

35 27

38

23 011256 24 011257

39

39

38

25 011258 26 011259

Diagram of a mechanical component with a shaft and threaded end, showing internal structure (no text or symbols)

38 39

27 009302 28 011260

38

Pure mechanical diagram showing a spring-loaded component with a 40-unit dimension label (no text or symbols beyond the label)

29 011261 30 001145

41 42

43 42

31 011161 32 011162

Diagram of a hairpin with two curved arrows indicating motion or movement, mounted on a vertical wall (no text or symbols)

33 011160

ENGLISH (Original instructions)

Explanation of general view

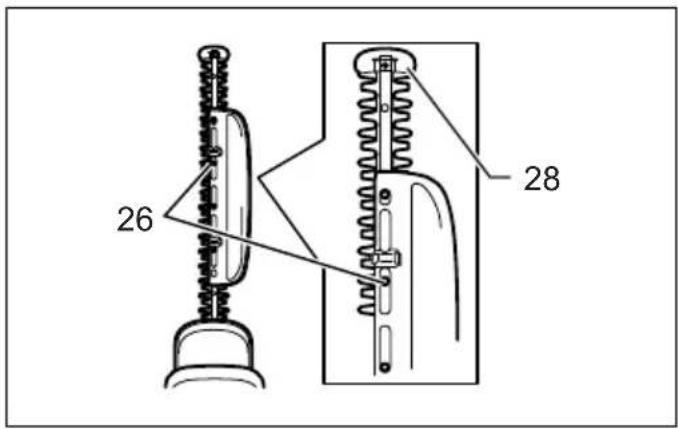

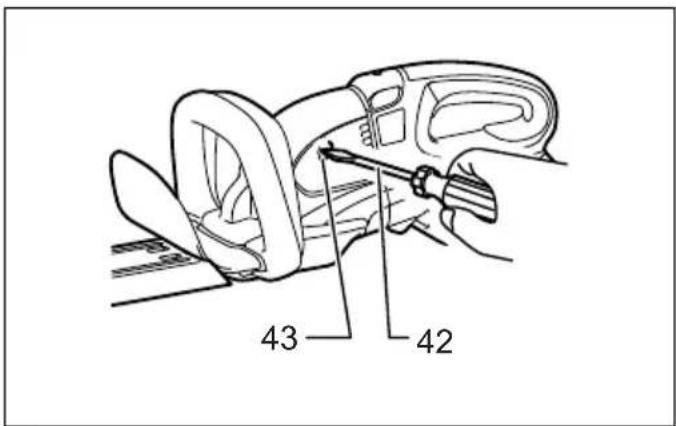

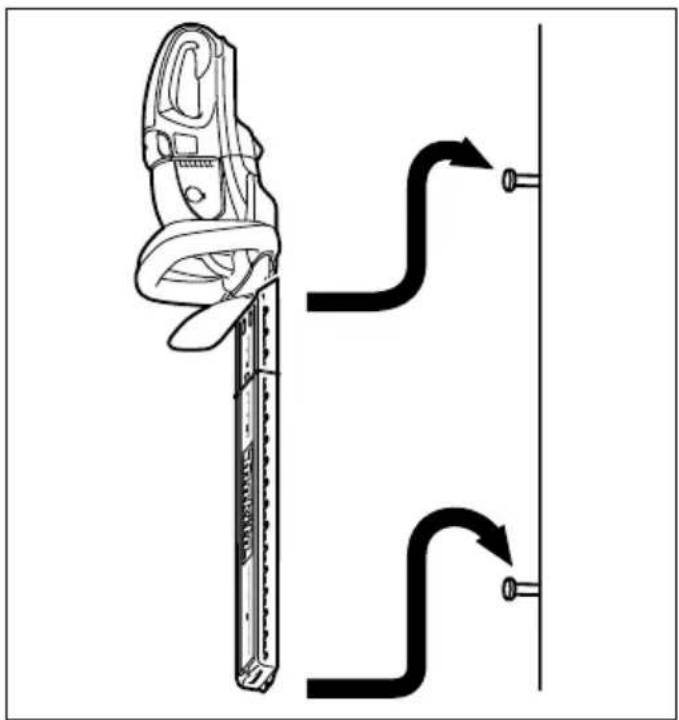

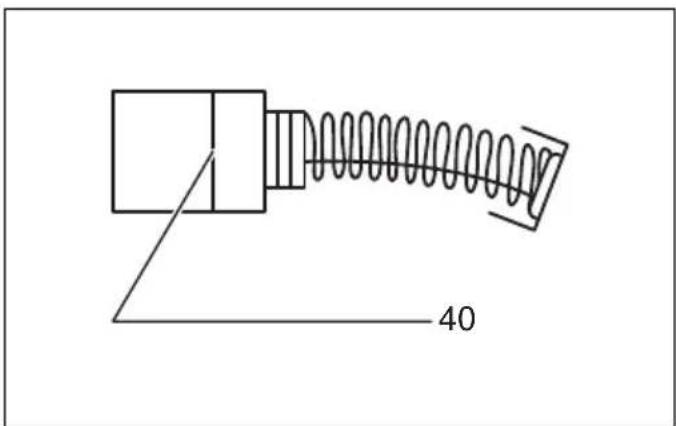

1. Red indicator	16. Arm cord hook band	31. Grooves
2. Button	17. Holder	32. Press the levers on both sides
3. Battery cartridge	18. Extension cord (Battery adapter)	33. Unlock the hooks
4. Housing	19. Adapter (Battery adapter)	34. Blade cover
5. Knob	20. Trimming direction	35. Screws

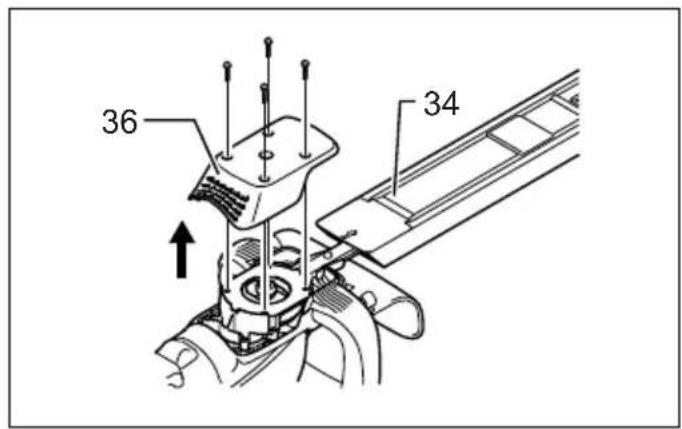

6. Handle	21. Hedge surface to be trimmed	36. Under cover
7. Switch trigger B	22. Tilt the blades.	37. Plate

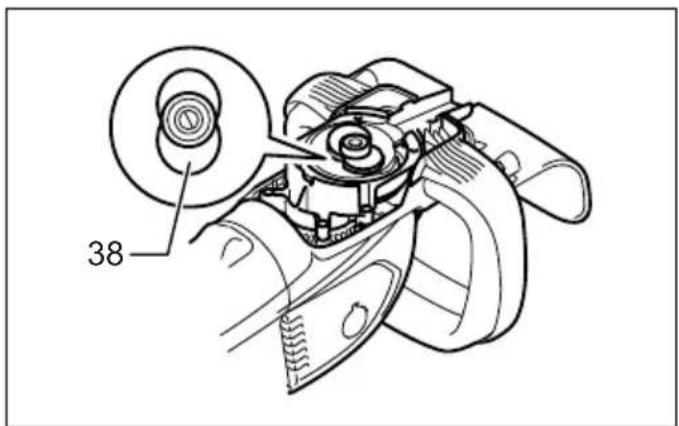

8. Switch trigger A	23. String	38. Crank
9. Adjusting dial	24. Press	39. Oval hole of shear blade
10. Indicator lamps	25. Chip receiver	40. Limit mark
11. CHECK button	26. Nut	41. Holder cap cover
12. Adapter	27. Shear blade	42. Screwdriver
13. Hook	28. Branch catcher	43. Brush holder cap
14. Tool	29. Hooks
15. Belt	30. Fit the hooks into groove

SPECIFICATIONS

Model BUH550 UH550D	BUH650 UH650D
Blade length 550 mm 650	mm
Strokes per minute (min ^-1 ) 1,000 -	1,800 1,000 - 1,800
Overall length	1,070 mm	1,074 mm	1,150 mm	1,154 mm
Net weight	5.1 kg		5.2 kg
Rated voltage	D.C.36V		D.C.36V

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
  • Weight, with battery cartridge, according to EPTA-Procedure 01/2003

Symbol

END013-3

The following show the symbols used for the equipment. Be sure that you understand their meaning before use.

Read instruction manual.

Do not expose to rain.

Only for EU countries

Do not dispose of electric equipment or battery pack together with household waste material! In observance of European Directive 2012/19/EU on waste electric and electronic equipment, 2006/66/EC on batteries and accumulators and waste batteries and accumulators and their implementation in accordance with national laws, electric equipment and battery pack that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Intended use

ENE014-1

The tool is intended for trimming hedges.

General Power Tool Safety Warnings GEA010-1

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

CORDLESS HEDGE TRIMMER SAFETY WARNINGS GB

GEB062-5

1. Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
2. Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
3. Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may

make exposed metal parts of the power tool "live" and could give the operator an electric shock.

1. Do not use the hedge trimmer in the rain or in wet or very damp conditions. The electric motor is not waterproof.
2. First-time users should have an experienced hedge trimmer user show them how to use the trimmer.
3. The hedge trimmer must not be used by children or young persons under 18 years of age. Young persons over 16 years of age may be exempted from this restriction if they are undergoing training under the supervision of an expert.
4. Use the hedge trimmer only if you are in good physical condition. If you are tired, your attention will be reduced. Be especially careful at the end of a working day. Perform all work calmly and carefully. The user is responsible for all damages to third parties.
5. Never use the trimmer when under the influence of alcohol, drugs or medication.
6. Work gloves of stout leather are part of the basic equipment of the hedge trimmer and must always be worn when working with it. Also wear sturdy shoes with anti-skid soles.
7. Before starting work check to make sure that the trimmer is in good and safe working order. Ensure guards are fitted properly. The hedge trimmer must not be used unless fully assembled.
8. Make sure you have a secure footing before starting operation.
9. Hold the tool firmly when using the tool.
10. Do not operate the tool at no-load unnecessarily.
11. Immediately switch off the motor and remove the battery cartridge if the cutter should come into contact with a fence or other hard object. Check the cutter for damage, and if damaged repair immediately.
12. Before checking the cutter, taking care of faults, or removing material caught in the cutter, always switch off the trimmer and remove the battery cartridge.
13. Switch off the trimmer and remove the battery cartridge before doing any maintenance work.
14. When moving the hedge trimmer to another location, including during work, always remove the battery cartridge and put the blade cover on the cutter blades. Never carry or transport the trimmer with the cutter running. Never grasp the cutter with your hands.
15. Clean the hedge trimmer and especially the cutter after use, and before putting the trimmer into storage for extended periods. Lightly oil the cutter and put on the cover. The cover supplied with the unit can be hung on the wall, providing a safe and practical way to store the hedge trimmer.
16. Store the hedge trimmer with the cover on, in a dry room. Keep it out of reach of children. Never store the trimmer outdoors.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS

ENC007-7

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ C ( 122^ F).
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.
4. Do not use a damaged battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ C - 40^ C ( 50^ F - 104^ F). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

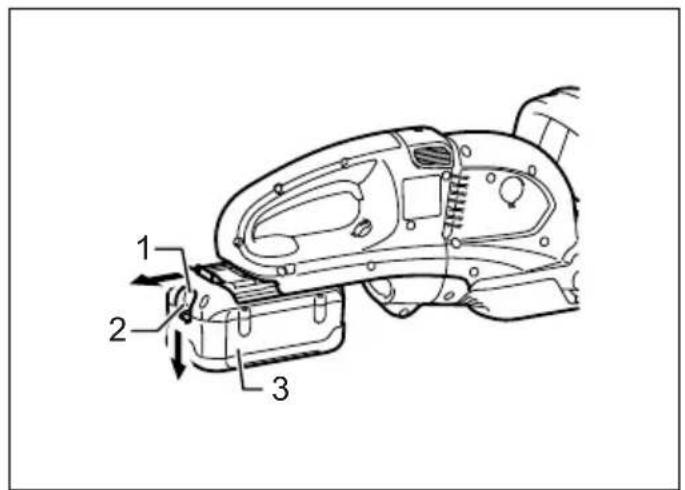

Installing or removing battery cartridge (Fig. 1)

CAUTION:

• Always switch off the tool before installing or removing of the battery cartridge.
• Hold the tool and the battery cartridge firmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridge firmly may cause them to slip off your hands and result in damage to the tool and battery cartridge and a personal injury.

To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely.

CAUTION:

• Always install the battery cartridge fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly.

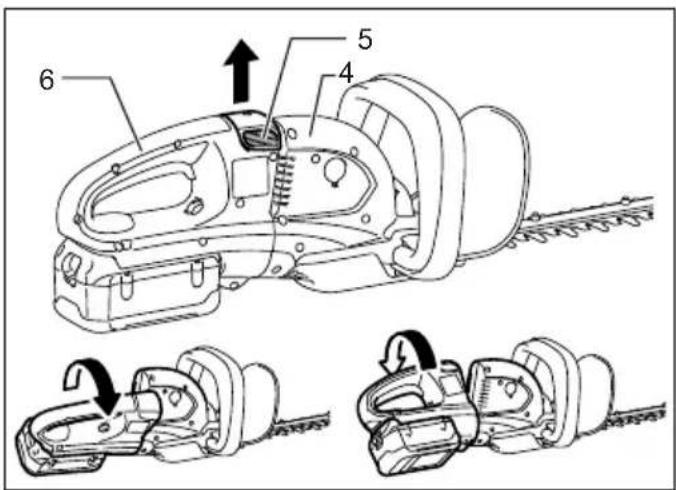

Handle mounting positions (Fig. 2)

The handle can be rotated to either 90^ left or right and mounted either 45^ or 90^ position to fit your work needs.

First, pull the knob and rotate the handle clockwise or counterclockwise in the direction of arrow as shown in the figure. The handle will be locked in 45^ position. The pull the knob and rotate more. The handle will be locked in 90^ position.

CAUTION:

• Always make sure that the handle is locked in the desired position before operation.

Switch action

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. (Fig. 3)

For your safety, this tool is equipped with a dual switching system. To turn on the tool, press triggers A and B.

Release either one of the two pressed triggers to turn off. The sequence of switching is unimportant as the tool only starts when both switches are activated.

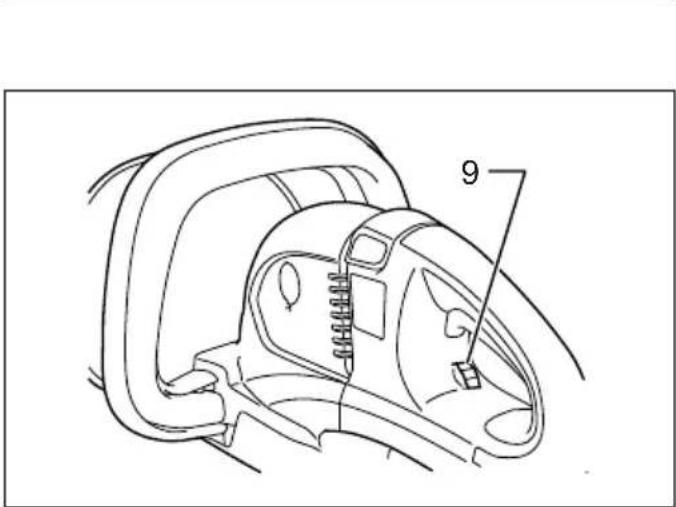

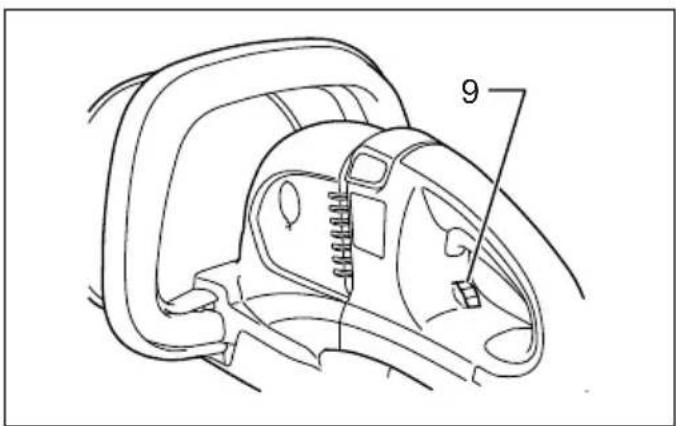

Speed change (Fig. 4)

The strokes per minute can be adjusted just by turning the adjusting dial. This can be done even while the tool is running. The dial is marked 1 (lowest speed) to 6 (full speed).

Refer to the table below for the relationship between the number settings on the adjusting dial and the strokes per minute.

Number on adjusting dial Strokes per minute (min ^-1 )
6 1,800
5 1,750
4 1,650
3 1,500
2 1,300
1 1,000

011264

CAUTION:

• The speed adjusting dial can be turned only as far as 6 and back to 1. Do not force it past 6 or 1, or the speed adjusting function may no longer work.
• The strokes per minute vary by the conditions of battery cartridge and shear blades.

Battery protection system

Lithium-ion batteries are equipped with a protection system. This system automatically cuts off power to the tool to extend battery life.

The tool will automatically stop during operation if the tool and/or battery are placed under one of the following conditions:

- Overloaded:

The tool is operated in a manner that causes it to draw an abnormally high current.

In this situation, release the switch trigger on the tool and stop the application that caused the tool to become overloaded. Then pull the switch trigger again to restart.

If the tool does not start, the battery is overheated. In this situation, let the battery cool before pulling the switch trigger again.

- Low battery voltage:

The remaining battery capacity is too low and the tool will not operate. In this situation, remove and recharge the battery.

Battery remaining capacity indicator (only for models with Battery BL3622A)

Battery BL3622A is equipped with the battery remaining capacity indicator. (Fig. 5)

Press the CHECK button to indicate the battery remaining capacity. The indicator lamps will then light for approx. three seconds.

Indicator lamps	Remaining capacity
Lighted Off Blinking
E F	70% to 100%
	45% to 70%
	20% to 45%
	0% to 20%
	Charge the battery.
	The battery may have malfunctioned.

011713
- When only the lowermost indicator lamp (next to the "E") blinks, or when none of the indicator lamps light, the battery capacity has run out, so the tool does not operate. In these cases, charge the battery or replace the empty battery with a fully charged one.
- When two or more indicator lamps do not light even after charging is complete, the battery has reached the end of its service life.
- When the upper two and lower two indicator lamps light alternately, the battery may have malfunctioned. Contact your local Makita authorized service center.

NOTE:

• The indicated capacity may be lower than the actual level during use or immediately after using the tool.
• Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

Battery adapter (Accessory) (Fig. 6 & 7)

CAUTION:

• Before using battery adapter, read all instructions on tools using battery.
• When charging a battery cartridge, first remove it from the battery adapter and then charge it. It is not allowed to charge the battery cartridge while using battery adapter.

Installing or removing battery adapter

• Always switch off the tool before insertion or removal of the battery adapter.
• To remove the battery adapter, withdraw it from the tool while sliding the button on the adapter.
• To insert the battery adapter, align the tongue on the battery adapter with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red part on the upper side of the button, it is not locked completely. Insert it fully until the red part cannot be seen. If not, it

may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not use force when inserting the battery adapter. If the adapter does not slide in easily, it is not being inserted correctly.
• The way of removing or installing a battery cartridge from or on the battery adapter is the same as that of removing or installing it from or on the tools.
• Press down the hook securely as far as it will go when the battery adapter is hooked on the waist belt and similar objects.

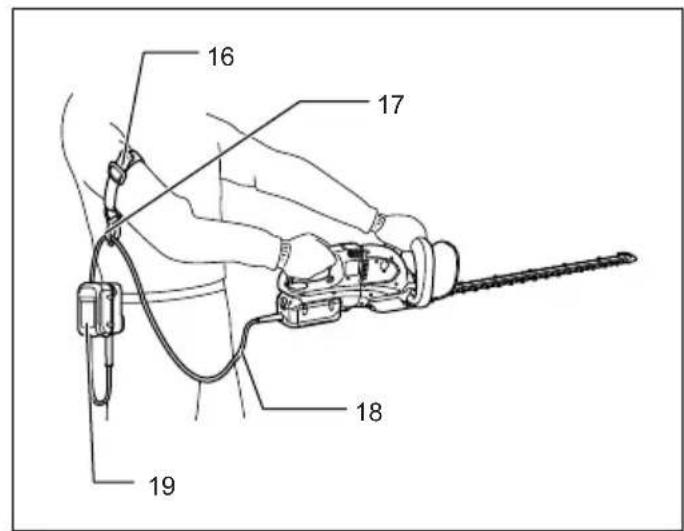

Arm cord hook (Accessory)

CAUTION:

- Do not attach the holder of arm cord hook to other than the extension cord. Failure to do so may cause an accident or personal injury.

Using the arm cord hook helps to minimize a risk of cutting off the extension cord unexpectedly caused by the loose extension cord. (Fig. 8)

Attach firmly the arm cord hook band placing around your arm and pass the extension cord through the holder.

The length of the arm cord hook band is adjustable.

NOTE:

• Do not pass the extension cord through the band.
• Do not force the opening of the holder. Failure to do so may cause deflection and damage to it.

OPERATION

CAUTION:

• Be careful not to accidentally contact a metal fence or other hard objects while trimming. The blade will break and may cause serious injury.
  • Overreaching with a hedge trimmer, particularly from a ladder, is extremely dangerous. Do not work from anything wobbly or infirm. (Fig. 9)

Do not attempt to cut branches thicker than 10 mm diameter with this trimmer. These should first be cut with shears down to the hedge trimming level.

CAUTION:

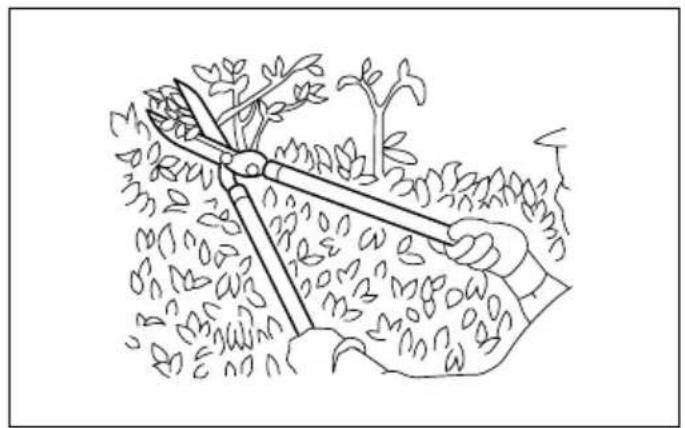

- Do not cut off dead trees or similar hard objects.

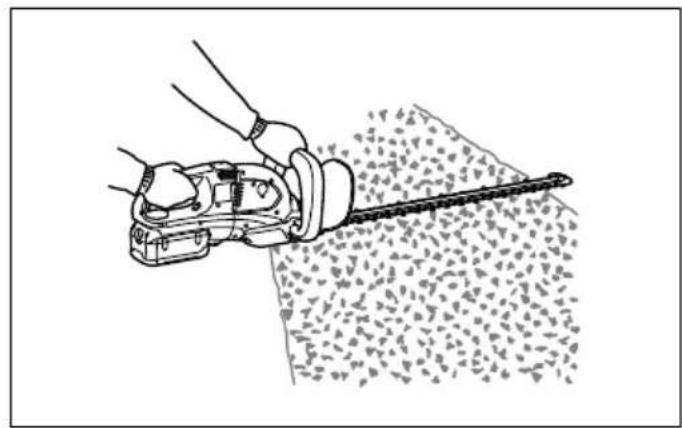

Failure to do so may damage the tool. (Fig. 10) Hold the trimmer with both hands and pull the switch trigger A or B and then move it in front of your body. (Fig. 11)

As a basic operation, tilt the blades towards the trimming direction and move it calmly and slowly at the speed rate of 3 - 4 seconds per meter. (Fig. 12)

To cut a hedge top evenly, it helps to tie a string at the desired hedge height and to trim along it, using it as a reference line. (Fig. 13)

Attaching the chip receiver (accessory) on the tool when trimming the hedge straight can avoid cut off leaves' being thrown away. (Fig. 14)

Rotate the handle for your easy handling before operation. Refer to the section titled "Handle mounting position".

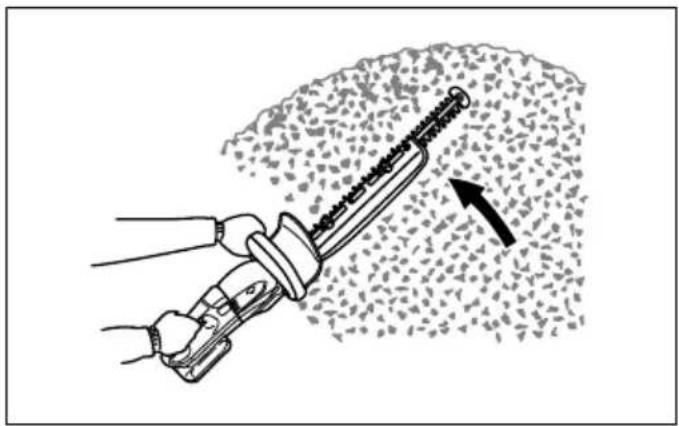

To cut a hedge side evenly, it helps to cut from the bottom upwards. (Fig. 15)

Trim boxwood or rhododendron from the base toward the top for a nice appearance and good job.

Installing or removing chip receiver (accessory)

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before installing or removing chip receiver.

NOTE:

• When replacing the chip receiver, always wear gloves so that hands and face does not directly contact the blade. Failure to do so may cause personal injury.
• Always be sure to remove the blade cover before installing the chip receiver.
• The chip receiver receives cut-off leaves and alleviates collecting thrown-away leaves. This can be installed on either side of the tool. (Fig. 16)

Press the chip receiver on the shear blades so that its slits overlap with the nuts on the shear blades. At this time, make sure that the chip receiver does not contact branch catcher at the top of the shear blades. (Fig. 17)

At this time, the chip receiver needs to be installed so that its hooks fit into grooves in the shear blade unit. (Fig. 18) To remove the chip receiver, press its lever on both sides so that the hooks are unlocked. (Fig. 19)

CAUTION:

- The blade cover (standard equipment) cannot be installed on the tool with the chip receiver being installed. Before carrying or storing, uninstall the chip receiver and then install the blade cover to avoid blade exposure.

NOTE:

• Check the chip receiver for secure installment before use.
• Never try to uninstall the chip receiver by an excessive force with its hooks locked in the blade unit grooves. Using the excessive force may damage it.

MAINTENANCE

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

Cleaning the tool

Clean out the tool by wiping off dust with a dry or soap-dipped rag.

CAUTION:

- Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Blade maintenance

Smear the blade before and once per hour during operation using machine oil or similars.

NOTE:

- Before smearing the blade, remove the chip receiver. After operation, remove dust from both sides of the blade with wired brush, wipe off it with a rag and then apply enough low-viscosity oil, such as machine oil etc. and spray-type lubricating oil.

CAUTION:

- Do not wash the blades in water. Failure to do so may cause rust or damage on the tool.

Removing or installing shear blade

CAUTION:

• Before removing or installing shear blade, always be sure that the tool is switched off and the battery cartridge is removed.
• When replacing the shear blade, always wear gloves without removing blade cover so that hands and face does not directly contact the blade. Failure to do so may cause personal injury.

NOTE:

• Do not wipe off grease from the gear and crank. Failure to do so may cause damage to the tool.
• For specific way of removing and installing shear blades refer to the reverse of a package for accessory shear blades.

Removing the shear blades

Reverse the tool and loosen four screws. (Fig. 20)

NOTE:

• Be careful not to get your hands dirty as grease is applied in the shear blade driving area.
  Remove the under cover. (Fig. 21)

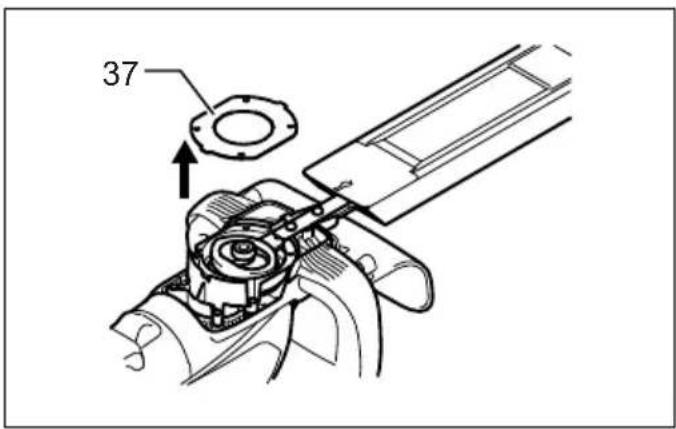

  Remove the plate. (Fig. 22)

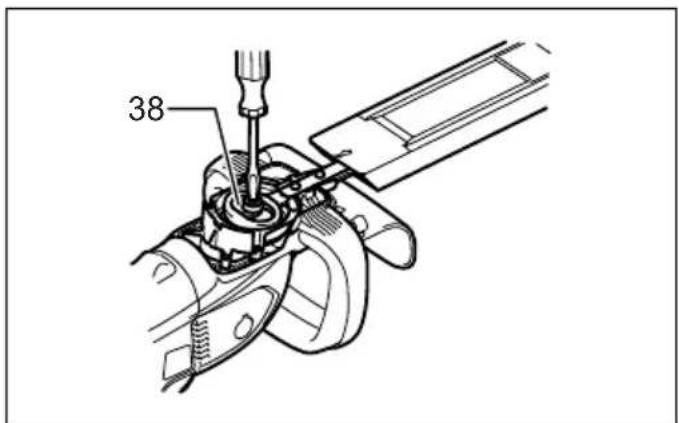

  Set the crank at the angle as shown in the figure with a slotted bit screwdriver. (Fig. 23)

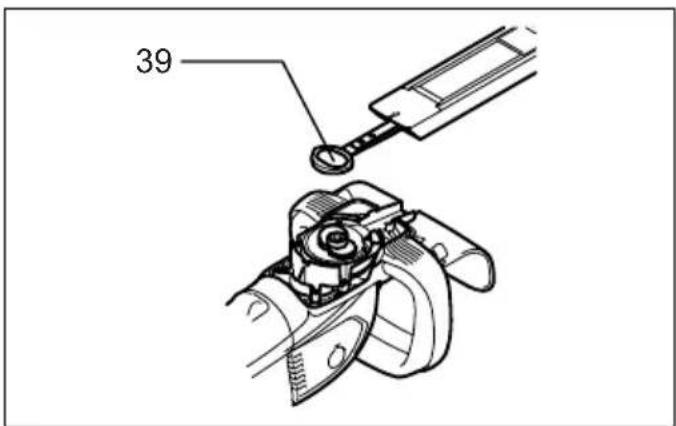

  Remove two screws from the shear blades and the shear blade unit will be taken out. (Fig. 24)

CAUTION:

- Return the gear to the original position in such a manner as it was installed if it should be taken away by mistake.

Installing the shear blade

Prepare 4 removed screws (For under cover), 2 screws (For shear blade), plate, under cover, and new shear blades.

Adjust the crank position as shown in the figure. At this time, apply some grease provided with new shear blades to the periphery of the crank. (Fig. 25)

Overlap the oval hole in the upper blade with that in the lower one. (Fig. 26)

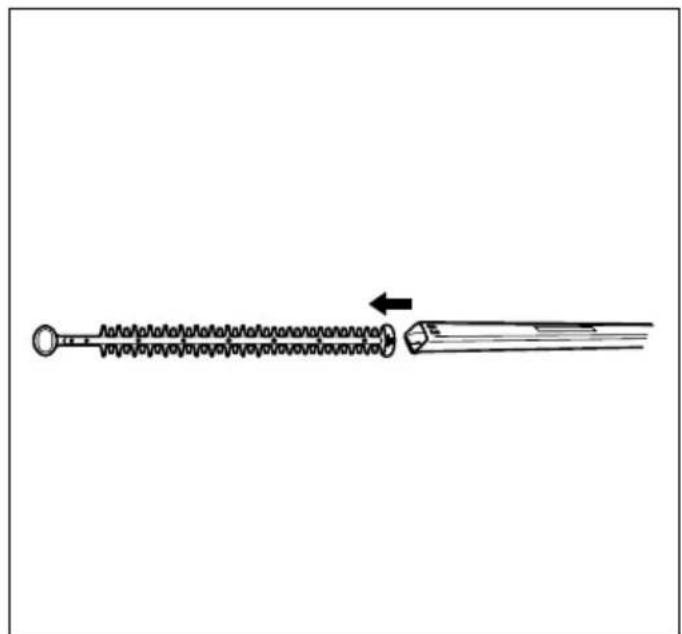

Take out the blade cover from the old shear blades and fit it onto the new ones for easy handling during the replacement of blades. (Fig. 27)

Place the new shear blades on the tool so that the oval holes in the shear blades fit onto the crank. Overlap the holes in the shear blades with the screw holes in the tool and then secure them with two screws. (Fig. 28)

Check the crank for smooth turn with a slotted bit screwdriver. (Fig. 29)

Install the plate, under cover on the tool. Tighten the screw firmly.

NOTE:

- There is no distinction between the top and bottom of the plate.

Remove the blade cover and then turn on the tool to check it for proper movement.

NOTE:

- When the shear blades does not operate properly, there is a poor fit between the blades and crank. Redo from the beginning.

Replacing carbon brushes (Fig. 30)

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. (Fig. 31)

Insert the top end of slotted bit screwdriver into the notch in the tool and remove the holder cap cover by lifting it up. (Fig. 32)

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

Reinstall the holder cap cover on the tool.

Storage

The hook hole in the bottom of the blade cover is convenient for hanging the tool from a nail or screw on the wall. (Fig. 33)

Remove the battery cartridge and put the blade cover on the shear blades so that the blades are not exposed.

Store the tool out of the reach of children carefully.

Store the tool in the place not exposed to water and rain.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.
- Blade cover
- Shear blade assembly
- Makita genuine battery and charger
- Battery adapter
- Arm cord hook (to be used together with the battery adapter)
- Chip receiver

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Noise

ENG905-1

The typical A-weighted noise level determined according to EN60745:

Model BUH550, UH550D

Sound pressure level ( L_pA ): 85.1 dB (A)

Sound power level ( L_WA ): 93.1 dB (A)

Uncertainty (K): 2.5 dB (A)

Model BUH650, UH650D

Sound pressure level ( L_pA ): 84.3 dB (A)

Sound power level ( L_WA ): 92.3 dB (A)

Uncertainty (K): 2.5 dB (A)

Wear ear protection.

Vibration

ENG900-1

The vibration total value (tri-axial vector sum) determined according to EN60745:

Model BUH550, UH550D

Work mode: hedge trimming

Vibration emission ( a_h ): 2.5 m/s ^2

Uncertainty (K): 1.5 m/s ^4

Model BUH650, UH650D

Work mode: hedge trimming

Vibration emission ( a_h ): 3.0 m/s ^2

Uncertainty (K): 1.5 m/s ^4

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

For European countries only

ENH032-3

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine:

Cordless Hedge Trimmer

Model No./ Type: BUH550, UH550D, BUH650, UH650D

Specifications: see "SPECIFICATIONS" table. are of series production and

Conforms to the following European Directives: 2000/14/EC, 2006/42/EC

And are manufactured in accordance with the following standards or standardised documents: EN60745

The technical documentation is kept by:

Makita International Europe Ltd.

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

The conformity assessment procedure required by Directive 2000/14/EC was in Accordance with annex V.

Model BUH550, UH550D

Measured Sound Power Level: 93.1dB (A)

Guaranteed Sound Power Level: 94 dB (A)

Model BUH650, UH650D

Measured Sound Power Level: 92.4 dB (A)

Guaranteed Sound Power Level: 94 dB (A)

30.11.2009

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Angleterre

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Technical Department, Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Modello BUH550, UH550D

Modello BUH550, UH550D

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Inghilterra

Modello BUH550, UH550D

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

WAARSCHUWING Lees alle

Model BUH550, UH550D

Geluidsdrukniveau (LpA): 85,1 dB (A)

Geluidsvermogenniveau (LWA): 93,1 dB (A)

Onzekerheid (K): 2,5 dB (A)

Model BUH650, UH650D

Geluidsdrukniveau (LpA): 84,3 dB (A)

Geluidsvermogenniveau (LWA): 92,3 dB (A)

Onzekerheid (K): 2,5 dB (A)

Model BUH550, UH550D

Model BUH650, UH650D

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Engeland

Richtlijn 2000/14/EC was is Overeenstemming met annex V.

Model BUH550, UH550D

Gemeten geluidsvermogenniveau: 93,1 dB (A)

Model BUH650, UH650D

Gemeten geluidsvermogenniveau: 92,4 dB (A)

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Inglaterra

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

2000/14/EC, 2006/42/EC

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Inglaterra

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Model BUH550, UH550D

Lydtryksniveau ( L_pA ): 85,1 dB (A)

Lydeffektniveau (LWA): 93,1 dB (A)

Usikkerhed (K): 2,5 dB (A)

Model BUH650, UH650D

Lydtryksniveau ( L_pA ): 84,3 dB (A)

Lydeffektniveau (LWA): 92,3 dB (A)

Usikkerhed (K): 2,5 dB (A)

Bær høreværn.

Vibration

ENG900-1

Model BUH550, UH550D

Model BUH650, UH650D

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

Model BUH550, UH550D

Målt lydeffektniveau: 93,1dB (A)

Garanteret lydeffektniveau: 94 dB (A)

Model BUH650, UH650D

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

2000/14/EK, 2006/42/EK

Technical Department,

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

TÜRKÇE (Orijinal talimatlar)

Genel görünüm

2000/14/EC, 2006/42/EC

Technical Department,

Michigan Drive, Tongwell,

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Makita Corporation

Anjo, Aichi, Japan

884974E998 www.makita.com
