USER MANUAL HDB 9 SCHOLTES

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

Illustration of a hand holding a globe with an arrow indicating rotation (no text or symbols)

Sicurezza generale

Instruction on mounting and use

Cooker hood

EN

Italiano

English

Français

Nederlands

Deutsch

HDN 9

HDB 9

Contents

Installation, 10

Installation, 10

Description of the appliance, 12

Control panel, 12

Operation, 13

Maintenance, 14

Cleaning, 14

Cleaning the grease filters, 14

Cleaning the carbon filter, 14

Mounting and changing the filter, 14

Replacing lamps, 14

Caution, 15

General safety, 15

Disposal, 15

Scholtès

EN

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Your hood is ready to be used in the suction version. To use the filtering version, you must order the suitable kit where you will find all the necessary details. The information for transforming the hood from the suction version to the filtering version is already contained in the manual supplied with the product.

Installation

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a bi-polar switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning: Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Connection to a discharge tube

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise. Any responsibility in the matter is therefore declined.

! The company declines any responsibility whenever these regulations are not respected.

Preliminary information for installation of the hood:

Disconnect the hood during electrical connection, by turning the home mains switch off.

Remove the fat/s filter/s and the carbon filter frame.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

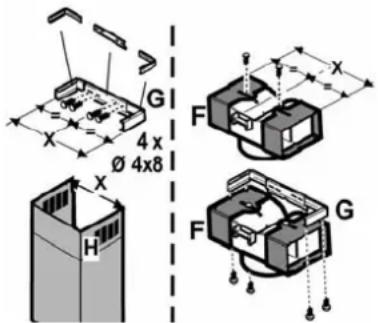

Assembling the chimney flue support/bracket (3 parts): The three parts should be fixed with 4 screws, the support extension is adjustable and should correspond to the internal width of the telescopic chimney flue.

Assembling the deflector (only when a deflector composed of 3 parts is supplied – the deflector should be only for the filter version):

The three parts should be fixed with 2 screws, the deflector extension is adjustable and should correspond to the width of the chimney flue support, to which it is then fixed.

G 4 x Ø 4x8 X H F F G

The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

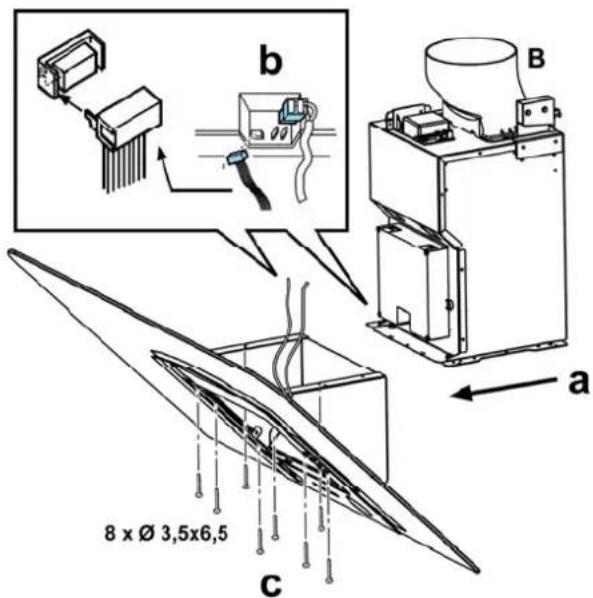

a. Rest the suction unit on a flat surface and thread the lower part of the hood onto it.
b. Make all the electrical connections between the two parts.
c. Fix the hood definitively to the suction unit with the number and type of screws indicated in the figure.

8 x Ø 3,5x6,5 b B a c

1. Using a pencil, draw a line on the wall, extending up to the ceiling, to mark the centre. This will facilitate installation.
2. Rest the drilling template against the wall: the vertical centre line printed on the drilling template must correspond to the centre line drawn on the wall, and the bottom edge of the drilling template must correspond to the bottom edge of the hood.
3. Rest the support bracket on the drilling template so that it coincides with the dotted rectangle, mark the two outer holes and drill them, remove the drilling template, insert 2 wall plugs and fix the hood support bracket into place using two 5x45mm screws.
4. Hang the hood on the bracket.
5. Adjust the distance of the hood from the wall.
6. Adjust the horizontal position of the hood.
7. Using a pencil mark the cooker hood permanent drill hole inside the suction group (two drill holes are necessary for fastening).
8. Remove the hood from the bracket.
9. Drill at the point marked (∅8mm - see operation 7).
10. Insert 2 wall plugs.
11. Rest the chimney support bracket „G“ against the wall, touching the ceiling. Use the support bracket as a drilling template (the small slot formed on the support must coincide with the line drawn on the wall as above – operation 1) and mark 2 holes with a pencil, drill the holes (∅8mm), insert 2 wall plugs.

12. Fix the chimney support bracket to the wall using two 5x45mm screws.

13. Hook the hood onto the bottom bracket.

14. Fix the hood into its final position on the wall (ABSOLUTELY ESSENTIAL).
15. Connect a pipe (pipe and pipe clamps not provided, to be purchased separately) for discharge of fumes to the connection ring located over the suction motor unit.
    If the hood is to be used in ducting version, the other end of the pipe must be connected to a device expelling the fumes to the outside. If the hood is to be used in filter version, then fix the deflector F to the chimney support bracket G and connect the other extremity of the pipe to the connection ring placed on the deflector F.
16. Make the electrical connections.
17. Apply the chimney stacks and fasten them at the top to the chimney support "G" (17b) using 2 screws (17a).
18. Slide the bottom section of the chimney down until it completely covers the suction unit and slots into the housing provided on top of the hood.
19. Fix the lower stack of the chimney with 2 screws.

Ø 2,9x6,5 17a Ø 2,9x6,5 17a G 17b 12 17b 11 11 Ø 2,9x6,5 19 18 4-13 8 4-13 8 19 Ø 2,9x6,5 2 6 5 6 5 10 9 10 7 14 14

Remount the carbon filter frame and the fat/s filter/s and check the perfect functioning of the hood.

Description of the appliance

EN

Control panel

A. on/off light switch
B. on/off aspiration switch and minimum power selection
B+C. medium power selection aspiration switch
B+D. maximum power selection aspiration switch
E. operating gauge

! We advise switching the hood on, at minimum power, before beginning to cook to favour the optimal expulsion of odours. In addition we advise turning it off every time 10/15 minutes after finishing cooking.

! We advise frying under the hood only under constant supervision.

! It is forbidden to cook flambé under the hood because there is the risk of causing a fire.

The best performance of the apparatus is obtained with external expulsion: we advise using the hood in this version if possible.

External exhausting version

In this case the fumes are conveyed outside by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring = 150mm.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10°) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Filtering version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

EN

! It is always necessary to isolate the hood from the power supply during cleaning and maintenance.

Therefore remove the plug.

We recommend carrying our maintenance regularly (about every 10 days) to ensure efficacious and constant performance of the hood.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Cleaning the grease filters

Traps cooking grease particles.

This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

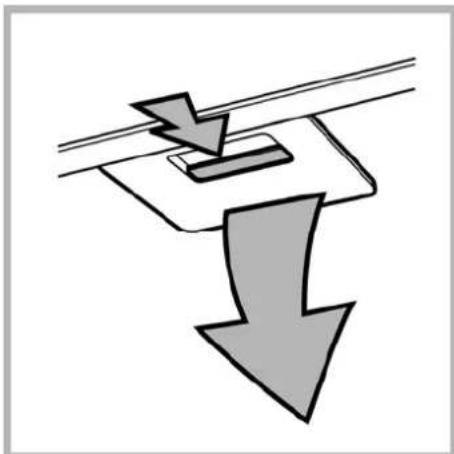

To remove the grease filter, pull the spring release handle.

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

Cleaning the carbon filter

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

Mounting and changing the filter

Carbon filter

Remove the filter holder frame by turning the knobs (g) 90° that affix the chimney to the cooker hood.

Insert the pad (i) of activated carbon into the frame (h) and fit the whole back into its housing (j).

Technical diagram showing mechanical assembly with labeled components and a magnified inset of a gear mechanism.

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

• Use a small screwdriver as a lever on the borders of the lamp in order to remove the lightbulb.
• Slide out the lightbulb to be replaced and replace with a new 12V 20W MAX 30° ∅35 12V GU4.
• Carry out the replacement and mount the new lightbulb by following instructions in the reverse.

Illustration of a hand holding a globe with an arrow indicating rotation (no text or symbols)

General safety

! Do not connect the appliance to the mains until the installation is fully complete.

! Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the home mains switch.

! The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

! Children should be monitored to ensure that they do not play with the appliance.

! Never use the hood without effectively mounted grating.!

! The hood must NEVER be used as a support surface unless specifically indicated.

! The premises must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

! The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels.

! The flaming of foods beneath the hood itself is severely prohibited.

! The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

! Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames.

! As regards the technical and safety measures to be adopted for fume discharging it is important to closely follow the relations provided by the competent authorities.

! The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH, it is in any event necessary to proceed in accordance with the maintenance instructions provided in this manual).

! Failure to follow the instructions as concerns hood and filter cleaning will lead to the risk of fires.

! Do not use or leave the hood without the lamp correctly mounted because of the possible risk of electric shocks.

! We decline any responsibility for any problems, damage or fires caused to the appliance as the result of the non-observance of the instructions included in this manual.

Disposal

- Disposing of the packaging material: keep to the local regulations so that the packaging can be re-used.

! In case of anomalies apply to the authorized technical assistance service and require original spare parts.

! The information and technical data are subject to change and the producer, in line with technical progress, maintains the right to make modifications that he considers necessary without prior notice.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
