USER MANUAL HSD 98 SCHOLTES

Diagram illustrating kitchen appliance positioning and installation, showing front view, close-up of oven, and hand gesture with dimension lines.

3 x Ø 8mm ≥ 65 cm ≥ 45 cm 2

OK! 2 x Ø 5 x 45mm 3 x Ø 8 x 40mm 3

4 2 x Ø 8mm 2 x Ø 8 x 40mm 2 x Ø 5 x 45mm

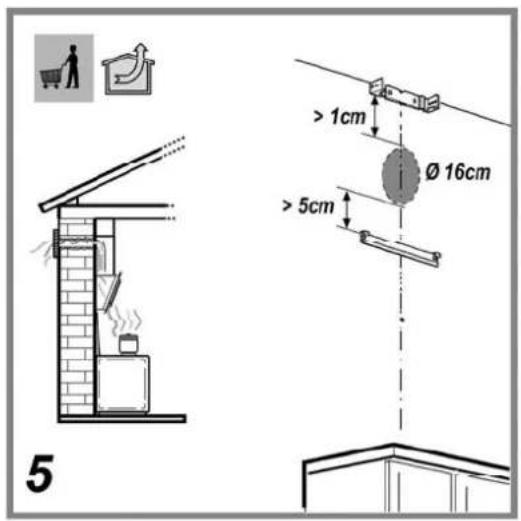

5 > 1cm Ø 16cm > 5cm

9,5cm Ø 16cm 6

X cm > 1cm X - 2cm > 3cm 7

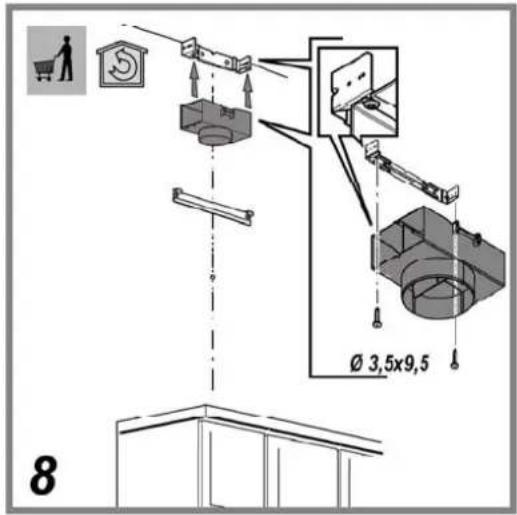

Ø 3,5x9,5 8

Line drawing of a battery mounted on a panel, with no visible text or symbols

Diagram illustrating a device assembly with labeled components and directional arrows, including a magnified inset showing the component being inserted.

2 x M 5 x 18mm 11

12 Ø 5 x 45mm 1 x 1 x

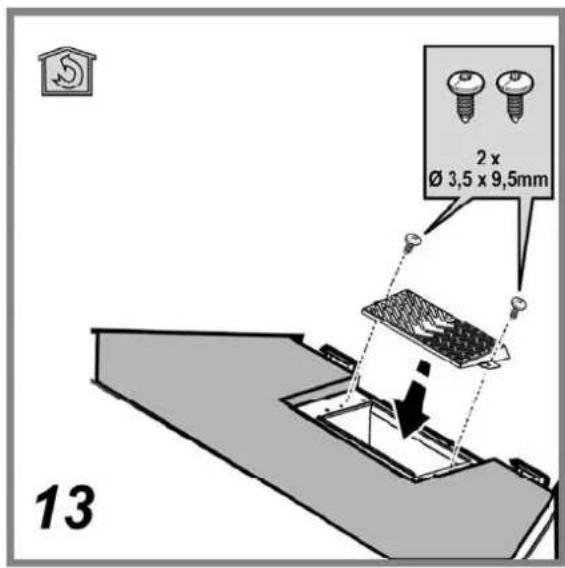

2 x Ø 3,5 x 9,5mm 13

2 x Ø 3,5 x 9,5mm 14

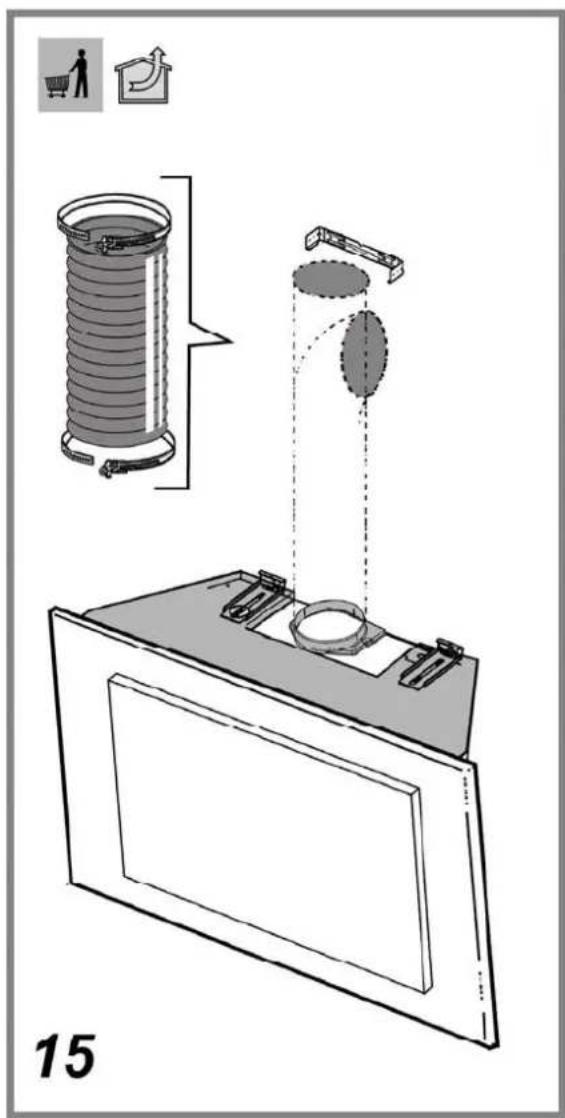

15

Technical illustration of a mechanical device with a spool and housing, labeled '16' (no text or symbols on the diagram itself)

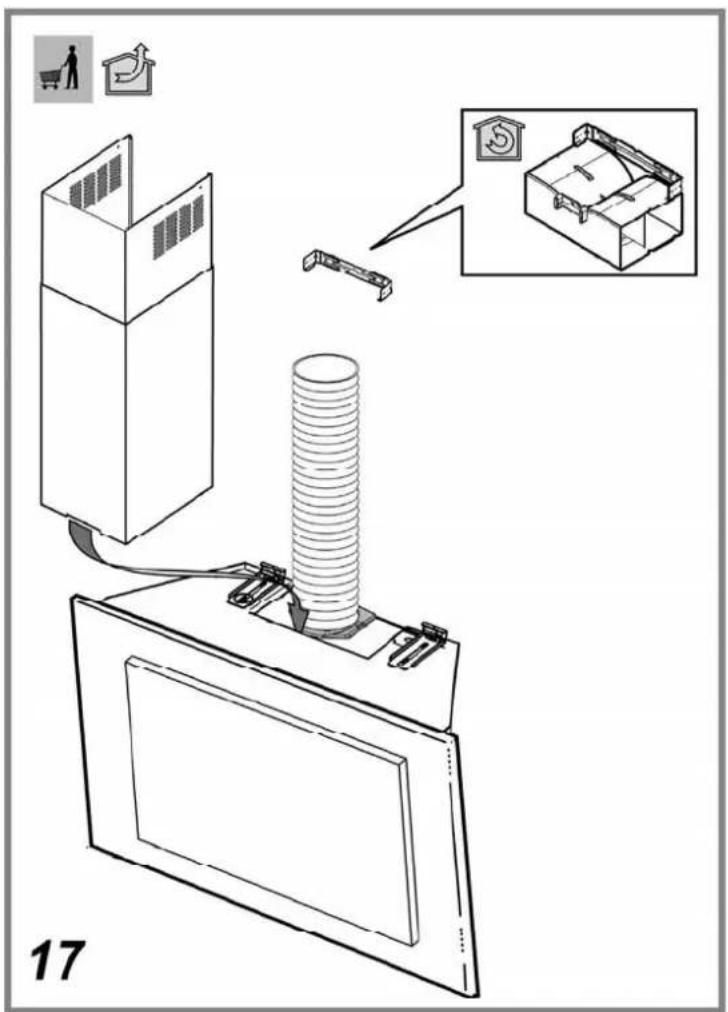

Technical diagram showing a device with a coiled spring mounted on a screen, accompanied by an inset of a household unit and a shopping cart icon.

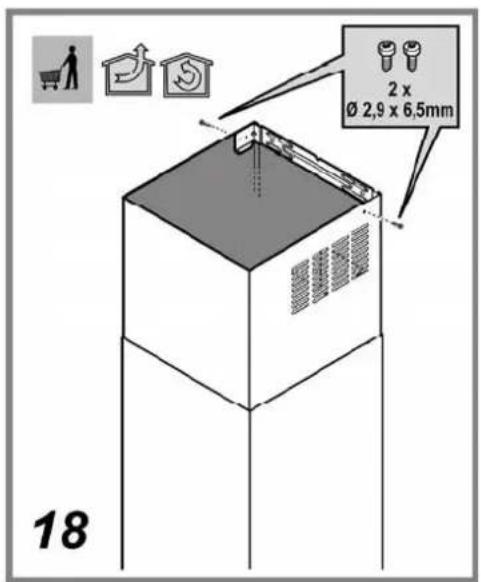

2 x Ø 2,9 x 6,5mm 18

Diagram of a mechanical assembly with a housing and rotating components, labeled '19' (no text or symbols on the diagram itself)

Diagram of a device interior with a door and panel, showing internal components and a directional arrow (no text or symbols)

DE

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Ersetzen der Lampen

Illustration of a hand holding a magnifying glass with a pointer, alongside a circular dial and a blue droplet (no text or symbols)

ENTSORGUNG

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

GENERAL SAFETY

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

Children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the authorised authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Replacing the power cable

Warning! Power cable replacement must be undertaken by the authorised service assistance centre or similar qualified person.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.

! The duct must be made of certified material.

! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING?

! Your hood is ready for use in the filtering version and can be installed in the external exhausting version by removing the carbon filter and installing a discharge tube (to be purchased) to connect the tube to the exterior.

! The telescopic chimney is available as an extra accessory kit.

The information for the installation of the telescopic chimney is already contained in this manual.

Ducting version

In this case the fumes are conveyed outside by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring = 150mm.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

CONTROLS

Model HSD 98 BK

To select the functions of the hood just touch the commands.

Light key ON/OFF

Intensive speed selection key (suction power) - duration 5 minutes - press again to return to previous setting.

High-speed selection key (suction power).

Medium-speed selection key (suction power) - when flashing it indicates the need to wash or replace the carbon filter. This signal is normally deactivated. Press keys 1 and 2 at the same time to activate it. At first only key 1 will flash and then both keys 1 and 2 to indicate activation. Repeat the operation to deactivate the signal. At first keys 1 and 2 will flash and then only key 1 to indicate deactivation.

Low-speed selection key (suction power) – when flashing it indicates the need to wash the fats filter.

Motor key OFF (stand by) – excludes the electronics – reset wash/replace filters signals.

MOTOR OFF

Press briefly to switch the motor off.

RESET FILTERS SIGNALS

After having carried out maintenance of the filters, press the key for 3 seconds. Flashing led 1 (fats filter) or 2 (carbon filter) will stop flashing.

EXCLUDING THE ELECTRONICS

Press the key for 3 seconds. The hood command electronics will be excluded.

This function can be useful during the product cleaning operations.

Just repeat the operation to reinsert the electronics.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service.

Model HSD 98 - HSD 98 IX/BK

1. Reset Button for saturation of filters: the hood will warn the user that it is time to do maintenance work on the filters, by giving out a light-signal.

Red-light Button blinking: carry out the maintenance of the greasy filters, following this press the button for over 3 seconds and the button will turn off.

Red-light Button: carry out maintenance on carbon-filters, following this press the button for more than 3 seconds, the button will switch off.

Attention: the hood is provided only with a warning signal for greasy filters.

To put into function the greasy-filter signal:: Set the cooker-hood off, press switch button no.6 for more than 3 seconds (the switch will turn on red signalling that the function has been set.

To disactivate the carbon filter signal, repeat the entire procedure again.

1. Speed selecting button (speed rating) for intensive suction (with timer): press to select the suction-speed (rating), the functioning-time is 5 minutes (blinking push-button), following this the suction function will either turn off or return to the suction-speed that had previously been selected.

Note: It is possible to keep a check of this function so that the hood switches off 5 minutes after it has worked, (even though another function had been selected prior to this one) after having pressed the button, press again and keep pressed, the pilot-light will start blinking indicating that the selected function has been set..

1. Speed selecting button suction speed 3: press this switch once to select the speed rating of suction speed, press again and keep pressed to activate the time-function for 10 minutes (blinking light) following this the cooker-hood will switch off..

1. Speed selecting button suction speed 2: press this switch once to select the speed rating of suction speed, press again and keep pressed to activate the time-function for 15 minutes (blinking light) following this the cooker-hood will switch off.

1. Switch OFF suction / ON speed (rating) of suction speed 1: press this switch once turn off the speed (rating) of suction function that has been selected or (if no speed rating of suction function select the speed (rating) of suction speed 1, press again and keep pressed to activate the time-function for 20 minutes (blinking light), following this the cooker hood will switch off.

1. Switch ON/OFF Pilot-lights: press to switch on/off lights.

EN

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Maintenance of the anti-grease filters

Traps cooking grease particles.

This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Diagram showing a downward arrow with a small object above it, no text or symbols present

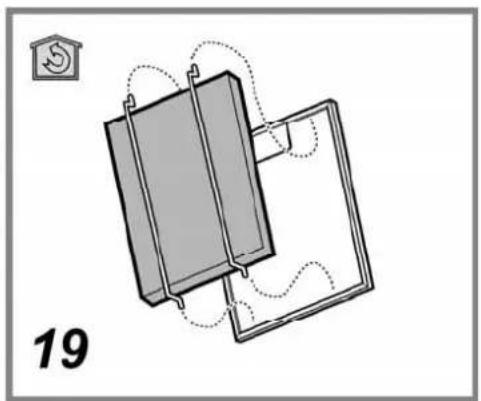

Maintenance of the charcoal filter

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

- Montage

Install the carbon filter on the back of the grease filter and fix with two rods.

Attention! The rods are included in the carbon filter packing and not on the hood.

• To dismantle the filter act in the reverse manner.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

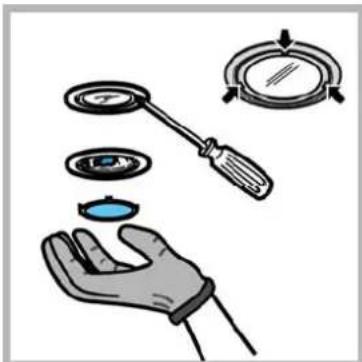

Replacing lamps

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

Illustration of a hand holding a small blue object, with a magnifying glass and circular components nearby (no text or symbols)

DISPOSAL

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

• If the hood performs inefficiently:

Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

- If the hood has turned off during normal functioning: Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Model HSD 98 - HSD 98 BK - HSD 98 IX/BK

Height 53,5 cm

Width 88,5 cm

Depth 35,6 cm

Total absorption 290 W

Motor absorption 1x250 W

Lamp absorption 2x20 W (G4 12V)

Exhaust pipe ∅ 15 cm

This appliance conforms to the following EEC Directive:

• "Low Voltage Equipment" Directive 2006/95/EC (12-12-2006)

• "Electromagnetic Compatibility" Directive 2004/108/EC (15-12-2004)

Components not provided with the product

FR

Diagram showing a downward arrow with a small object above it, no text or symbols present

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Illustration of a hand holding a small blue object, with a magnifying glass and circular components nearby (no text or symbols)

ÉLIMINATION

Absorption ampoule 2x20 W (G4 12V)

Model HSD 98 - HSD 98 IX/BK

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Vervanging lampjes

Sluit de stroom af.

Illustration of a hand holding a compass and magnifying glass, with no text or symbols present.

VERWIJDERING

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Illustration of a hand holding a magnifying glass and a small blue object, with no text or symbols present.

SMALTIMENTO

• "Low voltage" Directive 2006/95/EC (12-12-2006)

- "EMC" Directive 2004/108/EC (15-12-2004)

Diagram showing a downward arrow and a rectangular object on a horizontal line, no text or symbols present

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Замена ламп

Illustration of a hand holding a small blue object, with a compass and magnifying glass nearby (no text or symbols)

УТИЛИЗАЦИЯ
