USER MANUAL KW-R500 JVC

ʷʾʿˀƖʷʷʺ ƾƭƿ Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit;

leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view

directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Stop the car before operating the unit. Caution: Battery Products Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health.

• Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead. Adjust the volume so that you can hear sounds outside the car. Driving with the volume too high may cause an accident. Avoid using the USB device or iPod/iPhone if it might hinder driving safety. Caution on volume setting: Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by the sudden increase of the output level. Temperature inside the car: If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit. Condensation: When the car is air-conditioned, moisture may collect on the laser lens. This may cause disc read errors. In this case, remove the disc and wait for the moisture to evaporate. |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 How to reset your unit Contents Preparation p. 4

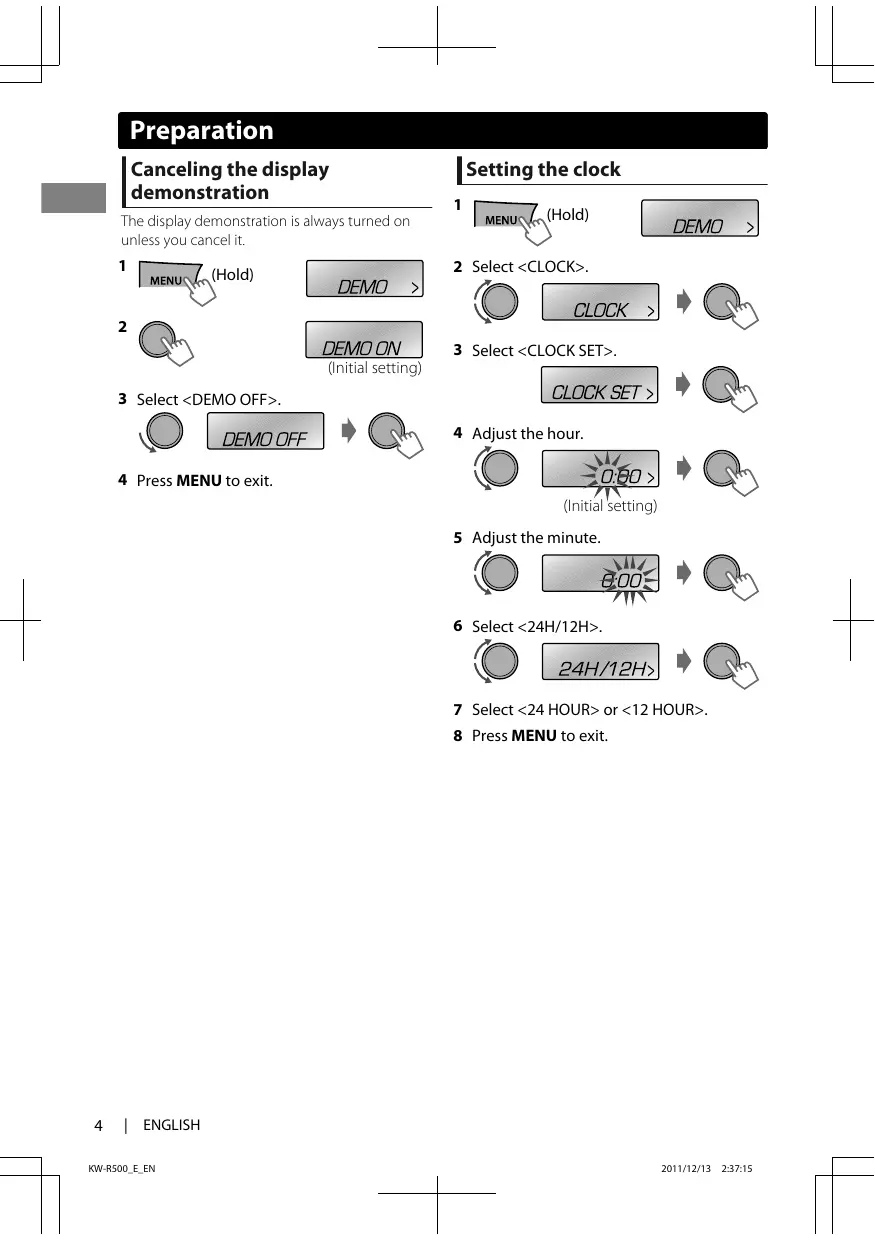

• Canceling the display demonstration Setting the clock Remote controller p. 5
• Basic operations p. 6
• Your preset adjustments will also be erased. How to forcibly eject a disc (Hold) Radio p. 8
• CD/USB p. 10
• iPod/iPhone (KW-R500 only) p. 11
• External components p. 12

This manual mainly explains operations using the buttons on the control panel. < > indicates the displays on the control panel. [XX] indicates the initial setting of a menu item. ENGLISH |ޓ3 KW-R500_E_EN 2011/12/13ޓ2:37:15 Preparation Preparation Canceling the display demonstration The display demonstration is always turned on unless you cancel it. Setting the clock

(Initial setting) 3 Select <DEMO OFF>.

4 Press MENU to exit. (Initial setting) 5 Adjust the minute.

Preparing When you use the remote controller for the first time, pull out the insulation sheet.

Insulation sheet Replacing the lithium coin battery

If the effectiveness of the remote controller decreases, replace the battery.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Battery shall not be exposed to excessive heat such as sunshine, fire, or the like. Do not install any battery other than CR2025 or its equivalent. Do not leave the remote controller in places (such as dashboards) exposed to direct sunlight for a long time. Store the battery in places out of reach of children. Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire. Do not place the battery with other metallic materials. Do not poke the battery with tweezers or similar tools. Insulate the battery by wrapping it with tape when disposing or storing it. This unit is equipped with the steering wheel remote control function. For details, refer also to the instructions supplied with the remote adapter. ENGLISH |ޓ5 KW-R500_E_EN 2011/12/13ޓ2:37:15 Basic operations Basic operations Control panel Remote controller KW-R500 (For KW-R500 only) Display window Ejects the disc Loading slot KW-R400 USB input terminal Control dial Remote sensor Front AUX input jack Aim the remote controller directly at the sensor. DO NOT expose to bright sunlight. Display information Changes the display information. (Press) Scrolls the current display information. (Hold) Source Non-Radio Data System station: Frequency ) Clock FM Radio Data System station: Station name (PS) - Frequency Programme type (PTY) - Clock - (back to the beginning) CD/USB iPod/iPhone (HEAD MODE/ IPOD MODE) *1 Album title/Artist* - Track title* - Track no./Playing time - Track no./Clock - (back to the beginning)

• “NO NAME” appears for conventional CDs or if not recorded. iPod/iPhone (EXT MODE) *1 EXT MODE) Clock External Components (AUX) F-AUX or R-AUX) Clock Bluetooth Audio BT AUDIO) Clock

Display Radio For KW-R500 only. |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 Basic operations When you press or hold the following button(s)... Control panel Remote controller General function SOURCE Turns on. Turns off. (Hold) Press the SOURCE button on the control panel and turn the control dial within 2 seconds to select the source. Press repeatedly to select the source. Control dial (turn) VOL - / + Adjusts the volume level. Control dial (press)

Selects items. Mutes the sound or pauses playback. Press the button again to cancel muting or resume playback. Confirms selection. Enters <BRIGHTNESS> menu directly. (KW-R400 only) (' page 14) Switches to iPod source. (KW-R500 only) Selects the preset stations. Stores the current station into the selected number button. (Hold) (' page 8) Selects the preset sound mode. (' page 14)

Activates/deactivates TA Standby Reception. (' page 9) Enters PTY Search mode. (Hold) (' page 9) Returns to the previous menu. Exits from the menu. (Hold) Selects a preset station. (' page 8) Selects MP3/WMA folder. (' page 10) Searches for a station automatically. (' page 8) Searches for a station manually. (Hold) Selects track. (' page 10, 11) Fast-forwards or reverses track. (Hold)

KW-R400 can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK52 with your unit. ENGLISH |ޓ7 KW-R500_E_EN 2011/12/13ޓ2:37:15 Radio Radio Searching for a station Select <FM> or <AM>. Auto search. (Press) Manual search. (Hold)

“M” flashes, then press the button repeatedly. “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength. Storing stations in memory Selecting a preset station Manual presetting You can preset up to 18 stations for FM and 6 stations for AM. While listening to a station... - - - - - - - - or - - - - - - - - (Hold) The preset number flashes and “MEMORY” appears. The current station is stored to the selected number button (1 - 6). - - - - - - - - or - - - - - - - -

(Hold) You can also select a preset station using / . Setting the Radio Timer You can tune in to a preset station at a specific time regardless of the current source.

(Hold) “PRESET MODE” flashes. 2 Select preset number. The preset number flashes and “MEMORY” appears. Auto presetting (FM only) SSM (Strong-station Sequential Memory) You can preset up to 18 stations for FM.

[OFF] ONCE DAILY 3 Select the preset station. -<FM>/<AM> -<01> ... <18> for FM/ <01> ... <06> for AM (Hold) -<TUNER> -<SSM> -<SSM 01 – 06> “SSM” flashes. When all the stations are stored, “SSM” stops flashing. To preset <SSM 07 – 12>/<SSM 13 – 18>, repeat steps 1 and 2. 4 Set the activation time. 5 Press MENU to exit.

-<TUNER> -<RADIO TIMER> -<OFF>/<ONCE>/ <DAILY> Cancels Radio Timer. Activates once. Activates daily. lights up after the Radio Timer has been set. Only one timer can be set. Setting a new timer will override the previous setting. The Radio Timer will not activate if the unit is turned off or if <AM> is set to <OFF> after selecting an AM station for the timer. |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 Radio The following features are available only for FM Radio Data System stations. Searching for your favorite Programmes—Programme Type (PTY) Search

(Hold) 2 Select a PTY code. PTY Search starts. If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in. PTY codes NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONEIN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT NEWS Standby Reception

-<TUNER> -<NEWS-STBY> -<NEWS ON> The unit will temporarily switch to News Programme if available. If the volume is adjusted during reception of Traffic Announcement or News, the adjusted volume is automatically memorized. It will be applied the next time the unit switches to Traffic Announcement or News. Tracking the same programme —Network-Tracking Reception When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals.

-<TUNER> -<AF-REG> * Activating TA/News Standby Reception Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) or NEWS programme from any source other than AM. TA Standby Reception [AF ON] Switches to another station. The programme may differ from the one currently received (the AF indicator lights up). AF-REG ON Switches to another station broadcasting the same programme (the AF indicator lights up). OFF Cancels. TA Standby Reception

• AF-REG: Alternative Frequencies-Regional Lights up The unit will temporarily switch to Traffic Announcement (TA) if available. Automatic station selection— Programme Search Flashes Not yet activated. Tune in to another station providing the Radio Data System signals. TP indicator

To deactivate, press again. When the signal of a preset station you have selected is weak, this unit searches for another station possibly broadcasting the same programme as the original preset station is broadcasting. <P-SEARCH> (' page 17) ENGLISH |ޓ9 KW-R500_E_EN 2011/12/13ޓ2:37:15 CD/USB CD/USB Playing a CD/USB device Label side USB input terminal USB 2.0 cable (not supplied) The source changes to “CD” and playback starts.

The source changes to “USB” and playback starts. This unit can play MP3/WMA files stored in CD-R, CD-RW, and USB mass storage device (such as a USB memory and Digital Audio Player). Make sure all important data has been backed up. We shall bear no responsibility for any loss of data in USB mass storage class device while using this system. Ejected disc not removed within 15 seconds will reload automatically. If the disc cannot be ejected, ' page 3. Selecting a folder/track Selects folder. (For MP3/WMA) Selecting the playback modes You can select one of the following playback modes at a time.

Selects track. (Press) Fast-forwards or reverses the track. (Hold) Selecting a track/folder from the list Press 1 for REPEAT. Press 2 for RANDOM. Press again to exit. - - - - - - - - or - - - - - - - - (Hold) <REPEAT>)<RANDOM>

2 Select a folder. REPEAT RPT OFF (For MP3/WMA) TRACK RPT Repeats current track. FOLDER RPT * Repeats current folder. 3 Select a track.

For MP3/WMA If the disc contains many folders or tracks, you can fast search for desired folder or track by turning the control dial quickly. RANDOM RND OFF Cancels repeat playback. Cancels random playback. FOLDER RND * Randomly plays all tracks of current folder, then tracks of next folders. ALL RND Randomly plays all tracks.

• For MP3/WMA 10 |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 iPod/iPhone KW-R500 only Playing an iPod/iPhone USB input terminal USB 2.0 cable (accessory of the iPod/iPhone) The source changes to “USB”-“USB-IPOD” and playback starts. Selecting the control mode 3 Select the desired track.

#<HEAD MODE>/<IPOD MODE>/

<EXT MODE> HEAD Controls iPod playback through this MODE unit. IPOD Controls iPod playback from the MODE iPod/iPhone. EXT Allows any audio signals from iPod/ MODE iPhone. You can also change the setting using <IPOD SWITCH> in the menu. (' page 17) Selecting a track Repeat this step until the desired track is selected. If the selected menu contains many tracks, you can fast search for the desired track by turning the control dial quickly. Selecting the playback modes Applicable under <HEAD MODE> only. You can select one of the following playback modes at a time.

Applicable under <HEAD MODE>/<IPOD MODE> only.

- - - - - - - - or - - - - - - - - Selects track/chapter. (Press) Fast-forwards or reverses the track. (Hold) Selecting a track from the list Press 1 for REPEAT. Press 2 for RANDOM. Press again to exit. (Hold) <REPEAT>)<RANDOM>

Applicable under <HEAD MODE> only.

REPEAT ONE RPT 2 Select the desired list. PLAYLISTS)ARTISTS)ALBUMS)SONGS) PODCASTS)GENRES)COMPOSERS) (back to the beginning) ALL RPT Functions the same as “Repeat One” of the iPod. Functions the same as “Repeat All” of the iPod. RANDOM RND OFF Cancels random playback. Functions the same as “Shuffle SONG RND Songs” of the iPod. the same as “Shuffle ALBUM RND Functions Albums” of the iPod. “ALBUM RND” is not applicable for some iPod/ iPhone. ENGLISH |ޓ11 KW-R500_E_EN 2011/12/13ޓ2:37:15 External components External components For details, refer also to the instructions supplied with the external components. Playing an external component from Front/Rear AUX

3.5 mm stereo mini plug

(not supplied) 1 Connect to F-AUX on the control panel and/or R-AUX on the rear panel. 2 Set the source as necessary. (Hold)

Portable audio player, etc.

3.5 mm stereo mini plug

(with “L” shaped connector) (not supplied) -<SRC SELECT> -<F-AUX>/<R-AUX> -<F-AUX ON> or <R-AUX ON> Press MENU to exit. 3 Select <F-AUX> or <R-AUX>. 4 Turn on the connected component and start playing the source. Use a 3-terminal plug head stereo mini plug for optimum audio output. Otherwise, sound may be interrupted or unclear while listening to an external component. Bluetooth姞 For Bluetooth operations, it is required to connect the Bluetooth adapter, KS-BTA100 (separately purchased) to the auxiliary input jack (R-AUX/BT ADAPTER) on the rear of the unit. ('Installation/Connection Manual) KS-BTA100 is not available in some countries. Please contact your dealer where you purchased this unit. Operations may be different depending on the connected Bluetooth device. For details, refer also to the instructions supplied with the device. KS-BTA100 Preparation For details on registering and using the Bluetooth device, refer to the instructions manual supplied with KS-BTA100. 1 Register (pair) a Bluetooth device with KS-BTA100. 2 Change the <SRC SELECT> settings of this unit. (Hold) -<SRC SELECT> -<R-AUX> -<BT ADAPTER> 3 Press MENU to exit. 12 |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 Illumination color adjustments KW-R500 only Display zone Button zone All zone: Includes both Button zone and Display zone. Selecting the preset color Storing your own adjustments You can select a preset color for <BUTTON ZONE>, <DISP ZONE>, and <ALL ZONE> separately. You can store your own day and night colors for <BUTTON ZONE> and <DISP ZONE> separately.

OFF Select a primary color <RED/GREEN/ BLUE>, and then adjust the level <00-31>. Repeat this procedure until you have adjusted all the three primary colors. Your adjustment is automatically stored to “USER”. If “00” is selected for all the primary colors for <DISP ZONE>, nothing appears on the display. Changes the display and buttons illumination during menu, list search, and playback mode operations.

NIGHT COLOR/DAY COLOR is changed by turning on/off your car’s headlight. 4 Press MENU to exit. ENGLISH |ޓ13 KW-R500_E_EN 2011/12/13ޓ2:37:15 Brightness adjustments Brightness adjustments You can select your preferred brightness for <BUTTON ZONE>, <DISP ZONE> separately.

Brightness button is only available for KW-R400. For KW-R500, ' page 15. BUTTON ZONE BUTTON 00 to 31 DISP ZONE DISP 00 to 31 3 Press MENU to exit. Sound adjustments This unit memorizes sound settings adjusted for each individual source. Pro Equalizer Selecting the preset sound You can select a preset sound mode, for each individual source, suitable for the music genre.

Press repeatedly. DYNAMIC-VOCAL BOOST-BASS BOOSTUSER-FLAT-NATURAL-(back to the beginning) Storing your own adjustments While listening, you can adjust and store the tone level for each individual source. Easy Equalizer

(Hold) Adjust the sound elements of the selected tone. BASS Frequency Level LVL -06 to +06 [+05]

[Q1.0]/Q1.25/Q1.5/Q2.0 MIDDLE Frequency (Initial: [XX]) 0.5/[1.0]/1.5/2.5 kHz Level LVL -06 to +06 [00]

Q0.75/Q1.0/[Q1.25] TREBLE Frequency 2 Adjust the level. (Initial: [XX]) 60/80/[100]/200 Hz 10.0/[12.5]/15.0/17.5 kHz Level LVL -06 to +06 [+05]

[Q FIX] 4 Repeat steps 2 and 3 to adjust other tones. SUB.W* 00 to 08 [08] BASS LVL** -06 to +06 [+05] The adjustments are stored and <USER> is activated. MID LVL -06 to +06 [00] 5 Press MENU to exit. TRE LVL -06 to +06 [+05]

• Available only when <L/O MODE> is set to <SUB.W>. (' page 16) ** Available only when <HPF> is set to <OFF>. (' page 16) The adjustments are stored and <USER> is activated. 14 |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 Menu operations

If no operation is done for about 60 seconds, the operation will be canceled.

Selectable setting (Initial: [XX]) For settings, ' page 4. [AUTO]: The built-in clock is synchronized with the clock data received from the FM Radio Data System station. OFF: Cancels. For settings, ' page 13. (KW-R500 only) Selects the display and button illumination adjusted in the <BRIGHTNESS> setting. [AUTO]: Changes between the Day and Night adjustments when you turn off/on the car headlights. *2 ON: Selects the Night adjustments. OFF: Selects the Day adjustments. DAY/NIGHT: Brightness settings for the display and button illumination for day and night. BUTTON ZONE/DISP ZONE: Sets the brightness levels 00 — 31. [ONCE]: Scrolls the display information once. AUTO: Repeats scrolling (at 5-second intervals). OFF: Cancels. [ON]: Shows the TAG information while playing MP3/WMA tracks. OFF: Cancels. For settings, ' page 14. Takes effect only when clock data is received. The illumination control lead connection is required. (See “Installation/Connection Manual”.) This setting may not work correctly on some vehicles (particularly on those having a control dial for dimming). In this case, change the setting to other than <DIMMER AUTO>. Initial:

(Subwoofer level) HPF *8 (High-pass filter) BEEP (Keytouch tone) TEL MUTING *9 (Telephone muting) AMP GAIN (Amplifier gain)

Selectable setting (Initial: [XX]) R06 — F06[00]: Adjusts the front and rear speaker output balance. L06 — R06[00]: Adjusts the left and right speaker output balance. ON: Boosts low and high frequencies to produce a well-balanced sound at a low volume level. [OFF]: Cancels. -05 — +05[00]: Presets the volume adjustment level of each source, compared to the FM volume level. Before adjustment, select the source you want to adjust. (“VOL ADJ FIX” appears if “FM” is selected.) Select if the LINE OUT (REAR) terminals on the rear panel are connected to the speakers or subwoofer through an external amplifier. SUB.W: Subwoofer [REAR]: Speakers OFF: Cancels. [ON]: Turns on the subwoofer output. LOW 55Hz/MID 85Hz/[HIGH 120Hz]: Audio signals with frequencies lower than 55 Hz/85 Hz/120 Hz are sent to the subwoofer. 00 — 08[08]: Adjusts the subwoofer output level. ON: Activates the High Pass Filter. Low frequency signals are cut off from the front/rear speakers. [OFF]: Deactivates. (All signals are sent to the front/rear speakers.) [ON]/OFF: Activates or deactivates the keypress tone. ON: Mutes the sounds of the unit while using the mobile phone system (not connected through Bluetooth adapter KS-BTA100). [OFF]: Cancels. LOW POWER: Limits the maximum volume level to 30. (Select if the maximum input power of each speaker is less than 50 W to prevent damaging the speakers.) [HIGH POWER]: The maximum volume level is 50. If you are using a two-speaker system, set the fader level to “00”. This adjustment will not affect the subwoofer output. Displayed only when <L/O MODE> is set to <SUB.W>. Displayed only when <SUB.W> is set to <ON>. To activate this function, select <SRC SELECT>#<R-AUX>#<R-AUX ON>/<R-AUX OFF>. 16 |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 Menu operations TUNER Menu item SSM AF-REG *10 NEWS-STBY *10 (News standby) P-SEARCH *10 (Programme search) MONO (Monaural mode) IF BAND (Intermediate frequency band) SRC SELECT RADIO TIMER IPOD SWITCH (iPod/iPhone control) AM *11 F-AUX *11 (Front auxiliary input) R-AUX *11 (Rear auxiliary input) Selectable setting (Initial: [XX]) For settings, ' page 8. (Displayed only when the source is “FM”.) For settings, ' page 9. ON/[OFF]: Activates or deactivates NEWS Standby Reception. (Displayed only when the source is “FM”.) (' page 9) SEARCH ON/[SEARCH OFF]: Activates Programme Search (if <AF-REG> is set to <AF ON> or <AF-REG ON>) or deactivates. Displayed only when the source is “FM”. [OFF]: Enables stereo FM reception. ON: Improves the FM reception but stereo effect will be lost. [AUTO]: Increases the tuner selectivity to reduce interference noises between adjacent stations. (Stereo effect may be lost.) WIDE: Subject to interference noises from adjacent stations, but sound quality will not be degraded and the stereo effect will remain. For settings, ' page 8. [HEAD MODE]/IPOD MODE/EXT MODE: For settings, ' page 11. (Displayed only when the source is “USB-IPOD”.) (KW-R500 only) [ON]/OFF: Enables or disables “AM” in source selection. [ON]/OFF: Enables or disables “F-AUX” in source selection. ON/OFF: Enables or disables “R-AUX” in source selection. [BT ADAPTER]: Select if the rear auxiliary input jack is connected to the Bluetooth adapter, KS-BTA100 (' page 12). The source name will be changed to “BT AUDIO”. *10 Only for FM Radio Data System stations. *11 Displayed only when the unit is in any source other than the corresponding source “AM/ F-AUX/R-AUX/BT AUDIO”. ENGLISH |ޓ17 KW-R500_E_EN 2011/12/13ޓ2:37:15 Additional information Additional information About discs About audio files Playable files This unit can only play the following CDs:

This unit can play back multi-session discs; however, unclosed sessions will be skipped during playback.

Discs that are not round. Discs with coloring on the recording surface or discs that are dirty. Recordable/ReWritable disc that has not been finalized. (For details on disc finalization, refer to your disc writing software and your disc recorder instruction manual.) 8 cm CD. Attempting to insert using an adapter can cause malfunction. There may also be problems ejecting the disc if inserted.

Do not touch the recording surface of the disc. Do not stick tape etc. on the disc, or use a disc with tape stuck on it. Do not use any accessories for the disc. Clean from the center of the disc and move outwards. Clean the disc with a dry silicon or soft cloth. Do not use any solvents. When removing discs from this unit, pull them out horizontally. Remove any burrs from the center hole and disc edge before inserting a disc. DualDisc playback The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended. File extensions: MP3(.mp3), WMA(.wma) Bit rate: MP3: 8 kbps - 320 kbps WMA: 32 kbps - 192 kbps Sampling frequency: MP3: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05kHz, 16 kHz, 12 kHz, 11.025 kHz, 8 kHz WMA: 48 kHz, 44.1 kHz, 32 kHz Variable bit rate (VBR) files. (The elapsed time for VBR files will not be displayed correctly.)

MP3 files: - encoded in MP3i and MP3 PRO format - encoded in an inappropriate format - encoded with Layer 1/2 WMA files: - encoded in lossless, professional, and voice format - not based upon Windows Media® Audio - copy-protected with DRM Files which include data such as AIFF, ATRAC3, etc. Maximum number of characters for file/folder name Varies depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>). ISO 9660 Level 1 and 2: 64 characters Romeo: 64 characters Joliet: 32 characters Windows long file name: 64 characters Others

This unit can show WMA Tag and ID3 Tag Version 1.0/1.1/2.2/2.3/2.4 (for MP3). The search function works but search speed is not constant. 18 |ޓENGLISH KW-R500_E_EN 2011/12/13ޓ2:37:15 Additional information About USB device

When connecting a USB cable, use the USB 2.0 cable. You cannot connect a computer or portable HDD to the USB input terminal of the unit. Connect only one USB device to the unit at a time. Do not use a USB hub. USB devices equipped with special functions such as data security functions cannot be used with the unit. Do not use a USB device with 2 or more partitions. This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A. This unit may not recognize a memory card inserted into the USB card reader. This unit may not play back files in a USB device properly when using a USB extension cord. Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose. Operation and power supply may not work as intended for some USB devices. The maximum number of characters for: – Folder names: 63 characters – File names: 63 characters – MP3 Tag: 60 characters – WMA Tag: 60 characters This unit can recognize a total of 65 025 files, 255 folders (255 files per folder including folder without unsupported files), and of 8 hierarchies. About iPod/iPhone

Do not pull out and attach the USB device repeatedly while “READING” is shown on the display. Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device. Do not leave a USB device in the car, expose to direct sunlight, or high temperature. Failure to do so may result in deformation or cause damages to the device. iPod/iPhone that can be connected to this unit: - iPod touch (4th generation) - iPod touch (3rd generation) - iPod touch (2nd generation) - iPod touch (1st generation) - iPod classic - iPod with video (5th generation)* - iPod nano (6th generation) - iPod nano (5th generation) - iPod nano (4th generation) - iPod nano (3rd generation) - iPod nano (2nd generation) - iPod nano (1st generation)* - iPhone 4S - iPhone 4 - iPhone 3GS - iPhone 3G - iPhone *<IPOD MODE>/<EXT MODE> are not applicable. It is not possible to browse video files on the “Videos” menu in <HEAD MODE>. The song order displayed on the selection menu of this unit may differ from that of the iPod. When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC website: <http://www3.jvckenwood.com/english/car/ index.html> (English website only).

Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. ENGLISH |ޓ19 KW-R500_E_EN 2012/2/29ޓ10:7:41 Troubleshooting Troubleshooting Symptom 4 General No sound, sound interrupted or static noise.

“MISWIRING CHK WIRING THEN

RESET UNIT”/“WARNING CHK

WIRING THEN RESET UNIT”

appears on the display and no operations can be done. The unit does not work at all. Source cannot be selected. The correct characters are not displayed (e.g. album name). 4 FM/AM SSM automatic presetting does not work. 4 CD/USB/iPod/iPhone “PLEASE” and “EJECT” appear alternately on the display. “IN DISC” appears on the display. “READING” keeps flashing on the display. Tracks/folders are not played back in the order you have intended. The elapsed playing time is not correct. “NOT SUPPORT” appears on the display and track skips. “CANNOT PLAY” flashes on the display. The unit cannot detect the connected device. Remedy/Cause Check the cords, aerial and cable connections. Check the condition of the disc, connected device and recorded tracks. Ensure the terminals of the speaker leads are properly insulated with tape before resetting the unit. (' page 3) If the message does not disappear, consult your JVC car audio dealer or kits supplying company.

Reset the unit. (' page 3) Check the <SRC SELECT> setting. (' page 17) This unit can only display letters (upper case), numbers, and a limited number of symbols. Store stations manually. Press [], then insert the disc correctly. The disc cannot be ejected properly. Make sure nothing is blocking the loading slot. A longer readout time is required. Do not use too many hierarchical levels and folders. Reload the disc or reattach the USB device. The playback order is determined by the file name (USB) or the order in which files were recorded (disc). This sometimes occurs during playback. This is caused by how the tracks are recorded on the disc. Check whether the track is a playable file format.

The iPod/iPhone does not turn on or does not work. *

Check whether the connected device is compatible with this unit. (USB: ' page 21) (iPod/iPhone: ' page 19) Ensure that the device contains files in the supported formats. (' page 18) Reattach the device. Check the connection between this unit and iPod/iPhone. Detach and reset the iPod/iPhone using hard reset. For details on resetting the iPod/iPhone, refer to the instruction manual supplied with the iPod/iPhone. Check whether <IPOD SWITCH> setting is appropriate. (' page 11)

Maximum Power Output Continuous Power Output (RMS) Load Impedance Frequency Response Signal-to-Noise Ratio Line-Out, Subwoofer-Out Level/Impedance Output Impedance 50 W per channel 20 W per channel into 4Ω, 40 Hz to 20 000 Hz at less than 1% total harmonic distortion. 4Ω (4Ω to 8Ω allowance) 40 Hz to 20 000 Hz 70 dB

Frequency Range Usable Sensitivity 50 dB Quieting Sensitivity Alternate Channel Selectivity (400 kHz) Frequency Response Stereo Separation Frequency Range Sensitivity/Selectivity

87.5 MHz to 108.0 MHz

9.3 dBf (0.8 μV/75Ω)

16.3 dBf (1.8 μV/75Ω)

65 dB 40 Hz to 15 000 Hz 40 dB MW: 531 kHz to 1 611 kHz LW: 153 kHz to 279 kHz MW: 20 μV/40 dB, LW: 50 μV

Signal Detection System Number of Channels Frequency Response Signal-to-Noise Ratio Wow and Flutter Non-contact optical pickup (semiconductor laser) 2 channels (stereo) 5 Hz to 20 000 Hz 98 dB Less than measurable limit USB SECTION USB Standard Data Transfer Rate (Full Speed) Compatible Device Compatible File System Playable Audio Format Maximum Supply Current USB 1.1, USB 2.0 Max. 12 Mbps Mass storage class FAT 32/16/12 MP3/WMA DC 5 V " 1 A GENERAL Power Requirement (Operating Voltage) Grounding System Allowable Operating Temperature Dimensions Installation Size (W × H × D) Panel Size Mass DC 14.4 V (11 V to 16 V allowance) Negative ground 0°C to +40°C approx. 182 mm × 111 mm × 160 mm approx. 188 mm × 117 mm × 18 mm

1.8 kJ (excluding accessories) (KW-R500)

1.7 kJ (excluding accessories) (KW-R400)

Subject to changes without notice. ENGLISH |ޓ21 KW-R500_E_EN 2011/12/13ޓ2:37:15 Merci pour avoir acheté un produit JVC. Veuillez lire attentivement toutes les instructions avant d’utiliser l’appareil afin de bien comprendre son fonctionnement et d’obtenir les meilleures performances possibles.
