USER MANUAL Truckmate S7000 SNOOPER

Circular icon with blue and gray gradient background, no text or symbols

TRUCKMATE

S7000

Quick Start Guide

Kurzanleitung

Installing the SD Card

Page 5 Charging the Internal Battery

Page 6 Powering Truckmate using the Built-in Battery

Page 7 Installing Truckmate using the Windscreen

Suction Cup bracket

Page 8 Operating Instructions

Starting Up

Easy Set Up

Screen Settings

Page 10 Volume Control

Page 11 Setting up Truckmate

Page 12 Quick Start Guide to Navigation

Page 15 Quick Menu

Using the Multi-route Function

Page 18 TMC (Traffic Message Channel)

Page 20 System Security Code

Page 21 System Requirements and Software Installation

Page 22 Downloading the AURA ™ Camera Database

Page 24 Accessories & Price List

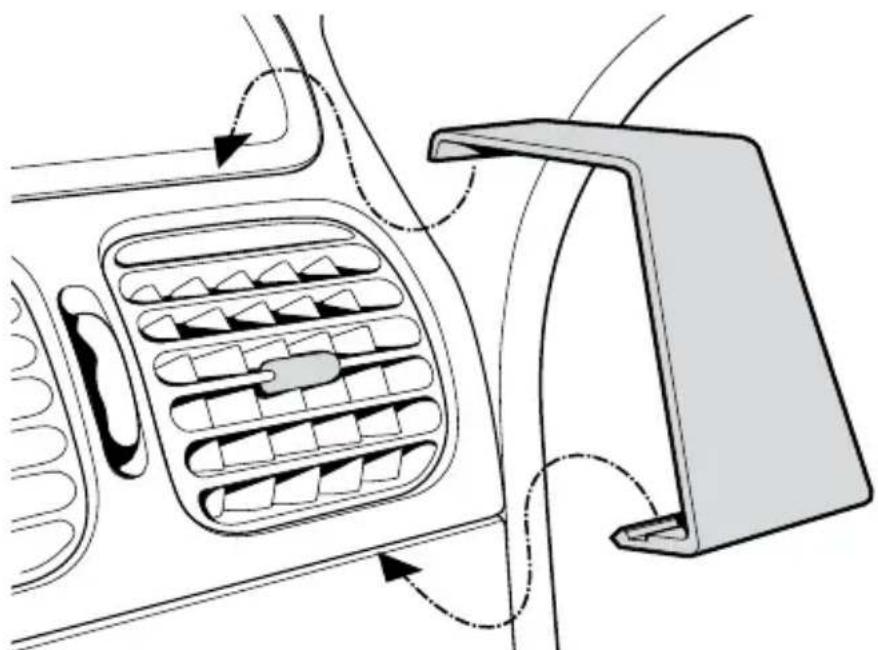

Page 25 Vehicle Specific Professional Mounting Brackets

TRUCKMATE

QUICK START GUIDE

Truckmate has been designed to route your vehicle safely and legally, avoiding hazards and legal restrictions such as low bridges and roads that are unsuitable for use by larger vehicles. Truckmate will create safe routes for you based on the attributes of your vehicle and will alert you to any hazards if you should accidentally turn off that route for any reason. However Truckmate will also alert you to hazards if it is used without a route programmed to ensure your chosen route is a safe one.

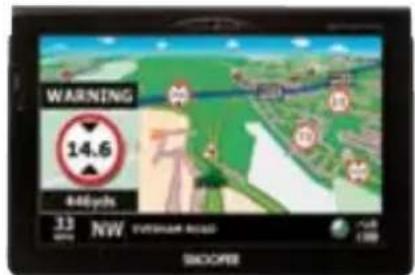

These are the hazards and restrictions Truckmate will route you around and give you advanced warning of:

Restrictions

Height

Width

Length

Weight

No trucks allowed

No trailers

No U-turn for trucks

No right turn for trucks

No left turn for trucks

Trucks with hazardous goods forbidden

Trucks with natural goods harmful to water forbidden

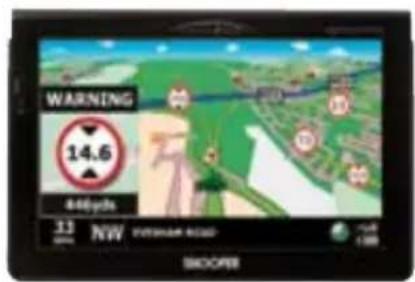

Warning

Steep road up ahead

Steep road down ahead

Tight bend ahead

Side winds

Risk of grounding

WARNING 7.5ft 424pH 33 NW PICKS: PANKS! INSOPE

WARNING 14.6 440fps 33 200V NEW EVEGET ROAD SINOCHE

WARNING 120yth 33 NW PROCESS FANETARY SINOCORE

To utilise the AURA™ Camera database you will need to register Truckmate and perform a download. Please refer to 'System Requirements and Software Installation' later in this Quick Start Guide for further information.

Start Up

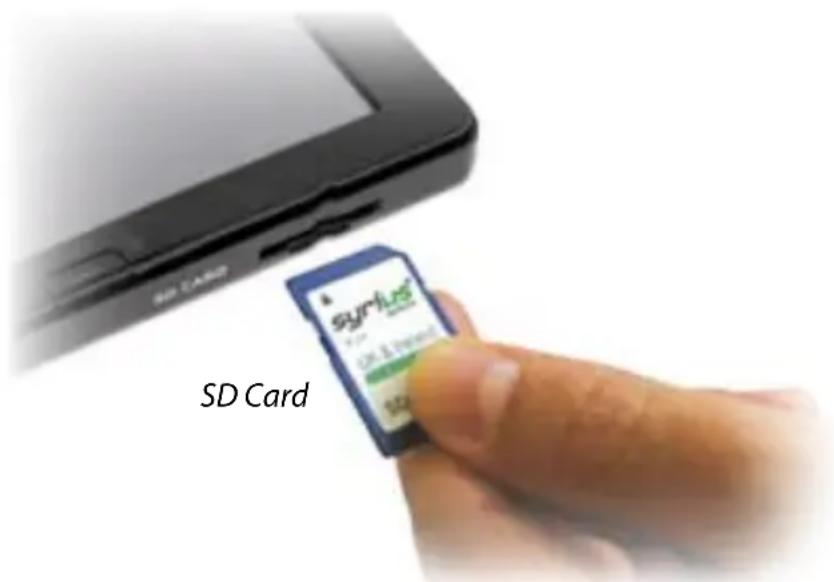

1. Installing the SD Card

Before using Truckmate, you will need to install the SD Card included with the device. The SD Card comes complete with a digital map of the UK and Ireland or Western Europe depending on the model purchased and is also where the AURA ^™ camera database is stored if you choose to subscribe and download it.

Start by moving the 'Batt. ON/OFF' switch located on the back of the unit to the 'ON' position, then remove the SD card from its packaging and insert it into the SD Card slot as indicated. Switch on the device by pressing and holding the standby power button located on the left hand side of the unit for 2 seconds. Press the 'Navi' icon from the menu options. As soon as the 'Navi' icon is pressed, Truckmate will automatically synchronise with the SD Card. Once the synchronisation is completed, the SD Card will not function with any other device. Truckmate is now ready to navigate and the camera database can be downloaded if necessary.

Please note that if the unit does not activate when you press and hold the standby power button for 2 seconds it may require charging. Refer to the section 'Charging the internal battery' later in this guide.

SD Card Syrius® S2016

2. Charging the internal battery

Although Truckmate can be charged using the cigarette lighter in your vehicle, a complete charge is more easily achieved by using the 240V AC mains charger included. When new, the battery in Truckmate is approximately 20% charged.

To charge the unit fully, move the 'Batt. ON/OFF' switch to the 'ON' position and connect the 240V AC mains charger as indicated in the picture on the right. The battery light on Truckmate will illuminate and will take approximately 3 hours to charge. When the internal battery is fully charged, the red LED will switch off. Once fully charged the battery will last approximately 3 hrs during normal use.

Note: The new battery's full performance is only achieved after two or three complete charges and discharges.

Plug the charger cable into the socket on the back of the Truckmate Plug the charger into a 240V AC mains socket

CAUTION THERE IS A RISK OF EXPLOSION IF THE BATTERY IS REPLACED WITH AN UNAPPROVED TYPE. USING THE WRONG TYPE OF BATTERY MAY DAMAGE YOUR UNIT AND INVALIDATE YOUR WARRANTY. ONLY SNOOPER AUTHORISED PERSONNEL SHOULD REPLACE THE BATTERY. PLEASE DISPOSE OF USED BATTERIES ACCORDING TO LOCAL WASTE MANAGEMENT RULES AND REGULATIONS. FURTHER INFORMATION CAN BE FOUND IN THE USER MANUAL ON THE SOFTWARE CD.

3. Powering Truckmate using the built-in battery

Once Truckmate is fully charged, it is ready for use. Move the 'Batt. ON/OFF' switch to the 'ON' position and press and hold the standby/power switch on the left hand side of the unit for 2 seconds to switch on the device.

ON/OFF switch SNOOPER

WARNING PLEASE DO NOT USE OR LEAVE TRUCKMATE IN EITHER WET OR HUMID CONDITIONS, OR IN EXTREME TEMPERATURES, AS THIS COULD PERMANENTLY DAMAGE THE UNIT AND THE BATTERY. WHEN NOT IN USE DO NOT LEAVE THE UNIT ATTACHED TO THE WINDSCREEN, ESPECIALLY WHEN THE WEATHER IS WARM, TO AVOID DAMAGE TO THE UNIT AND ALSO REDUCE THE RISK OF THEFT

WARNING THE DEVICE MAY RESTART IF EXPOSED TO STATIC ELECTRICITY, PLEASE AVOID TOUCHING THE USB SOCKET ON THE SIDE OF THE UNIT.

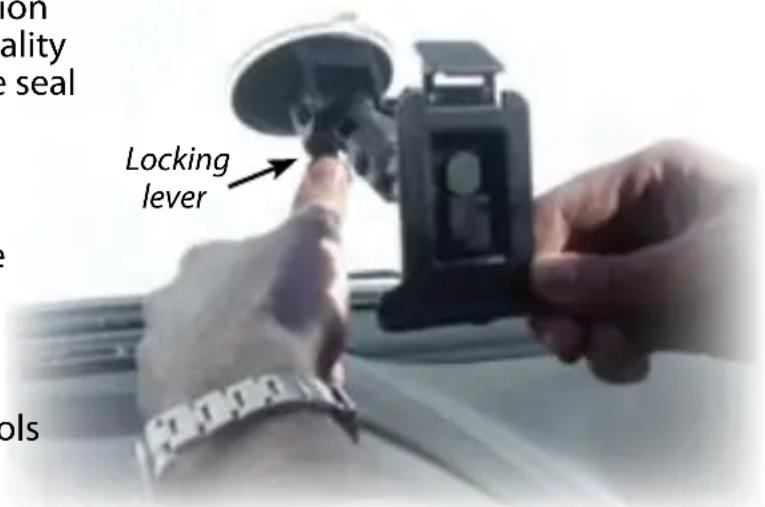

4. Installing Truckmate using the Windscreen Suction Cup bracket

You can mount Truckmate to the inside of your vehicles windscreen using the windscreen bracket provided.

• Clean the area where you wish to position the bracket thoroughly with a good quality glass cleaner. This allows a more secure seal on the windscreen.
• Place the suction cup and bracket on the windscreen and push the locking lever towards the windscreen to secure the bracket.
• Adjust the angle of the bracket so that when the unit is attached to it you can view the display and operate the controls safely.
• Position Truckmate onto the bracket, by inserting the bottom of the S7000 first and finally clipping the top of the bracket into the slot on the back of the unit. To remove Truckmate simply unclip the unit, by pushing the top of the bracket and taking the unit from the holder.
• Truckmate can be powered directly either from the internal battery if it is fully charged or powered from the cigarette lighter socket. To use the cigarette lighter socket, plug the smaller plug on one end of the power cable into the power socket on the side of Truckmate and plug the larger plug into the cigarette lighter socket of your vehicle.

Please Note: Only use the cigarette lighter power cable provided with Truckmate. Truckmate operates on 9V and using any other cigarette lighter power cable will damage your device and void the warranty.

on quality seal Locking lever sols

Close-up of a laptop with a hand interacting with it, no visible text or symbols on the device or background

Operating Instructions

1. Starting Up

Once you have synchronised the SD Card it is time to perform the first Start Up.

• First make sure your vehicle is parked in as open a space as possible, clear of tall trees and buildings so that the built in GPS antenna has a clear view of the sky above.
• Next, switch the unit on by moving the 'Batt. ON/OFF' switch located on the back of the unit to the 'ON' position, then press and hold the standby power switch on the left hand side of the unit for 2 seconds.
• Press the 'Navi' icon on the menu screen. Whilst Truckmate software is loading, a start-up display will be shown for just a few seconds and then an 'Information Screen' will be displayed. Press the 'I Agree' button and the screen will display a section of a map.
• Truckmate needs to acquire a minimum of four satellites in order to work. Once this has been achieved Truckmate will ascertain your position and this will be indicated by a green arrow icon on the on-screen map and the GPS signal strength will be shown to the bottom right hand corner of the display. Truckmate is now ready to navigate.

As the GPS engine and antenna have never been used before, the first 'Cold' start could take anywhere from 15 – 30 minutes to establish a satellite connection. Once initialised, subsequent start ups will take less time and eventually should take only a matter of minutes.

2. Easy Set Up

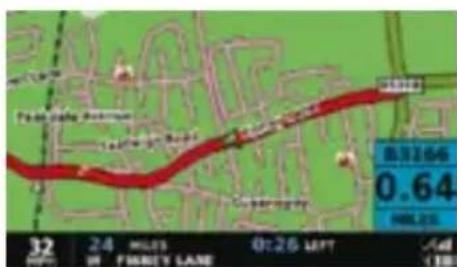

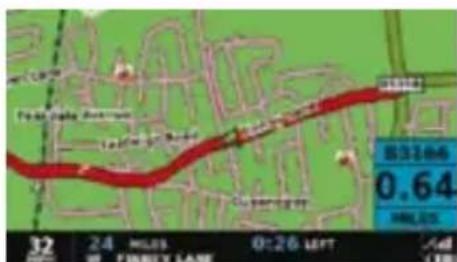

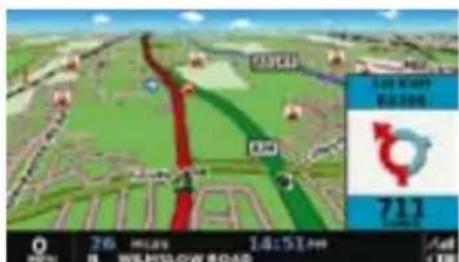

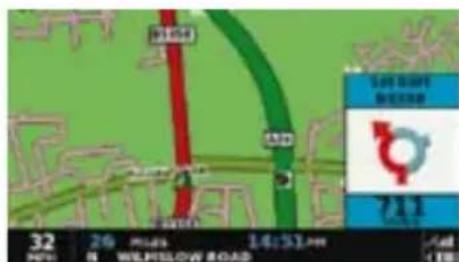

Screen settings - There are a number of map views or different types of information that can be displayed on the screen at any one time:-

26 miles 1.8151.000 WELMSLOW ROAD 7:31 0 MINI 26 MILK 1.8151.000 Add

3D 2D North

32 NEW 26 Miles 14:51 PM WELMSLOW ROAD SOT BONE BREAD 7.11

20.04 Foss Lake Avenue 15th St. 2006 32 2.4 MILES 0:26 LEFT 4nd OF FINNUT LANE

10:04 AM

Current time or vehicle speed

32 MPH

89 MILES

Distance to destination

10:33 LEFT 20:33PM

Estimated journey time or Estimated time of arrival

NW HOLLO WAY ROAD

Direction and name of road

Two black square icons: one showing a simple bar chart, the other showing a battery with three stacked bars (no text or symbols)

GPS Signal strength Battery status

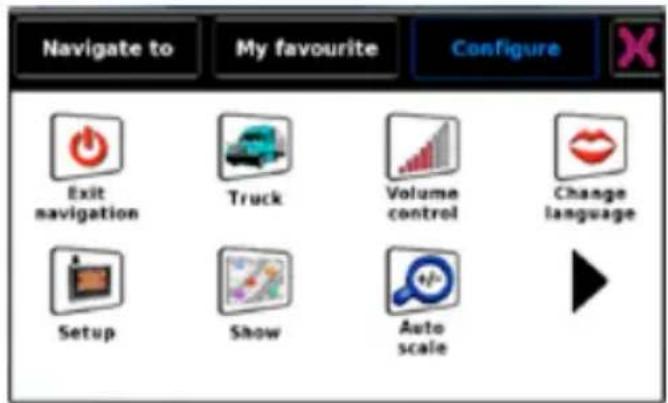

To modify the information shown access the Menu by simply touching Truckmate in the centre of the screen and then press the 'Configure' button.

Navigate to My favourite Configure Find by city Find by post code Home Office Recent route Multi-route Find by favourites

Navigate to My favourite Configure Exit navigation Truck Volume control Change language Setup Show Auto scale

Next press the Setup icon where you will see the list of options

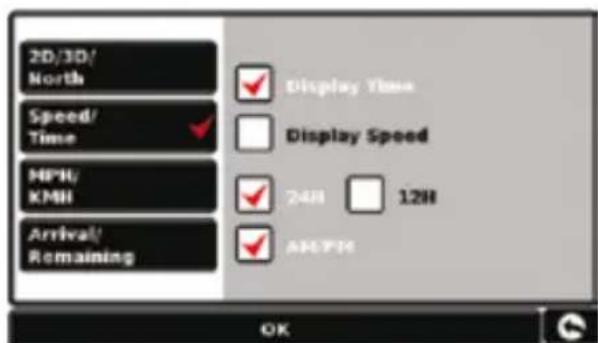

To change a setting press it with your finger and a list of the options available will be shown next to a tick box. Simply press the tick box to indicate which option you would like to choose.

2D/3D/ North Speed/ Time MPH/ KMH Arrival/ Remaining 2D View 3D View North

2D/3D/ North Speed/ Time MPH/ KMH Arrival/ Remaining Display Time Display Speed 24H 12H APSPH OK

Press 'OK' at the bottom of the screen. Your chosen settings will now be saved and will appear on the screen each time you use Truckmate. If you want to switch between your Current Speed and the Atomic Clock or the Estimated Time of Arrival and the Time to Destination during your journey simply touch the LCD screen where either piece of information is displayed and the unit will display the alternative setting and vice versa. However, each time you switch on the device the original setting will be displayed.

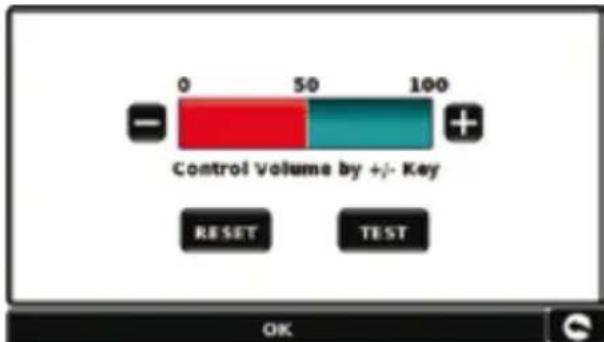

Volume Control - The volume can be adjusted within the 'Configure' Menu. To set this function touch the screen in the centre to access the 'Menu' and then press the 'Configure' button. The screen will then display a number of different icons.

Press the Volume Control icon. Press either the '+' button to increase the volume or the '-' button to decrease the volume. Finally select the 'OK' button to confirm the setting.

Note: The arrow icon in the bottom right hand corner of the display will return you to the 'Configure' menu if pressed but will not store any changes you have made. You need to select the 'OK' button in order to save your changes.

0 50 100 Control Volume by +/- Key RESET TEST OK

3. Setting up Truckmate

For Truckmate to calculate a route suitable for your vehicle it needs to know certain information about the vehicle itself such as it's height, weight and width. It is possible to save the settings of 10 different trucks. Follow these instructions to enter your vehicles details.

Access the Menu by touching the centre of the screen of your Truckmate with your finger and then press the 'Configure' button. Next tap the 'Truck' icon.

Name: Enter the name here.

Height: Enter the height of the vehicle here.

Length: Enter the length of the vehicle here.

Weight: Enter the weight of the vehicle here.

Width: Enter the width of the vehicle here.

Weight per axle: Enter the weight per axle of the vehicle here

Name HGV Height 14ft 6" Weight 44 t Length 55ft Width 8ft 6" Weight per axle 10 t Truck type TRAILER Load type NONE(NORMAL) OK

Truck type:

Truck standard setting for fixed axle vehicles.

Träjelerific traffic rules exist for trucks with trailers. For example, there are roads that are forbidden for vehicles with trailers. These will be avoided.

- Delpecific traffic rules exist for delivery vehicles. For example, trucks are only allowed in certain areas if they are delivering goods.

Publicain vehicles are allowed to use the traffic rules of public vehicles such as busses and money transport vehicles.

Load type:

No(Normal)

Hazardous goods that are not explosive or harmful for water.

• Explosive and Flammable

Harmful for water ●

Verified and non-verified roads.

Truckmate will indicate whether the road you are travelling on is verified or non-verified. In the bottom right hand corner of the screen either a green 🙏 or a red 🚗 will be displayed. The green 🔔 indicates that you are driving in an area with Truckmate coverage, the red ✕ means that you are driving on a road without detailed Truckmate coverage.

ATTENTION!

Please don't forget to register your Truckmate via the Internet at www.snooperneo.co.uk. Only when the unit is registered will we be able to send you free* software and map updates. Software and map updates will be sent to you on a CD Rom.

Registration is free of charge. To register you will need the serial number which can be found on the back of your Truckmate.*For a limited period only.

4. Quick Start Guide to Navigation using a post code

Take Truckmate outside so that the GPS receiver can locate your position. This may take between 15 - 30 minutes the first time. When satellite lock is achieved, the screen will display your current position on its map in a '3D' navigation view. Your position (and direction) is indicated by the icon.

Exit 546 Chenwan Road Chenwan Road EXIT J9 4.98 MILES 71 MPH 17 PAGES NEW M36 14:52PM Finish 111 111

Tip: To reduce the 'cold start' GPS time remain stationary.

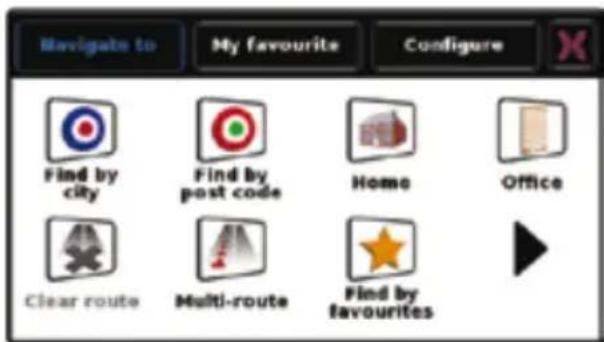

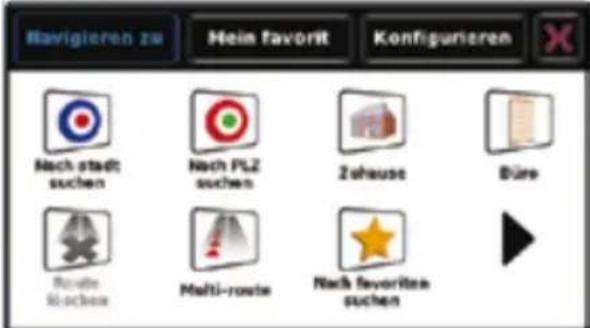

Bring up the main navigation menu by touching the centre of the display Select

Tip: The ▶ icon always means that there are more options to see on the next screen

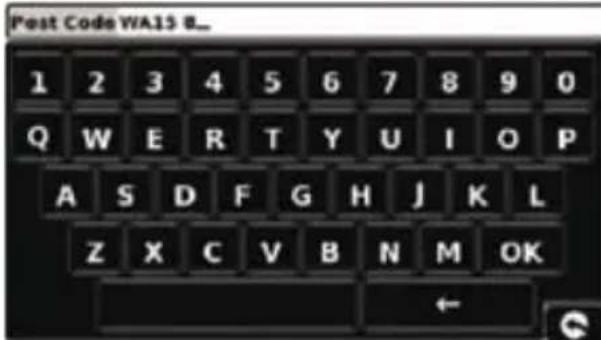

You will see a standard browser screen, used for entering postcodes. Enter the full UK postcode using the keyboard and press OK

Important: Use the ____ key to separate the two segments of the post code.

Tip: The default route options are set to 'Quickest Route'. To change the route options please refer to the full user manual on the CD ROM.

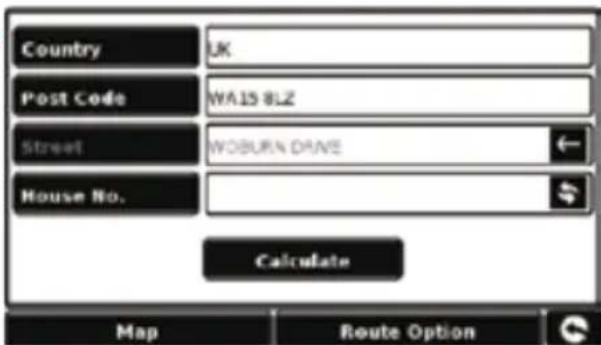

Press Calculate Truckmate will calculate the fastest route from your current position to your destination.

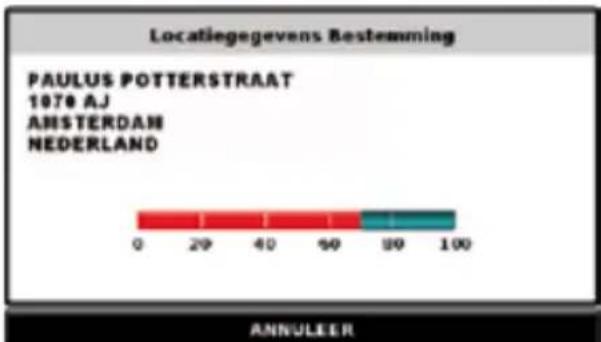

This should only take a few seconds and a progress bar is shown on the screen.

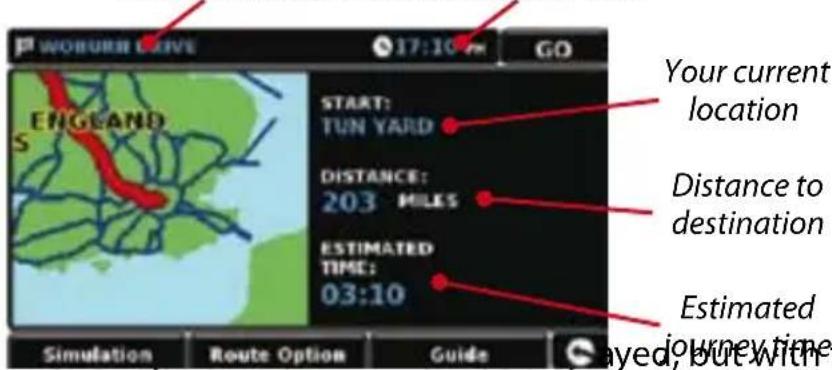

A journey summary screen will then be displayed.

Refer to the user guide on the CD ROM for a more detailed description of these features.

Navigate to My favourite Configure Find by city Find by post code Homo Office Clear route Multi-route Find by favourites

Post Code WA15 8... 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M OK ←

Country UK Post Code WA15 8LZ Street WO/URN DRIVE House No. Calculate Map Route Option

Final destination Estimated arrival time

WOBER DRIVE 17:10 PM GO ENGEAND START: TUN YARD DISTANCE: 203 MILES ESTIMATED TIME: 03:10 Your current location Distance to destination Estimated journey time Simulation Route Option Guide Stayed, but with

Select

ayed, but with the route now highlighted for you.

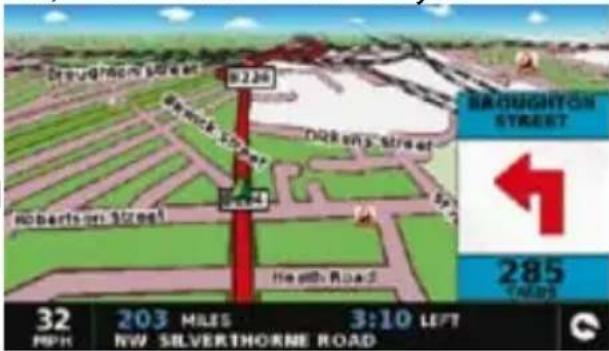

As you approach a specific turn in the calculated route, Truckmate will advise you what

to do. For example, "After 200 yards, turn left", followed by "Now turn left". As you proceed along your journey, following the voice instructions, you will notice that the navigation view is updated constantly, always showing approaching roads and junctions and presenting the best route to you.

BROUGHTON STREET 285 32 MPH 203 MILES 3:10 LEFT NW SILVERTHORNE ROAD

Tip: If you miss a turn or drive down a wrong road, a new fastest route will be calculated automatically,

based on your new position and direction of travel, a tone will be heard to confirm re-routing. Truckmate will always give you clear instructions that will take you to your chosen destination.

5. Quick Start Guide to Navigation using the name of a town or city and the road name.

If you do not know your post code of the destination you can calculate a route using just the road name and the name of the town or city. To do this,

simply press the centre of the screen to access the 'Menu' and then press the Enter icon. Find By City

the 'Country' first, then the town or city name and then enter the road name following the on-screen prompts and keyboard. Once you have found the address press the 'Calculate' button.

6. Quick Menu

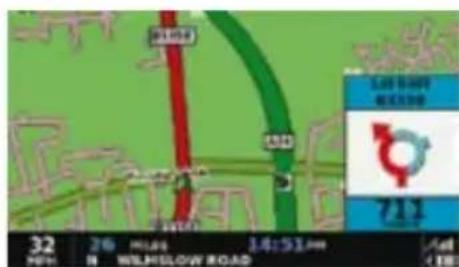

If at any time you want to adjust the units' volume, screen brightness, mute an alert, switch between day and night modes or between the 2D and 3D screen views you can do so by touching the screen at the top. This will display the Quick Menu, which will be displayed for approximately 2 seconds. Simply touch the feature you require from the information bar displayed. The Quick Menu will automatically close if no features are selected.

3D AH Elev Green MADEN 711 26 MILES 14:51PM MPH N WILMSLOW ROAD 32 MPH Will CHE

7. Using the Multi-route Function

With Truckmate you have the facility to enter more than one destination at a time (for instance if you wish to visit other locations before reaching your ultimate destination). You can store up to sixteen individual destinations. The unit will process and calculate the destinations in the following order: A to B, B to C, and C to D etc. When entering the destinations you are able to review the routes and change the order of the routes before pressing 'Go'

Navigate to My favourite Configure Find by city Find by post code Home Office Clear route Multi-route Find by favourites

Press the centre of the display to enter the 'Menu' and press the

Multi-route

icon. You will

then see the 'Multi-route screen' that allows you to either create a multi-route, use or edit a previously stored multi-route or delete a multi-route.

Create a Multi-route

• Press 'Create multi-route' to begin. A screen is displayed where you can edit the name of the multi-route, change the start point and add your destinations.

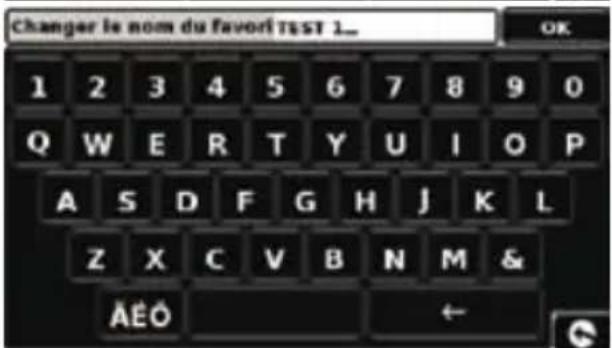

• Press 'Edit Name' to create a name for your new multi-route. Once you have created a name press the 'Save' button in the top right hand corner. (In the example on the right, we have called it 'Test 1')
• If you wish to change the start position of the multi-route, press 'Change Start' to change it. If you are happy with the start position, you can now begin to enter the data of your first destination.
• Press 'Add' – you are provided with several options to find your destination. For this example, select 'Find address by post code'.
• If you have the European version of Truckmate, you will need to select the 'Country' first BEFORE typing the postcode. After you have selected the correct country press 'Post Code'.
• Enter the postcode using the keypad that is displayed. If you make a mistake when entering the post code you can press the 'Arrow' key at the bottom of the keypad to erase the data and then re-type the information. When you have entered the correct postcode press the 'OK' button on the keypad.

Multi-route Create multi-route Delete multi-route

Multi-route Edit name TOFT ROAD ENITSFORD EMIGLAND Change start Add Save Calculate

Change favourite name TEST L_ Save 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M & AEO ←

Find address by city Find address by post code Find by POI Find by recently used

IMPORTANT: You must enter a space between the two sections of the postcode.

• Truckmate will then go back to the previous screen with the Country, Postcode and Street fields completed. You can also view this destination by pressing 'Map' at the bottom of the screen. Once you have entered the data press 'Set'.
• The destination will now appear in the multi-route screen. Repeat the steps above to enter further destinations.
• Once you have entered all your destinations press 'Save'.

Editing the Multi-route

If you wish to change the order or delete any of the multi-route destinations, press one of the destinations listed and some new options will appear near the bottom of the display.

- To move the selected destination press the 'UP' or 'Down' arrow.

To delete the destination press the 'Bin' icon. ●

To return to the destination list press the 'Return Arrow'. ●

Note: These functions only apply to the destination that you have selected. To edit the other destinations in the list press the 'Return Arrow' and select the new destination. Once you have made your desired changes press 'Save'.

Using the Multi-route

Now press 'Calculate' and Truckmate will calculate the route to each destination and provide a new summary screen with the distance to each destination along with the estimated duration of the journey to each destination from the start point.

- If you wish to view the calculated route on a map, press 'Map'.

If you wish to start using the Multi-route, press 'Go' ●

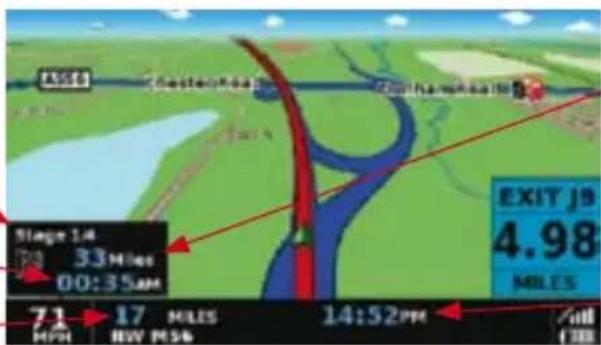

Truckmate will now display your current map position along with a small summary screen that displays the estimated journey time and distance to your first destination.

Stage 1/4 - indicates this is the first destination of the journey

Estimated time of arrival to first destination.

Distance to first destination

EXIT J5 Exit J5 4.98 MILES EXIT J5 Stage 14 P0 33 Miles 00:35AM 71 17 MILES MPH BWV MS6 14:52PM 1MB

Total distance of multi-route journey

Estimated time of arrival at the end of multi-route journey.

If, during the journey, you wish to cancel the current stage and begin travelling to the next stage in your multi-route journey press the summary screen and the message 'Delete current stage?' will be displayed. Press 'OK' and the unit will calculate your route to the next stage in the multi-route from your current position.

Note: If Truckmate is turned 'OFF' and then 'ON' during the multi-route journey the device will retain the current route and ask you if you wish to continue with the current destination or with the next stage of the destination or to cancel the multi-route.

8. TMC (Traffic Message Channel)

Mounting the Antenna

Plug the TMC antenna supplied in to the headphone socket on the side of the unit. Then attach the antenna to the windscreen using the suckers provided. The antenna should be stretched out in a horizontal position either along the base or top of the windscreen depending on where you have mounted the device itself.

TMC Icon

Once the unit starts to receive any TMC alerts one of the two following icons will appear on the main screen.

This icon appears if Truckmate has received TMC information but the delay or incident is not on your route.

This icon appears if the Truckmate has received TMC information and the delay or incident affects your plotted route.

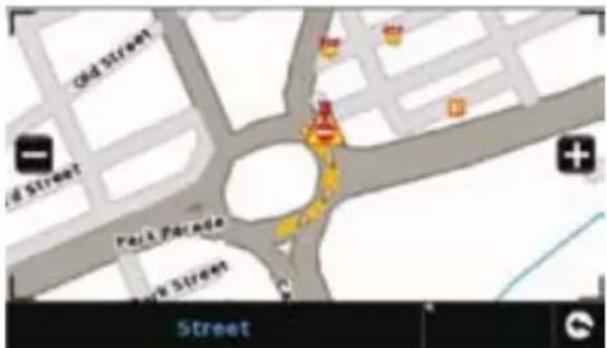

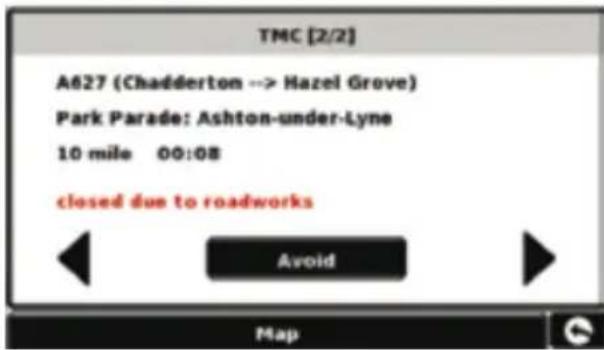

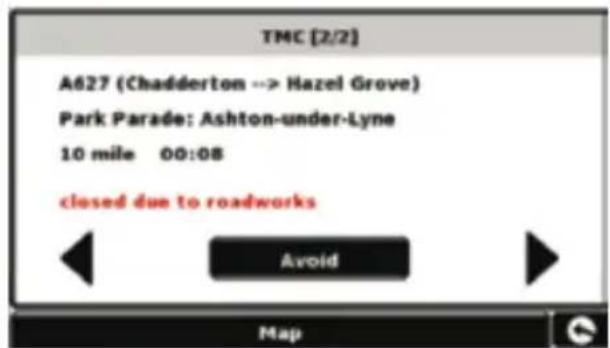

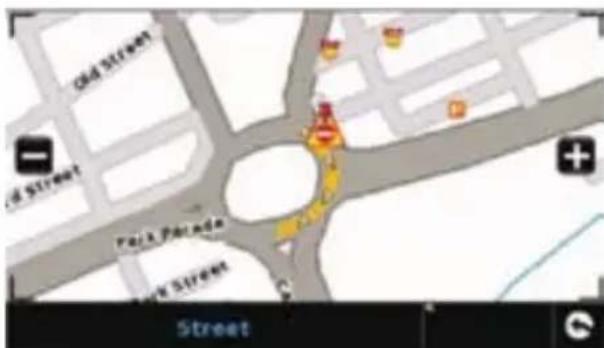

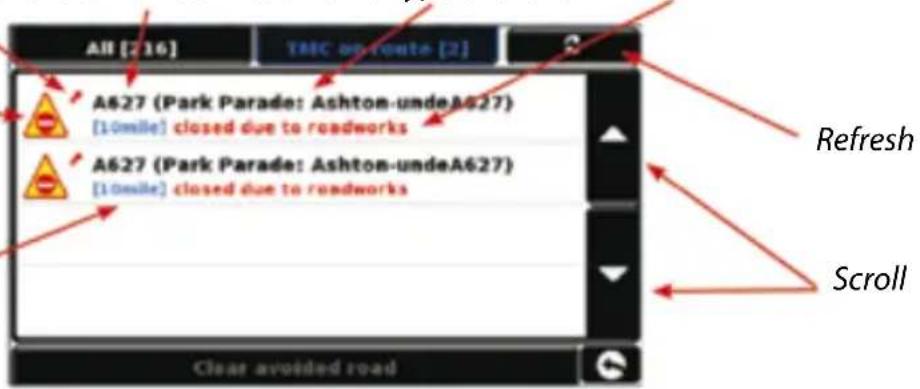

To show the TMC incident press the icon and the following screen is displayed:

Direction of event Road number Road name Type of event

Icon which will appear on map

Distance from the current location to the incident

All [216] TMC on route [2] A627 (Park Parade: Ashton-undeA627) [10mile] closed due to roadworks A627 (Park Parade: Ashton-undeA627) [10mile] closed due to roadworks Refresh Scroll Clear avoided road

To show TMC events which are NOT on your

route press

AR [216] TMC on route [2] AS4 (St Michael's Way: MiddIAS4) [8.3 mile] lateral closed AS4 (St Michael's Way: MiddIAS4) [8.3 mile] lateral closed A34 (Mancunian Way: ManchA34) [1 mile] closed due to roadworks M60 (J16 Pendlebury → J14 Swinton) [1 mile] traffic congestion, average speed of 25 mph Clear avoided road

To see a more detailed description press the TMC warning.

To avoid the incident press Avoid Truckmate will now calculate an alternative route.

To view the incident press

To return to to the previous screen press

If you want to return to the original route (not avoiding the incident) then press the TMC icon

TMC [2/2] A627 (Chadderton --> Hazel Grove) Park Parade: Ashton-under-Lyne 10 mile 00:08 closed due to roadworks Avoid Map

Old Street Old Street Park Pondera Park Street Street

and press

Clear avoided road

Truckmate will recalculate the

10. System Security Code

Truckmate incorporates pin code security protection so that only users with access to the pin code can use and operate the device. To activate the security code access the Menu by touching the centre of the screen, press the 'Configure' button. Next tap the 'System Security Code' icon and then select 'Yes' to switch the function on. Press the 'Enter Code' button and press the black arrow twice and enter the 4 digit code that you would like to use to protect your Truckmate and press 'OK'. Once this setting has been activated you will need to enter this code each time you power on your Truckmate or you will not be able to operate the device.

NB. It is important that you do not lose or forget this code. If you forget this code you will need to return your Truckmate so that the unit can be reset.

Configuration Security Code

It is also possible to protect the configuration settings using a security pin code. To activate the security code press the centre of the display to access the Menu, then press the 'Configure' button, press the black arrow twice and then press the 'Configuration Security Code' icon. Select 'Yes' to switch the function on. Press the 'Enter Code' button and enter the 4 digit code that you would like to use to protect the configuration settings and press 'OK'. Once this setting has been activated you will need to enter this code each time you want to amend the configuration settings on your Truckmate.

NB. It is important that you do not lose or forget this code. If you forget this code you will need to return your Truckmate so that the unit can be reset.

Register your Truckmate on-line and gain access to Snooper's comprehensive database of speed trap positions across Europe. Register now at www.snooperneo.co.uk.

System Requirements and Software Installation

Before you can begin to download the database onto the Truckmate, you will need to install the Truckmate Updater software provided on the CD ROM.

In order for the software to be installed successfully, there are certain minimum hardware and software requirements needed.

Hardware Requirements

The computer must have an Intel Pentium Class processor or equivalent, a minimum of 32MB of RAM, a monitor with 256 (8-bit) colours or greater, a CD ROM drive, 20MB of free disc space and a spare USB connection

Software Requirements

The software will only operate on the following Windows based operating systems: Windows 2000, Windows XP (32bit), Windows Vista and Windows 7, in addition, will only work with Internet Explorer 6 or Netscape Navigator 6 or above.

NOTE: The Truckmate Updater software does not support Windows 95, 98, Millennium or Apple Macintosh operating systems. Windows XP (64bit) systems is not supported.

Software Installation Instructions

Place the Software CD into a CD ROM or DVD drive. Your PC should automatically open a window displaying the instructions for installing the software. Follow the instructions onscreen to install the download software.

To launch the CD manually: Click on 'Start' and then 'Run'. In the dialogue box that opens click on 'Browse' – another dialogue box will open. Locate your CD ROM or DVD drive (drive letter is normally D) using the 'Look in' option and select 'Autorun' from the lower portion of the dialogue box. Once you have selected 'Autorun' click on 'Open' on the explorer box and then 'OK' on the Run dialogue box.

Please make sure that the operating system installs the new hardware before installing The Truckmate Updater software. YOU WILL NEED TO START THE UPDATER SOFTWARE MANUALLY THE FIRST TIME YOU USE IT. CLICK 'START', 'ALL PROGRAMS' THEN 'TRUCKMATE UPDATER'.

Any later software updates can be obtained from www.snooperneo.co.uk. If you have any problems using this software please call 0870 787 0700 during office hours and select Option 3.

Once the software is installed, you are ready to download the database onto Truckmate. The Truckmate Updater software runs automatically in the background. This is indicated by the 🧑 symbol, located in the system tray near the system clock.

Downloading the AURA™ Camera Database

Please Note: You must register Truckmate before you can perform a download.

Performing a download is simple.

Connect the AC Power adapter provided to a mains plug socket and attach the other 1. end to Truckmate in the power socket.

Power up Truckmate by pressing and holding the power button for 2 seconds and then 2. connect the computer to the Internet.

Right click on the 3. symbol located in the bottom right hand corner of your desktop in the system tray and left click 'Download Settings'.

Select the files you wish to download (UK Cameras is selected by default). Once you 4. have selected the files you wish to download left click the 'OK' button.

Connect the USB lead to your computer and plug the other end of the lead into the 5. Truckmate in the socket marked with a USB on the side of the unit.

The Truckmate software will then start to run automatically and download the database 6. files that you have selected onto your unit. The download process is as follows:

• The software will display the serial number of your Truckmate and a green progress bar will start to progress across the screen.
• The software will then connect to our database server and then download** the database
  ● Truckmate will then save the data received.

The software will indicate that the download is complete and will instruct you to ● disconnect Truckmate from your PC. Note: The software will shut down automatically after 5 seconds if you do not disconnect your unit as instructed.

**If you have a Firewall on your computer, the Firewall software may inform you that the Truckmate Updater software is trying to access the internet. Please make sure that you grant/allow/permit access to the Truckmate Updater program through the Firewall.

Please read the messages supplied by your Firewall software carefully before choosing your option. If you do not allow the program to access the internet through the Firewall, the download process will fail.

For a more detailed explanation of all the features of Truckmate, please refer to the full user guide situated on the software CD

Accessories & Price List

The following accessories are available from your local Snooper dealer. For further details please contact our sales department on 01928 579579 (Option 2).

European Mapping SD Card £149.99

Remote GPS extension antenna (5m) £34.99

In-car charger (24v/12v DC to 9v DC) adaptor £19.99

Straight hard wire lead with fuse (24v/12v to 9vDC) £19.99

Windscreen mounting bracket, excluding unit holder £24.99

USB PC Connection lead £9.99

Custom Pro Fit Bracket, including fixing plate * £34.99

1 - 3 Lighter socket extension £7.99

25ml anti-static LCD display cleaner & protector £7.99

240v to 12vDC mains charger £19.99

Snooper Truckmate protective carry case £14.99

*Pro Fit brackets are a custom-made bracket that usually attaches to an air vent and are designed specifically for each make and model of vehicle. Therefore you should contact Performance Products, on 01928 579579 (Option 2), to check the availability and specification of the bracket for your vehicle.

Vehicle Specific Professional Mounting Brackets

Snooper provide a range of custom fit brackets for our Truckmate satellite navigation systems. These brackets have been specifically designed to individually fit your vehicle and there is a bracket available to fit most trucks, coaches, buses and mobile homes on the market.

This bracket is particularly unique as you do not need to drill any holes in to your dashboard or centre console to install it. Depending on the vehicle the bracket either clips to the side of the centre console or to your vehicles air vents for a convenient trouble free installation.

Furthermore we can also now provide a 24V/12V to 9V 'hardwire' cable for your system. You can then connect Truckmate directly to the vehicles electrical system providing a discreet, professional installation.

To order a bracket and hardwire cable pack please call 01928 579579 (Option 2) with the make, model and year of your vehicle or speak to your local Snooper dealer.

Diagram of a car air intake system showing airflow path and component layout (no text or labels)

25·UK

KURzAn|EITUnG • DE

EINLEITUNG

Hand holding a black electrical plug inserted into a white wall socket (no text or symbols visible)

Person interacting with a tablet device (no visible text or symbols)

Aerial map view with labeled locations and a blue river, showing terrain features and road networks.

Str. M... MASCH MOISBURG 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M ←

8. TMC (Traffic Message Channel)

AB [218] TMC on route [2] A54 (St Michael's Way: MiddIA54) [8.1 mile] Senegal closed A54 (St Michael's Way: MiddIA54) [8.1 mile] Senegal closed A34 (Mancunian Way: ManchA34) [1 mile] closed due to readworks M60 (J16 Pendlebury → J14 Swinton) [1 mile] traffic congestion, average speed of 25 mph Clear avoided road

TMC [2/2] A627 (Chadderton --> Hazel Grove) Park Parade: Ashton-under-Lyne 10 mile 00:08 closed due to roadworks Avoid Map

Old Street Old Street Park Parade Park Street Street

Diagram of a car air intake system showing airflow paths and component layout (no text or labels)

49·DE

RéSUMé DU MoDE D'EMplol • FR • B

Hand holding a black electrical plug or switch against a white wall (no visible text or symbols)

26 miles 14:51 pm WELTLOW ROAD 711 0 MIN SOUTHWY NASSO

3D 2D Nord

SUN BATH MENI 714 32 NEW 20 HILK 1.6:53.000 WELMOLOW ROAD /Red /Red

Pac play Avenue Tale's Road 1800 83266 0.64 32 24 MILES 0:26 LEFT Add #F PARAY'S LANE 15

10:04

AM

32

Km/h

89 Km

Multi-route Create multi-route Delete multi-route

Multi-route Edit name TOFT ROAD KNUTSFORD, ANGLESTERE Change start Ajouter OK Calculus

Changer le nom du favori TEST 1... OK 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M & ÄEÖ ←

12. TMC (Traffic Message Channel)

AB [218] TMC on route [7] A54 (St Michael's Way: MiddIA54) [8.1mile] locked closed A54 (St Michael's Way: MiddIA54) [8.1mile] locked closed A34 (Mancunlan Way: ManchA34) [1.6mile] closed due to readworks M60 (J16 Pendlebury → J14 Swinton) [1.6mile] traffic congestion, average speed of 25 mg Clear avoided road

TMC [2/2] A627 (Chadderton --> Hazel Grove) Park Parade: Ashton-under-Lyne 10 mile 00:08 closed due to roadworks Avoid Map

Old Street Old Street Park Pricado Park Street Street

Truckmate recalcule l'itinéraire

Black cable with a small circular connector attached, no visible text or symbols

Diagram of a car air intake system showing airflow path and component layout (no text or labels)

71·FR·B

Hand holding a black electrical component with a white wall, no visible text or symbols

Close-up of a black electronic device with a screen and 'SNOOPER' logo on the front panel (no readable text beyond branding)

28 0:58 Next HUAAGSTRAAT 99 GOLTER BENJAL SLAAD

3D 2D Noord

28 28-00 O. TEMPELEAA 0159 1,2 28

WOLTER HUJKEELSLAAN 88° 28 0:37 km N WOLTER HUJKEELSLAAN Aut 4.95

77·NL·B

10:04 AM

NW PAULUS POTTERSTRAAT

Vrachtwageinstelling.

Postcode 123_ 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M OK ←

Land NEDERLAND Postcode 1270 AJ Straat PAUUS POTTERSTRAAT Huisnr. Bereken Kaart Route-opties

Multi-route Create multi-route Delete multi-route

All [216] TBC on/onite [3] A627 (Park Parade: Ashton-undeA627) [10mile] closed due to roadworks A627 (Park Parade: Ashton-undeA627) [10mile] closed due to roadworks Clear avoided road Verversen Scrollen

A8 [216] TMC on route [2] A54 (St Michael's Way: MiddlA54) [8.1 mile] (tanseli) closed A54 (St Michael's Way: MiddlA54) [8.1 mile] (tanseli) closed A34 (Mancunian Way: ManchA34) [1 mile] closed due to roadworks M60 (J16 Pandlebury → J14 Swiston) [1 mile] traffic congestion, average speed of 25 miles Clear avoided road TMC [2/2] A627 (Chadderton --> Hazel Grove) Park Parade: Ashton-under-Lyne 10 mile 00:08 closed due to roadworks Avoid Map

Old Street Old Street Park Parade Park Street Street

Diagram of a car air intake system showing airflow path and component layout (no text or labels)

94·NL·B

WARNING 7.5t 424 yards 33 NEW NIV PROMED PARATHY SLOOPE

WARNING 14.6 440fps 33 N/W EVERHAM ROAD SICORE

97·ES

Advertencia

Subida pronunciada

Bajada pronunciada

Curva cerrada

Viento lateral

WARNING 7 120yds 33 NW PRINCESS FASHOUT SIOORE

Hand holding a black electrical plug or socket on a wall (no visible text or symbols)

0 MINI 26 miles 14:51 am WELMSLOW ROAD 7:12 Speedometer Max Speed Max Speed

3D 2D Norte

32 NR 26 PLUS B WELMILLOW ROAD 14:31 PM Sat (18)

2014 East Lake Avenue East Lake Road 32 24 MILES OF TEMPLE LANE 0:26 LEFT Mid 100 83106 0.64 WALTS

10:04 AM

Navigate to My favourite Configure Find by city Find by post code Home Office Clear route Multi-route Find by favourites

Navigate to My favourite Configure Bluetooth Brightness control Volume control Change language Setup POI Show POI Auto scale

2D/3D/ North Speed/ Time MPH/ KMH Arrival/ Remaining 2D View 3D View North

2D/3D/ North Speed/ Time HP/H/ KMI Arrival/ Remaining Display Time Display Speed 24H 12H ABC/FIC OK

0 50 100 Control Volume by +/- Key RESET TEST OK

Navigate to My favourite Configure Find by city Find by post code Home Office Clear route Multi-route Find by favourites

Post Code WA15 8L 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M OK ← Country UK Post Code WA15 8LZ Street WOBURN DRIVE House No. Calculate Map Route Option Information Of Destination WOBURN DRIVE ALTRINCHAM, WA15 8 ENGLAND 0 20 40 60 80 100 CANCEL

Droughton Street 82.26 Glenes 50% DUR STLE 50% ed Robertson Street Health Road BROUGHT ON STREET 285 TANS 32 MPH 203 MILES NW SILVERTHORNE ROAD 3:10 LEFT

Navigate to My favourite Configure Find by city Find by post code Home Office Clear route Multi-route Find by favourites

Multi-route Create multi-route Delete multi-route Multi-route Edit name TOFT ROAD ENRTSFORD,ENGLAND Change start Add Save Calculate Change favourite name TEST L_ Save 1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M & AEO ← Find address by city Find address by post code Find by POI Find by recently used

AE [218] TMC on route [2] A54 (St Michael's Way: MiddIA54) [8.1mile] lateral closed A54 (St Michael's Way: MiddIA54) [8.1mile] lateral closed A34 (Manchunian Way: ManchA34) [1kmile] closed due to roadworks M60 (j16 Pendlebury → j14 Swiston) [1kmile] traffic congestion, average speed at 25 mo Clear avondial road

Clear avoided road

Truckmate volverá a calcular la ruta original.

TMC [2/2] A627 (Chadderton --> Hazel Grove) Park Parade: Ashton-under-Lyne 10 mile 00:08 closed due to roadworks Avoid Map

Old Street Old Street Park Paddle Park Street Street

Diagram of a car air intake system showing airflow paths and component layout (no text or labels)

119·ES

SNOOPER

Performance Products Ltd

Cleaver House, Sarus Court, Manor Park, Runcorn WA7 1UL UK

www.snooper.eu
