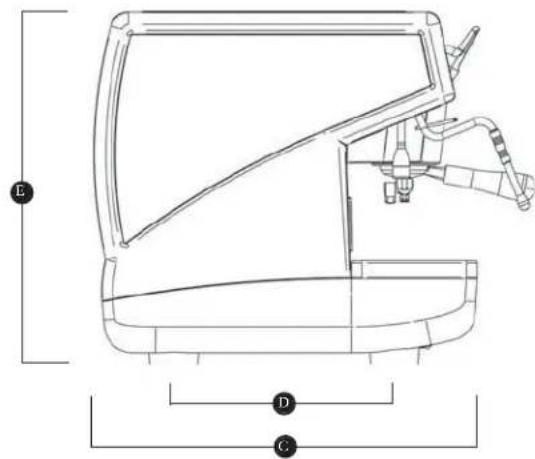

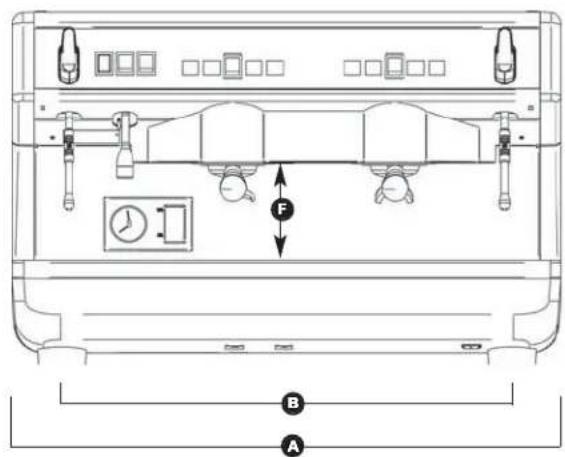

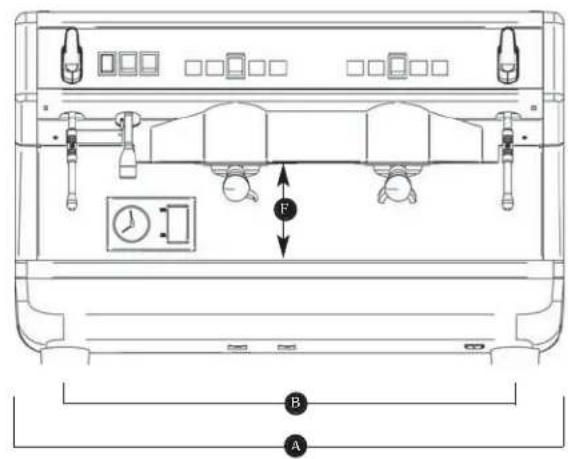

CARATTERISTICHE TECNICHE

Technical diagram of a device rear panel with labeled components and directional arrows indicating force application.

E D C

	2 Gruppi 3 Gruppi
PESO NETTO	60 kg 133 lb 74 kg 163 lb
PESO LORDO	65 kg	143 lb	80 kg	176 lb
POT. TERMICA	3000 W	3000 W	5000 W	5000 W
DIMENSIONI 785 mm 30	A	78" 1010 m	A39	A 78"
	B 690 mm 27	B 18" 920 mm	B6	B 316"
	C 545 mm 21	C 716" 545 mm	C21	C 716"
	D 370 mm 14	D 916" 370 mm	D14	D 916"
	E 530 mm 20	E 1316" 530 mm	E20	E 1316"
	F 135 mm 5	F 18" 135 mm	F	F 18"

Appia® MADE IN ITALY

INDICE

CARATTERISTICHE TECNICHE .....2

1. DESCRIZIONE ....5

1.1 LISTA ACCESSORI 6

1. PRESCRIZIONI DI SICUREZZA .....7

2. TRASPORTO E MOVIMENTAZIONE ....10

3.1 IDENTIFICAZIONE MACCHINA 10

3.2 TRASPORTO 10

Simple line drawing of a mountainous landscape with a cross symbol and a small object, no text or symbols present.

Simple electrical symbol icon with three parallel lines inside a circle (no text or labels)

Illustration of a hand cleaning an air conditioner with tools and a cloth (no text or symbols)

Simple line drawing of a landscape with mountains, trees, and a cross symbol (no text or labels)

Illustration of hands using a tool to switch a device into a washing machine (no text or symbols visible)

Diagram showing a mechanical device and a hand holding a tool, both without any text or symbols.

Close-up of a black mechanical component with a metallic knob and mounting bracket (no visible text or symbols)

Close-up of a hand holding a battery with circular arrows indicating rotation or cycle (no text or symbols)

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

Exterior view of a modern office building (no signage)

Close-up of industrial piping and valves in a mechanical assembly (no visible text or symbols)

Close-up of a Siemens Elastom with control panel and mechanical components (no readable text or symbols)

LEGENDA TASTI

Illustration of a hand using a magnifying glass to press a small object, labeled Fig. 23 (no text or symbols on the diagram itself)

Close-up of a stainless steel coffee machine with control panel and tray (no visible text or symbols)

Hand holding a small green object near a metallic fixture (no visible text or symbols)

Illustration of a hand pouring liquid from a bottle into a machine (no text or symbols)

Close-up of a hand using a tool to press a green plastic component, with no visible text or symbols.

By purchasing the you have made an excellent choice.

The purchase of a professional espresso coffee-maker involves various elements of selection: the name of the manufacturing firm, the machine's specific functions, its technical reliability, the option of immediate and suitable servicing, its price. You certainly evaluated all these factors and then made your choice: the Appia model.

We think you have made the best choice and after every coffee and cappuccino you will be able to assess this.

You will see how practical, convenient and efficient working with Appia is.

If this is the first time you have bought a Nuova Simonelli coffee machine, welcome to high quality coffee-making; if you are already a customer of ours, we feel flattered by the trust you have shown us.

Thanks of the preference.

With best wishes,

Exterior view of a modern microbeaver with dual levers and control buttons (no visible text or symbols)

Appia® MADE IN ITALY

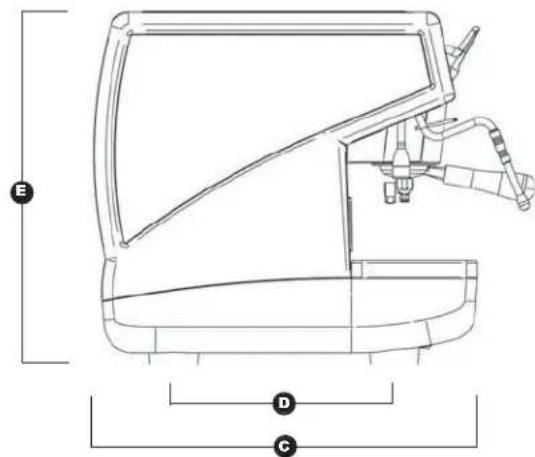

TECHNICAL CHARACTERISTICS

Technical diagram of a device rear panel with labeled components and directional arrows indicating force F

E D C

	2 Groups 3 Groups
NET WEIGHT	60 kg 133 lb	74 kg 163 lb
GROS WEIGHT	65 kg	143 lb	80 kg	176 lb
POWER 3000 W 3000 W 5000 W 5000 W
DIMENSIONS 785 mm	A	78" 1010 m	A89	A 78"
	B 690 mm 27	B 18" 920 mm	B6	B 316"
	C 545 mm 21	C 716" 545 mm	C21	C 716"
	D 370 mm 14	D 916" 370 mm	D14	D 916"
	E 530 mm 20	E 1318" 530 mm	E20	E 1318"
	F 135 mm 5	F 18" 135 mm	F	F 18"

Appia® MADE IN ITALY

INDEX

TECHNICAL CHARACTERISTICS .....24

1. DESCRIPTION .....27

1.1 ACCESSORIES LIST 28

1. SAFETY PRESCRIPTION .....29

2. TRANSPORT AND HANDLING .....32

3.1 MACHINE IDENTIFICATION 32

3.2 TRANSPORT 32

3.3 HANDLING 32

1. INSTALLATION AND PRELIMINARY

OPERATIONS 33

1. ADJUSTMENTS TO BE MADE BY A

QUALIFIED TECHNICIAN ONLY .....34

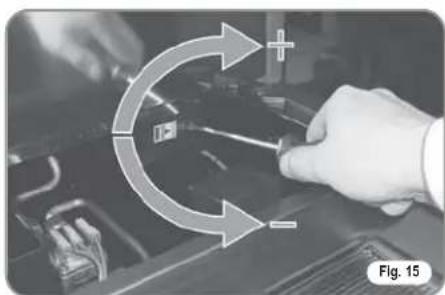

5.1 PRESSURE SWITCH ADJUSTMENT 34

5.2 PUMP ADJUSTMENT 34

5.3 HOT WATER ECONOMISER ADJUSTMENT (optional V/ESSE model) ....35

5.4 PUSH-BUTTONPANEL REPLACEMENT ....35

1. USE 36

6.1 APPIA V 36

6.1.1 SWITCHING THE MACHINE ON 36

6.1.2 SWITCHING THE MACHINE OFF 36

6.2 APPIA ESSE 36

6.2.1 SWITCHING THE MACHINE ON 36

6.2.2 SWITCHING THE MACHINE OFF 36

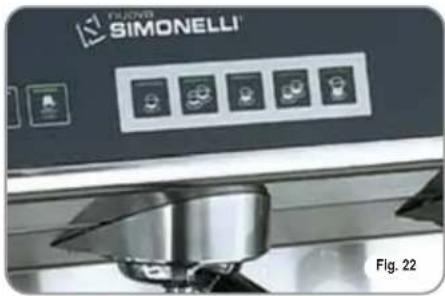

6.3 SELECTION CONFIGURATION 36

6.4 MAKING COFFE 37

6.5 USING STEAM 37

6.6 MAKING CAPPUCCINO 37

6.7 HOT WATER SELECTION ....37

1. PROGRAMMING APPIA V .....38

7.1 PROGRAMMING DOSES 38

7.2 PROGRAMMING COFFEE DOSES .....38

7.3 PROGRAMMING HOT WATER 38

7.4 PROGRAMMING THE CUP WARMER (optional) ....38

7.5 PROGRAMMING STANDARD DOSES....39

7.6 COPYING DOSE SETTINGS 39

7.7 PROGRAMMING OPERATING PARAMETERS .....39

7.8 AUTOMATIC GROUP CLEANING CYCLE .....40

1. CLEANING AND MAINTENANCE .....41

8.1 STOPPING THE MACHINE ....41

8.2 CLEANING THE OUTSIDE OF THE MACHINE .....41

8.3 CLEANING THE STAINLESS COFFEE-HOLDERS ...41

8.4 CLEANING THE UNIT WITH THE AID OF THE BLIND FILTER 41

8.5 CLEANING FILTERS AND FILTER-HOLDERS .....41

8.6 RESIN AND SOFTENER REGENERATION .....42

1. APPIA V MACHINE FUNCTION

MESSAGES 43

ELECTRIC SYSTEM APPIA

ESSE2/3 GR 46

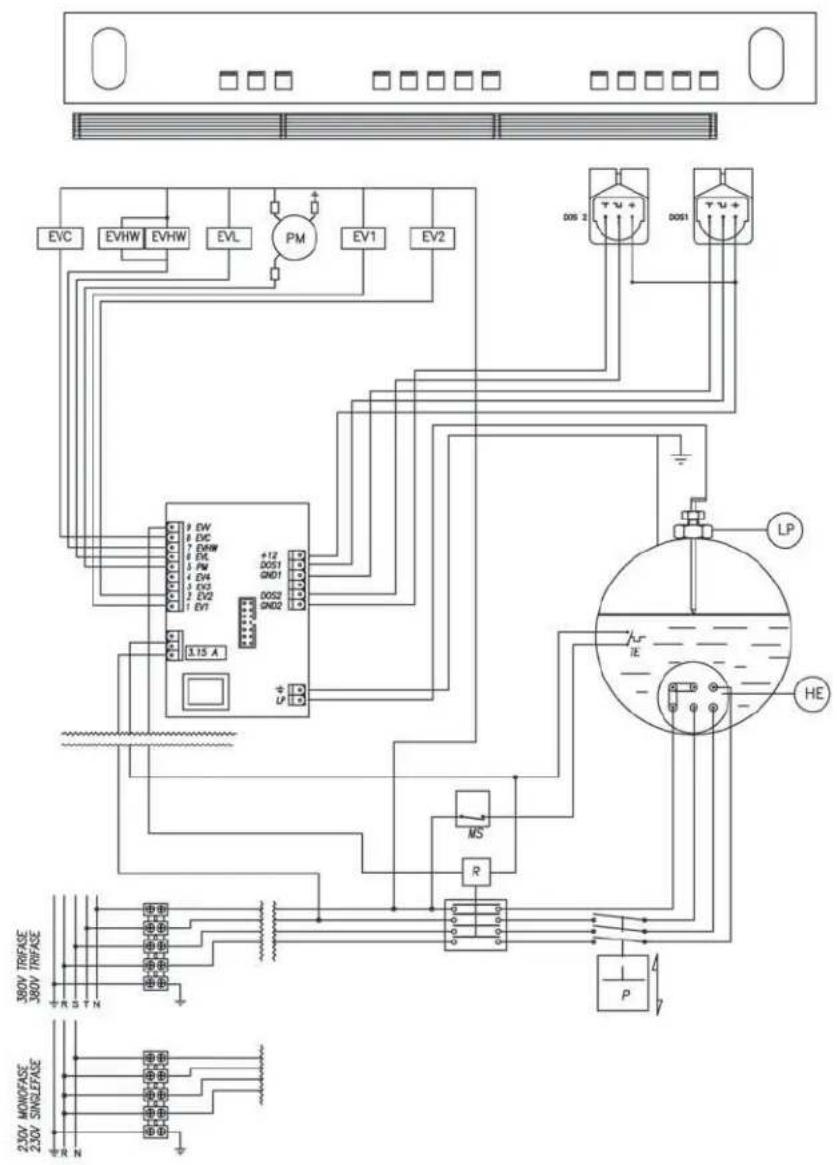

ELECTRIC SYSTEM APPIA

V 2 GR. 48

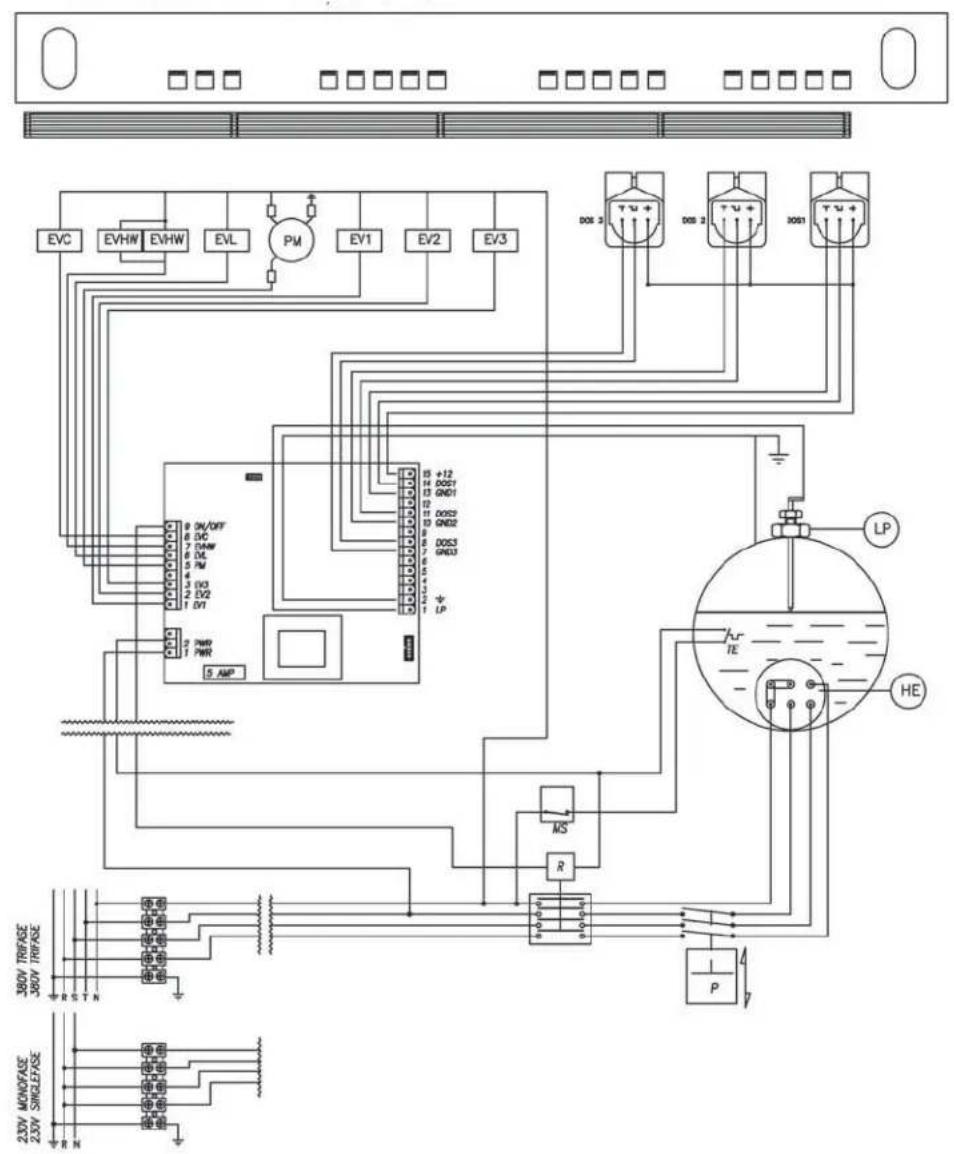

ELECTRIC SYSTEM APPIA

V 3 GR. 50

PLUMBING SYSTEM ....52

Appia® MADE IN ITALY

1. DESCRIPTION V - Esseia

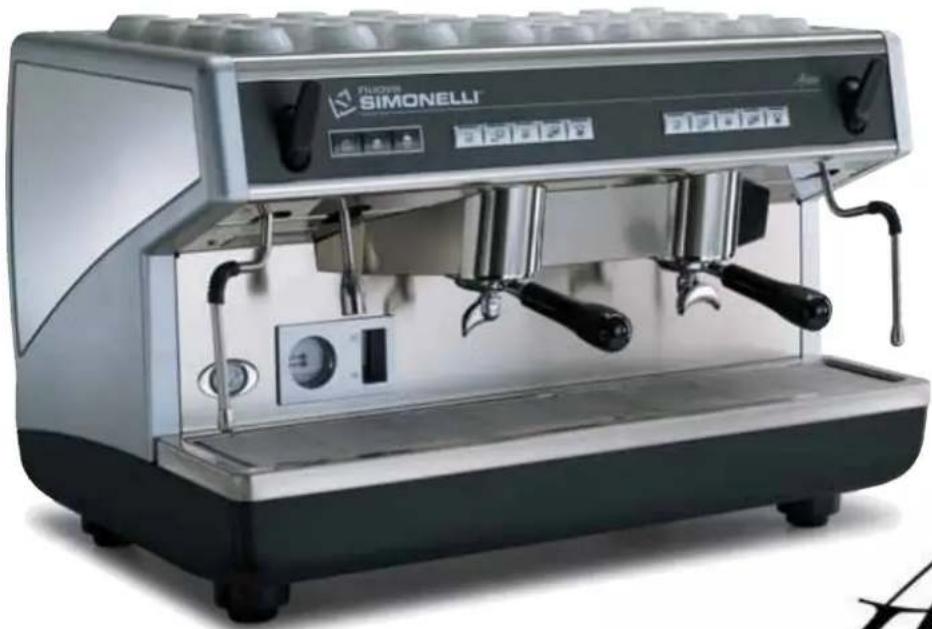

1 2 3 4 5 6 7 10 12 14 Fig. 1

KEY

1 Select buttons
2 Delivery buttons
3 Steam knob
4 Steam nozzle
5 Filter holder
6 Single delivery spout
7 Double delivery spout
8 Optical level

9 Pressure gauge
10 Adjustable foot
11 Hot water nozzle
12 Rating plate
13 Main switch
14 Cup warmer (optional)

1.1 ACCESSORIES LIST

A11 A05 A06 A04 A07 A03 A08 A10 A02 A01 Fig. 2

CODE DESCRIPTION QUANTITY
A01 Filling tube 38'' 1
A02 Waste pipe ∅ 25 mm - L. 150 cm 1
A03 Filter-holder 2
A04 Double filter 1
A05 Single filter 1
A06 Blind filter 1
A07 Spring 1
A08 Double delivery spout 1
A09 Single delivery spout 1
A10 Coffee presser 1

2. SAFETY PRESCRIPTION

This book is an integral and essential part of the product and must be given to the user. Read this book carefully. It provides important information concerning safety of installation, use and maintenance. Save it carefully for future reference.

After unpacking, make sure the appliance is complete. In case of doubts, do not use the appliance, but consult a qualified technician. Packaging items which are potentially dangerous (plastic bags, polystyrene foam, nails, etc.) must be kept out of children's reach and must not be disposed of in the environment.

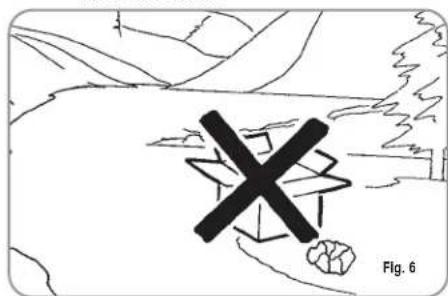

RISK OF POLLUTION Fig. 3

Before connecting the appliance make sure the rating plate data correspond with the mains. This plate is on the front panel at the top right hand side of the appliance. The appliance must be installed by qualified technicians in accordance with current standards and manufacturer's instructions.

The manufacturer is not liable for any damage caused due to failure to ground the system. For the electrical safety of the appliance, it is necessary to equip the system with the proper grounding. This must be carried out by a qualified electrician who must ensure that the electric power of the system is sufficient to absorb the maximum power input stated on the plate.

Simple electrical symbol icon with a plus sign inside a circle, labeled 'Fig. 4' (no text or numbers on the symbol itself)

In particular you must ensure that the size of the wiring cables is sufficient to absorb power input.

The use of adapters, multiple sockets or extensions is strictly forbidden. If they prove necessary, call a fully qualified electrician.

For appliances powered at 220 -230 V, the maximum impedance from the mains must be no higher than 0.37 Ohm.

When installing the device, it is necessary to use the parts and materials supplied with the device itself. Should it be necessary to use other parts, the installation engineer needs to check their suitability for use in contact with water for human consumption.

The machine must be installed in compliance with the local health standards in force for plumbing systems. Therefore, contact an authorized plumber.

The device needs to be supplied with water that is suitable for human consumption and compliant with the regulations in force in the place of installation. The installation engineer needs confirmation from the owner/manager of the system that the water complies with the requirements and standards stated above.

The machine must be installed according to the local standards in force with regard to plumbing systems. For this reason, the plumbing connections must be carried out by a qualified technician.

This appliance must only be used as described in this handbook. The manufacturer shall not be liable for any damage caused due to improper, incorrect and unreasonable use.

This appliance is not suitable for use by children or persons with reduced physical, sensory or mental capabilities, or by persons with a lack of experience or knowledge, unless supervised or given instructions.

The maximum and minimum storage temperatures must fall within a range of [-5, +50]^ .

The operating temperature must be within the range of [+5, +35] °C.

At the end of installation, the device is switched on and taken to rated operating conditions, leaving it in a state in which it is "ready for operation".

The device is then switched off and the whole hydraulic circuit is bled of the first lot of water in order to remove any initial impurities.

The device is then refilled and taken to rated operating conditions.

After reaching the "ready for operation" condition, the following dispensing operations are carried out:

- 100% of the coffee circuit through the coffee dispenser (for more than one dispenser, this is divided equally);

- 100% of the hot water circuit through the water dispenser (for more than one dispenser, this is divided equally);

- opening of each steam outlet for 1 minute.

At the end of installation, it is good practice to draw up a report of the operations.

WARNING

The power cord may only be replaced by a Qualified Electrician, using an Original Replacement fitted with special earth wire, which is available from Authorised Assistance Centres.

WARNING

For machines not equipped with plugs to fit the mains power socket, it is necessary to fit the system with a disconnector to disconnect each phase.

Basic rules must be observed when using any electric appliance.

In particular:

• do not touch the appliance when hands or feet are wet;

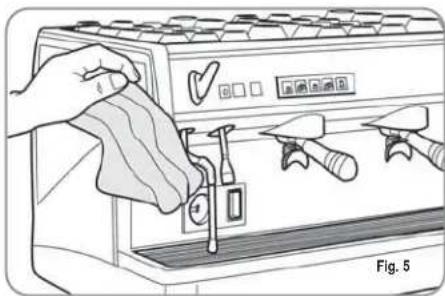

CAUTION RISK OF ELECTRIC SHOCK

• do not use the appliance when barefoot;
• do not use extensions in bath or shower rooms;
• do not pull the supply cord out of the socket to disconnect it from the mains;
- do not leave the appliance exposed to atmospheric agents (rain, sun, etc.);
- do not let the appliance be used by children, unauthorised staff or staff who have not read and fully understood the contents of this handbook.

Before performing any maintenance operation, the authorised service engineer must switch off the machine switch and unplug the machine or open the disconnector.

For all cleaning operations comply exclusively with the instructions given in this booklet.

Illustration of a hand cleaning a washing machine with tools and a cloth (no text or symbols)

If the appliance breaks down or fails to work properly, switch it off. Any intervention is strictly forbidden. Contact qualified experts only.

Repairs should only be made by the manufacturer or authorized service centres. Only original spare parts must be used. Failure to observe the above, could make the appliance unsafe.

For installation, the qualified electrician must fit an omnipolar switch in accordance with the safety regulations in force and with 3 (0,12) or more mm (in) between contacts.

To avoid dangerous overheating, make sure the supply cord is fully uncoiled.

Do not obstruct the extraction and/or dissipator grids, especially of the cup warmer.

The user must not replace the appliance supply cord. If the cord is damaged, switch off the appliance and have a qualified technician change the cord.

Single-phase appliances with current above 15 A and three-phase appliances sold without plugs are directly wired to the mains power and therefore, it is not possible to use a plug.

If no longer using the appliance, we recommend making it inoperative; after removing the plug from the mains electricity, cut the power supply cable.

CAUTION RISK OF POLLUTION

Do not dispose of the machine in the environment: to dispose of the machine, use an authorised centre, or contact the manufacturer for relative information.

Simple line drawing of a landscape with a cross symbol and a rock, no text or symbols present

CAUTION RISK OF INTOXICATION

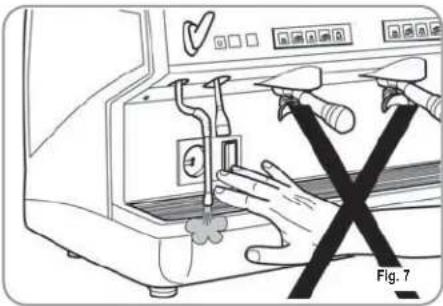

Use the steam nozzle with care and never place hands below the jet of steam. Do not touch the nozzle immediately after use.

Illustration of a hand using a tool to clean or store items from a machine (no text or symbols visible)

CAUTION RISK OF BURNS OR SCALDING

We remind you that before carrying out any installation, maintenance, unloading or adjustment operations, the qualified operator must put on work gloves and protective footwear.

The maximum noise disturbance level is lower than 70db.

If the pipe connecting to the mains water is replaced the old pipe must never be re-used.

CAUTION

INFORMATION TO THE USERS

Under the senses of art. 13 of Law Decree 25th July 2005, n. 151 "Implementation of the Directives/ Guidelines 2002/95/CE, 2002/96/CE and

2003/108/CE, concerning the reduction of the use of dangerous substances in electric and electronic equipment, as well as the disposal of wastes".

The symbol of the crossed large rubbish container that is present on the machine points out that the product at the end of its life cycle must be collected separately from the other wastes. The user for this reason will have to give the equipment that got to its life cycle to the suitable separate waste collection centres of electronic and electrotechnical wastes, or to give it back to the seller or dealer when buying a new equipment of equivalent type, in terms of one to one. The suitable separate waste collection for the following sending of the disused equipment to recycling, the dealing or handling and compatible environment disposal contributes to avoid possible negative effects on the environment and on the people's health and helps the recycling of the materials the machine is composed of. The user's illegal disposal of the product implies the application of administrative fines as stated in Law Decree n.22/1997" (article 50 and followings of the Law Decree n.22/1997).

3. TRANSPORT AND HANDLING

3.1 MACHINE IDENTIFICATION

Always quote the machine serial number in all communications to the manufacturer, Nuova Simonelli.

NUOVB SIMONELLI express coffee machines S.N. DATE APPIA COMPACT H L 110-120 V- APPIA V S 208-240 V- AURELIA PLUS 220-230 V- GR. 1 2 3 4 50 60 Hz 360-400 V 3N- MAX PRESSURE 0.18MPa MAX OPERATING PRESSURE 0.165MPa MAX INLET PRESSURE 0.65MPa 1500 W 1800 W 2600 W 3000 W 4500 W 5200 W 6000 W BELFORTE DEL CHIENTI (MC) MADE IN ITALY Fig. 8

3.2 TRANSPORT

The machine is transported on pallets which also contain other machines - all boxed and secured to the pallet with supports.

Prior to carrying out any transport or handling operation, the operator must:

- put on work gloves and protective footwear, as well as a set of overalls which must be elasticated at the wrists and ankles.

The pallet must be transported using a suitable means for lifting (e.g., forklift).

3.3 HANDLING

CAUTION RISK OF IMPACT OR CRASHING

During all handling operations, the operator must ensure that there are no persons, objects or property in the handling area.

The pallet must be slowly raised to a height of 30 cm (11,8 in) and moved to the loading area. After first ensuring that there are no persons, objects or property, loading operations can be carried out.

Upon arrival at the destination and after ensuring that there are no persons, objects or property in the unloading area, the proper lifting equipment (e.g. forklift) should be used to lower the pallet to the ground and then to move it (at approx. 30 cm (11,8 in) from ground level), to the storage area.

CAUTION RISK OF IMPACT OR CRASHING

Before carrying out the following operation, the load must be checked to ensure that it is in the correct position and that, when the supports are cut, it will not fall.

The operator, who must first put on work gloves and protective footwear, will proceed to cut the supports and to storing the product. To carry out this operation, the technical characteristics of the product must be consulted in order to know the weight of the machine and to store it accordingly.

4. INSTALLATION AND PRELIMINARY OPERATIONS

After unpacking, assess that the machine and its accessories unit are complete, then proceed as follows:

• place the machine so that it is level on a flat surface;

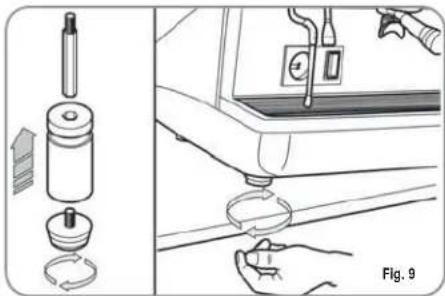

• assemble its supporting feet by inserting the insert into the cylindrical unit;
• twist the rubber foot into the screw thread inside the unit;
• screw the whole assembled unit into the allotted setting for the machine's adjustable feet;
  • level the machine by regulating the adjustable feet;

NOTE: the unit grooves have to face upwards, as shown in the following illustration.

Illustration showing a hand using a tool to clean a car's dashboard, with no visible text or symbols.

It is advisable to install a softener (1) and then a mesh filter (2) on the external part of the plumbing system, during preliminaries and after levelling the machine. In this way impurities like sand, particles of calcium, rust etc will not damage the delicate graphite surfaces and durability will be guaranteed. Following these operations, connect the plumbing systems as illustrated in the following figure.

WARNING

Recommended mains pressure for the water is [2.3] bar.

WARNING

Avoid throttling in the connecting tubes. Assess that the drain pipe (3) is able to eliminate waste.

1 2 3 Fig. 10

KEY

1 Softener
2 Mesh filter
3 Drain ∅ 50 mm

NOTE: For a correct functioning of the machine the water works pressure must not exceed 4 bars.

Otherwise install a pressure reducer upstream of the softener; the internal diameter of water entrance tube must not be less than 6mm (3/8").

CAUTION RISK OF SHORT CIRCUITS

The machine must always be protected by an automatic omnipolar switch of suitable power with contact openings of equal distance or more than 3mm.

Nuova Simonelli is not liable for any damage to people or objects due to not observing current security measures.

Prior to connecting the machine to the electrical mains, assess that the voltage shown on the machine's data plate corresponds with that of the mains.

If it does not, carry out the connections on the basis of the available electrical line, as follows:

• for V 380 / 3 phases voltage +Neutral:

L1 L2 L3 N T 1 2 3 4 5 Fig. 11

• for V 230 / monophase voltage

L1 L2 L3 N T 1 2 3 4 5 Fig. 12

KEY

1 Black
2 Grey
3 Brown

4 Blue
5 Yellow-green

NOTE: At the start of the day's activities and in any case, if there are any pauses of more than 8 hours, then it is necessary to change 100% of the water in the circuits, using the relevant dispensers.

NOTE: In case of use where service is continuous, make the above changes at least once a week.

5. ADJUSTMENTS TO BE MADE BY A QUALIFIED TECHNICIAN ONLY

CAUTION

The adjustments listed here below must ONLY be performed by a Specialist Technical Engineer.

Nuova Simonelli cannot be held liable for any damage to persons or property arising from failure to observe the safety instructions supplied in this manual.

CAUTION ELECTRIC SHOCK HAZARD

Before performing any operation, the specialist technical engineer must first switch off the main switch off and unplug the machine.

5.1 FILLING BOILER MANUALLY

All models Appia are equipped with a level gauge to keep the water level inside the boiler constant.

When using the machine for the first time, it is advisable to fill the boiler by hand to avoid damaging the electrical resistor and turning on the electronic protection.

If this should happen, just turn the machine off and then start it up again to complete its loading procedure (see chapter "MACHINE FUNCTIONS MESSAGE – LEVEL ERROR").

To fill the boiler manually for the first time, proceed as follows:

- remove the worktop grid;

- turn the manual "A" level tap so that water will enter the boiler; - once the maximum level has been reached, as indicated by the optical level, turn tap "A" off;

A MAX MIN Fig. 13

- switch the machine on by placing the general switch on "I"; this will activate the level gauge which will automatically maintain the water level inside the boiler.

5.2 PRESSOSTAT/PUMP ADJUSTMENT

To adjust the service pressure of the boiler, thus regulating the water temperature, according to the various functions and needs of the coffee desired, proceed as follows:

- remove the worktop grid cover; - remove the protective metal sheet by unscrewing the two side screws (A) as shown in the following illustration;

Close-up of a black mechanical component with a small circular feature and a scale marker, labeled Fig. 14 (no text or symbols on the main subject)

- turn the pump registration screw, turning it clockwise to INCREASE and counter clock wise to DECREASE the pressure.

Hand holding a device with directional arrows indicating rotation or cycle (no text or symbols)

Advisable pressure: 1 - 1,4 bar (according to the kind of coffee).

- turn the pump registration screw, turning it clockwise to INCREASE and counter clockwise to DECREASE the pressure.

Close-up of a mechanical assembly with no visible text or symbols

Advisable pressure: 9 bar.

- The set pump pressure is shown on the lower part of the gauge.

MAX MIN Fig. 17

Once the adjustment operation has been completed, screw the protective metal sheet back into its setting and replace the worktop grid cover.

5.3 HOT WATER ECONOMISER ADJUSTMENT (optional V/ESSE model)

All models are fitted with a hot water mixer that can be used to adjust the delivery temperature of the water and therefore, to optimise system performance.

To adjust the hot water economiser, it is necessary to remove the left-hand panel of the machine, proceeding as follows:

- loosen the two top screws (Fig. 18);

Close-up of a metallic ceiling structure with two circular cutouts and a grid-patterned floor (no text or symbols visible)

- loosen the screw beside the steam nozzle A; - press the knob B and remove the left-hand panel.

B A Fig. 19

- to adjust the temperature of the hot water delivered from the nozzle, turn the register knob CLOCKWISE / ANTICLOCKWISE to INCREASE / REDUCE the temperature;

Close-up of industrial piping and valves with blue components, labeled Fig. 20 (no readable text or symbols)

- when this operation is complete, fit the left-hand panel back onto the machine.

5.4 PUSH-BUTTON PANEL REPLACEMENT

For correct functioning of the machine, personalising each button panel card at time of replacement is necessary; proceed as follows on the selectors placed on the card (on the key side).

GROUP	sw1	sw2	sw3	sw4	sw5	sw6
Group 1	On	Off	Off	On	Off
Group 2	Off	On	Off	Off	On	Off
Group 3	Off	Off	On	Off	Off	On

NUOVA SIMONELLI

6. USE

Before starting to use the appliance, the operator must be sure to have read and understood the safety prescriptions contained in this booklet.

6.1 APPIA V

6.1.1 SWITCHING THE MACHINE ON

• Plug the machine into the mains power socket.
• Set the main switch (no. 13, Fig 1) to "ON".

Fig. 21

The LED of the on key will begin to flash.

Hold down the on key for 5 seconds.

At this point, the Flash-test will begin; this is where all LEDs are switched on for three seconds, after which the test is complete and the hot water key will switch off.

The fact that the machine is operating is shown by the LED of the on switch and all delivery keys, which remain lit.

NOTE: all selection keys are enabled from the end of the diagnostic operation.

WARNING

When servicing the electronic machine card, switch off the machine using the external main switch and unplug the power cord.

6.1.2 SWITCHING THE MACHINE OFF

• To switch off the machine, hold down the on/off key for about 2 seconds.
The machine will switch off and the LED on the on/off key will start to flash again.
- Set the main switch to "OFF".

6.2 APPIA ESSE

6.2.1 SWITCHING THE MACHINE ON

- Plug the machine into the mains power socket and set the main switch to "I".

6.2.2 SWITCHING THE MACHINE OFF

- Set the main switch to "O".

6.3 SELECTION CONFIGURATION

Set the desired function on the available keys placed above the filter-holders (see chapter "DESCRIPTION").

SIMONELLI Fig. 22

BUTTONS KEY

(Selection configuration)

1 small coffee

2 small coffees

1 long coffee

2 long coffees

Continuous

6.4 MAKING COFFEE

Unhitch the filter-holder and fill it with one or two doses of ground coffee depending on the filter used.

Illustration of a hand using a magnifying glass to press a small object, labeled Fig. 23 (no text or symbols on the diagram itself)

Press the coffee with the provided coffee presser, dust off any coffee residue from the rim of the filter (this way the rubber gasket will last longer).

Insert the filter in its unit.

Press the desired coffee button:

1 small coffee

2 small coffees

1 Caffè lungo

2 long coffees

By starting up the coffee brewing procedure the unit's pump is activated and the unit's solenoid valve is opened.

By pressing it, the button will turn on and signal the operation

NOTE: when in pause, leave the filter-holder inserted in the unit so that it will keep warm. To guarantee the utmost thermic stability during use, the delivery units are thermo-compensated with complete hot water circulation.

6.5 USING STEAM

CAUTION RISK OF BURNS OR SCALDING

While using the steam nozzle, you must pay attention to not place your hands beneath it or touch just after it has been used.

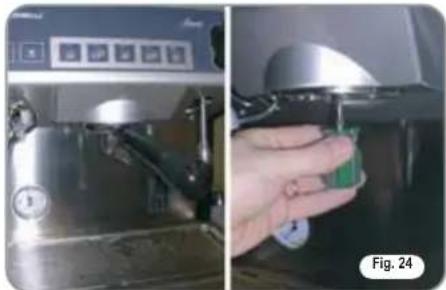

To use steam just pull or push the provided lever (Fig. 24).

By pulling it completely the lever will hold a position of maximum delivery; by pushing it, the lever will automatically give way.

The two steam nozzles are articulated to guarantee their easy use.

Two-panel image showing a kitchen appliance with control panel and hand holding a green component, no visible text or symbols.

NOTE: Before using the steam wand, always bleed out any condensation for at least 2 seconds or according to the manufacturer's instructions.

6.6 MAKING CAPPUCCINO

To obtain the typical cappuccino foam, immer-se the nozzle all the way into a container 1/3

full of milk (preferably cone-shaped). Turn on the steam. Before the milk starts to boil, pull the nozzle slightly up and lightly move it vertically across the surface of the milk. When you have completed the procedure, clean the nozzle carefully with a soft cloth.

Illustration of a kitchen sink with hands using spray guns and a jar, showing airflow direction (no text or symbols)

6.7 HOT WATER SELECTION

CAUTION RISK OF BURNS OR SCALDING

While using the hot water nozzle, pay careful attention not to place your hands beneath it or touch it just after it has been used.

This nozzle delivers hot water to make tea or herb teas.

Place a container underneath the hot water nozzle and press the switch (ESSE model) or press the hot water select button (V model).

Make sure the button lights up.

Water will be delivered from the hot water nozzle for as long as the set time indicates.

NOTE: Hot water can be delivered at the same time as coffee.

7. PROGRAMMING Appia V

7.1 PROGRAMMING DOSES

To access the programming units, proceed as follows:

NOTE: the procedure can be carried out with the machine on.

• To enter the programming function for each group, it is necessary to hold down the continued delivery key for 5 seconds

• The delivery keys will begin to flash.
- Accessing the programming mode for the first group also enables the setting mode for the machine's operating parameters.

7.2 PROGRAMMING COF-FEE DOSES

To programme the amount of water for each of the delivery keys, proceed as follows:

• fill the filter holder with the right amount of coffee (the double or single filter holder can be used, according to the key to be programmed).
• Place the filter holder in the group.
• Press one of the delivery keys:

- The machine will begin to dispense and once the required quantity has been delivered, press the continued key.

• Delivery will cease and the selected dose key will switch off (the other keys will continue to flash).
• Press the continued key to exit the programming function or to continue programming other dose keys

NOTE: This procedure can be used for all groups on the machine, although it must be performed on one group at a time; the other groups will continue to operate as normal.

7.3 PROGRAMMING HOT WATER

• Use the relevant procedure to enter the programming function.
• Press the hot water selection key

• Hot water delivery will begin
- Decide the required amount of hot water and then press the key again

(1)

- Press the continued key to exit the programming function or to continue programming other selection keys.

7.4 PROGRAMMING THE CUP WARMER (optional)

• Enter the programming mode for the first group following the usual procedure.
• Press the cup warmer select key

• The delivery buttons for the first and second group will respectively show the automatic switch on and off times, while the continuous keys for the first and second group

will flash.

As shown in the table, each of the delivery keys has an associated value; the switch on time for the cup warmer is given by summing the values for the lit keys of the first group. The same calculation method is used for the switch off time of the cup warmer, using the keys of the second group.

Key

Group 1(on time)

Group 2(off time)

7.5 PROGRAMMING STAN- DARD DOSES

- It is possible to enter pre-set values for the 4 group doses and water (steam).

To do this, it is necessary to press the key and hold it down for at least 10

seconds until the flashing keys switch off.

The doses are:

1CN 2CN 1CL 2CL
40 cc 60 cc 50 cc		85 cc

WATER

9 sec.

NOTE: A time setting of 0 seconds for steam and water means this function will work continually.

7.6 COPYING DOSE SETTINGS

It is possible to copy the dose settings for group 1 to groups 2 or 3.

To do this, hold down the continuous key of the group 2 or 3 for at least 8

seconds until the keys stop flashing.

7.7 PROGRAMMING OPERATING PARAMETERS

CAUTION

The adjustments listed here below must ONLY be performed by a Specialist Technical Engineer

If you hold down the key of the second group, after first entering the programming mode for the first group, this will access the machine parameters setting mode; this is signalled by the continuous key for

the second group, which will switch on.

1. Enabling the pump if the level is enabled.
2. Enabling the software block to enter the dose programming function.
3. Adjusting keypad brightness.
4. Enabling the hot water pump (on machines fitted with economiser).
5. Disenabling the cup warmer
6. Restoring default settings.

1. Enabling the pump during levelling.

Use the espresso key to set pump enabling during levelling:

if the key is lit, the pump is enabled

together with the level; if it is switched off, the pump is not enabled with the level function.

1. Enabling the software block to enter the dose programming function.

Use the long coffee key to enable a software block to programme doses (key lit) or to de-activate the block (key off).

1. Adjusting keypad brightness..

The 2 long coffees key of the second group is used to choose the key brightness setting from 5 pre-set levels.

Use the 📄 key, which will flash, to change the level, lowering it to minimum or returning it to maximum.

1. Enabling the hot water pump (machines fitted with economiser only).

Use the hot water key to set the pump to switch on while hot water is being delivered.

If the key is lit, the pump will switch on while hot water is being delivered; if it is switched off, the pump will not switch on.

5. Disenabling the cup warmer..

Use the key to enable or disenable cup warmer operation. If the key is lit, the cup warmer will operate normally as set during programming; if the key is switched off, the cup warmer is disenabled.

disenable

NUOVA SIMONELLI

If the cup warmer is not enabled, the

key will only switch on during the Flash-test, after which this key will have no effect when pressed.

Press the continuous key of the second group to store the modified values and exit the page for setting machine operating parameters.

6. Restoring default settings

It is possible to restore default settings, i.e. pump level, water with pump, maximum brightness and cup warmer enabled.

To restore these parameters, it is sufficient to switch on the machine using the key

then to press the 2 espressos and 2 long coffees keys of the first group at

the same time.

7.8

AUTOMATIC GROUP CLEANING CYCLE

To enter the automatic cleaning mode, switch the machine off and then on again, holding down the hot water and cup warmer

keys during the initial Flash-test.

At the end of the Flash-test, the and keys and the single long coffee key

of all groups will begin to flash.

Press the key to start the washing cycle for the relevant group.

Once the washing cycle has been completed, it is possible to perform a rinse cycle for the same group by pressing the key again.

p by pressing the

To perform the rinse cycle at a later time, switch off the machine and the card will store any cleaning cycles that need to be completed in its memory. In fact, the next time that the machine is switched on, the machine card will automatically open the group cleaning status without it being necessary to press the and keys.

Hold down the and keys for 2 seconds to exit the cleaning mode in the event that there are no cycles to be completed. For incomplete cycles, the keys of the

groups that require rinsing will continue to flash.

Hold down the

for 2

seconds more to force exit from the cleaning mode, resetting all information about rinse cycles still to be completed.

When a cleaning cycle is complete, the key for the group will switch off.

If there are no more rinse cycles to be performed, the card will exit the cleaning mode.

8. CLEANING AND MAINTENANCE

During maintenance/repairs, the parts used must be able to guarantee compliance with the safety and hygiene requirements envisaged for the device.

Original replacement parts can offer this guarantee. After repairs to/replacement of a part that comes into contact with foods or water, it is necessary to carry out a washing procedure or to follow the steps indicated by the manufacturer.

8.1 STOPPING THE MACHINE

To stop the machine, press the main switch and set it to OFF.

Fig. 26

8.2 CLEANING THE OUTSIDE OF THE MACHINE

The machine must be set to "O" power (switch off and disconnector open) before any cleaning operations are performed.

WARNING

Do not use solvents, chlorine-based products or abrasives.

WARNING

It is not possible to clean the machine using water jets or standing it in water.

Cleaning the work area: remove the worktop, lifting it up from the front and sliding it out. Remove the water collection dish underneath and clean everything with hot water and cleansers.

Cleaning the bottom: To clean all the chromium-plated areas, use a soft, damp cloth.

8.3 CLEANING THE STAIN-LESS COFFEE-HOLDERS

The stainless coffee-holders are situated under the delivery units, as shown in figure.

Close-up of a hand using a tool to press a green plastic component into a metal tank (no text or symbols visible)

NOTE: To clean proceed as follows:

• Turn the screw placed in the centre of the coffee-holder.
• Slide the coffee-holder out and check that its holes are not obstructed but clean.
• If obstructed, clean as described (Paragraph "CLEANING FILTERS AND FILTER-HOLDERS")
  We recommend cleaning the coffee-holder once a week.

8.4 CLEANING THE UNIT WITH THE AID OF THE BLIND FILTER

The machine is pre-set for cleaning the delivery unit with a specific washing powder.

We recommend carrying out a washing cycle at least once a day with special cleansers.

CAUTION RISK OF INTOXICATION

Once the filter-holder has been removed, repeat delivery operations a few times to eliminate any cleanser residues.

8.5 CLEANING FILTERS AND FILTER-HOLDERS

Place two spoonfuls of special cleanser in half a litre of hot water and immerse filter and filter-holder (without its handle) in it leaving them to soak for at least half an hour. Then rinse abundantly with running water.

8.6 RESIN AND SOFTENER REGENERATION

To avoid scaling deposits in the boiler and in the heating exchangers, the softener must always be kept efficient. Therefore, the ionic resins must be regularly regenerated.

Regeneration times are established according to the quantity of coffee delivered daily and the hardness of the water utilised.

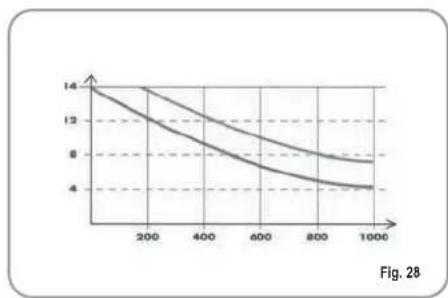

As an indication, regeneration times can be calculated on the basis diagram illustrated in Fig. 28.

Regeneration procedures are as follows:

1) Turn the machine off and place a container large enough to contain at least 5 litres under tube E (Fig. 29).

Turn levers C and D from left to right; take the cap off by unscrewing knob and fill with 1 Kg normal kitchen salt (Fig. 30).

IN OUT C E D Fig. 29

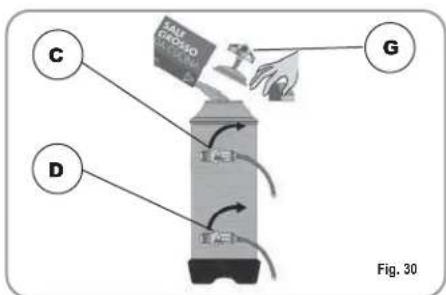

C D G Fig. 30

2) Put the cap back on and reposition lever C moving it towards the left (Fig. 31) and allowing tube F to discharge the salty water until it has been eliminated and the water becomes fresh again (about half and hour).

C F Fig. 31

3) Reposition lever D towards the left (Fig. 32).

D Fig. 32

9. Appia V MACHINE FUNCTION MESSAGES

DISPLAY AND KEY INDICATIONS	CAUSE	EFFECT	SOLUTION	NOTES
Drawing of continued key hing and delivery key	If the doser doesn't send out its set commands within the first three seconds from delivery onset.	If the delivery isn't manually halted, the maximum time limit (120 sec) will be blocked.	Interrupt delivery.
Drawing of continued key flashing.	If within 90 sec. from onset, with pump inserted during the levelling, at 180 sec., if the level has not been re-established.	The pump, the resistor and all the functions will be halted.	Turn the machine off for at least 5 sec. and then switch it on again.

NOTES:

Appia® MADE IN ITALY

IMPIANTO ELETTRICO /ELECTRIC SYSTEM Appia ESSE 2/3 GR.

Fig. 33

IMPIANTO ELETTRICO /ELECTRIC SYSTEM Appia ESSE 2/3 GR.

LEGENDA

EV H

Steam / hot water solenoi-valve

EV S

Cup warmer solenoid valve EV1-2-3

Group delivery solenoid valve

MP

Pump motor

I.S

Cup warmer switch

I.E.H.

Hot water switch

I.E.GR.1-2-3

Switch for groups 1-2-3

R

Relay switch

P

Pressure switch

EV L

Level solenoid valve

MS

Main switch

HE

Heating element

LP

Level probe

TE

Safety thermostat

S.A.

Indicator light

IMPIANTO ELETTRICO /ELECTRIC SYSTEM Appia V 2 GR.

Electrical wiring diagram showing connections between a control module, sensors, and a gas cylinder with labeled terminals and components.

Fig. 34

IMPIANTO ELETTRICO /ELECTRIC SYSTEM Appia V 2 GR.

LEGENDA

EVC

Cup warmer solenoid valve

EVHW

Hot water mixer solenoid valve

EV L

Level solenoid valve

EV1-2-3

Group delivery solenoid valve

PM

Pump motor

Dose

Fan

HE

Heating element

LP

Level probe

TE

Safety thermostat

R

Relay switch

P

Pressure switch

MS

Main switch

TP

Sonda temperatura

IMPIANTO ELETTRICO /ELECTRIC SYSTEM Appia V 3 GR.

EVC EVHW EVHW EVL PM EV1 EV2 EV3 DOX 3 DOX 2 DOX1 8 ON/OFF 7 DC 6 DNW 5 DL 4 PM 3 D3 2 EV2 1 DT 5 AMP 15 +12 14 D021 13 GND1 12 D032 11 GND2 9 D033 6 D034 5 LP LP HE Ar TE MS R P 380V TH/ASE 380V TH/ASE 230V MON/ASE 230V SINGLE/ASE

Fig. 35

IMPIANTO ELETTRICO /ELECTRIC SYSTEM Appia V 3 GR.

LEGENDA

EVC

Cup warmer solenoid valve

EVHW

Hot water mixer solenoid valve

EV L

Level solenoid valve

EV1-2-3

Group delivery solenoid

valve

PM

Pump motor

Dose

Fan

HE

Heating element

LP

Level probe

TE

Safety thermostat

R

Relay switch

P

Pressure switch

MS

Main switch

TP

Sonda temperatura

IMPIANTO IDRAULICO /PLUMBING SYSTEM

Technical schematic diagram of a fluid or mechanical system with numbered components and labeled parts

IMPIANTO IDRAULICO /PLUMBING SYSTEM

LEGENDA

1 Water entrance faucet
2 Pump
3 Retaining valve
4 Expansion valve
5 Refill electrovalve
6 Flowmeter
7 Heat exchanger
8 Delivery electrovalve
9 Heater safety valve
10 Steam tap
11 Pressostat
12 Boiler
13 Heating element
14 Double scale gauge
15 Purifier
16 Delivery unit

NOTE / NOTES:

nuova

SIMONELLI®

espresso coffee machines

Nuova Distribution Centre

LLC 6940Salashan PKWY BLDG A 98248

Ferdale, WA

Tel. [phone]

Fax [phone]

videoconf.+1.360.3188595

espresso coffee machines

Via M. d'Antegiano, 6

62020 Belforte del Chienti

Macerata Italy

Tel. [phone]

Fax [phone]

espresso coffee machines

Exterior view of a Siemens SIMONELLI coffee machine (no visible text or symbols on the device body)

Appia® MADE IN ITALY

MANUEL D'INSTRUCTIONS GEBRAUCHANWEISUNGEN

EC DECLARATION OF CONFORMITY

nuova simonelli

espresso coffee machines

Via M. D'Antegiano, 6 - 62031 Belforte del Chienti (MC)

declare under our responsibility that the product:

MACCHINE PER CAFFE' ESPRESSO

ESPRESSO COFFEE MACHINES

MODELS: Appia - versions V, Esse.

to which this declaration relates, following the provisions of the Directives:

EN 60335-2-75:2004 + A1:2005 + A11:2006

in combination with

EN 60335-1:2002 + A1:2004 + A11:2004 + A12:2006 + A2:2006

EN 50366:2003 + A1:2006

following the provisions of the Directives

2006 / 95 / CE Low Voltage

2004/108/CE (EMC)

data: Novembre 2008

November 2008

Exterior view of a Siemens SIMONELL coffee machine (no visible text or symbols on the device body)

Appia® MADE IN ITALY

CARACTERISTIQUES TECHNIQUES

Technical diagram of a device rear panel with labeled components and directional arrows indicating force F

E D C

	2 Groupes 3 Groupes
POIDS NET	60 kg 133 lb 74 kg 163 lb
POIDS BRUT	65 kg	143 lb	80 kg	176 lb
PUISS. THERMIQUE	3000 W 3000	W 5000 W 5000 W
DIMENSIONS 785 mm	A	78" 1010 m	A	78"
	B 690 mm 27	B 18" 920 mm	B	316"
	C 545 mm 21	C 716" 545 mm	C	716"
	D 370 mm 14	D 916" 370 mm	D	916"
	E 530 mm 20	E 1316" 530 mm	E	1316"
	F 135 mm 5	F 18" 135 mm	F	18"

Appia® MADE IN ITALY

INDEX

CARACTERISTIQUES TECHNIQUES ....2

1. DESCRIPTION 5

1.1 LISTE ACCESSOIRES 6

1. PRESCRIPTIONS DE SECURITE .....7

2. TRANSPORT ET DEPLACEMENT .....10

3.1 IDENTIFICATION DE LA MACHINE .....10

3.2 TRANSPORT 10

3.3 DEPLACEMENT 10

1. INSTALLATION ET OPERATIONS PRELIMINAIRES ....10

2. REGLAGES DU TECHNICIEN QUALIFIE 12

5.1 REMPLISSAGE MANUEL DE LA CHAUDIERE .....12

5.2 REGLAGE PRESSOSTAT / POMPE 12

5.3 REGLAGE ECONOMISEUR EAU CHAUDE (option sur la version V/ESSE) 13

5.4 REMPLACEMENT DES TABLEAUX A POUSSOIRS .13

1. UTILISATION 14

6.1 APPIA V 14

6.1.1 MISE EN MARCHE 14

6.1.2 ARRETT 14

6.2 APPIA ESSE 14

6.2.1 MISE EN MARCHE 14

6.2.2 ARRETT 14

6.3 CONFIGURATION SELECTION 14

6.4 PREPARATION DU CAFE 15

6.5 UTILISATION DE LA VAPEUR 15

6.6 PREPARATION DU CAPPUCCINO 15

6.7 SELECTION EAU CHAUDE 15

1. PROGRAMMATION APPIA V 16

7.1 PROGRAMMATION DOSES 16

7.2 PROGRAMMATION DOSES CAFFE 16

7.3 PROGRAMMATION EAU CHAUDE....16

7.4 PROGRAMMATION CHAUFFE-TASSES (OPTION) ...16

7.5 PROGRAMMATION DOSES STANDARD .....17

7.6 COPIAGE DOSES 17

7.7 PROGRAMMATION PARAMETRES DE FUNCTIONEMENT ....17

7.8 CYCLE AUTOMATIQUE DE NETTOYAGE DES GRUPES ....18

1. NETTOYAGE ET ENTRETIEN .....19

8.1 ARRET 19

8.2 NETTOYAGE DE LA CARROSSERIE .....19

8.3 NETTOYAGE DES DOUCHES INOX .....19

8.4 NETTOYAGE DU GROUPE AVEC L'AIDE DU FILTRE BORGNE ....19

8.5 NETTOYAGE DES FILTRES ET DES SUPPORTS A FILTRES ....19

8.6 REVIVIFICATION DES RESINES DE L'ADOUCISSEUR ....20

1. MESSAGES FONCTIONS MACHINE Appia V ....21

INSTALLATION ELECTRIQUE APPIA ESSE 2/3 GROUPES ....68

INSTALLATION ELECTRIQUE APPIA V 2 GROUPES ....70

INSTALLATION ELECTRIQUE APPIA V 3 GROUPES ....72

INSTALLATION HYDRAULIQUE .....74

Appia® MADE IN ITALY

1. DESCRIPTION V - Esse

1 2 3 4 5 6 7 10 12 14 Fig. 1

LEGENDE

Simple line drawing of a mountainous landscape with a cross symbol and a gear-like object at the bottom (no text or symbols)

Simple electrical symbol icon with three parallel lines inside a circle, labeled Fig. 4 (no text or numbers on the diagram itself)

Illustration of a hand cleaning a washing machine with tools and a vial (no text or symbols)

Simple line drawing of a cross symbol over a landscape with hills and a small object, labeled 'Fig. 6' (no text or symbols on the diagram itself)

ATTENTION RISQUE D'INTOXICATION

Illustration of hands using a washing machine to clean or store items, with no visible text or symbols

ATTENTION RISQUE DE BRULURES

3. TRANSPORT ET DEPLACEMENT

3.1 IDENTIFICATION DE LA MACHINE

Diagram showing a mechanical device and a car interior with hand tool, no text or symbols present

Close-up of a black mechanical component with a small circular feature and mounting holes (no text or symbols visible)

Hand holding a tool with directional arrows indicating motion or cycle (no text or symbols)

Close-up of mechanical components with no visible text or symbols

Close-up of a metallic ceiling structure with two circular cutouts and a grid-patterned floor (no text or symbols visible)

Close-up of industrial piping and valves with no visible text or symbols

Illustration of a hand using a magnifying glass to adjust a small object, labeled Fig. 23 (no text or symbols on the diagram itself)

Two-panel image showing a stainless steel coffee machine and a hand holding a green product, both without visible text or symbols.

Illustration of hands using a water dispenser to clean a cup, with no visible text or symbols

6.7 SELECTION EAU CHAUDE

ATTENTION RISQUE DE BRULURES

Close-up of a hand using a green tool to press or install a small green component, with no visible text or symbols.

Diagram of a cylindrical device with a curved arrow indicating direction, labeled Fig. 28 (no text or symbols on the device itself)

Exterior view of a Siemens SIMONELL coffee machine (no visible text or symbols on the device body)

Appia® MADE IN ITALY

Technical diagram of a device rear panel with labeled components and directional arrows indicating force F

E D C

	2 Gruppen 3 Gruppen
NETTOGEWICHT	60 kg 133 lb 74 kg 163 lb
BRUTTOGEWICHT	65 kg	143 lb	80 kg	176 lb
HEIZLEISTUNG	3000 W	3000 W	5000 W	5000 W
ABMESSUNGEN 785	A 30	A 78 " 1010 m 39		A 78 "
	B 690 mm 27	B 18 " 920 mm 6		B 316 "
	C 545 mm 21	C 716 " 545 mm 21		C 716 "
	D 370 mm 14	D 916 " 370 mm 4		D 916 "
	E 530 mm 20	E 1316 " 530 mm 20		E 1316 "
	F 135 mm 5	F 18 " 135 mm		F 18 "

Appia® MADE IN ITALY

INHALTSVERZEICHNIS

Simple electrical symbol icon with a plus sign inside a circle, no text or labels present.

Illustration of a hand cleaning a washing machine with tools and a cloth (no text or symbols)

Diagram showing car engine components and a hand using a tool to adjust the valve, with label 'Abb. 9' indicating vehicle inspection.

Close-up of a black mechanical component with a small circular feature and a label 'Abb. 14' (no readable text or symbols on the main subject)

Hand holding a device with directional arrows indicating motion or rotation (no text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

Close-up of a metallic heating element with two circular holes, placed on a patterned floor (no text or symbols visible)

Close-up of industrial equipment with hoses and tubing, no visible text or symbols

Illustration of a hand using a magnifying glass to adjust a small object, with no text or symbols present.

Exterior view of a stainless steel coffee machine (no visible text or symbols)

Hand holding a small green object next to a metallic component (no visible text or symbols)

Illustration of hands using a spray gun to clean a cup inside a kitchen (no text or symbols visible)

Close-up of a hand holding a green plastic component against a metallic surface (no text or symbols visible)

Exterior view of a modern microbeaver with dual levers and control panel (no visible text or symbols)

Appia® MADE IN ITALY

CARACTERÍSTICAS TÉCNICAS

Technical diagram of a device rear panel with labeled components and directional arrows indicating movement or force.

E D C

	2 Grupos 3 Grupos
PESO NETO	60 kg 133 lb 74 kg 163 lb
PESO BRUTO	65 kg	143 lb	80 kg	176 lb
POT. TÉRMICA	3000 W	3000 W	5000 W	5000 W
MEDIDAS 785 mm 30	A	A 78 " 1010 mA 39		A 78 "
	B 690 mm 27	B 18 " 920 mm B 86		B 116 "
	C 545 mm 21	C 116 " 545 m C 21		C 116 "
	D 370 mm 14	D 116 " 370 m D 14		D 115 "
	E 530 mm 20	E 1316 " 530 m E 20		E 1315 "
	F 135 mm 5	F 18 " 135 mm F 5		F 18 "

Appia® MADE IN ITALY

INDICE

CARACTERISTICAS TECNIVAS .....46

1. DESCRIPCIÓN 49

1.1 LISTA DE ACCESORIOS ....50

Simple line drawing of a mountainous landscape with a star and a cross symbol, no text or labels present.

Simple electrical symbol icon with three parallel lines inside a circle, labeled Fig. 4 (no text or numbers on the diagram itself)

Illustration of a hand cleaning a washing machine with tools and a cloth (no text or symbols)

Simple line drawing of a landscape with a large 'X' symbol and a small irregular object, labeled 'Fig. 6' (no text or symbols on the diagram itself)

Illustration of hands cleaning a washing machine with a tool, no text or symbols present

Diagram showing a mechanical device and a car interior with hand positioning (no text or symbols)

Close-up of a black mechanical component with a small circular feature and a label 'Fig. 14' (no readable text or symbols)

Hand holding a tool with directional arrows indicating motion or cycle (no text or symbols)

Close-up of mechanical components with no visible text or symbols

Close-up of a metallic ceiling structure with two circular cutouts, no visible text or symbols

Close-up of industrial piping and valves in a black industrial setting (no visible text or symbols)

Illustration of a hand using a magnifying glass to press a small object, with no text or symbols present.

Two-panel image showing a kitchen machine and a hand holding a green plastic bag, both without visible text or symbols.

Illustration of a person using a coffee maker machine with arrows indicating flow direction (no text or symbols)

Close-up of a hand using a green tool to press down a metallic surface (no text or symbols visible)

Technical schematic diagram of a fluid or mechanical system with numbered components and labeled parts

INSTALLATION HYDRAULIQUE /HYDRAULIKANLAGE / INSTLACIÓN HIDRÁULICA

LÉGENDE

espresso coffee machines

Nuova Distribution Centre

LLC 6940Salashan PKWY BLDG A 98248

Ferdale, WA

Tel. [phone]

Fax [phone]

videoconf.+1.360.3188595

espresso coffee machines

Via M. d'Antegiano, 6

62020 Belforte del Chienti

Macerata Italy

Tel. [phone]

Fax [phone]
