USER MANUAL HB 542 PHILIPS

Line drawing of a curved, empty air conditioner unit mounted on a stand with wheels (no text or symbols)

English Page 4

- Keep page 3 open when reading these operating instructions.

Français Page 10

1 E B A N M N HB 544 J L F H C E G K I P O D

English

Important

• Before connecting the appliance to the mains socket, check if the voltage indicated on the rating plate corresponds with the mains voltage in your home.
  • Water and electricity are a dangerous combination! Therefore, do not use the appliance in wet surroundings (e.g. in the bathroom or shower, or near a swimming pool).
• If you have just been swimming or have just taken a shower, dry yourself thoroughly before using the appliance.
  • Take care that children cannot play with the solarium. As a precaution remove the plug from the wall socket after use.
• Keep the ventilation openings in the upper casing clear of obstruction when using the solarium.
• Do not exceed the advised session times or the maximum amount of "tanning hours". (See section "UV sessions: How often? And how long?")
• Do not select a shorter operational distance than the advised 20 cm (approx. 8").
• Do not treat each part or side of the body more often than once a day. Avoid intensive skin exposure to natural sunlight on the same day as a UV session.
• If you have any symptoms of illness, if you take any medicines and/or apply cosmetics which increase skin sensitivity, you should not have a UV-session.

Special care is also necessary in cases of pronounced individual sensitivity to ultraviolet. When in doubt, please consult your doctor.

• A solarium is not to be used by people who get sunburnt without tanning when exposed to the sun, by persons suffering from sunburn, by children, or by persons who suffer (or have previously suffered) from skin cancer or who are predisposed to skin cancer.
• Consult your doctor if ulcers, moles or persistent lumps develop on the skin.
• Always wear the protective eye goggles while tanning to protect your eyes against excessive doses of ultraviolet, visible light and infrared. (Also refer to section "UV and your health".)
• Remove creams, lipstick and other cosmetics well in advance of a UV session.
• Do not use sunscreen lotions or creams.
• Do not use suntan lotions or creams.
• If your skin should feel taut after the sun tanning session, you may apply a moisturizing cream.
• Never use the solarium if the timer has become faulty.
• Colours may fade under the influence of the sun. The same effect may occur when using the appliance.
• Do not expect the appliance to yield better results than the natural sun.

The Sun

The Sun UV C UV B UV A VISIBLE LIGHT INFRARED

The sun is the source of energy on which all life on earth depends.

There are various kinds of solar energy: the sunlight enables us to see, we feel the warmth of the sunshine on our skin, and under the influence of the sun our skin is tanned.

These three effects are due to three specific components of the sun radiance spectrum, each of the components having their own wave lengths.

The sun radiates electro-magnetic vibrations with widely different wave lengths. The wave lengths of heat rays or "infrared" (IR) are longer than the wave lengths of visible light. And the wave lengths of "ultraviolet" (UV), which tans our skin, are shorter than these.

Science has managed to reproduce these three kinds of solar radiation: heat (e.g. Infraphil), light (lamps) and UV (solariums, sun couches etc.)

UV-A, UV-B and UV-C

Ultraviolet (UV) is subdivided into UV-A (longer wave lengths), UV-B and UV-C (shorter wave lengths).

UV-C seldom reaches the earth as it is filtered out by the atmosphere.

UV-A and UV-B cause the tanning effect of the skin.

In fact there are two processes which produce tanning, and they are simultaneously effective:

• "Indirect tanning". Primarily UV-B stimulates the production of a substance called "melanin", which is necessary for tanning. The effect does not show until a couple of days after the sunbath.
• "Direct tanning". The UV-A and also a part of the visible light cause quicker browning without reddening or "getting sunburnt".

The solarium

This solarium emits predominantly UV-A, and also a very small amount of UV-B.

It possesses some important features which make tanning at home comfortable and convenient.

The unique type of sun lamp used in this solarium emits light, warmth and ultraviolet, just like the natural sun.

You can position this solarium so that using it really resembles lying in the sun: your whole body is tanned evenly, from head to toe.

For your convenience, but also to prevent unintended prolonged exposure (e.g. after falling asleep), a timer-controlled automatic switch-off operates after 60 minutes tanning.

As it is with the natural sun, it's wise not to have too much of a good thing! (See section "UV and your health".)

UV and your health

After an excessive exposure to ultraviolet (from the natural sun or from your solarium), the skin may develop sunburn.

Beside numerous other factors, such as excessive exposure to the natural sun, improper and excessive use of your solarium will increase the risk of skin and eye disease.

The nature, intensity and duration of the radiation on one hand, and the sensitivity of the individual on the other, are decisive on the degree in which these affects can occur.

The more skin and eyes are exposed to UV, the more risk increases of diseases such as inflammation of the cornea and/or conjunctiva, damaging of the retina, cataract, premature aging of the skin and skin tumours.

Certain medicines and cosmetics increase the sensitivity to UV.

Therefore, it is of great importance

• that you follow the instructions in sections "Important" and "UV sessions: how often? And how long?";
• that you select the advised operational distance of at least 20 cm (approx. 8");
• that you do not exceed the maximum amount of tanning hours per year (Please see the section "UV sessions (...) which applies to your solarium type number!);
• that you always wear the provided goggles while tanning.

For solarium type HB 541 (8 tube lamps) only:

UV sessions: how often? And how long?

You may have one UV session per day, over a period of five to ten days. Allow at least 48 hours between the first two sessions.

After such a course, you may rest the skin for a while.

Approximately one month after a course your skin will have lost much of the tan. You might then decide to start a new course.

On the other hand, it is also possible to have one or two UV sessions per week after a course has elapsed in order to keep up the tan.

Whatever you may prefer, make sure that you do not exceed the maximum amount of tanning hours per year.

- For solarium type HB 541 (8 tube lamps) this is 33 hours (= 1980 minutes).

Example:

Imagine that you take a 10 day UV course, with a 12 minute session on the first day and 30 minutes' sessions on the nine following days.

The entire course then includes (1 x 12 minutes) + (9 x 30 minutes) = 282 minutes.

- When using solarium type HB 541 (with 8 tube lamps), you may have 7 of these courses over a year. (As 7 x 282 minutes = 1974 minutes.)

Of course, this maximum amount of tanning hours is valid for each treated part or side of the body separately.

(E.g. for the front side of your body and for the other side.)

From the table it will be seen that the first session of a course should have a duration of 12 minutes.

This is not dependent upon individual skin sensitivity.

Duration of the UV session (for each separately treated part of 1st 2nd the body) in minutes	3rd 4th 5th session	6th 7th 8th session	9th 10th session	session	session	session	session	session	session	session
- for persons with very sensitive skin:	12	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15
- for persons with normal sensitive skin:	12	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35
- for persons with less sensitive skin:	12	35-40	35-40	35-40	35-40	35-40	35-40	35-40	35-40	35-40

- If you think that the sessions are too long for you (e.g. if the skin gets taut and tender after the session), we advise you to reduce the sessions by e.g. 5 minutes per side of the body.

- To get a beautiful all-over tan it is suggested that you turn slightly during the session so that the sides of your body are better exposed to the tanning rays.

For solarium types HB 542 and HB 544 (with 10 large tube lamps) only:

UV sessions: how often? And how long?

You may have one UV session per day, over a period of five to ten days. Allow at least 48 hours between the first two sessions.

After such a course, you may rest the skin for a while.

Approximately one month after a course your skin will have lost much of the tan. You might then decide to start a new course.

On the other hand, it is also possible to have one or two UV sessions per week after a course has elapsed in order to keep up the tan.

Whatever you may prefer, make sure that you do not exceed the maximum amount of tanning hours per year.

- For these solarium types HB 542 and HB 544 (with 10 large tube lamps) this is 28 hours (= 1680 minutes).

Example:

Imagine that you take a 10 day UV course, with a 10 minute session on the first day and 30 minutes' sessions on the nine following days.

The entire course then includes (1 x 10 minutes) + (9 x 30 minutes) = 280 minutes.

- When using solarium type HB 542 or HB 544 (with 10 large tube lamps), you may have 6 of these courses over a year. (As 6 x 280 minutes = 1680 minutes.)

Of course, this maximum amount of tanning hours is valid for each treated part or side of the body separately.

(E.g. for the front side of your body and for the other side.)

From the table it will be seen that the first session of a course should have a duration of 10 minutes.

This is not dependent upon individual skin sensitivity.

Duration of the UV session(for each separately treated part of 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th the body) in minutes	session	session	session	session	session	session	session	session	session	session
- for persons with very sensitive skin:	10	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15	10-15
- for persons with normal sensitive skin:	10	20-25	20-25	20-25	20-25	20-25	20-25	20-25	20-25	20-25
- for persons with less sensitive skin:	10	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35	30-35

- If you think that the sessions are too long for you (e.g. if the skin gets taut and tender after the session), we advise you to reduce the sessions by e.g. 5 minutes per side of the body.

- To get a beautiful all-over tan it is suggested that you turn slightly during the session so that the sides of your body are better exposed to the tanning rays.

General description (fig. 1, page 3)

Tube lamps and starters

HB 541 - 8 large tube lamps (type Philips UVA 100W

"Cleo Performance") with

8 starters (type Philips S12)

HB 542 - 10 large tube lamps (type Philips UVA 100W

"Cleo Performance") with

10 starters (type Philips S12)

HB 544 - 10 large tube lamps (type Philips UVA 100W

"Cleo Performance") with

10 starters (type Philips S12) and

4 small tube lamps (type Philips UVA 15W

"Cleo Performance") for extra face tanning

performance, with

4 starters (type Philips S2)

B Timer

c Stand

(Type HB 071 / service n°. 4822 690 80123)

End caps

F Rod

D Protective eye goggles (2x)
G Bolts and nuts
Height adjustment knob
Spanner
Mains cord
K Castor wheels
Handle
M Cooling fan
N Vents
Protective shield
P Protective plastic foil

Making the solarium ready for use

Line drawing of a simple table with a curved top and side supports (no text or symbols)

Illustration of a hand holding a cylindrical object with a red arrow indicating rotation (no text or symbols)

Fixing the stand

- With one person helping you, lay the solarium on a table top with the lamps facing downwards (fig. 2).

Ensure that the handle does not rest on the table.

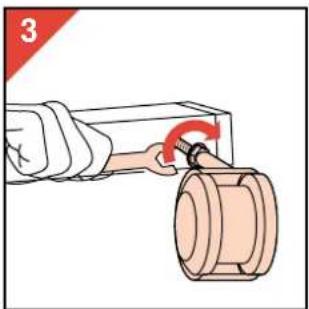

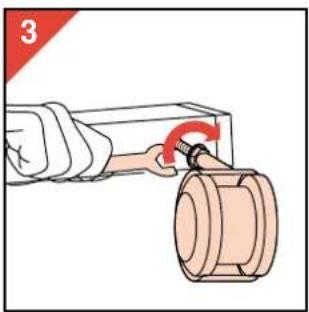

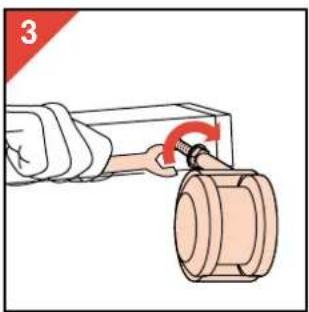

- Fix the castor wheels to the stand (fig. 3).

Diagram of a car seatbelt with red motion arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a metal bracket (no text or symbols visible)

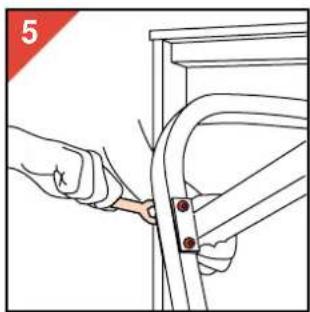

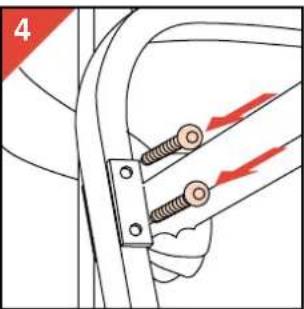

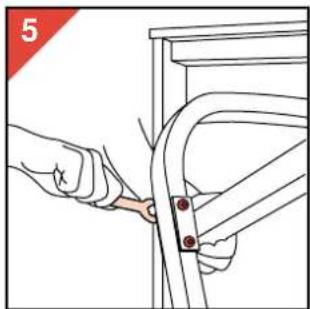

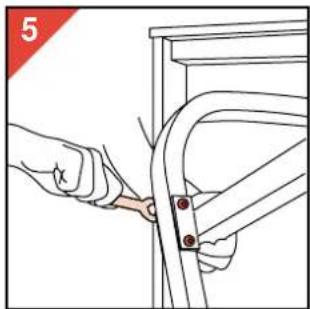

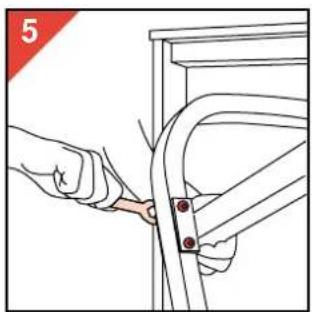

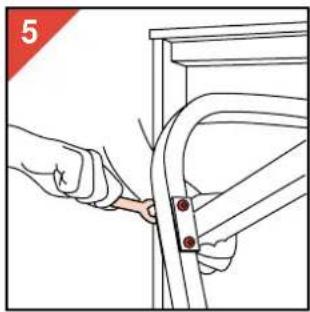

- Mount the stand to the rod (fig. 4, 5).

6 1 1 2

Illustration of a garment sleeve with fabric pattern and measurement markings (no text or symbols)

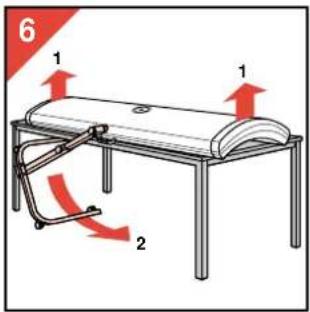

• Lift the solarium from the table top (fig. 6).

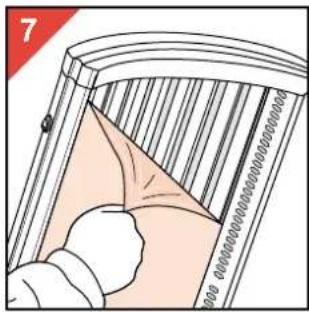

• Remove the plastic foil from the protective shield (fig. 7).

Line drawing of a person lying on a medical examination table with a curved device above (no text or symbols)

Line drawing of a person sitting in a chair using a large solar panel, no text or symbols present

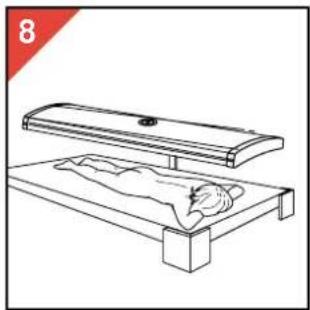

You can be tanned either lying (fig. 8),

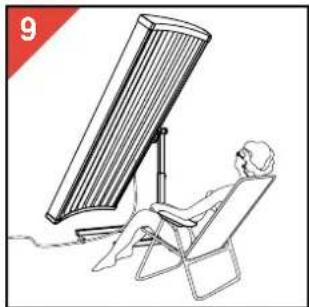

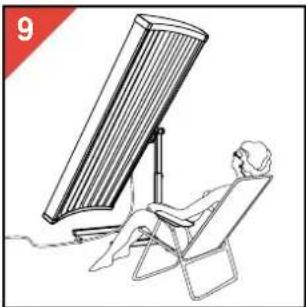

sitting (fig. 9), or

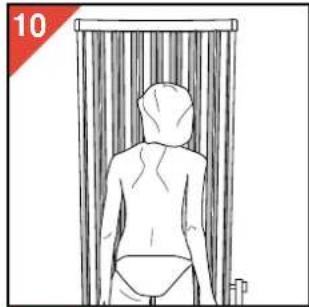

standing (fig. 10)

with this solarium.

To make this possible, you can adjust the height and position of the upper casing.

• During tanning, the distance between the lamps and your body should be at least 20 cm (8").
• If you intend to tan while lying, this means that the distance between the lamps and your bed, couch or mattress should be at least 40 cm (16") (fig. 11).

Height adjustment

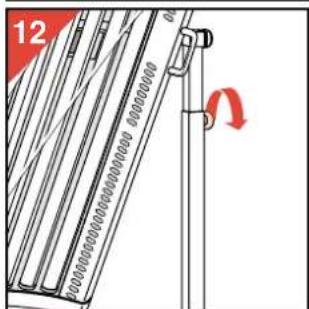

• Rotate the height adjustment knob anti-clockwise two or three turns to release the rod (fig. 12). A gas spring stabilizes the position of the rod.

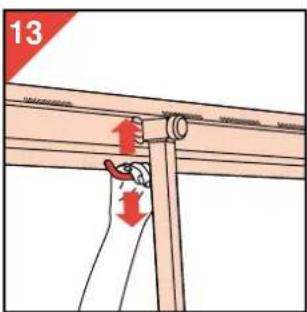

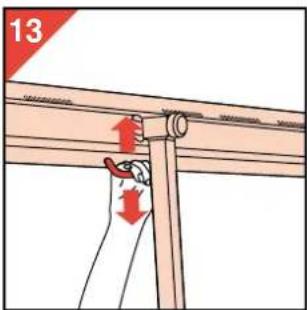

• Adjust the height of the rod by pulling or pushing the handle (fig. 13).

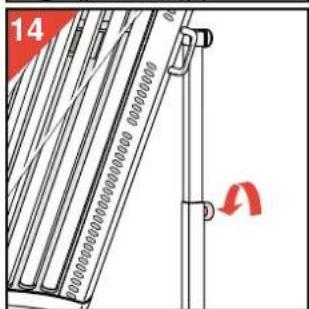

• Turn the height adjustment knob clockwise until tight to lock the rod (fig. 14).

13

Line drawing of a human figure viewed from behind a curtain, no text or symbols present

11 40 20

12 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 000000000000000000000000000000000000000000000000000000000000000000000000000000000000

How to use

• Check the distance between your body and the solarium (min. 20 cm or 8"). If necessary adjust the height and/or position of the solarium.

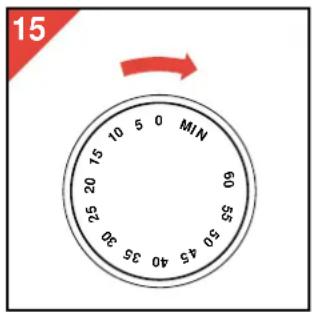

• Set the timer to the session time (fig. 15). (Please refer to the table in these instructions and to your own notes.)
• Do not forget to put on the eye goggles provided.

- As soon as the session time has elapsed the lamps will automatically be switched off. - If you wish to treat the other side of your body as well, you can set the timer again. (It is not necessary for the solarium to cool down first.)

15 MIN 0 10 5 0 15 20 60 20 15 55 25 30 45 40 30 25 50

Lying

• Place the solarium beside a bed or couch.
• As the stand is on wheels you can draw the solarium towards you while lying. Ensure that the lamps are positioned straight above you (fig. 8).
• You can move the stand under the bed (fig. 16).
• After use, you can push the solarium away from you to make getting up easier.

Sitting

• Place a (deck) chair and the solarium together (fig. 9).
• Bring the solarium in optimum position by turning the upper casing.

Standing

• Turn the upper casing to bring it into a vertical position. If necessary adjust the height.
• Stand in front of the solarium (fig. 10) - at least 20 cm (8") away.

Storage

The solarium takes up very little space when stored in a vertical position (fig. 17).

Line drawing of a horizontal shelf with a central stand and a vertical support (no text or symbols)

Simple line drawing of a vertical cylindrical structure with base, no text or symbols present

Cleaning

• Always unplug the solarium and let it cool down before cleaning.
• You can clean the outside of the solarium with a damp cloth. Make sure that no water runs into the appliance.
• Do not use abrasives or scourers.
• Never use liquids such as alcohol, methylated spirits, petrol or acetone to clean the protective plate as this may cause irreparable damage.

Replacing the tube lamps and/or starters

In the course of time (in normal family use after some years) the efficiency of the tube lamps will gradually decrease. If this happens, you may increase the tanning session time or have the tube lamps replaced.

• You can have the tube lamps and/or the starters replaced by authorized service personnel: they have the required skill and the original replacement parts and tools to do the job. They also have the facilities to dispose of the used tube lamps.
• If you prefer to replace the lamps yourself, proceed as follows:
• First remove the mains plug from the wall socket.

18

19

• Loosen the screws and remove the two end caps (fig. 18).
• Pull out the protective shield completely (fig. 19). After this, the lamps and starters are accessible.
• Rotate the lamps slightly to the left or to the right. When unlocked remove them from the lamp holders.
• Remove the starters by turning slightly to the left and withdrawing. (Half the amount of starters are at each end of the solarium.)
• To place new lamps and starters proceed in reverse order and direction.
• Slide the protective shield back into the profile. Do not forget to fix the end caps by means of the screws.

The tube lamps of solariums contain substances which may pollute the environment. When discarding old tube lamps, please ensure that they are separated from the normal household refuse and that they are disposed of at an officially assigned place.

For U.K. only:

Fitting a different plug

This appliance is fitted with a BS 1363 13 Amp. plug. Should you need to replace the plug, connect the wires as follows:

Brown wire to the Live (L) terminal of the new plug. Blue wire to the Neutral (N) terminal of the new plug.

Always fit the same value of fuse as that originally supplied with your appliance.

Only use BS 1362 approved fuses.

As a guide only: Appliances under 700 W can have a 3 Amp. fuse (red) and all others should have a 13 Amp. fuse (brown).

When disposing of an old plug (particularly the moulded type which has been cut from the mains cord) always remove the fuse as the plug could be dangerous if ever inserted in a live socket.

Solarium does not operate as required?

If the solarium should not operate as required, this may be due to a defect. In this case do not hesitate to apply to your dealer or to a Philips Service Centre.

However, it is also possible that the appliance has not been installed according to the instructions or is used incorrectly. If this is the case, you will be able to solve the problem immediately.

You may check the following section before contacting your dealer or Philips Service Centre.

Problem

• Solarium does not switch on.
- The power fuse switches the mains power off when switching on or while using the solarium.
- The browning is not according to your expectations.

Possible cause

• Mains plug is not in wall socket.
• No mains power. (Please check with other appliance.)
• Timer has not been set.
• Check the fuse to which the solarium has been connected. The proper type for your solarium is a 13 A (for U.K.) or a 10 or 16 A (for other countries) normal fuse or a slow reacting automatic fuse.
• You use an extension cord which is too long, wound-up and/or does not allow the required power levels. Please apply to your dealer. In general, we advise not to use an extension cord.
• You followed a course which is not the most appropriate for your skin type.
• The operational distance is larger than indicated.
• After using for a long time the UV production of the lamps decreases. (With normal use this will not be noticeable for years.) You may compensate for this effect by selecting longer treatment times or replace the sun lamps

Français

Important

Line drawing of a simple table with a curved top and side supports (no text or symbols)

Illustration of a hand turning a cylindrical component with a red arrow indicating rotation (no text or symbols)

Fixation du socle

Diagram of a mechanical clamp or bracket with red motion arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a metal bracket with a red number 5 (no text or symbols)

Illustration of a garment sleeve with fabric pattern and measurement markings (no text or symbols)

Line drawing of a person lying on a medical examination table with a curved device above (no text or symbols)

Line drawing of a person sitting in a chair using a large solar panel, no text or symbols present

Line drawing of a human figure viewed from behind a curtain, no text or symbols present

11 40 20

12 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

13

14 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Utilisation

Technical line drawing of a mechanical assembly with a central lever and two horizontal plates (no text or symbols)

Line drawing of a vertical cylindrical structure mounted on a base, with no visible text or symbols.

Nettoyage

Line drawing of a simple table with a curved top and metal frame (no text or symbols)

Illustration of a hand turning a cylindrical component with a red arrow indicating rotation (no text or symbols)

Diagram of a mechanical clamp or bracket with red motion arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a metal bracket (no text or symbols visible)

Illustration of a garment sleeve with fabric and patterned fabric, no text or symbols present

Line drawing of a person lying on a bed under a covered platform, no text or symbols present

Line drawing of a person sitting in a chair using a large solar panel, no text or symbols present

Line drawing of a human figure viewed from behind, standing in front of a curtain (no text or symbols)

11 40 20

12 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Gebrauch des Geräts

Line drawing of a mechanical device with a central support structure and two horizontal plates (no text or symbols)

Line drawing of a vertical cylindrical structure mounted on a base, with no visible text or symbols.

Reinigung

Line drawing of a simple table with a curved top and side supports (no text or symbols)

Illustration of a hand turning a cylindrical component with a red arrow indicating rotation (no text or symbols)

Diagram of a mechanical assembly with springs and bolts, no text or symbols present

Illustration of a hand using a tool to adjust or install a metal bracket (no text or symbols visible)

Illustration of a garment sleeve with fabric pattern and measurement markings (no text or symbols)

Line drawing of a person lying on a medical examination table with a curved device above (no text or symbols)

Line drawing of a person sitting in a chair using a large solar panel, no text or symbols present

Line drawing of a person viewed from behind through a curtain, no text or symbols present

11 40 20

12 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Gebruik

Line drawing of a horizontal shelf with a central stand and a vertical support (no text or symbols)

Zittend

Line drawing of a vertical cylindrical structure mounted on a base, with no visible text or symbols.

Schoonmaken

II Sole UV C UV B UV A LUCE VISIBLE INFRA ROSSO

Line drawing of a simple table with a curved top and side supports (no text or symbols)

Illustration of a hand turning a cylindrical component with a red arrow indicating rotation (no text or symbols)

Diagram of a mechanical clamp or bracket with red motion arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a metal bracket with a red tool (no text or symbols)

Illustration of a garment sleeve with fabric and patterned fabric, no text or symbols present

Line drawing of a person lying on a bed under a covered platform, no text or symbols present

Line drawing of a person sitting in a chair under a large cylindrical device, no text or symbols present

Line drawing of a human figure viewed from behind, standing in front of a curtain (no text or symbols)

11 40 20

13

12 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

COME USARE IL SOLARIUM

Line drawing of a mechanical device with a central support structure and two horizontal plates (no text or symbols)

Simple line drawing of a vertical pole with base and support legs, no text or symbols present

PULIZIA

Line drawing of a simple table with a curved top and side supports (no text or symbols)

Illustration of a hand turning a cylindrical component with a red arrow indicating rotation (no text or symbols)

Diagram of a car wheel with attached sensors and red motion arrows indicating force or movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a metal bracket (no text or symbols visible)

Illustration of a garment collar with striped pattern and measurement markings (no text or symbols)

Line drawing of a person lying on a medical examination table with a curved device above (no text or symbols)

Line drawing of a person sitting in a chair using a large solar panel (no text or symbols visible)

Line drawing of a human figure viewed from behind a curtain, no text or symbols present

11 40 20

12 00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Cómo usarlo

Line drawing of a mechanical device with a lever and frame (no text or symbols)

Line drawing of a vertical cylindrical structure with base supports, no text or symbols present

Limpieza

Mechanical component with a red upward arrow indicating motion or force (no text or symbols)

19

Line drawing of a simple table with a curved top and side supports (no text or symbols)

Illustration of a hand holding a cylindrical object with a red arrow indicating rotation (no text or symbols)

Diagram of a mechanical clamp or bracket with red motion arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a metal bracket with a red number 5 (no text or symbols)

- Monter stangen på stativet (fig. 4, 5).

6 1 1 2

Illustration of a garment sleeve with fabric pattern and measurement markings (no text or symbols)

- L øft solariet op fra bordet (fig. 6).

Line drawing of a person lying on a medical examination table with a curved device above (no text or symbols)

Line drawing of a person sitting in a chair using a large solar panel, no text or symbols present

Line drawing of a human figure viewed from behind a curtain, no text or symbols present

11 40 20

12 0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Technical line drawing of a mechanical assembly with a central support structure (no text or symbols)

Simple line drawing of a vertical cylindrical structure with base, no text or symbols present

Rengøring.

UV C UV B UV A SYNLIG LYS INFRARØD

Solen

Line drawing of a simple table with a curved top and side supports (no text or symbols)

Illustration of a mechanical device with a red-handled lever and a numbered label '3' (no text or symbols on the diagram itself)

Diagram of a mechanical clamp or bracket with red motion arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a metal bracket (no text or symbols visible)

- Monter stativet til stangen (fig. 4, 5).

6 1 1 2

Illustration of a garment sleeve with fabric pattern and measurement markings (no text or symbols)

Line drawing of a person lying on a medical examination table with a curved device above (no text or symbols)

Line drawing of a person sitting in a chair using a large solar panel, no text or symbols present

De kan sole Dem enten:

liggende (fig. 8),

sittende (fig. 9), eller

stående (fig. 10)

med dette solariet.

Line drawing of a human figure viewed from behind a curtain, no text or symbols present

11 40 20

12 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Bruk av solariet

Technical line drawing of a mechanical device with a lever and frame (no text or symbols)

Sittende

Line drawing of a vertical cylindrical structure with base supports, no text or symbols present

Rengjøring

Line drawing of a simple outdoor table with a curved top and metal frame (no text or symbols)

Illustration of a hand operating a cylindrical mechanical component with a red arrow indicating rotation (no text or symbols)

Diagram of a mechanical clamp or bracket with red motion arrows indicating movement (no text or symbols)

Line drawing of a hand using a tool to adjust or install a metal bracket (no text or symbols present)

Illustration of a garment sleeve with fabric pattern and measurement markings (no text or symbols)

Line drawing of a person lying on a bed under a covered platform, no text or symbols present

Line drawing of a person sitting in a chair under a large solar panel, no text or symbols present

Du kan sola antingen:

liggande, fig 8,

sittande, fig 9 eller

stående, fig 10

med detta solarium.

Line drawing of a person viewed from behind through a curtain, no text or symbols present

11 40 20

12 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

14 00000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Användning

Line drawing of a mechanical device with a lever and frame structure (no text or symbols)

Simple line drawing of a vertical pole with base and support legs, no text or symbols present

Rengöring
