Click Smart 510 - Camera LOGITECH - Free user manual and instructions

Brand	Logitech
Model	ClickSmart 510
Product type	Digital camera / Webcam
Image resolution (still)	Up to 1.3 megapixels (1280 x 960) enhanced in software
Video resolution	Up to 320 x 240 pixels
Storage media	Smart Media card
Interface	USB with QuickSync button
Battery	4 x AAA alkaline
Flash modes	Auto, fill-in, off
Self-timer	10 seconds
Camera modes	Photo, Video, Multisnap (5 shots)
Focus ranges	Near (< 3 ft) and distant
Operating temperature	32°F to 104°F (0°C to 40°C)
Warranty	2 years limited
Included software	Logitech camera software
Webcam function	Yes, for video calling and broadcasting
Lens protection	Lens cap

Frequently Asked Questions - Click Smart 510 LOGITECH

How do I transfer pictures from the camera to my computer?

Connect the camera to your computer using the USB cable, then press the QuickSync button on the camera. The QuickSync window will appear on your computer screen, allowing you to transfer all images to the gallery, delete them, or cancel.

What type of batteries does the ClickSmart 510 use?

The camera uses 4 AAA alkaline batteries. Insert them into the battery compartment before use.

How can I delete photos from the camera?

To delete the last picture, press the QuickSync button for one second. To delete a series of images, hold the QuickSync button until they are deleted.

Can I use the ClickSmart 510 as a webcam?

Yes, connect the camera to your PC via USB and launch the Logitech camera software. You can then use it for video calling, video e-mail, or live broadcasting.

What is the maximum photo resolution?

The maximum photo resolution is 1.3 megapixels (1280 x 960 pixels), enhanced in software. Medium and low resolutions are also available.

How do I set the self-timer?

Press the Mode button repeatedly until the timer icon flashes on the status display. Then press the Select button to activate the 10-second delay. Press the shutter button to start the countdown.

What are the flash options?

The camera offers three flash modes: Auto flash (fires automatically), Fill-in flash (for low light), and No flash. Cycle through them using the Mode and Select buttons.

How do I know when the flash is charging?

When you turn on the flash, the low light indicator under the viewfinder blinks red while charging. Wait until it becomes a solid red before taking a picture.

What memory card does the camera use?

The camera uses a Smart Media memory card. Insert it into the memory card slot with the metal contacts facing inward. Avoid touching the contacts.

How do I focus the camera?

Use the focusing ring on the lens. Set it to the man icon for subjects less than 3 feet away, and to the mountain icon for distant subjects.

USER MANUAL Click Smart 510 LOGITECH

© 2001 Logitech. All Rights Reserved. Logitech, the Logitech logo, and other Logitech marks are owned by Logitech and my be registered. All other trademarks are the property of their respective owners. Logitech assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice.

Part Number: 622898-0403

Logitech® ClickSmart™ products are intended to be used in a lawful manner. Certain uses of digital PC camera products may be prohibited by local laws in some countries or states, such as the surreptitious recording of audio and/or video communications for certain purposes. If you have any question about whether a proposed use of your product is lawful, you should consult a local legal authority before proceeding.

Limited Warranty. Logitech warrants that any hardware product accompanying this documentation shall be free from significant defects in material and workmanship for a period of two (2) years from the date of purchase. Logitech's limited warranty is nontransferable and is limited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which vary under local laws. Remedies. Logitech's entire liability and your exclusive remedy for any breach of warranty shall be, at Logitech's option, to: (a) repair or replace the hardware, provided that the hardware is returned to the point of purchase or such other place as Logitech may direct, with a copy of the sales receipt, or (b) refund the price paid. Any replacement hardware will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. These remedies are void if failure of the hardware has resulted from accident, abuse, or misapplication. DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES. LOGITECH AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS WITH RESPECT TO THE HARDWARE. NO LOGITECH DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

LIMITATION OF LIABILITY. IN NO EVENT WILL LOGITECH OR ITS SUPPLIERS BE LIABLE FOR ANY COSTS OF PROCUREMENT OF SUBSTITUTE PRODUCTS OR SERVICES, LOST PROFITS, LOSS OF INFORMATION OR DATA, OR ANY OTHER SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING IN ANY WAY OUT OF THE SALE OF, USE OF, OR INABILITY TO USE ANY LOGITECH PRODUCT OR SERVICE, EVEN IF LOGITECH HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL LOGITECH'S AND ITS SUPPLIERS' TOTAL LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE LOGITECH PRODUCT OR SERVICE GIVING RISE TO THE LIABILITY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not apply in case of personal injury where and to the extent that applicable law requires such liability.

FCC Compliance and Advisory Statement. This hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Canadian DOC Statement. This digital device does not exceed the Class B limits for radio noise emissions from digital apparatus specified in the interference-causing equipment standard entitled "Digital Apparatus," ICES-003 of the Department of Communications.

This device complies with RSS-210 of Industry and Science Canada. Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device.

Register Your Camera! Please take a moment to register your camera on our web site at www.logitech.com. Registration entitles you to free Customer Support. Furthermore, as a registered customer you may chose to be included in special product offers and interesting information about new Logitech products.

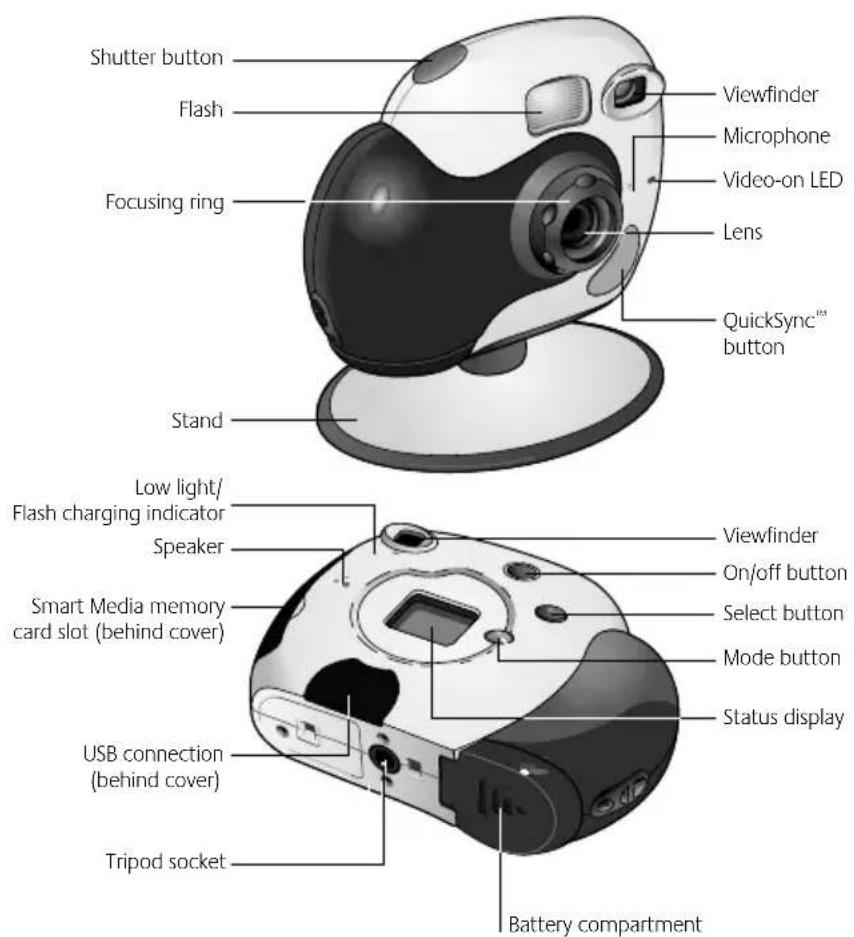

It's easy with your Logitech® ClickSmart™ 510 digital camera! Take spontaneous digital pictures, or make fun videos with sound. Share your creations quickly with family and friends over e-mail, or the Web.

For digital pictures and videos, turn on the camera, then point and shoot. Your pictures and videos are stored on a Smart Media card. Later, download via QuickSync.

For live Web video, connect the camera to your computer, then launch the Logitech® camera software that's included with your camera.

Getting Ready

1. Insert the four AAA alkaline camera batteries.
2. Insert the Smart Media™ memory card into the memory card slot. Push the card all the way in and close the door. (To remove the memory card, open the door and press on the card to eject it.)
3. Install the Logitech® camera software using your computer's CD-ROM drive. Follow the on-screen instructions.

Taking Pictures and Videos

1. Press and hold the On/off button for one second to turn on the camera. The camera is ready to take a digital picture.
2. To change any of the camera's options (e.g., camera mode, resolution, timer, etc.), cycle through the options on the status display by pressing the Mode button. The icon of the active option will flash. Change it by pressing the Select button.
3. When not in use, the camera turns itself off after 60 seconds to conserve battery power.
4. To switch the camera off, press and hold the On/off button for one second.

The Status Display

1. Camera Mode\*


Video. Press and hold Shutter button to record video with sound; release button to stop.

Multisnap. Pressing the Shutter button once takes a series of five photos at one second intervals.

2. Resolution

High: 1.3 megapixels (1280 x 960 pixels), enhanced in software (photos only)

Medium: 640 x 480 pixels (photos only) and 320 x 240 pixels (videos only)

Low: 320 x 240 pixels (photos only) and 160 x 120 pixels (videos only)

3. Flash

Automatic flash with each shot.

Fill-in flash in low light.

No flash.

4. Timer

Press Shutter button; photo is taken after 10 seconds.

5. Camera Sound Indicator - On/Off

6. Delete

Press the QuickSync button for one second to delete the last picture. Hold QuickSync button to delete a series of images.

Status Indicators

7. Counter - Up/Down

Up arrow: pictures taken; Down arrow: pictures remaining.

8. Number of Pictures or Frames of Video

9. Battery Status

Getting Your Pictures and Videos into the Computer

1. Turn on your computer, then place the camera on its stand.

2. Open the cover protecting the USB connector on the camera. Plug the USB cable into the camera, then plug the other end into a USB port on your computer.

3. Press the QuickSync button on the camera to display the QuickSync window on your computer screen. From here you can:

4. Transfer all your images to the Gallery in your computer. After the transfer, the pictures in the camera are deleted automatically.

5. Delete all the pictures in your camera without transferring them.
6. Cancel and neither download nor delete your in-camera pictures.

Sharing Your Pictures and Videos

1. Download your pictures to the computer (see "Getting Your Pictures and Videos into the Computer").
2. If the Logitech ^® camera software is not launched, click the Logitech ^® camera software icon located on the Windows ^® Quick Launch Bar to launch the software.
3. To e-mail a photo or video, use the "Attach to an E-mail" button in the Gallery section. For more information, refer to the Online User's Guide.
   It's also easy to share your photos on SpotLife.com using the "Create a Web Album" activity. (A FREE SpotLife.com trial membership is included with your camera.) For more information, refer to the Online User's Guide.

Using the Camera as a Web Camera

With your camera and software, do video calling, video e-mail, or live video broadcasting on the Internet right from your PC.

Simply connect the camera to your PC, and place the camera on your computer monitor or your desktop.

Launch the Logitech ^® camera software. For additional information, refer to the Online User's Guide.

Warnings!

• Don't expose the camera to extremes of cold or heat. Operating temperature is between 32^ to 104^ F ( 0^ to 40^ C).
• Don't immerse the camera in water.
• Avoid touching the LCM window.
• Use the lens cap to protect the lens when you are not taking pictures.
• When inserting the Smart Media™ memory card into the camera, don't touch the metal contacts on the card.
• Use only Smart Media™ memory cards.
• Discard used batteries according to the manufacturer's instructions.
• Remember that when the camera is set to auto-flash or fill-in flash, the camera batteries are drained more quickly.

Tips for Taking Great Pictures and Videos

• Fill the viewfinder with your subject and hold the camera steady for extra time to prevent blurry images.
• Make sure your subject fits within the crop marks in the viewfinder.
• There are two focusing ranges. For near subjects less than three feet (90 cm) away, set the focusing ring to the “man” icon. For distant subjects, set the focusing ring to the “mountain” icon.
• Avoid subjects of extreme contrast that have both deep shadows and harsh highlights (e.g., when the sun is directly behind your subject).
• Avoid taking videos in very dim light; your video will be too dark.
• For bright, overhead lighting use the fill-in flash feature (e.g., taking a portrait when the sun is directly over your subject).
• In dim light, the low light indicator underneath the viewfinder will turn on. Consider using the flash feature.
• When you turn on the flash, the low light indicator becomes the flash charging indicator. It will blink to let you know that the flash is charging. Wait until the indicator has turned a solid red before taking a picture.
• Obtain free software updates. Your Logitech camera software automatically checks the Logitech® web site and downloads the newest version of the software.
• Get more Information — Important! Access the Online User's Guide:
• From within the Logitech ^ camera software, click the Help button. A drop-down list box displays.
• Select "View the How to Guide." The User's Guide displays automatically. To view a topic, click one of the topics listed on the left side of the title page.
