USER MANUAL KD-G302 JVC

Technical line drawing of a mechanical component with an arrow indicating assembly (no text or symbols)

KD-G302

JVC 6.0W×4 CD RW 82-6M1 RBL 7 2 3 4 5 6 + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

KD-G301

JVC VRC G0W4 GMP K2-UN1 F8V6 CD-14 C2 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 300 + 7 + 2 + 3 + 4 + 5 + 6 + 9 + 10 + 11 + 12 + 13 + 14 + 15 + 16 + 17 + 18 + 19 + 20 + 21 + 22 + 23 + 24 + 25 + 26 + 27 + 28 + 29 + 30 + 31 + 32 + 33 + 34 + 35 + 36 + 37 + 38 + 39 + 40 + 41 + 42 + 43 + 44 + 45 + 46 + 47 + 48 + 49 + 50

For installation and connections, refer to the separate manual.

Abstract geometric pattern with diagonal black and white stripes (no text or symbols)

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

GEBRUIKSAANWIJZING

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

CAUTION : Visible and invisible laser radiation when open and interlock failed or detected AVOID DIRECT EXPOSURE TO BEAM. (e)

ADVARSEL : Synlig og usynlig laserstråling när maskinen er åben eller interlocken tejler Undøgä direkte eksponering bil stråling. (d)

VARNING : Synlig och osynlig laserstråning när den öppnas och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Awbetaessa ja suojelukitus ohlettuna tai vialisena olet albina näkyvälte ja näkymättömälle lasersätilylle. Valt säähen kondistimista suoraan tseesi. (f)

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or a similar tool.

This will reset the built-in microcomputer.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

Diagram showing a device component being processed into a housing, with a tool tip nearby (no text or symbols present)

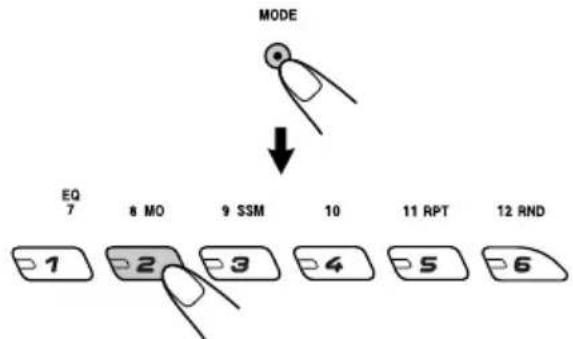

How to use the MODE button

If you press MODE, the unit goes into functions mode, then the number buttons and ▲/▼ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

MONO MO CEO NOCK CLASSIC WATER HUMANITY FMI USER JAZZ

Time countdown indicator

To use these buttons for original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared.

- Pressing MODE again also clears the functions mode.

CONTENTS

How to reset your unit 2

How to use the MODE button 2

LOCATION OF THE BUTTONS ...... 4

Control panel.... 4

BASIC OPERATIONS .... 5

Turning on the power 5

Canceling the display demonstration ..... 6

Setting the clock....7

RADIO OPERATIONS 8

Listening to the radio.... 8

Storing stations in memory 9

Tuning in to a preset station 10

RDS OPERATIONS ...... 11

What you can do with RDS 11

Other convenient RDS functions and adjustments 16

CD OPERATIONS ...... 18

Playing a CD 18

Locating a track or a particular portion on a CD 19

Selecting CD playback modes 20

Prohibiting CD ejection 20

SOUND ADJUSTMENTS ...... 21

Selecting preset sound modes (C-EQ: custom equalizer) 21

Adjusting the sound 22

OTHER MAIN FUNCTIONS ...... 23

Changing the general settings (PSM) ..... 23

Detaching the control panel 26

CD CHANGER OPERATIONS 27

About MP3 discs 27

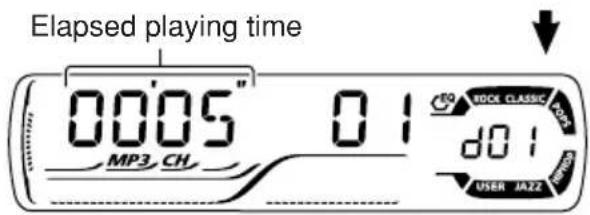

Playing discs 28

Selecting the playback modes 30

EXTERNAL COMPONENT OPERATIONS ... 31

Playing an external component 31

DAB TUNER OPERATIONS .... 32

Tuning in to an ensemble and one of the services 32

Storing DAB services in memory 33

Tuning in to a preset DAB service 34

What you can do more with DAB 35

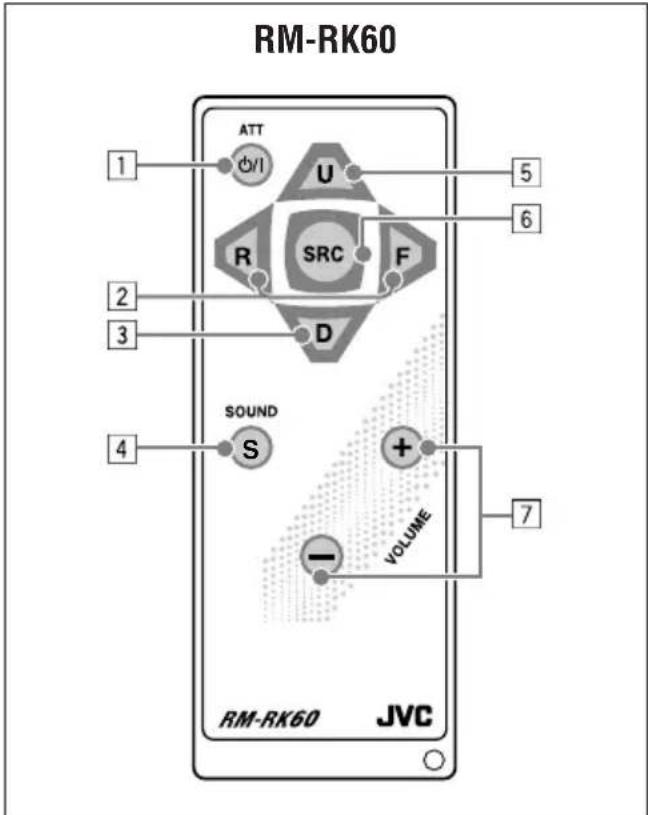

USING THE REMOTE CONTROLLER ..... 36

Location of the buttons.... 37

TROUBLESHOOTING 38

MAINTENANCE 40

Handling discs.... 40

SPECIFICATIONS...... 41

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit's chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

\*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.

\*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

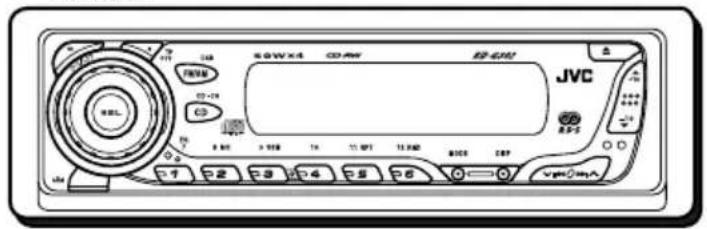

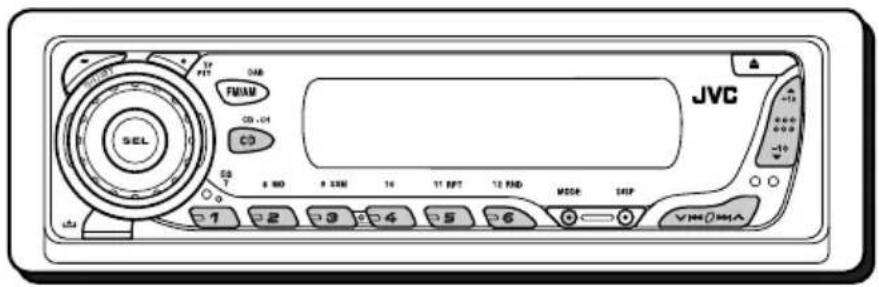

Control panel

Display window 22 23 24 MP3 CH CD ST MO TP PTY AF REG RND RPT EQ ROCK CLASSIC POPS 800 Tr USER JAZZ HIPHOP 25 26 27 28 29 30 31 32 33 1 2 3 4 5 6 SUTY TP PTY DAS FM/AM CD-CH CD 50Wx4 CD-RW JVC RD-S EQ 7 6 MO 9 3SM 10 11 RPT 12 RND MODE DISP VMO HMA 1 2 3 4 5 6 9 10 11 12 13 14 15 16 17 18 19 20 21

1 (standby/on/attenuator) button

2 SEL (select) button

3 TP PTY (traffic programme/programme type) button

4 FM/AM DAB button

5 CD CD-CH (CD changer) button

6 Display window

7 ▲ (eject) button

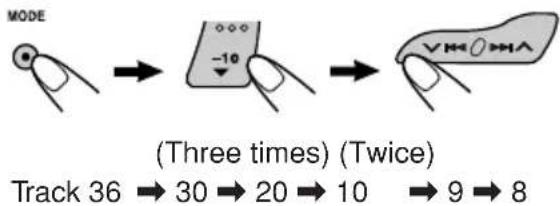

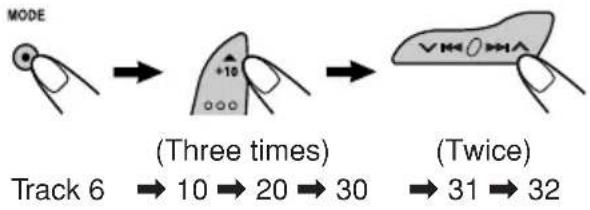

8 ▲ (up) button +10 button

9 (control panel release) button

10 Control dial

11 Number buttons

12 EQ (equalizer) button

13 Remote sensor

- You can control this receiver with an optionally purchased remote controller.

14 MO (monaural) button

15 SSM (Strong-station Sequential Memory) button

16 RPT (repeat) button

17 RND (random) button

18 MODE button

19 DISP (display) button

20 ▼ |◀◀/▶▶| ∧ buttons

21 ▼ (down) button -10 button

Display window

22 Main display

23 EQ (equalizer) indicator

24 Sound mode (C-EQ: custom equalizer) indicators—ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

- also works as level meter during play if the level meter is activated (see page 25).

25 MP3 indicator

- Lights up only when playing an MP3 disc on a JVC MP3-compatible CD changer.

26 Tuner reception indicators—ST (stereo), MO (monaural)

27 RDS indicators—TP, PTY, AF, REG

28 CD indicator

29 CH (CD changer) indicator

30 Playback mode/item indicators—RND (random), (disc), RPT (repeat)

31 LOUD (loudness) indicator

32 Source display Volume level indicator

33 Tr (track) indicator

JVC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

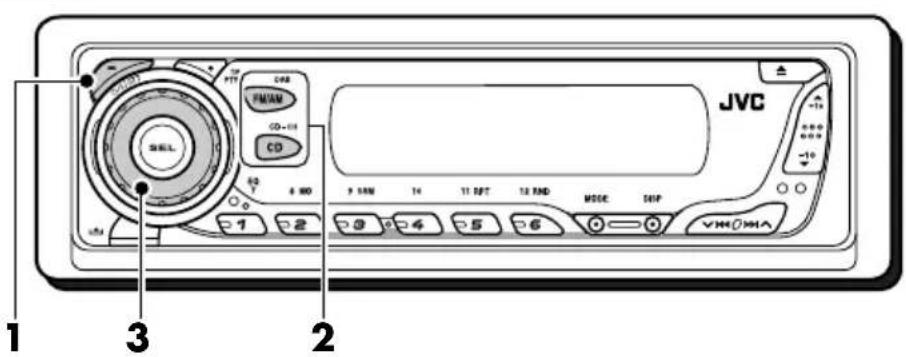

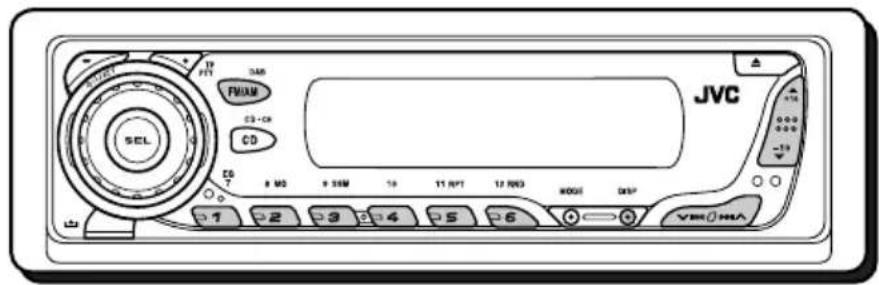

Turning on the power

1 Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

2 Select the source.

To operate the tuner (FM or AM), see pages 8 – 17.

To play a CD, see pages 18 – 20.

To operate the CD changer, see pages 27 - 30.

To operate the external component (LINE IN), see page 31.

To operate the DAB tuner, see pages 32 - 35.

3 Adjust the volume.

SEL

To increase the volume

To decrease the volume

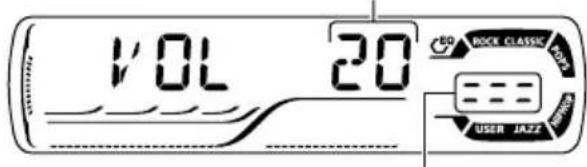

Volume level appears.

1'OL 20 BOCK CLASSIC MOZZ USER JAZZ

Volume level indicator

4 Adjust the sound as you want. (See pages 21 and 22.)

To drop the volume in a moment

Press ⬇ briefly while listening to any source. "ATT" starts flashing on the display, and the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

- If you turn the control dial, you can also restore the sound.

To turn off the power

Press and hold Cfor/AmBre than one second.

"SEE YOU" appears, then the unit turns off.

- If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

JVC 17 PTT CAB FM/AM CD-101 CD 80 8 MDD 9 SMM 14 11 RPT 12 END MODE SHIP 1 2 3 4 5 6 VDD:0.0mA

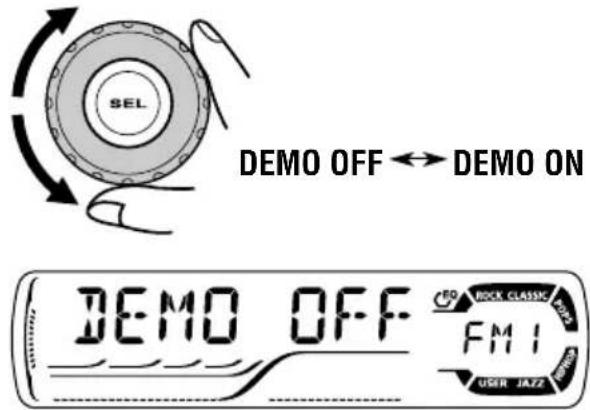

Canceling the display demonstration

When shipped from the factory, display demonstration has been activated, and starts automatically when no operations are done for about 20 seconds.

- It is recommended to cancel the display demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 23 and 24.)

2 Select "DEMO" if not shown on the display.

DEMO BOOT CLASSIC OFF FM1 USER JAZ2

3 Select "DEMO OFF."

DEMO OFF ↔ DEMO ON DEMO OFF FMI RICK CLASSIC USER JAZZ

4 Finish the setting.

To activate the display demonstration, repeat the same procedure and select "DEMO ON" in step 3.

JVC 10 FTT GAR FM/AV CD+CK CD 8 800 8 SSM 16 11 FFT 12 FWD WDC EXP VBR USA

Setting the clock

You can also set the clock system to either 24 hours or 12 hours.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 23 and 24.)

2 Set the hour.

1 Select "CLOCK H" (hour) if not shown on the display.
2Adjust the hour.

2 SEL

3 Set the minute.

1 Select "CLOCK M" (minute).
2Adjust the minute.

2 SEL

4 Set the clock system.

1 Select "24H/12H."
2 Select "24H" or "12H."

2 SEL

5 Finish the setting.

To check the current clock time or change the display mode

Press DISP (display) repeatedly. Each time you press the button, the display changes as follows:

- During AM and FM non-RDS Station operation:

Frequency Clock

• During FM RDS Station operation:

- During CD operation:

ClockElapsed playing

• During CD changer operation:

- During external component operation:

LINE IN ←→ Clock

- During power off:

The power turns on and the clock time is shown for 5 seconds, then the power turns off.

JVC 0.00 +0.00 -10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 +10 SCL T2 F11 DAB FM/AM CD, OK CD 8 MDD 8 SMM 14 11 NPT 12 RBD MODE EADP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

Selected band appears.

00:3 ST FMI RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH RICH

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Start searching for a station.

To search for stations of higher frequencies

To search for stations of lower frequencies

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed for searching.

Searching for a station manually: Manual search

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Press and hold ▶▶| or ◀◀ until “M” (manual) starts flashing on the display.

92.5 M DCK CLASSIC LIFE RHO USER JAZZ

3 Tune in to a station you want while "M" (manual) is still flashing.

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

• If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.
• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz for AM—MW/LW) until you release the button.

When an FM stereo broadcast is hard to receive:

MODE 8 MO 2

1 Press MODE to enter the functions mode while listening to an FM stereo broadcast.
2 Press MO (monaural), while "MODE" is still flashing on the display, so that "MONO" appears on the display. Each time you press the button, monaural mode turns on and off alternately.

MONO MO EQ ROCK CLASSIC FMI USER JAZZ

MO (monaural) indicator

When the MO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
- Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

1 Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

2 Press MODE to enter the functions mode.

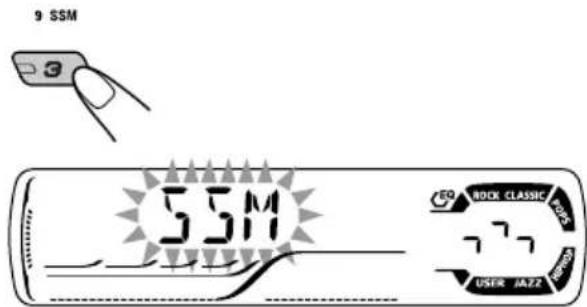

3 Press and hold SSM for about 2 seconds.

9 SSM 5.5M BOOK CLASSIC JAZZ 777 USER JAZZ

“SSM” flashes, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2, or FM3). These stations are preset in the number buttons —No.1 (lowest frequency) to No.6 (highest frequency).

When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually.

Ex.: Storing FM station of 92.5 MHz into the preset number 1 of the FM1 band.

1 Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

2 Tune in to a station (in this example, of 92.5 MHz).

To tune in to stations of higher frequencies

To tune in to stations of lower frequencies

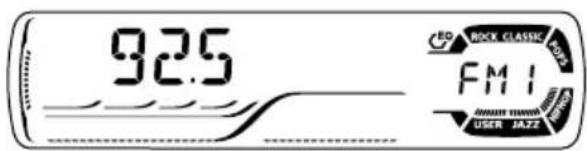

92.5 ED ROCK CLASSIC FM1 DARK JAZZ

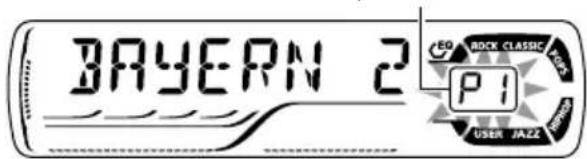

3 Press and hold the number button (in this example, 1) for more than 2 seconds.

92.5 P1 RICK CLASSIC USER JAZZ

Preset number flashes for a while.

4 Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see "Storing stations in memory" on pages 9 and 10.

1 Select the band (FM1 - 3, AM).

Each time you press the button, the band changes as follows:

2 Select the number (1 - 6) for the preset station you want.

EQ 7 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.

Another advantage of RDS function is called "Enhanced Other Networks." By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favorite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)
• Standby Reception of TA (Traffic Announcement) or your favorite programme
  • PTY (Programme Type) search
• Programme search
  • And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on page 17.)

Two types of the RDS data are used to make Network-Tracking Reception work correctly —PI (Programme Identification) and AF (Alternative Frequency).

Without receiving these data correctly from the RDS station you are listening to, Network-Tracking Reception will not operate.

To use Network-Tracking Reception

You can select the different modes of network-tracking reception to continue listening to the same programme in its finest reception.

When shipped from the factory, "AF" is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to "off."
  With this setting, the unit switches to another station within the same network when the received signals from the current station become weak. (In this mode, the programme may differ from the one currently received.)
  The AF indicator lights up but the REG indicator does not.

- AF REG: Network-Tracking Reception is activated with Regionalization set to "on."

With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the received signals from the current station become weak.

Both the AF indicator and the REG indicator light up.

• OFF: Network-Tracking Reception is deactivated.

Neither the AF indicator nor the REG indicator lights up.

92.5 AF REG RCK CLASSIC FMI USER JAZZ

AF and REG indicators

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated ("AF") automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 35.)

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 23 and 24.)

2 Select "AF-REG" (alternative frequency/regionalization reception) if not shown on the display.

3 Select the desired mode—"AF," "AF REG," or "OFF."

SEL

4 Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station, CD, or other connected components).

• TA Standby Reception will not work if you are listening to an AM station.

Press TP PTY to activate TA Standby Reception.

■When the current source is FM, the TP indicator either lights up or flashes.

- If the TP indicator lights up, TA Standby Reception is activated. If a station starts broadcasting a traffic announcement, "TRAFFIC" appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 16) and the traffic announcement can be heard.

- If the TP indicator flashes, TA Standby Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ▶▶| ∧ or √ |◀◀ to search for such a station.

When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

■When the current source is other than FM, the TP indicator lights up.

If a station starts broadcasting a traffic announcement, "TRAFFIC" appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception, press TP PTY again. The TP indicator disappears.

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components).

- PTY Standby Reception will not work if you are listening to an AM station.

You can select your favorite programme type for PTY Standby Reception.

When shipped from the factory, PTY Standby Reception is turned off. ("OFF" is selected for PTY Standby Reception.)

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 23 and 24.)

2 Select "PTY-STBY" (standby) if not shown on the display.

3 Select one of the twenty-nine PTY codes. (See page 17.)

SEL

Selected code name appears on the display and is stored into memory.

4 Finish the setting.

■When the current source is FM, the PTY indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated.
  If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.
• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception.
  To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ▶▶| ∧ or √ |◀◀ to search for such a station.
  When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

■When the current source is other than FM, the PTY indicator lights up.

If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception, select "OFF" in step 3 on the left column. The PTY indicator disappears.

Searching your favorite programme

You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favorite programme types, see below.

To search your favorite programme type, see page 15.

1	2	3
POP M	ROCK M EASY M
4	5	6
CLASSICS	AFFAIRS	VARIED

To store your favorite programme types

1 Press and hold TP PTY for more than 2 seconds while listening to an FM station.

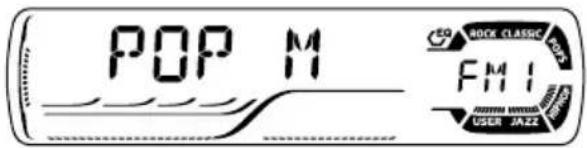

POP M E0 ROCK CLASSIC FMI USER JAZZ

The last selected PTY code appears.

2 Select one of the twenty-nine PTY codes. (See page 17.)

转速L

Selected code name appears on the display.

3 Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

EQ 7 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

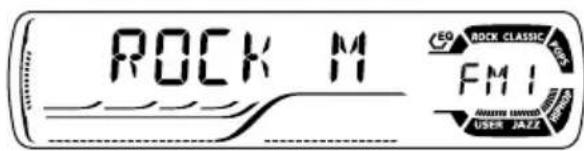

ROCK M EQ ROCK CLASSIC FMI USER JAZZ

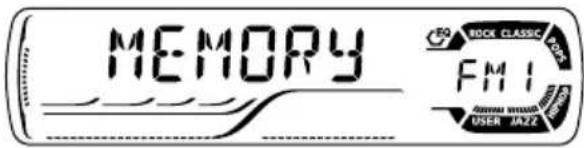

Selected PTY code and "MEMORY" appear alternately for a while.

MEMORY 300 kHz CLASSIC FMI USER JAZZ

4 Press and hold TP PTY for more than 2 seconds to exit from this mode.

To search your favorite programme type

1 Press and hold TP PTY for more than 2 seconds while listening to an FM station.

TP PTY POP M CEO ROCK CLASSIC NO. FMI USER JAZZ

The last selected PTY code appears.

2 To select one of your favorite programme type

EQ 7 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

or

To select any one of the twenty-nine PTY codes

SEL ROCK M SO ROCK CLASSIC FORS FMI USER JAZZ

Ex.: When "ROCK M" is selected

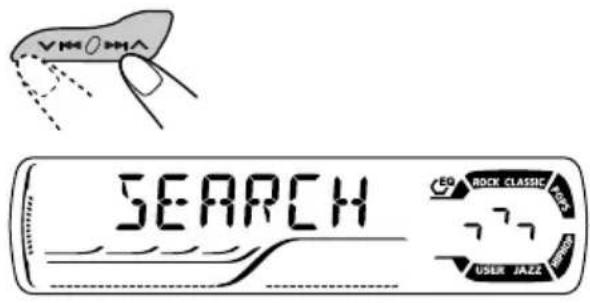

3 Press ▶▶| ∧ or ∨ ◀◀◀ to start PTY search for your favorite programme.

VMOMA SEARCH E0 ROCK CLASSE WORK 777 USER JAZZ

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.
• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in.

However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

- The unit takes some time to tune in to another station using programme search.

To activate programme search, follow the procedure below.

- See also “Changing the general settings (PSM)” on page 23.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶| ∧ or √ |◀◀ to select "P(Programme)-SEARCH."
3 Turn the control dial clockwise to select "ON." Now programme search is activated.
4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same procedure and select "OFF" in step 3 by turning the control dial counterclockwise.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

- See also "Changing the general settings (PSM)" on page 23.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ I ∧ or √ |◀◀ to select "TA VOL" (volume).
3 Turn the control dial to set to the desired volume.

You can set it from "VOL 00" to "VOL 30" or "VOL 50" (depending on the amplifier gain control setting: see page 25).

4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal.

If you do not want to use automatic clock adjustment, follow the procedure below.

- See also "Changing the general settings (PSM)" on page 23.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ I ∧ or √ I◀◀ to select "AUTO ADJ" (adjustment).
3 Turn the control dial counterclockwise to select "OFF."

Now automatic clock adjustment is canceled.

4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same procedure and select "ON" in step 3 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting "AUTO ADJ" to "ON."

Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

PTY codes

NEWS: News	SOCIAL:	Programmes on social activities
AFFAIRS: Topical programmes expanding on current news or affairs	RELIGION:	Programmes dealing with any aspect of belief or faith, or the nature of existence or ethics
INFO: Programmes which impart advice on a wide variety of topics
SPORT: Sport events	PHONE IN:	Programmes where people can express their views either by phone or in a public forum
EDUCATE: Educational programmes
DRAMA: Radio plays
CULTURE: Programmes on national or regional culture	TRAVEL:	Programmes about travel destinations, package tours, and travel ideas and opportunities
SCIENCE: Programmes on natural science and technology
VARIED: Other programmes like comedies or ceremonies	LEISURE:	Programmes concerned with recreational activities such as gardening, cooking, fishing, etc.
POP M: Pop music
ROCK M: Rock music
EASY M: Easy-listening music	JAZZ: Jazz music
LIGHT M: Light music	COUNTRY:	Country music
CLASSICS: Classical music	NATION M:	Current popular music from another nation or region, in that country's language
OTHER M: Other music
WEATHER: Weather information
FINANCE: Reports on commerce, trading, the Stock Market, etc.	OLDIES:	Classic pop music
CHILDREN: Entertainment programmes for children	FOLK M:	Folk music
	DOCUMENT:	Programmes dealing with factual matters, presented in an investigative style

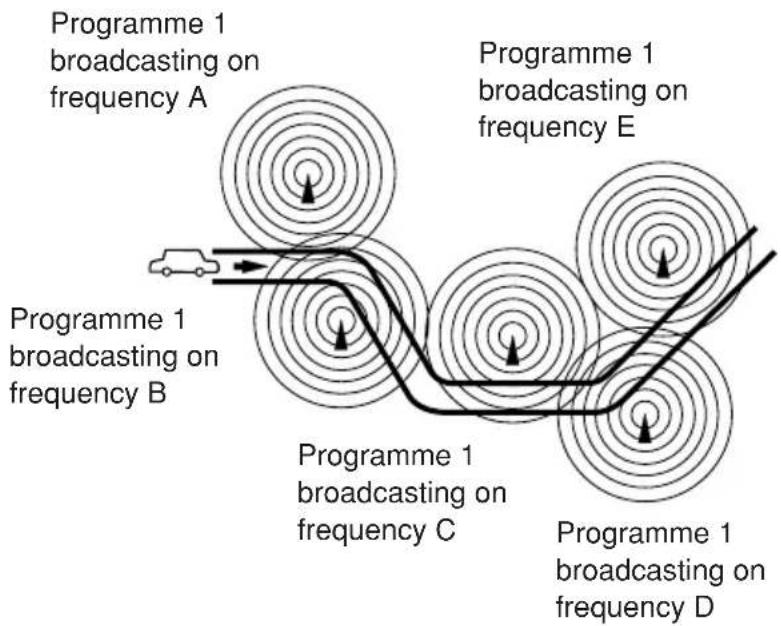

The same programme can be received on different frequencies.

JVC SEL 10 +12 FM/AM CD-04 CD 8 NO 9 35M 14 12 RP7 12 RND MODE 240F 1 2 3 4 5 6 7 VM/0MA

Playing a CD

1 Open the control panel.

Diagram showing a finger pressing a button next to a device with a curved arrow indicating rotation (no text or symbols present)

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically.

2 Insert a CD into the loading slot.

Technical line drawing of a mechanical disc assembly with an arrow indicating direction (no text or symbols)

The unit turns on, draws the CD and starts playback automatically.

3 Close the control panel by hand.

Isometric line drawing of a rectangular electronic component with a black strap and internal slots (no text or symbols)

All tracks will be played repeatedly until you stop playback.

The display changes to show the following:

Current source indication

PLAY CD CD ROCK CLASSIC MOS USER JAZZ CD indicator

Total playing time of the inserted disc 7:340" 17 Total track number of the inserted disc CKC CLASSIC CD USER JAZZ Elapsed playing time Current track number 0003" 01 CD CD RICK CLASSIC CD USER JAZZ

Notes:

• When a CD is inserted upside down, the CD automatically ejects (if the control panel is open). If the control panel is closed, the source changes to the previously selected source, "PLEASE" and "EJECT" appear alternately on the display.
• If there is no CD in the loading slot, you cannot select CD as the source. "NO DISC" appears on the display.

To stop play and eject the CD

Press ▲.

CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source.

- If you change the source, CD play also stops (without ejecting the CD). Next time you select "CD" as the source, CD play starts from where playback has been stopped previously.

Notes:

- If the ejected CD is not removed for about 15 seconds, the CD is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.) - You can eject the CD even when the unit is turned off.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ▶▶▶ I ▲while playing a CD, to fast-forward the track.

Press and hold ⚡◀, while playing a CD, to reverse the track.

To go to the next or previous tracks

Simple line drawing of a hand holding a pen or stylus with no text or symbols

Press ▶▶▶ I ▶ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press ▼◀ briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

EQ 7 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

- To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly. - To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To go to a track quickly (+10 and -10 buttons)

1 Press MODE to enter the functions mode while playing a CD.

2 Press +10 or -10.

To skip 10 tracks* forwards to the last track

To skip 10 tracks* backwards to the first track

* First time you press +10 or -10 button, the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks (see "How to use the +10 and -10 buttons" on page 20).

• After the last track, the first track will be selected, and vice versa.

How to use the +10 and -10 buttons

• Ex. 1: To select track number 32 while playing track number 6

- Ex. 2: To select track number 8 while playing track number 36

MODE (Three times) (Twice) Track 36 → 30 → 20 → 10 → 9 → 8

Selecting CD playback modes

To play back tracks at random (Disc Random Play)

You can play back all tracks on the CD at random.

MODE 12 RND 6

1 Press MODE to enter the functions mode while playing a CD.

2 Press RND (random), while "MODE" is still flashing on the display, so that "DISC RND" appears on the display. Each time you press the button, disc random play mode turns on and off alternately.

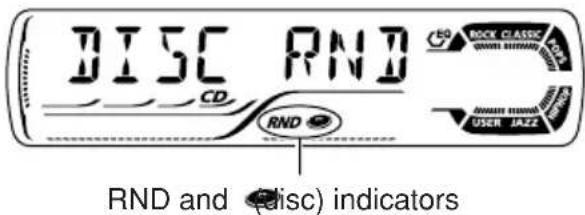

DISC RND CD RND RND and (disc) indicators RCK CLASSIC WWW.JAZZ USER JAZZ

When disc random play is turned on, the RND and indicators light up on the display. A track randomly selected starts playing.

To play back tracks repeatedly (Track Repeat Play)

You can play back the current track repeatedly.

MODE 11 RPT 5

1 Press MODE to enter the functions mode while playing a CD.

2 Press RPT (repeat), while "MODE" is still flashing on the display, so that "TRK RPT" appears on the display. Each time you press the button, track repeat play mode turns on and off alternately.

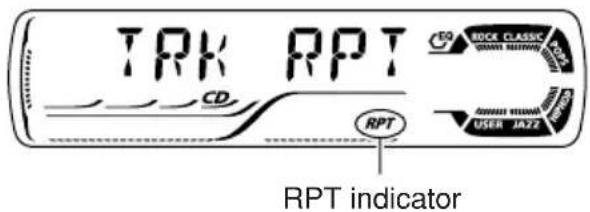

TRK RPT CD RPT RPT indicator

When track repeat play is turned on, the RPT indicator lights up on the display. The current track starts playing repeatedly.

Prohibiting CD ejection

You can prohibit CD ejection and can lock a CD in the loading slot.

While pressing CD CD-CH, press and hold Ⓒ/1/ATT for more than 2 seconds.

CD-CH CD Ø11ATT

"NO EJECT" flashes on the display for about 5 seconds, and the CD is locked and cannot be ejected.

NO EFFECT CO CO ROCK CLASSIC LACK CD USER JAZZ

To cancel the prohibition and unlock the CD

While pressing CD CD-CH, press and hold Ⓗ/1/ATT again for more than 2 seconds.

"EJECT OK" flashes on the display for about 5 seconds, and the CD is unlocked.

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre.

- There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

1 Press MODE to enter the functions mode.

2 Press EQ (equalizer) while "MODE" is still flashing on the display.

You can confirm the current sound mode.

3 Select the sound mode you want.

Each time you press the button, the sound modes change as follows:

USER	ROCK
JAZZ	CLASSIC
HIP HOP	POPS

Indication pattern changes for each sound mode except for "USER."

ROCK 7.0 RICHEN RICHEN CLASSIC USER JAZZ

Ex.: When you select "ROCK"

Indication	For: Preset values
		BAS TRE LOUD
USER (Flat sound) 00 00 OFF
ROCK Rock or +03 +01 ON disco music
CLASSIC	Classical music	+01 -02 OFF
POPS Light music +04 +01		OFF
HIP HOP	Funk or rap music	+02	00 ON
JAZZ	Jazz music	+02 +03 OFF

Note: You can adjust each sound mode to your preference. Once you make an adjustment, it is automatically stored for the currently selected sound mode. See "Adjusting the sound" on page 22.

Adjusting the sound

You can adjust the sound characteristics to your preference.

1 Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

Indication To do: Range
BAS*1	Adjust the bass. -06 (min.)|+06 (max.)
TRE*1	Adjust the treble. -06 (min.)|+06 (max.)
FAD*2	Adjust the front R06 (Rear only)and rear speaker |balance. F06 (Front only)
BAL Adjust	the left L06 (Left only)and right speaker |balance. R06 (Right only)
LOUD*1	Boost low andhigh frequenciesto produce a well-balanced soundat low volumelevel.	LOUD ON|LOUD OFF
VOL*3	Adjust the volume. 00 (min.)|30 or 50 (max.)*4

*1 When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including "USER."
^2 If you are using a two-speaker system, set the fader level to “00.”
*3 Normally the control dial works as the volume control. So you do not have to select "VOL" to adjust the volume level.
^4 Depending on the amplifier gain control setting. (See page 25 for details.)

2 Adjust the setting.

SEL

To increase the level or turn on the loudness

To decrease the level or turn off the loudness

Indication pattern changes as you adjust the bass or treble.

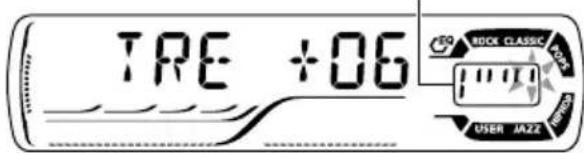

TRE +06 RICK CLASSIC 10000 USER JAZZ

Ex. 1: When you adjust "TRE" (treble)

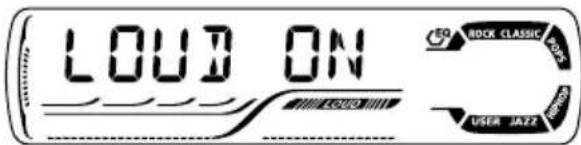

LOUD ON LOGO RCK CLASSIC USER JAZZ

Ex. 2: When you turn on the loudness

3 Repeat steps 1 and 2 to adjust the other items.

To reset each sound mode to the factory settings, repeat the same procedure and reassign the preset values listed in the table on page 21.

Changing the general settings (PSM)

You can change the items listed in the table below and on page 24 by using the PSM (Preferred Setting Mode) control.

Basic Procedure

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See below and page 24.)

2 Select the PSM item you want to adjust.

3 Adjust the PSM item selected.

SEL

4 Repeat steps 2 and 3 to adjust the other PSM items if necessary.

5 Finish the setting.

Preferred Setting Mode (PSM) items

- For detailed operations of each PSM items, refer to the pages listed in the table.

Indications Selectable values/items			Factory-preset settings page	See
DEMO Display demonstration	DEMO OFF	DEMO ON	DEMO ON	6
CLOCK H Hour adjustment	0 — 23 (1 — 12)		0 (0:00)	7
CLOCK M Minute adjustment	00 — 59		00 (0:00)
24H/12H 24/12-hour time display	12H 24H		24H	7
AUTO ADJ Automatic clock setting	OFF ON		ON	16
AF-REG Alternative frequency/Regionalization reception	AF ↔ AF REG↑↓ OFF*1 ↑		AF 11, 12

*1 Displayed only when the "DAB AF" is set to "OFF."

Indications	Selectable values/items		Factory-preset settings	See page
PTY-STBY PTY standby	OFF → 29 programme types (see page 17)↑		OFF	13
TA VOL Traffic announcement volume	VOL 00 — VOL 30 or 50*2		VOL 20	16
P-SEARCH Programme search	OFF ON		OFF	16
DAB AF*3 Alternative frequency search	AF OFF AF	ON	AF ON	35
DAB VOL*3 DAB volume adjustment	VOL -12 — VOL 12		VOL 00	35
LEVEL Level display	OFF	ON	ON	25
DIMMER Dimmer mode	AUTO ↔ OFF↑→ ON ←↑		AUTO 25
TEL Telephone muting	OFF ↔ MUTING 1↑→ MUTING 2 ←↑		OFF	25
EXT IN*4 External component	CHANGER LINE IN CHANGER 25
AMP GAIN Amplifier gain control	LOW PWR	HIGH PWR	HIGH PWR	25

^2 Depending on the amplifier gain control setting. (See page 25 for details.)
^3 Displayed only when the DAB tuner is connected.
*4 Displayed only when one of the following sources is selected—FM, AM, and CD.

To select the level meter—LEVEL

You can activate or deactivate the level meter according to your preference.

When shipped from the factory, level meter is activated.

• ON: Shows the audio level indicator.
- OFF: Cancels the audio level indicator; sound mode indicator is shown.

To select the dimmer mode—DIMMER

When you turn on the car headlights, the display automatically dims (Auto Dimmer).

When shipped from the factory, Auto Dimmer mode is activated.

• AUTO: Activates Auto Dimmer.
• OFF: Cancels Auto Dimmer.
• ON: Always dims the display.

Note:

Auto Dimmer equipped for this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming.

In this case, set the dimmer mode to "ON" or "OFF."

To select the telephone muting—TEL

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either "MUTING 1" or "MUTING 2" whichever mutes the sounds from this unit.

When shipped from the factory, this mode is deactivated.

• MUTING 1: Select if this setting can mute the sounds.
• MUTING 2: Select if this setting can mute the sounds.
  • OFF: Cancels the telephone muting.

To select the external component to use —EXT IN

You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

To use the external component as the playback source through this unit, you need to select which component—CD changer or external component—to use.

When shipped from the factory, CD changer is selected as the external component.

• CHANGER: To use the CD changer.
  • LINE IN: To use the external component other than CD changer.

Note:

For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).

To select the amplifier gain control —AMP GAIN

You can change the maximum volume level of this unit. When the maximum power of the speakers is less than 50 W, select "LOW PWR" to prevent them from being damaged.

When shipped from the factory, "HIGH PWR" is selected.

- LOW PWR: You can adjust the volume level from "VOL 00" to "VOL 30."

Note:

If you can change the setting from "HIGH PWR" to "LOW PWR" while listening at a volume level more than 30, the unit automatically changes the volume level to "VOL 30."

- HIGH PWR: You can adjust the volume level from "VOL 00" to "VOL 50."

Detaching the control panel

You can detach the control panel when leaving the car.

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

1 Unlock the control panel.

Diagram of a door handle with a small inset showing a device tip and arrow (no text or symbols)

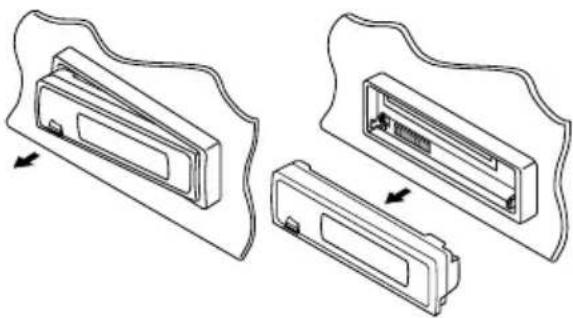

2 Pull the control panel out of the unit.

Technical line drawing of two mechanical components with arrows indicating assembly or transformation (no text or symbols)

3 Put the detached control panel into the provided case.

Technical line drawing of a mechanical tool holder with an open lid and internal compartments (no text or symbols)

Attaching the control panel

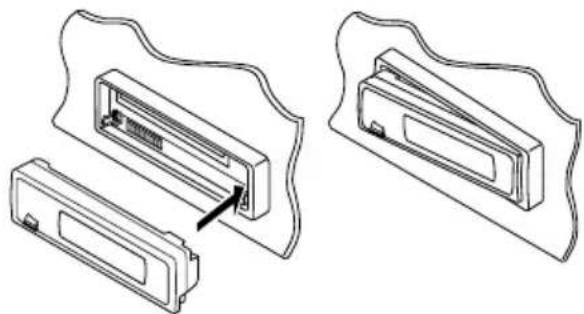

1 Insert the right side of the control panel into the groove on the panel holder.

Technical line drawing of two mechanical component assemblies with no visible text or symbols

2 Press the left side of the control panel to fix it to the panel holder.

Simple line drawing of a rectangular object with an arrow indicating direction, no text or symbols present.

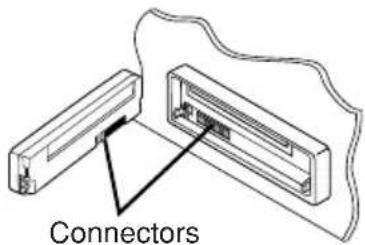

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate.

To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

JVC FM1AM CO-14 CD 4 MΩ 9.50M 16 17 RPT 12 RND MODE SBP +1 +2 +3 +4 +5 +6 0 VHSCMA

We recommend that you use the JVC MP3-compatible CD changer with your unit.

By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.

• You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.
• You cannot use the KD-MK series CD changers with this unit.

Before operating your CD changer:

• Refer also to the Instructions supplied for your CD changer.
• If no discs are in the magazine of the CD changer or the discs are inserted upside down, "NO DISC" will appear on the display. If this happens, remove the magazine and set the discs correctly.
• If no magazine is loaded in the CD changer, "NO MAG" appears on the display. If this happens, insert the magazine in the CD changer.
• If "RESET 1" – "RESET 8" appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

About MP3 discs

MP3 "files (tracks)" can be recorded in "folders"—in PC terminology.

During recording, the files and folders can be arranged in a way similar to arranging files and folders of computer data.

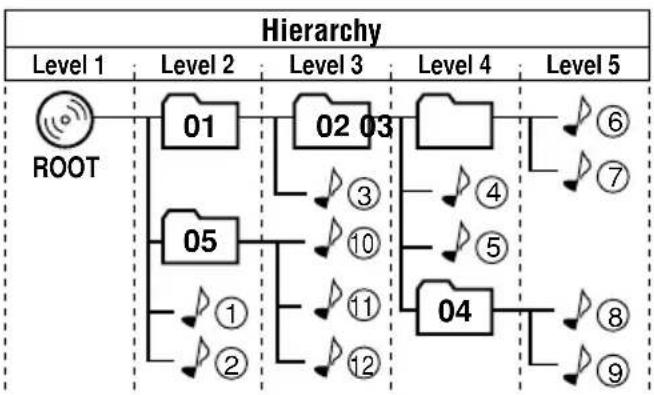

"Root" is similar to the root of a tree. Every file and folder can be linked to and be accessed from the root.


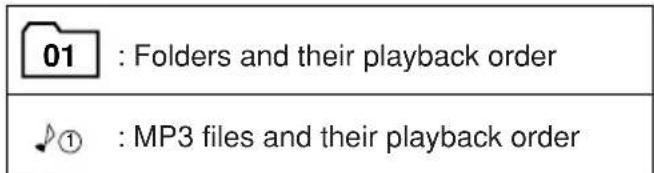

01 : Folders and their playback order ♪① : MP3 files and their playback order

Playing discs

Select the CD changer (CD-CH).

CD-CH CD CD GB-CH*

* If you have changed "EXT IN" setting to "LINE IN" (see page 25), you cannot select the CD changer.
- When the current disc is an MP3 disc: Playback starts from the first folder of the current disc once file check is completed.

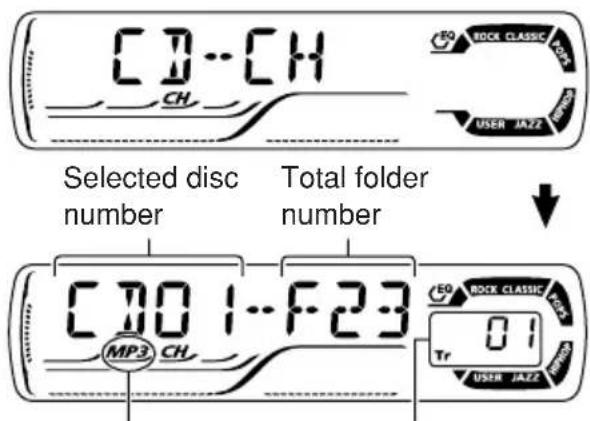

CD-CH CH Selected disc number Total folder number CD01-F23 MP3 CH EO BOE CLASSIC BOE USER JAZZ EO BOE CLASSIC TOUS Tr 01 USER JAZZ

Selected track numberMP3 indica

Elapsed playing time 00'05" 0:1 MP3 CH GEO ROCK CLASSIC d0:1 USER JAZZ

- When the current disc is a CD:

Playback starts from the first track of the current disc.

CD-CH CH Selected disc number PLAY 01 CH DO1 BOCK CLASSIC USER JAZZ Elapsed playing time Current track number 00'03" 01 CH DO1 BOOK CLASSIC USER JAZZ

Notes:

• When you press CD CD-CH, the power automatically comes on. You do not have to press information/ATT to turn on the power.
• If you change the source, CD changer play also stops. Next time you select the CD changer as the source, CD changer play starts from where playback has been stopped previously.

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

EQ 7 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

• To select a disc number from 1 - 6: Press 1 (7) - 6 (12) briefly.
• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than one second.

To fast-forward or reverse the track/file

Press and hold ▶▶▶ during play, to fast-forward the track/file.

Press and hold ▼◀◀, during play, to reverse the track/file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To go to the next or previous tracks/files

Press ▶▶▶ I ▶ briefly during play, to skip ahead to the beginning of the next track/file.

Each time you press the button consecutively, the beginning of the next tracks/files is located and played back.

Press ▼◀ briefly during play, to skip back to the beginning of the current track/file.

Each time you press the button consecutively, the beginning of the previous tracks/files is located and played back.

This operation is only possible when using JVC MP3-compatible CD changer (CH-X1500).

To go to a track/file quickly (+10 and -10 buttons)

1 Press MODE to enter the functions mode while playing a disc.

2 Press +10 or -10.

To skip 10 tracks/files* forwards to the last track/file

To skip 10 tracks/files* backwards to the first track/file

* First time you press +10 or -10 button, the track/file skips to the nearest higher or lower track/file with a track/file number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks/files (see "How to use the +10 and -10 buttons" below).

• After the last track/file, the first track/file will be selected, and vice versa.

Note:

If the current playing disc is an MP3 disc, files are skipped within the same folder.

How to use the +10 and -10 buttons

- Ex. 1: To select track/file number 32 while playing track/file number 6

(Three times) (Twice)

Track/File 6 → 10 → 20 → 30 → 31 → 32

- Ex. 2 :To select track/file number 8 while playing track/file number 36

MODE -10 → →

(Three times)

Track/File 36 → 30 → 20 → 10 → 9 → 8

(Twice)

To skip to the next or previous folder (only for MP3 discs)

+10 -10

Press ▲ (up) while playing an MP3 disc, to go to the next folder.

Each time you press the button consecutively, the next folder is located, and the first file in the folder starts playback.

Press ▼ (down) while playing an MP3 disc, to go to the previous folder.

Each time you press the button consecutively, the previous folder is located, and the first file in the folder starts playback.

Selecting the playback modes

To play back tracks/files at random (Disc Random/Magazine Random Play)

MODE

12 RND

1 Press MODE to enter the functions mode during play.

2 Press RND (random), while "MODE" is still flashing on the display.

Each time you press the button, the random play mode changes as follows:

DISC RND CH RND RND and (disc) indicators

Ex.: When you select "DISC RND"

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode	Active indicator	Plays at random
DISC RND R	ND and All tracks/files of indicators the current (or light up. specified) disc.
MAG RND R	ND indicator All lights up. the inserted discs.	tracks/files of

To play back tracks/files repeatedly (Track Repeat/Disc Repeat Play)

MODE

11 RPT

1 Press MODE to enter the functions mode during play.

2 Press RPT (repeat), while "MODE" is still flashing on the display.

Each time you press the button, the repeat play mode changes as follows:

TRK RPT CH RPT RPT indicator

Ex.: When you select "TRK RPT"

Note:

MP3 indicator also lights up if the current playing disc is an MP3 disc.

Mode	Active indicator	Plays repeatedly
TRK RPT RPT	indicator The lights up. specified) track/file.	current (or
DISC RPT	and RPT All tracks/files of indicators light the current (or up. specified) disc.

JVC 250 PWM CD-CT CD 17 24 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 360 365 370 375 380 385 390 395 400 405 410 415 420 425 430 435 440 445 450 455 460 465 470 475 480 485 490 495 500

Playing an external component

You can connect the external components to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).
• Before operating the external component using the following procedure, select the external input correctly. (See “To select the external component to use—EXT IN” on page 25.)

1 Select the external component (LINE IN).

CD-CH CD LINE IN* LINE IN CQ ROCK CLASSIC JOVS USER JAZZ

• If "LINE IN"* does not appear on the display, see page 25 and select the external input ("LINE IN").
  * Displayed only when one of the following sources is selected—FM, AM, and CD.

Note on One-Touch Operation:

When you press CD CD-CH, the power automatically comes on. You do not have to press to turn on the power.

2 Turn on the connected component and start playing the source.

3 Adjust the volume.

SEL

4 Adjust the sound as you want. (See pages 21 and 22.)

JVC SEL 17 VIT DAR FM/AM CD+CK CD 8 MD 9 SEM 10 11 RPT 12 RWD MODE DESP 1 2 3 4 5 6 VBR HUA

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit.

If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

- Refer also to the Instructions supplied for your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion.

Furthermore, it can carry text, pictures, and data.

In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called “services”) to form one “ensemble.”

In addition, each “service”—called “primary service”—can also be divided into its components (called “secondary service”).

With the DAB tuner connected with this unit, you can enjoy these DAB services.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit.

To prevent this inconvenience, you can adjust the DAB volume level. (See "To adjust the DAB volume level" on page 35.)

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

2 Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

Note:

This receiver has three DAB bands (DAB1, DAB2, DAB3). You can use any of them to tune in to an ensemble.

3 Start searching for an ensemble.

To search for ensembles of higher frequency

To search for ensembles of lower frequency

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have pressed for searching.

4 Select a service (either primary or secondary) you want to listen to.

+10 -10

To select the next service (If a primary service has some secondary services, they are selected before the next primary service is selected.)

To select the previous service (either primary or secondary)

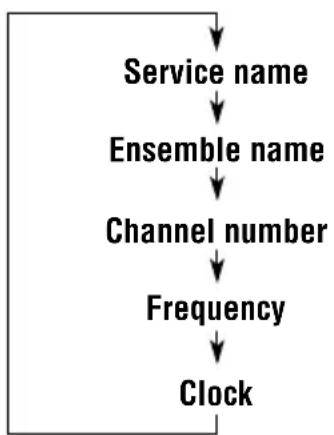

To change the display information while tuning in to an ensemble

Normally service name is shown on the display. If you want to check the ensemble name or its frequency, press DISP (display) repeatedly.

Each time you press the button, the following information appears for a while on the display.

To tune in to a particular ensemble without searching

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Press and hold FM/AM DAB to select DAB tuner as the source.
2 Press FM/AM DAB repeatedly to select the DAB band (DAB1, DAB2, or DAB3).
3 Press and hold ▶▶| ∧ or √ |◀◀ for more than one second.
4 Press ▶▶▶ ▲ or √ ◀◀▶ repeatedly until the ensemble you want is reached.
- If you hold down the button, the frequency keeps changing until you release the button.
5 Press ▲ (up) or ▼ (down) to select a service (either primary or secondary) you want to listen to.

To restore the FM/AM tuner

Press and hold FM/AM DAB again.

Storing DAB services in memory

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2, and DAB3) manually.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

2 Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

3 Tune in to an ensemble you want.

4 Select a service of the ensemble you want to listen to.

To select the next service

To select the previous service

5 Press and hold the number button (in this example, 1) for more than 2 seconds to store the selected service into the preset number you want.

EQ 7 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

Selected preset number

BAYERN 2 P1 ROCK CLASSIC JAZZ USER JAZZ

6 Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• You can only preset primary DAB services. If you store a secondary service, its primary service will be stored instead.
• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.
• Preset DAB services are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the DAB services again.

Tuning in to a preset DAB service

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, see "Storing DAB services in memory" on pages 33 and 34.

Before you start....

Press FM/AM DAB briefly if CD, CD changer, or external component is the current source.

1 Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

← FM/AMDAB

2 Select the DAB band (DAB1, DAB2, or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

→ DAB1 DAB2 DAB3 →

3 Select the number (1 - 6) for the preset DAB service (primary) you want.

EQ 7 8 MO 9 SSM 10 11 RPT 12 RND 1 2 3 4 5 6

Note:

If the selected primary service has some secondary services, pressing the same number button repeatedly will tune in to the secondary services.

What you can do more with DAB

Tracing the same programme automatically (Alternative Reception)

You can keep listening to the same programme.

• While receiving a DAB service:

When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.

• While receiving an FM RDS station:

When driving in an area where a DAB service is broadcasting the same programme as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

- See also “Changing the general settings (PSM)” on page 23.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.

2 Press ▶▶▶ ▲ or ▼ ▶◀◀ to select "DAB AF" (alternative frequency).

3 Turn the control dial to select the desired mode.

- AF ON: Traces the programme among DAB services and FM RDS stations—Alternative Reception. The AF indicator lights up on the display (see page 11).

• AF OFF: Alternative Reception is deactivated.

4 Press SEL (select) to finish the setting.

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 11) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception.

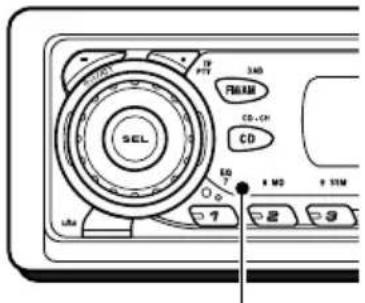

To adjust the DAB volume level

You can adjust the volume level of DAB tuner and store it in memory. By adjusting the volume level properly to match it to the FM sound level, you will not need to adjust the volume level each time you change the source.

When shipped from the factory, DAB volume level is set at "00."

- See also “Changing the general settings (PSM)” on page 23.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press ▶▶▶ ▲ or ▼ ▶◀◀ to select "DAB VOL" (volume).
3 Turn the control dial to set to the desired volume. You can set it from "VOL -12" to "VOL 12."

4 Press SEL (select) to finish the setting.

This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 or RM-RK60 with your unit. (Ex.: When you are using RM-RK60)

Before using the remote controller:

- Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

TEL 340 PREAM CD-CH CD ED 2 8 MS P SIM 7 2 3

Remote sensor

- Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball point pen or a similar tool.
2) Remove the battery holder.

(back side)

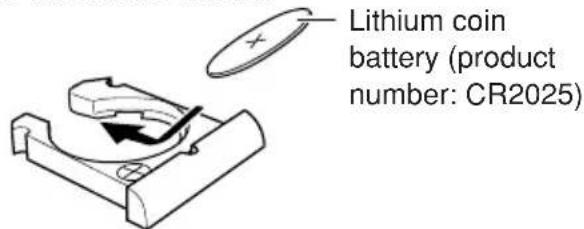

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

3. Return the battery holder.

Insert again the battery holder by pushing it until you hear a clicking sound.

(back side)

WARNING:

• Store the battery in a place where children cannot reach.
  If a child accidentally swallows the battery, consult a doctor immediately.
• Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack, or start a fire.
• Do not leave the battery with other metallic materials.
  Doing this may cause the battery to give off heat, crack, or start a fire.
• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack, or start a fire.
• Do not poke the battery with tweezers or similar tools.
  Doing this may cause the battery to give off heat, crack, or start a fire.

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

KD-G302 and KD-G301 are equipped with the steering wheel remote control function. If your car is equipped with the steering wheel remote controller, you can operate the unit using the controller.

- See the Installation/Connection Manual (separate volume) for connection to utilize this function.

Location of the buttons

RM-RK60 ATT U 5 Ø/1 R SRC F 6 D 2 3 4 SOUND + VOLUME - 7 RM-RK60 JVC

1. Turns on the unit if pressed when the unit is turned off.

- Turns off the unit if pressed and held until "SEE YOU" appears on the display.

- Drops the volume level in a moment if pressed briefly. Press again to resume the volume.

2 • Searches for stations while listening to the radio.

- Selects services while listening to the DAB tuner if pressed briefly.

- Searches for ensembles while listening to the DAB tuner if pressed for more than one second.

- Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

- Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

3• Selects the preset stations (or services) while listening to the radio (or the DAB tuner).

Each time you press the button, the preset station (or service) number increases, and the selected station (or service) is tuned in.

- While playing an MP3 disc on an MP3-compatible CD changer;

• Skips to the previous disc if pressed briefly.
• Skips to the previous folder if pressed and held.

Note: While playing a CD on a CD changer, this always skips to the previous disc.

4 Selects the sound mode (C-EQ: custom equalizer).

Each time you press the button, the sound mode (C-EQ) changes.

5• Selects the band while listening to the radio (or the DAB tuner).

Each time you press the button, the band changes.

- While playing an MP3 disc on an MP3-compatible CD changer;

– Skips to the next disc if pressed briefly.
- Skips to the next folder if pressed and held.

Note: While playing a CD on a CD changer, this always skips to the next disc.

6 Selects the source.

Each time you press the button, the source changes.

7 Functions the same as the control dial on the main unit.

Note: These buttons do not function for the Preferred Setting Mode adjustment.

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms		Causes	Remedies
General	Sound cannot be heard from the speakers.	The volume level is set to the minimum level.	Adjust it to the optimum level.
		Connections are incorrect.	Check the cords and connections.
	This unit does not work at all.	The built-in microcomputer may have functioned incorrectly due to noise, etc.	Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)
FM/AM	SSM (Strong-station Sequential Memory) automatic preset does not work.	Signals are too weak.	Store stations manually.
	Static noise while listening to the radio.	The aerial is not connected firmly.	Connect the aerial firmly.
CD Playback	CD cannot be played back.	CD is inserted upside down.	Insert the CD correctly.
	CD-R/CD-RW cannot be played back.Tracks on the CD-R/CD-RW cannot be skipped.	CD-R/CD-RW is not finalized.	Insert a finalized CD-R/CD-RW.Finalize the CD-R/CD-RW with the component which you used for recording.
	CD cannot be ejected.	CD is locked.	Unlock the CD.(See page 20.)
	CD sound is sometimes interrupted.	You are driving on rough roads.	Stop playback while driving on rough roads.
		CD is scratched.	Change the CD.
		Connections are incorrect.	Check the cords and connections.
	“NO DISC” appears on the display.	No CD in the loading slot.	Insert a CD into the loading slot.
		CD is inserted incorrectly.	Insert the CD correctly.

Symptoms	Causes	Remedies
“NO DISC” appears on the display.	No disc is in the magazine.	Insert discs into the magazine.
	Discs are inserted upside down.	Insert discs correctly.
	The current disc does not contain any MP3 files.	Insert a disc that contains MP3 files.
“NO MAG” appears on the display.	No magazine is loaded in the CD changer.	Insert the magazine.
“RESET 8” appears on the display.	This unit is not connected to the CD changer correctly.	Connect this unit and the CD changer correctly and press the reset button of the CD changer.
“RESET 1” – “RESET 7” appears on the display.	——	Press the reset button of the CD changer.
The CD changer does not work at all.	The built-in microcomputer may function incorrectly due to noise, etc.	Press the reset button on the panel holder after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying.

We recommend that you stop disc play while driving on such rough roads.

Handling discs

This unit has been designed to reproduce CDs, CD-Rs (Recordable), and CD-RWs (Rewritable).

- This unit is not compatible with MP3 discs, but can operate a JVC MP3-compatible CD changer.

How to handle discs

When removing a disc

Center holder

from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

- Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

- Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not be played correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.
- If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R or CD-RW

Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Use only "finalized" CD-Rs or CD-RWs.
• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, and for the following reasons:

– Discs are dirty or scratched.
- Moisture condensation on the lens inside the unit.
– The pickup lens inside the unit is dirty.

• CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.
• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity, so do not leave them inside your car.
• Do not use following CD-Rs or CD-RWs:

– Discs with stickers, labels, or protective seal stuck to the surface.
– Discs on which labels can be directly printed by an ink jet printer.

Using these discs under high temperatures or high humidity may cause malfunctions or damage to discs. For example,

• Stickers or labels may shrink and warp a disc.
• Stickers or labels may be peeled off so discs cannot be ejected.

– Print on discs may get sticky.

Read instructions or cautions about labels and printable discs carefully.

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)
• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.
• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

Warped disc

Sticker

Sticker residue

Disc

Stick-on label

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel

Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity:

11.3 dBf (1.0 μV/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 μV/75 Ω)

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 μV

Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 μV

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement:

Operating Voltage:

DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C

Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 12 mm

Mass (approx.):

1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

WICHTIG FÜR LASER-PRODUKTE

Diagram showing a device component being processed into a device with a pen, illustrating the process from external casing to internal components.

SEL in air

Diagram showing a finger pressing a button next to a device with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical disc assembly with an arrow indicating direction (no text or symbols)

Isometric line drawing of a mechanical component with a rectangular housing and internal slots (no text or symbols)

Simple line drawing of a bird's head and tail with dashed lines indicating motion or movement (no text or symbols)

CD-CH CD D11/ATT

Diagram of a door handle with a small knob and an arrow pointing to it, no text or symbols present

Technical line drawing showing two views of a mechanical component with internal parts and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with an open box and internal components, showing rotational motion arrows (no text or symbols)

Technical line drawing of two mechanical component assemblies with no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Anschlüsse

JVC SEL 048 FM1M CD-04 CD 0 0 0 800 9 SSB 16 17 RPT 12 FND MODE SEP 1 2 3 4 5 6 0 1 VACOMA

Simple line drawing of a hand holding a small object with arrows indicating motion or force (no text or symbols)

Diagram of a mechanical component with a curved arrow and a circular feature, no text or symbols present

11,3 dBf (1,0 μV/75 Ω)

Abmessungen (B × H × T):

Einbaugröße (ca.):

182 mm × 52 mm × 150 mm

Diagram showing a device component assembly process with labeled parts and directional arrows indicating assembly steps.

1 Touche (attente/en service/sourdine)

DEMO OFF ↔ DEMO ON DEMO OFF EQ BOOK CLASSIC FM1 USER JAZC

Diagram showing a hand pressing a button next to a device with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a CD inside a rectangular housing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a door handle with a magnified inset showing a hand holding a small object (no text or symbols)

Technical line drawing of a mechanical component with two views showing internal structure (no text or symbols)

Technical line drawing of a mechanical tool holder with an open base and internal compartments (no text or symbols)

Technical line drawing of two mechanical component assemblies with no visible text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

Diagram of a mechanical component with a curved arrow and a circular feature, no text or symbols present

11,3 dBf (1,0 μV/75 Ω)

Dimensions (L × H × P):

Diagram showing a device component being processed into a housing, with an arrow indicating the process (no text or symbols present)

27 De indicators RDS—TP, PTY, AF, REG

28 De indicator CD

29 De indicator CH (CD-wisselaar)

31 De indicator LOUD (loudness)

32 Brondisplay Volumeniveau-indicator

33 De indicator Tr (fragment)

JVC 1 2 3 4 5 6 7 8 9 10 11 12 MODE SEP VHOMA

JVC 30W FINAN CD-CH CD EQ 8 MD 9 55M 11 APT 12 MHz MOSC SBP 7 2 3 4 5 6 VISA

Weergave van een CD

Diagram showing a finger pressing a button next to a device with a scroll inside (no text or symbols)

Opmerking over de "One-Touch"-bediening:

Technical line drawing of a CD or DVD disc assembly (no text or symbols)

Isometric line drawing of a mechanical component with no visible text or symbols

00:03" 01 CD Rocky CLASSIC CD User music USER JAZZ

Opmerkingen:

Simple line drawing of a hand holding a pen or stylus, with no text or symbols present.

Diagram of a door handle with an arrow pointing to a small object inside, no text or symbols present

Technical line drawing of two mechanical components with arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical component with an open lid and internal compartments, showing rotational motion arrows (no text or symbols)

Technical line drawing of two mechanical component assemblies with no visible text or symbols

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of two connectors with internal components, no text or symbols present

Connectors

JVC FM/AM CD+CH CD 0 1 0 2 0 3 0 4 0 5 0 6 0 7 0 8 0 9 0 10 0 11 0 12 0 13 0 14 0 15 0 16 0 17 0 18 0 19 0 20 0 21 0 22 0 23 0 24 0 25 0 26 0 27 0 28 0 29 0 30 0 31 0 32 0 33 0 34 0 35 0 36 0 37 0 38 0 39 0 40 0 41 0 42 0 43 0 44 0 45 0 46 0 47 0 48 0 49 0 50 0 51 0 52 0 53 0 54 0 55 0 56 0 57 0 58 0 59 0 60 0 61 0 62 0 63 0 64 0 65 0 66 0 67 0 68 0 69 0 70 0 71 0 72 0 73 0 74 0 75 0 76 0 77 0 78 0 79 0 80 JVC

MODE +10 → → V←O→A

11,3 dBf (1,0 μV/75 Ω)

Stereo-scheiding: 30 dB

Vangbereik: 1,5 dB

[MG-zenders]

Gevoeligheid: 20 μV

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit
