Brand	Hitachi (HiKOKI)
Model	WR 18DBDL
Product type	Cordless impact wrench
Power supply	18V lithium-ion battery
No-load speed	Not specified in the manual (estimated: 0-2800 rpm)
Max impact rate	Approx. 3200 bpm (estimated)
Max tightening torque	Approx. 180 Nm (estimated)
Drive square size	1/2" (12.7 mm)
Weight (without battery)	Approx. 1.5 kg (estimated)
Dimensions (L x W x H)	Approx. 200 x 80 x 250 mm (estimated)
Main functions	Tightening and loosening screws, bolts, nuts; high/low mode selection (4 steps); single/continuous mode; dual rotation direction; built-in LED light; residual battery power indicator
Safety	Battery protection against overload, overheating, deep discharge; automatic stop in case of jamming; cooling device on some chargers
Maintenance and cleaning	Wipe the exterior with a soft, dry or slightly damp cloth; do not use solvent; regularly check fixing screws; periodic check of socket wear
Spare parts and accessories	Specific HiKOKI batteries and chargers; hexagonal and square sockets; belt hook; accessories listed on page 174 of the manual
Repairability	Have maintenance done by a qualified repairer using original HiKOKI spare parts; warranty does not cover normal wear or misuse
General information	Brand Hitachi (HiKOKI); model WR 18DBDL; rated voltage 18 V; lithium-ion battery; weight approx. 1.5 kg; country of origin: not specified; warranty: according to national regulations

Frequently Asked Questions - WR 18DBDL HITACHI

How to properly charge the battery of the Hitachi WR 18DBDL?

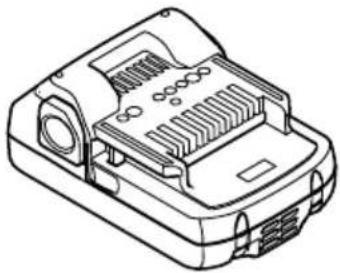

Use only the specified charger (UC18YRSL, UC18YFSL or UC18YML2). Plug the charger into a mains socket or a 12V car source (model UC18YML2). Insert the battery into the charger until it clicks. The red indicator light flashes during charging and stays on when the battery is charged. Only recharge compatible HiKOKI batteries.

What do the different indicator lights on the charger mean?

Red flashing (1s): battery charging. Red steady: charge complete. Fast red flashing (0.1s): anomaly (battery or charger defective). Green steady (UC18YRSL/UC18YML2): battery too hot, cooling in progress. Green flashing (UC18YML2): insufficient 12V source voltage.

How to select the tightening mode (high/low, single/continuous)?

Make sure the battery is installed and release the trigger. Use the selection switches to choose the high/low mode (4 levels) and the single/continuous mode. Single mode applies 1 to 4 impacts and then stops; continuous mode applies impacts as long as the trigger is pressed. In reverse rotation, the tool always operates in continuous mode.

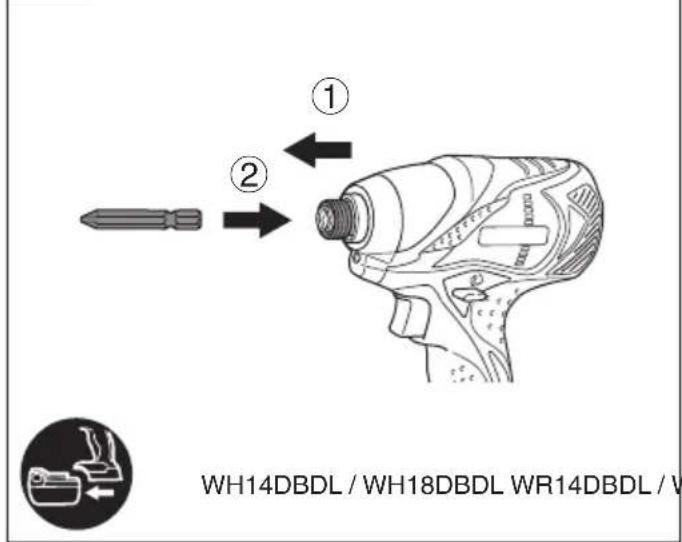

How to install and remove the socket (bit)?

To install the hexagonal socket, align the pin of the square part of the anvil with the socket hole, then push the pin and socket together. Make sure the pin is fully engaged. To remove the socket, reverse the operation: pull the sleeve and remove the socket.

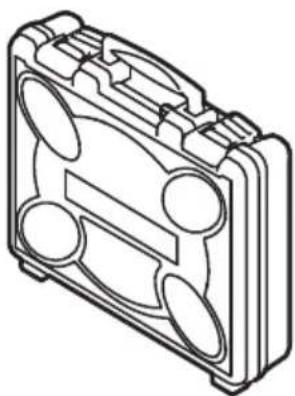

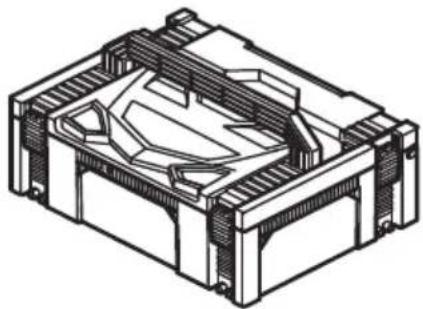

What accessories are supplied with the Hitachi WR 18DBDL?

The manual indicates that the package contains the main unit and the accessories listed on page 174. These usually include a belt hook, hexagonal sockets, and possibly a charger and battery depending on the kit purchased. Standard accessories are subject to change without notice.

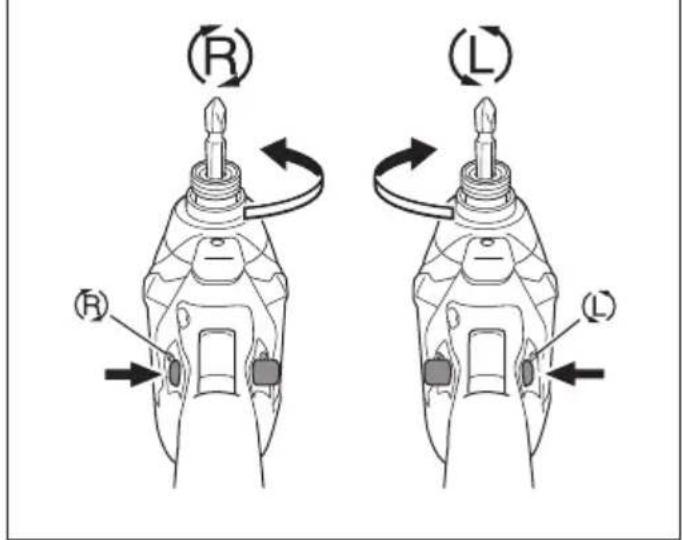

How to reverse the rotation direction?

Use the rotation direction switch located near the trigger. Push it to the left for counterclockwise rotation (loosening) and to the right for clockwise rotation (tightening). Important: always stop the tool before changing direction to avoid damaging the gear.

What to do if the battery does not charge or the indicator light flashes red quickly?

Fast red flashing (0.1s) indicates an anomaly. First check for foreign objects in the charger connector. If no foreign objects, it is likely a malfunction of the battery or charger. Stop using and take them to an authorized HiKOKI after-sales service.

What are the essential safety precautions for using this tool?

Always wear safety glasses. Hold the tool by the insulated gripping surfaces because the accessory may contact hidden wiring. Use only recommended batteries and accessories. Do not force the tool and do not use it if the switch is defective. Store it out of reach of children.

How to maintain the motor and moving parts?

The motor is the heart of the tool; avoid moisture and impacts. Clean the exterior with a soft dry cloth. Never use solvents. Regularly check the tightness of screws and wear of sockets. For storage, keep the tool in a dry place below 40°C.

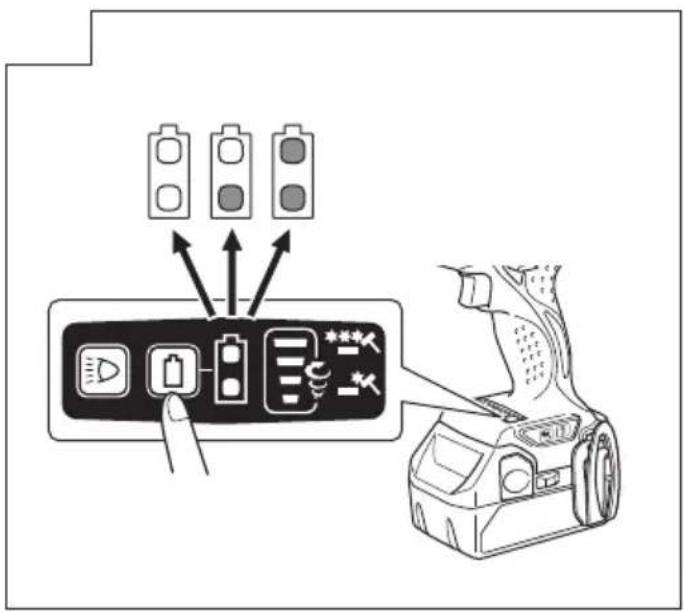

How to interpret the residual battery power indicator?

The tool is equipped with a light indicator showing the remaining charge: Green: battery sufficiently charged. Orange: battery half charged. Red flashing: battery almost empty, recharge quickly. If the motor stops, the battery protection has activated; recharge or let it cool down.

USER MANUAL WR 18DBDL HITACHI

Line drawing of a handheld electric drill press device with attached cable (no text or symbols)

WH18DBDL WR18DBDL

Line drawing of a handheld electric drill press device with attached cable (no text or symbols)

en Handling instructions
de Bedienungsanleitung
fr Mode d'emploi
it Istruzioni per l'uso
nl Gebruiksaanwijzing
es Instrucciones de manejo
pt Instruções de uso
sv Bruksanvisning
da Brugsanvisning
no Bruksanvisning
fi Käyttöohjeet
el Οδηγίες χειρισμού
pl Instrukcja obsługi

hu Kezelési utasítás
cs Návod k obsluze
tr Kullanım talimatları
ro Instructiuni de utilizare
sl Navodila za rokovanje
sk Pokyny na manipuláciu
bg Инструкция за експлоатация
sr Uputstvo za rukovanje
hr Upute za rukovanje
UK Інструкції щодо поводження з пристроєм
ru Инструкция по эксплуатации

(Original instructions)

GENERAL POWER TOOL SAFETY WARNINGS

WARNING

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents

b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust.

Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.

A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool.

Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on.

A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.

If damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer.

A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

PRECAUTION

Keep children and infi rm persons away.

When not in use, tools should be stored out of reach of children and infi rm persons.

CORDLESS IMPACT DRIVER / IMPACT WRENCH SAFETY WARNINGS

Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. This is a portable tool for tightening and loosening screws, bolts and nuts. Use it only for these operation.

2. Make sure to securely hold the tool during operation. Failure to do so can result in accidents or injuries.

3. Make sure that the battery is installed firmly. If it is as all loose it could come off and cause an accident.

4. Preparing and checking the work environment. Make sure that the work site meets all the conditions laid forth in the precautions.

5. Do not allow foreign matter to enter the hole for connecting the rechargeable battery.

6. Never disassemble the rechargeable battery and charger.

7. Never short-circuit the rechargeable battery. Shortcircuting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

8. Do not dispose of the battery in fire. If the battery is burnt, it may explode.

9. Bring the battery to the shop from which it was purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

10. Do not insert object into the air ventilation slots of the charger. Inserting metal objects or inflammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

11. Check the actual tightening torque with a toruge wrench.

12. Stop the tool before switching the direction of rotation. Always release the switch and wait for tool to stop before switching the direction of rotation.

13. Never touch the turning part. Do not allow the turning part section to get near your hands or any other part of your body. You could be cut or caught in the turning part. Also, be careful not to touch the turning part after using continuously it for a long time. It gets quite hot and could burn you.

14. Please use the designated attachments which are listed in the operations manual and HiKOKI's catalog. Accidents or injuries could result from not doing so.

15. Make sure to firmly install the attachments in the anvil. If the attachments is not firmly installed it might come out and cause injuries.

After installing the driver bit, pull lightly out the bit to make sure that it does not come loose during use. If the guide sleeve does not return to its original position, then the bit is not installed properly.

Align the plunger located in the square part of the anvil with the hole in the hex. socket. Then push the plunger, and mount the hex. socket on the anvil. Check that the plunger is fully engaged in the holes. When removing the socket, reverse the sequence.

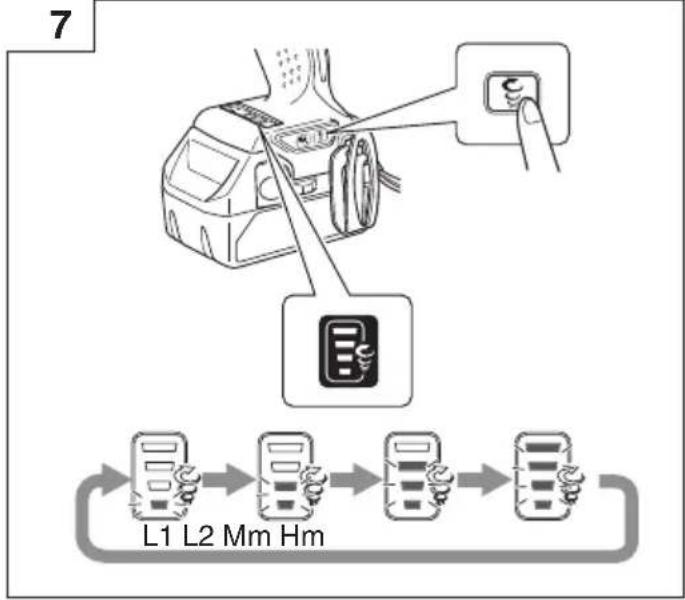

1. Tightening mode selector function
   ○ Select high/low mode and single/continuous mode while the trigger switch is released. Failure to do so could result in malfunction.
   When set for reverse rotation, the unit will operate in continuous mode regardless of single/continuous setting.
   ☐ The high/low and single/continuous selector switches can only be set after the battery has been installed in the tool and the trigger switch has been pulled once.
2. Install securely the hook. Unless the hook is securely installed, it may cause an injury while using.
3. To prevent the battery power consumption caused by forgetting to turn off the LED light, the light goes off automatically in about 15 minutes.
4. Resting the unit after continuous work.
5. Do not touch the metal parts, as it gets very hot during continuous work.

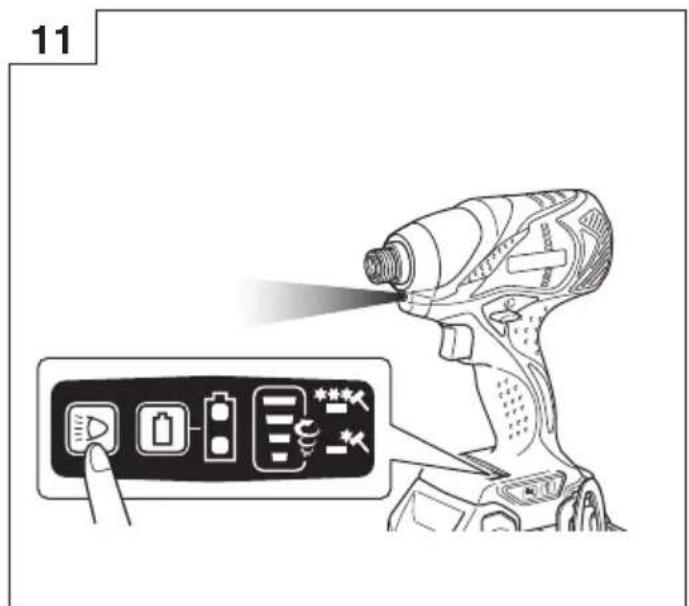

6. Do not look directly into the light. Such actions could result in eye injury.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.

In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor stops.
   In such a case, charge it up immediately.
2. If the tool is overloaded, the motor may stop. In this case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.
3. If the battery is overheated under overload work, the battery power may stop.

In this case, stop using the battery and let the battery cool. After that, you can use it again.

Furthermore, please heed the following warning and caution. WARNING

In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the battery.
   During work make sure that swarf and dust do not fall on the battery.

English

○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.
- Do not store an unused battery in a location exposed to swarf and dust.
Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

1. Do not pierce battery with a sharp object such as a nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

2. Do not use an apparently damaged or deformed battery.

3. Do not use the battery in reverse polarity.

4. Do not connect directly to an electrical outlets or car cigarette lighter sockets.

5. Do not use the battery for a purpose other than those specified.

6. If the battery charging fails to complete even when a specified recharging time has elapsed, immediately stop further recharging.

7. Do not put or subject the battery to high temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.

8. Keep away from fi re immediately when leakage or foul odor are detected.

9. Do not use in a location where strong static electricity generates.

10. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

CAUTION

1. If liquid leaking from the battery gets into your eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately.

If left untreated, the liquid may cause eye-problems.

1. If liquid leaks onto your skin or clothes, wash well with clean water such as tap water immediately.

There is a possibility that this can cause skin irritation.

1. If you find rust, foul odor, overheating, discolor, deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor.

WARNING

If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fire. When storing the lithium ion battery, obey surely the rules of following contents.

○ Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case.

To prevent shorting from occurring, load the battery in the tool or insert securely the battery cover for storing until the ventilator is not seen.

SYMBOLS

WARNING

The following show symbols used for the machine. Be sure that you understand their meaning before use.

	WH14DBDL / WH18DBDL: Cordless Impact DriverWR14DBDL / WR18DBDL: Cordless Impact Wrench
	Read all safety warnings and all instructions.

	Only for EU countriesDo not dispose of electric tools together with household waste material!In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
V Rated voltage
n_0	No-load speed
Bpm Impact rate
S	Small screw
	Ordinary bolt
H	High tension bolt
Hm High mode
Mm Medium mode
L2	Low 2 mode
L1	Low 1 mode
MT	Tightening torque (Maximum)
	Hex. drive size
	Square drive size
	Weight
	Switching ON
	Switching OFF
	Disconnect the battery
	Battery capacity
	Light switch
	Remaining battery indicator switch
	Clockwise rotation
	Counterclockwise rotation
	High / Low mode selector switch
	High / Low indicator lamp
	Single / Continuous mode selector switch
	Single / Continuous indicator lamp
	Continuous mode(Impact delivery will commence when the trigger switch is pulled and impact will be applied continuously. (The tool will not auto-stop))
[8HA2]	Single mode(After pulling the trigger switch, impact delivery will commence and then auto-stop following 1 to 4 impacts.)
	The battery remaining power is nearly empty.Recharge the battery soonest possible
	The battery remaining power is a half.
	The battery remaining power is enough.

STANDARD ACCESSORIES

In addition to the main unit (1 unit), the package contains the accessories listed on page 174.

Standard accessories are subject to change without notice.

APPLICATIONS

○ Driving and removing of machine screws, wood screws, tapping screws, etc.

○ Tightening and loosening of all types of bolts and nuts, used for securing structural items

SPECIFICATIONS

The specifications of this machine are listed in the Table on page 174.

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

CHARGING

Before using the power tool, charge the battery as follows.

1. Connect to the power source. (Fig. 2)

When charging the battery from an AC power source

Connect the charger's power cord to the receptacle. When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1-second intervals).

CAUTION

Do not use the electrical cord if damaged. Have it repaired immediately.

When charging the battery from a DC 12V in-car power source (UC18YML2)

○ Secure the battery charger in place in the car.

Use the strap supplied with the battery charger to fasten the battery charger in place and prevent it from moving inadvertently. (See Fig. 12)

CAUTION

Do not place the battery charger or battery under the driver's seat. Secure the battery charger in place to prevent it from moving inadvertently as this may lead to an accident.

Technical line drawing showing mechanical assembly with cross symbol (no text or labels)

Fig. 12

○ Insert the cigarette lighter connecting plug into the cigarette lighter socket.

If the plug is loose and falls out of the cigarette lighter socket, repair the socket. As the socket may be faulty, you are recommended to contact your local car dealer. Continued use of the socket may result in an accident due to overheating.

2. Insert the battery into the charger. (Fig. 2)

Firmly insert the battery into the charger.

3. Charging

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red.

When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals) (See Table 1)

● Pilot lamp indication

The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery.

Table 1

Indications of the pilot lamp
The pilot lamp lights or blinks.	Before charging	Blinks (red)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	While charging	Lights (red)	Lights continuously
	Charging complete	Blinks (red)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Charging impossible	Flickers (red)	Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds)	Malfunction in the battery or the charger
	Overheat standby	Lights (green) (UC18YRSL) (UC18YML2)	Lights continuously	Battery overheated. Unable to charge. (Charging will commence when battery cools)
		Blinks (red) (UC18YFSL)	Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds)
	Charging with in-car power source impossible (UC18YML2)	Blinks (green)	Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds)	Malfunction in the battery or the charger

NOTE: When standby for cooling battery, UC18YML2/UC18YRSL/UC18YFSL cools the overheated battery by cooling fan. (However, the cooling fan does not function when charging the battery with a DC 12V in-car power source.)

● Regarding the temperatures and charging time of the battery.
The temperatures and charging time will become as shown in Table 2

Table 2

Battery\Charger		UC18YRSL UC18YFSL		UC18YML2 (AC/DC)*1
Charging voltage V 14.4V – 18V
Weight kg 0.6 0.5 0.7
Temperatures at which the battery can be recharged		0°C – 50°C
Charging time for battery capacity, approx. (At 20°C)
1.3 Ah	min.	20	20	20 / 50
1.5 Ah	min.	22	22	22 / 60
2.0 Ah	min.	30	30	30 / 80
2.5 Ah	min.	35	35	35 / 100
3.0 Ah	min.	45	45	45 / 120
4.0 Ah	min.	60	60	60 / 160
5.0 Ah	min.	75	75	75 / 200
Number of battery cells 4 – 10

*1 AC power supply / DC 12V (in-car) power supply

NOTE

The recharging time may vary according to the ambient temperature and power source voltage.

Especially, using a DC 12V in-car power source may require longer recharging time at high temperatures.

CAUTION

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

4. Disconnect the charger's power cord from the receptacle or cigarette lighter socket.

5. Hold the charger firmly and pull out the battery. NOTE

Be sure to pull out the battery from the charger after use, and then keep it.

CAUTION

☐ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights up green or lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). In such a case, first let the battery cool, then start charging.

When the pilot lamp flickers in red (at 0.2-seconds intervals), check for and take out any foreign objects in the charger's battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

○ Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with UC18YML2 / UC18YRSL / UC18YFSL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

○ Check the voltage of the in-car power source when the pilot lamp fl ickers in green (every 0.2 seconds) continuously. (UC18YML2)

If the voltage is 12V or lower, it indicates that the car battery has weakened and cannot be charged.

☐ If the pilot lamp does not blink in red (every second) even though the charger cord or cigarette lighter connecting plug is connected to the power, it indicates that the protection circuit of the charger may be activated.

Remove the cord or plug from the power and then connect it again after 30 seconds or so. If this does not cause the pilot lamp to blink in red (every second), please take the charger to the HiKOKI Authorized Service Center.

MOUNTING AND OPERATION

Action Figure Page
Removing and inserting the battery	1 175
Charging 2 175
Mounting the bit 3 175
Mounting the socket 4 175
Reversing the rotational direction 5	175
Switch operation 6 175
4-step High / Low mode selector function	7 176
Single / Continuous mode selector function	8 176
Removing and mounting the hook 9	176
Remaining battery indicator 10	176
How to use the LED light	11	176
Selecting accessories	—	177

MAINTENANCE AND INSPECTION

1. Inspecting the driver bit (WH14DBDL / WH18DBDL)

Using a broken bit or one with a worn out tip is dangerous because the bit can slip. Replace it.

2. Inspecting the socket (WR14DBDL / WR18DBDL)

A worn or deformed hex. or a square-holed socket will not give an adequate tightness to the fitting between the nut or anvil, consequently resulting in loss of tightening torque. Pay attention to wear of a socket holes periodically, and replace with a new one if needed.

3. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

4. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

5. Cleaning on the outside

When the tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

6. Storage

Store the tool in a place in which the temperature is less than 40^ C, and out of reach of children.

NOTE

Make sure that the battery is fully charged when stored for a long period (3 months or more). The battery with smaller capacity may not be able to be charged when used, if stored for a long period.

NOTE

Storing lithium-ion batteries.

Make sure the lithium-ion batteries have been fully charged before storing them.

Prolonged storage of batteries with a low charge may result in performance deterioration, significantly reducing battery usage time or rendering the batteries incapable of holding a charge.

However, significantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times.

If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

CAUTION

In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

Important notice on the batteries for the HiKOKI cordless power tools

Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modified (such as disassembly and replacement of cells or other internal parts).

GUARANTEE

We guarantee HiKOKI Power Tools in accordance with statutory/country specific regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center.

Information concerning airborne noise and vibration

The measured values were determined according to EN60745 and declared in accordance with ISO 4871.

Measured A-weighted sound power level:

106 dB (A) (WH14DBDL)

106 dB (A) (WH18DBDL)

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

Measured A-weighted sound pressure level:

95 dB (A) (WH14DBDL)

95 dB (A) (WH18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Uncertainty K: 3 dB (A).

Wear hearing protection.

Vibration total values (triax vector sum) determined according to EN60745.

Impact tightening of fasteners of the maximum capacity of the tool:

Vibration emission value ah = 15.9m / s^2 (WH14DBDL)

14.5 ^2 (WH18DBDL) m/s

17.0 ^2 (WR14DBDL) m/s

17.1 ^2 (WR18DBDL) m/s

Uncertainty K = 1.5m / s^2

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

It may also be used in a preliminary assessment of exposure.

WARNING

☐ The vibration emission during actual use of the power tool can differ from the declared total value depending in the ways in which the tool is used.
○ Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

NOTE

Due to HiKOKI's continuing program of research and development, the specifications herein are subject to change without prior notice.

ALLGEMEINE

Technical line drawing showing a cross-shaped object and a mechanical component (no text or symbols)

Abb. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

17,0 m/s² (WR14DBDL)

17,1 m/s² (WR18DBDL)

Technical line drawing showing a car wheel and its cross symbol (no text or labels)

Fig. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Incertitude K: 3 dB (A)

Porter des protections anti-bruit.

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Fig. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Technical line drawing showing a car interior with a cross symbol indicating no crossing (no text or labels present)

Afb. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

17,0 m/s² (WR14DBDL)

17,1 m/s² (WR18DBDL)

Technical line drawing showing mechanical assembly with no visible text or symbols

Fig. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Incertidumbre K: 3 dB (A)

17,0 ^2 (WR14DBDL)

17,1 2 (WR18DBDL)

Incertidumbre K = 1,5 m/s²

Technical line drawing showing a car wheel and its seatbelt mechanism (no text or symbols)

Fig. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Incerteza K: 3 dB (A)

17,0 ^2 (WR14DBDL)

17,1 2 (WR18DBDL)

Incerteza K = 1,5 m/s ^2

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Bild 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

17,0 ^2 (WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Osäkerhet K = 1,5 m/s²

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Fig. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Usikkerhed K: 3 dB (A).

Brug høreværn.

17,0 2 (WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Technical line drawing showing a car interior with a cross symbol and a close-up of the seat (no text or labels)

Fig. 12

○ Sett tilkoplingsledningen i bilens sigarettenner.

VEDLIKEHOLD OG INSPEKSJON

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

Målt A-veid lydtrykknivå: 95 dB (A) (WH14DBDL)

95 dB (A) (WH18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

17,0 ^2 (WR14DBDL) m/s

17,1 2 (WR18DBDL) m/s

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Kuva 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Epävarmuus K: 3 dB (A).

17,0 ^2 (WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Epävarmuus K = 1,5 m/s²

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Eik. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Technical line drawing showing a car's seatbelt mechanism with no text or symbols

Rys. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

17,0 2 (WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Pure mechanical cross-section diagram without any text, numbers, or symbols

12.

Line drawing of a mechanical assembly with no visible text or symbols

ábra

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Bizonytalanság K: 3 dB (A).

Technical line drawing showing mechanical assembly with no visible text or symbols

obr. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Nejistota K: 3 dB (A).

17,0 ^2 (WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Nejistota K = 1,5 m/s ^2

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

Şekil 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

Fig. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

17,0 2(WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Fig. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Nezanesljivost K: 3 dB (A).

17,0 ^2 (WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

Obr. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Odchýlka K: 3 dB (A).

17,0 ^2 (WR14DBDL)

17,1 2 (WR18DBDL)

Technical line drawing showing a hand holding a car with a cross symbol, and another hand securing a seat (no text or labels)

Фиг. 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

Измерено А-претеглена сила на звука:

95 dB (A) (WH14DBDL)

95 dB (A) (WH18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Неточност K: 3 dB (A).

Носете антифони.

17,0 m/s ^2 (WR14DBDL)

17,1 m/s ^2 (WR18DBDL)

Неточност K = 1,5 м/сек²

Technical line drawing showing mechanical assembly with a cross symbol (no text or labels)

Sl. 12

Stavite priključak upaljača za cigarette u utičnicu upaljača za cigarette.

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

Izmereni A-ponderisani nivo zvučnog pritiska:

95 dB (A) (WH14DBDL)

95 dB (A) (WH18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Slika 12

105 dB (A) (WR14DBDL)

106 dB (A) (WR18DBDL)

Izmjerena razina zvučnog tlaka A: 95 dB (A) (WH14DBDL)

95 dB (A) (WH18DBDL)

94 dB (A) (WR14DBDL)

95 dB (A) (WR18DBDL)

Nesigurnost K: 3 dB (A).

Nosite zaštitu sluha.

17,0 ^2 (WR14DBDL) m/s

17,1 ^2 (WR18DBDL) m/s

Nesigurnost K = 1,5 m/s²

Technical line drawing showing mechanical assembly with cross symbol (no text or labels)

Мал. 12

17,0 ^2 (WR14DBDL) M/c

17,1 2(WR18DBDL) M/c

Technical line drawing showing a mechanical assembly with a cross symbol (no text or labels)

Рис. 12

17,0 M/c² (WR14DBDL)

17,1 M/c² (WR18DBDL)

2

3

4

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

5

6

8

1

Line drawing of a mechanical powertrain with visible slots and housing (no text or symbols)

Line drawing of a mechanical device with internal components (no text or symbols)

14.4V(Li-ion)

Technical line drawing of a computer hard drive housing (no text or symbols)

336471

Line drawing of a mechanical device with internal components (no text or symbols)

Line drawing of a mechanical device with ports and casing (no text or symbols)

18V (Li-ion) 336475

Isometric line drawing of a mechanical component or housing (no text or symbols)

Technical line drawing of a device casing with internal components (no text or symbols)

UC18YRSL (14.4V - 18V)
UC18YML2 (14.4V - 18V)

337131

Isometric line drawing of a mechanical device housing with internal components (no text or symbols)

UC18YFSL (14.4V - 18V)

329897

Technical line drawing of a mechanical housing or enclosure with multiple circular components (no text or symbols)

337191

Line drawing of a quill pen with inkwell, no text or symbols present

English Dansk Română
GUARANTEE CERTIFICATE1 Model No.2 Serial No.3 Date of Purchase4 Customer Name and Address5 Dealer Name and Address(Please stamp dealer name and address)		GARANTIBEVIS1 Modelnummer2 Serienummer3 Købsdato4 Kundes navn og adresse5 Forhandlers navn og adresse(Indsæt stempel med forhandlers navn og adresse)		CERTIFICAT DE GARANTIE1 Model nr.2 Nr. de serie3 Data cumpărării4 Numele și adresa clientului5 Numele și adresa distribuitorului(Vă rugăm aplicați ștampila cu numele și adresa distribuitorului)
Deutsch Norsk Slovenščina
GARANTIESCHEIN1 Modell-Nr.2 Serien-Nr.3 Kaufdatum4 Name und Anschrift des Kunden5 Name und Anschrift des Händlers(Bitte mit Namen und Anschrift des Handlers abstempeln)		GARANTISERTIFIKAT1 Modellnr.2 Serienr.3 Kjøpsdato4 Kundens navn og adresse5 Forhandlerens navn og adresse(Vennligst stemple forhandlerens navn og adresse)		GARANCIJSKO POTRDILO1 Št. modela2 Serijska št.3 Datum nakupa4 Ime in naslov kupca5 Ime in naslov prodajalca(Prosimo vtsnite žig z imenom in naslovom prodajalca)
Français Suomi Slovenčina
CERTIFICAT DE GARANTIE1 No. de modèle2 No de série3 Date d'achat4 Nom et adresse du client5 Nom et adresse du revendeur(Cachet portant le nom et l'adresse du revendeur)		TAKUUTODISTUS1 Malli nro2 Sarja nro3 Ostopăivămâără4 Asiakkaan nimi ja osoite5 Myyjăn nimi ja osoite(Leimaa myyjăn nimi ja osoite)		ZÁRUČNÝ LISTA1 Č. modelu2 Sériové č.3 Dátum zakúpenia4 Meno a adresa zákaznika5 Názov a adresa predajcu(Pečiatka s názvom a adresou predajcu)
Italiano Eλληνικά Български
CERTIFICATO DI GARANZIA1 Modello2 N° di serie3 Data di acquisto4 Nome e indirizzo dell'acquirente5 Nome e indirizzo del rivenditore(Si prega di apporre il timbro con questi dati)		ПІЗТОПОІНТИКО ЕГГУНЄНЗ1 Ap. Movtėlou2 Aŭξων Ap.3 Нμερομηνία αγοράς4 'Ovoja koi διεύθυνση πελάτη5 'Ovoja kai διεύθυνση μεταπωλητή(Παρακαλούμε να χρησιμοποιηθεί σφραγίδα)		ГАРАНЦИОНЕН СЕРТИФИКАТ1 Модел No2 Сериен No3 Дата за закупуване4 Име и адрес на клиента5 Име и адрес на търговеца(Моля, отпечатайте името и адрес на дильра)
Nederlands Polski Srpski
GARANTIEBEWIJS1 Modelnummer2 Serienummer3 Datum van aankoop4 Naam en adres van de gebruiker5 Naam en adres van de handelaar(Stempel a.u.b. naam en adres vande de handelaar)		GWARANCJA1 Model2 Numer seryjny3 Data zakupu4 Nazwa klienta i adres5 Nazwa dealera i adres(Pieczęć punktu sprzedaży)		GARANTNI SERTIFIKAT1 Br. modela.2 Serijski br.3 Datum kupovine4 Ime i adresa kupca5 Ime i adresa prodavca(Molimo da stavite pečat na ime i adresu trgovca)
Español Magyar Hrvatski
CERTIFICADO DE GARANTÍA1 Número de modelo2 Número de serie3 Fecha de adquisición4 Nombre y dirección del cliente5 Nombre y dirección del distributor(Se ruega poner el sello del distribuidor con su nombre y dirección)		GARANCIA BIZONYLAT1 Tipusszám2 Sorozatszám3 A vásárlás dátuma4 A Vásárló neve és címe5 A Kereskedő neve és címe(Kárjük ide olhelyezni a Kereskedő nevének és címének pecsétjét)		JAMSTVENI CERTIFIKAT1 Br modela.2 Serijski br.3 Datum kupnje4 Ime i adresa kupca5 Ime i adresa trgovca(Molimo stavite pečat na ime i adresu trgovca)
Português Čeština Український
CERTIFICADO DE GARANTIA1 Número do modelo2 Número do série3 Data de compra4 Nome e morada do cliente5 Nome e morada do distribuidor(Por favor, carimbe o nome e morada do distribuidor)		ZÁRUČNÍ LIST1 Model č.2 Série č.3 Datum nákupu4 Jméno a adresa zákazníka5 Jméno a adresa prodejce(Prosíme o razitko se jménem a adresou prodejce)		ГАРАНТИЙНИЙ СЕРТИФИКАТ1 № моделі2 № серії3 Дата придбання4 Im'я і адреса клиента5 Im'я і адреса дилера(Будь ласка, поставте печатку з іменем і адресою дилера)
Svenska Türkçe		Русский
GARANTICERTIFIKAT1 Modellnr2 Serienr3 Inköpsdatum4 Kundens namn och adress5 Försäljarens namn och adress(Stámpla försäljarens namn och adress)		GARANTI SERTÍFÍKASI1 Model No.2 Seri No.3 Satin Alma Tarihi4 Müşteri Adı ve Adresi5 Bayi Adı ve Adresi(Lütfen bayi adini ve adresini kaşe olarak basin)		ГАРАНТИЙНЫЙ СЕРТИФИКАТ1 Модель No2 Серийный No3 Дата покупки4 Название и адрес заказчика5 Название и адрес дилера(Пожалуйста, внесите название и адрес дилера)

HiKOKI

1
2
3
4
5

Siemensring 34, 47877 willich, Germany

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.de

Hikoki Power Tools Netherlands B.V.

Brabanthaven 11, 3433 PJ Nieuwegein, The Netherlands

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.nl

Hikoki Power Tools (U.K.) Ltd.

Precedent Drive, Rooksley, Milton Keynes, MK 13, 8PJ,

United Kingdom

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.uk

Hikoki Power Tools France S.A.S.

Hikoki Power Tools Belgium N.V./S.A.

Koningin Astridlaan 51, B-1780 Wemmel, Belgium

Tel: [phone]

Fax: [phone]

URL http://www.hikoki-powertools.be

Hikoki Power Tools Italia S.p.A

Via Piave 35, 36077, Altavilla Vicentina (VI), Italy

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.it

Hikoki Power Tools Ibérica, S.A.

C/ Puigbarral, 26-28, Pol. Ind. Can Petit, 08227 Terrassa

(Barcelona), Spain

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.es

Kjeller Vest 7, N-2007 Kjeller, Norway

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.no

Hikoki Power Tools Sweden AB

Rotebergsvagen 2B SE-192 78 Sollentuna, Sweden

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.se

Hikoki Power Tools Denmark A/S

Lillebaeltsvej 90, 6715 Esbjerg N, Denmark

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.dk

Hikoki Power Tools Finland Oy

Tupalankatu 9, 15680 Lahti, Finland

Tel: [phone]

Fax: [phone]

URL: http://www.hikoki-powertools.fi

Hikoki Power Tools Hungary Kft.

Hikoki Power Tools Romania S.R.L.

Ring Road, No. 66, Mustang Traco Warehouses, Warehouse

No.1, Pantelimon City, 077145, Ilfov County, Romania
