USER MANUAL FS-XA1 JVC

Consists of CA-FSXA1 and SP-FSXA1

Line drawing of a remote control with keypad and buttons (no text or symbols)

Simple gray rectangular frame with rounded corners and a horizontal base (no text or symbols)

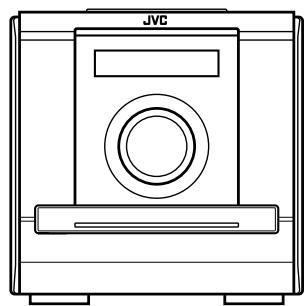

Line drawing of a JVC portable electronic device with no text or symbols

Simple gray square frame with rounded corners and a bottom border (no text or symbols)

Radio Data System

INSTRUCTIONS

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.

CAUTION — ⏻/I (Standby/on) button!

Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible.

The ⏻/I (Standby/on) button in any position does not disconnect the mains line.

• When the system is on standby, the STANDBY lamp lights red.
• When the system is turned on, the STANDBY lamp goes off.

The power can be remote controlled.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

CAUTION	ATTENTION	AVISO	VARNING	注意
VISIBLE AND/OR INVISIBLE CLASS 1M LASER RADIATION WHEN OPEN, DO NOT EXCEPT DIRECTLY WITH OPTICAL INSTRUMENTS (EC000525-1:2001) (ENG)	RAYONNEMENT LASER VISIBLE ET/OUIN INVISIBLE DE CLASSE 1M UNE FOIS OUVERTI NE NO NO GARDER PRODCTMENTE AVEC DES INSTRUMENTS OPTIQUES. (FRA)	RADIACION LASER DE CLASE 1M VISIBLE Y/O INVISIBLE CUANDO ESTA NO NO MIRAR DIRECTAMENTE CON INSTRUMENTAL OPTICO. (ESP)	SYNLIG OCH/ELLER OSYNLIG LASERSTRALENING, KLAB 1M, N&R DENNA LEAD, ENTRAKTAI E STRÄLEN MED OPTISKA INSTRUMENT. (SWE)	ここと端と対称及びおたさ体で対象のクラス 1Mレージー 政除が出張する。非対応で不見ってください。(JPN)

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted candles, on the apparatus.
• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT for the U.K.

DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT:

DO NOT make any connection to the terminal which is marked with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

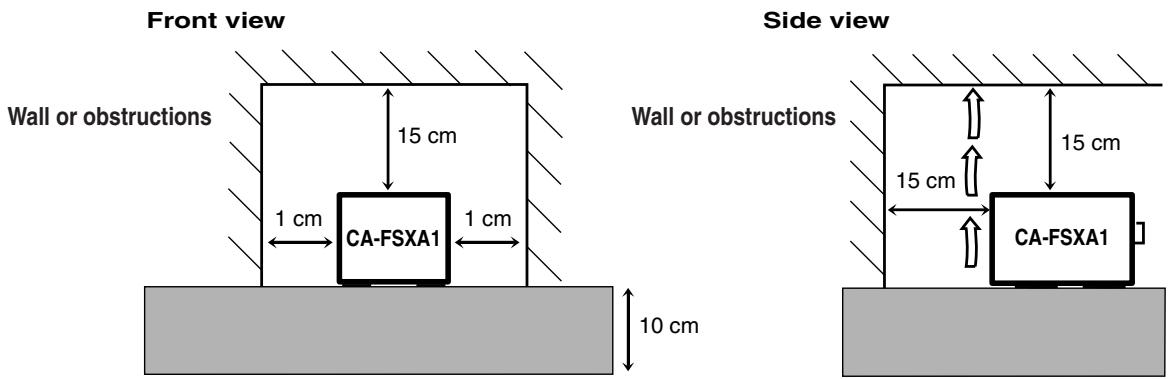

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.
3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view Wall or obstructions 15 cm 1 cm CA-FSXA1 1 cm Side view Wall or obstructions 10 cm 15 cm 15 cm CA-FSXA1

Information for Users on Disposal of Old Equipment

[European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be handed over to the applicable collection point for the recycling of electrical and electronic equipment for proper treatment, recovery and recycling in accordance with your national legislation.

By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Attention:

This symbol is only valid in the European Union.

(Business users)

If you wish to dispose of this product, please visit our web page www.jvc-europe.com to obtain information about the take-back of the product.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

SAFETY INSTRUCTIONS

"SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT"

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment.

Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

Do be careful with glass panels or doors on equipment.

DON'T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any way — switch off, withdraw the mains plug and consult your dealer.

DON'T remove any fixed cover as this may expose dangerous voltages.

DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode.

Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people.

DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety. It is illegal to watch television whilst driving.

DON'T listen to headphones at high volume as such use can permanently damage your hearing.

DON'T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.

Overheating will cause damage and shorten the life of the equipment.

DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer's approved stand or legs with the fixings provided according to the instructions.

DON'T allow electrical equipment to be exposed to rain or moisture.

ABOVE ALL

—NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case — this could result in a fatal electrical shock.;

—NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

E43486-340B

Introduction

Special cautions ......2

Notes on handling.... 2

Supplied accessories.... 2

About discs....3

Playable disc types 3

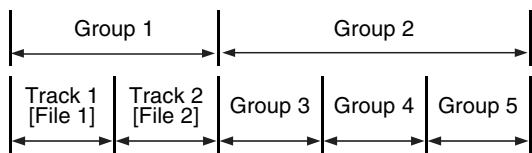

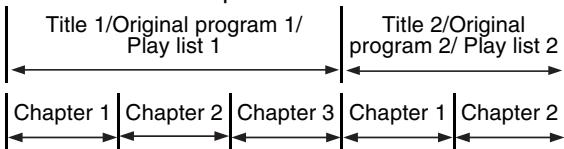

Disc structure.... 4

Description of parts ....5

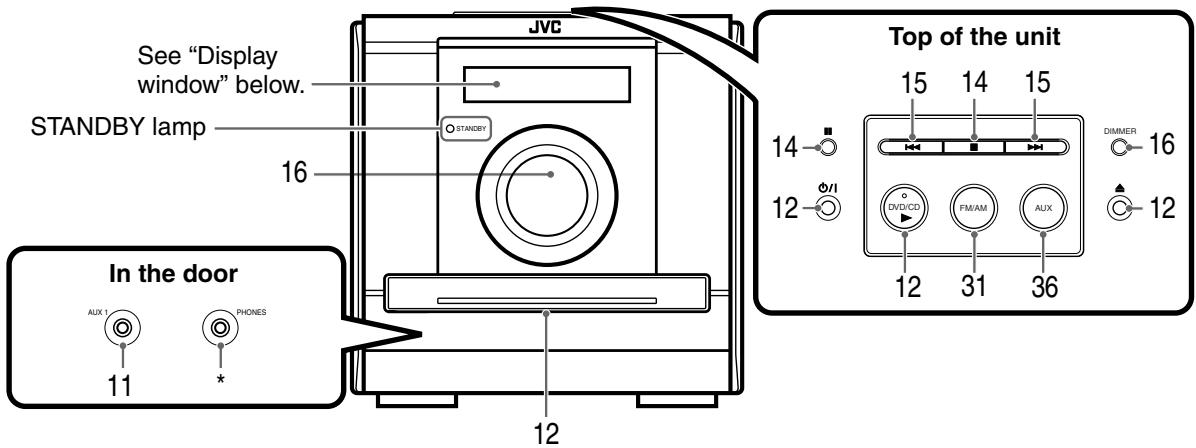

Front panel....5

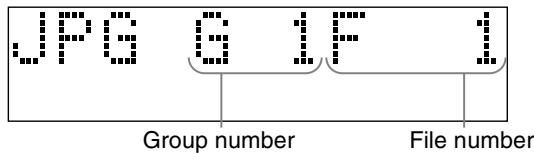

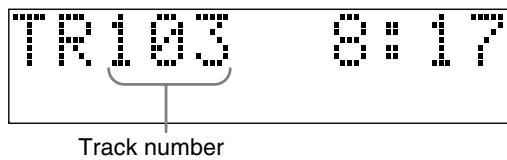

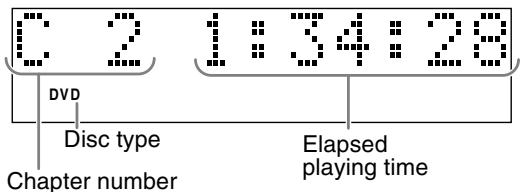

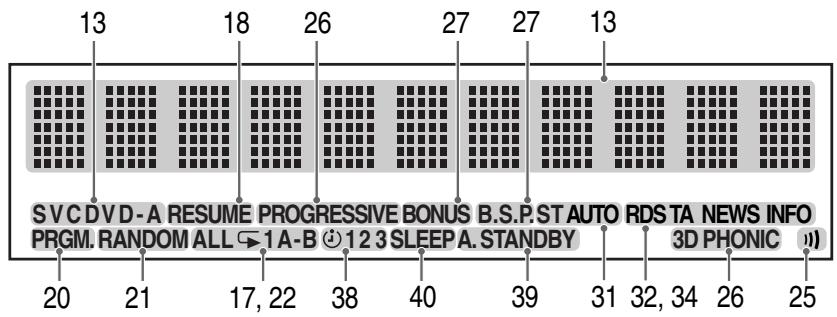

Display window 5

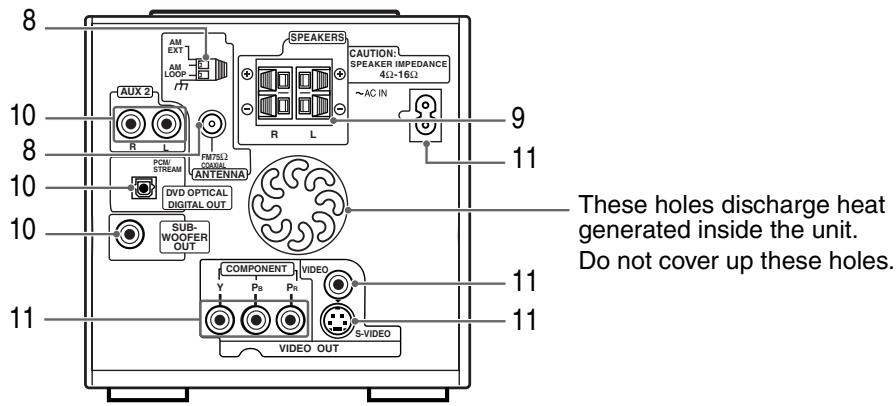

Rear panel 5

Getting started

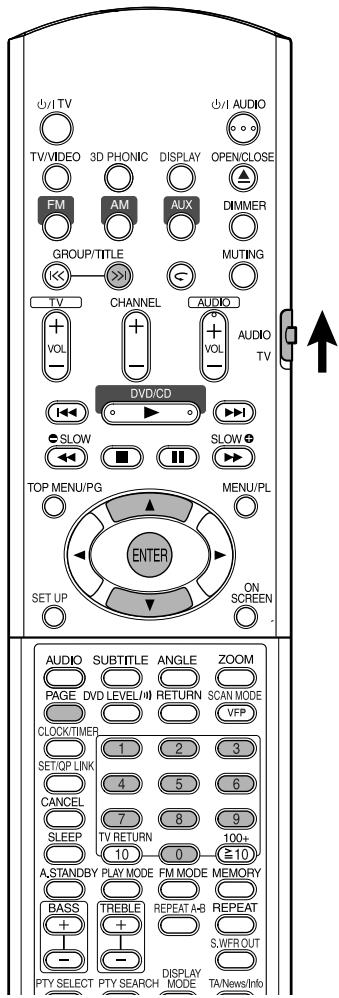

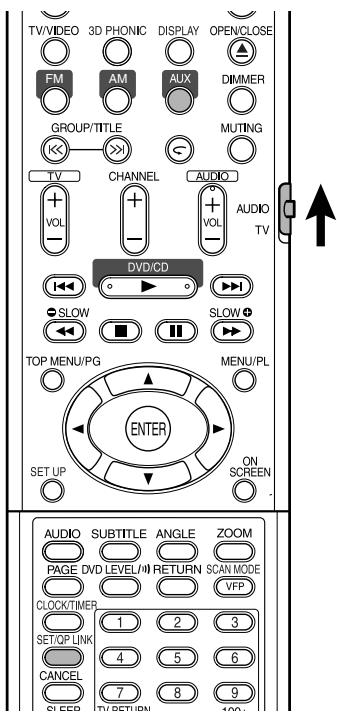

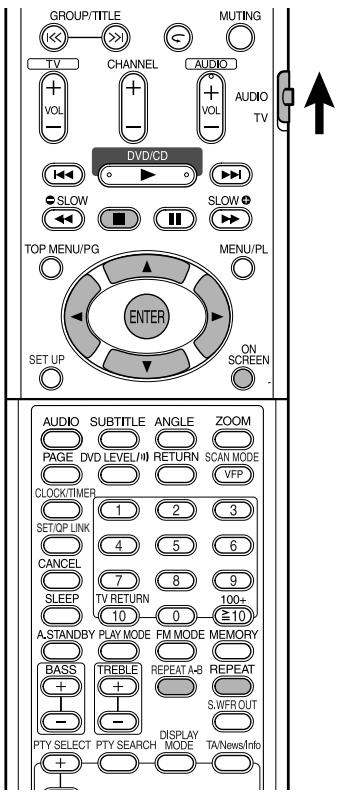

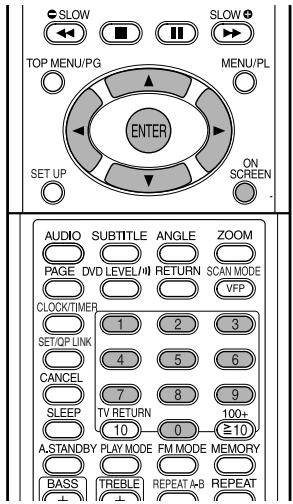

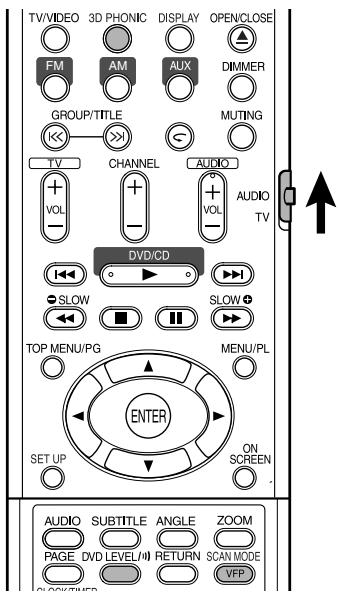

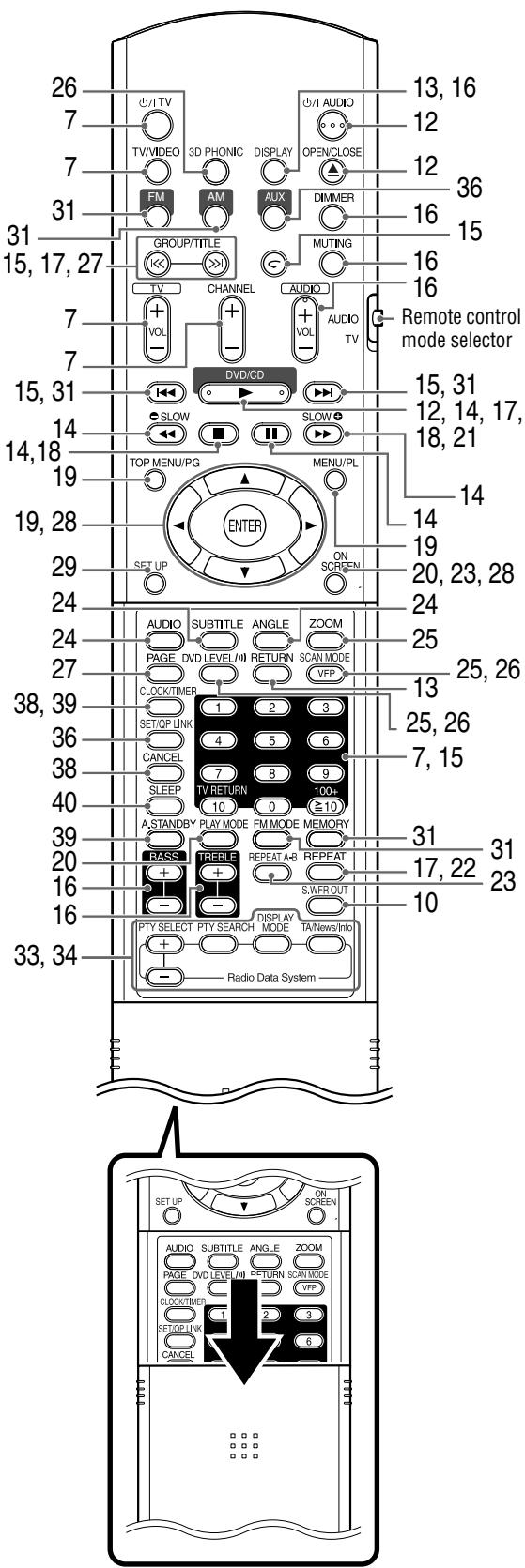

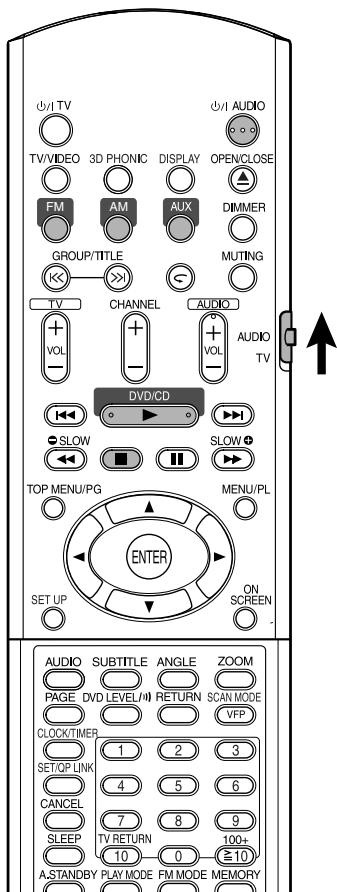

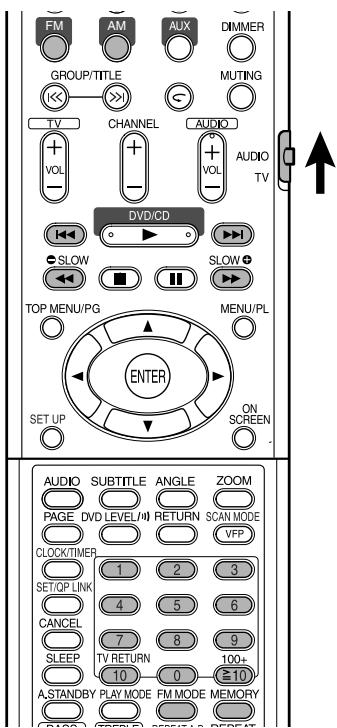

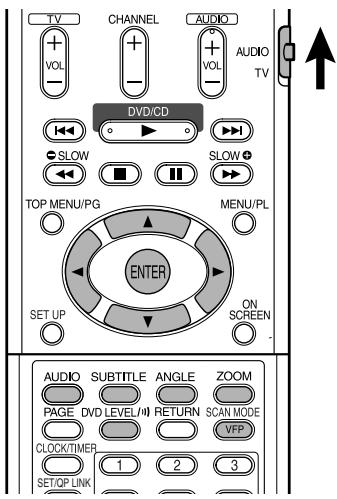

Using the remote control 6

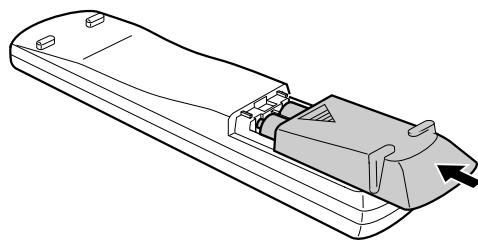

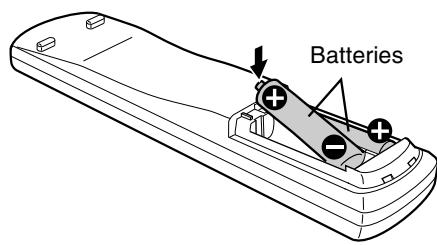

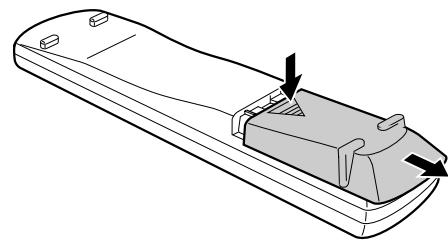

Putting the batteries in the remote control ...... 6

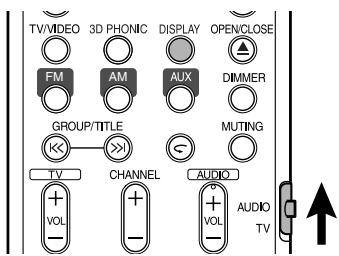

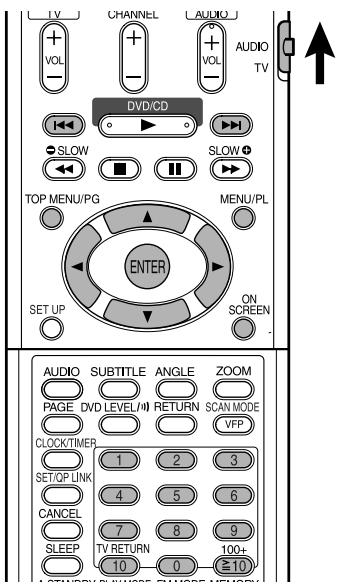

Operating the TV using the remote control...... 7

Connecting up 8

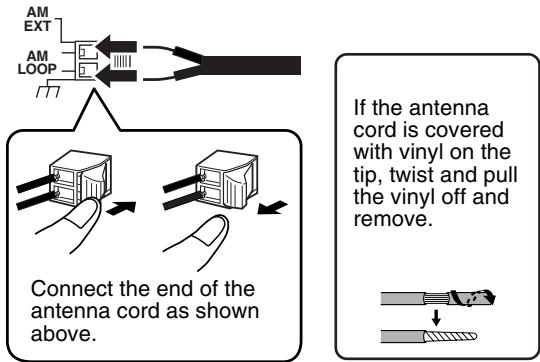

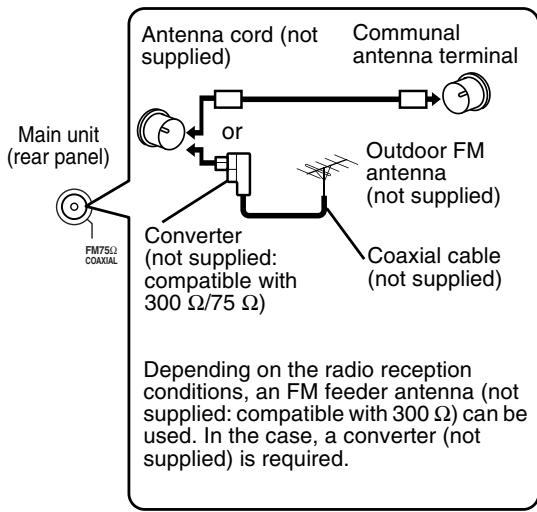

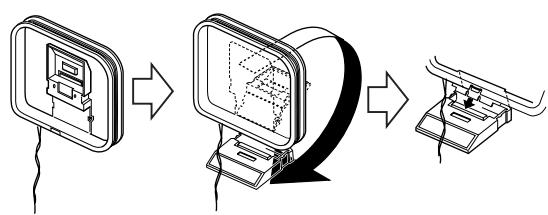

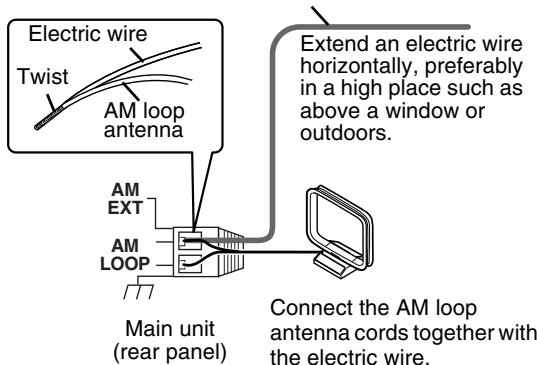

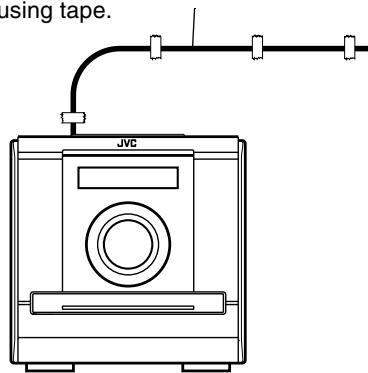

Connecting antennas....8

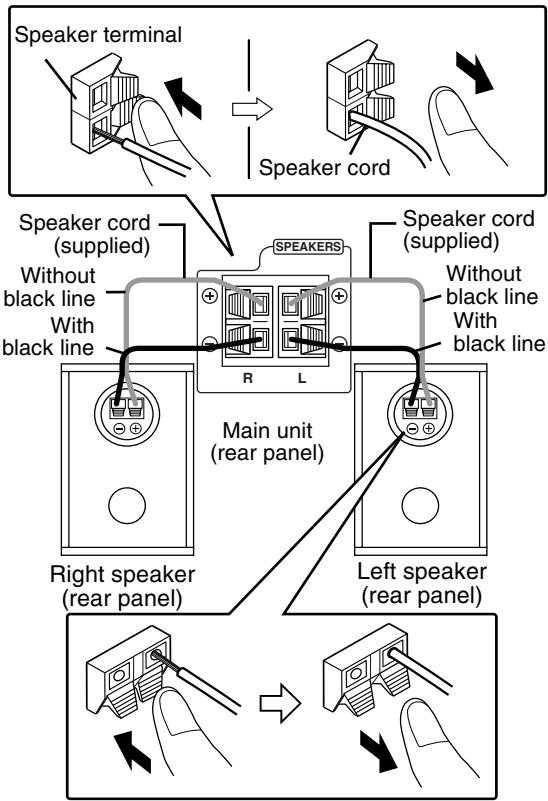

Connecting speakers 9

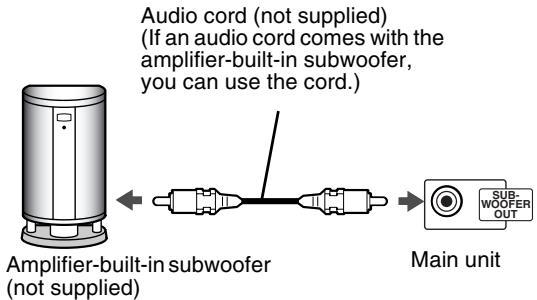

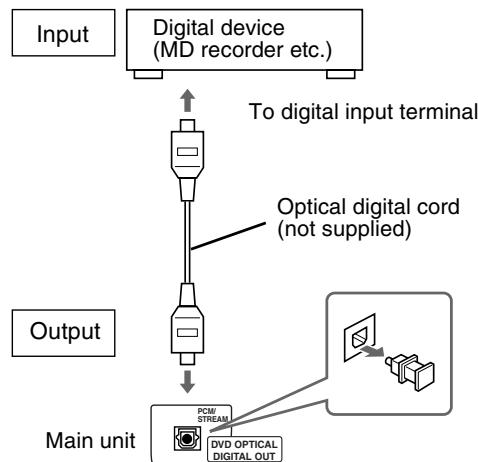

Connecting other devices 10

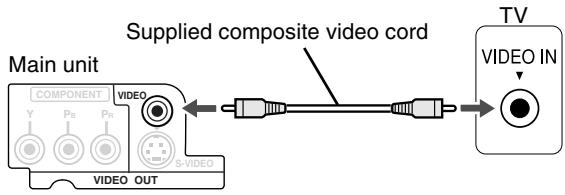

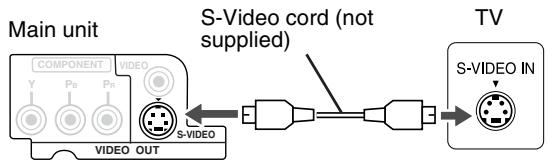

Connecting with TV.... 11

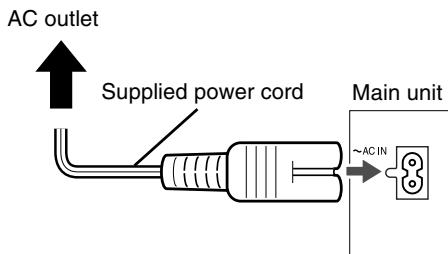

Connecting the power cord.... 11

Basic operations

Playing discs 12

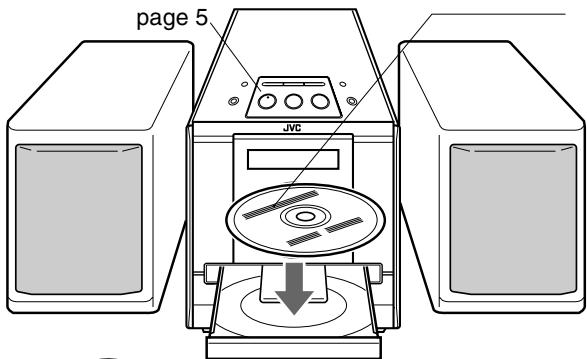

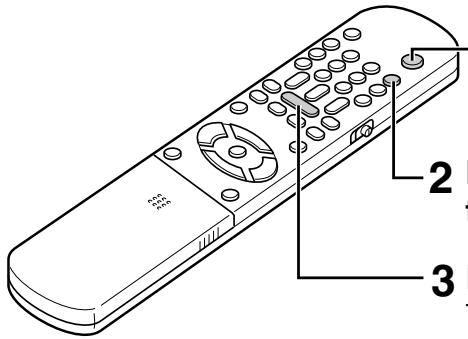

Playback 12

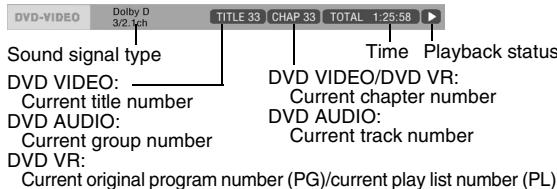

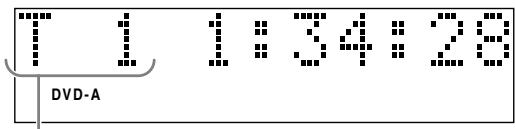

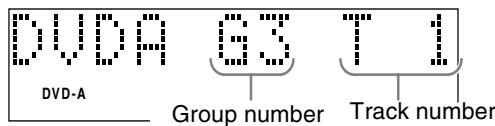

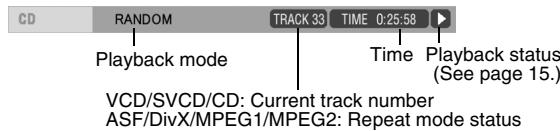

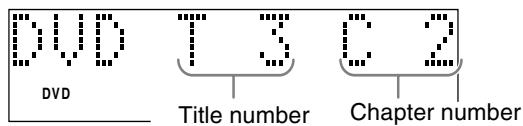

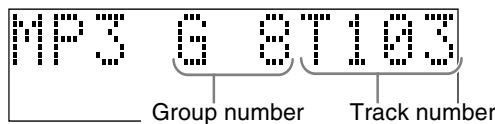

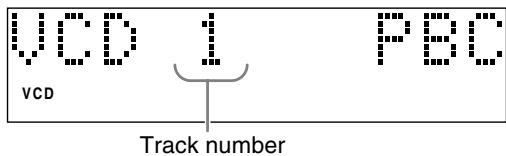

To switch the display 13

Select an item on the disc by using the number buttons.... 14

To stop playback.... 14

To pause playback.... 14

To advance picture frame-by-frame.... 14

Fast reverse/Fast forward search 14

Playing back from a position 10 seconds before (One Touch Replay).... 15

Slow Motion Playback.... 15

Skip to the beginning of the selection.... 15

Skipping at 5-minute intervals.... 15

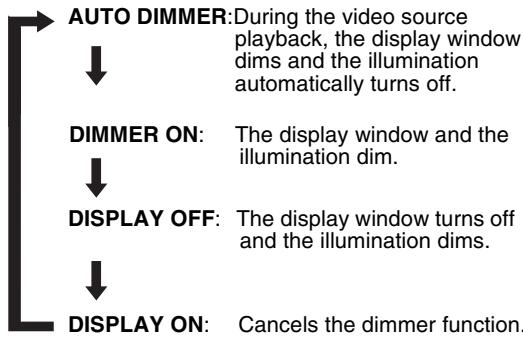

To change the brightness of the display window (DIMMER).... 16

Adjusting the volume 16

Adjusting sound quality.... 16

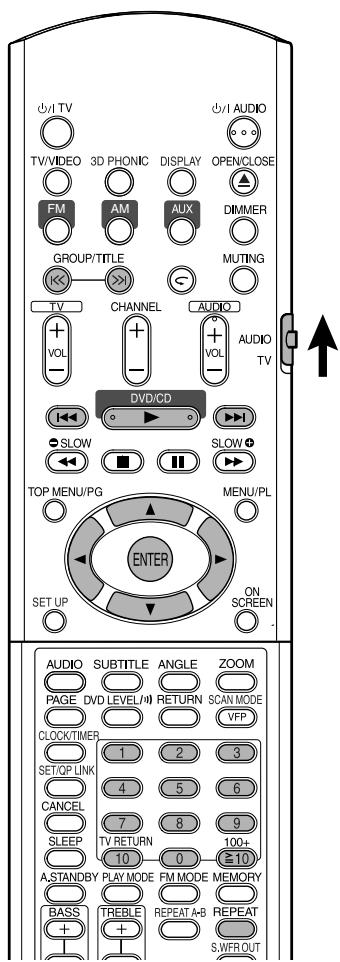

Turning off the sound temporarily (MUTING) ... 16

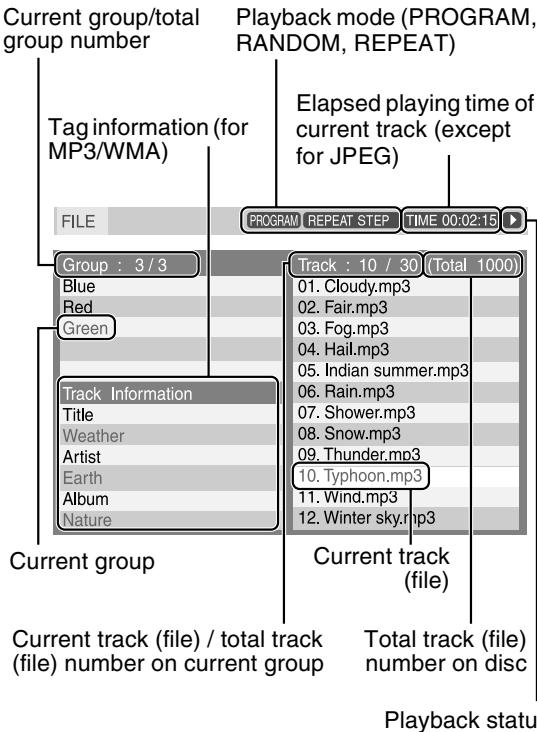

Playing audio/video files....16

Playback 17

Repeat playback.... 17

Resume Playback 18

Select the scene to be played 19

Select the scene from the menu 19

Designate the time (Time search).... 20

Advanced operations

Program/Random Playback ....20

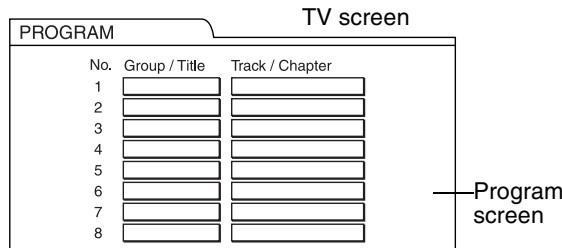

Play the disc in the desired order (Program Playback).... 20

Playing the disc in a random order (Random Playback).... 21

Repeat Playback 22

Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)....22

Playing the designated part repeatedly (A-B Repeat Playback) 23

Other convenient functions....24

Selecting the subtitles....24

Selecting the audio language 24

Selecting a view angle....24

Enlarging the picture (ZOOM) 25

Adjusting the picture quality (VFP) 25

Making dialogues clear (CLEAR VOICE) ......25

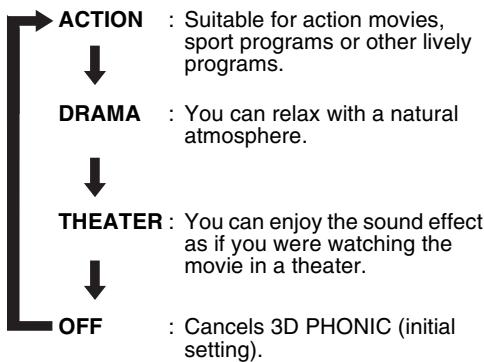

Creating realistic sound (3D PHONIC)......26

Adjusting playback level (DVD LEVEL)......26

Enjoying better pictures (SCAN MODE)......26

Functions specific to DVD AUDIO....27

Playing the Bonus Group....27

Browsable Still Pictures (B.S.P.) 27

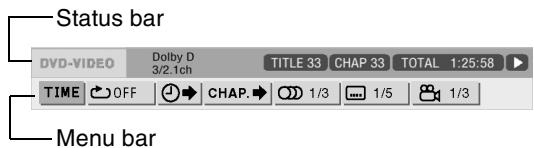

Using the menu bar....28

Preferences....29

Basic operations....29

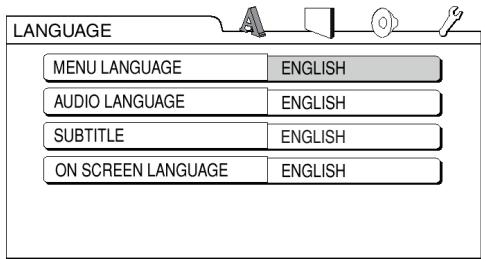

LANGUAGE....29

PICTURE....29

AUDIO 30

OTHERS....30

Listening to the radio

Listening to a radio broadcast ....31

Selecting a station 31

Presetting stations....31

Tuning in to a preset station 31

Using the RDS....32

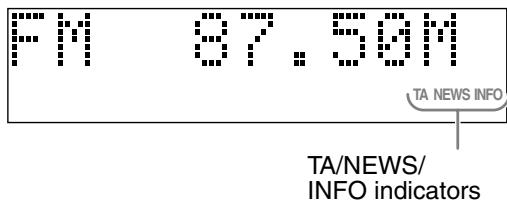

Using the RDS (Radio Data System) when receiving FM stations ....32

Convenient functions

Listening to the sound of other audio device ....36

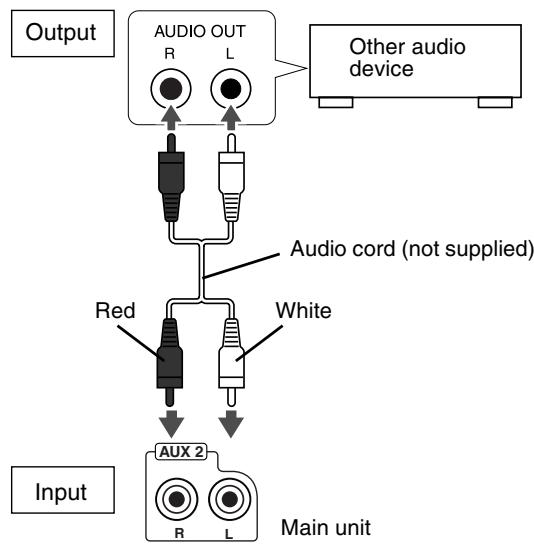

Listening to the sound of external audio device .... 36

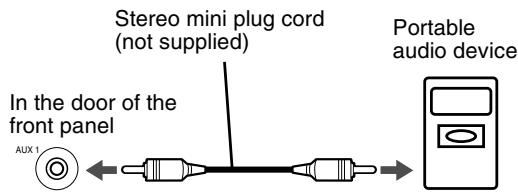

Listening to the sound of portable audio device....36

Adjusting the audio input level....37

Setting the Various Timer....38

Setting the built-in clock....38

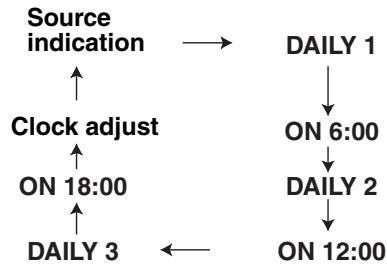

Setting the daily timer....38

Auto Standby....39

Sleep Timer 40

Tray Lock....40

Reference

Troubleshooting....41

Language codes....42

Specifications 43

Notes on handling

■ Important cautions

Installation of the system

• Select a place which is level, dry and neither too hot nor too cold; between 5°C and 35°C.
• Leave sufficient distance between the system and the TV.
• Do not use the system in a place subject to vibration.

Power cord

• Do not handle the power cord with wet hands.
• A small amount of power is always consumed while the power cord is connected to the wall outlet.
• When unplugging the power cord from the wall outlet, always pull on the plug, not the power cord.

To prevent malfunctions of the system

• There are no user-serviceable parts inside. If anything goes wrong, unplug the power cord and consult your dealer.
• Do not insert any metallic object into the system.
• Do not use any non-standard shape disc (like a heart, flower or credit card, etc.) available on the market, because it may damage the system.

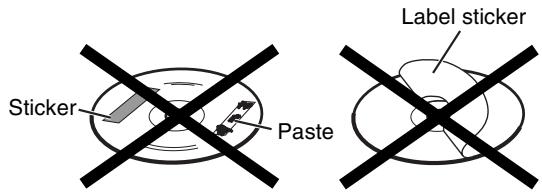

• Do not use a disc with tape, stickers, or paste on it, because it may damage the system.

Sticker Paste Label sticker

Note about copyright laws

Check the copyright laws in your country before recording from DVDs, VCDs, SVCDs, and CDs.

Recording of copyrighted material may infringe copyright laws.

Note about copy guard system

DVDs are protected by copy guard system. When you connect the system to your VCR directly, the copy guard system activates and the picture may not be played back correctly.

■ Safety precautions

Avoid moisture, water and dust

Do not place the system in moist or dusty places.

Avoid high temperatures

Do not expose the system to direct sunlight and do not place it near a heating device.

When you are away

When away on travel or for other reasons for an extended period of time, disconnect the power cord plug from the wall outlet.

Do not block the vents

Blocking the vents may damage the system.

Care of the cabinet

When cleaning the system, use a soft cloth and follow the relevant instructions on the use of chemically-coated cloths. Do not use benzene, thinner or other organic solvents including disinfectants. These may cause deformation or discoloring.

If water gets inside the system

Turn the system off and disconnect the power cord plug from the wall outlet, then call the store where you made your purchase. Using the system in this condition may cause fire or electrical shock.

■ When condensation or water drops adhere to the lens

In any of the following cases, condensation or water drops may adhere to the lens to prevent the system from working properly:

• Immediately after starting to heat the room
• When the system is installed in a steamy or damp space
• When the system is suddenly moved from a cold place to a warm space

In any of these cases, leave the system turned on for 1 or 2 hours before use.

Supplied accessories

Check to be sure you have all of the supplied accessories.

The number in parentheses is the quantity of the pieces supplied. If anything is missing, contact your dealer immediately.

• Remote control (1)
• Batteries (2)
• FM antenna (1)
  • AM loop antenna (1)
• Power cord (1)
  • Composite video cord (1)
• Speaker cords (2)

How to read this manual

• Operations are described by mainly using the remote control buttons. If there are the same marks on the main unit, the buttons on the main unit can also be used.

- The following marks tell you for which type of the discs the operation can be made.

DVD VIDEO DVD AUDIO DVD VR VCD SVCD C D MP3 WMA JPEG ASF DivX MPEG1 MPEG2

• The illustrations and TV screens may be different between the actual case and the description.
• "DVD VR" means a DVD recorded in DVD Video Recording (DVD VR) format.
• "VCD" is an abbreviation of "Video CD".
• “SVCD” is an abbreviation of “Super Video CD”.
• An “ASF” disc means a disc recorded in “Advanced Systems Format”.

playable disc types

Discs you can play:

Disc Type	Mark (Logo)	Video Format
DVDVIDEO		PAL
DVDAUDIO		—
VCD		PAL
SVCD		PAL
CD		—
DivX		PAL

The “ playable” in the following list shows available disc types and recording formats.

Disc typeRecording format	CD-R/-RW*1	DVD-R*1	DVD-RW*1
DVD Video	-	Playable	Playable
DVD Audio	-	Playable	Playable
DVD VR*2	-	Playable^*2	Playable^*2
VCD/SVCD	Playable	-	-
Audio CD	Playable	-	-
MP3/WMA/JPEG	Playable	Playable^*3	Playable^*3
ASF/MPEG1/MPEG2	Playable	Playable^*3	Playable^*3
DivX	Playable	Playable^*3	Playable^*3

- A DVD VR formatted DVD-ROM is also playable.

*1 This system can play finalized discs only.
*2 Only when a DVD-R/-RW is compatible with CPRM (Content Protection for Recordable Media), DVD VR format can be used.
*3 Recorded with UDF Bridge format.

However, some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.

Only sounds can be played back from the following discs:

MIX-MODE CD

CD-G

CD-EXTRA

CD TEXT

is a trademark of DVD Format/Logo

Licensing Corporation.

- It is possible to playback finalized +R/+RW (DVD Video Format only) discs, "DVD" lights on the front display panel when a +R/+RW disc is loaded.

Caution for DualDisc playback

The non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Note on Region Code

DVD VIDEO players and DVD VIDEO discs have their own Region Code numbers. This system can play back DVD VIDEO discs whose Region Code numbers include the system's Region Code, which is indicated on the rear panel.

Examples:

If a DVD VIDEO with an improper Region Code number is loaded, “REGION CODE ERROR!” appears on the TV screen and playback cannot start.

- On some DVD VIDEOs, DVD AUDIOs, VCDs or SVCDs, their actual operation may be different from what is explained in this manual. This is due to the disc programming and disc structure, not a malfunction of this system.

Notes on CD-R and CD-RW

• This system supports “multi-session” discs (up to 20 sessions).
• This system cannot play “packet write” (UDF format) discs. Some discs may not be played back because of their disc characteristics, recording conditions, or damage or stain on them.

Discs that cannot be played back

- DVD-RAM, CD-ROM, CD-I (CD-I Ready), Photo CD, SACD, etc. Playing back these discs will generate noise and damage the speakers.

Damaged discs and discs in an extraordinary shape (other than a disc of 12 cm or 8 cm in diameter) cannot be played back.

Notes on all files

- The system can only recognize and play files with one of the following extensions, which can be in any combination of upper and lower case;

• MP3: “.mp3”
• WMA: “.wma”
• JPEG: “.jpg”, “.jpeg”
• MPEG1/MPEG2: “.mpg”, “.mpeg”
• ASF: ".asf"
• DivX: “.divx”, “.div”, “.avi”

- If a character other than single byte English characters is used in the file name, the track/file name will not be displayed correctly.

• The system recognizes up to 150 tracks (files) per group, 99 groups per disc, and the total number of the tracks (files) that the system can play is 4 000.
• Since the unit ignores the tracks/files whose numbers are exceeding 150 and the groups whose numbers are exceeding 99, they cannot be played back.
• Some files may not be played back normally because of their disc characteristics or recording conditions.

For MP3/WMA files

• An off-the-shelf MP3 disc may be played in an order different from that indicated on the label attached to the disc.
• The system supports MP3/WMA files recorded with a bit rate of 32 – 320 kbps and a sampling frequency of 16 kHz, 22.05 kHz, 24 kHz (WMA only), 32 kHz, 44.1 kHz, or 48 kHz.
• If the tag information (album name, artist, and track title, etc.) is recorded on a disc, it appears in the file control display on the TV screen.
• We recommend to record each piece of material (song) at a sample rate of 44.1 kHz and at a data transfer rate of 128 (96 for WMA only) kbps.
• This system cannot play back files encoded with Multiple Bit Rate (MBR). (MBR is a format to encode a file content at several different bit rates.)

For JPEG files

• We recommend to record a file at 640 x 480 resolution.
- This system can play a baseline JPEG file, excluding monochromatic JPEG files.
- This system can play JPEG data taken with a digital camera conforming to the DCF (Design Rule for Camera File System) standard (when a function is applied such as the automatic rotation function of a digital camera, data goes beyond the DCF standard, so the image may not be displayed).
- If data has been processed, edited and restored with PC image editing software, the data may not be displayed.
- This system cannot play animations such as MOTION JPEG, or still images (TIFF etc.) other than JPEG, and image data with sound.
- An image with a resolution of more than 8 192 x 7 680 pixels cannot be displayed.

For MPEG-1/MPEG-2 files

• The stream format should conform to MPEG system/program stream.
• 720 x 576 pixels (25 fps)/720 x 480 pixels (30 fps) is recommended for the highest resolution.
• This system also supports the resolutions of 352 x 576/480 x 576/352 x 288 pixels (25 fps) and 352 x 480/480 x 480/352 x 240 pixels (30 fps).
• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple profile at Main Level)/MP@LL (Main Profile at Low Level).
• Audio streams should conform to MPEG1 Audio layer-2 or MPEG2 Audio Layer-2.

For ASF files

• This system supports ASF files whose resolution is 352 x 288 pixels or less.
• The system supports ASF files recorded with the maximum bit rate of 384 kbps and an audio coder decoder of G.726.
• Some recorded files may not be able to playback depending on file characteristics, kind of digital camera/video camera, or recording conditions.

For DivX files

• This system can play only a disc of UDF-Bridge format. "Multi-border" is not supported.
• The system supports DivX files whose resolution is 720 x 480 pixels or less (30 fps).
• Audio stream should conform to MPEG1 Audio Layer-2 or MPEG Audio Layer-3 (MP3).
• The system does not support GMC (Global Motion Compression).
• The file encoded in the interlaced scanning mode may not be played back correctly.

Disc structure

DVD VIDEO/DVD VR

A DVD VIDEO consists of “titles” and each title may be divided into “chapters”.

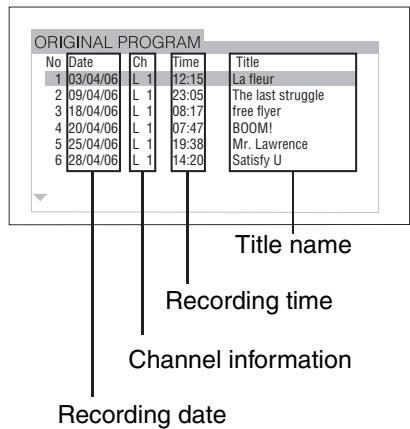

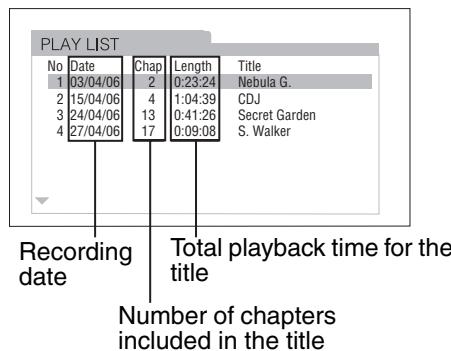

A DVD VR consists of “original programs” or “playlists” and each original program/playlist may be divided into “chapters”.

DVD AUDIO

A DVD AUDIO consists of “groups” and each group may be divided into “tracks”.

Some discs include a “bonus group” that requires a password for playing (page 27).

VCD/SVCD/CD

VCD, SVCD and CD consist of "tracks".

In general, each track has its own track number. (On some discs, each track may also be further divided by indexes.)

MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2 discs

On an MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2 disc, each still picture (material) is recorded as a track/file. Tracks/Files are usually grouped into a folder. Folders can also include other folders, creating hierarchical folder layers.

This unit simplifies the hierarchical construction of a disc and manages folders by “groups”.

- If there is any type of files other than MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2 files in a folder, those files are also counted in the total file number.

The numbers represent the page numbers.

Front panel

See "Display window" below. STANDBY lamp JVC 16 In the door 11 * 12 Top of the unit 15 14 15 14 12 Φ/1 DV/CD FM/AM AUX 12 31 36 DIMMER 16 12

* Connect headphones (not supplied) with a stereo mini plug. If the headphones are connected, the speakers and subwoofer will not produce any sound.

Display window

13 18 26 27 27 13 SVC DVD -A RESUME PROGRESSIVE BONUS B.S.P.ST AUTO RDS TA NEWS INFO PRGM. RANDOM ALL → 1 A-B 😊 12 3 SLEEP A. STANDBY 3D PHONIC 20 21 17, 22 38 40 39 31 32, 34 26 25

Rear panel

8 10 8 10 10 11 9 11 These holes discharge heat generated inside the unit. Do not cover up these holes. AM EXT AM LOOP R L PCM STREAM FM75Ω COSA ANTENNA DVD OPTICAL DIGITAL OUT SUB-WOOFER OUT COMPONENT Y PS Ps S-VIDEO OUT VIDEO OUT S-VIDEO

The numbers represent the page numbers.

26 7 TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE 13, 16 7 FM AM AUX DIMMER 12 31 GROUP/TITLE MUTING 16 15, 17, 27 TV CHANNEL AUDIO TV 16 7 VOL - 7 DVD/CD Remote control mode selector 15, 31 15, 31 14 SLOW SLOW 12, 14, 17, 14, 18 TOP MENU/PG MENU/PL 18, 21 19 ENTER 14 19 SET UP ON SCREEN 14 29 24 AUDIO SUBTITLE ANGLE ZOOM 20, 23, 28 24 PAGE DVD LEVEL/AV RETURN SCAN MODE VFP 24 27 CLOCK/TIMER 25, 26 38, 39 SET/OP LINK 1 2 3 25, 26 36 CANCEL 4 5 6 7, 15 38 SLEEP TV RETURN 7 8 9 100+ 10 ±10 40 A.STANDBY PLAY.MODE FM MODE MEMORY 31 39 BASS TREBLE REPEAT.A-B REPEAT 31 16 + - - - - 16 S.WER OUT 17, 22 23 16 PTY SELECT PTY SEARCH DISPLAY TA/News/Info 10 33, 34 Radio Data System SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/AV RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 1 2 3 SET/OP LINK CANCEL 6 CANCE OUTPUT

Putting the batteries in the remote control

Line drawing of a remote control device with arrows indicating movement or force (no text or symbols)

Batteries

Line drawing of a remote control device with handle and scroll (no text or symbols)

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6 (SUM-3)/AA(15F) type dry-cell batteries.

CAUTION

• Do not use a used battery and a new battery together.
• Do not use different types of batteries at the same time.
• Take out the batteries if the remote control is not to be used for a long time. Otherwise it may cause a leakage.

Remote control operation

When operating the remote control, point it towards the front panel of the main unit. If the remote control is operated from a direction that is extremely oblique or when there is an obstacle in the way, signals may not be transmitted.

If the remote control sensor is exposed to a strong light such as direct sunlight, correct operation may not be carried out.

This page is for when operating your TV using the remote control of this product.

Operating the TV using the remote control

TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE FM AM AUX DIMMER GROUP/TITLE MUTING << > TV CHANNEL AUDIO VOL + - + - AUDIO TV DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN - AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/41 RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 100+ 10 A STANDBY PLAY MODE FM MODE MEMORY

Setting the manufacturer's code

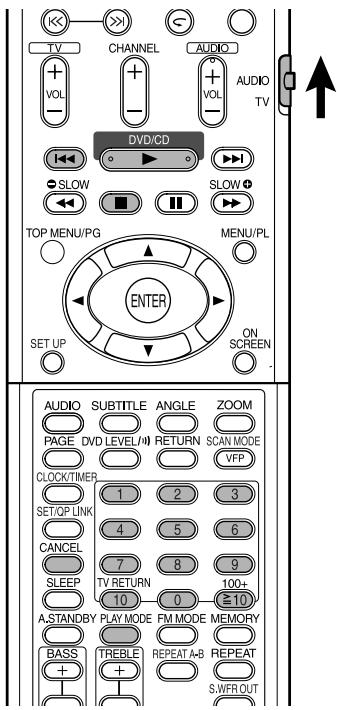

1 Slide the remote control mode selector to the TV side.

2 Keep pressing down ⏻/I TV.

NOTE

Keep pressing down ⏻/TV until Step 4 is complete.

3 Press ENTER.

4 Press number buttons (1-9, 0).

Ex.:

For a Hitachi TV: Press 1, then 0.

For a Toshiba TV: Press 0, then 8.

If there are more than one manufacturer's codes, try them in turn and select the one that causes the product to work properly.

Manufacturer	Code	Manufacturer	Code
JVC	01	Nordmende	13, 14, 18, 26 – 28
Akai	02, 05	Okano	09
Blaupunkt	03	Orion	15
Daewoo	10, 31, 32	Panasonic	16, 17
Fenner	04, 31, 32	Philips	10
Fisher	05	Saba	13, 14, 18, 26 – 28
Grundig	06	Samsung	10, 19, 32
Hitachi	07, 08	Sanyo	05
Inno-Hit	09	Schneider	02, 05
Irradio	02, 05	Seg	15
Loewe	10	Sharp	20
Magnavox	10	Sony	21 – 25
Mitsubishi	11, 33	Telefunken	13, 14, 18, 26 – 28
Miver	03	Thomson	13, 14, 18, 26 – 28
Nokia	12, 34	Toshiba	29

NOTE

Manufacturer's codes may be changed without notice. You may not be able to operate a TV produced by the manufacturer shown above.

5 Release ⏻/I TV.

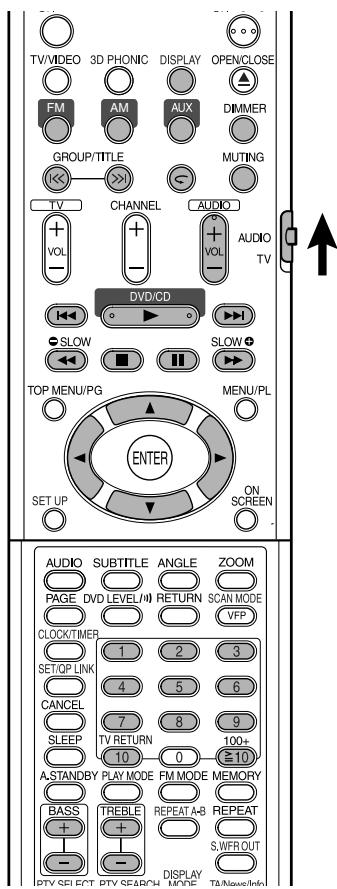

For TV operation

Operate the remote control by pointing it towards the TV.

	Turn ON/OFF the power.
	Change channels.
	Adjust volume.
100+	AUDIO TV *1	Select channels.
	Alternates between the previously selected channel and the current channel.
[0H0C]	Switch TV and video input.

*1 Make sure to slide the remote control mode selector to the TV side in advance.

NOTE

When the batteries are replaced, perform the manufacturer's code setting again.

Connecting antennas

Connecting AM loop antenna (supplied)

1 Set up the AM loop antenna.

2 Connect antenna cords.

Main unit (rear panel)

AM EXT AM LOOP Connect the end of the antenna cord as shown If the antenna cord is covered with vinyl on the tip, twist and pull the vinyl off and remove.

3 Turn the AM loop antenna to the direction of the best radio reception.

Locate the AM loop antenna as far away from the main unit as possible.

• Do not locate the AM loop antenna on a metallic table or close to a TV, personal computer, etc. Otherwise it may result in bad radio reception.

■ When good radio reception cannot be obtained with the supplied AM loop antenna

Electric wire: 3 - 5 m (not supplied)

Electric wire Twist AM loop antenna AM EXT AM LOOP Main unit (rear panel) Extend an electric wire horizontally, preferably in a high place such as above a window or outdoors. Connect the AM loop antenna cords together with the electric wire.

When positioning the antenna, find the best position for reception while listen to an actual radio program (refer to “Listening to a radio broadcast” on page 31).

Connecting FM antenna (supplied)

Main unit (rear panel) FM antenna FM75Ω COAXIAL

Put the antenna up straight in the direction where the best radio reception can be obtained, and fix by using tape.

using tape. JVC

■ When good radio reception cannot be obtained with the supplied antenna or when using a communal antenna

Main unit (rear panel) FM75Ω COAXIAL Antenna cord (not supplied) or Converter (not supplied: compatible with 300 Ω/75 Ω) Communal antenna terminal Outdoor FM antenna (not supplied) Coaxial cable (not supplied) Depending on the radio reception conditions, an FM feeder antenna (not supplied: compatible with 300 Ω) can be used. In the case, a converter (not supplied) is required.

For details of connecting a separately sold antenna, refer to the user guide for the antenna or converter.

Connecting speakers

There is no difference between the left and right speakers.

CAUTION

• DO NOT connect more than one speaker to one speaker terminal.

• The speakers of this product are magnetically shielded, but color irregularities may occur on the TV depending on how the speakers are installed. Keep in mind the following.

• Turn off the main power of your TV before installing the speakers. Wait for about 30 minutes before turning on the TV again.

• If color irregularity occurs in pictures, keep a distance of more than 10 cm between the TV and the speakers.

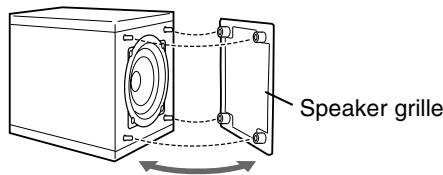

Speaker grille can be detached.

Speaker grille

NOTE

• Impedance of speaker that can be connected to the main unit is within a range of 4 to 16 .
• In order to have a sufficient cooling effect, leave a space of more than 1 cm between the main unit and the speakers or other objects.

Connecting other devices

This page is for when connecting the main unit with other devices.

Connecting subwoofer

With an amplifier-built-in subwoofer (not supplied), you can enjoy a more dynamic bass sound. Refer to the manual of the subwoofer for details.

Audio cord (not supplied) (If an audio cord comes with the amplifier-built-in subwoofer, you can use the cord.) Amplifier-built-in subwoofer (not supplied) Main unit

AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/MI RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ A.STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT A-B REPEAT + + - - - DISPLAY MODE S.WFR OUT IPTY SELECT PTY SEARCH TA/NewsInfo

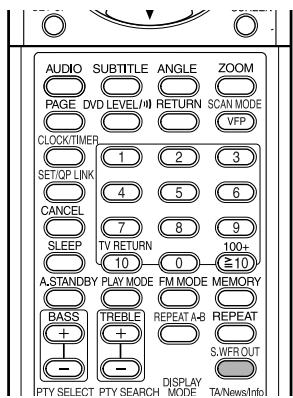

When you want to hear sound from the subwoofer, press S.WFR OUT on the remote control to display "SUBWOOFER" on the display window on the main unit. Each time you press the button, the display toggles between "SUBWOOFER" and "OFF".

NOTE

When “SUBWOOFER” is selected, bass sound from the left and right speakers will be automatically lowered and the bass sound will be emitted mainly from the subwoofer.

Connecting with other audio device

Connecting with a digital device

Digital audio signals are output from this system only when DVD/CD is selected as the source.

CAUTION

• For details of signals to be output, refer to page 30.
• If connecting the main unit with equipment with the function of a Dolby Digital decoder, the setting in "D. RANGE COMPRESSION" of "AUDIO" (page 30) will be invalid regarding sound from the digital audio output of the main unit.

Connecting with a portable audio device

Stereo mini plug cord (not supplied) In the door of the front panel Portable audio device AUX1

• By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device on this unit. See page 36 for details.
• If an external device is not equipped with a stereo mini plug audio output, use a plug adaptor to convert the stereo mini plug to the corresponding plug of the audio output.

Connecting with TV

Main unit COMPONENT VIDEO Y P8 P7 S-VIDEO VIDEO OUT Supplied composite video cord TV VIDEO IN

CAUTION

Connect the main unit directly with a TV (or a monitor) without routing through a VCR. Otherwise it may cause picture distortion while playing.

Also, when connecting the main unit to a TV with a VCR built in, there may be picture distortion while playing.

You can enjoy pictures of better quality using the following cord instead of the supplied video cord.

Connecting by using the S-Video cord

Connecting by using the component video cord

You can enjoy better quality pictures than when using the S-Video cord.

TV COMPONENT VIDEO IN Y P_B P_R Component video cord (not supplied) Green Blue Red COMPONENT VIDEO OUT Main unit

CAUTION

Use either the S-Video cord or the component video cord. If both cords are used, pictures may not be played properly.

NOTE

• In order to enjoy pictures with Progressive mode (page 26), the TV is required to have Progressive video input.
• If the component video input jacks of your TV are BNC type, use a plug adapter (not supplied) to convert the plugs.

Connecting the power cord

AC outlet Supplied power cord Main unit ~AC IN

• Connect the power cord after all other connections are complete.
• The STANDBY lamp (on the front panel) will be lit.

Playback

DVD VIDEO

DVD AUDIO

DVD VR

VCD

SVCD

CD

(Refer also page 17 for playing MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2.)

page 5 JVC

Place a disc with the label side facing up.

- Place an 8 cm disc into the hollow part in the center.

Diagram of a remote control with labeled parts including buttons and ports

1 Press ⏻/I AUDIO.

• The power will be turned on and the STANDBY lamp will go off.
• Press ⏻/I AUDIO again to turn off the power.

2 Press ▲OPEN/CLOSE to open the disc tray to load a disc.

3 Press DVD/CD ▶.

The disc tray will close and playback will start.

• The power will be turned on when any of DVD/CD ▶, FM, AM, AUX, or ▲ on the main unit and DVD/CD ▶, FM, AM, AUX, or ▲OPEN/CLOSE on the remote control is pressed while the power is off.
• If any button other than ▲ or ▲OPEN/CLOSE is pressed, the source will also be changed (if there is a disc loaded, playback will start by pressing the DVD/CD ▶ on the main unit or the remote control).

NOTE

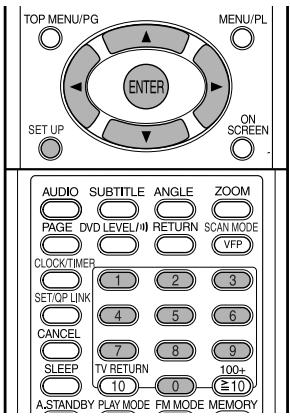

• A menu screen may be displayed on the TV after starting playback of a DVD/VCD/SVCD. In this case, select a desired item to playback by using the following buttons on the remote control.
• Select a desired item using cursor ▲/▼/◄/► and press ENTER.
• Select a desired item using the number buttons.
• Depending on the disc, actual operation may be different from the description.

JVC

Screens displayed on the TV when the power is turned ON.

The following messages appear depending on the status of the system. (When FM, AM or AUX is selected as a source, the messages do not appear.)

NOW READING	Appears when the system is reading the disc information. Wait for a while.
REGION CODE ERROR!	Appears when the Region Code of the DVD VIDEO does not match the code the system supports. (page 3)
NO DISC	Appears when no disc is loaded.
OPEN	Appears when opening the disc tray.
CLOSE	Appears when closing the disc tray.
CANNOT PLAY THIS DISC	Appears when trying to playback an unplayable disc.
READING INDEX...	Appears when reading the index of a DivX file.

TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE FM AM AUX DIMMER GROUP/TITLE MUTING TV CHANNEL AUDIO VOL VOL TV

Display window during disc playback

Ex.: When a DVD VIDEO is played

0:2 1:34:28 DVD Disc type Chapter number Elapsed playing time

When a DVD VR is played back, PG (original program) /PL (play list) number is displayed.

Ex.: When a DVD AUDIO is played

T:1 1:34:28 DVD-A

Track number

If "BONUS" or "B.S.P." is displayed during a DVD AUDIO playback, refer to page 27.

Ex.: When an SVCD or VCD is played

VCD 1 PBC VCD Track number

• When playing an SVCD, the SVCD indicator lights instead of the VCD indicator.
• PBC (Play Back Control): A signal recorded in a VCD (version 2.0) for controlling playback. It is possible to enjoy interactive software or software with a search function using a menu screen recorded in a PBC compatible VCD. To play a disc with the PBC function OFF, carry out the following operations.
• Designate the track number using the number buttons while the disc is stopped.
• Designate the track number using ▶▶1 while the disc is stopped, and then press DVD/CD ▶.
• Press RETURN to go back to the upper layer during the PBC playback of a VCD or SVCD.

Ex.: When a CD is played

CD 12 4:28

Track number

Ex.: When an MP3/WMA/ASF/DivX/MPEG1/MPEG2 file is played

TR193 8:17 Track number

Ex.: When an JPEG file is played

JPG GIF Group number File number

To switch the display

Press DISPLAY.

Each time you press the button, the display indication changes temporarily as follows:

• For DVD VIDEO


DVD T 3 C 2 DVD Title number Chapter number

• For DVD VR

DVD P 3 C 2 DVD PG/PL number Chapter number

• For DVD AUDIO

DVD-A DVD-A G3 T1 Group number Track number

• For MP3/WMA

MP3 8 9 T103 Group number Track number

• For ASF/DivX/MPEG1/MPEG2

EX.: When an ASF file is played

ASF G:1T:1 Group number Track number

- While playing a DivX or MPEG1/MPEG2 file, "DIV (for DivX)" or "MPG (for MPEG1/MPEG2)" appears instead of "ASF."

- For SVCD/VCD/CD/JPEG

The clock time indication appears on the display window.

- Before setting the clock (page 38), "0:00" appears.

- When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption.

TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE FM AM AUX DIMMER GROUP/TITLE MUTING TV CHANNEL AUDIO VOL + - DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL(+) RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/QP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ A STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT A-B REPEAT + + S.WFR.OUT - - DISPLAY RTV SE FCT RTV SEARCH MODE TA/News/Info

Select an item on the disc by using the number buttons

DVD VIDEO DVD AUDIO DV VR VCD SVCD CD MP3 WMA JPEG ASF DivX MPEG1 MPEG2

NOTE

• Set the remote control mode selector to AUDIO before using the number buttons.
• For a VCD or SVCD, this operation can be carried out when the disc is stopped, or during playback without the PBC function.
• For a DVD AUDIO, CD, MP3/WMA or JPEG, this operation can also be carried out when the disc is stopped.
• For a DVD VIDEO, you can select the title before playing, and you can select chapter while playing.
• This operation may not be carried out for some discs.

Use number buttons to select the item you want to play.

- Refer to "How to use the number buttons" on page 15.

To stop playback

DVD VIDEO DVD AUDIO DV VR VCD SVCD C D MP3 WMA JPEG ASF DivX MPEG1 MPEG2

Press ■ during playback.

To pause playback

DVD VIDEO DVD AUDIO DV VR VCD SVCD C D MP3 WMA JPEG ASF DivX MPEG1 MPEG2

Press II during playback.

To start normal playback again, press DVD/CD ▶. - For JPEG slide-show, pressing DVD/CD ▶ starts playback from the next file.

To advance picture frame-by-frame

Press II during pause.

- Each time you press the button, picture will be advanced frame-by-frame.

Fast reverse/Fast forward search

DVD VIDEO DVD AUDIO DVD VR VCD SVCD CD ASF DivX MPEG1 MPEG2 MP3 WMA

Press ◀◀ or ▶▶ during playback.

- Each time you press the button, the speed increases as follows.

DivX file/disc:

X1, X2, X3

Except for DivX file/disc:

X2, X5, X10, X20, X60

- To restore the normal speed, press DVD/CD ▶.

NOTE

• For MP3, WMA, DivX discs/files, the search speed shown on the TV is different from described above.
• While playing moving pictures, no sound comes out during Fast reverse/Fast forward search.
• For a CD or DVD AUDIO, sound is intermittent during Fast reverse/Fast forward search.

Playing back from a position 10 seconds before (One Touch Replay)

DVD VIDEO DVD VR

Press ← during playback.

NOTE

• This function may not be available for some discs.
• It is not possible to go back to the previous title.

Slow Motion Playback

DVD VIDEO DVD VR VCD SVCD

Press SLOW ⊖ or SLOW ⊕ during pause.

• Each time you press the button, the playback speed increases ( × 1/32, × 1/16, × 1/8, × 1/4, × 1/2).
• Press DVD/CD ▶ to start normal playback again.

NOTE

• No sound will be produced.
• The picture motion in the reverse direction may not be smooth.
• For a VCD, SVCD and DVD VR, Slow Motion Playback can be carried out in the forward direction only.

Skip to the beginning of the selection

DVD VIDEO DVD AUDIO DVD VR VCD SVCD CD MP3 WMA JPEG ASF DivX MPEG1 MPEG2

Press |◀◀ or ▶▶▶ during playback\*.

• Press ▶▶▶ to skip the next chapter or track.
• Press ◀◀◀ once to skip back to the beginning of the chapter or track currently being played (except for JPEG).
• Press GROUP/TITLE << or >> to select the title or group.
• During playback of a MP3/WMA/JPEG/ASF/DivX discs, press ▶▶ or cursor ▼ to play the next file, or press ◀◀ or cursor ▲ to play the previous file.

NOTE

* For a VCD or SVCD, this operation can be carried out during playback without the PBC function.
- Except for a DVD VIDEO, this operation can also be carried out while the disc is stopped.
- This operation may not be carried out for some discs.

Skipping at 5-minute intervals

DivX

Press cursor ◀ or cursor ▶ during playback.

- Each time you press the button, the playback position skips to the beginning of the previous or next interval. Each interval is about 5 minutes or 30 seconds depending on the disc.

NOTE

• Intervals are automatically assigned from the beginning of a file.
• This feature is available only within the same file.
• This feature may not work for some discs/files.

How to use the number buttons

Ex.: 5: 5

20: ≥10 2 0

15: ≥q1015

25: ≥10 2 5

126: ≥10 ≥10 1 2 6

Guide icons displayed on the TV screen (On-screen guide)

: Play

: Pause

: Fast reverse/Fast forward search

: Slow Motion Playback (reverse/forward directions)

: Containing multi-angle views (page 24)

: Containing multi-audio languages (page 24)

: Containing multi-subtitle languages (page 24)

: The disc cannot accept the operation you have attempted.

To change the brightness of the display window (DIMMER)

Press DIMMER repeatedly.

- Each time you press the button, the dimmer mode changes as follows:

• When the unit is turned off, pressing DISPLAY turns off the clock indication to save the power consumption. At this time, QP Link will be canceled automatically.
  The items above can be carried out for all sources.

Adjusting the volume

Press AUDIO VOL +/-.

NOTE

The volume can be also adjusted by turning the VOLUME control on the main unit.

Adjusting sound quality

Bass: Press BASS +/-

Treble: Press TREBLE +/-.

- Adjustable range: -5 to +5

Turning off the sound temporarily (MUTING)

Press MUTING.

• No sound will come out from the speakers, headphones and the subwoofer.
• Press MUTING again to restore the sound. In this function, the sound will not be restored by following operations.
• Turn off the system directly.
• Press AUDIO VOL +/- directly.

TV 3D PHONIC DISPLAY OPEN/CLOSE FM AM DINMER GROUP/TITLE MUTING TV CHANNEL AUDIO VOL + - + - VOL AUDIO TV DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVY LEVEL/01 RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 100+ A STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT A-B REPEAT S.W.R.OUT

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Playback

JPEG

ASF

DivX

MPEG1 MPEG2

Display of an MP3/WMA disc is described here as an example.

For a JPEG disc, read "track" as "file".

NOTE

When playing a disc containing both MP3/WMA/ASF/DivX/MPEG1/MPEG2 and JPEG files, set one of them to be played, then turn on the system again (page 29).

1 Load a disc.

Current group/total group number Tag information (for MP3/WMA) File Playback mode (PROGRAM, RANDOM, REPEAT) Elapsed playing time of current track (except for JPEG) PROGRAM REPEAT STEP TIME 00:02:15 Group : 3 / 3 Blue Red Green Track Information Title Weather Artist Earth Album Nature Track : 10 / 30 (Total 1000) 01. Cloudy.mp3 02. Fair.mp3 03. Fog.mp3 04. Hail.mp3 05. Indian summer.mp3 06. Rain.mp3 07. Shower.mp3 08. Snow.mp3 09. Thunder.mp3 10. Typhoon.mp3 11. Wind.mp3 12. Winter sky.mp3 Current track (file) Current track (file) / total track (file) number on current group Total track (file) number on disc Playback status

2 Press cursor ▲/▼ to select a group.

3 Press cursor ▶ to move to the track list.

- Press cursor ◀ to go back to the group list.

4 Press cursor ▲/▼ to select a track.

Slide-Show Playback JPEG

• In Step 5, for a JPEG disc, when DVD/CD ▶ is pressed, files will be continuously played from the selected file (Slide-Show Playback), and when ENTER is pressed, only a selected file will be played.
• Display time for a file in Slide-Show Playback is about 3 seconds.
• When all files are played through, the playback will be automatically stopped.

5 Press DVD/CD ▶ or ENTER.

NOTE

• GROUP/TITLE , can also be used in Step 2.
• The number buttons can also be used in Step 4. In this case, Step 5 is not needed. (For how to use the number buttons, refer to page 15.)
• |◀◀ or ▶▶| can also be used in Step 4.

Repeat playback

MP3 WMA

JPEG

ASF

DivX

MPEG1 MPEG2

1 Press REPEAT.

• Each time you press the button, the Repeat mode and its indication change as follows:

Repeat items	On the TV	On the display window
Current track (except for JPEG)	REPEAT TRACK	REP TRK 1
Current group	REPEAT GROUP	REP GRP
Entire disc All tracks during Program/Random play (MP3/WMA only)	REPEAT ALL	REP ALLALL
Current track during Program/ Random play (MP3/WMA only)	REPEAT STEP	REP STEP 1
Cancel	REPEAT OFF	REP OFF

2 Press DVD/CD ▶.

NOTE

• The Repeat types can be changed during playback.
• The Repeat mode will be automatically canceled if there is a file that cannot be played (page 3).

TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE FM AM AUX DIMMER GROUP/TITLE MUTING TV CHANNEL AUDIO VOL + - DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL RETURN SCAN MODE CLOCK/TIMER VFP 1 2 3 SET/QP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ A.STANDBY PLAY MODE FM MODE MEMORY

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

DVD VIDEO DV VR DV AUDIO VCD SVCD MP3 WMA ASF DivX MPEG1 MPEG2

This system can store the stop point, and when you start playback again by pressing DVD/CD ▶ (even while on standby), it starts from the position where you have stopped—Resume Play. The RESUME indicator lights on the display window when you stop playback.

To suspend playback

Perform any of the following operations during playback.

Press ■ once.*

Press ⏻/l AUDIO to turn off the power.

Change the source to FM, AM or AUX.*

* Even if the power is turned off by pressing ⏻/I AUDIO after this, the position where playback has been stopped will be stored.

To start playback from the stored position

Press DVD/CD ▶.

NOTE

• This function does not work in Program Playback or Random Playback.
• The position where playback starts again may be a little different from the stopped position.
• When a disc menu is displayed, the Resume function may not work.
• The system also stores the settings of the audio language, the subtitle language, and the angle selected when playback is stopped.
• To stop completely while Resume is set to ON, press ■ twice. (To cancel Resume, see "RESUME" on page 30)
• At the time of purchase, Resume is set to ON. Resume can be set to OFF (page 30).
• If you open the tray, the stored position will be erased.

TV CHANNEL AUDIO VOL VOL AUDIO TV DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL(1) RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ 100+±10

NOTE

Set the remote control mode selector to

AUDIO before using the number buttons.

Select the scene from the menu

DVD VIDEO DVD AUDIO VCD SVCD

1 Press MENU/PL or TOP MENU/PG while the disc is stopped or during playback\*1.

• The disc menu screen will be displayed.
• To display the disc menu while playing back a VCD or SVCD with PBC function, press RETURN repeatedly.
• Only TOP MENU/PG can be used for DVD AUDIOs.

2 Press cursor ▲/▼/◄/► (only for a DVD VIDEO or DVD AUDIO) or the number buttons to select the scene to be played.

• Refer to "How to use the number buttons" (page 15).
• When the menu screen has a couple of pages, press ◀◀◀ or ▶▶◀ to change the page (only for a VCD and SVCD).

3 Press ENTER.

NOTE

*1 For a VCD and SVCD, this operation can be carried out only when the PBC function is off.
- This operation cannot be carried out for a disc without a menu screen.
- Playback may start for some discs without pressing ENTER.

DVD VR

1 While the disc is stopped or during playback, press TOP MENU/PG to display the original program or press MENU/PL to display the play list.

■ Original program

ORIGINAL PROGRAM No Date Ch Time Title 1 03/04/06 L 1 12:15 La fleur 2 09/04/06 L 1 23:05 The last struggle 3 18/04/06 L 1 08:17 free flyer 4 20/04/06 L 1 07:47 BOOM! 5 25/04/06 L 1 19:38 Mr. Lawrence 6 28/04/06 L 1 14:20 Satisfy U Recording time Channel information Recording date Title name Recording time Recording date

■ Play list

PLAY LIST No Date Chap Length Title 1 03/04/06 2 0:23:24 Nebula G. 2 15/04/06 4 1:04:39 CDJ 3 24/04/06 13 0:41:26 Secret Garden 4 27/04/06 17 0:09:08 S. Walker Recording date Total playback time for the title Number of chapters included in the title

- The play list will not appear when a play list has not been recorded to the disc.

2 Press ▲/▼ to select the desired title.

3 Press ENTER.

• When you have selected the original program by pressing TOP MENU/PG in step 1, playback will start from the selected title to the following titles.
• When you have selected the play list by pressing MENU/PL in step 1, only the selected title will be played back.

Designate the time (Time search)

1 Press ON SCREEN twice during playback ^4 .

The menu bar will be displayed (page 28).

2 Press cursor ◀/▶ to select

3 Press ENTER.

4 Input the time ^*3 using the number buttons (1-9, 0).

Ex.: When you want to play a DVD VIDEO from the position of (0 hour) 23 minutes 45 seconds, press the buttons in the order:

- If you input wrong numbers, press cursor ◀ to delete the numbers and re-input.

5 Press ENTER.

To remove the menu bar, press ON SCREEN.

NOTE

• This function does not work for a DVD VIDEO with no time information recorded.

• This function does not work during Program or Random Playback.
  *2 For a VCD and an SVCD, the operation can be carried out when the disc is stopped or during playback without the PBC function.
  *3 Time search for a DVD VIDEO is from the beginning of the title, for a DVD AUDIO from the beginning of the track being played. Time search for a VCD, an SVCD and a CD is as follows:

• When the disc is stopped, time search is from the beginning of the disc.

• When the disc is being played, time search is within the track currently being played.

TV CHANNEL AUDIO VOL + - AUDIO TV DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/4 RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/QP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 100+ 10 0 ≤10 A-STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT A-B REPEAT + + S.WFR OUT

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Play the disc in the desired order (Program Playback)

It is possible to program a maximum of 99 chapters or tracks. The same chapter or track can be programmed more than once.

1 While the disc is stopped, press PLAY MODE repeatedly to display “PROGRAM” on the display window on the main unit.

PROGRAM TV screen No. Group / Title Track / Chapter 1 2 3 4 5 6 7 8 Program screen

2 Create a program following the description on the TV screen.

Refer to "How to use the number buttons" (page 15).

• The input content varies depending on the disc type.
  • DVD VIDEO: Titles and chapters
  • VCD, SVCD, CD: Tracks
  • DVD AUDIO, MP3/WMA:

Groups and tracks

• To select a DVD AUDIO bonus group, carry out the operations of “Playing the Bonus Group” on page 27 in advance to erase the display “BONUS”.
• If the input number of chapters or tracks is greater than 99, “MEM FULL” will be displayed.

To program on the display window on the main unit, operate as follows:

(1) Select a title/group using the number buttons.
(2) Designate a chapter/track number using the number buttons.

• Refer to "How to use the number buttons" (page 15).
• The program number will be displayed on the display window (Ex.: "P2").

(3) Repeat the above operations (1) and (2) to complete the program. Then, advance to Step 3.

NOTE

• The group/title number flashes on the display window after making each program step.
• Only for a DVD VIDEO, DVD AUDIO, or an MP3/WMA: If you press ENTER instead of designating a track/chapter number, "ALL" is displayed and all of the tracks/chapters in the selected group/title are programmed.

3 Press DVD/CD ▶.

• To resume normal playback, press PLAY MODE repeatedly to show the playback indication on the display window on the main unit while the disc is stopped. The program content will not be erased.

• The following operations erase the program content:

• Press CANCEL repeatedly (Programs will be erased one by one)

• Press ■ while the disc is stopped
• Open the disc tray
• Turn off the power

Playing the disc in a random order (Random Playback)

DVD VIDEO DVD AUDIO VCD SVCD CD MP3 WMA

1 Press PLAY MODE repeatedly to display “RANDOM” on the display window on the main unit while the disc is stopped.

- "RANDOM" will also be displayed on the TV screen.

2 Press DVD/CD ▶.

• The same chapter or track will not be played twice.
• To resume normal playback, press PLAY MODE repeatedly to show the playback indication on the display window on the main unit while the disc is stopped.

• Random Playback will also be canceled by carrying out the following operations:

• Open the disc tray

• Turn off the power
• The previous track will not be returned to even if ◀◀◀ is pressed repeatedly during Random Playback (the beginning of the current chapter or track will be returned to).

Refer to page 17 for Repeat Playback of MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2 files.

GROUP/TITLE TV CHANNEL AUDIO VOL + - + - AUDIO TV DH/DVD/CD SLOW SLOW TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DV/D LEVEL/MI RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ ≡10 A.STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT A-B REPEAT + - S.WFR OUT PTY SELECT PTY SEARCH DISPLAY TA/News/Info + - - MODE

Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)

Press REPEAT during playback.

• Each time you press the button, the Repeat mode and its indication change as follows:

For DVD VIDEO

Repeat items	On the TV	On the display window
Current chapter		REP CHAP 1
Current title		REP TTL
Cancel		REP OFF

For DVD VR

Repeat items	On the TV	On the display window
Current chapter	CHAP	REP CHAP C1
Current original program	PG	REP PG C
All original programs	ALL	REP ALL. ALL C
Current play list	PL	REP PL C
Cancel	OFF	REP OFF

For DVD AUDIO

Repeat items	On the TV	On the display window
Current track		REP TRK 1
Current group		REP GRP
Cancel		REP OFF

For CD/VCD/SVCD

Repeat items	On the TV	On the display window
Current track	TRACK	REP TRK 1
All tracks	ALL	REP ALLALL
Cancel	OFF	REP OFF

NOTE

• For a VCD and SVCD, the operation can be carried out only when the disc is stopped or during playback without the PBC function.
• It is possible to set Repeat mode on the menu bar. For how to operate, refer to "Playing the designated part repeatedly (A-B Repeat Playback)" (See the right column).
• For a DVD VIDEO and DVD AUDIO, if the source is switched to FM, AM or AUX, the Repeat mode will be canceled.

Repeat Playback during Program or Random Playback

Repeat items	On the TV	On the display window
Current chapter/ track	STEPor REPEAT STEP	REP STEP 1
All tracks during Program/Random play	ALLor REPEAT ALL	REP ALLALL
Cancel	OFFor no indication	REP OFF

Playing the designated part repeatedly (A-B Repeat Playback)

1 Press ON SCREEN twice during playback.

The menu bar (page 28) will be displayed.

2 Press cursor ◀/▶ to select OFF.

3 Press ENTER.

4 Press cursor ▲/▼ to display A-B

Other Repeat modes can be selected here. For other Repeat modes, refer to “Playing the title/chapter/group/track/all tracks repeatedly (REPEAT)” (page 22).

5 Press ENTER at the start point of the part to be repeated (designating A point).

- The icon on the menu bar will be 📄 A- .

6 Press ENTER at the end point of the part to be repeated (designating B point).

• The icon on the menu bar will be 📄 A-B and the part between A and B points will be played repeatedly.
• A-B Repeat Playback will be canceled by carrying out the following operations:
• Press ■.
• Select A-B and press ENTER twice.
• Change the current track/file.

NOTE

• A-B Repeat Playback is possible only within the same title or track. A-B Repeat Playback cannot be carried out during PBC playback, Program Playback, Random Playback and Repeat Playback.
• You can use the A-B Repeat Playback using the REPEAT A-B button on the remote control.
• For some DVD discs, A-B Repeat Playback does not work.

TV CHANNEL AUDIO VOL + - + - VOL AUDIO TV DVD/CD SLOW SLOW TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/MP RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/QP LINK

Selecting the subtitles

DVD VIDEO DVD VR SVCD DivX DVD AUDIO (only for moving image)

1 Press SUBTITLE during playback of a disc containing subtitles in several languages.

Ex.:

TV screen

• Each time you press the button, the subtitle will be alternated between ON and OFF.

2 Press cursor ▲/▼ to select a subtitle language.

• For a language code such as "AA", refer to "Language codes" (page 42).
• The manner of displaying subtitle languages may be different depending on the disc.

3 Wait for a few seconds or press ENTER to remove the window.

NOTE

• It is also possible to operate by using the menu bar (page 28).
• For an SVCD, each time you press SUBTITLE in Step 1, the subtitle type and OFF will be alternated.

Selecting the audio language

1 Press AUDIO during playback of a disc containing several audio languages.

Ex.:

TV screen

• Each time you press the button, the audio language will be alternated. Also, the audio language can be changed by pressing cursor ▲/▼.
• For a language code such as "AA", refer to "Language codes" (page 42).
• “ST”, “L” and “R” displayed when playing a VCD, SVCD or DVD VR respectively represent “Stereo”, “Left sound” and “Right sound”.
• For a DivX disc, only the number of the language is displayed on the TV screen.

2 Wait for a few seconds or press ENTER to remove the window.

NOTE

It is also possible to operate by using the menu bar (page 28).

Selecting a view angle

(only for moving image)

1 Press ANGLE during playback of a scene containing multi-view angles.

Ex.:

TV screen

- Each time you press the button, the angle will be alternated. Also, the angle can be changed by pressing cursor ▲/▼.

2 Wait for a few seconds or press ENTER to go off the window.

NOTE

It is also possible to operate by using the menu bar (page 28).

Enlarging the picture (ZOOM)

DVD VIDEO DVD VR VCD SVCD ASF DivX MPEG1 MPEG2 DVD AUDIO JPEG (only for moving image)

1 Press ZOOM during playback or while paused.

• Each time you press the button, the picture magnification will be changed.
- For JPEG, you cannot change the picture magnification during slide-show playback.

2 Select the portion you want to see by using cursor ▲/▼/◄/►.

- To resume normal playback, select "ZOOM OFF" in Step 1.

NOTE

During ASF playback, there may be a case where

▲/▼/◄/► does not work in step 2.

Adjusting the picture quality (VFP)

DVD VIDEO MPEG1 MPEG2 DVD VR VCD SVCD JPEG ASF DivX DVD AUDIO (only for moving image)

1 Press VFP during playback or while paused.

The current setting will be displayed on the TV screen.

NORMAL GAMMA 0 BRIGHTNESS 0 CONTRAST 0 SATURATION 0 TINT 0 SHARPNESS 0

2 Press cursor ◀/▶ to select VFP mode.

• It is recommended to select “NORMAL” usually, or “CINEMA” in a dark room. When either “NORMAL” or “CINEMA” is selected, go to Step 7.
• When either "USER 1" or "USER 2" is selected, the adjustment can be carried out in detail in the operations after Step 3.

3 Press cursor ▲/▼ to select an item to be adjusted.

4 Press ENTER.

Ex.: TV screen

5 Press cursor ▲/▼ to change the value.

• GAMMA: Adjust this if the neutral color is bright or dark. The brightness of dark and bright portion is maintained.
- BRIGHTNESS: Adjust this if the picture is bright or dark on the whole.
- CONTRAST: Adjust this if the far and near position is unnatural.
- SATURATION: Adjust this if the picture is whitish or blackish.
- TINT: Adjust this if the appearance of flesh tone is unnatural.
- SHARPNESS: Adjust this if the picture is indistinct.

6 Press ENTER.

To adjust other items, go back to Step 3.

7 Press VFP to go off the window.

NOTE

• If no operation is made for several seconds during the procedure, the settings made so far will be automatically stored.
• "VFP" is an abbreviation of "Video Fine Processor".

Making dialogues clear (CLEAR VOICE)

DVD VIDEO DVDAUDIO DVDRV VCD SVCD CD MP3 WMA ASF DivX MPEG1 MPEG2

Press and hold DVD LEVEL/1) during playback.

The singer's voices or dialogues of the movie will be heard clear.

• Each time you press and hold the button, the clear voice function turns on and off alternately.

NOTE

Clear voice function only works for center-channel encoded multi-channel disc.

TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE FM AM AUX DIMMER GROUP/TITLE MUTING TV CHANNEL AUDIO +VOL - +VOL - AUDIO TV DVD/CD SLOW SLOW TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/PI RETURN SCAN MODE VFP

Creating realistic sound (3D PHONIC)

DVD VIDEO

DVD AUDIO

DVD VR

VCD

SVCD

CD

MP3 WMA

The two speakers produce an effect resembling surround-sound.

1 Press 3D PHONIC during playback.

Ex.:

TV screen

3D PHONIC

OFF

• Each time you press the button, the 3D PHONIC will be alternated as follows:

- While 3D PHONIC is activated, "3D PHONIC" appears and the 3D PHONIC indicator lights on the display window.

NOTE

• 3D PHONIC is effective for the speakers and headphones.
• When noise is produced or sound is distorted, set 3D PHONIC to "OFF".
• You cannot use this functions for some DVD AUDIO discs.
• For an ASF/DivX/MPEG1/MPEG2 disc, 3D Phonic does not work and creates no sound effect even when "ACTION", "DRAMA", "THEATER" is displayed.

Adjusting playback level (DVD LEVEL)

DVD VIDEO

DVD VR

The audio of a DVD VIDEO may be recorded at a lower level (volume) than for other types of disc. If the difference is not to your liking, adjust the DVD Level.

1 Press DVD LEVEL/1) during playback.

• Each time you press the button, the level will be alternated among “NORMAL”, “MIDDLE” and “HIGH”.
• Select the level while listening to the sound played.

NOTE

• DVD Level is effective only for playback of a DVD VIDEO or DVD VR.
• Even if the DVD Level is changed, the output level from the digital audio output terminal will not be changed.

Enjoying better pictures (SCAN MODE)

In the Progressive mode, better pictures can be enjoyed.

IMPORTANT

• In order to enjoy pictures in the Progressive mode, connect this system and your TV with component video cord.
• If your TV does not have component video input terminal, leave the setting Interlace mode.

Press and hold SCAN MODE for 4 seconds when there is no disc loaded or while the disc is stopped.

- Each time you press and hold the button, the scan mode alternates between the "PROGRESSIVE" mode and the "INTERLACE" mode.

NOTE

Progressive mode:

All scanning lines will be displayed at once. Pictures of higher resolution than those in the Interlace mode can be realized.

Interlace mode:

This is a conventional image method. Half of the scanning lines displayed in the Progressive mode will appear, alternating with the other half.

DVD AUDIO

TV/TV TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE FM AM AUX DIMMER GROUP/TITLE MUTING TV CHANNEL AUDIO VOL + - DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL(H) RETURN SCAN MODE CLOCK/TIMER VFP 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ A STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT A-B REPEAT + + - - S.WFR.OUT PTY SELECT PTY SEARCH DISPLAY TA/News/Info

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Playing the Bonus Group

There are some DVD AUDIO discs with a special group, called “Bonus Group”, recorded.

NOTE

This operation can be carried out when "BONUS" is lit on the display window on the main unit.

1 Press GROUP/TITLE >>I repeatedly during playback to select a bonus group.

"KEY____" appears on the TV screen, and on the display window on the main unit.

- The bonus group is usually recorded as the last group.

2 Press the number buttons to enter a pin code (4 digits).

The method of getting a pin code may be different depending on the disc.

3 Press ENTER.

• When a correct pin code is entered, "BONUS" disappears and the playback of the bonus group starts.
• If an incorrect pin code is entered, try entering a correct pin code again.

Browsable Still Pictures (B.S.P.)

There are some DVD AUDIO discs with still pictures recorded. Among the still pictures, there are pictures called B.S.P. (Browsable Still Pictures). With these pictures, it is possible to switch a picture as if turning over pages.

NOTE

This operation can be carried out when "B.S.P." is lit on the display window on the main unit.

1 Press PAGE during playback.

Each time you press the button, the still picture will be switched over. It is also possible to switch the picture using cursor ▲/▼.

Ex.:

PAGE 1/2 TV screen 1

2 Wait for a few seconds or press ENTER to remove the window.

DVD VIDEO DVD AUDIO DVD VR VCD SVCD CD ASF DivX MPEG1 MPEG2

SLOW TOP MENU/PG ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL /M RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ A STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT-A B REPEAT

NOTE

- Set the remote control mode selector to AUDIO before using the number buttons.

- This operation can be carried out when there is a disc loaded. There are some functions that may not work while the disc is stopped.

1 Press ON SCREEN twice.

The status bar and the menu bar will appear on the TV screen.

Status bar DVD-VIDEO Dolby D 3/2.1ch TITLE 33 CHAP 33 TOTAL 1:25:58 TIME OFF CHAP. 1/3 1/5 1/3 Menu bar

The above is an example for a DVD VIDEO.

2 Press cursor ◀/▶ to select an item to be operated.

3 Press ENTER.

• The selected function can be set. For the setting content, refer to the following "Functions list".
• The function currently activated is shown in blue.
• To remove the menu bar, press ON SCREEN.

Functions list

For the functions with no special description for the operations, press cursor ▲/▼ to select, and press ENTER to determine.

TIMETime display selection	Select this to change time information displayed on the display window on the main unit and the status bar. Each time ENTER is pressed, the display will be alternated.DVD VIDEO/DVD AUDIO (operating during playback)TOTAL: Elapsed playing time of current title/group.T.REM: Remaining time of current title/ group.TIME: Elapsed playing time of current chapter/track.REM: Remaining time of current chapter/ track.DVD VR (operating during playback)TOTAL: Elapsed playing time of current title/group.T.REM: Remaining time of current title/ group.CD (operating during playback)/ VCD/SVCDTIME: Elapsed playing time of current track.REM: Remaining time of current track.TOTAL: Elapsed playing time of disc.T.REM: Remaining time of disc.
Repeat mode	See page 22.
Time search	See page 20.
CHAP./TRACKChapter search (DVD VIDEO/DVD VR)/Track search (DVD AUDIO)	Select a chapter/track. Press the number buttons to input the chapter/track number and press ENTER.Ex.: 5:5 24:2→4
Audio language/Audio (DVD VIDEO/DVD AUDIO/VCD/SVCD)	See page 24.
Subtitle language (DVD VIDEO/DVD VR/SVCD)	See page 24.
View angle (DVD VIDEO/DVD AUDIO)	See page 24.
PAGEPage switch (DVD AUDIO)	Switch the still pictures (B.S.P.) recorded on a DVD AUDIO disc (page 27).

Information displayed on the status bar

DVD VIDEO/DVD AUDIO/DVD VR (the example below is for a DVD VIDEO)

DVD-VIDEO Dolby D 3/2.1ch TITLE 33 CHAP 33 TOTAL 1:25:58 Sound signal type Current title number DVD VIDEO: Current group number DVD VR: Current original program number (PG)/current play list number (PL) Time Playback status DVD VIDEO/DVD VR: Current chapter number DVD AUDIO: Current track number

VCD/SVCD/CD/ASF/DivX/MPEG1/MPEG2 (the example below is for a CD)

CD RANDOM TRACK 33 TIME 0:25:58 Playback mode Time Playback status (See page 15.) VCD/SVCD/CD: Current track number ASF/DivX/MPEG1/MPEG2: Repeat mode status

NOTE

The playback status mark has the same meaning of the mark on the On-screen guide (page 15).

TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/W RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 100+ 10 0 ≥10 A.STANDBY PLAY MODE FM MODE MEMORY

The initial settings of the system can be changed according to the environment the system is used in.

NOTE

- Set the remote control mode selector to AUDIO before using the number buttons.

- The top and bottom of the preference screen may not be displayed on a wide TV. Adjust the picture size on the TV.

Basic operations

Press SET UP while the disc is stopped or no disc is loaded (“NO DISC” is displayed).

- The following screen will be displayed on the TV.

LANGUAGE MENU LANGUAGE ENGLISH AUDIO LANGUAGE ENGLISH SUBTITLE ENGLISH ON SCREEN LANGUAGE ENGLISH

- Proceed with operations by following the description on the TV screen.

LANGUAGE

NOTE

• If the selected language is not recorded on the disc, the optimum language set for the disc will be displayed.
• For a language code such as "AA", refer to the "Language codes" (page 42).

Items	Contents
MENU LANGUAGE	Select the language for the DVD VIDEO menu.
AUDIO LANGUAGE	Select the audio language for the DVD VIDEO.
SUBTITLE	Select the subtitle language for the DVD VIDEO.
ON SCREEN LANGUAGE	Select the language displayed on the preference screens.


Items	Contents ( [ ] : initial setting)
MONITOR TYPE	Select a display method suitable for your TV.16 : 9:Select this for anordinary wide TV.4 : 3 LB (Letter Box) :Select this when theaspect ratio of your TV isconventional 4:3. Whileviewing a wide screenpicture, the black barsappear on the top and bottom of the screen.4 : 3 PS (Pan Scan):Select this when theaspect ratio of your TV is conventional 4:3. Whileviewing a wide screenpicture, the left and rightedges of the picture will not be shown on thescreen. (If the disc is not compatible with PanScan, the picture will be displayed at theLetter Box ratio.)
PICTURE SOURCE	Select an item suitable to the video source.AUTO:The video source type (a video or film) isautomatically selected.FILM:Select this item when you want to view a filmor video recorded with the progressive scanmethod.VIDEO:Select this item when you want to view anormal video.
SCREEN SAVER	Select the Screen Saver mode between ON /OFF (Screen Saver activates when there isno operation made for about 5 minutes sincea still picture was last displayed).
FILE TYPE	Select an item suitable to the file type.AUDIO:Select this item when you want to play backMP3/WMA files.STILL PICTURE:Select this item when you want to play backJPEG files.VIDEO:Select this item when you want to play backASF/DivX/MPEG1/MPEG2 files.

AUDIO

Items	Contents ( : initial setting)
DIGITAL AUDIO OUTPUT	Select an output signal type from the following in accordance with the device connected to the digital audio output terminal (AV amplifier, etc.). (See the table below for the preference items and output signal.)PCM ONLY:Device corresponding only to linear PCM.DOLBY DIGITAL/PCM:Dolby digital decoder or a device having the same function.STREAM/PCM :DTS/Dolby digital decoder or a device having the same function.
DOWN MIX	Switch signal from the digital output terminal of the DVD VIDEO according to the connected device. Select this when “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY”.DOLBY SURROUND:A Dolby Pro Logic decoder-built-in device.STEREO :An ordinary audio device.When 3D PHONIC is activated, Down Mix does not work.
D (Dynamic).RANGE COMPRESSION	To make adjustments for the difference between a high volume and a low volume when playing back with low volume (only for a DVD recorded with Dolby digital).AUTO :D. Range Compression automatically works.ON:D. Range Compression always works.

OTHERS

Items	Contents ( : initial setting)
RESUME	Select ON /OFF. (page 18)
ON SCREEN GUIDE	Select ON /OFF. (page 15)
DivX REGISTRATION	The system has its own registration code. You can confirm the registration code, when necessary. Once you have played back a disc in which the registration code of the system is overwritten for copyright protection.

Table of relationships of DIGITAL AUDIO OUTPUT preference items and output signal

Playback disc	DIGITAL AUDIO OUTPUT
	STREAM/PCM	DOLBY DIGITAL/PCM	PCM ONLY
48 kHz, 16/20/24 bitsLinear PCM DVD VIDEO96 kHz linear PCM DVD VIDEO	48 kHz, 16 bits stereo linear PCM
48/96/192 kHz,16/20/24 bits linear PCM DVD AUDIO
44.1/88.2/176.4 kHz,16/20/24 bits linear PCM DVD AUDIO	44.1 kHz, 16 bits stereo linear PCM
DTS DVD VIDEO	DTS bit stream	48 kHz, 16 bits stereo linear PCM
DOLBY DIGITAL DVD VIDEO/DVD AUDIO	DOLBY DIGITAL bit stream		48 kHz, 16 bits stereolinear PCM
CD/VCD/SVCD	44.1 kHz, 16 bits stereo linear PCM/48 kHz, 16 bits linear PCM
DTS CD	DTS bit stream	44.1 kHz, 16 bits linear PCM
MP3/WMA/DivX/MPEG1/MPEG2 disc	32/44.1/48 kHz, 16 bits stereo linear PCM

NOTE

While playing some DVD, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the OPTICAL DIGITAL OUT terminal if the discs are not copy-protected.

FM GROUP/TITLE AM AUX DIMMER MUTING TV CHANNEL AUDIO VOL + - + - VOL AUDIO TV DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/W RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/QP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 100+ 10 0 ≤10 A.STANDBY PLAY MODE FM MODE MEMORY

NOTE

Set the remote control mode selector to AUDIO before using the number buttons.

Selecting a station

1 Press FM or AM.
2 Press |◀◀/▶▶| to select the station (frequency).

Automatic tuning:

Hold down ◄◀◀/▶▶1 until the system starts searching, and then release the button. (The AUTO indicator lights while searching.) When a station of sufficient signal strength is tuned in to, the system stops searching automatically.

To stop searching manually, press ◀◀◀/▶▶.

Manual tuning:

Each time you press ◀◀◀/▶▶, the frequency changes.

- When an FM stereo program is received, the ST (Stereo) indicator lights.

NOTE

If the stereo FM program currently tuned in to is noisy, you can improve the reception by pressing FM MODE to switch to the monaural mode. If you press FM MODE again, or tune in to another station, the receiving mode returns automatically to the stereo mode.

Presetting stations

Presetting stations in the system allows you to easily tune in to a station.

The system stores up to 30 FM stations and up to 15 AM stations.

1 Select a station you want to store (see the left column for how to select).
2 Press MEMORY.

"MEMORY" is flashing on the display window for a while.

3 Select the number you want to store by pressing number buttons while “MEMORY” is flashing.

• Refer to "How to use the number buttons" (page 15).
• You can also select by pressing ◀◀/▶▶.

4 Press MEMORY while the selected number is flashing.

"STORED" appears on the display window and the selected station is stored.

NOTE

• Storing a new station to a used number erases the previously stored station.
• After storing new stations, do not unplug the AC power cord to turn off the system. If you do so, the new preset stations will be cleared.

Tuning in to a preset station

1 Press FM or AM to select either FM or AM.
2 Press the number buttons to select the memory number of a station you want to tune in to.

- Refer to "How to use the number buttons" (page 15).

- You can also select by pressing ◀◀/▶▶.

Using the RDS (Radio Data System) when receiving FM stations

RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

When tuned in to an FM station which provides the RDS service, the RDS indicator lights up on the display window.

With the system, you can receive the following types of RDS signals:

PS(Program Service)	Shows commonly known station names.
PTY(Program Type)	Shows types of broadcast programs.
RT(Radio Text)	Shows text messages the station sends.
Enhanced Other Network	See page 34.

NOTE

• RDS is not available for AM (MW) broadcasts.
• RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak.

To show the RDS signals information

Press RDS DISPLAY while listening to an FM station.

Each time you press the button, the indication on the display window changes.

While searching, "PS" appears and then the station names will be displayed. "NO PS" appears if no signal is sent.

While searching, “PTY” appears and then the type of the broadcast program will be displayed. “NO PTY” appears if no signal is sent.

While searching, "RT" appears and then text messages the station sends will be displayed. "NO RT" appears if no signal is sent.

Station frequency (non-RDS service).

About characters shown on the display window

When PS, PTY, or RT signals appear on the display window, some special characters and marks may not be displayed correctly.

NOTE

If searching finishes at once, "PS", "PTY", and "RT" will not appear on the display window.

Searching for a program by PTY codes

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels (page 31) by specifying the PTY codes.

To search for a program using the PTY codes

NOTE

Before you start operation;

• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press PTY SEARCH while searching.
• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

1 Press PTY SEARCH while listening to an FM station.

SELECT PTY

"SELECT PTY" flashes on the display window.

- While "SELECT PTY" is flashing:

2 Press PTY SELECT + or PTY SELECT – until the PTY code you want appears on the display window.

NEWS

- For details, see "Description of the PTY codes" (page 34).

While the PTY code selected in Step 2 is still on the display window:

3 Press PTY SEARCH again.

SEARCH

NEWS

While searching, "SEARCH" and the selected PTY code alternate on the display window.

The system searches 30 preset FM stations, stops when it finds the one you have selected, and tunes in that station.

To continue searching after the first stop

Press PTY SEARCH again while the indications on the display window are flashing. If no program is found, “NOT FOUND” appears on the display window.

Description of the PTY codes

NEWS:	News.
AFFAIRS:	Topical program expanding or enlarging upon the news — debate, or analysis.
INFO:	Programs the purpose of which is to impart advice in the widest sense.
SPORT:	Programs concerned with any aspect of sports.
EDUCATE:	Educational programs.
DRAMA:	All radio plays and serials.
CULTURE:	Programs concerning any aspect of national or regional culture, including language, theater, etc.
SCIENCE:	Programs about natural sciences and technology.
VARIED:	Used for mainly speech-based programs such as quizzes, panel games and personality interviews.
POP M:	Commercial music of current popular appeal.
ROCK M:	Rock music.
EASY M:	Current contemporary music considered to be “easy-listening”.
LIGHT M:	Instrumental music, and vocal or choral works.
CLASSICS:	Performances of major orchestral works, symphonies, chamber music, etc.
OTHER M:	Music not fitting into any of the other categories.
WEATHER:	Weather reports and forecasts.
FINANCE:	Stock Market reports, commerce, trading etc.
CHILDREN:	Programs targeted at a young audience.
SOCIAL:	Programs about sociology, history, geography, psychology and society.
RELIGION:	Religious programs.
PHONE IN:	Involving members of the public expressing their views either by phone or at a public forum.
TRAVEL:	Travel information.
LEISURE:	Programs about recreational activities.
JAZZ:	Jazz music.
COUNTRY:	Songs which originate from, or continue the musical tradition of the American Southern States.
NATION M:	Current popular music of the nation or region in that country's language.
OLDIES:	Music from the so-called “golden age” of popular music.

FOLK M:	Music which has its roots in the musical culture of a particular nation.
DOCUMENT:	Programs concerning factual matters, presented in an investigative style.
TEST:	Broadcasts for testing emergency broadcast equipment or unit.
ALARM:	Emergency announcement.
NONE:	No program type, undefined program, or difficult to categorize into particular types.

NOTE

Classification of the PTY codes for some FM stations may be different from the above list.

Switching to broadcast program of your choice temporarily

Another convenient RDS service is called "Enhanced Other Networks".

This allows the system to switch temporarily to a broadcast program of your choice (TA, NEWS, and/or INFO) from a different station except in the following cases;

• When you are listening to non-RDS stations (all AM – MW stations, some FM stations and other sources).
• When the system is in standby mode.

NOTE

Before you start operations;

The Enhanced Other Network function is only applicable to preset stations.

Press TA/News/Info repeatedly until the program type indicator (TA/NEWS/INFO) you want appears on the display window.

Each time you press the button, the indicator on the display window changes.

FM 37.59M TA NEWS INFO TA/NEWS/ INFO indicators

TA	Traffic Announcement in your area.
NEWS	News.
INFO	Program the purpose of which is to impart advice in the widest sense.

To stop listening to the program selected by Enhanced Other Network

Press TA/News/Info repeatedly again so that the program type indicator (TA/NEWS/INFO) goes off from the display window. The system exits from Enhanced Other Network standby mode and goes back to the previously selected station.

How the Enhanced Other Network function actually works

Case 1

If there is no station broadcasting the program you have selected

The system continues tuning in to the current station.

When a station starts broadcasting the program you have selected, the system automatically switches to the station. The indicator of received PTY code starts flashing.

When the program is over, the system goes back to the previously tuned station, but the Enhanced Other Network function still remains activated.

Case 2

If the FM station you are listening to is broadcasting the program you have selected

The system continues to receive the station but the indicator of received PTY code starts flashing.

When the program is over, the indicator of received PTY code stops flashing and remains lit, but the Enhanced Other Network function still remains activated.

NOTE

• In Enhanced Other Network standby mode, if you change the source to play, Enhanced Other Network standby mode is canceled temporarily.
• If you change the source to FM again, the system returns to Enhanced Other Network standby mode.
• Enhanced Other Network data sent from some stations may not be compatible with this system.
• Enhanced Other Network does not function for some FM stations with RDS service.
• While listening to a program tuned in by the Enhanced Other Network function, the station does not change even if another network station starts broadcasting a program of the same Enhanced Other Network data.
• While listening to a program tuned in by the Enhanced Other Network function, you can only use TA/News/Info and RDS DISPLAY as the tuner operation buttons.

TV/VIDEO 3D PHONIC DISPLAY OPEN/CLOSE FM AM AUX DIMMER GROUP/TITLE MUTING TV CHANNEL AUDIO VOL + + - + - DVD/CD SLOW SLOW + TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/WH RETURN SCAN MODE CLOCK/TIMER VFP 1 2 3 SET/QP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV SET/IDN 100

Listening to the sound of external audio device

Connect the other audio device to this system in advance (page 10).

1 Press AUX.

The source changes to AUX.

Each time you press the button, the source changes between AUX 1 (front) and AUX 2 (rear).

2 Play the other audio device.

For details, refer to the manual of the device connected.

3 Adjust the volume and the sound quality of the system (page 16).

Listening to the sound of portable audio device

By using QP Link (Quick Portable Link), you can easily start playing back a portable audio device connected to the AUX 1 jack.

• Make sure to set the volume of your portable audio device loud enough so that system can detect the sound signal.
• QP Link is available even if the system is on standby.

Press and hold SET/QP LINK.

• Each time you press and hold the button, the QP Link function turns on and off alternately.
  • QPL ON appears when QP Link is activated.

When QP Link is activated, connecting the portable audio device to the AUX 1 jack and starting playback performs the following:

• While listening to another source...
  Changes the source to AUX 1 automatically. (If you change from AUX 1 to another source, QP Link will be canceled.)
• While the system is on standby...

Turns on the system and activates the AUX 1 source automatically (except when the display is turned off.)

NOTE

• Changing from AUX 1 to another source while QP Link works will deactivate QP Link temporarily. In this case, the following reactivates QP Link:
• Pressing and holding SET/QP LINK on the remote control.
• Unplug the device from the AUX 1 jack, then plug it in again.
• If you press Ⓑ/I AUDIO to turn the system off or if preset Timer turns the system off while QP Link works, the system will deactivate QP Link temporarily. In such cases, the following reactivates QP Link:
• When the sound signal from the AUX 1 jack stops or is too weak for about 30 seconds after the system is turned off.
• When you turn on the power again.
• QP Link may start working when you just plug in the device to the AUX 1 jack or unplug it. This is not a malfunction.

Adjusting the audio input level

If the sound from the audio device connected to the AUX 1 or AUX 2 jack is too loud or is too quiet when changing from another source to “AUX,” you can change the audio input level through the AUX 1 or AUX 2 jack (without changing the volume level).

Press and hold AUX for 2 seconds while the AUX is selected as the source.

Each time you press and hold the button, the audio input level alternates between AUX LEVEL 1 and AUX LEVEL 2.

AUX LEVEL 1:

Select this when the sound is too loud with “AUX LEVEL 2” selected. This setting is recommended when connecting an audio device other than a portable audio device to AUX 1 jack.

AUX LEVEL 2:

Select this when listening to a portable audio device.

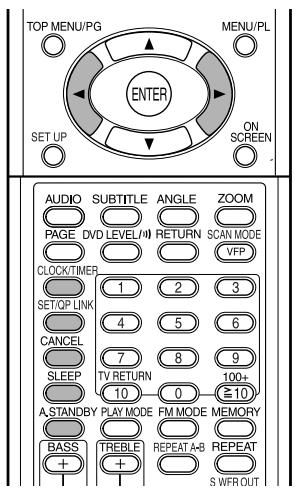

TOP MENU/PG MENU/PL ENTER SET UP ON SCREEN AUDIO SUBTITLE ANGLE ZOOM PAGE DVD LEVEL/MI RETURN SCAN MODE VFP CLOCK/TIMER 1 2 3 SET/OP LINK 4 5 6 CANCEL 7 8 9 SLEEP TV RETURN 10 0 100+ A STANDBY PLAY MODE FM MODE MEMORY BASS TREBLE REPEAT A-B REPEAT + + S WFR OUT

Setting the built-in clock

Without setting the built-in clock, you cannot use any timers.

• To exit from the clock setting, press CLOCK/TIMER as required.
• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.

1 Press CLOCK/TIMER.

0:00

- If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.

2 Press cursor ◀/▶ to adjust the hour, then press SET/QP LINK.
3 Press cursor ◀/▶ to adjust the minute, then press SET/QP LINK.

Now the built-in clock starts to work.

Setting the daily timer

Using the daily timer, you can wake up with your favorite song.

• You can store the three daily timer settings; however, you can activate only one of the daily timer.
• To correct a misentry during the procedure below, pressing CANCEL can return to the previous step.

How the daily timer works:

Once the daily timer has been set, the timer indicator and timer number indicator (1/2/3) are lit on the display window. Daily timer turns on the system at the same time everyday until the timer setting is canceled manually or another daily timer is activated.

When the on-time comes:

The system turns on, tunes in to the specified station or starts playback the loaded disc with the specified chapter or track, and sets the volume level gradually to the preset level after about 30 seconds.

• The timer setting remains in memory until you change it.
• Without canceling the daily timer, you can change the source or adjust the volume after the daily timer starts playback.

1 Press CLOCK/TIMER repeatedly to show "DAILY 1."

• Each time you press the button, the clock setting changes as follows:

2 Press cursor ◀/▶ to adjust the hour of the timer-on time, then press SET/QP LINK.
3 Press cursor ◀/▶ to adjust the minute of the timer-on time, then press SET/QP LINK.
4 Repeat Step 2 and 3 to set the timer-off time.

5 Press cursor ◀/▶ to select the playback source, then press SET/QP LINK.

• Each time you press the button, the clock setting changes as follows:

• When selecting the tuner, press cursor ◀/▶ to select a preset channel.
• When selecting “DISC”, you can specify the group and track. For the discs other than MP3/WMA, the group selection does not take effect.

6 Press cursor ◀/▶ to adjust the volume level, then press SET/QP LINK.

7 Turn off the system.

To turn off the timer setting

1 Press CLOCK/TIMER repeatedly to select the timer setting.
2 Press CANCEL to turn off the selected setting.

- Pressing SET/QP LINK activates the timer setting again.

Auto Standby

If there is no operation for 3 minutes while the disc is stopped, the power will be automatically turned off.

Press A.STANDBY during playback or while the disc is stopped, or no disc is loaded (“NO DISC” appears).

The A.STANDBY indicator lights on the display window on the main unit.

When a stopped state is entered (after playback is finished, for example), the A.STANDBY indicator starts blinking.

This means that the power will be turned off automatically if there is no operation for 3 minutes. And 10 seconds before the power is turned off, "A.STANDBY" starts flashing.

Releasing Auto Standby

Press A.STANDBY.

"A.STANDBY" will be turned off on the display window on the main unit.

NOTE

When the source is FM, AM or AUX, Auto Standby does not work.

Sleep Timer

When the time you specify elapses, the system will be turned off by itself.

Press SLEEP.

Each time you press the button, the time indicated on the display window on the main unit changes (in minutes).

Changing the time

Reselect the time by pressing SLEEP repeatedly.

Confirming the time

Press SLEEP once while Sleep Timer is set.

Releasing

Press SLEEP repeatedly until "SLEEP OFF" appears.

NOTE

Sleep Timer will also be released when the power is turned off.

Tray Lock

You can lock the disc tray to prevent the disc from being ejected.

Setting

While the system is turned off, press ▲ (Open/Close) with ■ (Stop) on the main unit held. "LOCKED" appears on the display window on the main unit.

Releasing

Carry out the same operations as those for setting. "UNLOCKED" appears on the display window on the main unit.

When you encounter a problem that seems to be a fault, check the following points before contacting your JVC service center.

Power source

■ Power does not come on.

• The power cord is not connected to the main unit or an AC outlet.
  → Connect the power cord correctly (page 11).

Operation

■ You cannot operate any button.

- Some specific operations may be inhibited for some discs.

■ The remote control does not work.

- The dry-cell batteries have run out. Replace the batteries (page 6).

■ A disc cannot be played back.

• In the case of DVD VIDEO discs
→ Check the Region Code number of the discs (page 3).
- "NO PLAY" is displayed on the display window. It is not a disc that can be played on this system. → Check the disc type (page 3).

■ MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2 files cannot be played back.

- The loaded disc may include files of different types (MP3, WMA, JPEG, ASF, DivX, MPEG1 or MPEG2). You can play back only the files whose types selected in “FILE TYPE”. (page 29).

About images

■ No picture appears.

• The video cord is not connected correctly. → Page 11
• Both of the component video jack and S-video jack are connected. → Connect either (page 11).

■ The picture is distorted.

• A VCR is connected between the main unit and the TV set.
  → Connect the main unit directly to the TV set (page 11).
• Although this system is connected to a non-Progressive TV set, DVD's scan mode is set to "PROGRESSIVE".
  → Set the scan mode to "INTERLACE" (page 26).

■ The screen size is abnormal.

• The screen size is set improperly.
  → Set "MONITOR TYPE" according to the TV set you are using (page 29).

■ The TV screen darkens.

• "SCREEN SAVER" is set.
  → Press any button to deactivate the function (page 29).

About sound

■ There is no sound.

• Speakers are not connected correctly. → Page 9
• The sound is muted. → Page 16
• "NO AUDIO" is displayed on the display window.
  The disc may have been produced through illegal copying.
  → Confirm at the store where you bought the disc.

■ The sound is weak compared with TV or Video.

• "DVD LEVEL" is set to "NORMAL".
  → Set to other than “NORMAL” (page 26).

■ The sound is distorted.

• The volume is turned up too high.
→ Turn down the volume (page 16).

■ No sound comes out of the subwoofer.

• "SUBWOOFER" is turned off.
  → Press S.WFR OUT to turn on (page 10).

About radio

■ The sound is noisy while receiving/Receiving is disabled.

• The antenna is not connected correctly.
  → Connect the antenna correctly (page 8).

Others

■ It is not possible to switch audio or subtitles between languages.

• The disc does not contain 2 or more languages.
  → If only a single language is recorded on the disc, switching to another language is impossible (page 24).

■ No subtitle is displayed.

• The disc does not contain any subtitles.
  → A DVD VIDEO without subtitles cannot display any subtitles.
• The subtitle language is set to "OFF". Specify a language (page 29).
• Before or after A point or B point in A-B Repeat Playback, no subtitle may be displayed.

■ The disc cannot be ejected.

• Tray Lock is set.
  → page 40

■ “LR ONLY” is displayed on the display window (for a DVD AUDIO).

- Because, for the track being played back, down mix is inhibited for multi-channel sound, the sound of L and R is output directly (a normal action).

■ The system automatically turns on even if the Timer turn the system to standby or if you turn the system to standby while playback is going on the portable audio device.

- In this case, deactivate QP Link or stop playback on the device connected to the AUX 1 jack.

If the system does not work properly despite correction measures above

Many functions of this system are implemented by microcomputers. If pressing any button does not result in the normal action, disconnect the power plug from the outlet, wait for a while, and reconnect the system.

Language codes

Code	Language	Code	Language
AA	Afar	MK	Macedonian
AB	Abkhazian	ML	Malayalam
AF	Afrikaans	MN	Mongolian
AM	Ameharic	MO	Moldavian
AR	Arabic	MR	Marathi
AS	Assamese	MS	Malay (MAY)
AY	Aymara	MT	Maltese
AZ	Azerbaijani	MY	Burmese
BA	Bashkir	NA	Nauru
BE	Byelorussian	NE	Nepali
BG	Bulgarian	NL	Dutch
BH	Bihari	NO	Norwegian
BI	Bislama	OC	Occitan
BN	Bengali, Bangla	OM	(Afan) Oromo
BO	Tibetan	OR	Oriya
BR	Breton	PA	Panjabi
CA	Catalan	PL	Polish
CO	Corsican	PS	Pashto, Pushto
CS	Czech	PT	Portuguese
CY	Welsh	QU	Quechua
DA	Danish	RM	Rhaeto-Romance
DZ	Bhutani	RN	Kirundi
EL	Greek	RO	Rumanian
EO	Esperanto	RW	Kinyarwanda
ET	Estonian	SA	Sanskrit
EU	Basque	SD	Sindhi
FA	Persian	SG	Sangho
FI	Finnish	SH	Serbo-Croatian
FJ	Fiji	SI	Singhalese
FO	Faroese	SK	Slovak
FY	Frisian	SL	Slovenian
GA	Irish	SM	Samoan
GD	Scots Gaelic	SN	Shona
GL	Galician	SO	Somali
GN	Guarani	SQ	Albanian
GU	Gujarati	SR	Serbian
HA	Hausa	SS	Siswati
HI	Hindi	ST	Sesotho
HR	Croatian	SU	Sundanese
HU	Hungarian	SV	Swedish
HY	Armenian	SW	Swahili
IA	Interlingua	TA	Tamil
IE	Interlingue	TE	Telugu
IK	Inupiak	TG	Tajik
IN	Indonesian	TH	Thai
IS	Icelandic	TI	Tigrinya
IW	Hebrew	TK	Turkmen
JI	Yiddish	TL	Tagalog
JW	Javanese	TN	Setswana
KA	Georgian	TO	Tonga
KK	Kazakh	TR	Turkish
KL	Greenlandic	TS	Tsonga
KM	Cambodian	TT	Tatar
KN	Kannada	TW	Twi
KO	Korean (KOR)	UK	Ukrainian
KS	Kashmiri	UR	Urdu
KU	Kurdish	UZ	Uzbek
KY	Kirghiz	VI	Vietnamese
LA	Latin	VO	Volapuk
LN	Lingala	WO	Wolof
LO	Laothian	XH	Xhosa
LT	Lithuanian	YO	Yoruba
LV	Latvian, Lettish	ZU	Zulu
MG	Malagasy
MI	Maori

General

Power source:	AC 230 V ∼ , 50 Hz
Power consumption:	25 W (in operation)/4.0 W(on standby/display on)1.0 W (on standby/display off)
Weight:	2.6 kg
External dimensions(W x H x D):	150 mm x 152.6 mm x 252.9 mm

DVD player

Playable discs:	DVD VIDEO, DVD AUDIO, VCD, SVCD, CD
	CD-R/RW (VCD/SVCD/CD/MP3/WMA/JPEG/DivX/ASF/MPEG1/MPEG2 format)
	DVD-R/-RW (MP3/WMA/JPEG/DVDVIDEO/DVD VR [CPRM]/DivX/ASF/MPEG1/MPEG2 format)
	DVD-ROM (MP3/WMA/JPEG/ASF/DivX/MPEG1/MPEG2/DVD VR[CPRM] format)

Video output

Color system:	PAL
Horizontal resolution:	500 lines
Composite x1:	1.0 V (p-p)/75 Ω, synchronization negative
S-video x1:	Y output: 1.0 V (p-p)/75 Ω, synchronization negative
	C output: 0.3 V (p-p)/75 Ω
Component x1:	Y output: 1.0 V (p-p)/75 Ω
	PB/PRoutput: 0.7 V (p-p)/75 Ω

Audio output

Analog sound output:Speakers x2Output power:	20 W per channel min., RMS, at 4 Ω at 1 kHz with no more than 10% total harmonic distortion
Fitting impedance:Headphones x1:Fitting impedance:Subwoofer x1:Digital sound output:Optical x1:	4 Ω to 16 Ω11 mW/32 Ω16 Ω to 1 kΩ500 mVrms/10 kΩ
	-21 dBm to -15 dBm

Audio input

Sound input:	AUX 1: 400 mV/50 kΩ200 mV/50 kΩ
	AUX 2: 1.5 V/50 kΩ750 mV/50 kΩ

Tuner

FM tuner:
Receiving frequency:	87.50 MHz to 108.00 MHz
Antenna:	75 Ω Unbalanced type
AM (MW) tuner:
Receiving frequency:	530 kHz to 1 710 kHz
Antenna:	External antenna jack (loop antenna)

Speaker

Type:	Full range
	1-way bass-reflex type
	Magnetically shielded type
Speaker:	8 cm cone x1
Frequency response:	55 Hz to 20 000 Hz
Power handling capacity:	20 W
Impedance:	4 Ω
Sound pressure level:	82 dB/W·m
Dimension (W x H x D):	120 mm x 150.5 mm x 232 mm
Weight:	1.7 kg each

• Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", "MLP lossless", and the double-D symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS 2.0+ Digital Out” are trademarks of Digital Theater Systems, Inc.
• “Official DivX® Certified product” “Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media files” “DivX, DivX certified, and associated logos are trademarks of DivX, Inc. and are used under licence.”
• USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Designs and Specifications are subject to change without notice.

JVC
