USER MANUAL V1PGW-4K Rexing

The information in this manual is subject to change without notice. Rexing All Rights Reserved

www.rexingusa.com

About Us

Thank you for choosing REXING!

We hope you love your new products as much as we do. If you need any assistance, or have any suggestions to help us improve, please contact us.

[e-mail]

[phone]

Our support team will respond to you as soon as possible.

Always a surprise in Rexing.

Check us out here

• https://www.facebook.com/rexingusa/
• https://www.instagram.com/rexingdashcam/
• https://www.rexingusa.com/support/registration/
• https://www.rexingusa.com/support/product-support/

Facebook Instagram Site Product Support

QR code image containing encoded data, no visible human-readable text

teProduct Support

QR code with a small circular logo above it, containing encoded data.

QR code with a small circular icon above it, likely linking to a digital resource or website.

Package Contents

1. Rexing V1PGW-4K Dash Cam
2. Rear camera with rear camera cable
3. Mini-USB Cable
4. Mount Plate & 3M Adhesive

5. Cable Clips

6. Car Charger

7. Cable Management Tool
8. Safety Guide
9. User Manual

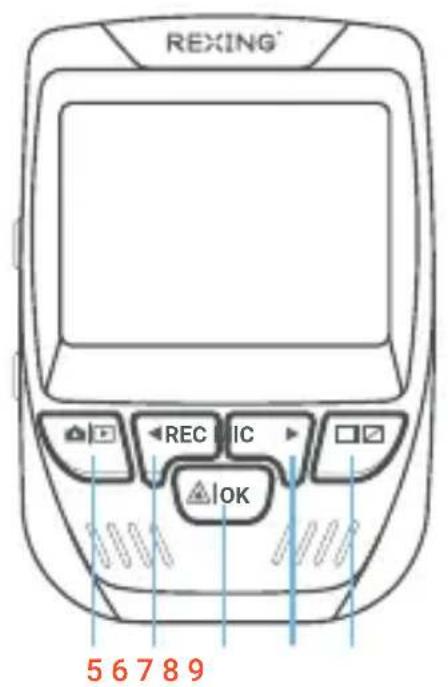

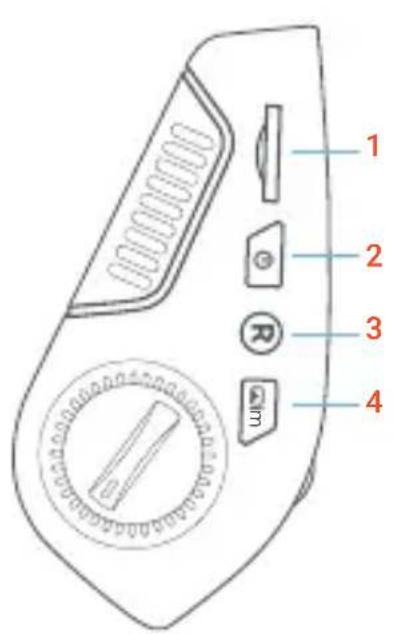

Camera Overview

1 2 3 4

REXING REC IC OK 5 6 7 8 9

USB 10 11 12

1. Micro SD Card Slot
2. Power Button
3. Reset Button
4. Menu Button
5. Mode Button

6. REC (Record) Button

7. OK (Confirm) Button

8. MIC (Microphone) Button
9. Screen Button

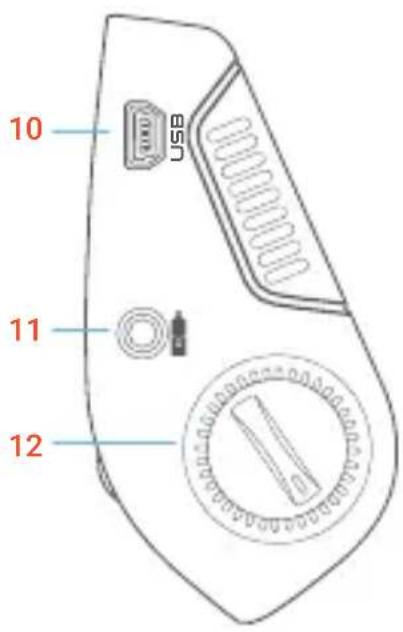

10. Mini-USB Power Port
11. Rear Camera Port
12. Lens Angle Adjustment Dial

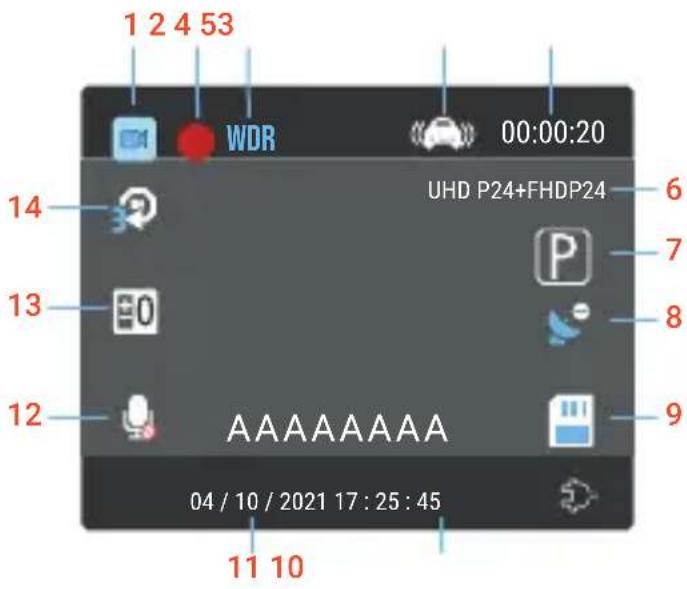

1 2 4 53 WDR 00:00:20 UHD P24+FHDP24 6 7 8 9 14 13 12 A A A A A A A A A A 04 / 10 / 2021 17 : 25 : 45 11 10

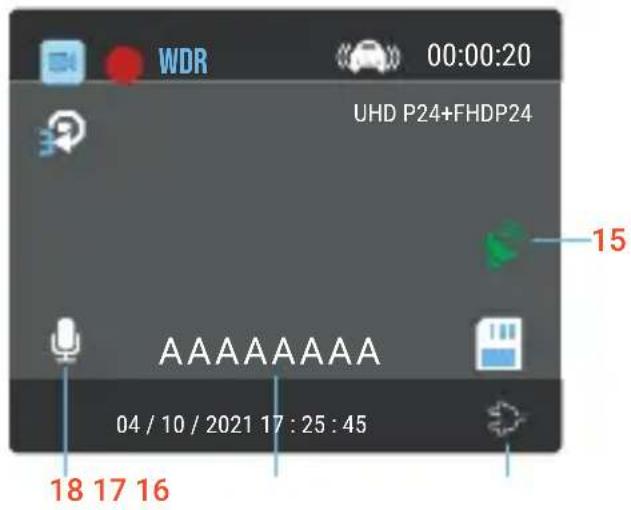

WDR 00:00:20 UHD P24+FHDP24 15 AAAAAAAA 04 / 10 / 2021 17 : 25 : 45 18 17 16

1. Recording Mode
2. Recording (On)
3. WDR Mode (On)
4. G-Sensor Sensitivity Level
5. Recording Time (Current Clip)
6. Video Resolution
7. Parking Mode (On)***
8. GPS Signal (not connected)

9. Memory Card (Inserted)

10. Time (24H)

11. Current Date Time
12. MIC (Off)
13. Exposure Value
14. Loop Recording Time Interval
15. GPS Signal (connected)
16. Battery Charging
17. Plate Number
18. MIC (On)

Get Started

Step 1

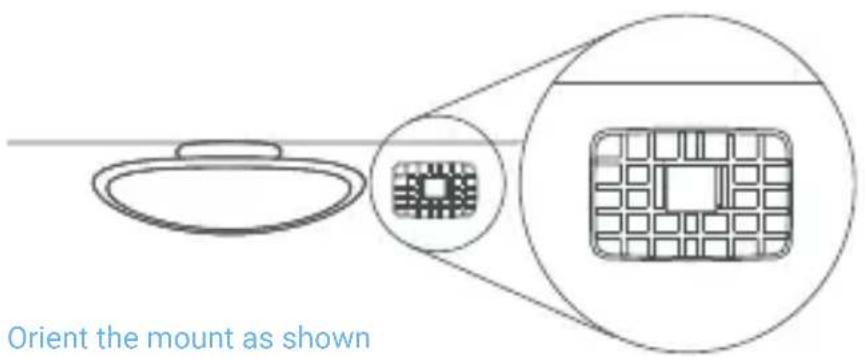

Installing Adhesive Mount

Place the 3M adhesive on the mount plate and properly orient the mount piece to the roof and hood line of the vehicle.

Important! Ensure the T-interlock on the mount is oriented in the correct direction.

Firmly press the mount onto the windshield. Wait at least 20 minutes before mounting the camera.

Orient the mount as shown

Step 2

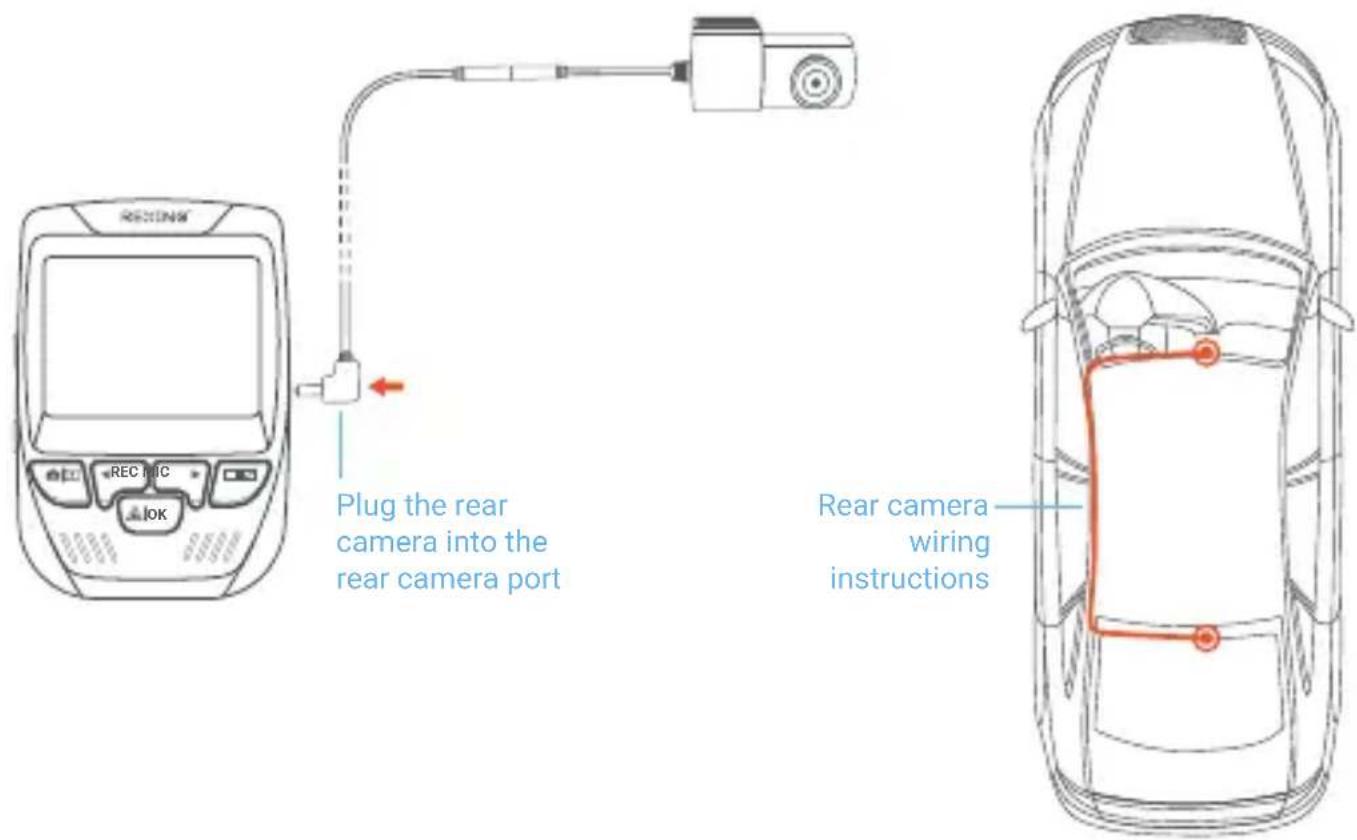

Mount the Rear Camera

Mount the rear camera as shown below. Use the included rear camera cable to connect the rear camera to the front camera.

RECIC REC MIC IOK Plug the rear camera into the rear camera port Rear camera wiring instructions

Step 3

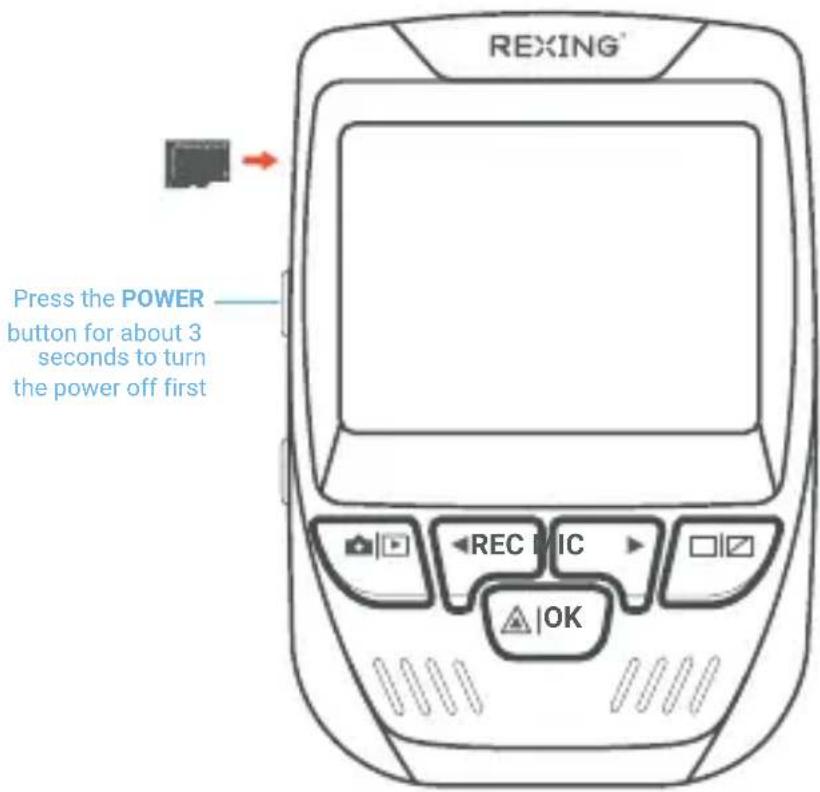

Insert the Memory Card

The Rexing V1PGW-4K accepts Class 10/ UHS-1 or higher Micro SD memory cards up to 256GB. You will need to insert a memory card before recording. Before inserting or removing a memory card, ensure you've powered down the device.

Gently push the memory card in until you hear a click, and allow the spring release to push the card out.

REXING Press the POWER button for about 3 seconds to turn the power off first REC MIC OK

Step 4

Power on the Camera and Format the Memory Card

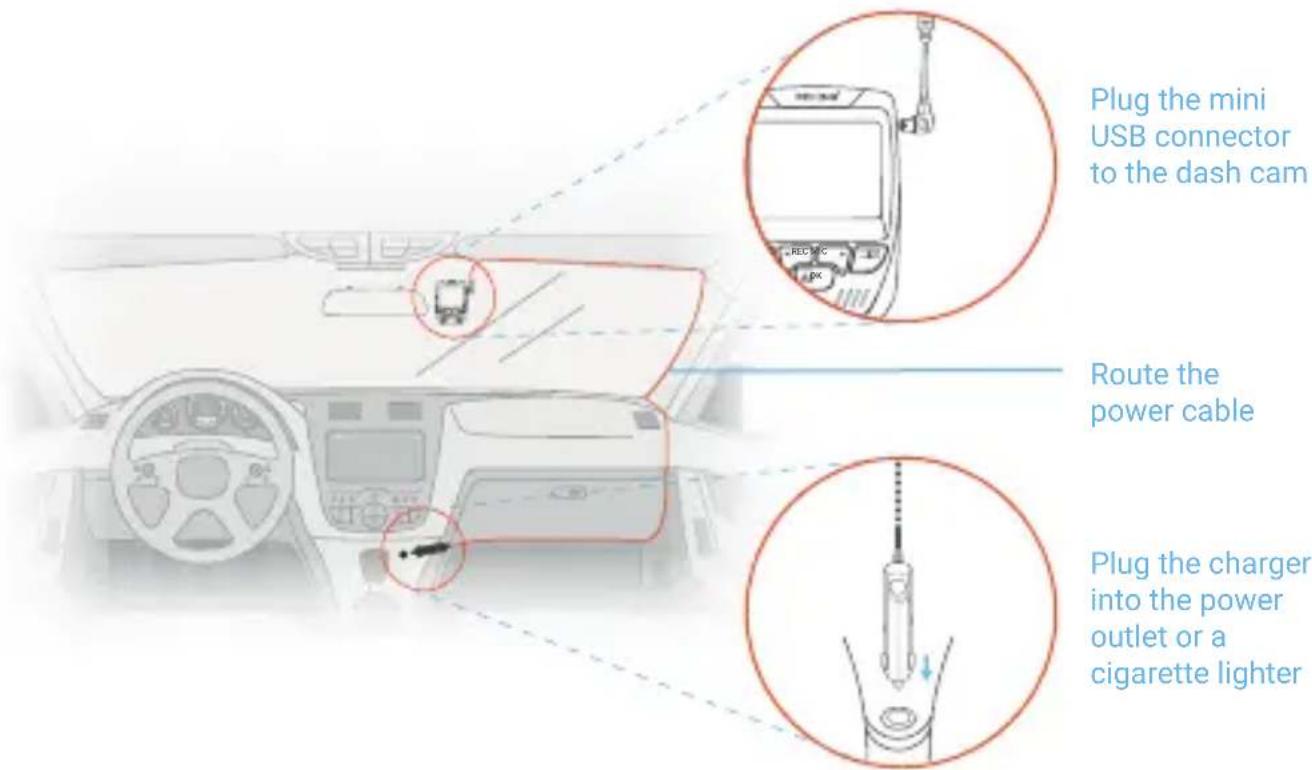

Place the camera on the mount and carefully route the power cable around the windshield and tuck it in under the trim.

Power the camera by connecting the charger to the car cigarette lighter and the camera.

Plug the mini USB connector to the dash cam REC:MC PK Route the power cable Plug the charger into the power outlet or a cigarette lighter

The camera will shut down after 3 seconds when it's disconnect from the power source and it should begin recording automatically the next time it is powered on.

To ensure the V1PGW-4K records to your memory card properly and without error, we strongly recommend you to format the card within the camera when you're using the dash cam for the first time.

Note:

Always remember backup important data stored on the memory card before formatting.

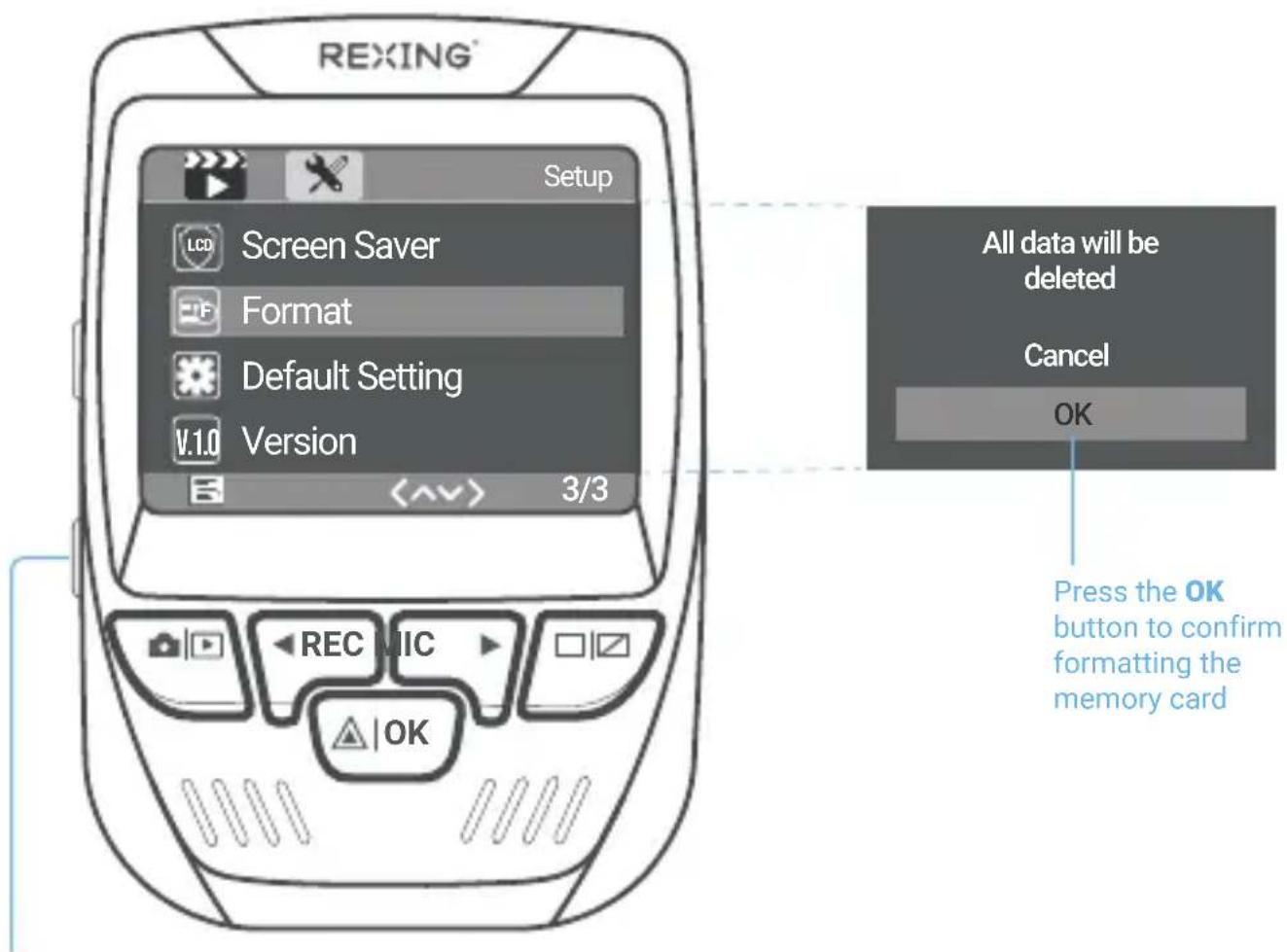

To format the memory card, first press the REC button to stop recording. Then press the MENU button twice to enter the Setup Settings. Use the REC and MIC buttons and toggle to the Format. Press the OK button to confirm the format.

REXING® Setup LCD Screen Saver Format Default Setting V.1.0 Version 3/3 All data will be deleted Cancel OK Press the OK button to confirm formatting the memory card

Press the
MENU
button twice

Basic Operation

Device Power

The device is automatically powered on when plugged into a 12V accessory socket or cigarette lighter and receives a charge (i.e.: the vehicle is started).

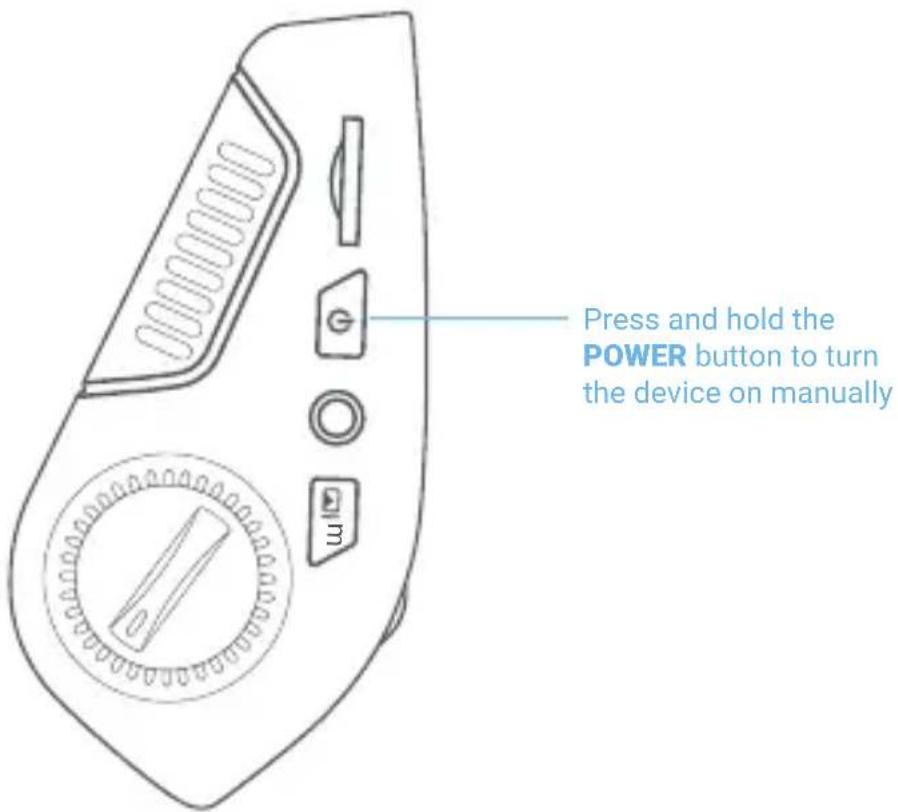

To turn the device on manually, press and hold the POWER button until the welcome screen appears.

The camera will automatically start recording when power on.

Press and hold the POWER button to turn the device on manually

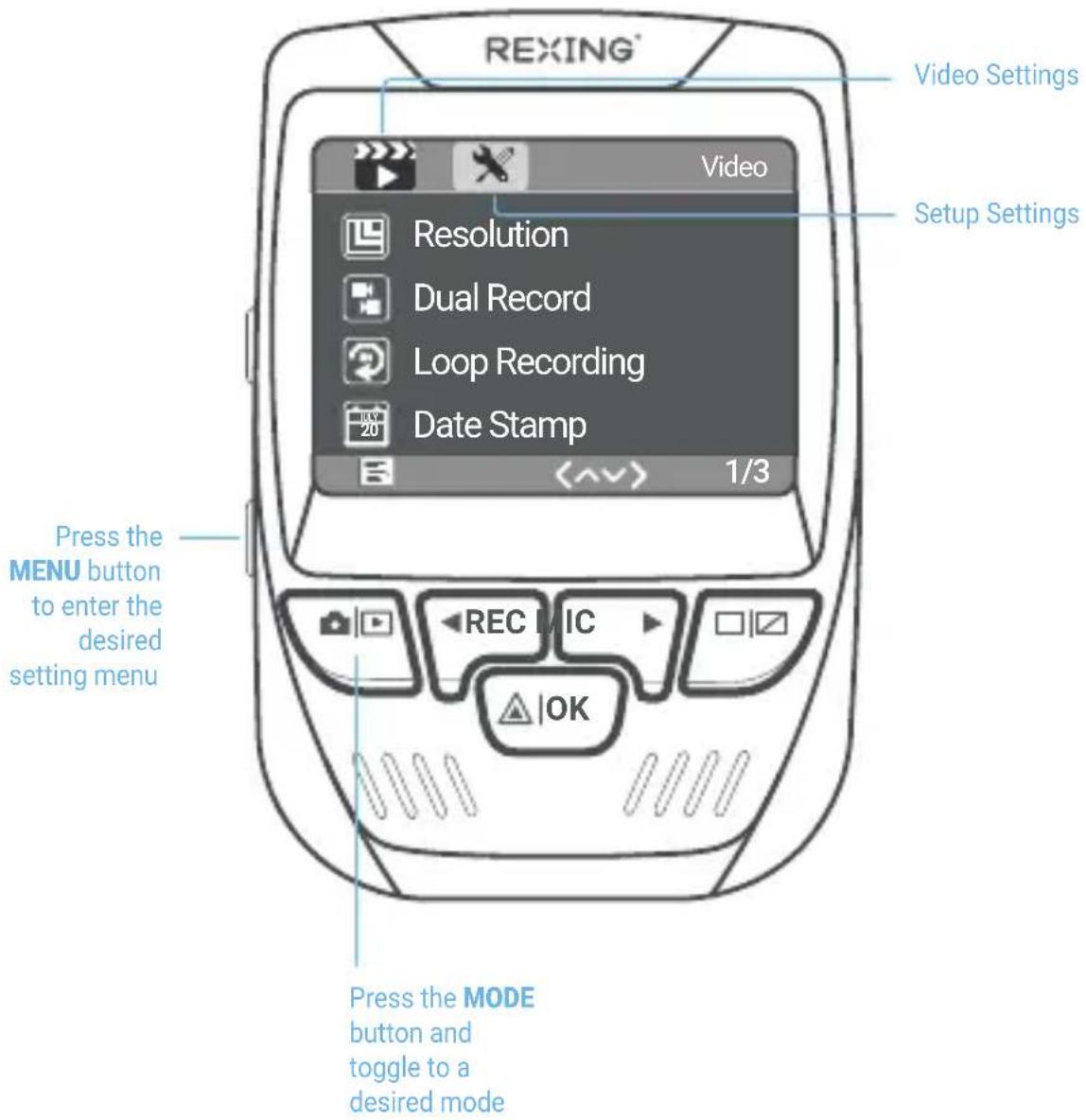

Menu Settings

Power the camera on, then press the REC button to stop recording. Press the MODE button and switch among video mode, image mode and playback mode.

Press the MENU button once to enter the Video Settings, or press the MENU button twice to enter the Setup Settings menu.

REXING® Video Settings Resolution Dual Record Loop Recording Date Stamp 1/3 Press the MENU button to enter the desired setting menu Press the MODE button and toggle to a desired mode

Video Recording

The camera will automatically start recording when the device receives a charge. The LED lights and the red dot will blink when the device is recording. Press the REC button to stop recording.

REXING® WDR 00:00:20 UHD P24+FHDP24 A A A A A A A A A A 04 / 10 / 2021 17 : 25 : 45 REC MIC OK These indicators will blink in red when the dash cam is recording.

Video Playback

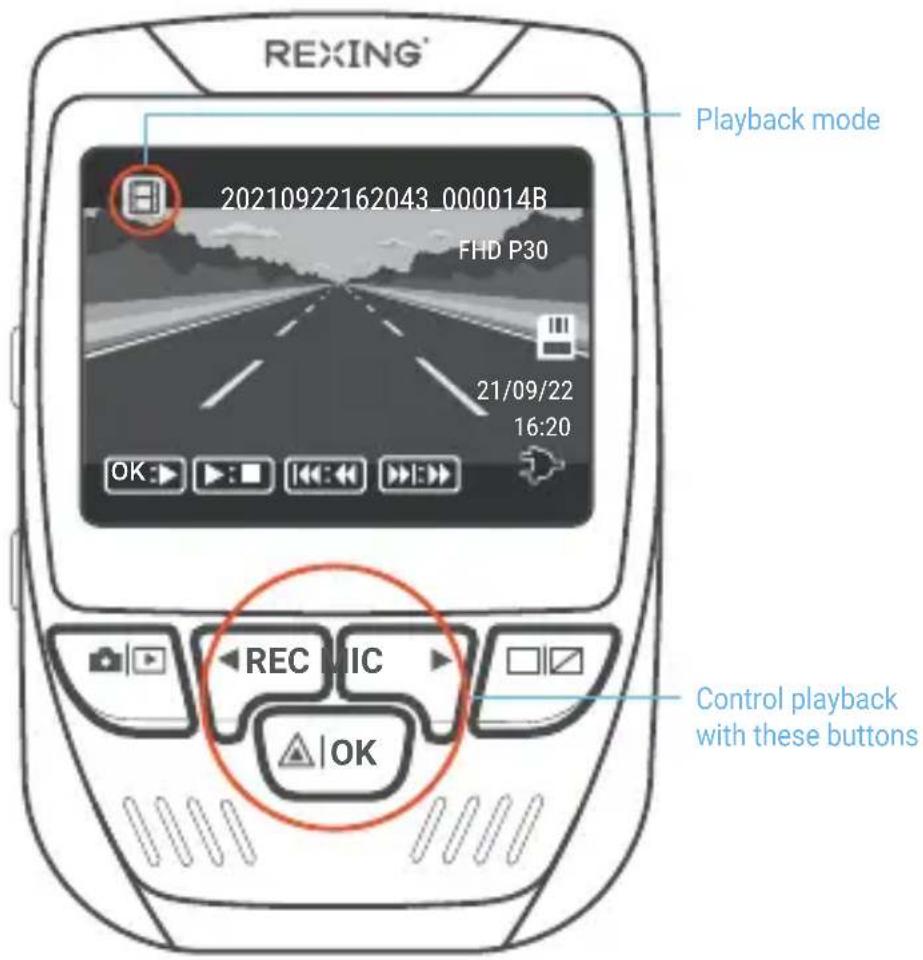

To playback a video on the device, press the REC button to stop recording. Press and hold the MODE button twice to enter the Playback mode. Use the REC and MIC buttons to toggle to the desired video. Press the OK button to play.

During playback, use the OK (pause), MIC (fast forward) and REC (rewind) buttons to control the video playback.

REXING® 20210922162043_000014B FHD P30 21/09/22 16:20 OK Playback mode REC MIC OK Control playback with these buttons

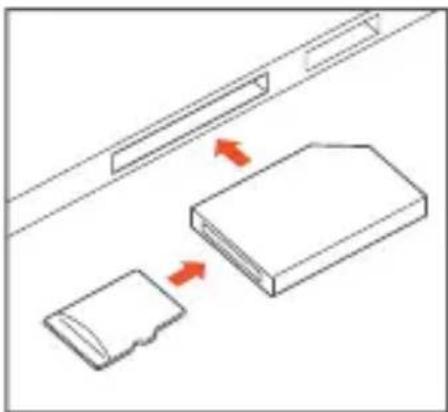

To playback a video by using an SD card reader, remove the memory card and insert it into an SD card adapter. Place the adapter in the computer.

Diagram showing two devices with red arrows indicating movement or interaction (no text or symbols present)

Parking Mode (Parking Monitor)

To activate the Parking Mode, you'll need to connect to a smart hardwire kit or an intelligent hardwire kit.

Parking mode provides surveillance on your parked vehicle. When the engine is off, hardwire kit is used to provide continuous power and protect your car battery from being discharged.

Option 1: Vibration Detection

To activate the Parking Mode, you need to connect it with a Smart hardwire kit (ASIN:B07RN24B7V, sold separately).

Parking Mode Off G-sensor Time-lapse Record

Time-lapse Recording:

Record video in one frame per second to conserve memory and reduce the time it takes to review the video.

G-Sensor Trigger Recording:

The G-sensor detects significant or sudden movement (such as an impact or collision), it will trigger an event recording. We suggest setting the "Gravity Sensing" to High sensitivity for Parking Mode Recording. The dash cam will remain off until a movement is detected.

Note

If you do not use the parking mode function, please change the G-Sensor setting to low sensitivity. Otherwise, the dash cam will easily lock the videos and these videos cannot be deleted by the loop recording function. This will cause the memory card to be full of locked videos and cause the recorder to fail to work normally.

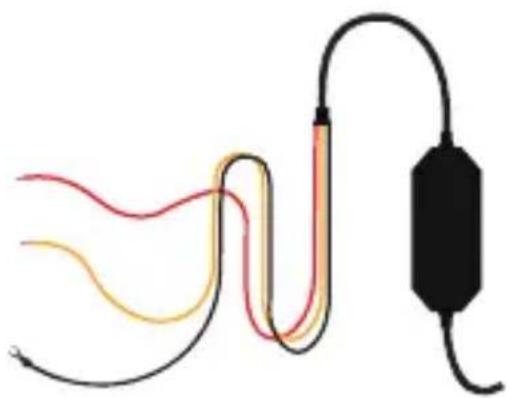

Option 2: Motion Detection

To use this feature, you need to connect it with an Intelligent Hardwire Kit (ASIN B0973MBCT8, sold separately). Make sure that the Parking Mode is turned off on your dash cam.

Once the sensor has detected MOTIONS. The intelligent hardwire kit will powerup the dash cam automatically and start recording until the MOTION is cleared.

Pure electrical circuit lines without any symbols

Wi-Fi Connect

Download the Rexing Connect app from the App Store/Google Play.

1. Press the REC button to stop recording then press the MENU button once to enter the Video Settings.
2. Use REC/MIC buttons and toggle to Wi-Fi to turn it on.
3. Turn on Wi-Fi on your phone, then find B50E_XXXX from the network list and enter the default password 12345678 to connect.
4. Open the Rexing Connect app, tap "Connect" to enter the realtime video streaming view.

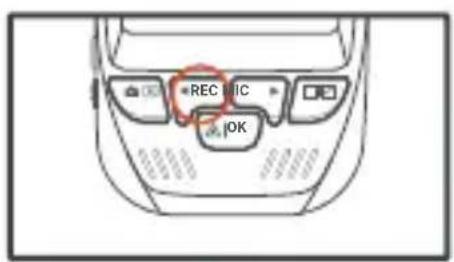

5. You can always access or turn off the Wi-Fi by pressing and holding down the REC button.

Wi-Fi Connect Connect How to Connect ? Unpair Camera

4

Wi-Fi SSID: B50E_678a PWA: 12345678 Refresh WiFi_OFF

3

REC MIC OK

5

Built-in GPS Logger

GPS logger will record the speed and location of your vehicle as you drive.

You can then access this information while playing back your recordings using the GPS Video player.

Press the MENU button twice and enter the Setup Settings. Toggle to the GPS Speed Unit and select your preferred speed unit.

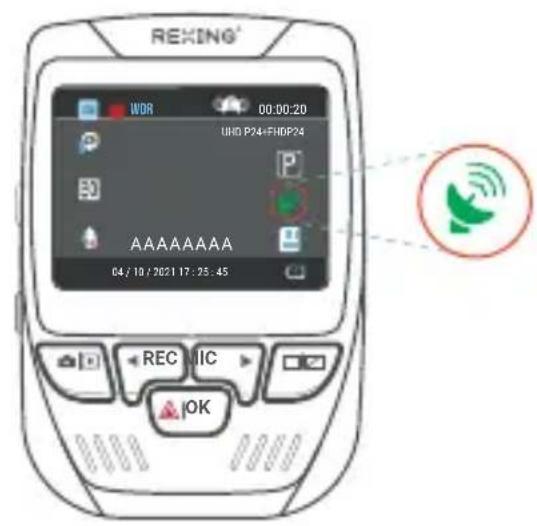

After a GPS signal is found, the screen icon will turn from blue to green.

Please visit https://www.rexingusa.com/support/videos/ to watch a video tutorial.

REIONG WOR 00:00:20 URO P24+FHDP24 A A A A A A A A A A A 04/10/2021 17:25:45 REC IC PK

REKING WOR 00:00:20 UHD P24+FHDP24 A A A A A A A A A 04/10/2021 17:35:45 REC MIC OK

Download GPS Video player

Please download GPS logger player through the link OR Scan the QR Code below.

QR code image containing encoded data, no visible human-readable text

Taking and Reviewing Photos

To take a photo, press REC button to stop recording. Press the MODE button twice to enter photo mode. Then press the OK button to take a photo.

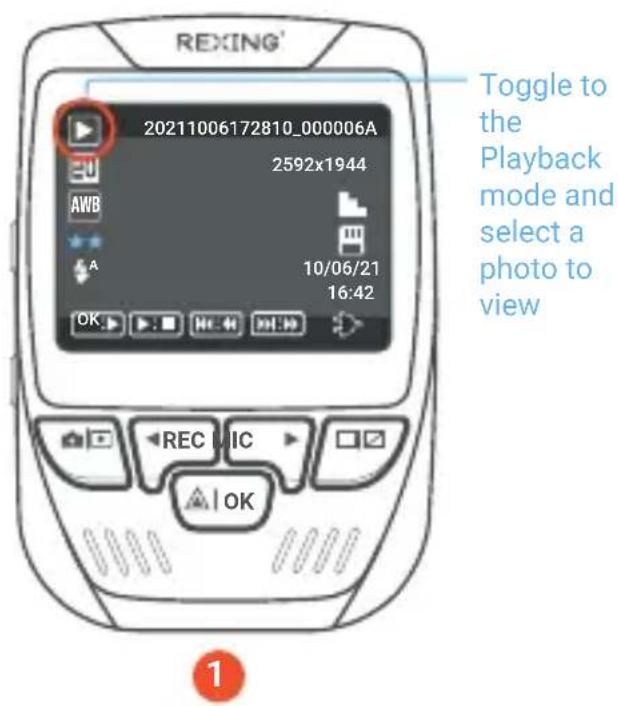

To view/delete a photo, stop video recording and enter the Playback Mode. Toggle through the videos and photos to the one you want to view/delete. Press the MENU button once and toggle to the Delete option. Press the OK Button and select Delete Current or Delete All.

REXING' 20211006172810_000006A 2592x1944 AWB A 10/06/21 16:42 OK REC MIC OK Toggle to the Playback mode and select a photo to view

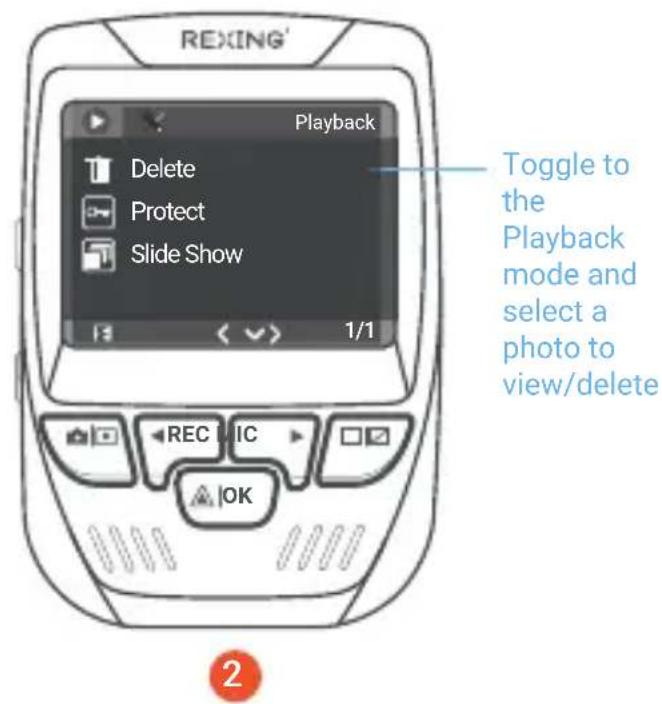

REXING' Playback Delete Protect Slide Show 1/1 Toggle to the Playback mode and select a photo to view/delete REC IC OK

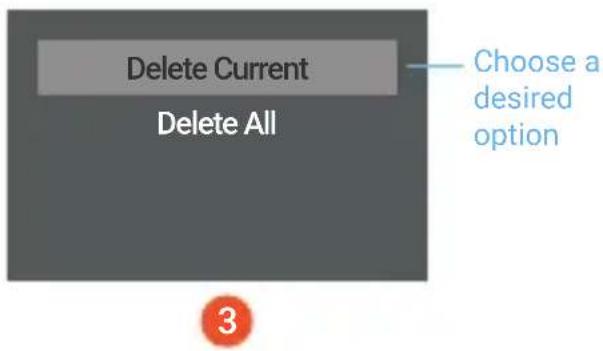

Delete Current Delete All Choose a desired option 3

Warranty & Support

Warranty

The Rexing V1PGW-4K Dash Cam comes with a full 12-month warranty. If you register your product on our official site

(https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months.

Support

If you have any questions regarding your product, please do not hesitate to contact us at [e-mail], or call us at [phone]. Queries are typically answered within 12-24 hours.

Your opinion matters

Rexing is firmly committed to always improving our products, services, and user experience. If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions.

Connect with us today at [e-mail]

Thank you for choosing Rexing!

FCC ID: 2AW5W-V1PGW

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

REXING®

MADE IN CHINA
