USER MANUAL ARK-2230L-U0A2E Advantech

Illustration of various electronic circuit boards and connectors in white outline on a purple background (no text or symbols)

ARK-2230

Fanless Embedded Box PC

Attention!

Please note:

This package contains a hard-copy user manual in Chinese for China CCC certification purposes, and there is an English user manual included as a PDF file on the website. Please disregard the Chinese hard copy user manual if the product is not to be sold and/or installed in China.

Copyright

The documentation and the software included with this product are copyrighted 2016 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

Acknowledgements

Award is a trademark of Award Software International, Inc.

VIA is a trademark of VIA Technologies, Inc.

IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation.

Intel® and Pentium® are trademarks of Intel Corporation.

Microsoft Windows® is a registered trademark of Microsoft Corp.

RTL is a trademark of Realtek Semi-Conductor Co., Ltd.

ESS is a trademark of ESS Technology, Inc.

UMC is a trademark of United Microelectronics Corporation.

SMI is a trademark of Silicon Motion, Inc.

Creative is a trademark of Creative Technology LTD.

CHRONTEL is a trademark of Chrontel Inc.

All other product names or trademarks are properties of their respective owners.

For more information about this and other Advantech products, please visit our website at:

http://www.advantech.com/

http://www.advantech.com/ePlatform/

For technical support and service, please visit our support website at:

http://support.advantech.com.tw/support/

Part No. 2006K22301 Edition 2

Printed in China March 2020

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number from your dealer. This allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.
5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Declaration of Conformity

FCC Class A

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Technical Support and Assistance

1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:

– Product name and serial number
– Description of your peripheral attachments
– Description of your software (operating system, version, application software, etc.)
– A complete description of the problem
– The exact wording of any error messages

Warnings, Cautions and Notes

Warning! Warnings indicate conditions, which if not observed, can cause personal injury!

Caution! Cautions are included to help you avoid damaging hardware or losing data.

There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions.

Note! Notes provide optional additional information.

Before installation, please ensure the following items have been shipped:

1 x ARK-2230 unit
■ 1 x Registration and 2 years Warranty card
1 x China RoHS
■ 1 x 2-Pole Phoenix to DC-Jack Power cable
■ 1 x SUSIAccess Utility CD
■ 1 x Simplified Chinese manual

Ordering Information

Model Number Description
ARK-2230-U0A1E	Celeron J1900 2.0GHz w/HDMI, VGA, dual GbE, 4COM, 5USB,iDoor

Optional Accessories

For ARK-2230

Part Number Description

96PSA-A60W12W6 AC-to-DC Adapter, DC12V/5A 60W with lockable DC jack

MOS-1120Y-0201E Isolated RS-232, 2-Ch, DB9

MOS-1120Y-1401E Non-Isolated RS-232, DB37, 4-Ch

MOS-1121Y-0201E Isolated RS-422/485, 2-Ch, DB9

MOS-1121Y-1401E Non-Isolated RS-422/485, DB37, 4-Ch

MOS-2120-Z1101E Giga LAN Ethernet module, 1-Ch

MOS-2220-X1101E Parallel LPT module, 1-Ch, USB I/F

MOS-1130Y-0201E Isolated CANBus, 2-Ch, DB9, PCIe I/F

MOS-2230-Z1201E CANBus module, 2-Ch, USB I/F

MOS-1110Y-0101E Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe I/F

Safety Instructions

1. Please read these safety instructions carefully.
2. Please keep this User's Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Use a damp cloth. Don't use liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for cleaning.

4. For pluggable equipment, the socket-outlet shall near the equipment and shall be easily accessible.

5. Please keep this equipment from humidity.

6. Lay this equipment on a reliable surface when install. A drop or fall could cause injury.

7. The openings on the enclosure are for air convection hence protecting the equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source when connecting the equipment to the power outlet.

9. Place the power cord such a way that people cannot step on it. Do not place anything over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for long time, disconnect the equipment from mains to avoid being damaged by transient over-voltage.

12. Never pour any liquid into ventilation openings; this could cause fire or electrical shock.

13. Never open the equipment. For safety reasons, only qualified service personnel should open the equipment.

14. If one of the following situations arises, get the equipment checked by service personnel:

■ The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
■ The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
■ The equipment has been dropped and damaged.
■ The equipment has obvious signs of breakage.

1. Do not leave this equipment in an environment where the storage temperature may go below -40^ C ( -40^ F) or above 85^ C ( 185^ F). This could damage the equipment. the equipment should be in a controlled environment.

2. Caution: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer, discard used batteries according to the manufacturer's instructions.

3. The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).

4. RESTRICTED ACCESS AREA: The equipment should only be installed in a Restricted Access Area.

5. DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

6. The product is intended to be supplied by an UL certified power supply or dc source suitable for use at Tma 60 degree C min. and output meets SELV or ES1, rated 12Vdc,5A/12Vdc,10A/9-36Vdc,4.4-1.1A

7. The wire of the protective bonding conductor shall be green-and-yellow, 20AWG/0.5(mm2) min.

Safety Instructions

Chapter 1 General Introduction ......1

1.1 Introduction 2
1.2 Product Features....3

1.2.1 General 3
1.2.2 Display 3
1.2.3 Ethernet 3

1.3 Chipset 4

1.3.1 Functional Specification 4
1.3.2 iManager/SUSI 4.0....5

1.4 Mechanical Specifications....5

1.4.1 Dimensions 5
Figure 1.1 ARK-2230 Mechanical dimension drawing....5
1.4.2 Weight....5

1.5 Power Requirement 5

1.5.1 System Power 5
1.5.2 RTC Battery 5

1.6 Environment Specification....6

1.6.1 Operating Temperature.... 6
1.6.2 Relative Humidity 6
1.6.3 Storage Temperature.... 6
1.6.4 Vibration during Operation 6
1.6.5 Shock during Operation 6
1.6.6 Safety....6
1.6.7 EMC....6

Chapter 2 H/W Installation....7

2.1 Introduction 8
2.2 Jumpers 8

2.2.1 Jumper Description 8

2.2.2 Jumper List 9

Table 2.1: Jumper List of Main Board....9

2.2.3 Jumper Location 9
Figure 2.1 Jumper Layout....9
2.2.4 Jumper Setting 9

2.3 Connectors....10

2.3.1 ARK-2230L External I/O Connectors 10
Figure 2.2 COM connector .... 10
Table 2.2: COM Connector Pin Assignments.... 10
Figure 2.3 Ethernet connector 11
Table 2.3: Ethernet Connector Pin Assignments.... 11
Figure 2.4 Audio connector.... 11
Table 2.4: Audio Connector Pin Assignments....11
Figure 2.5 USB connector 12
Table 2.5: USB Connector.... 12
Figure 2.6 VGA Connector 12
Table 2.6: VGA Connector Pin Assignments.... 12
Figure 2.7 Power Button 13
Figure 2.8 LED Indicators 13

2.4 Installation 13

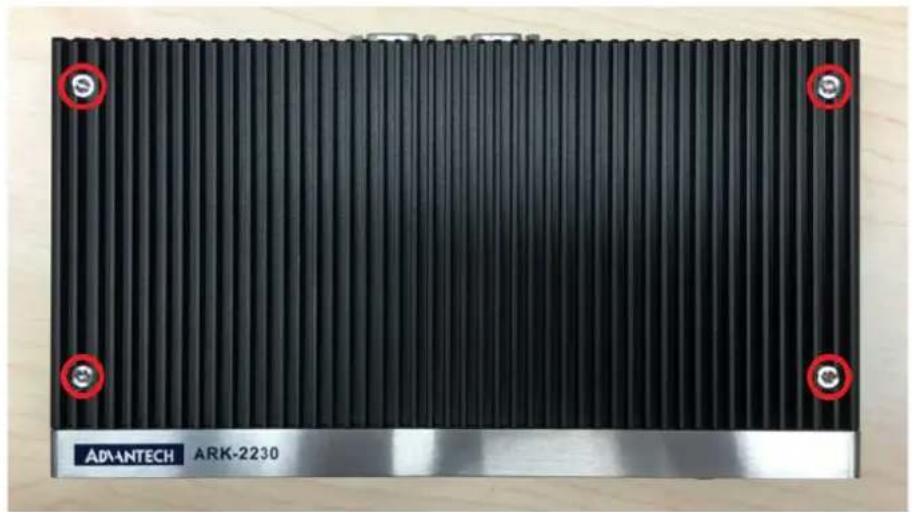

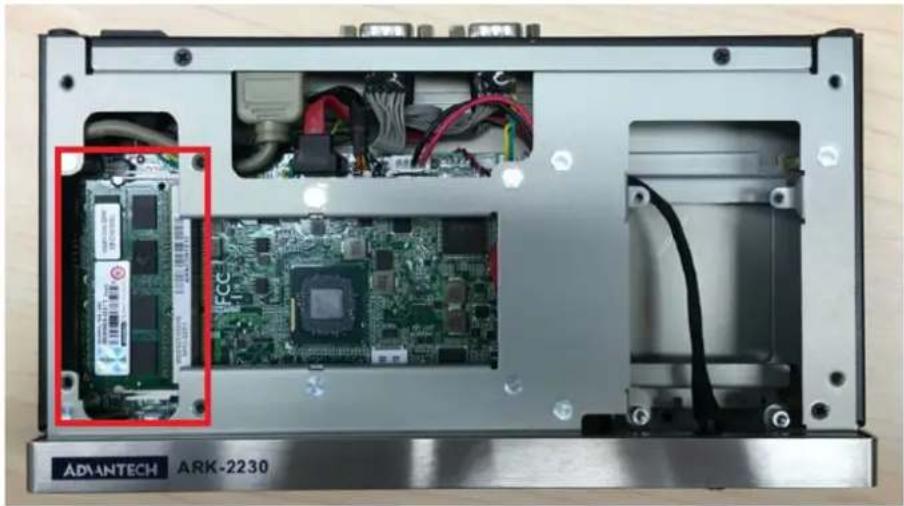

2.4.1 Memory Installation.... 13

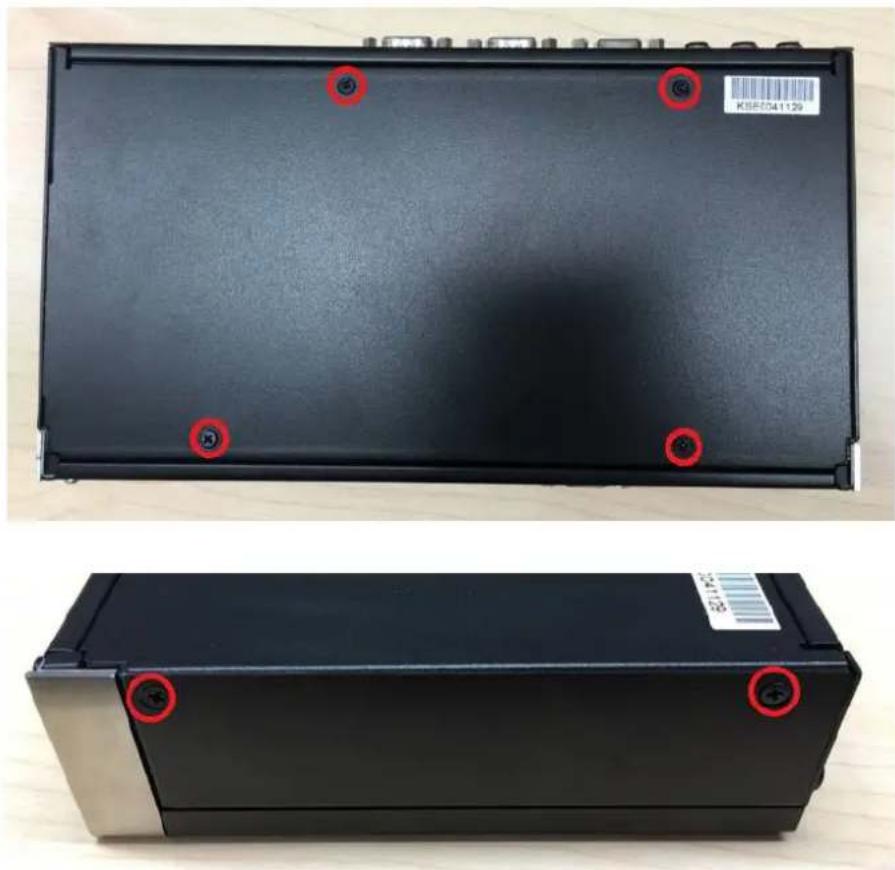

2.4.2 HDD/SSD Installation....14

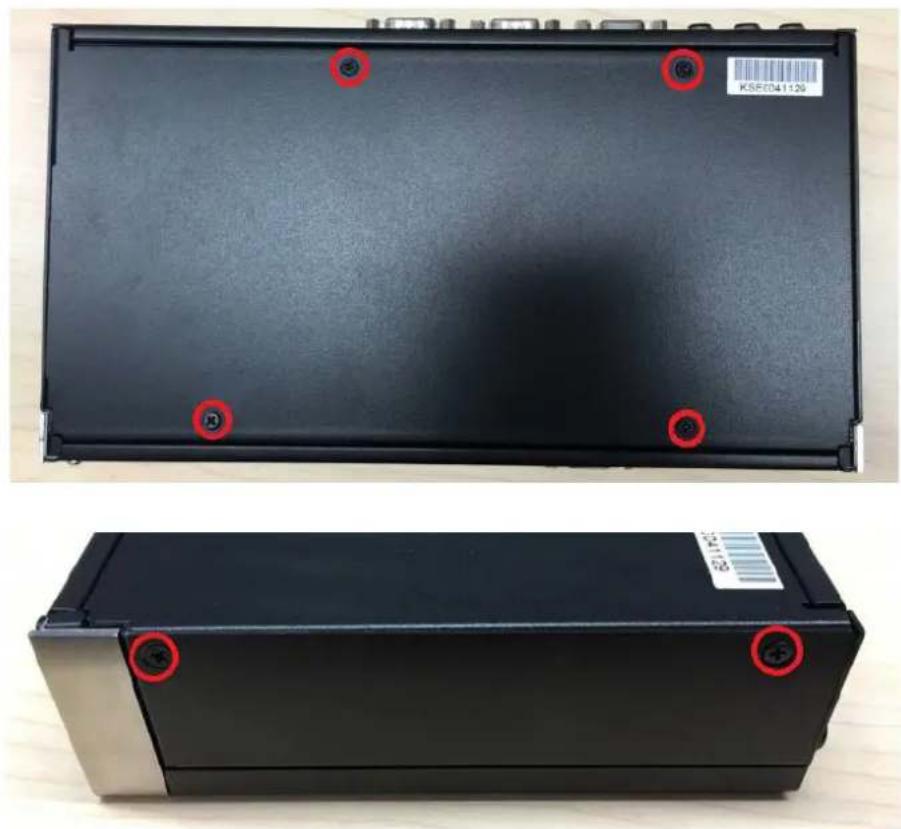

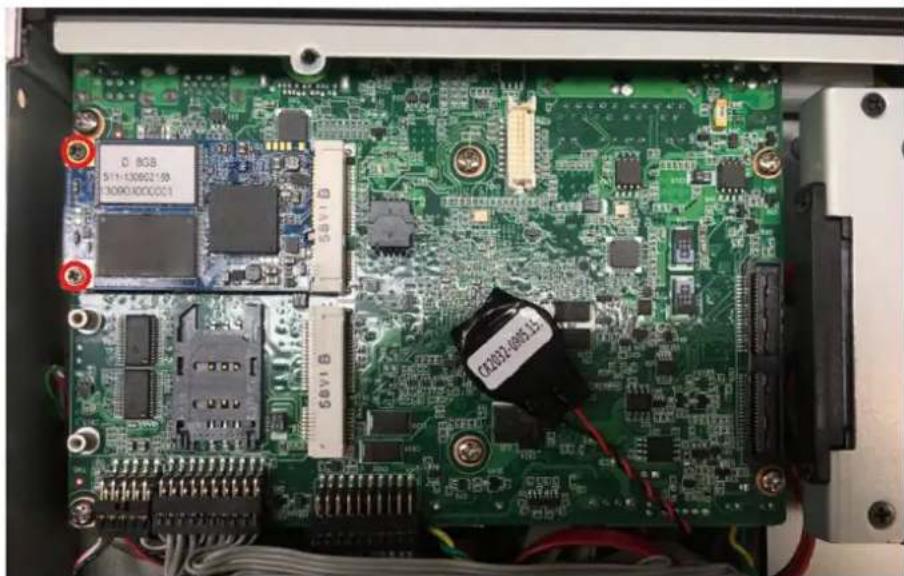

2.4.3 mSATA Installation 16

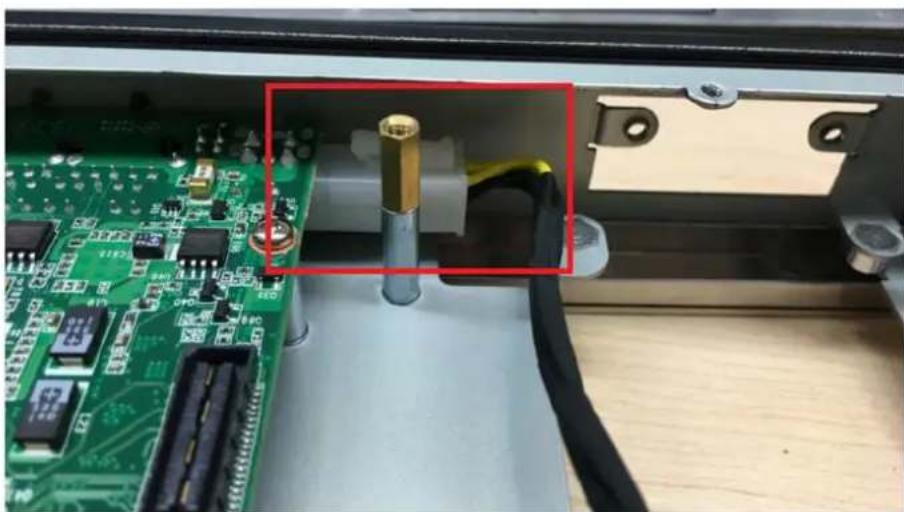

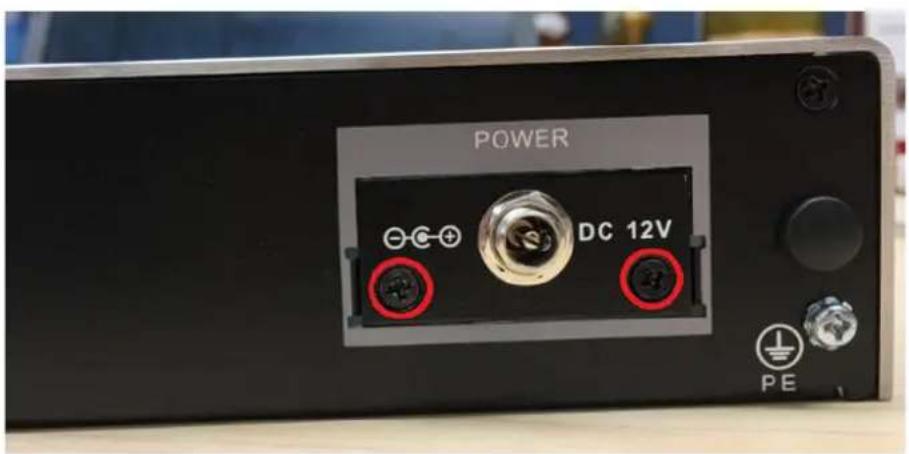

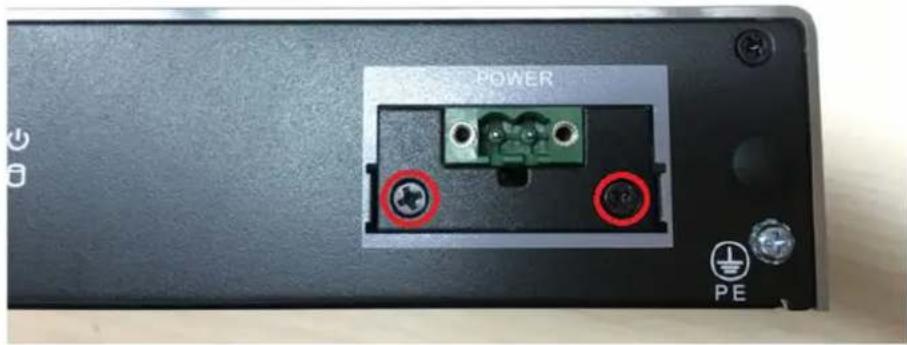

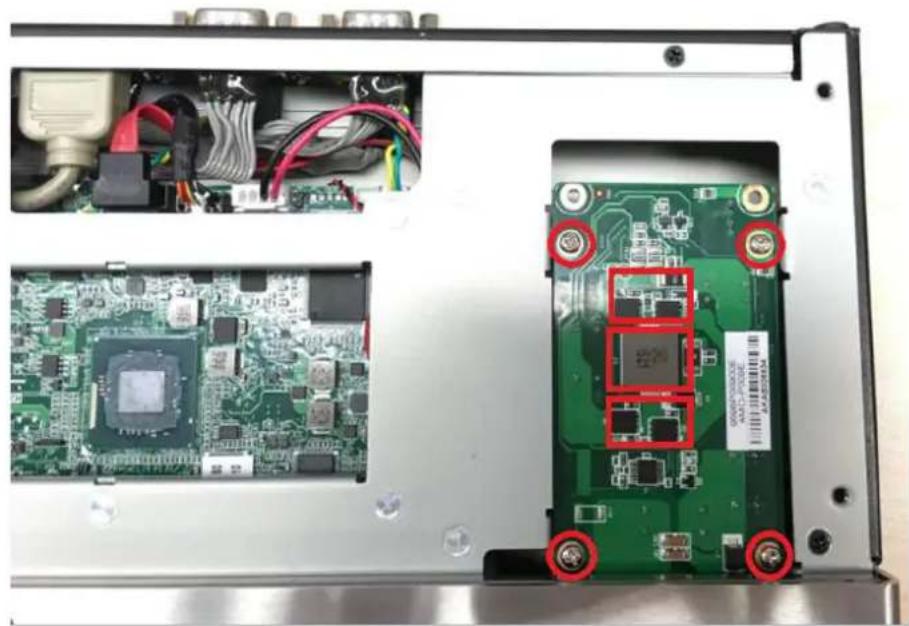

2.4.4 Power Module (MIOe-PWR2) Installation (Option) 17

2.4.5 iDoor Module Installation (Option) 20
2.4.6 2nd Layer MIOe Module Installation (Option).... 20

Chapter 3 BIOS Settings ...... 21

3.1 BIOS Setup .... 22 Figure 3.1 Setup program initial screen.... 22
3.2 Entering Setup 22

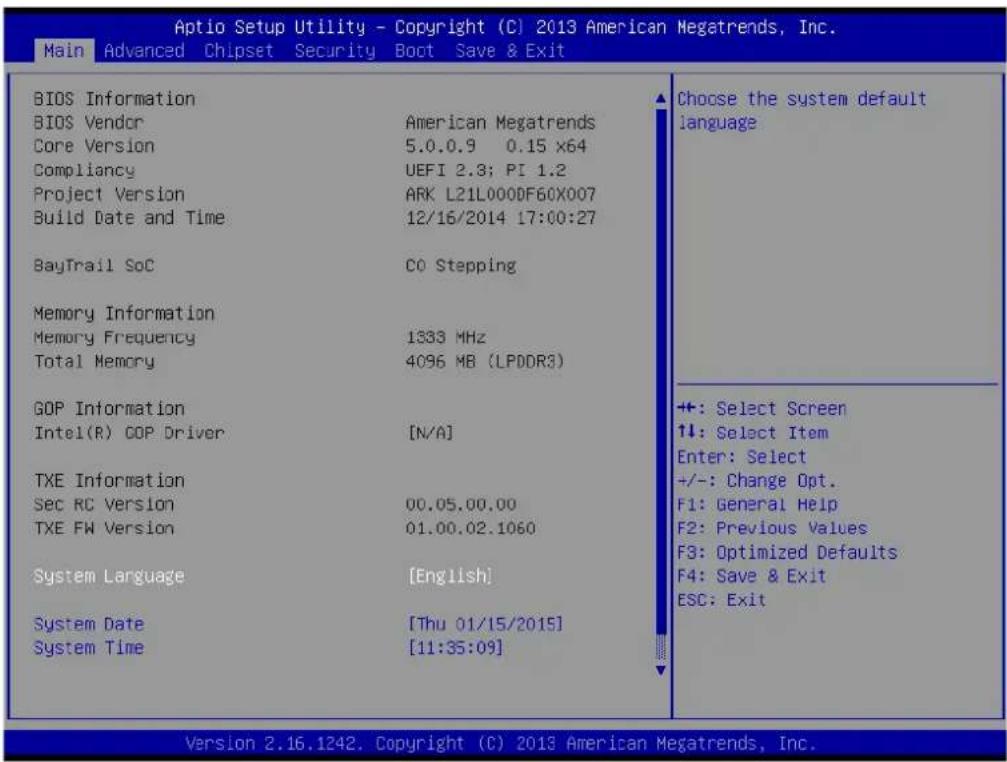

3.3 Main Setup....22 Figure 3.2 Main setup screen....23
3.3.1 System date / System time 23
3.4 Advanced BIOS Features Setup.... 23 Figure 3.3 Advanced BIOS features setup screen.... 24

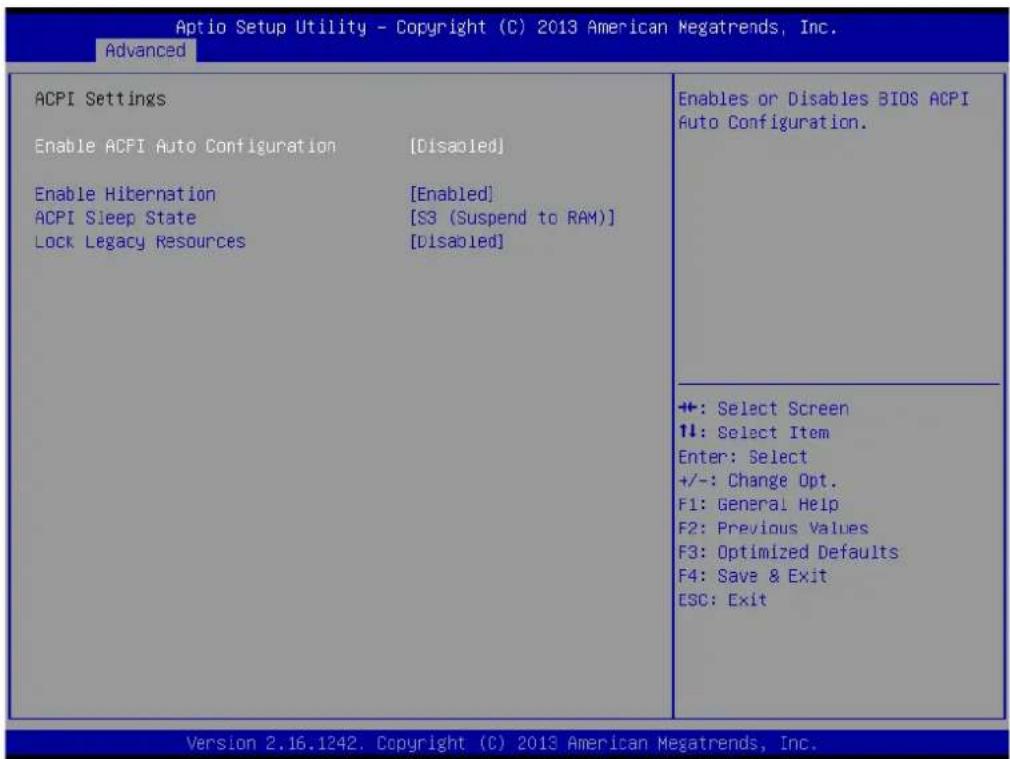

3.4.1 ACPI Settings 24 Figure 3.4 ACPI Setting 24
3.4.2 Super I/O Configuration 25
3.4.3 Embedded Controller Configuration 26
3.4.4 S5 RTC Wake Settings.... 26
3.4.5 Serial Port Console Redirection.... 27
3.4.6 CPU Configuration....28 Figure 3.5 Intel Fast Flash Standby....28

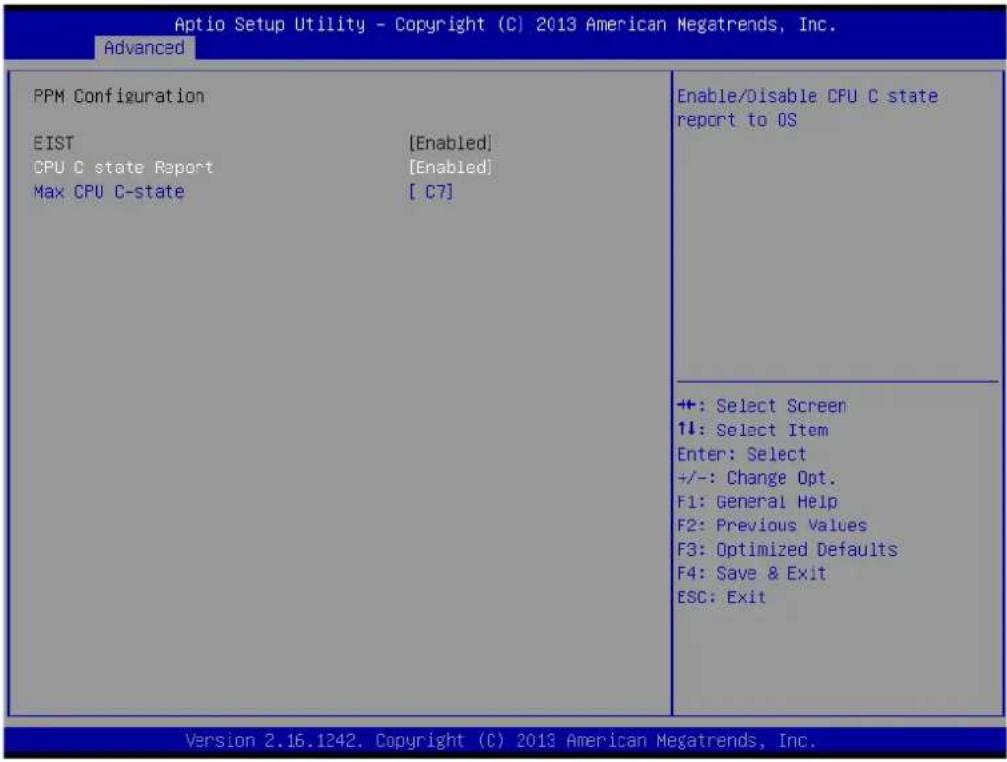

3.4.7 PPM Configuration.... 29
3.4.8 IDE Configuration 30
3.4.9 CSM Configuration 31

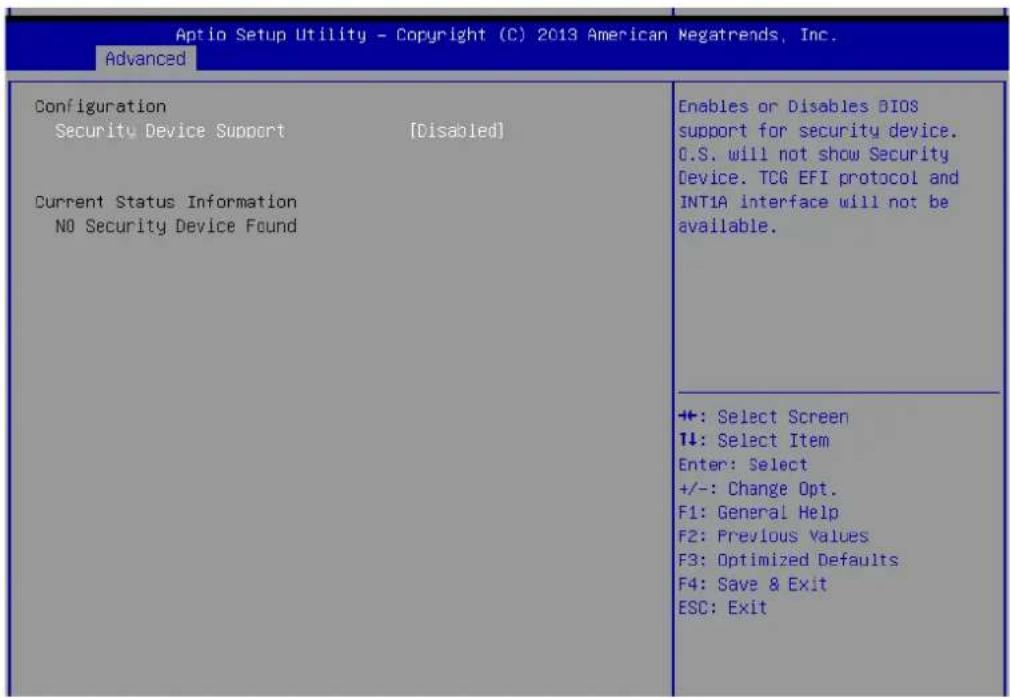

3.4.10 Trusted Computing 32
3.4.11 USB Configuration 32
3.5 Security Configuration.... 33

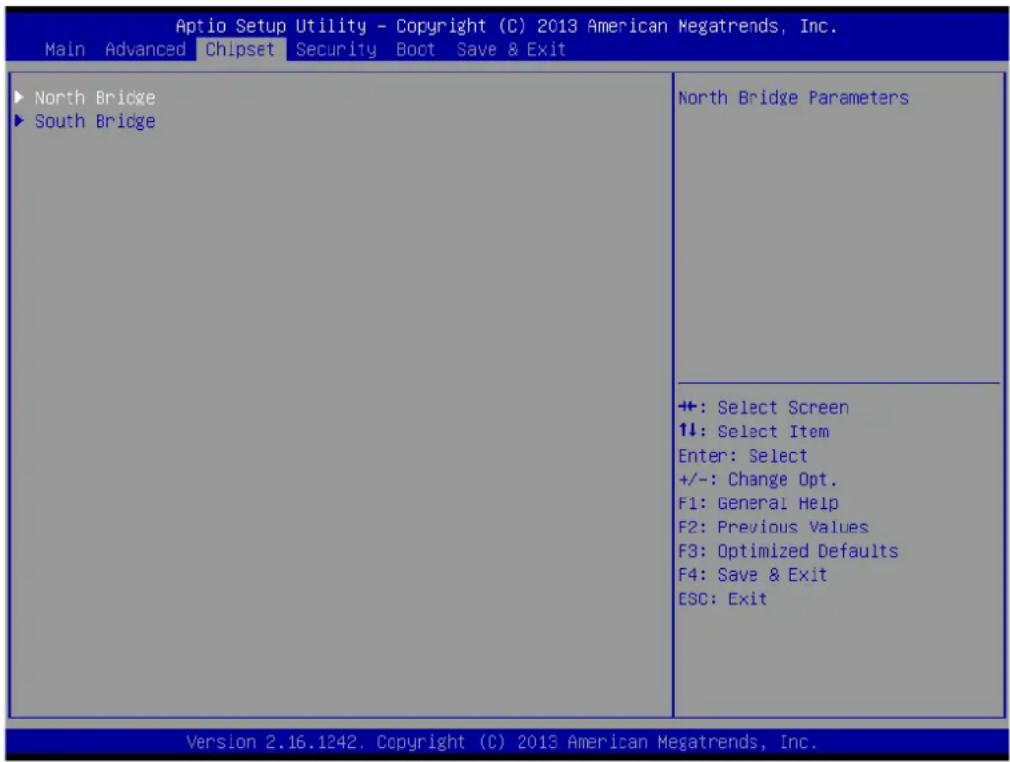

3.5.1 Chipset Configuration 34
3.5.2 North Bridge.... 35
3.5.3 Intel IGD Configuration 36

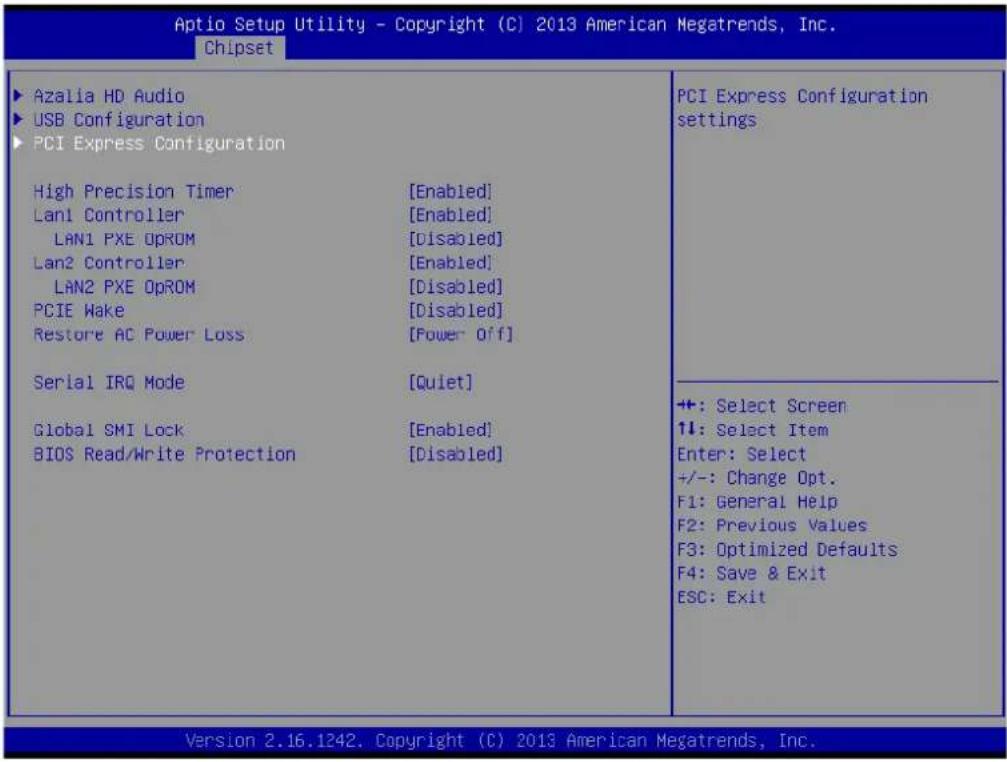

3.5.4 South Bridge 37

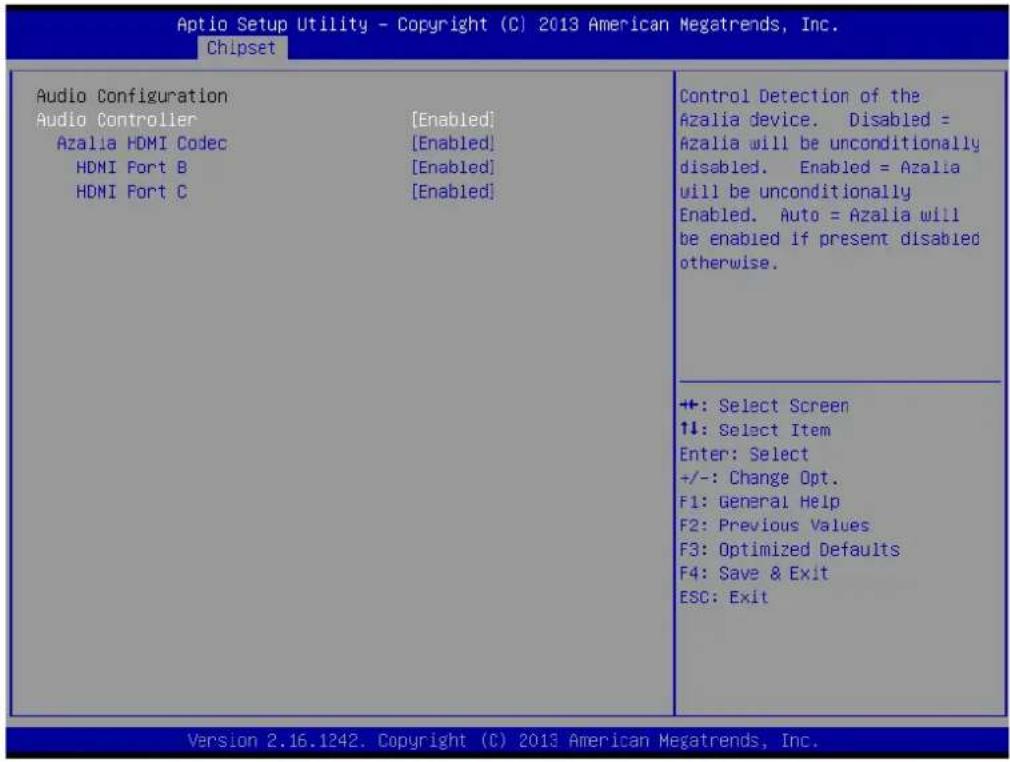

3.5.5 Azalia HD Audio.... 38
3.5.6 USB Configuration 39
3.5.7 PCI Express Configuration 40
3.6 Boot Settings.... 41

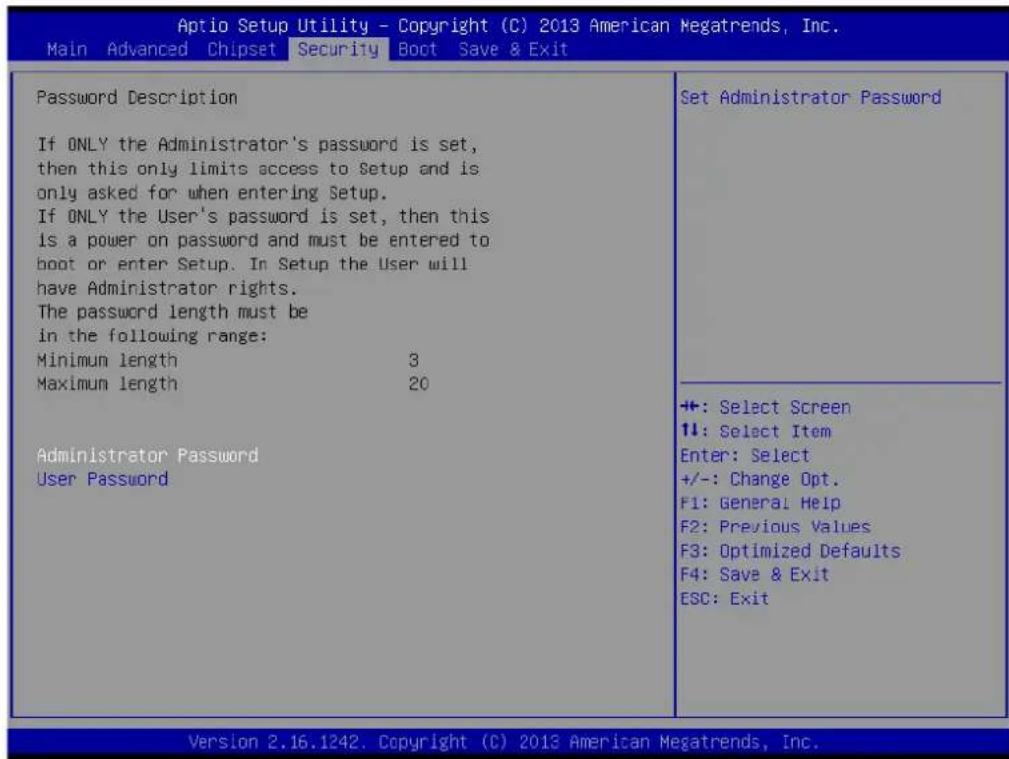

3.7 Security Setup....42
3.8 Save & Exit 43

Appendix A Watchdog Timer Sample Code ...... 45

A.1 EC Watchdog Timer sample code 46

Chapter 1

General Introduction

This chapter gives background information on ARK-2230 series.

1.1 Introduction

ARK-2230 is an intelligent, modular, fanless embedded system powered by Intel Celeron J1900 Quad Core low power processor. With the modular I/O design, ARK-2230 can easily switch I/O no matter single layer to bundle with iDoor modules or dual layer to bundle with MIOe modules, and it can operate reliably in -20\~60 °C environments. AIK-2230 is targeted at factory automation, machine automation, kiosks, and self-service applications.

Rugged & Multifunctional Design

ARK-2230 is powered by Intel ^ Celeron ^™ J1900 2.0GHz Quad core processors in an Advantech, rugged-design embedded box PC. All models are fanless, and highlight various quality features including default power input of 12V DC and optional wide-input 9-36V DC, wide temperature range -20 \~ 60 °C, diverse expandability options, and structural strengthening. ARK-2230 enlarges the surface of the top cover and conductive cylinder to create maximum cooling effects for optimized cooling efficiency. It also provides rich I/O interface: up to 5 x USB, 2 x GbE, 4 x COM, and supports high capacity 2.5" HDD up to 1 TB. The RS-232/422/485 COM port mode can easily be changed via BIOS setting.

Multiple Display Support

ARK-2230 supports two display types: VGA, HDMI display. The graphic engine is DirectX 11.1, H/W format decode/Acceleration, MPEG2 (H/W acceleration), H.264/VC1/WMV9 (H/W Decode/Acceleration). ARK-2230 supports dual independent display.

Built in Intelligent Management Tools - Advantech iManager & SUSIAccess

Advantech iManager/SUSI 4.0 provides a valuable suite of programmable APIs such as multi-level watchdog, hardware monitor, system restore, and other user-friendly interface. iManager is an intelligent self-management cross platform tool that monitors system status for problems and takes action if anything is abnormal. iManager/SUSI 4.0 offers a boot up guarantee in critical, low temperature environments so systems can automatically recover when voltages dip. iManager/SUSI 4.0 makes the whole system more reliable and more intelligent. ARK-2230L also supports Advantech's own SUSIAccess, which provides easy remote management so users can monitor, configure, and control a large number of terminals to make maintenance and system recovery simpler.

1.2 Product Features

1.2.1 General

CPU: Intel ^® Celeron ^TM Processor J1900 2.0GHz
System Chipset: Intel ^® Celeron J1900 SOC
BIOS: AMI 16 Mbit Flash BIOS
■ System Memory: One DDR3L SODIMM. DDR3L 1333MHz up to 8 GB
■ Watchdog Timer: Single chip Watchdog 255-level interval timer, setup by software
I/O Interface: 2 x RS232, 2 x RS232/422/485
USB: 4 x USB 2.0, 1 x USB 3.0 compliant ports
■ Audio: High Definition Audio (HD), Line-in, Line out, Mic-in
Storage: 1 x mSATA and 1 x high capacity 2.5" SATA HDD (up to 12.5mm height)
■ Expansion Interface:
– Supports1 x MiniPCIe with SIM holder
– Supports 1 x iDoor expansion (by 1st layer)
– Support 1 x ARK Plus expansion (by 2nd layer)
■ Software API: Advantech iManager/SUSI 4.0 and SUSIAccess - Remote Device Management technology

1.2.2 Display

Controller: Intel ^® Celeron J1900
Resolution:
– VGA: Supports up to 2048 x 1152
– HDMI: Supports up to 1080P @ 60Hz, Supports HDMI 1.4a

Dual Display: VGA+HDMI

1.2.3 Ethernet

Chipset:
- LAN1 Intel i210
- LAN2 Intel i210

■ Speed: 1000 Mbps

Interface: 2 x RJ45

Standard: Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3y, IEEE 802.ab.

1.3 Chipset

1.3.1 Functional Specification

1.3.1.1 Processor

Processor	Intel® CeleronTM Processor J1900Intel® CeleronTM J1900 at 2.0GHz, with 2MB L2 Cache Manufacturing Technology 22nm
Memory	Supports DDR3L 1333MHz up to 8GB1 x 204-pin SODIMM socket type

1.3.1.2 Chipset

Internal Graph-ics Features	■ DirectX 11.1 and OpenGL 3.0■ Display Ports VGA + HDMI, HDMI 1.4a■ Supports HDCP 1.3
Video Accelerator	■ H/W accelerated video decode■ Video decoder: Support MPEG4, VC1, WMV9, H.264■ Supports DVD, Blu-ray, and HD video
SATA Interface	■ Supports several optional sections of Serial ATA II: Extensions to Serial ATA 1.0 Specification, Revision 1.0■ Supports SATA transfers to 300 Mbytes/sec.■ Supports mSATA socket
USB Interface	■ USB host interface with support for 1 USB 3.0 and 4 USB 2.0 ports■ All ports are High-Speed, Full-Speed, and Low-Speed capable■ Supports legacy keyboard/mouse software
BIOS ■ AMI 16Mb Flash BIOS via SPI

1.3.1.3 Others

Serial ports	■ COM1, COM2: Supports RS-232COM3 ~ COM4: Supports RS-232/422/485 and change mode under BIOS setting** COM3 ~ COM4 RS-485 supports Auto flow control.COM connector: D-SUB CON. 9P
Ethernet	LAN1 Intel i210, LAN2 Intel i210■ Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3y, IEEE 802.ab.■ Support 10/100/1000 Mbps.LAN Connectors: Phone Jack RJ45 8P 90D(F)
Audio	Audio Codec: Realtek ALC888S:■ Compliant with HD Audio specifications■ Supports 16/20/24-bit DAC and 16/20/24-bit ADC resolution■ Supports: Line-out, Line-in, Mic-inAudio Connectors: Ear Phone Jack * 3
Battery backup	■ BATTERY 3V/210 mAh with WIRE x 1

1.3.2 iManager/SUSI 4.0

Sequence control Supported

Watchdog timer Multi Level WDTProgrammable 1-255 sec / min

Hardware monitor CPU Temperature / input Current / input Voltage

Power saving Deep sleep S5 mode

System information Running HR / Boot record

1.4 Mechanical Specifications

1.4.1 Dimensions

260[10.24] × 44[1.73] × 140.2[5.52] Unit: mm [Inch]

Figure 1.1 ARK-2230 Mechanical dimension drawing

1.4.2 Weight

2.3 kg (5.06 lb)

1.5 Power Requirement

1.5.1 System Power

■ Minimum power input:
- ARK-2230: DC 12V, 3A

1.5.2 RTC Battery

Lithium 3 V/210 mAH

1.6 Environment Specification

1.6.1 Operating Temperature

■ With Industrial Grade SSD/mSATA: -20 \~ 60° C (-4\~140° F), with air flow, speed=0.7 m/sec
With 2.5-inch hard disk 0 to 45° C (32\~113° F), with air flow, speed=0.7 m/sec

1.6.2 Relative Humidity

■ 95% @ 40° C (non-condensing)

1.6.3 Storage Temperature

-40 \~ 85° C (-40 \~ 185° F)

1.6.4 Vibration during Operation

When the system is equipped with SSD/mSATA: 3Grms, IEC 60068-2-64, random, 5 \~ 500 Hz, 1hr/axis, x,y,z 3 axes.

1.6.5 Shock during Operation

When the system is equipped with SSD/mSATA: 30G, IEC 60068-2-27, half sine, 11 ms duration.

1.6.6 Safety

UL, CB, CCC, BSMI

1.6.7 EMC

CE, FCC, CCC, BSMI

Chapter 2

H/W Installation

This chapter introduces external IO and the installation of ARK-2230 hardware.

2.1 Introduction

The following sections show the internal jumpers setting and the external connectors pin assignment for application.

2.2 Jumpers

2.2.1 Jumper Description

You may configure ARK-2230 to match the needs of your application by setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them. To close a jumper, you connect the pins with the clip. To open a jumper, you remove the clip. Sometimes a jumper will have three pins, labeled 1, 2 and 3. In this case you would connect either pins 1 and 2, or 2 and 3.

closed 2-3cl

The jumper settings are schematically depicted in this manual as follows.

closed 2-3clc

A pair of needle-nose pliers may be helpful when working with jumpers. If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes. Generally, you simply need a standard cable to make most connections.

2.2.2 Jumper List

Table 2.1: Jumper List of Main Board

J2	Auto Power On Setting
SW2	Clear CMOS

2.2.3 Jumper Location

JP2 SW2 HYCOM HY30R

Figure 2.1 Jumper Layout

2.2.4 Jumper Setting

At Mother Board

J2 Auto Power On Setting

Part Number 1653002101

Footprint HD_3x2P_79_D

Description PIN HEADER 2*1P 180D(M)SQUARE 2.0mm DIP W/O Pb

Setting Function

NL Power On by power button

(1-2)* Auto Power On (default)

SW2 Clear CMOS

Part Number 1600000071

Footprint SW_3P_CJS-1201TA1

Description CJS-1201TA1

Setting Function

1* NC (Default)

2 RTC_TEST#

3 GND (Clear CMOS)

2.3 Connectors

2.3.1 ARK-2230L External I/O Connectors

2.3.1.1 COM Connector

ARK-2230 provides four D-sub 9-pin connectors, which offers RS-232 or RS232/422/485 serial communication interface ports. Default setting is RS-232, if you want to use RS-422/485, you can find the BIOS setting in Chapter 3.4.2 for ARK-2230L.

The RS-422/485 mode of ARK-2230 COM3\~COM4 can be supported via BIOS setting. The setting is under Advanced BIOS Features Setup -> Super IO Configuration.

1 2 3 4 5 6 7 8 9

Figure 2.2 COM connector

Table 2.2: COM Connector Pin Assignments

RS-232 RS-422 RS-485
Pin Signal Name Signal Name Signal Name
1 DCD Tx-	DATA-
2 RxD	Tx+		DATA+
3 TxD	Rx+	NC
4 DTR	Rx-		NC
5 GND	GND	GND
6 DSR	NC		NC
7 RTS	NC		NC
8 CTS	NC		NC
9 RI	NC		NC

Note! NC represents "No Connection".

2.3.1.2 Ethernet Connector (LAN)

ARK-2230 is equipped with two Ethernet controllers that are fully compliant with IEEE 802.3u 10/100/1000 Mbps CSMA/CD standards. LAN1, LAN2 are all equipped with Intel i210 Ethernet controller. The Ethernet port provides a standard RJ-45 jack connector with LED indicators on the front side to show its Active/Link status (Green LED) and Speed status (Yellow LED).

Figure 2.3 Ethernet connector

Table 2.3: Ethernet Connector Pin Assignments

Pin 10/100/1000BaseT Signal Name
1	TX+
2	TX-
3	RX+
4	M	D	I
5	M	D	I
6	RX-
7	M	D	I
8	M	D	I

2.3.1.3 Audio Connector

ARK-2230 offers stereo audio ports by three phone jack connectors of Line_Out, Line_In, Mic_In. The audio chip is controlled by ALC888S, and it's compliant with Azalea standard.

Three identical circular ring shapes labeled 1, 2, and 3, arranged horizontally (no text or symbols on the shapes themselves)

Figure 2.4 Audio connector

Table 2.4: Audio Connector Pin Assignments

Pin Audio Signal Name
1	Mic_In
2	Line_In
3	Line_Out

2.3.1.4 USB Connector

ARK-2230 provides four USB interface connectors. The USB connectors are used to connect any device that conforms to the USB interface. Most digital devices conform to this standard. The USB interface supports Plug and Play.

1 2 3 4

Figure 2.5 USB connector

Table 2.5: USB Connector
Pin Signal name Pin Signal name

1 VCC 2 USB_data-

3 USB_data+ 4 GND

2.3.1.5 VGA Connector

The ARK-2230 provides a high resolution VGA interface connected by a D-sub 15-pin connector to support a VGA CRT monitor. It supports display resolutions of up to 2048 x 1152.

Figure 2.6 VGA Connector

Table 2.6: VGA Connector Pin Assignments

Pin Signal Name Pin Signal Name
1	Red	2	Green
3	Blue	4	NC
5	GND	6	GND
7	GND	8	GND
9	NC	10	GND
11	NC	12	DDAT
13	H-SYNC	14	V-SYNC
15	DCLK

2.3.1.6 Power ON/OFF Button

ARK-2230 comes with a Power On/Off button that supports dual functions of Soft Power -On/Off (Instant off or Delay 4 Second), and Suspend.

Figure 2.7 Power Button

2.3.1.7 LED Indicators

There are two LEDs on ARK-2230 front metal face plate for indicating system status: PWR LED is for power status; and HDD LED is for HDD & flash disk status.

Figure 2.8 LED Indicators

2.4 Installation

2.4.1 Memory Installation

1. Unscrew the 4 screws on the top cover. (Please use the tool in the accessory box.)

Black corrugated electronic component with four red circular markers and a metallic base labeled 'ADVANTECH ARK-2230' (no other text or symbols visible)

1. Remove the top cover and install the memory into the memory socket.

Internal view of an electronic device showing internal components including a central FC chip and circuit board (no text or symbols visible)

1. Replace the top cover.

2.4.2 HDD/SSD Installation

1. Unscrew the 4 screws on the bottom cover, and the 4 screws on both sides of ARK-2230.

Two views of a black electronic device casing with red circular markers and a barcode tag, shown from top and side (no text or symbols on the device itself)

1. Unscrew the 4 screws on the HDD bay.

Interior view of a computer drive bay showing internal components and a green circuit board (no text or symbols visible)

1. Install the HDD/SSD into the HDD bay, and fix the HDD onto the bracket.

Internal view of an open computer drive showing internal components like a green circuit board and CD-ROM drive (no text or symbols visible)

1. Fix the 4 screws back onto the HDD bay.

Internal view of an electronic device showing internal circuit board, memory card, and cable connections (no readable text or symbols)

1. Replace the bottom cover and fix the 8 screws back onto the system.

2.4.3 mSATA Installation

1. Unscrew the 4 screws on the bottom cover, and the 4 screws on both sides of ARK-2230.

Two views of a black electronic device casing with red circular markers and a barcode tag (no text or symbols on the body)

1. Put the mSATA module onto the mSATA slot (CN16), and fasten the 2 screws back on the mSATA module.

Interior view of an electronic device showing a green circuit board with various components and connectors (no readable text or symbols)

1. Replace the bottom cover and fasten the 8 screws back onto the system.

2.4.4 Power Module (MIOe-PWR2) Installation (Option)

1. Remove the 4 screws on the top cover. (Please use the tool in the accessory box.)

Black corrugated panel with red circular markers and a metallic base labeled 'ADANTECH ARK-2230' (no other text or symbols)

1. Remove the 2 screws on the power bracket for the original DC jack on the front panel.

POWER DC 12V PE

1. Unscrew the 4 screws on the bottom cover and on both sides of ARK-2230.

Two views of a black electronic device casing with red circular markers and barcode patch, shown from top and side (no text or symbols on the device itself)

1. Remove the original internal power cable from M/B.

Close-up of an electronic circuit board with gold connectors and a red highlighted component (no visible text or symbols)

1. Link the MIOe-PWR2 internal power cable from M/B to the power board.

Interior view of an electronic circuit board with exposed components and wiring (no readable text or symbols)

1. Turn to the top side, and fasten the 4 screws for the power board, and tape 3 thermal pads on the red marks.

Interior view of a computer motherboard showing exposed circuit boards and connectors (no text or symbols visible)

1. Screw the new power bracket for MIOe-PWR2 on the front panel.

POWER PE

1. Replace the bottom cover and the 8 screws back onto the system.

2. Replace the top cover and the 4 screws.

2.4.5 iDoor Module Installation (Option)

Please refer to the start up manual in the iDoor kit.

2.4.6 2nd Layer MIOe Module Installation (Option)

Please refer to the start up manual in the iDoor kit.

Chapter 3

BIOS Settings

3.1 BIOS Setup

With the AMIBIOS setup program, you can modify BIOS settings and control the various system features. This chapter describes the basic navigation of the ARK-2230 BIOS setup screens.

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time BayTrail SoC Memory Information Memory Frequency Total Memory GOP Information Intel(R) GOP Driver TXE Information Sec RC Version TXE FW Version System Language System Date System Time American Megatrends 5.0.0.9 0.15 x64 UEFI 2.3; PI 1.2 ARK L21L000DF60X007 12/16/2014 17:00:27 CO Stepping 1333 MHz 4096 MB (LPDDR3) [N/A] 00.05.00.00 01.00.02.1060 [English] [Thu 01/15/2015] [11:35:09] Choose the system default language +: Select Screen ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Figure 3.1 Setup program initial screen

AMI's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This information is stored in flash ROM so it retains the Setup information when the power is turned off.

3.2 Entering Setup

Turn on the computer and then press or to enter Setup menu.

3.3 Main Setup

When users first enter the BIOS Setup Utility, users will enter the Main setup screen. Users can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below.

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit BIOS Information BIOS Vendor Core Version Compliance Project Version Build Date and Time BayTrail SoC Memory Information Memory Frequency Total Memory GOP Information Intel(R) GOP Driver TXE Information Sec RC Version TXE FW Version System Language System Date System Time Choose the system default language +: Select Screen +: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Figure 3.2 Main setup screen

The Main BIOS setup screen has two main frames. The left frame displays all the options that can be configured. Grayed-out options cannot be configured; options in blue can. The right frame displays the key legend.

Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it.

3.3.1 System date / System time

Use this option to change the system time and date. Highlight System Time or System Date using the keys. Enter new values through the keyboard. Press the key or the keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format.

3.4 Advanced BIOS Features Setup

Select the Advanced tab from the ARK-2230 setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the keys. All Advanced BIOS Setup options are described in this section. The Advanced BIOS Setup screens are shown below. The sub menus are described on the following pages.

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit ACPI Settings IT8768E Super IO Configuration Embedded Controller Configuration S5 RTC Wake Settings Serial Port Console Redirection CPU Configuration PPM Configuration IDE Configuration CSM Configuration USB Configuration Security Configuration System ACPI Parameters. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Figure 3.3 Advanced BIOS features setup screen

3.4.1 ACPI Settings

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced ACPI Settings Enable ACPI Auto Configuration [Disabled] Enable Hibernation [Enabled] ACPI Sleep State [S3 (Suspend to RAM)] Lock Legacy Resources [Disabled] Enables or Disables BIOS ACPI Auto Configuration. +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Figure 3.4 ACPI Setting

■ Enable ACPI Auto Configuration

This item allows users to enable or disable BIOS ACPI auto configuration.

■ Enable Hibernation

This item allows users to enable or disable hibernation.

ACPI Sleep State

This item allows users to set the ACPI sleep state.

■ Lock Legacy Resources

This item allows users to lock legacy devices' resources.

3.4.2 Super I/O Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced ITB768E Super IO Configuration Super IO Chip ITB768E ► Serial Port 1 Configuration ► Serial Port 2 Configuration ► Serial Port 3 Configuration ► Serial Port 4 Configuration Set Parameters of Serial Port 1 (COMA) +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Serial Port 1 Configuration

Set Parameters of Serial Port 1 (COMA).

Serial Port 2 Configuration

Set Parameters of Serial Port 2 (COMB).

Serial Port 3 Configuration

Set Parameters of Serial Port 3 (COMC).

Serial Port 4 Configuration

Set Parameters of Serial Port 4 (COMD).

3.4.3 Embedded Controller Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced EC Firmware Version I2855V0200 EC Hardware Monitor CPU temperature : +40°C System temperature : +36°C +VBAT : +2.973 V +5VSB : +5.054 V +12V : +12.037 V Vcore : +0.806 V Current : +0.783 A Power Saving Mode [Normal] EC Watch Dog Function [Disable] Select Ite8518 Power Saving Mode +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

■ EC Hardware Monitor
This page displays all information about system Temperature/Voltage/Current.
■ EC Power Saving Mode
This item allows users to set board's power saving mode when off.
■ EC Watch Dog Function
This item allows users to select EC watchdog timer.

3.4.4 S5 RTC Wake Settings

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced
Wake system from S5 [Disabled]	Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr::min::sec specified. Select DynamicTime , System will wake on the current time + Increase minute(s)
	+: Select Screen 11: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

■ Wake system from S5

Enable or disable System wake on alarm event. Select FixedTime, system will wake on the hr:min:sec specified.

3.4.5 Serial Port Console Redirection

Aptio Setup Utility - Copyright (C) 2013 American Negatrends, Inc. Advanced
COMO Console Redirection [Disabled] ► Console Redirection Settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection [Disabled] ► Console Redirection Settings	Console Redirection Enable or Disable.
	+: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

■ Console Redirection

This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS).

■ Console Redirection

This item allows users to configuration console redirection detail settings.

3.4.6 CPU Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced
CPU Configuration	Socket specific CPU Information
Socket O CPU Information
CPU Speed 2001 MHz 64-bit Supported
Limit CPUID Maximum [Disabled]
Execute Disable Bit [Enabled]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel Virtualization Technology [Enabled]
Power Technology [Energy Efficient]
	+: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Figure 3.5 Intel Fast Flash Standby

■ Limit CPUID Maximum

Disabled for Windows XP.

■ Execute Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.)

Hardware Prefetcher

Enable the mid level cache(L2) streamer prefetcher.

■ Adjacent Cache Line Prefetch

Enable the mid level cache(L2) prefetching of adjacent cache lines.

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Power Technology

Enables power management features.

3.4.7 PPM Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced PPM Configuration EIST [Enabled] CPU C state Report [Enabled] Max CPU C-state [ C7] Enable/Disable CPU C state report to OS +: Select Screen ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

CPU C state Report

Enable/Disable CPU C state report to OS.

Max CPU C-state

This option controls Max C state that the processor will support.

3.4.8 IDE Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced IDE Configuration Serial-ATA (SATA) [Enabled] SATA Speed Support [Gen2] SATA Mode [AHCI Mode] Serial-ATA Port 0 [Enabled] SATA Port0 HotPlug [Disabled] Serial-ATA Port 1 [Enabled] SATA Port1 HotPlug [Disabled] SATA Port0 INTEL SSDSC2CW (60.0GB) SATA Port1 Not Present Enable / Disable Serial ATA +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Serial-ATA (SATA)
Enable / Disable Serial ATA.
■ SATA Speed Support
SATA Speed Support Gen1 or Gen2.
SATA Mode
Select IDE / AHCI.
Serial-ATA Port 0 / Port1
Enable / Disable Serial ATA Port0 / Port1.
■ SATA Port 0 / Port1 HotPlug
Enable / Disable SATA Port0 / Port1 hotplug function.

3.4.9 CSM Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced
Compatibility Support Module Configuration
CSM Support	[Enabled]
CSM16 Module Version	07.75
GateA20 Active	[Upon Request]
Option ROM Messages	[Force BIOS]
INT19 Trap Response	[Immediate]
Boot option filter	[Legacy only]
Option ROM execution
Network	[Legacy]
Storage	[Legacy]
Video	[Legacy]
Other PCI devices	[Legacy]

CSM Support
■ Enable/Disable CSM Support.
GateA20 Active
UPON REQUEST - GA20 can be disabled using BIOS services. We suggest you do not disable GA20 as this option is useful when any RT code is executed above 1MB.
Option ROM Messages

Set display mode for Option ROM.

■ INT19 Trap Response

BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE - execute the trap right away; POSTPONED - execute the trap during legacy boot.

■ Boot option filter

This option controls Legacy/UEFI ROMs priority.

Network

Controls the execution of UEFI and Legacy PXE OpROM.

Storage

Controls the execution of UEFI and Legacy Storage OpROM.

Video

Controls the execution of UEFI and Legacy Video OpROM.

■ Other PCI devices

Determines OpROM execution policy for devices other than Network, Storage, or Video.

3.4.10 Trusted Computing

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced Configuration Security Device Support [Disabled] Current Status Information NO Security Device Found Enables or Disables DIOS support for security device. G.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. +: Select Screen 14: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing

Enables or Disables BIOS support for security device. OS will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

3.4.11 USB Configuration

Optio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced

USB Configuration USB Module Version 8.11.01 USB Devices: 1 Drive, 1 Keyboard, 2 Hubs Legacy USB Support [Enabled] XHCI Hand-off [Enabled] EHCI Hand-off [Disabled] USB Mass Storage Driver Support [Enabled]

USB hardware delays and time-outs: USB transfer time-out [20 sec] Device reset time-out [20 sec] Device power-up delay [Auto]

Mass Storage Devices: USB 2.0 USB Flash Drive 0.00 [Auto]

Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

+: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

■ Legacy USB Support

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

XHCI Hand-off

This is a workaround for OSes without XHCI hand-off support. The XHCI ownership change should be claimed by XHCI driver.

EHCI Hand-Off

This is a workaround for OSes without EHCl hand-off support. The EHCl ownership change should claim by EHCl driver.

USB Mass Storage Driver Support

Enable/Disable USB Mass Storage Driver Support.

USB transfer time-out

Time-out value for control, Bulk, and interrupt transfers.

■ Device reset time-out

USB mass storage device start unit command time-out.

■ Device power-up delay

Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

3.5 Security Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced Intel(R) TXE Configuration TXE [Enabled] TXE HMRFPO [Disabled] TXE Firmware Update [Enabled] TXE EOP Message [Enabled] TXE Unconfiguration Perform +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

TXE
■ TXE HMRFPO Disable
■ TXE Firmware Update
■ TXE EOP Message

Send EOP Message Before Enter OS

■ TXE Unconfiguration Perform
Revert TXE settings to factory defaults

3.5.1 Chipset Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit North Bridge South Bridge North Bridge Parameters +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

North Bridge
Details for North Bridge items.
South Bridge
Details for South Bridge items.

3.5.2 North Bridge

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Chipset Intel IGD Configuration Memory Information Total Memory 4096 MB (LPDDR3) Max TOLUD [Dynamic] Config Intel IGD Settings. +:-: Select Screen 11: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Intel IGD Configuration

Config Intel IGD Settings.

Max TOLUD

Maximum Value of TOLUD.

3.5.3 Intel IGD Configuration

Primary IGFX Boot Display	[\\B1OS Default]	Select the Video Device whichwill be activated during POST.This has no effect if externalgraphics present.Secondary boot displayselection will appear based onyour selection.VGA modes will be supportedonly on primary display
DVMT Pre-Allocated	[64M]
DVMT Total Gfx Mem	[256MB]
Aperture Size	[256MB]
DOP CG	[Enabled]
GTT Size	[2MB]
IGD Thermal	[Disabled]
Spread Spectrum clock	[Disabled]
		+: Select Screen11: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit

■ Primary IGFX Boot Display

Select the Video Device which will be activated during POST. This has no effect if external graphics are present. Secondary boot display selection will appear based on your selection. VGA modes will be supported only on primary display.

DVMT Pre-Allocated

Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.

DVMT Total Gfx Mem

Select DVMT 5.0 Total Graphic Memory size used by the Internal Graphics Device.

Aperture Size

Select the Aperture Size.

DOP CG

Enable/Disable DOP clock gating.

GTT Size

Select the GTT Size.

IGD Thermal

Enable/Disable IGD Thermal.

■ Spread Spectrum clock

Enable/Disable Spread Spectrum clock.

3.5.4 South Bridge

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Chipset ► Azalia HD Audio ► USB Configuration ► PCI Express Configuration High Precision Timer [Enabled] Lan1 Controller [Enabled] LAN1 PXE OpROM [Disabled] Lan2 Controller [Enabled] LAN2 PXE OpROM [Disabled] PCIE Wake [Disabled] Restore AC Power Loss [Power Off] Serial IRQ Mode [Quiet] Global SMI Lock [Enabled] BIOS Read/Write Protection [Disabled] PCI Express Configuration settings +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Azalia HD Audio

Azalia HD Audio Options.

USB Configuration

USB Configuration Settings.

PCI Express Configuration

PCI Express Configuration settings.

■ High Precision Timer

Enables or disables the high precision timer.

■ LAN1 Controller

Enable or Disable the LAN1.

■ LAN2 Controller

Enable or Disable the LAN2.

PCIE Wake

Enable or Disable PCIE to wake the system from S5.

Restore AC Power Loss

Select AC power state when power is re-applied after a power failure.

Serial IRQ Mode

Configure Serial IRQ Mode.

Global SMI Lock

Enable or Disable SMI lock.

■ BIOS Read/Write Protection

Enable or Disable BIOS SPI region read/write protect.

3.5.5 Azalia HD Audio

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Chipset Audio Configuration Audio Controller [Enabled] Azalia HDMI Codec [Enabled] HDMI Fort B [Enabled] HDMI Fort C [Enabled] Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally Enabled. Auto = Azalia will be enabled if present disabled otherwise. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

■ Audio Controller

Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled. Enabled = Azalia will be unconditionally Enabled. Auto = Azalia will be enabled if present disabled otherwise.

Azalia HDMI Codec

Enable/Disable internal HDMI codec for Azalia

HDMI Port B

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Chipset USB Configuration OS Selection [Windows 7] XHCI Mode [Auto] USB 2.0(EHCI) Support [Disabled] USB Per Port Control [Enabled] USB Port 1 [Disabled] USB Port 2 & 3 & 5 [Enabled] USB Port 4 [Enabled] OS Selection +: Select Screen ↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

OS Selection

OS Selection to choose Windows 8.X / Windows 7.

XHCI Mode

Mode of operation of xHCI controller.

USB 2.0(EHCI) Support

Control the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.

USB Per Port Control

Control each of the USB ports (1\~4). Enable: Enable USB per port; Disable: Use USB port X settings.

3.5.7 PCI Express Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Chipset PCI Express Configuration PCI Express Port 0 [Enabled] Speed [Auto] PCI Express Port 2 [Enabled] Speed [Auto] Enable or Disable the PCI Express Port 0 in the Chipset. +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

PCI Express Port0 / Port2

Enable or Disable the PCI Express Port0 / Port 2 in the Chipset.

Speed

Configure PCIe Port Speed.

3.6 Boot Settings

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Boot Configuration Setup Prompt Timeout 1 Bootup NumLock State [On] Quiet Boot [Disabled] Boot Option Priorities Boot Option #1 [UEFI: Built-in EFI ...] Boot Option #2 [Disabled] Boot Option #3 [Disabled] Hard Drive BBS Priorities Sets the system boot order +: Select Screen 1#: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Setup Prompt Timeout

Number of seconds that the firmware will wait before initiating the original default boot selection. A value of 0 indicates that the default boot selection is to be initiated immediately on boot. A value of 65535 (0xFFFF) indicates that firmware will wait for user input before booting. This means the default boot selection is not automatically started by the firmware.

■ Bootup NumLock State

Select the keyboard NumLock state.

Quiet Boot

Enables or disables Quiet Boot option.

■ Boot Option #1

Sets the system boot order.

3.7 Security Setup

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20 Administrator Password User Password Set Administrator Password +: Select Screen 1↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.

Select Security Setup from the ARK-2230 Setup main BIOS setup menu. All Security Setup options, such as password protection is described in this section. To access the sub menu for the following items, select the item and press :

■ Change Administrator / User Password

Select this option and press to access the sub menu, and then type in the password.

3.8 Save & Exit

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Main Advanced Chipset Security Boot Save & Exit
Save Changes and ExitDiscard Changes and ExitSave Changes and ResetDiscard Changes and ResetSave OptionsSave ChangesDiscard ChangesRestore DefaultsSave as User DefaultsRestore User DefaultsBoot OverrideUEFI: Built-in EFI ShellUEFI: USB 2.0 USB Flash Drive 0.00USB 2.0 USB Flash Drive 0.00Launch EFI Shell from filesystem deviceReset System with ME disable ModeMEUD000	Exit system setup after saving the changes.++: Select Screen1+: Select ItemEnter: Select+/-: Change Opt.F1: General HelpF2: Previous ValuesF3: Optimized DefaultsF4: Save & ExitESC: Exit

■ Save Changes and Exit

This item allows you to exit system setup after saving the changes.

■ Discard Changes and Exit

This item allows you to exit system setup without saving any changes.

■ Save Changes and Reset

This item allows you to reset the system after saving the changes.

■ Discard Changes and Reset

This item allows you to rest system setup without saving any changes.

■ Save Changes

This item allows you to save changes done so far to any of the options.

- Discard Changes

This item allows you to discard changes done so far to any of the options.

Restore Defaults

This item allows you to restore/load default values for all the options.

■ Save as User Defaults

This item allows you to save the changes done so far as user defaults.

This item allows you to restore the user defaults to all the options.

■ Boot Override

Boot device select can override your boot priority.

Appendix A

Watchdog Timer Sample Code

A.1 EC Watchdog Timer sample code

EC_Command_Port = 0x29Ah

EC_Data_Port = 0x299h

Write EC HW ram = 0x89

Watch dog event flag = 0x57

Watchdog reset delay time = 0x5E

Reset event = 0x04

Start WDT function = 0x28

.model small

.486p

.stack 256

.data

.code

org 100h

.STARTup

mov dx, EC_Command_Port

mov al,89h ; Write EC HW ram.

out dx, al

mov dx, EC_Command_Port

mov al, 5Fh ; Watchdog reset delay time low byte (5Eh is high byte) index.

out dx, al

mov dx, EC_Data_Port

mov al, 30h ;Set 3 seconds delay time.

out dx, al

mov dx, EC_Command_Port

mov al,89h ; Write EC HW ram.

out dx, al

mov dx, EC_Command_Port

mov al, 57h ; Watch dog event flag.

out dx, al

mov dx, EC_Data_Port

mov al, 04h ; Reset event.

out dx, al

mov dx, EC_Command_Port

mov al,28h ; start WDT function.

out dx, al

.exit

END

www.advantech.com

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2016
