STGR 1600 A2 - Electric grill SILVERCREST - Free user manual and instructions

Brand	SILVERCREST
Model	STGR 1600 A2
Product type	Electric grill
Power supply	220-240 V ~ 50 Hz, 1600 W
Dimensions (approx.)	50 × 30 × 15 cm (with stand)
Weight (approx.)	3.5 kg
Cooking surface	Steel grill with non-stick coating
Temperature control	Adjustable thermostat: positions 0 (off), 0-1 (low), 1-3 (medium), 3-M (max)
Main functions	Indoor/outdoor grilling (under cover), splash protection, water drip tray
Safety	Residual-current device (RCD ≤30 mA) required, insulated handles, emergency stop by removing plug
Cleaning	Grid and drip tray dishwasher safe; splash guard hand wash; stand with damp sponge
Included accessories	Stand (tray, 4 legs, screws), thermostat with cable, splash guard
Use	Indoors or covered outdoors, do not expose to rain
Warranty	3 years
Customer service (France)	Tel: [phone] (£0.10/min), e-mail: [e-mail]

Frequently Asked Questions - STGR 1600 A2 SILVERCREST

How to assemble the grill stand?

The stand consists of a storage tray, a top plate, 4 legs, 8 screws and 8 nuts. Attach the legs to the storage tray using the screws and nuts, then screw the top plate onto the legs. Press the pads under the legs.

Do I need to put water in the drip tray?

Yes, fill the tray up to the Max mark (approximately 1.3 liters of water). This prevents grease from burning and makes cleaning easier. Never use the grill without water in the tray.

Can I use the grill without the stand?

Yes, the grill can be placed directly on a flat, heat-resistant surface. Make sure the surface is not damaged by heat.

What is the preheating time?

Allow about 15 minutes for the grill to reach the set temperature. The indicator light turns off when the temperature is reached.

How to clean the cooking grid?

The grid and drip tray are dishwasher safe. The splash guard should be cleaned with warm soapy water. Dry the grid contacts thoroughly before next use.

Can I use metal utensils on the non-stick surface?

No, only use wooden or heat-resistant plastic utensils to avoid damaging the non-stick coating. Knives, forks or metal tongs should not be used.

Can the grill be used in the rain?

No, the grill must not be exposed to moisture. Use it only indoors or in a covered outdoor area. Never use it in rain or a humid environment.

What if the indicator light does not turn off?

If the thermostat is set to 'M', the light may remain on depending on the ambient temperature. The grill is ready after about 15 minutes. If the problem persists, check the socket and thermostat.

What foods can I grill?

The grill is suitable for all types of food: meat (beef, pork, poultry), fish, vegetables, skewers. For minced steaks, limit thickness to 2 cm and turn every 6 minutes (about 24 minutes total).

How to maintain the thermostat?

Always unplug the thermostat before cleaning. Wipe it with a slightly damp cloth and dry it thoroughly, especially the contacts. Never immerse it in water.

USER MANUAL STGR 1600 A2 SILVERCREST

GB Electric Barbecue
IE Operating instructions

Bruksanvisning

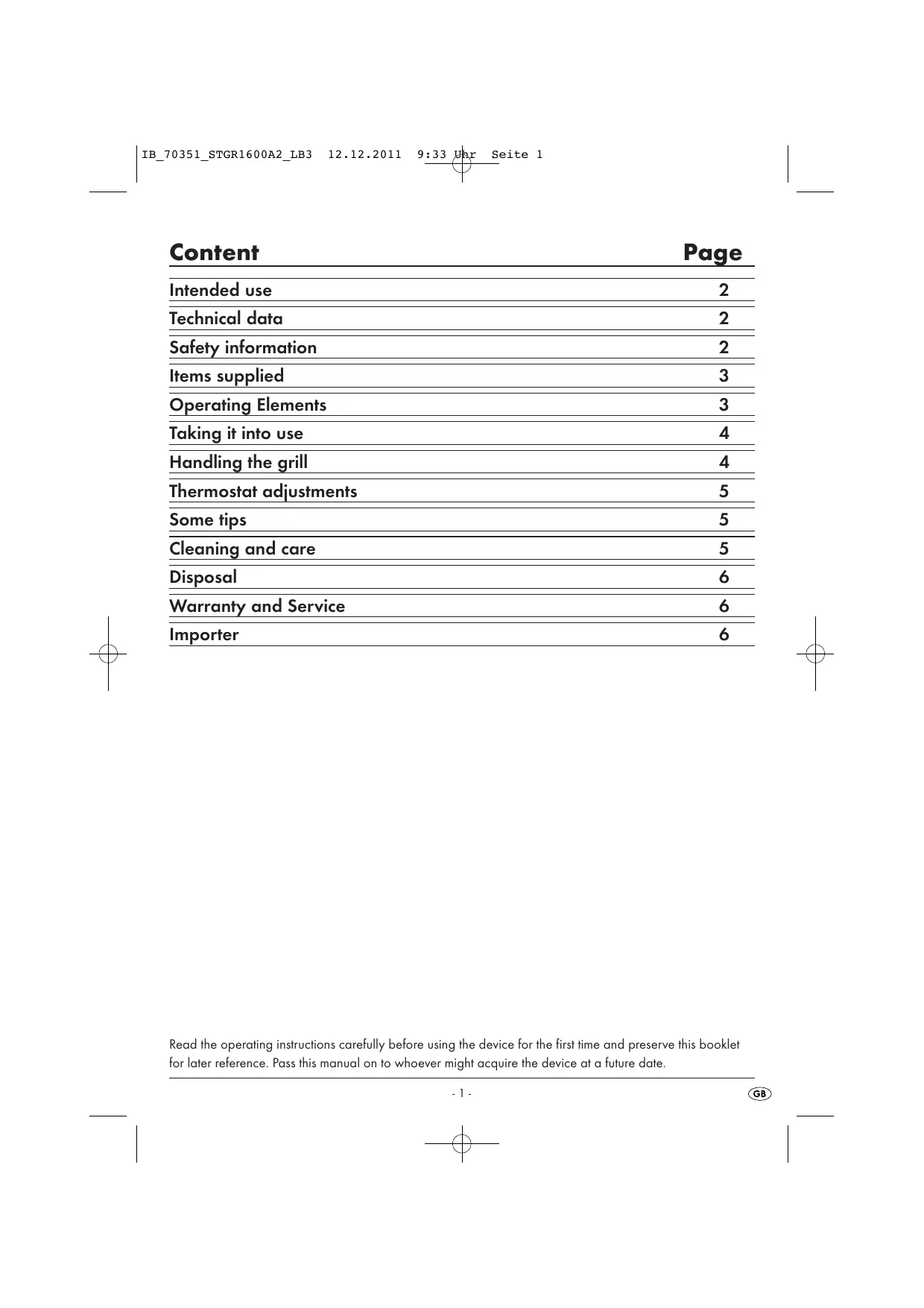

Content	Page
Intended use	2
Technical data	2
Safety information	2
Items supplied	3
Operating Elements	3
Taking it into use	4
Handling the grill	4
Thermostat adjustments	5
Some tips	5
Cleaning and care	5
Disposal	6
Warranty and Service	6
Importer	6

Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.

Intended use

This appliance is intended for grilling foodstuffs in indoor areas or in covered outdoor areas. It may not come into contact with moisture, such as rain.

Only the original attachments and accessories, as described herein, may be used. All other usages or modifications are regarded as being contrary to the operating instructions and carry with them a real risk of serious accidents.

The manufacturer declines to accept responsibility for damage(s) arising out of usage contrary to the instructions specified below. The appliance is not intended for commercial use.

Technical data

Mains voltage: 220 - 240 V ~ / 50Hz

Nominal power: 1600 W

Safety information

To avoid potentially fatal electric shocks:

• Arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.
• Before taking the appliance into use and after cleaning it, check to ensure that the plug contacts on the grill plate are dry.

• Protect the power cable against contact with heated appliance parts. NEVER use the appliance adjacent to open flames, a hot plate or a heated oven.

• Do not expose the appliance to rain and never use it in a humid or wet environment. Ensure that the power cable never becomes wet or moist during operation.

• The power cable must be regularly checked for signs of damage. Should the power cable be damaged, the appliance may no longer be used.
• The appliance must be supplied through a residual current device (RCD) with a rated tripping current not exceeding 30mA .
• The appliance must be plugged into a mains power socket fitted with a protective conductor.

To avoid the risks of fire or injuries:

• Never leave the appliance unsupervised during use.
• Do not place the appliance under cupboards or close to curtains and other easily inflammable materials and also keep such combustible materials away from the appliance.
• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
  Children should be supervised to ensure that they do not play with the appliance..
• Risk of burns! After use, allow the appliance to cool down completely before cleaning it.
• Risk of burns! Use only the heat-insulated handles. The upper surfaces of the appliance become very hot during use.

• Ensure that the appliance stands with a safe and secure positioning.

• If possible, place the appliance in the immediate vicinity of an electrical power socket. Ensure that the power plug is quickly reachable in case of danger, and also that there is no danger of tripping over the cable.

• To protect the non-stick coating, do not use metallic tools such as knives, forks etc. Should the non-stick coating become damaged, discontinue use of the appliance.
• Do not use an external timing switch or a separate remote control system to operate the appliance.
• Do not use charcoal or similar fuels to operate the appliance!
• NEVER operate the appliance without water in the catchment pan.

Tips for safety:

• In cases of danger, immediately remove the electrical plug from the socket.
• Never use the appliance for purposes other than those for which it was designed.
• Avoid heat accumulation. Do not lay aluminium foil or other grilling utensils on the grill bars. An accumulation of heat could destroy plastic parts as well as the non-stick coating.
• Use the Table grill exclusively with the supplied thermostat.
  Take the grill plate into use ONLY when it is lying on the catchment pan.
• Detach the power plug and cable from the appliance when it is not in use, when you detach parts or before cleaning the appliance.

Items supplied

Electric Grill

Splatter protection shield

Thermostat

Stand: Storage plate, top plate, 4 legs,

4 leg pads, 8 screws, 8 nuts

Operating Elements

1 Grill bars
Splatter protection shield
3 Connection for power cable with thermostat
Catchment pan
Heat-insulated handles
Heating element
7 Indicator lamp
3 Thermostat

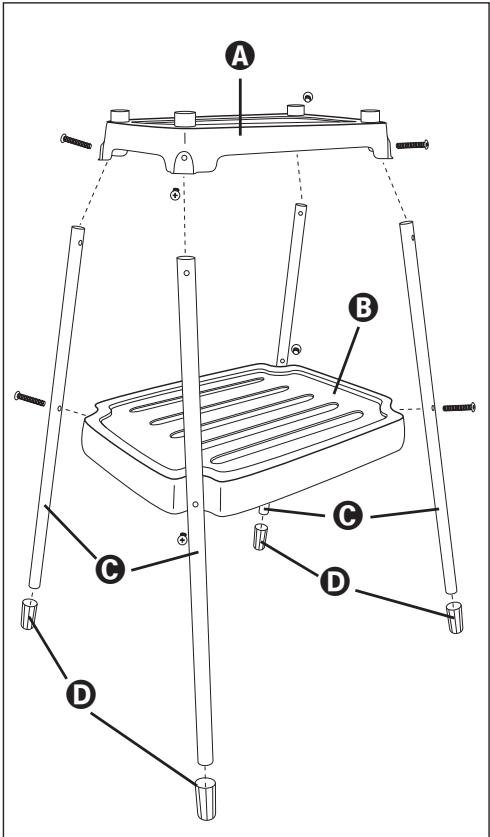

A Top plate
B Shelf plate
Supporting leg
Foot of supporting leg

1. Insert the leg pads D on the ends of the legs C where there is not a pre-drilled hole.
2. Assemble the legs onto the storage plate B. Insert screws through the pre-bored holes and secure them with nuts from the inner side of the storage plate B.
3. Place the top plate A on the legs C so that the legs C lie against the pre-bored holes of the top plate A from inside. The pre-bored holes in the top plate A as well as those in the legs C must lie opposite each other.
4. Insert screws through the holes and secure them with the nuts.

Taking it into use

Before taking the table grill into use for the first time clean it as described in the chapter "Cleaning and care".

Usage / grilling may only take place with the catchment pan 4 intended for the purpose.

The voltage of the power source must tally with the details given on the rating plate of the appliance.

Handling the grill

A good and even heat distribution is assured by the integrated heating element 6 under the grill 1.

Cleaning is made easier by the non-stick coating, which prevents the adhesion of grillables.

• Place the assembled stand on a level surface. Bear in mind that there needs to be a mains power socket in the close vicinity.

• Fill the catchment pan ④ up to the max. marking with water (ca. 1.3 ltrs). You can thus prevent the burning-on of fats falling from the grillables and make the subsequent cleaning of the appliance easier.

• Install the splatter protection shield ② on one side (the later rear side) of the grill bars ① should you be grilling greasy grillables. Additionally, it serves well as a windbreak. Insert the three tenons of the splatter protection shield ② into the holes provided on one side of the grill bars ①. To do this, the splatter protection shield ② must be lightly flexed.
• Place the grill bars ① on the catchment pan ④, such that they are firmly seated.
• Place the grill on the stand. The 4 mounting pegs on the top plate of the stand must encroach into the depressions on the underside of the grill. The grill must sit firmly on the stand.

1 Notice

You can also use the grill without the stand:

Place the grill on an absolutely level and even surface. The surface must be insensitive to heat.

Otherwise, it could cause damage to the surface.

• Check to ensure that the grill bars ① are correctly placed onto the catchment pan ④ (see Fig. ①).
• Insert the power cable with thermostat ⑧ into the appliance such that the control lamp ⑦ is facing upwards. Then insert the plug into a mains power socket.
• Adjust the thermostat ⑧ to the desired temperature setting. The grill starts to warm up and the indicator lamp ⑦ glows.
• As soon as the indicator lamp ① goes out the grill has reached the adjusted temperature and is ready for use.

i Notice

Subject to the ambient temperature, it can happen that the control lamp ① does not go out with the thermostat setting "M".

After a warm-up phase of approx. 15 minutes the grill is ready for use.

Risk of injuries

When the grill has warmed up, take hold of it ONLY with the heat-insulated handles ⑤.

Thermostat adjustments

Level 0

Grill switched off

Level 0-1

Grill switched on; low temperature

Level 1-3

Grill switched on; medium temperature (e.g. vegetables)

Level 3-M (Max)

switched on; high temperature (e.g. meats)

Some tips

• Tender meat is best suited for grilling.
• Pieces of meat marinated overnight, from for example the shoulder or neck, will be more tender.
• Avoid cutting grillables on the grilling area.
  Always use grilling tongs and not forks for turning the grillables. This will ensure it stays succulent on the inside and does not dry out.
• Due to its longer grilling time, avoid selecting thick-cut grillables.
• When cooking beef burgers/ meatballs on the grill, ensure that they are not thicker than 2~cm . We recommend that you grill the beef burgers/ meatballs for about 24 minutes at level 3: Turn the beef burgers/ meatballs every 6 minutes so that each side is cooked twice.

i Notice

The times given may vary, depending on the composition of the grillables and personal taste!

Cleaning and care

Attention!

Before starting to clean it, remove the plug from the power source and the thermostat 8 from the appliance. Risk of electrical shock!

Allow the appliance to cool down completely before cleaning it! Risk of Burns!

Attention!

Take steps to ensure that neither the power cable nor the plug come into contact with water or other fluids. Wipe the themostat ⑧ with a lightly moistened cloth. Dry everything well, especially the plug contacts, before the next usage. If you do not, there is the risk of receiving an electric shock!

• Remove coarse soiling with a moistened cloth.
• To protect the non-stick coating, do not use metallic tools such as knives, forks etc. Should the non-stick coating become damaged, discontinue use of the appliance.
• Only the grill bars ① and the catchment pan ④ are suitable for cleaning in a dishwasher. Clean the spatter protection shield ② in hot soapy water, then dry it off well afterwards. Clean the stand with a moist cloth.
• The plug contacts on the grill bars ① must be scrupulously dried after cleaning.
• The inside of the appliance must be completely dry before it is taken back into use.

Do not dispose of the appliance in your normal domestic waste. This appliance is subject to the European Guidelines 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 70351

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN70351

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
