SGW 180 B1 - Digital scale SILVERCREST - Free user manual and instructions

USER MANUAL SGW 180 B1 SILVERCREST

Two Silver Crest digital water heaters with floral patterns, displayed against a white orchid background (no text or symbols on the devices themselves)

GB Digital Glass Scale

IE Operating instructions

MAX 180/3946b SILVERCREST™

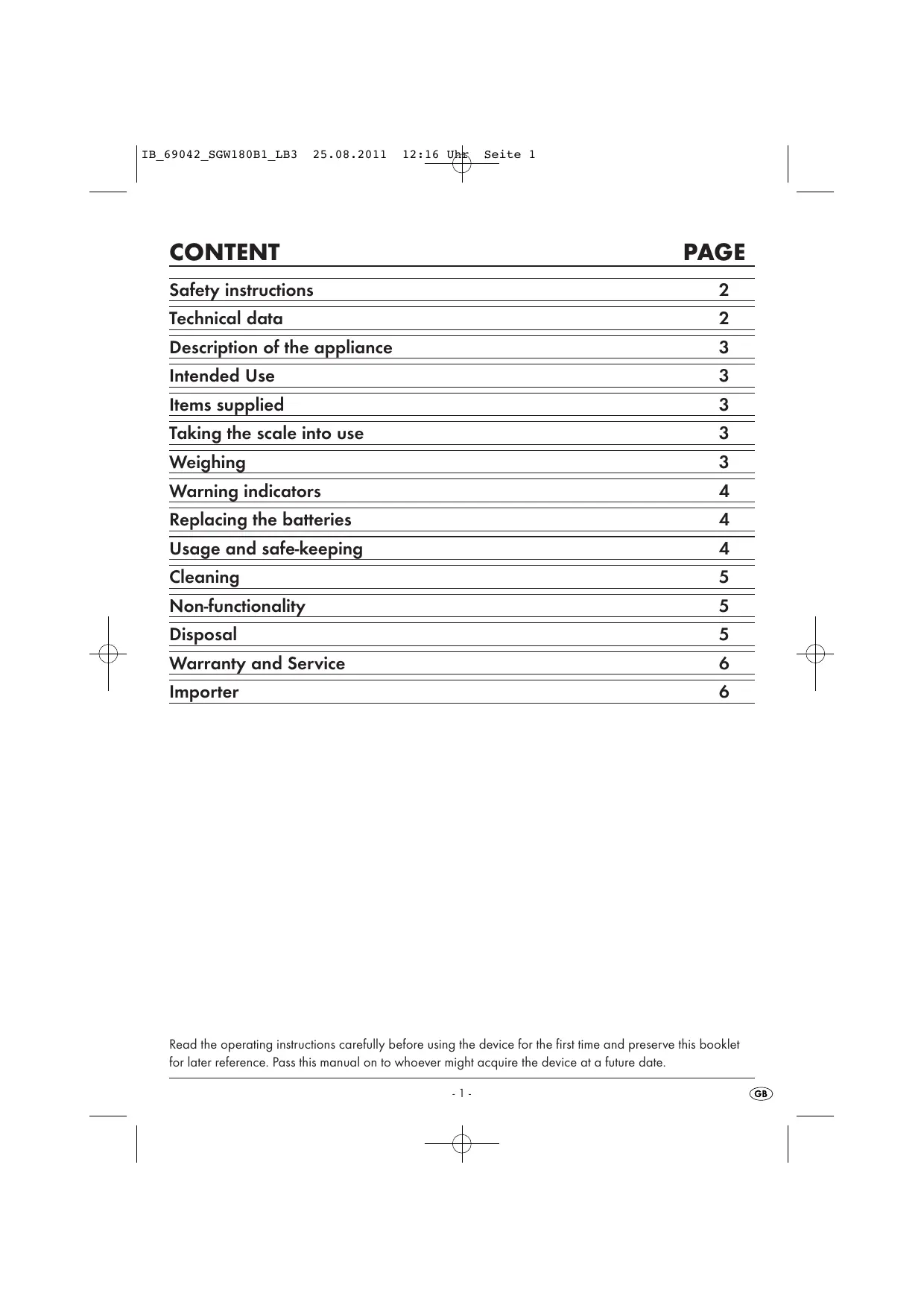

CONTENT

PAGE

Safety instructions 2

Technical data 2

Description of the appliance 3

Intended Use 3

Items supplied 3

Taking the scale into use 3

Weighing 3

Warning indicators 4

Replacing the batteries 4

Usage and safe-keeping 4

Cleaning 5

Non-functionality 5

Disposal 5

Warranty and Service 6

Importer 6

Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.

DIGITAL GLASS SCALE

Safety instructions

⚠️ Danger!

Ensure that liquids cannot permeate into the glass scale or into the display. There is a risk of electric shock! This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used. Children should be supervised to ensure that they do not play with the appliance.

⚠ Warning!

Do not place the glass scale in close vicinity to sources of heat. The scale and the display may only be operated at temperatures between 10^ and 40^ C. Higher or lower temperatures can lead to malfunctions or to permanent damage.

Never burden these scale with a weight of more than 180 kg / 396 lb!

This could irreparably damage the scale.

⚠ Information regarding interaction with batteries

This appliance utilises a battery. Regarding your interaction with batteries, please observe the following:

Risk of explosion!

Do not throw batteries into a fire. Do not recharge the batteries.

• Never open batteries, never solder or weld batteries. The risk of explosions and injuries exists!
• Regularly check the condition of the batteries. Leaking batteries can cause damage to the appliance.
• Remove the battery if you do not intend to use the appliance over an extended period.
• In the event of the batteries leaking acids, wear protective gloves. Clean the battery compartment and the battery contacts with a dry cloth.
• Keep batteries away from children. Children can put batteries into their mouths and swallow them. If a battery is swallowed, medical assistance must be sought IMMEDIATELY.

① Notice:

Avoid electrostatic charging and discharging.

These can cause erroneous displays and/or the sudden deactivation of the scale.

For damage caused by...

• opening of the scale housing,
  • repairs attempted by non-qualified personnel and
• improper usage of the scale

... no liability/warranty will be accepted by the manufacturer! .

Technical data

Maximal weighing

capacity: 180 kg / 396 lb

Tolerance range: +/- (1 % + 0.1 kg/0.2 lb) (at 30 kg - 180 kg)

Minimal measurable

weight: 3 kg / 6.6 lb

Selectable

measurement units: kg /lb

Division: 0.1 kg/0.2 lb Operating temperature: 10^ C - 40^ C

Display for weak battery Overload indicator Error indicator Battery operation:

1 x CR2032 / 3 V (Lithium Batteries)

Description of the appliance

① Display
② Selector switch (kg/lb)
③ Safety glass
4 Battery compartment

Intended Use

This digital glass scale is intended exclusively for use

• as a personal weighing scale
• in a domestic environment.

Items supplied

Digital Glass Scale

1 x CR2032 / 3V lithium battery

Operating instructions

Before using the appliance for the first time, check to ensure that the items are complete and undamaged. Remove all packaging materials and any protectives films that may be on the appliance.

Taking the scale into use

1. Open the battery compartment 4 by sliding the cover in the direction of the arrow and then removing it. Remove the insulating tape from the battery compartment 4 and insert the battery as per its polarity into the battery compartment 4.

2. Slide the cover back on to the battery compartment ④ until it firmly engages.

3. Set the desired unit of weight (kg or lb) by pressing the selector switch ②.

- Place the scale on a flat and firm surface. Ensure that neither the floor at the location of the scale nor the upper surface of the scale are wet, otherwise there is a risk of slipping!

① Notice:

This glass scale contains sensitive electronic components and it should therefore NOT be located:

• close to sources of heat
  • in environments with extreme air humidity.

Weighing

⚠️ Important!

NEVER burden the scale one-sidedly. ALWAYS step onto the scale in the middle and with both feet.

Otherwise, the scale could tip and become irreparably damaged. Additionally, there is the risk of falling over!

⚠️ Important!

Never use the scale if it is wet or moist. Never step onto the scale with wet or moist feet. There would be a serious risk of slipping and personal injury!

⚠️ Important!

NEVER jump onto the glass scale, this could irreparably damage it.

1. Tap with your foot in the middle of the glass scales until the indicator "8888" appears in the display ①.
2. As soon as the indicator changes and "0.0" appears in the display ①, step onto the glass scale with both feet. Stand as still as possible and without displacing your weight.
3. During the weighing process, the indicated weight increases until your personal weight is shown.
4. When your personal weight has been determined, the result blinks twice in the display ①.

Warning indicators

0-Ld

Should your weight exceed the maximum weighing capacity of 180 kg / 396 lb, "0 - Ld" is shown in the display ①. You should IMMEDIATELY step down from the scale, otherwise it could be damaged.

L0

When "LO" appears in the display ① you must replace the batteries.

Err

Should the display ① indicate "Err", the scale is not able to measure your weight. In this case, step down from the scale, wait a few seconds and then try again. Take note that you need to both stand still and not interrupt the weighing procedure.

Replacing the batteries

1. Open the battery compartment ④ by sliding the cover in the direction of the arrow and then removing it.
2. Remove the old battery from the battery compartment ④.
3. Insert a new battery of the type CR 2032 into the battery compartment ④. Pay heed to the correct polarity. This is marked in the battery compartment ④.
4. Slide the cover back on to the battery compartment ④ until it firmly engages.

Usage and safe-keeping

• Take note that the weighing results from different glass scales can vary slightly from each other.
• Avoid unnecessary battery discharge.

Accordingly, do not place objects on the glass scale when it is not being used.

Remove the battery if you do not intend to use the scale for an extended period.

• Keep the glass scale at a clean and dry location.
• Avoid electrostatic charging.
• Your glass scale is a sensitive electronic appliance. As such, it can occasionally be disturbed by other high-frequency devices that are being operated in the immediate vicinity (e.g. mobile telephones, CB radio stations, radio remote controls and microwave ovens).

Should irregular or inaccurate details be indicated in the display ①, either remove the glass scale from the source of the disturbance or switch the source of the disturbance off whilst you are using the appliance.

Cleaning

Clean your glass scale exclusively with a neutral detergent and a soft cloth.

Non-functionality

⚠ Warning of potential appliance damage:

Do not attempt to dismantle the appliance or to carry out repairs yourself. You could potentially damage the sensitive electronic components.

Repairs to your appliance may only be carried out by qualified service personnel!

No liability will be accepted for damage resulting from improper use and/or the opening of the appliance!

In the event of faulty operation or if the display is incorrect, please check the following conditions:

• Has the battery been inserted into the battery compartment ④ with the correct polarity?
• Is the selector switch ② (kg/lb) set to the correct position?

Perform a reset on the scale:

• For this, remove the old battery from the battery compartment 4.
• Wait a few seconds, then insert the battery back into the battery compartment 4.

If these measures do not correct the problem, please contact the appropriate service partner for your country.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Battery disposal!

Batteries may not be disposed of with normal domestic waste. All consumers are statutorily obliged to dispose of batteries at the collection point in their community/district or with the original supplier. The purpose of this obligation is to ensure that batteries can be disposed of in an environmentally friendly manner. Only dispose of batteries when they are fully discharged.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 69042

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 69042

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com
